LED A19 Omni-directional @ a Glance

LED A19 Omni-directional @ a Glance. Where to Use Any SGL indoor or outdoor fixture with medium base socket currently qualified for 40W or 60W incandescent Exception very small completely enclosed jelly jar sized fixtures (4”w x 6”h or smaller)

kennan
Download Presentation

LED A19 Omni-directional @ a Glance

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

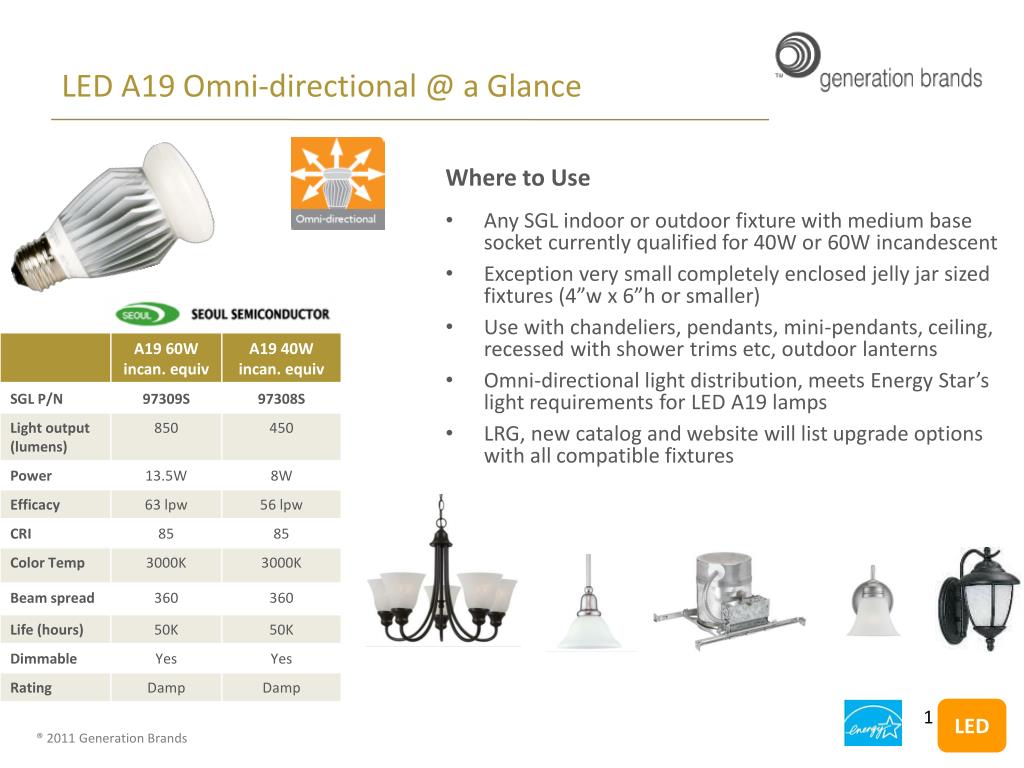

  1. LED A19 Omni-directional @ a Glance Where to Use • Any SGL indoor or outdoor fixture with medium base socket currently qualified for 40W or 60W incandescent • Exception very small completely enclosed jelly jar sized fixtures (4”w x 6”h or smaller) • Use with chandeliers, pendants, mini-pendants, ceiling, recessed with shower trims etc, outdoor lanterns • Omni-directional light distribution, meets Energy Star’s light requirements for LED A19 lamps • LRG, new catalog and website will list upgrade options with all compatible fixtures 1 LED

  2. LED A19 Omni-directional @ a Glance 2 LED

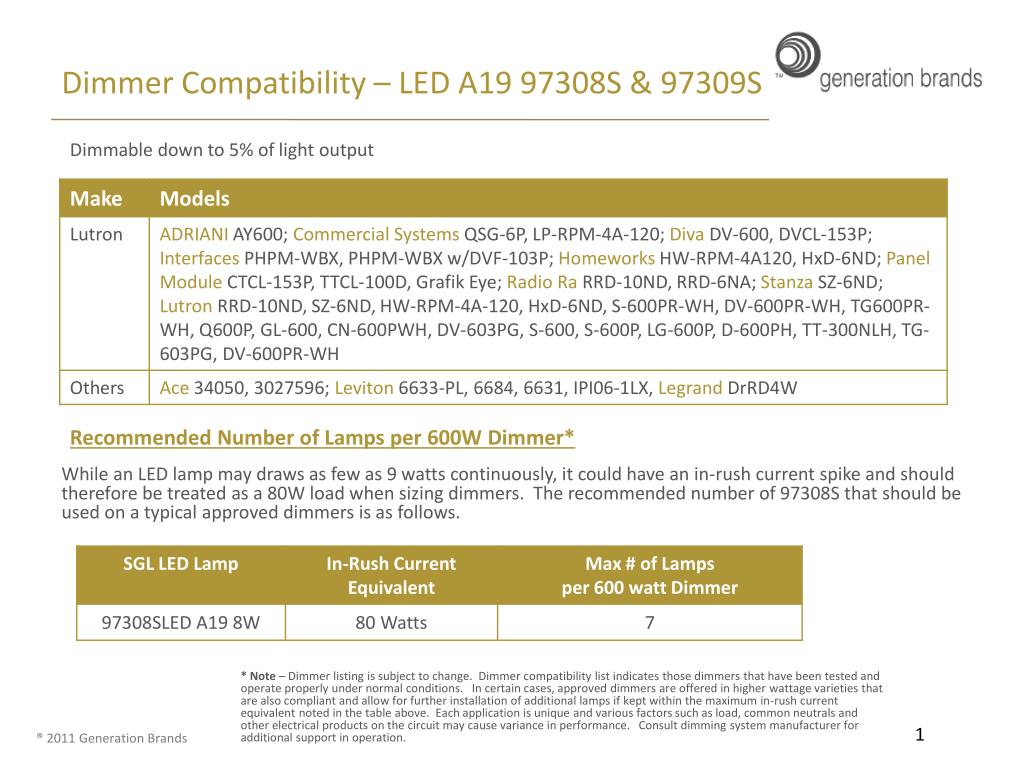

  3. Dimmer Compatibility – LED A19 97308S & 97309S Dimmable down to 5% of light output Recommended Number of Lamps per 600W Dimmer* While an LED lamp may draws as few as 9 watts continuously, it could have an in-rush current spike and should therefore be treated as a 80W load when sizing dimmers. The recommended number of 97308S that should be used on a typical approved dimmers is as follows. * Note – Dimmer listing is subject to change. Dimmer compatibility list indicates those dimmers that have been tested and operate properly under normal conditions. In certain cases, approved dimmers are offered in higher wattage varieties that are also compliant and allow for further installation of additional lamps if kept within the maximum in-rush current equivalent noted in the table above. Each application is unique and various factors such as load, common neutrals and other electrical products on the circuit may cause variance in performance. Consult dimming system manufacturer for additional support in operation. 1
