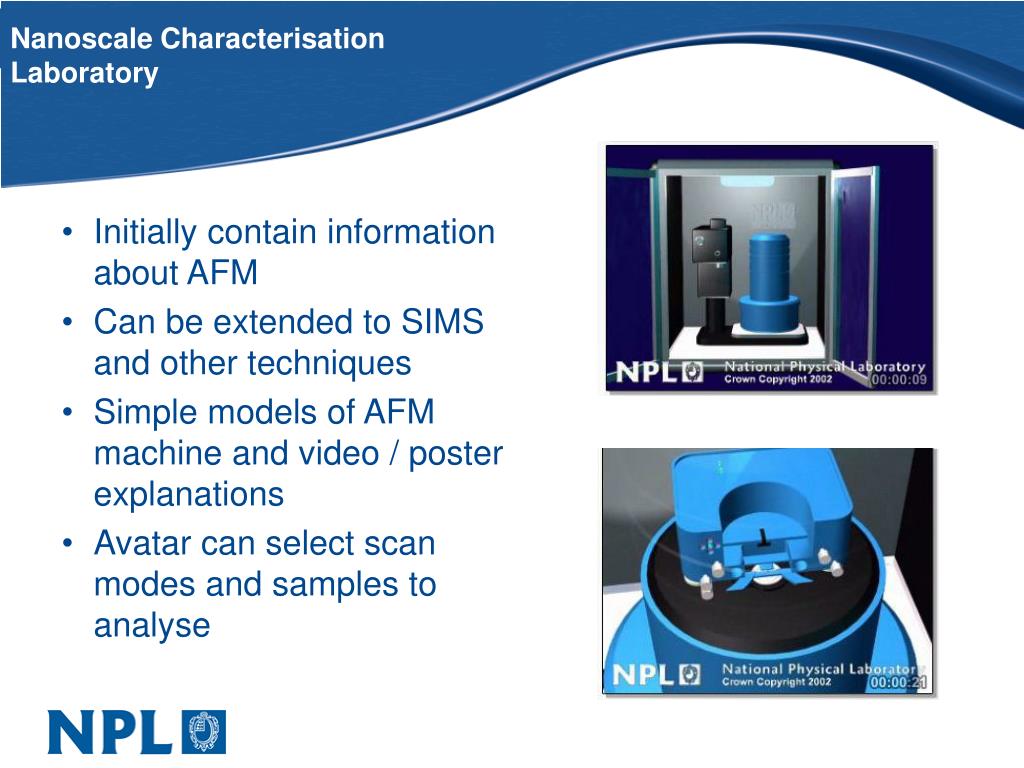

  1. Nanoscale Characterisation Laboratory • Initially contain information about AFM • Can be extended to SIMS and other techniques • Simple models of AFM machine and video / poster explanations • Avatar can select scan modes and samples to analyse

  2. Nanoscale Characterisation Laboratory – AFM Explanation Avatar can select scan mode: 1. constant height2. constant force3. force modulus Simple explanation of AFM & scan modes Results screen

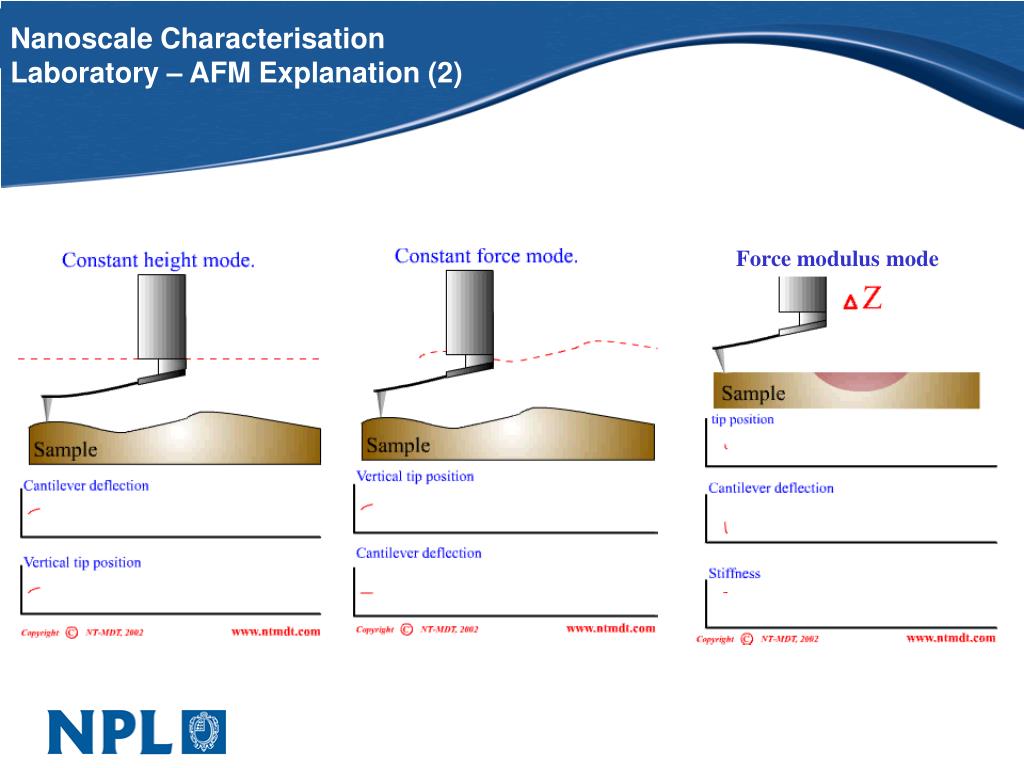

  3. Nanoscale Characterisation Laboratory – AFM Explanation (2) Force modulus mode

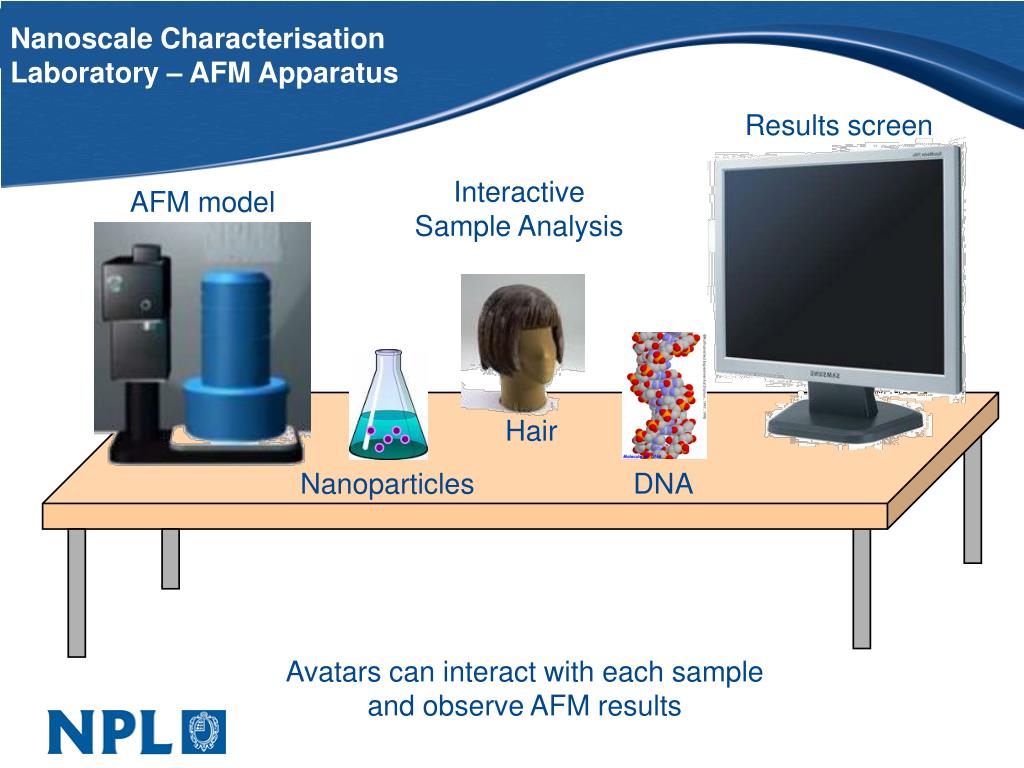

  4. Nanoscale Characterisation Laboratory – AFM Apparatus Results screen InteractiveSample Analysis AFM model Hair Nanoparticles DNA Avatars can interact with each sample and observe AFM results

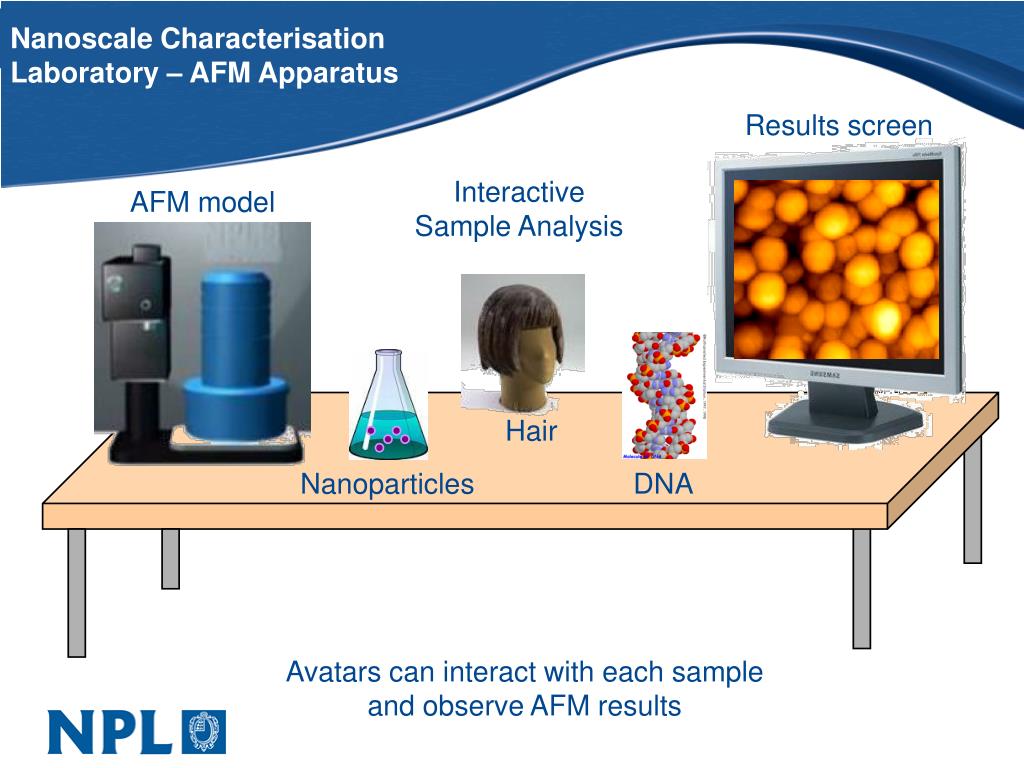

  5. Nanoscale Characterisation Laboratory – AFM Apparatus Results screen InteractiveSample Analysis AFM model Hair Nanoparticles DNA Avatars can interact with each sample and observe AFM results

  6. Nanoscale Characterisation Laboratory – SIMS • The same can be extended to SIMS • Simple SIMS explanation • SIMS exhibit: ion bombardment on surface • Avatars can select primary ion beam (Bi or C60) • Avatars can select samples to be analysed by SIMS, giving spectra and images
