Nutrient Cycles

Nutrient Cycles. NITROGEN MOLECULES TO KNOW. N 2 - Nitrogen Gas NO 2 – Nitrite NO3 – Nitrate NH4 – Ammonia. Nitrogen Cycling. Nitrogen Fixation aka nitrification. To be useful to plant organisms nitrogen must be supplied in the form of the Nitrate ion NO 3 –

karli
Download Presentation

Nutrient Cycles

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Nutrient Cycles

  2. NITROGEN MOLECULES TO KNOW N2 - Nitrogen Gas NO2 – Nitrite NO3 – Nitrate NH4 – Ammonia

  3. Nitrogen Cycling

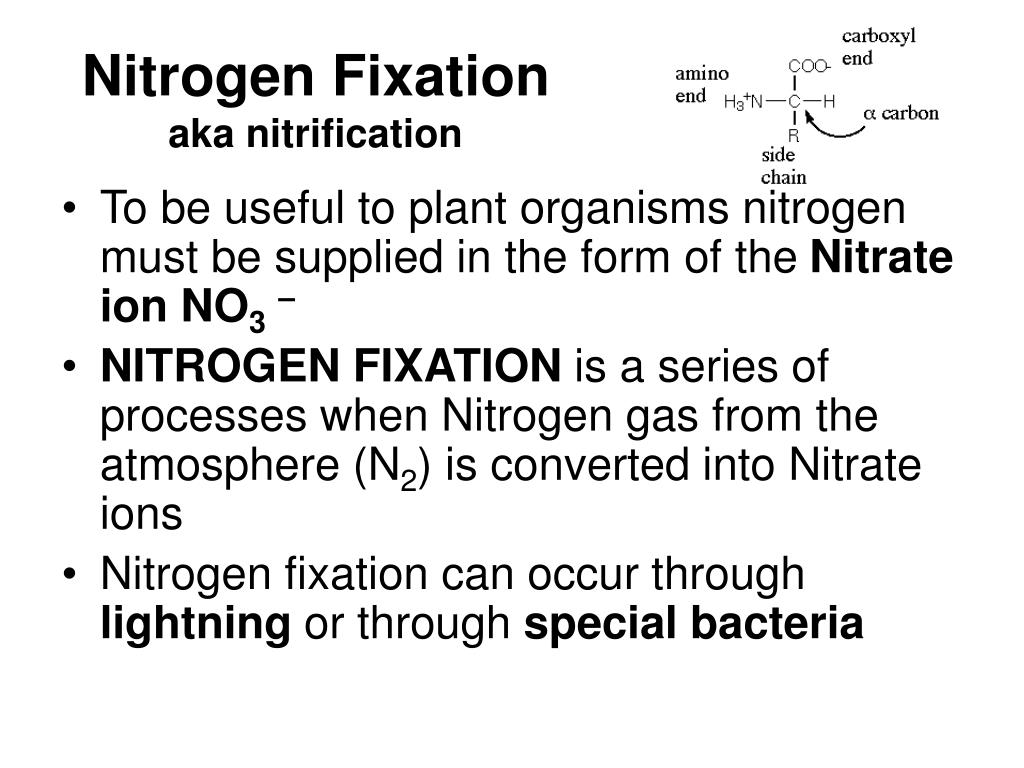

  4. Nitrogen Fixationaka nitrification • To be useful to plant organisms nitrogen must be supplied in the form of the Nitrate ion NO3– • NITROGEN FIXATION is a series of processes when Nitrogen gas from the atmosphere (N2) is converted into Nitrate ions • Nitrogen fixation can occur through lightning or through special bacteria

  5. Fixation by Lightning • Energy in lightning causes Nitrogen gas to combine with Oxygen gas to for Nitrates • The Nitrates dissolve in rain and move into plants through their roots • Plants use these nitrates to make amino acids (proteins)

  6. Nitrogen Fixation by Bacteria • Special bacteria are responsible for creating most of the Nitrates plants need. • Bacteria nodules form on the roots of legumes (beans, peas, alfalfa) to supply them with usable nitrogen • Excess nitrates move into the soil to help other plants

  7. Decomposing Nitrogen • When organisms die decomposers break Nitrogen containing molecules into simpler chemicals like ammonia (NH3) AMMONIFICATION • Some bacteria convert Ammonia into nitrites (Nitrification) Some bacteria can turn nitrites into nitrates (Nitrification) • With the right bacteria decaying matter like manure can be turned into usable nitrates

  8. Denitrification • When there is low oxygen in the soil bacteria can remove oxygen turning nitrates (NO3) back into nitrites (NO2) and then back into Nitrogen Gas (N2) • Denitrification usually occurs in bogs leaving the soil low in usable nitrogen.

  9. Phosphorous Cycle • Phosphorous is a key element in ATP, DNA and the Calcium Phosphate in bones. • Phosphorous is cycled between living organisms by decomposers • Phosphorous is also found in Bedrock in Phosphate ions. Phosphates can dissolve out of rocks and can be absorbed by plants

  10. Human Effects on Cycling • Fertilizers are materials used to restore nutrients like nitrogen and phosphorous that have been removed from the soil. • Runoff from fields carries extra nutrients into streams. This can cause Eutrophication • Eutrophication is the over concentration of nutrients in an ecosystem • Eutrophication can also be caused by municipal or industrial sewage deposit.

  11. Eutrophication (to much of a good thing) • Causes overgrowth of algae (Algal Bloom) which may block out sunlight • Nitrates in water are dangerous for animals that have hemoglobin in their blood • Increased numbers of decomposing algae and animals reduces the amount of oxygen in the water causing even more species death

  12. Sea of Azov In Ukraine

  13. Caspian Sea
