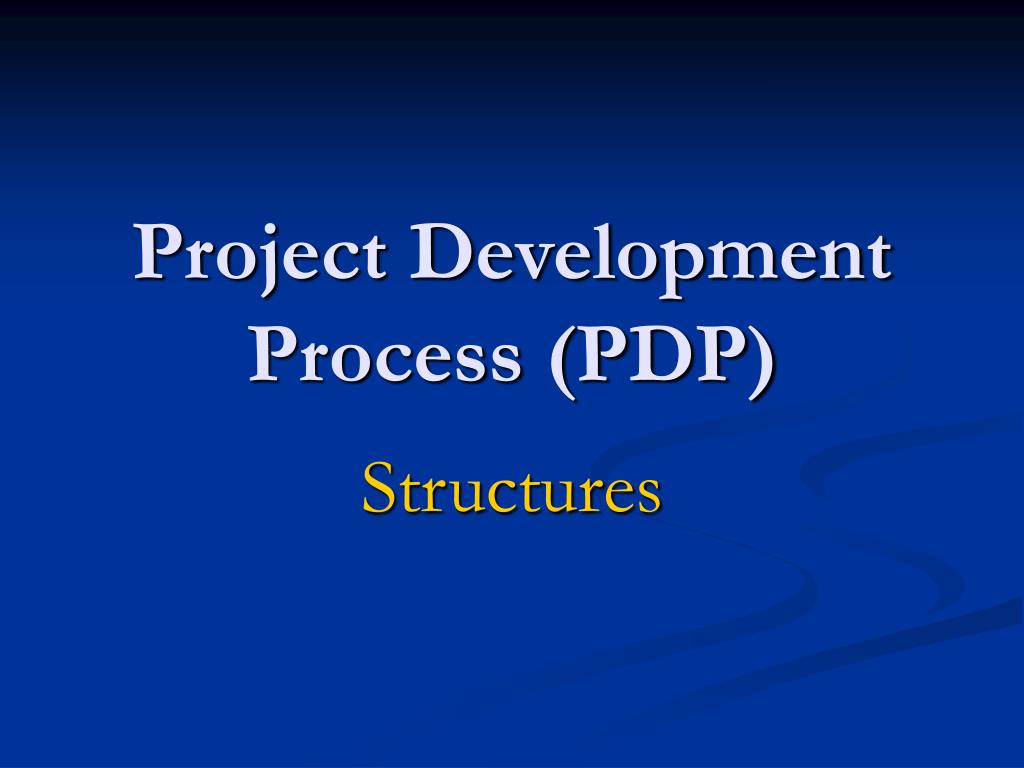

  1. Project Development Process (PDP) Structures

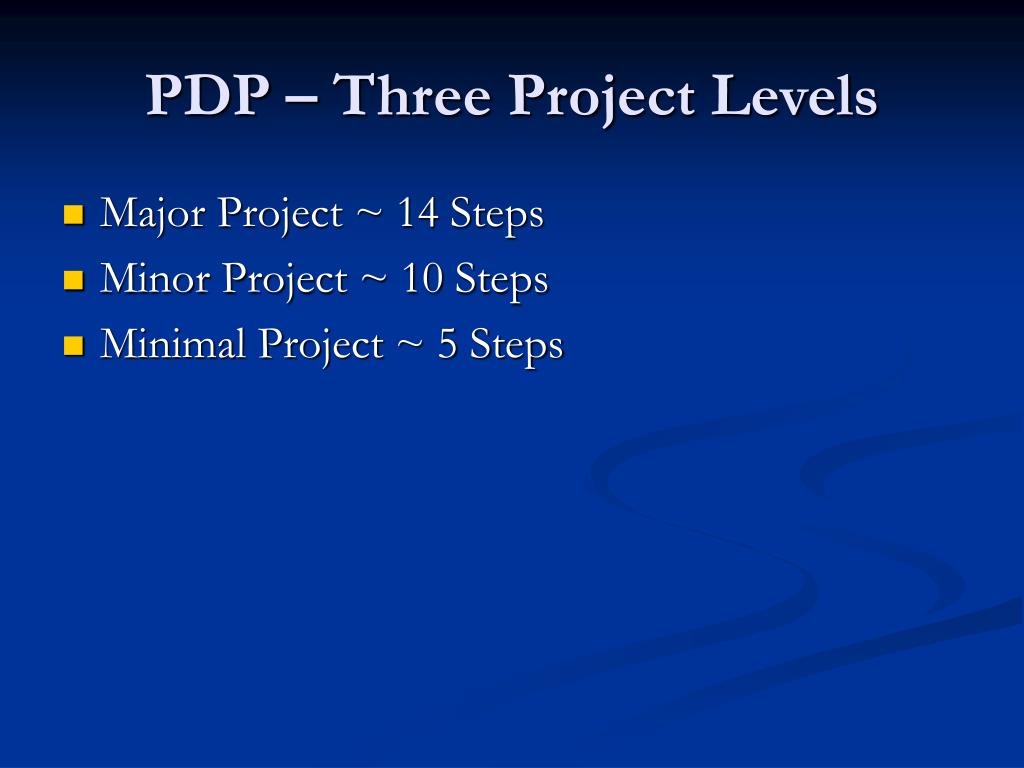

  2. PDP – Three Project Levels • Major Project ~ 14 Steps • Minor Project ~ 10 Steps • Minimal Project ~ 5 Steps

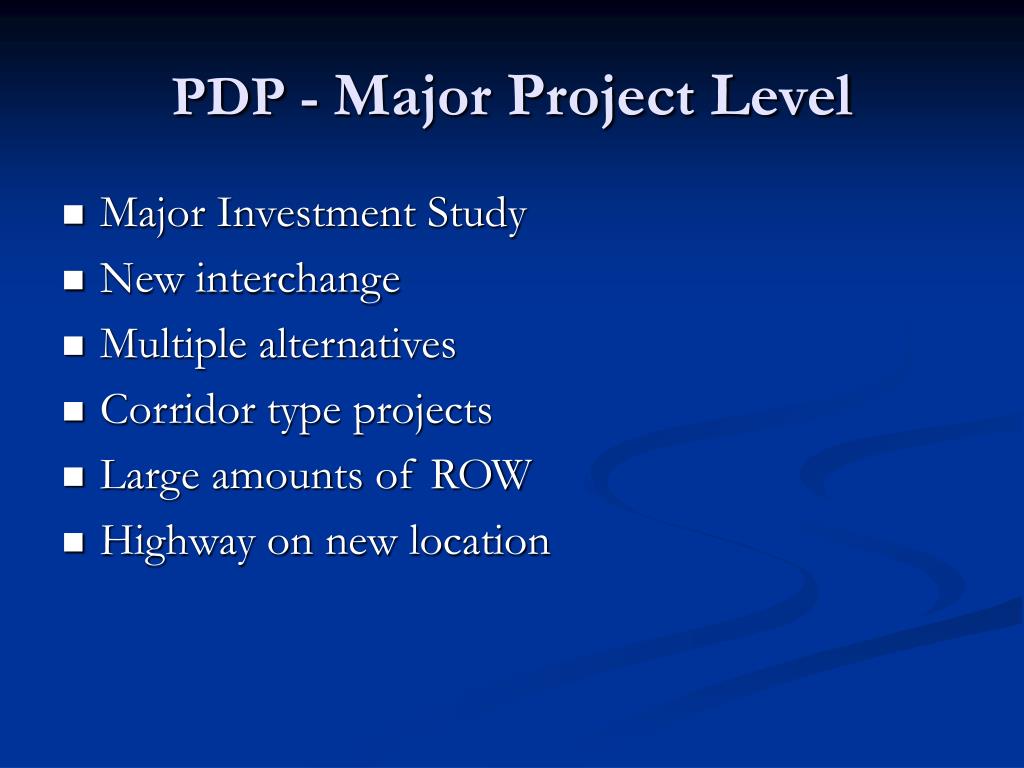

  3. PDP - Major Project Level • Major Investment Study • New interchange • Multiple alternatives • Corridor type projects • Large amounts of ROW • Highway on new location

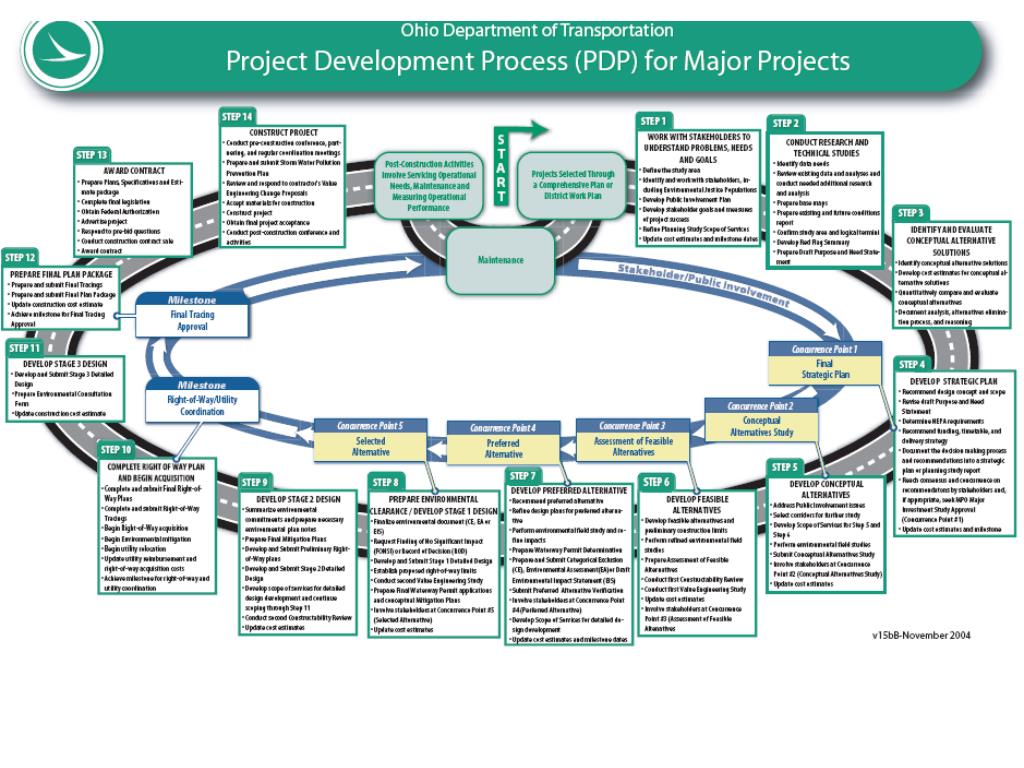

  4. 0

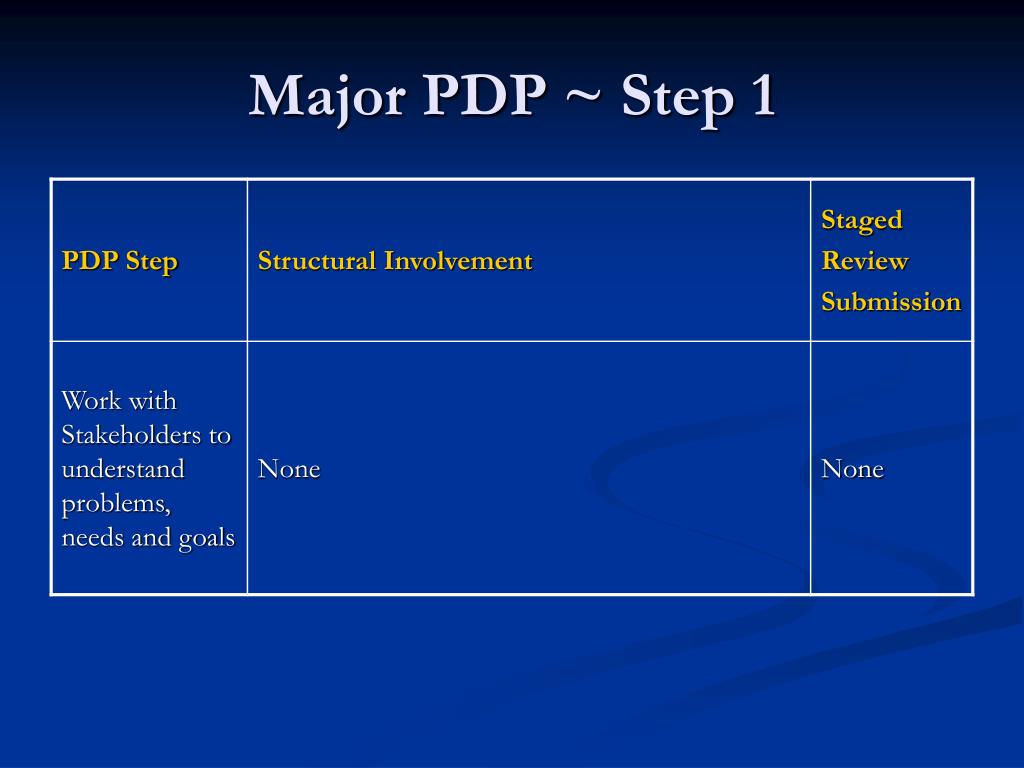

  5. Major PDP ~ Step 1

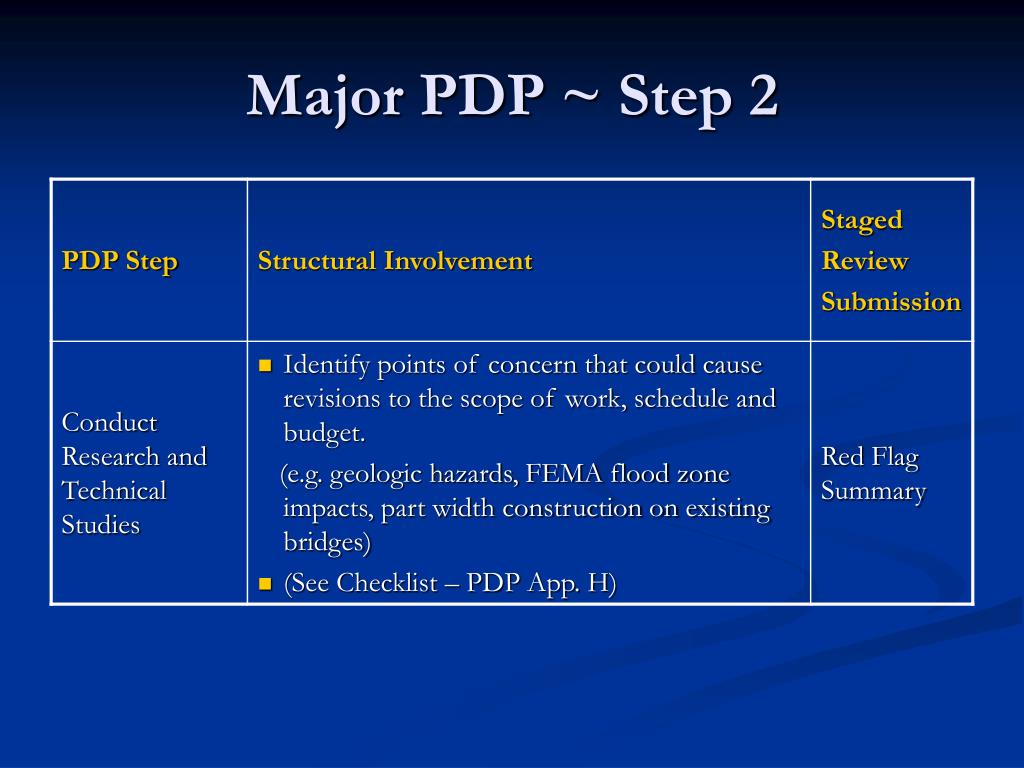

  6. Major PDP ~ Step 2

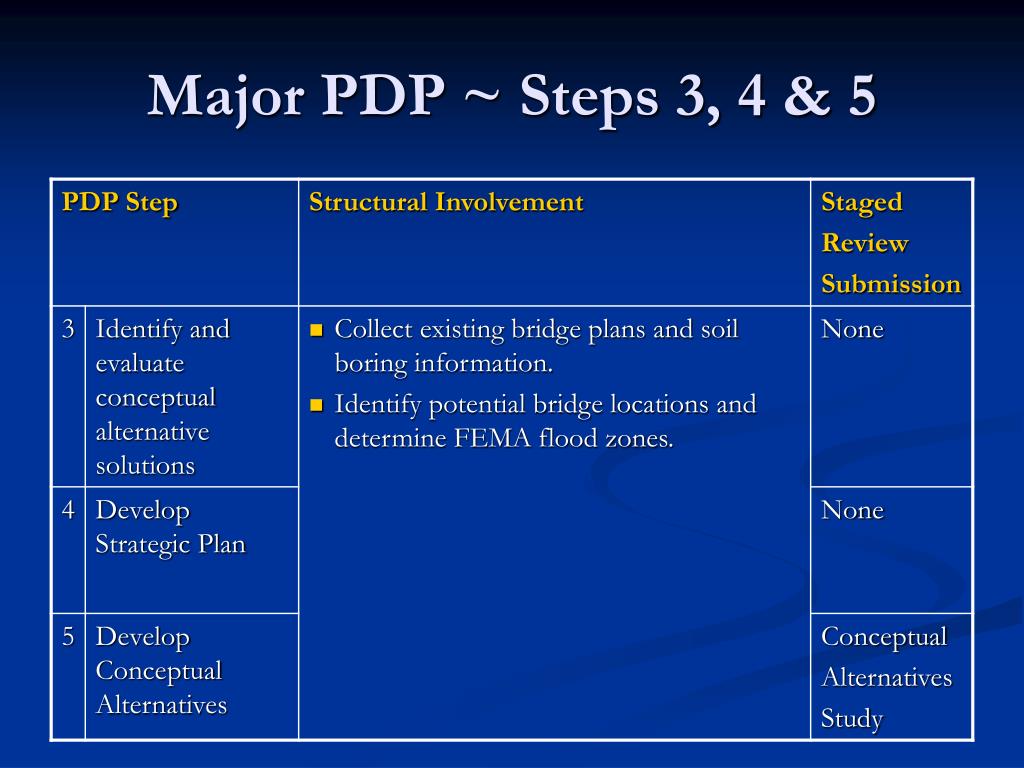

  7. Major PDP ~ Steps 3, 4 & 5

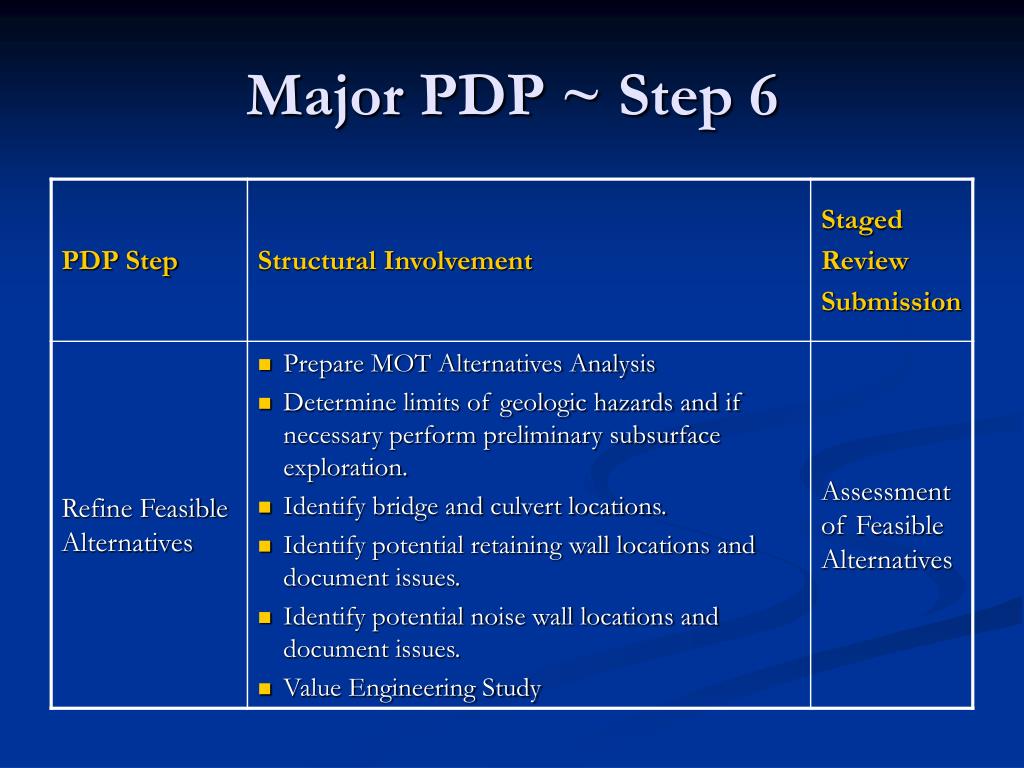

  8. Major PDP ~ Step 6

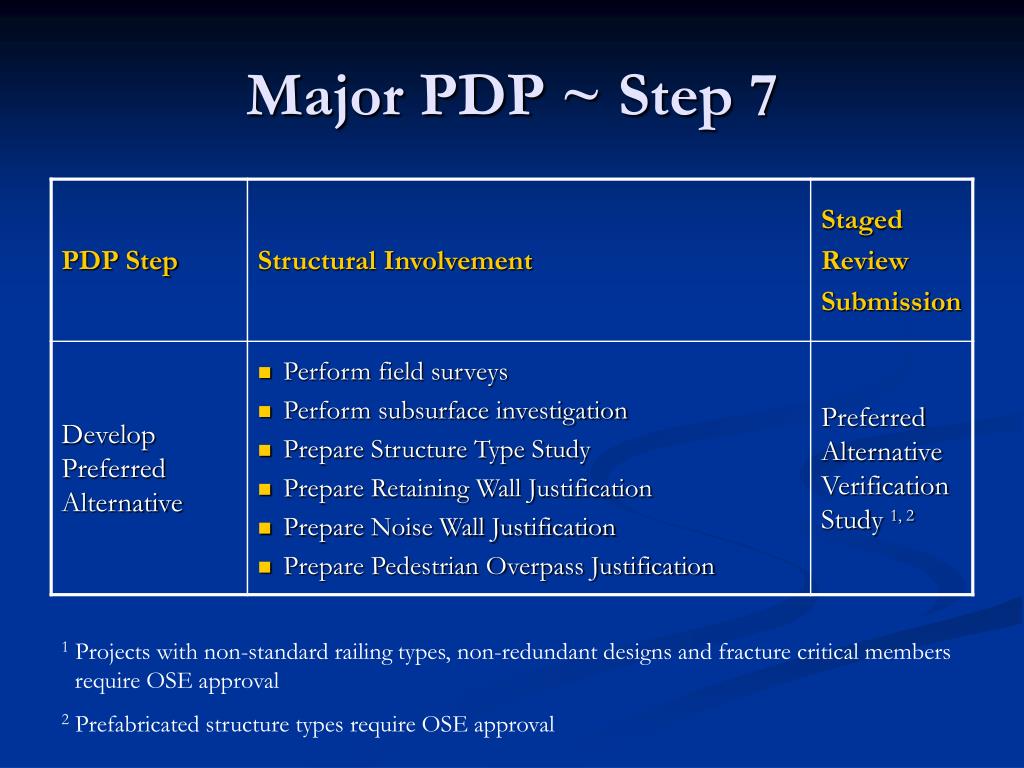

  9. Major PDP ~ Step 7 1 Projects with non-standard railing types, non-redundant designs and fracture critical members require OSE approval 2 Prefabricated structure types require OSE approval

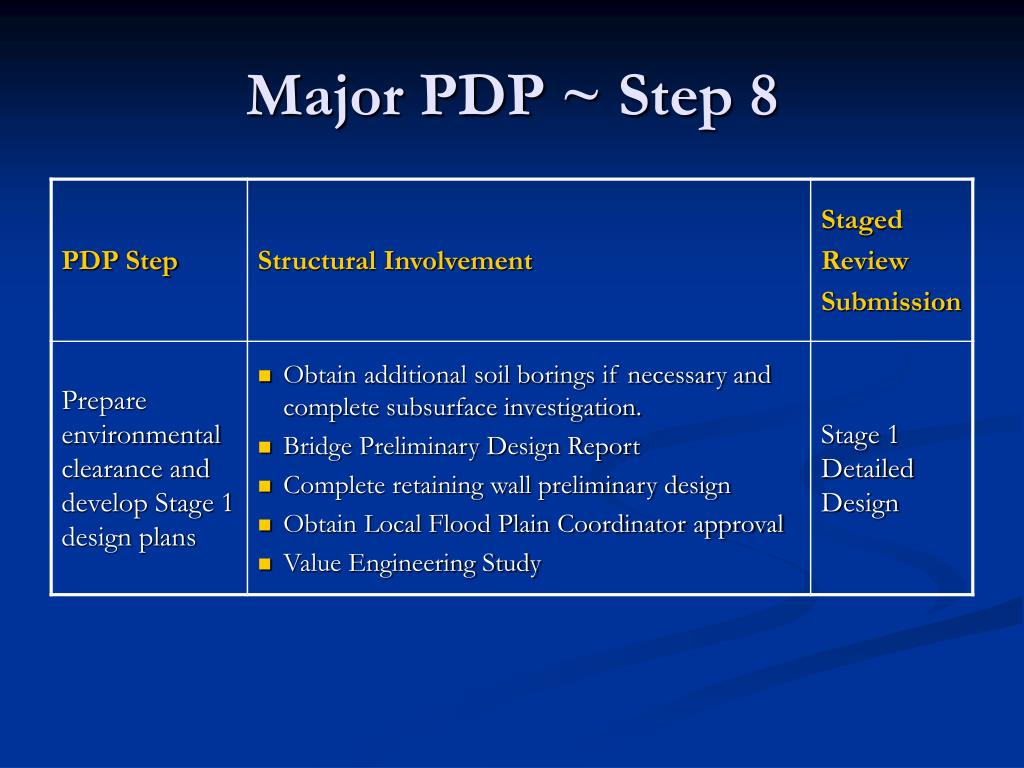

  10. Major PDP ~ Step 8

  11. Major PDP ~ Step 9 3Projects with non-redundant designs & fracture critical members require OSE approval 4Projects with special designs for prefabricated structure types require OSE approval

  12. Major PDP ~ Step 10

  13. Major PDP ~ Step 11

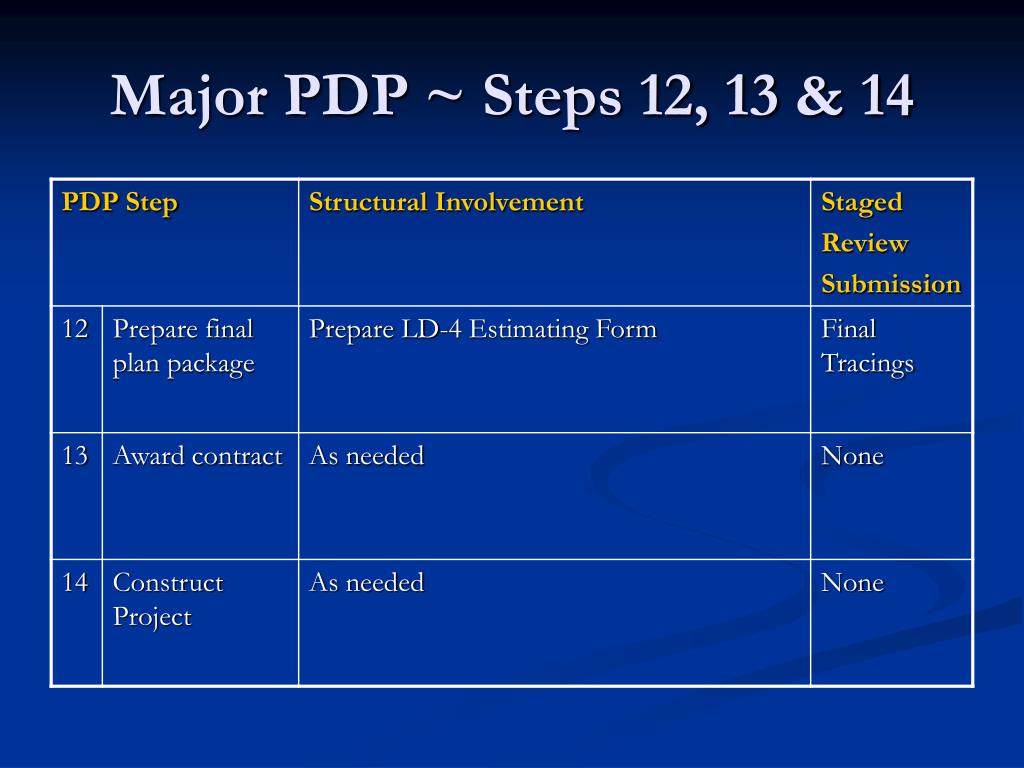

  14. Major PDP ~ Steps 12, 13 & 14

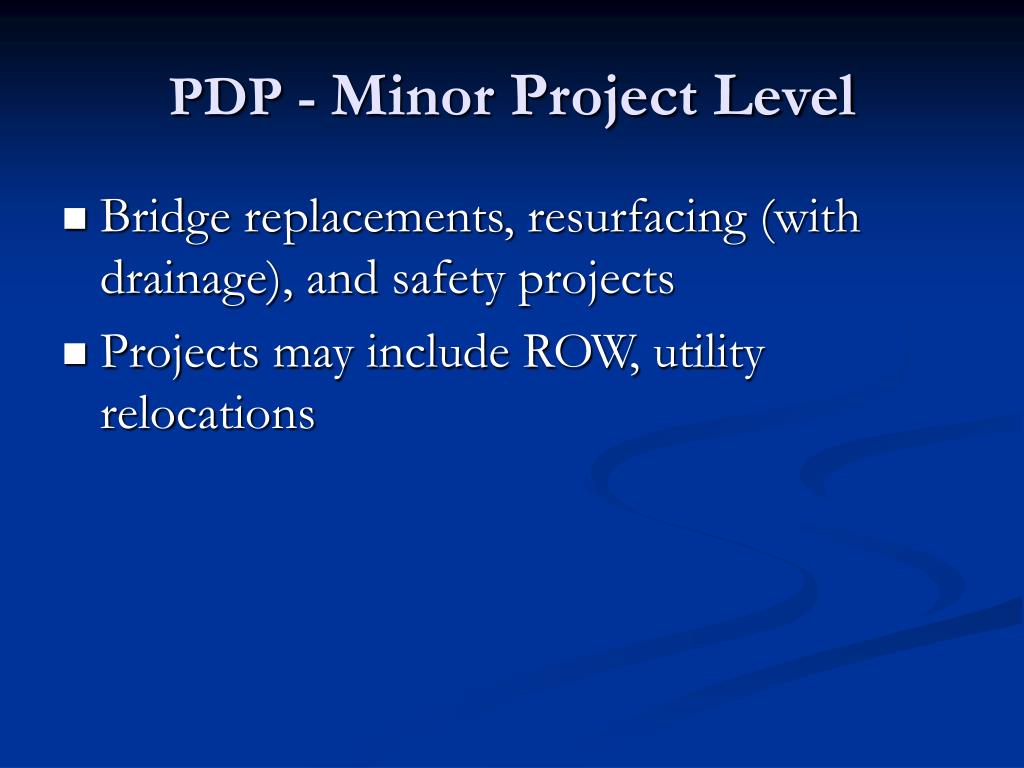

  15. PDP - Minor Project Level • Bridge replacements, resurfacing (with drainage), and safety projects • Projects may include ROW, utility relocations

  16. Minor PDP ~ Step 1

  17. Minor PDP ~ Step 2

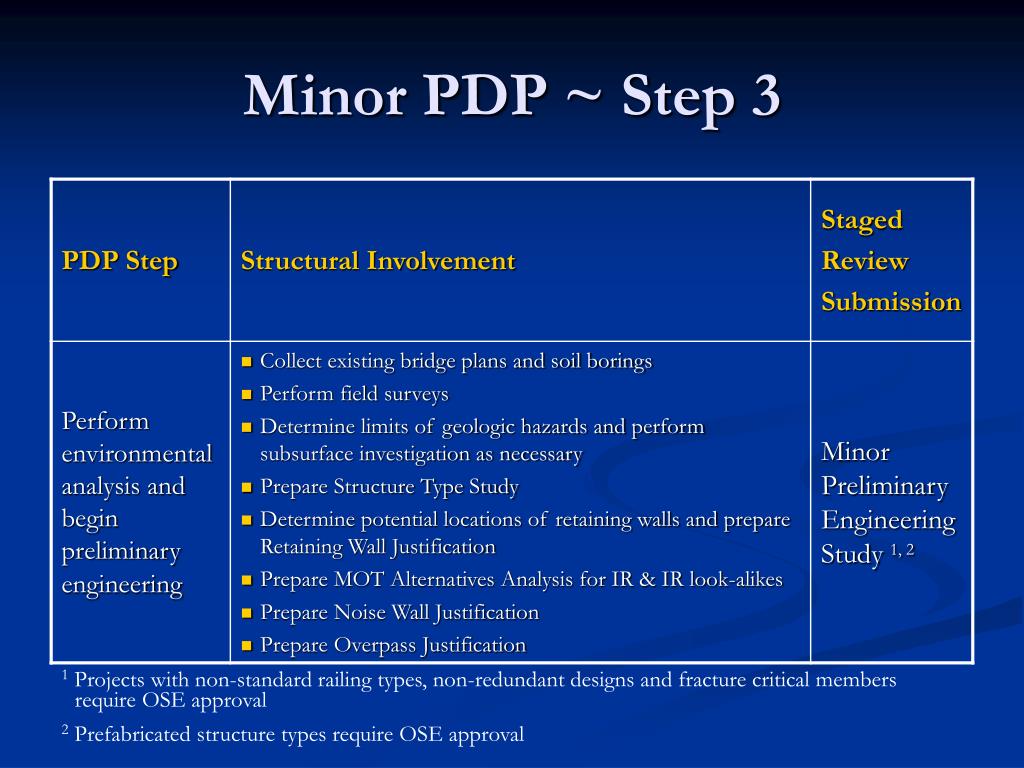

  18. Minor PDP ~ Step 3 1 Projects with non-standard railing types, non-redundant designs and fracture critical members require OSE approval 2 Prefabricated structure types require OSE approval

  19. Minor PDP ~ Step 4

  20. Minor PDP ~ Step 5 3Projects with non-redundant designs and fracture critical members require OSE approval 4Projects with special designs for prefabricated structure types require OSE approval

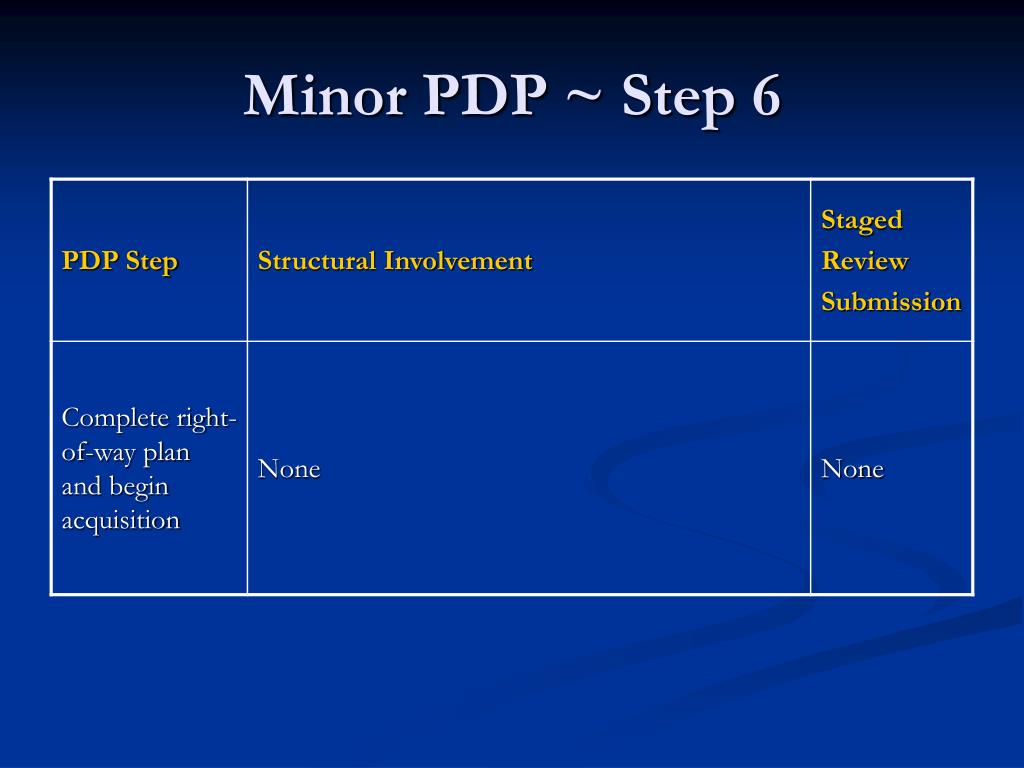

  21. Minor PDP ~ Step 6

  22. Minor PDP ~ Step 7

  23. Minor PDP ~ Steps 8, 9 & 10

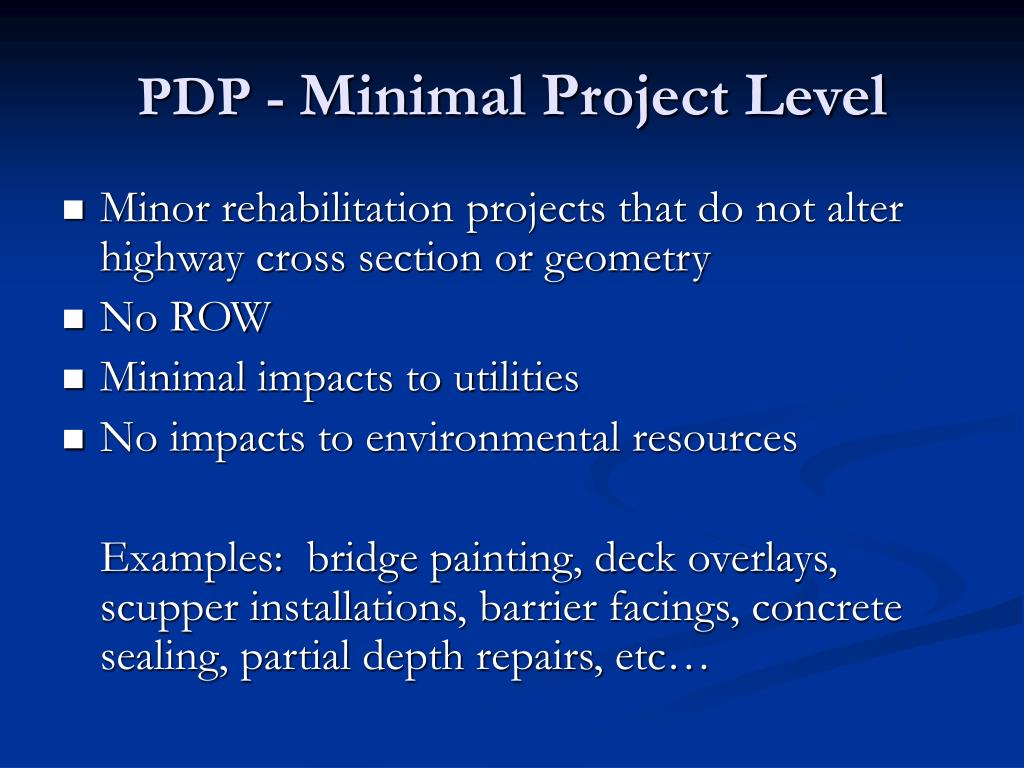

  24. PDP - Minimal Project Level • Minor rehabilitation projects that do not alter highway cross section or geometry • No ROW • Minimal impacts to utilities • No impacts to environmental resources Examples: bridge painting, deck overlays, scupper installations, barrier facings, concrete sealing, partial depth repairs, etc…

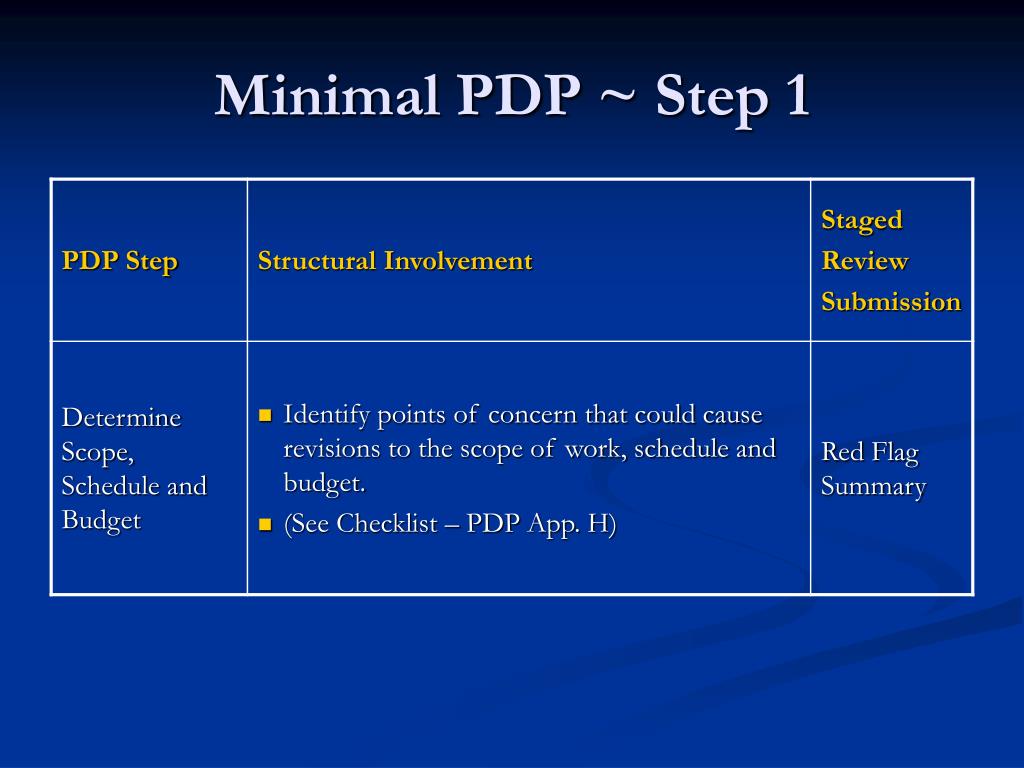

  25. Minimal PDP ~ Step 1

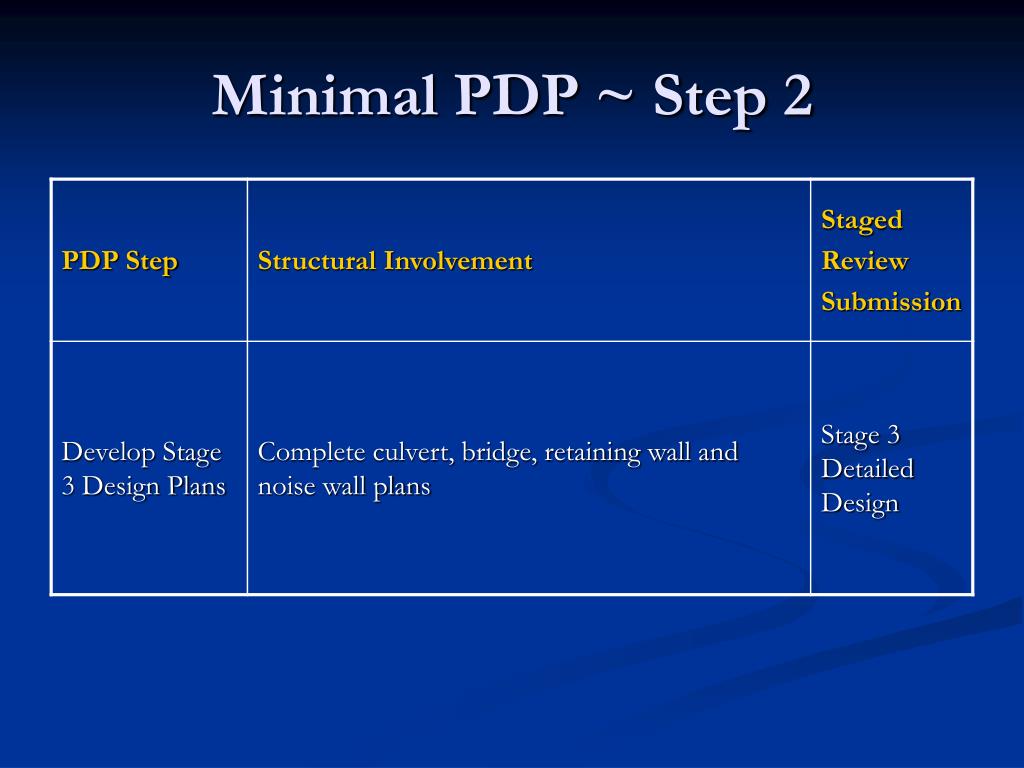

  26. Minimal PDP ~ Step 2

  27. Minimal PDP ~ Steps 3, 4 & 5

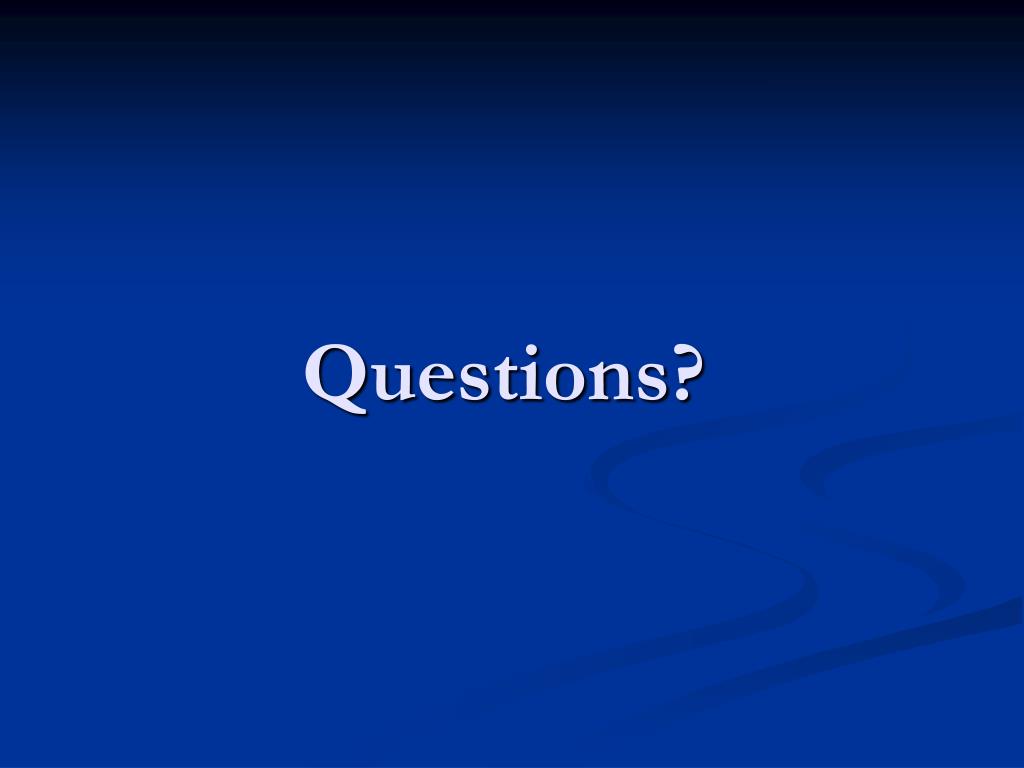

  28. Questions?
