  1. Nitrosamine Detection in Meat By Beryl Ombaso, Chemistry 4101, Fall 2008

  2. BACKGROUND • Nitrite is added to meat both for preservation and color enhancement. • Amines in the meat react with the nitrite to form nitrosamines which are known carcinogens.1 NO2 + H+ HNO2 2HNO2 N203 + H20 N203 + R2NH R2N.NO + HNO2 (a nitrosamine)

  3. Tumorgenic levels of Nitrosamines • USDA recommended exposure level-10 ppb.2

  4. Methods for Nitrosamine detection

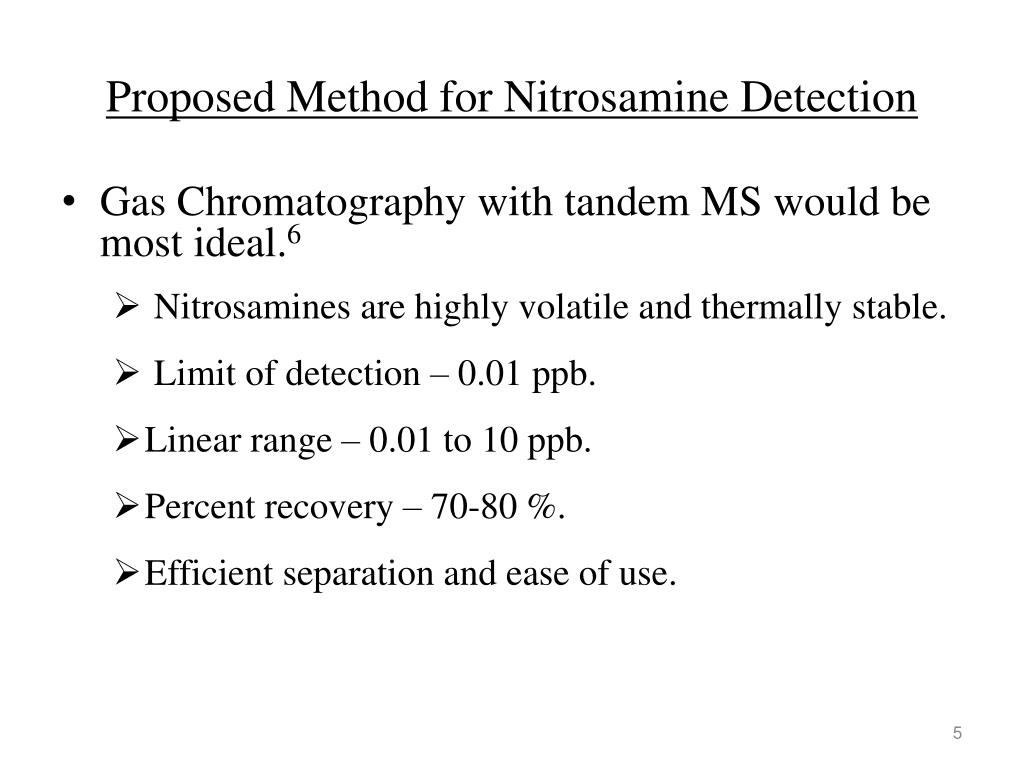

  5. Proposed Method for Nitrosamine Detection • Gas Chromatography with tandem MS would be most ideal.6 • Nitrosamines are highly volatile and thermally stable. • Limit of detection – 0.01 ppb. • Linear range – 0.01 to 10 ppb. • Percent recovery – 70-80 %. • Efficient separation and ease of use.

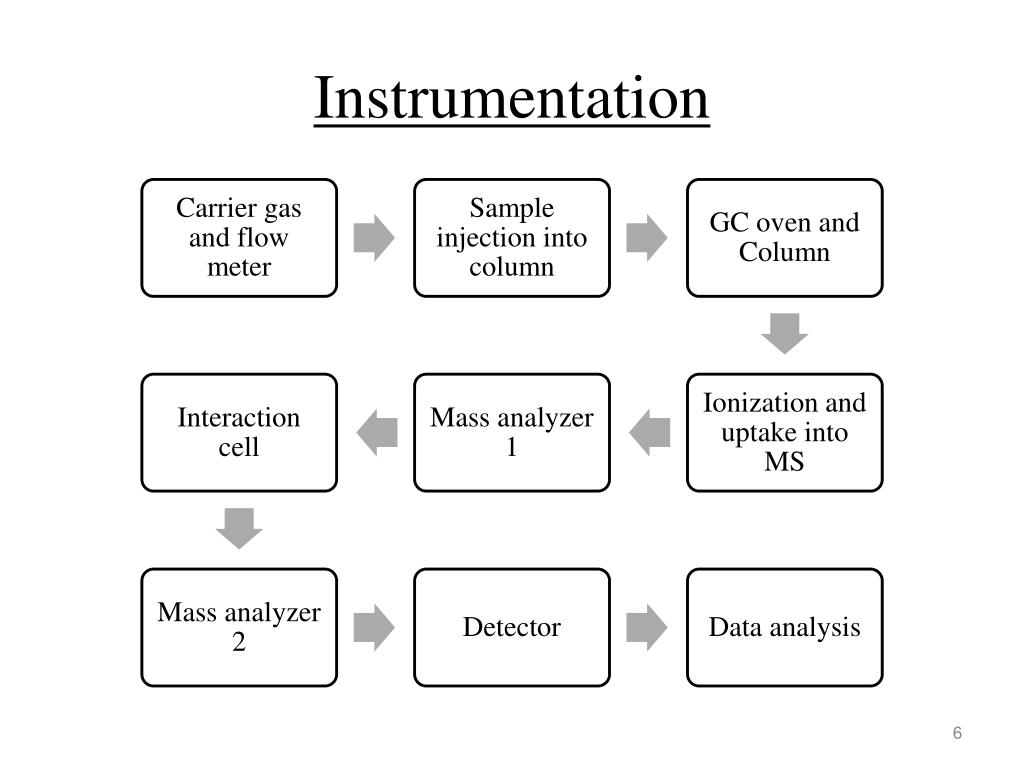

  6. Instrumentation

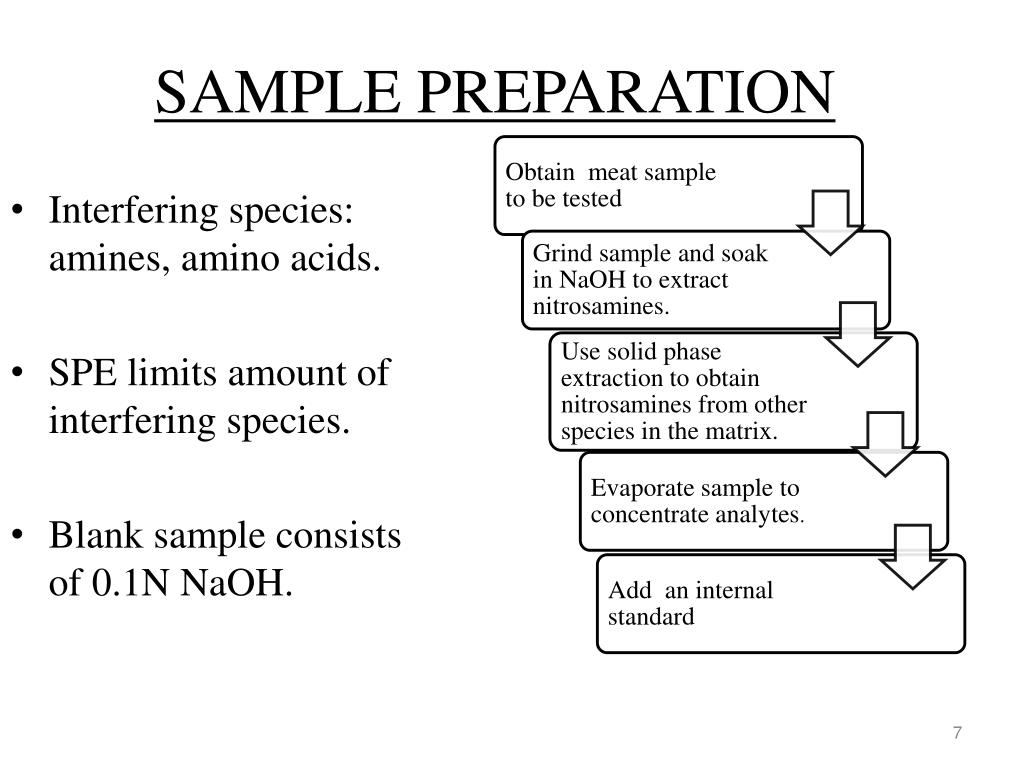

  7. Interfering species: amines, amino acids. SPE limits amount of interfering species. Blank sample consists of 0.1N NaOH. SAMPLE PREPARATION

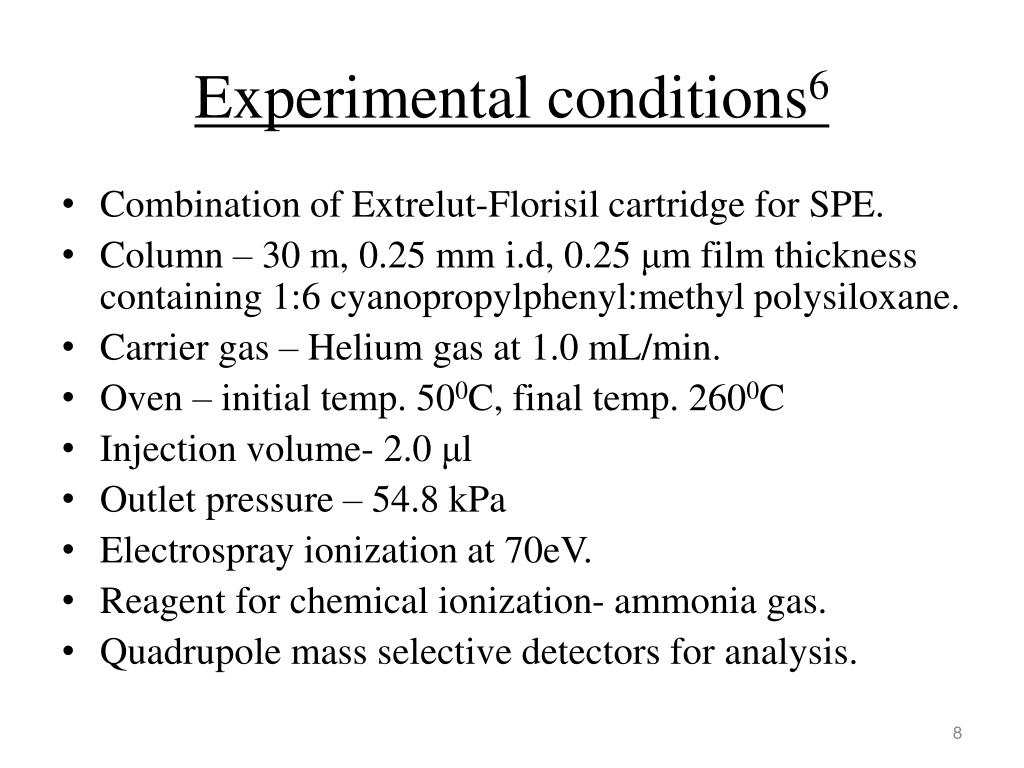

  8. Experimental conditions6 • Combination of Extrelut-Florisil cartridge for SPE. • Column – 30 m, 0.25 mm i.d, 0.25 μm film thickness containing 1:6 cyanopropylphenyl:methyl polysiloxane. • Carrier gas – Helium gas at 1.0 mL/min. • Oven – initial temp. 500C, final temp. 2600C • Injection volume- 2.0 μl • Outlet pressure – 54.8 kPa • Electrospray ionization at 70eV. • Reagent for chemical ionization- ammonia gas. • Quadrupole mass selective detectors for analysis.

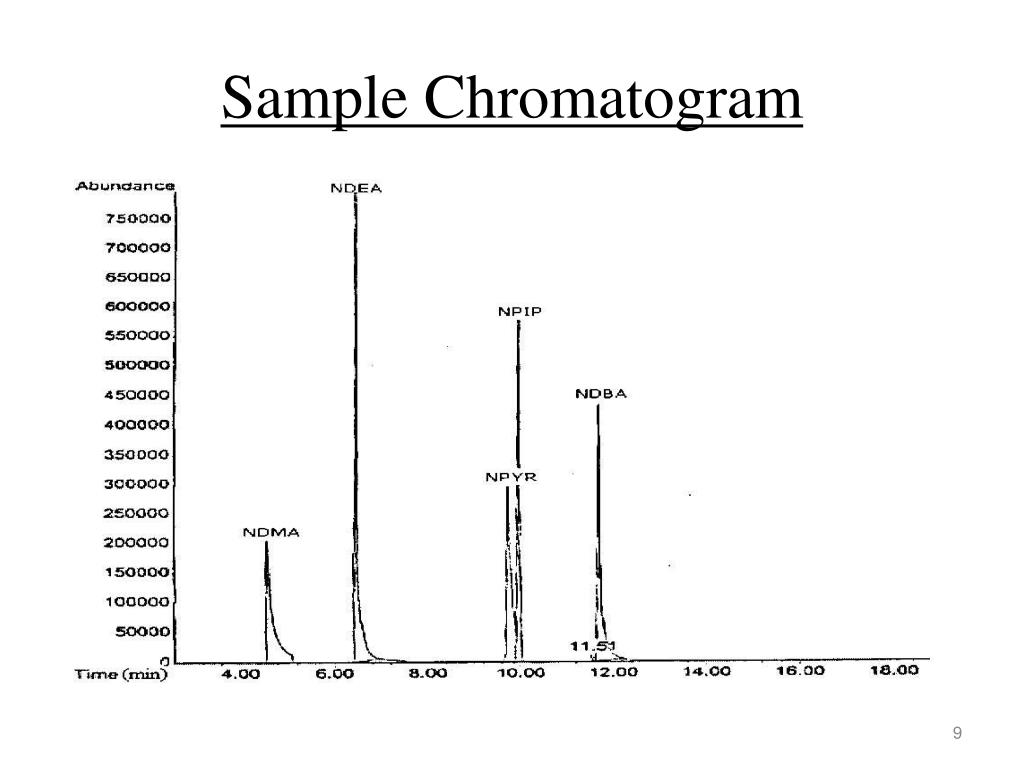

  9. Sample Chromatogram

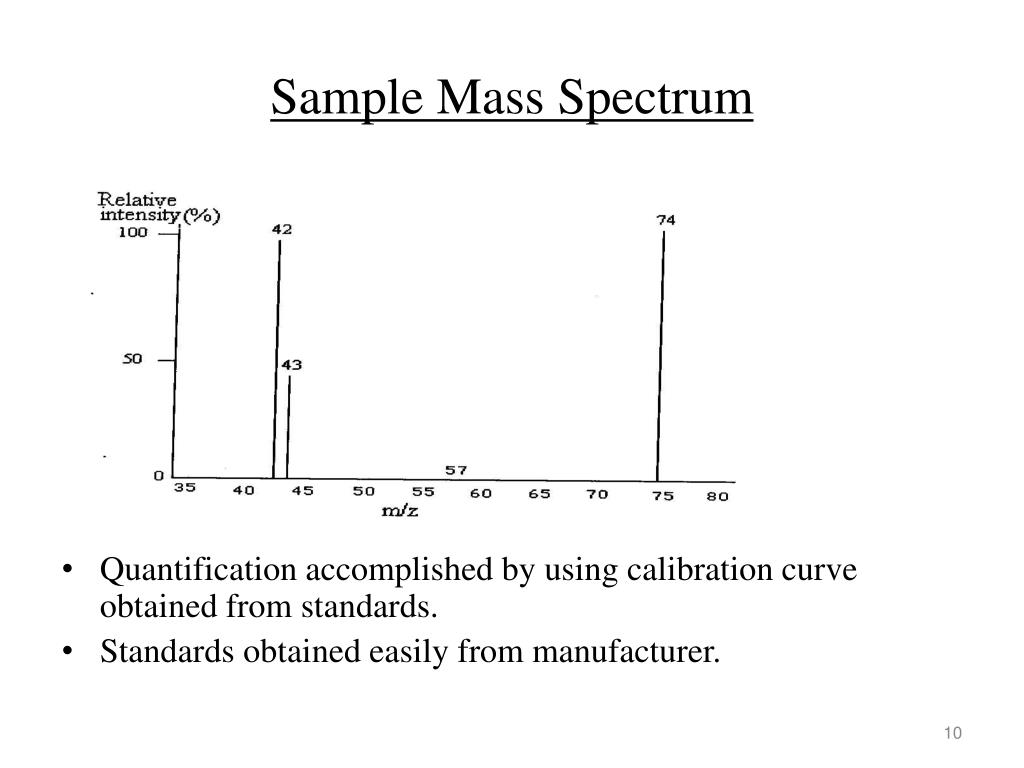

  10. Sample Mass Spectrum • Quantification accomplished by using calibration curve obtained from standards. • Standards obtained easily from manufacturer.

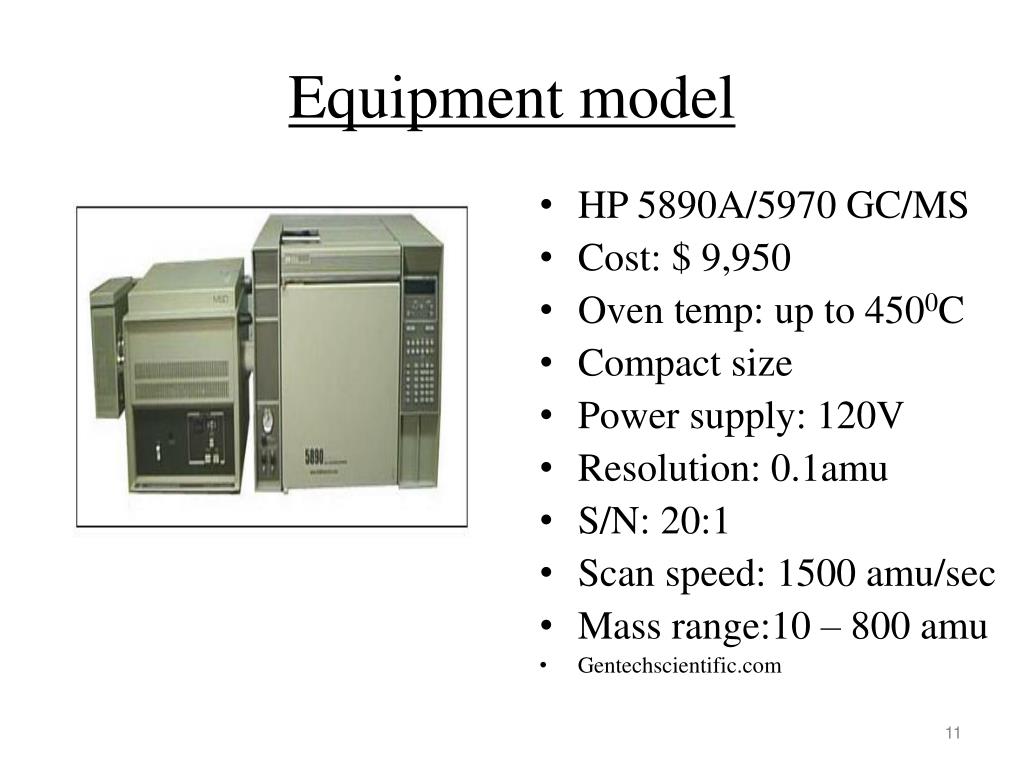

  11. HP 5890A/5970 GC/MS Cost: $ 9,950 Oven temp: up to 4500C Compact size Power supply: 120V Resolution: 0.1amu S/N: 20:1 Scan speed: 1500 amu/sec Mass range:10 – 800 amu Gentechscientific.com Equipment model

  12. References 1. Mirvish, S.; Cancer letters, 1995, 93, 17-48. 2. Jay, J.; Modern Food Microbiology, 6th Ed, 2000, pg 261. 3. Perez, E. L.; Rios, A.; Valcarcel, M.; J Anal. Chem,2001, 371, 891-895. 4. Oliveira, R. T.; Salazar-Banda, G. R.; Machado, S. A.; Avaca, L. A.; Electroanalyis, 2008, 20, 396-401. • Cardenes, L.; Ayala, J. H.; Venerando, G.; Afonso, A. M.; J. Liq. Chrom. & Rel. Technol., 2002, 25, 977-984. • Jurtchenko, S.; Tenno, T.; Molder, U.; Reinik, M.; Proc. Estonian Acad. Sci. Chem., 2002, 51, 169-184.
