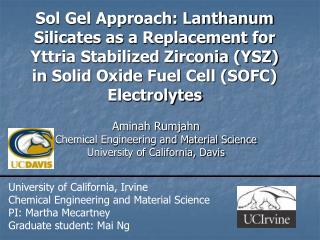

Sol Gel Approach: Lanthanum Silicates as a Replacement for Yttria Stabilized Zirconia (YSZ) in Solid Oxide Fuel Cell (SOFC) Electrolytes

Aminah Rumjahn

Chemical Engineering and Material Science

University of California, Davis

University of California, Irvine

Chemical Engineering and Material Science

PI: Martha Mecartney

Graduate student: Mai Ng


Outline l.jpg
Outline Yttria Stabilized Zirconia (YSZ) in Solid Oxide Fuel Cell (SOFC) Electrolytes

  • Intro to Solid Oxide Fuel Cells (SOFCs)

  • Motivation for Work and Goals

  • Background of Apatite

  • Experimental procedure

  • Data

  • Results

  • Conclusion/Future Work


Sofcs l.jpg
SOFCs Yttria Stabilized Zirconia (YSZ) in Solid Oxide Fuel Cell (SOFC) Electrolytes

www.eos.polito.it/h_fuel_ing2.htm


Motivation l.jpg
Motivation Yttria Stabilized Zirconia (YSZ) in Solid Oxide Fuel Cell (SOFC) Electrolytes

  • Yttria Stabilized Zirconia (YSZ) is traditional material used for electrolyte

    Main disadvantage: High operating temp

    Diffusion equation: D = D0exp(-Q/RT)

  • New materials must be considered

  • Good electrolyte: stable, lower operating temp, high oxygen ion conductivity

  • Apatite = lower operating temp and high oxygen ion conductivity


Grain size must be small l.jpg
Grain Size Must Be SMALL! Yttria Stabilized Zirconia (YSZ) in Solid Oxide Fuel Cell (SOFC) Electrolytes

  • Studies have shown some nanocrystalline ceramics have high ionic conductivity

  • Ionic conductivity governed by grain boundaries

  • Ions in oxy-apatite travel faster in interstitial regions

  • Hypothesis is more grain boundaries = higher conductivity

Small grains  More grain boundaries

= More efficient electrolyte material


Apatite l.jpg
Apatite Yttria Stabilized Zirconia (YSZ) in Solid Oxide Fuel Cell (SOFC) Electrolytes

  • A type of mineral

  • Structure

  • Hexagonal monoclinic

  • Rare earth oxy-apatites:

  • La, Ce, Gd, Sm

  • Specifically, apatite-type lanthanum silicates exhibit highest ionic conductivity

Silicate-based apatite with SiO4 tetrahedra (yellow). The calculated pathway for oxygen diffusion is shown.

*M S Islam, University of Bath


About sol gel l.jpg
About Sol Gel Yttria Stabilized Zirconia (YSZ) in Solid Oxide Fuel Cell (SOFC) Electrolytes

  • Solution chemistry based

  • Inorganic metal salts/metal organic compounds (metal alkoxides)

  • Hydrolysis and polymerization forms liquid SOL

  • Condensation forms solid GEL

  • Heat treatment  crystalline ceramics

  • Advantages

    • composition highly controllable

    • low temperatures

    • homogenous mixing

    • more freedom for applications -- coat = thin films

SOL

GEL


Procedure l.jpg
Procedure Yttria Stabilized Zirconia (YSZ) in Solid Oxide Fuel Cell (SOFC) Electrolytes

  • Dissolve lanthanum nitrate hexahydrate in ethanol and acetic acid

  • Add tetraethylorthosilicate (TEOS)

     Sol

  • Dry overnight

    Gel

  • Heat treatments: Decompose at 600°C for 4hrs and Calcine at 1000°C for 2hrs

    Solid oxy-apatite (La9.33Si6O26)


Cryomilling l.jpg
Cryomilling Yttria Stabilized Zirconia (YSZ) in Solid Oxide Fuel Cell (SOFC) Electrolytes

  • No previous studies on cryomilling of ceramics

  • Success with cryomilling of metals

    Reduced grain size of Al to ~26nm*

  • Cryogenic = very low temps  liqN2(-200°C)

*F.Zhou, D.Witkin, S.R. Nutt, E.J. Lavernia, Mater. Sci. Eng. A375-377 (2004) 917-921


Results xrd l.jpg
Results: XRD Yttria Stabilized Zirconia (YSZ) in Solid Oxide Fuel Cell (SOFC) Electrolytes

STANDARD

CRYOMILLED

Water Contamination!!

Secondary phase: La2SiO5


Scherrer equation l.jpg
Scherrer Equation Yttria Stabilized Zirconia (YSZ) in Solid Oxide Fuel Cell (SOFC) Electrolytes

t = 0.9λ

Bcos (θB)

t = crystallite size

λ = wavelength of Cu filament (1.54Å)

B = width of peak at ½Imax

θB = angle of peak

NOT APPLICABLE FOR SIZES > 200nm

Crystallite size of standard sample:

~21nm

Crystallite size of cryomilled sample:

~14nm


Results sem l.jpg
Results: SEM Yttria Stabilized Zirconia (YSZ) in Solid Oxide Fuel Cell (SOFC) Electrolytes

Standard Sol Gel

Cryomilled Sol Gel 


Results sem13 l.jpg
Results: SEM Yttria Stabilized Zirconia (YSZ) in Solid Oxide Fuel Cell (SOFC) Electrolytes

STANDARD


Results sem14 l.jpg
Results: SEM Yttria Stabilized Zirconia (YSZ) in Solid Oxide Fuel Cell (SOFC) Electrolytes

CRYOMILLED


Conclusions l.jpg
Conclusions Yttria Stabilized Zirconia (YSZ) in Solid Oxide Fuel Cell (SOFC) Electrolytes

  • Fabricated apatite-type La9.33Si6O26 through sol gel route

  • Scherrer formula gives similar crystallite sizes

  • SEM shows cryomilled powders are less agglomerated

Uncertain of the effects of cryomilling!!


Future work l.jpg
Future Work Yttria Stabilized Zirconia (YSZ) in Solid Oxide Fuel Cell (SOFC) Electrolytes

  • Fabrication of sintered pellets to conduct impedance spectroscopy (IS) to determine ionic conductivity of La9.33Si6O26

  • More Cryomilling!!!

    Devise a better collection method to

    avoid water contamination

    Vary the milling time

    Characterization tests

    Density measurements


Acknowledgements l.jpg
Acknowledgements Yttria Stabilized Zirconia (YSZ) in Solid Oxide Fuel Cell (SOFC) Electrolytes

  • Professor Martha Mecartney and Graduate student Mai Ng for their enthusiasm, guidance and support

  • Mecartney and Mumm groups

  • UC Irvine and the UROP team for the IMSURE program

  • NSF for financial support

  • Zeiss Center of Excellence for microscopy support
