  1. Alris Home Network Proposal Presenters: Alan Chan, Sam Tse Date:2012/06/20

  2. Router DIR-605L Support 10/100Mbps 1WAN and 4LAN 802.11n 300Mbps Wireless Fixed 5dbi antennal x2 Easy wizard setup Support mydlink cloud service mydlink apps (iOS/android) Support UPnP

  3. Router DIR-636L Support 10/100/1000Mbps 1WAN and 4LAN 802.11n 300Mbps Wireless Easy wizard setup Support mydlink cloud service mydlink apps (iOS/android) Support SharePort Mobile SharePort apps(iOS/android) Support SharePort Web Access Support UPnP Support IPv6

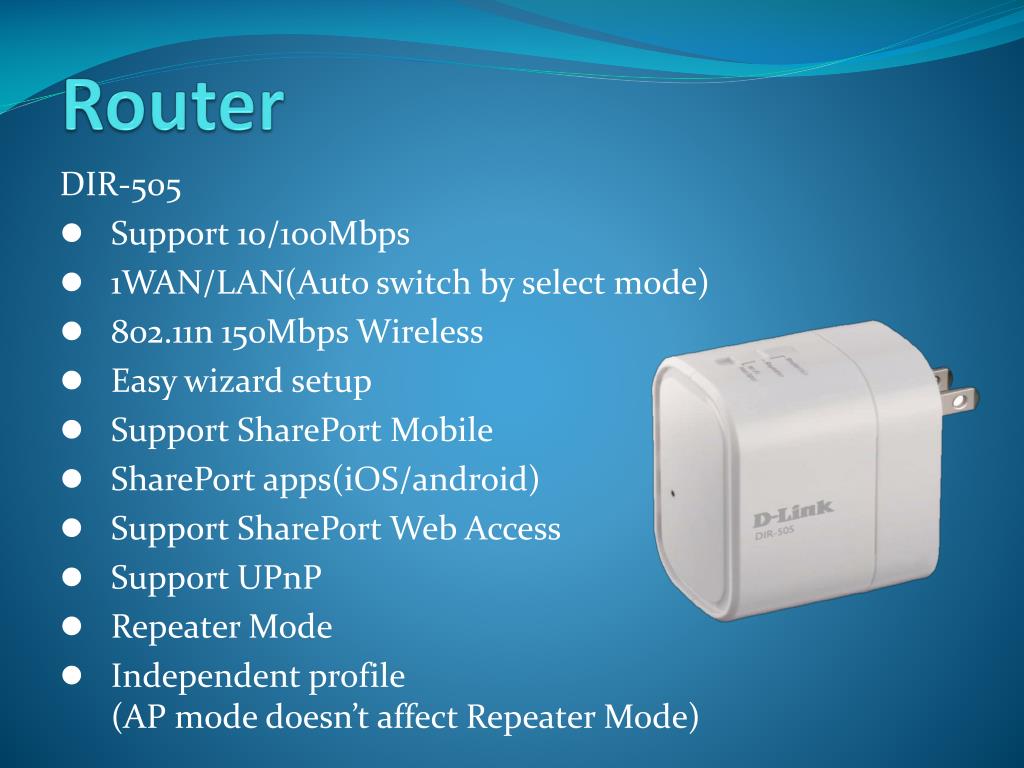

  4. Router DIR-505 Support 10/100Mbps 1WAN/LAN(Auto switch by select mode) 802.11n 150Mbps Wireless Easy wizard setup Support SharePort Mobile SharePort apps(iOS/android) Support SharePort Web Access Support UPnP Repeater Mode Independent profile(AP mode doesn’t affect Repeater Mode)

  5. Router Easy Wizard Setup(DIR-605L/DIR-636L) Only need to type dlinkrouteror (http://192.168.0.1) can do the router basic setting

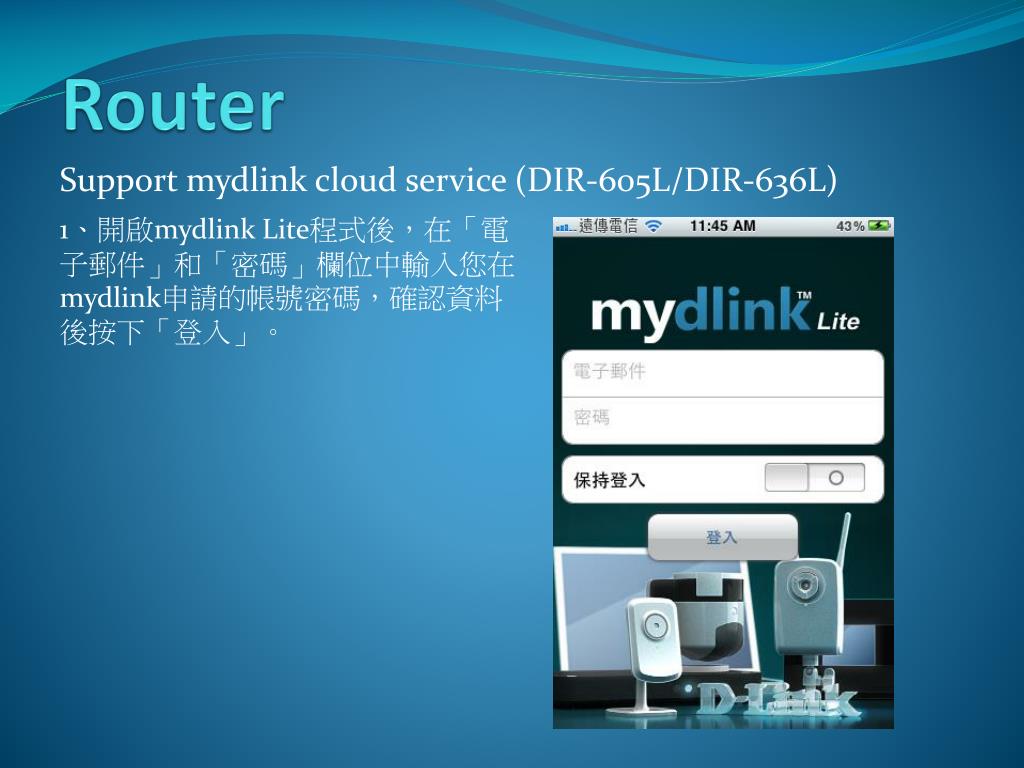

  6. Router 1、開啟mydlink Lite程式後，在「電子郵件」和「密碼」欄位中輸入您在mydlink申請的帳號密碼，確認資料後按下「登入」。 Support mydlink cloud service (DIR-605L/DIR-636L)

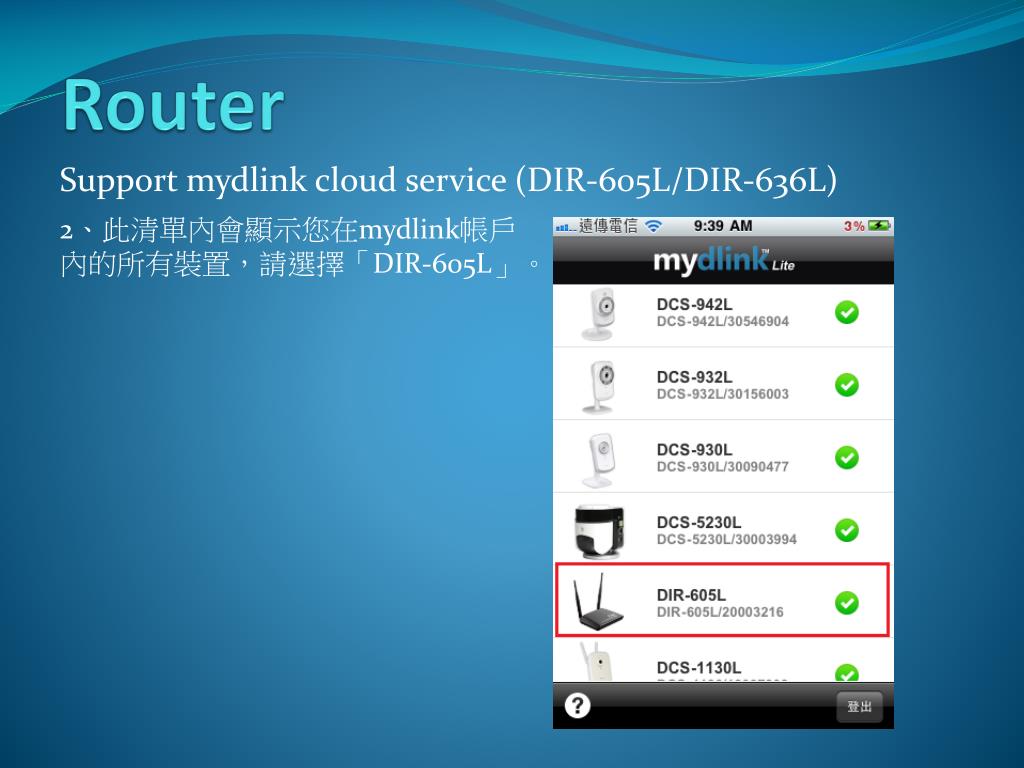

  7. Router 2、此清單內會顯示您在mydlink帳戶內的所有裝置，請選擇「DIR-605L」。 Support mydlink cloud service (DIR-605L/DIR-636L)

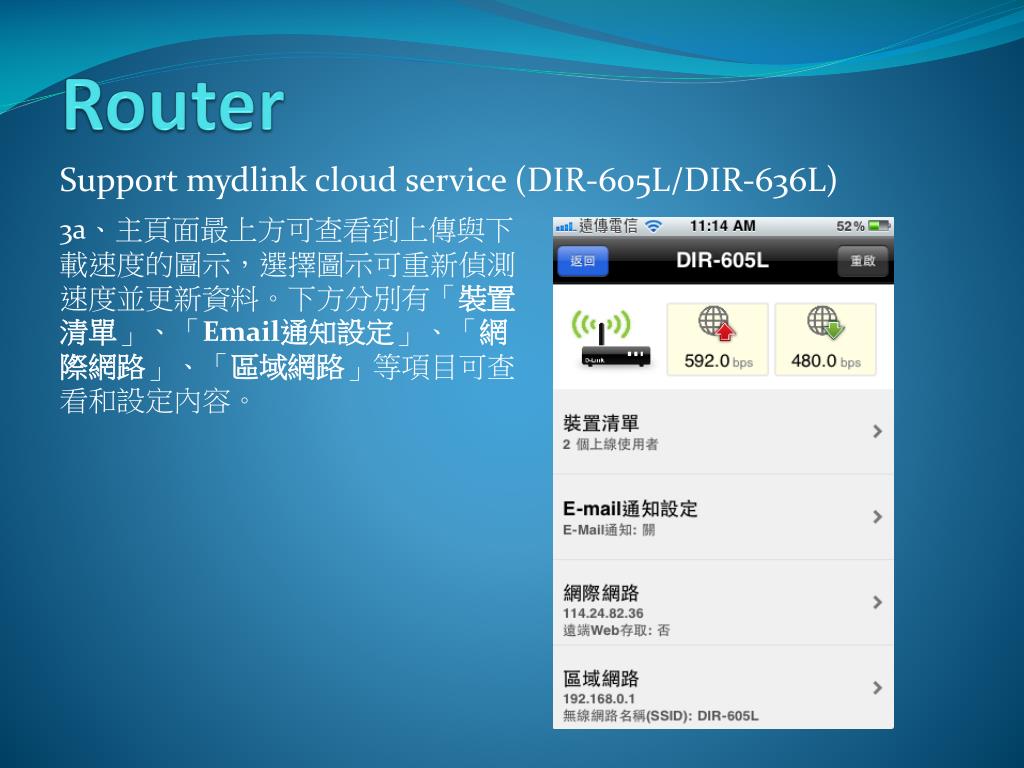

  8. Router 3a、主頁面最上方可查看到上傳與下載速度的圖示，選擇圖示可重新偵測速度並更新資料。下方分別有「裝置清單」、「Email通知設定」、「網際網路」、「區域網路」等項目可查看和設定內容。 Support mydlink cloud service (DIR-605L/DIR-636L)

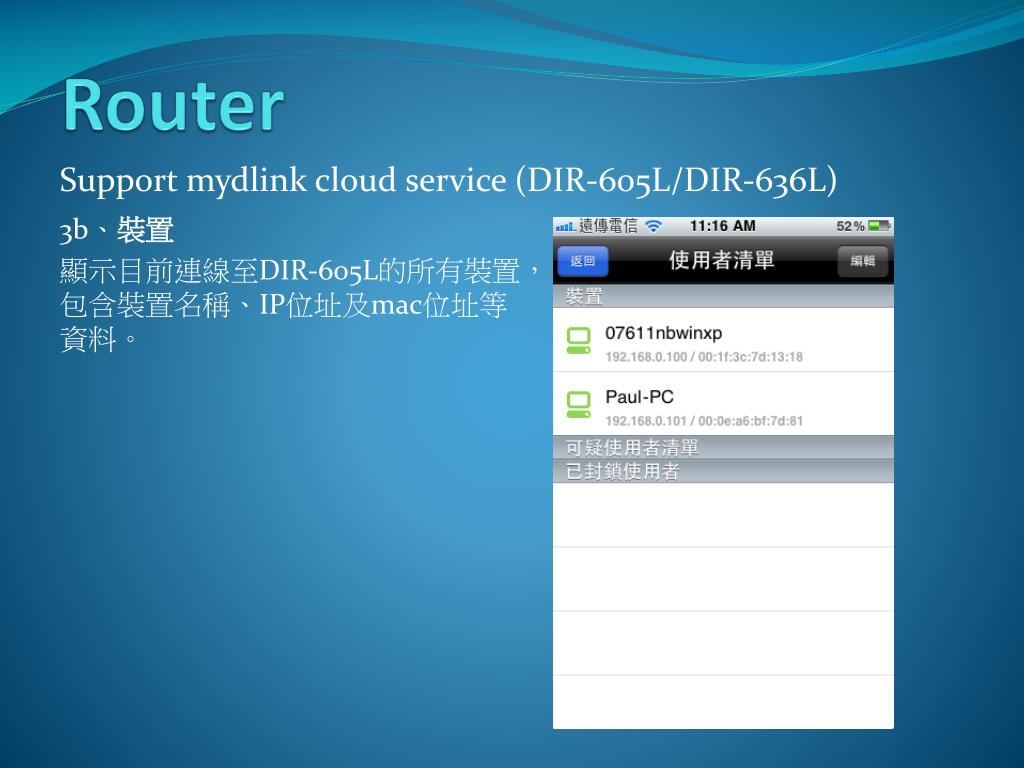

  9. Router 3b、裝置 顯示目前連線至DIR-605L的所有裝置，包含裝置名稱、IP位址及mac位址等資料。 Support mydlink cloud service (DIR-605L/DIR-636L)

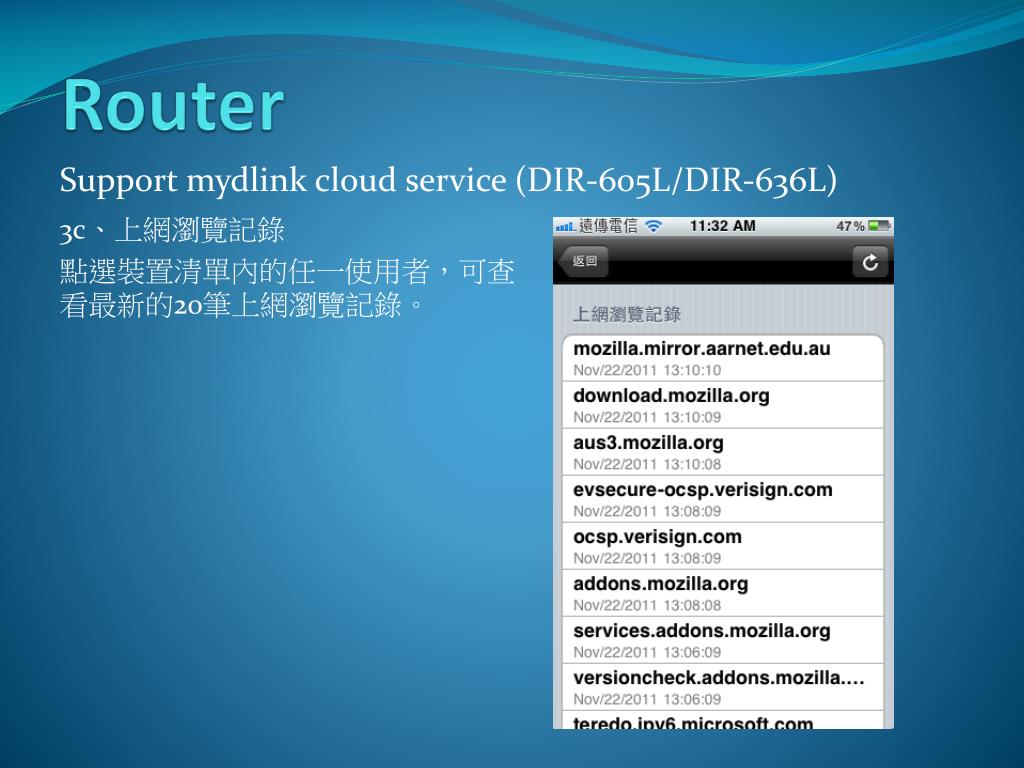

  10. Router 3c、上網瀏覽記錄 點選裝置清單內的任一使用者，可查看最新的20筆上網瀏覽記錄。 Support mydlink cloud service (DIR-605L/DIR-636L)

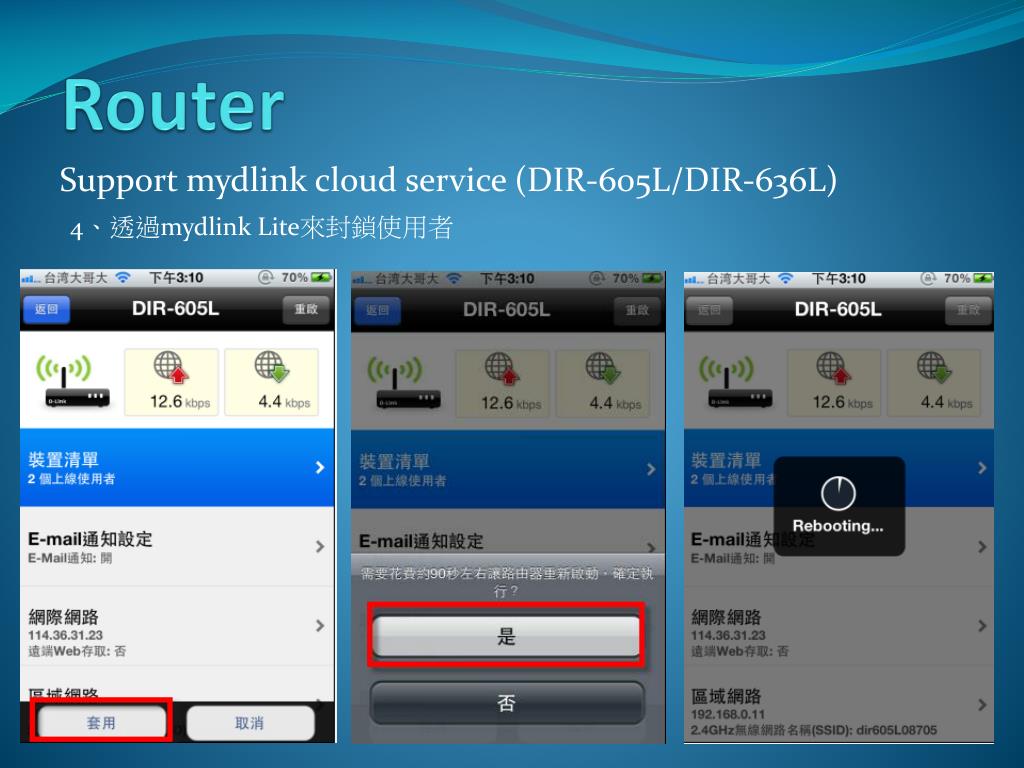

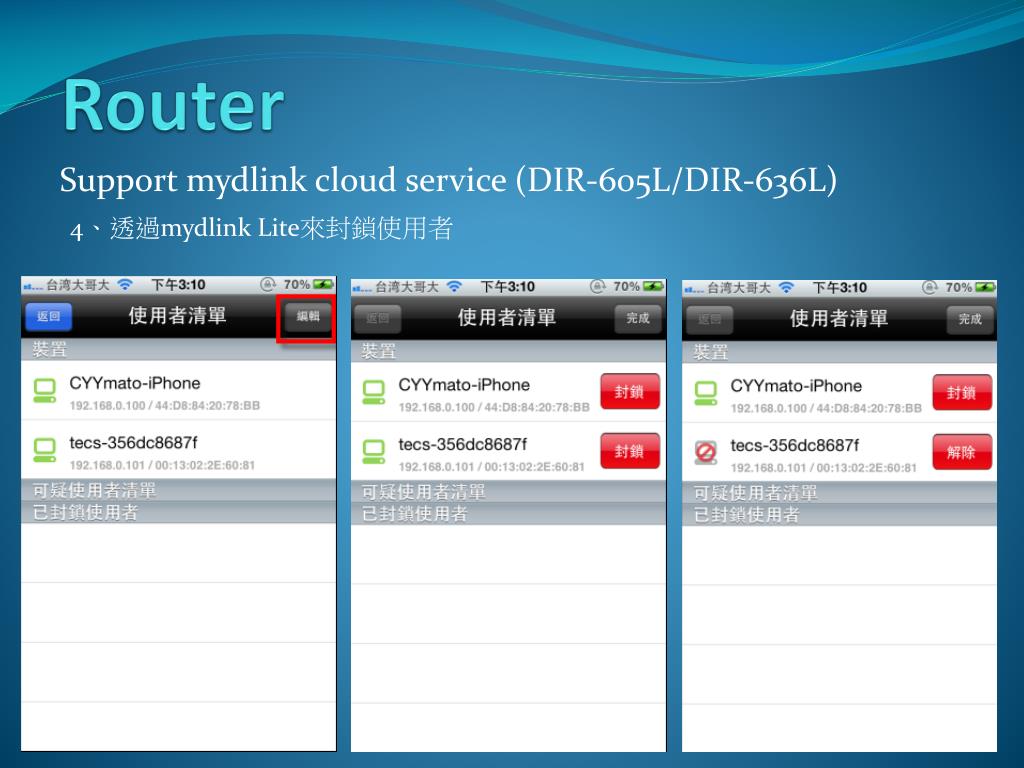

  11. Router 4、透過mydlink Lite來封鎖使用者 Support mydlink cloud service (DIR-605L/DIR-636L)

  12. Router 4、透過mydlink Lite來封鎖使用者 Support mydlink cloud service (DIR-605L/DIR-636L)

  13. Router 4、透過mydlink Lite來封鎖使用者 Support mydlink cloud service (DIR-605L/DIR-636L)

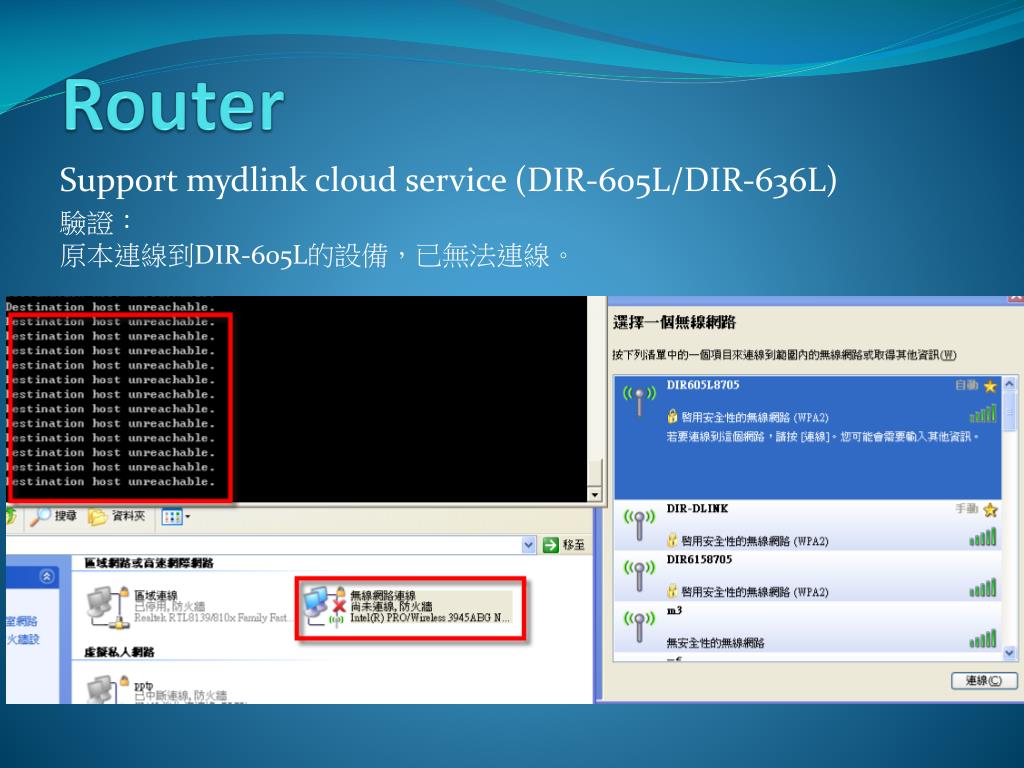

  14. Router 驗證： 原本連線到DIR-605L的設備，已無法連線。 Support mydlink cloud service (DIR-605L/DIR-636L)

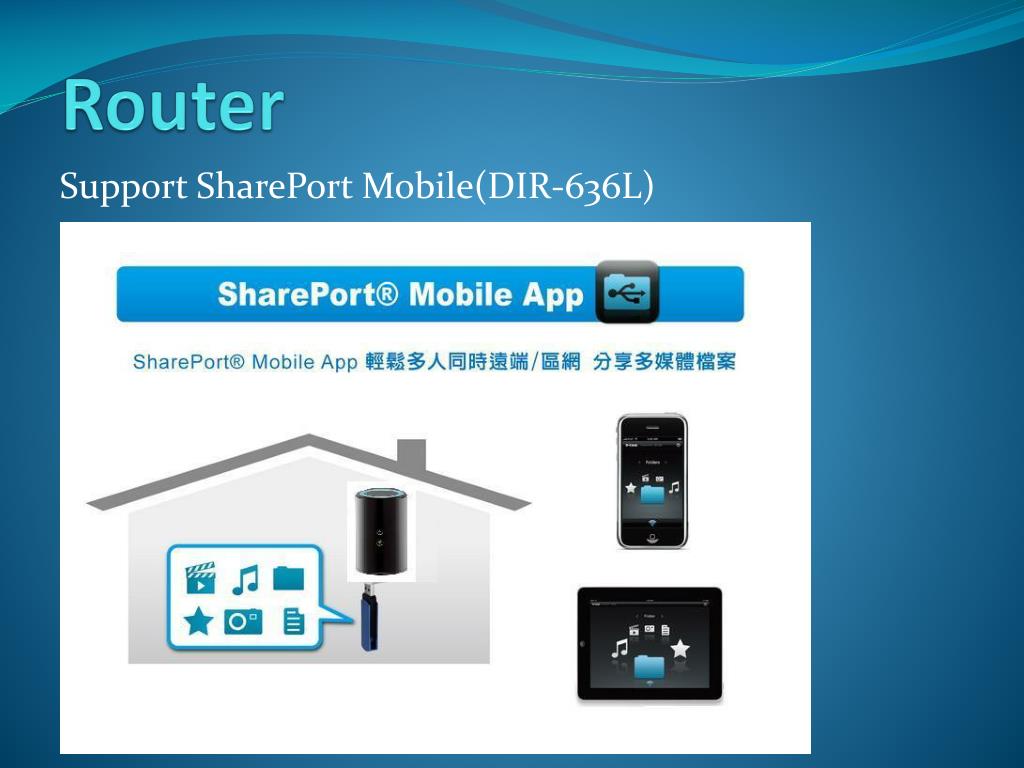

  15. Router Support SharePortMobile(DIR-636L)

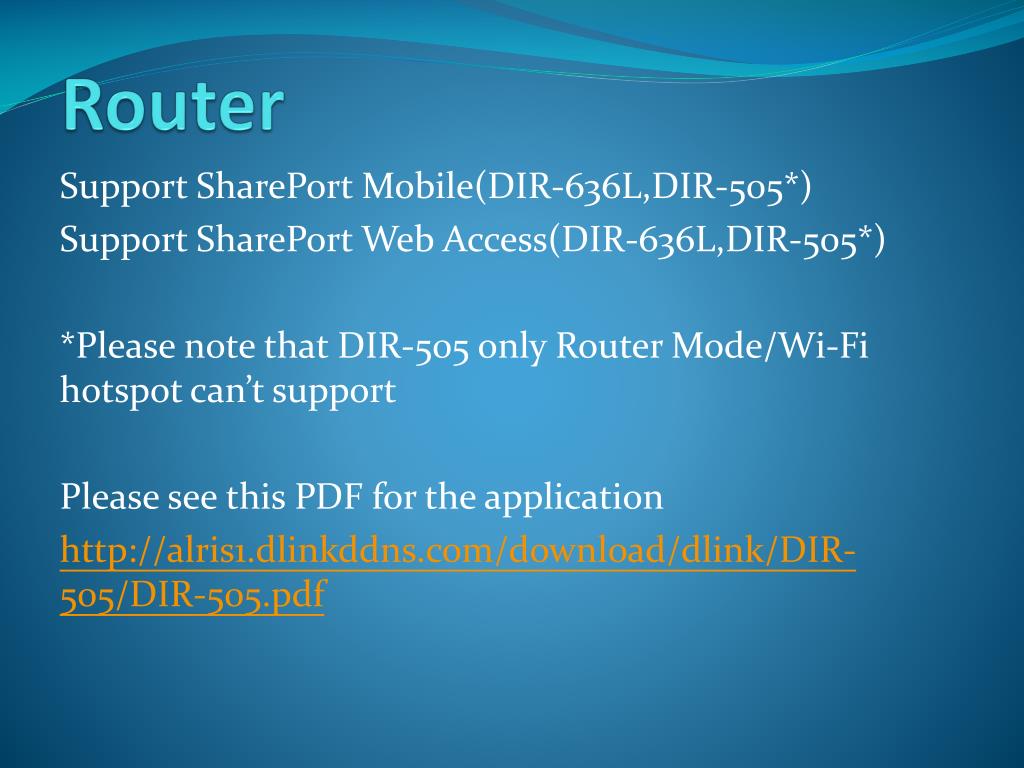

  16. Router Support SharePortMobile(DIR-636L,DIR-505*) Support SharePortWeb Access(DIR-636L,DIR-505*) *Please note that DIR-505 only Router Mode/Wi-Fi hotspot can’t support Please see this PDF for the application http://alris1.dlinkddns.com/download/dlink/DIR-505/DIR-505.pdf

  17. Router DIR-505

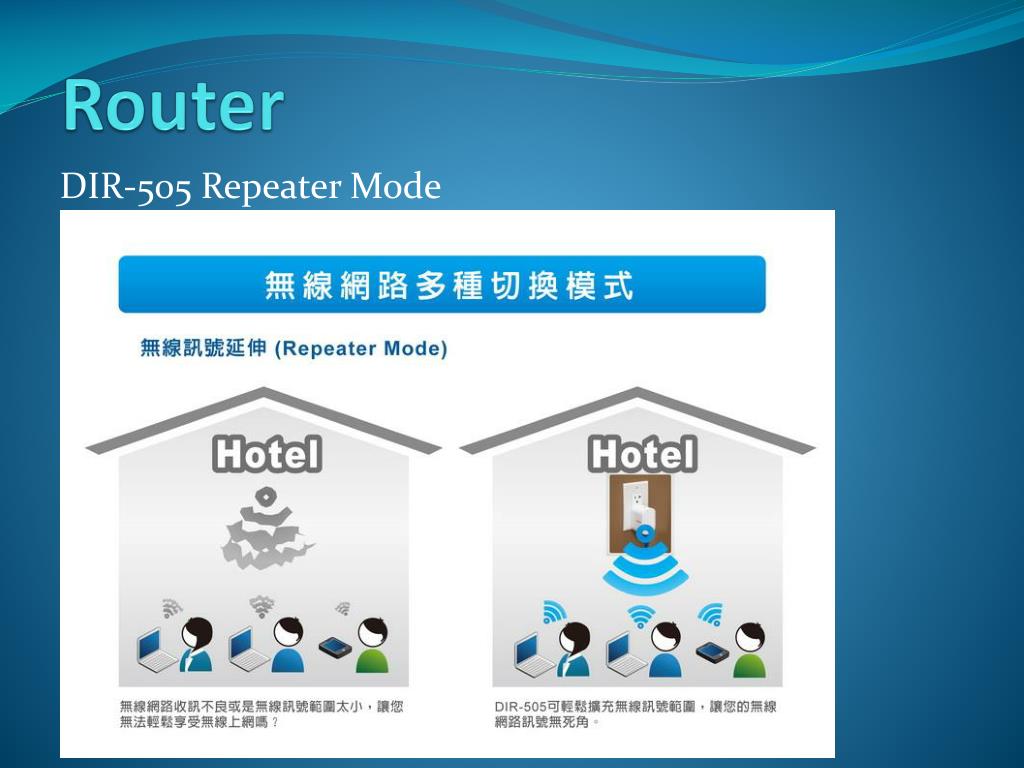

  18. Router DIR-505 Repeater Mode

  19. Router DIR-505 AP Mode(For hotel LAN network)

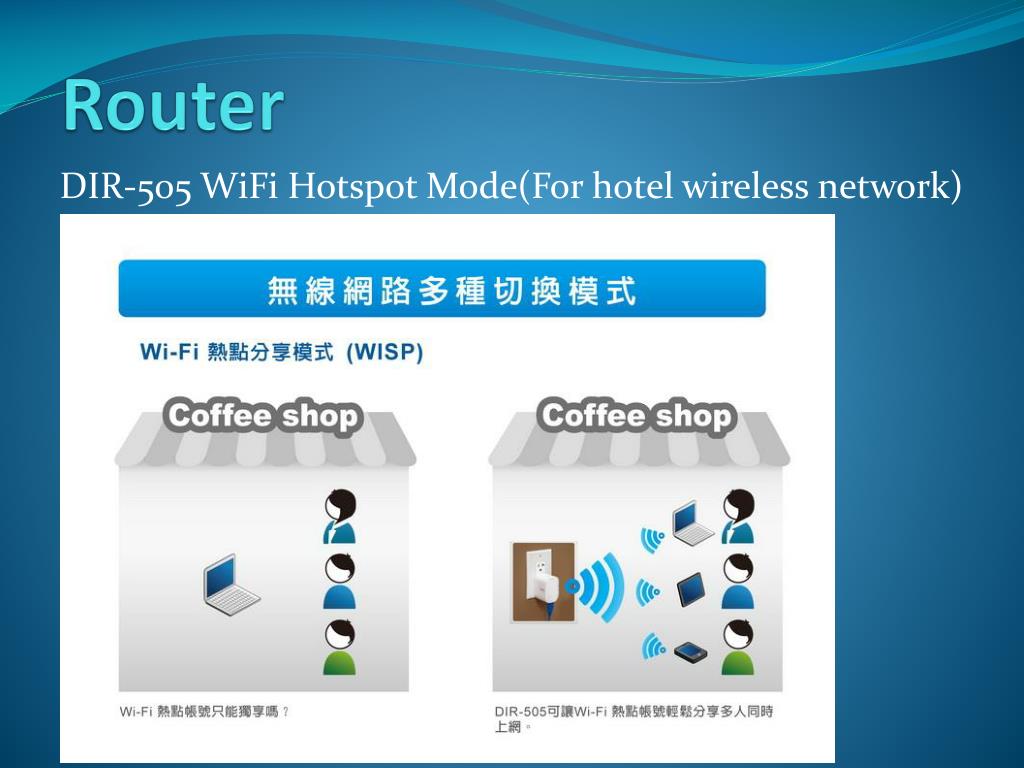

  20. Router DIR-505 WiFi Hotspot Mode(For hotel wireless network)

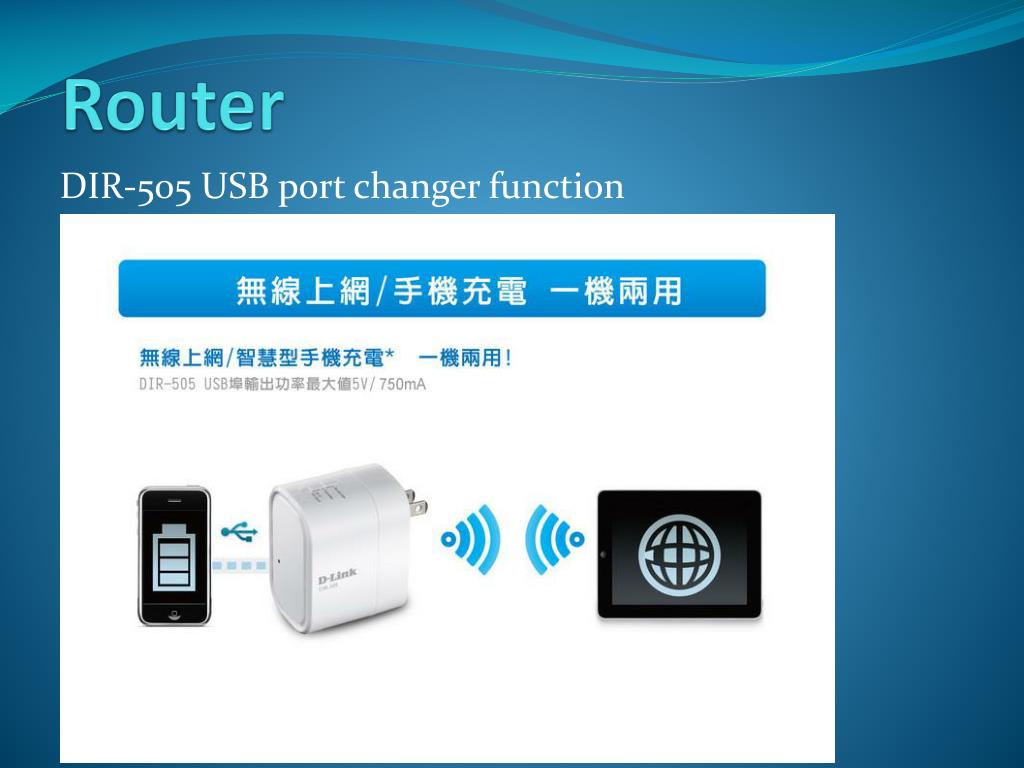

  21. Router DIR-505 USB port changer function

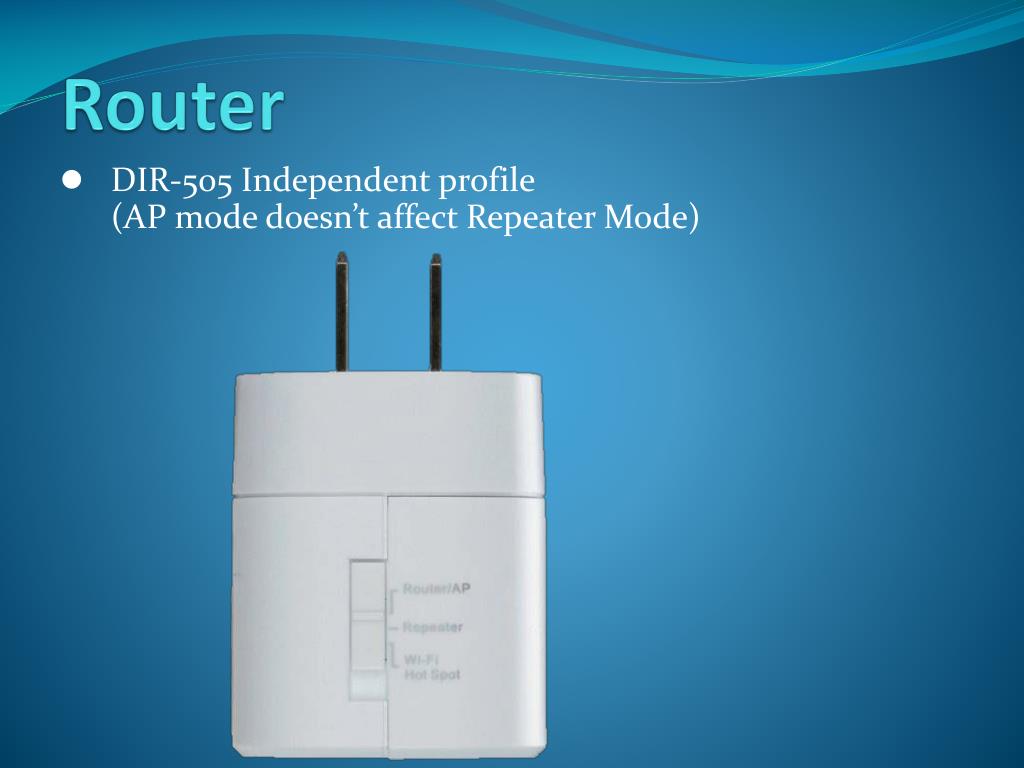

  22. Router DIR-505 Independent profile(AP mode doesn’t affect Repeater Mode)

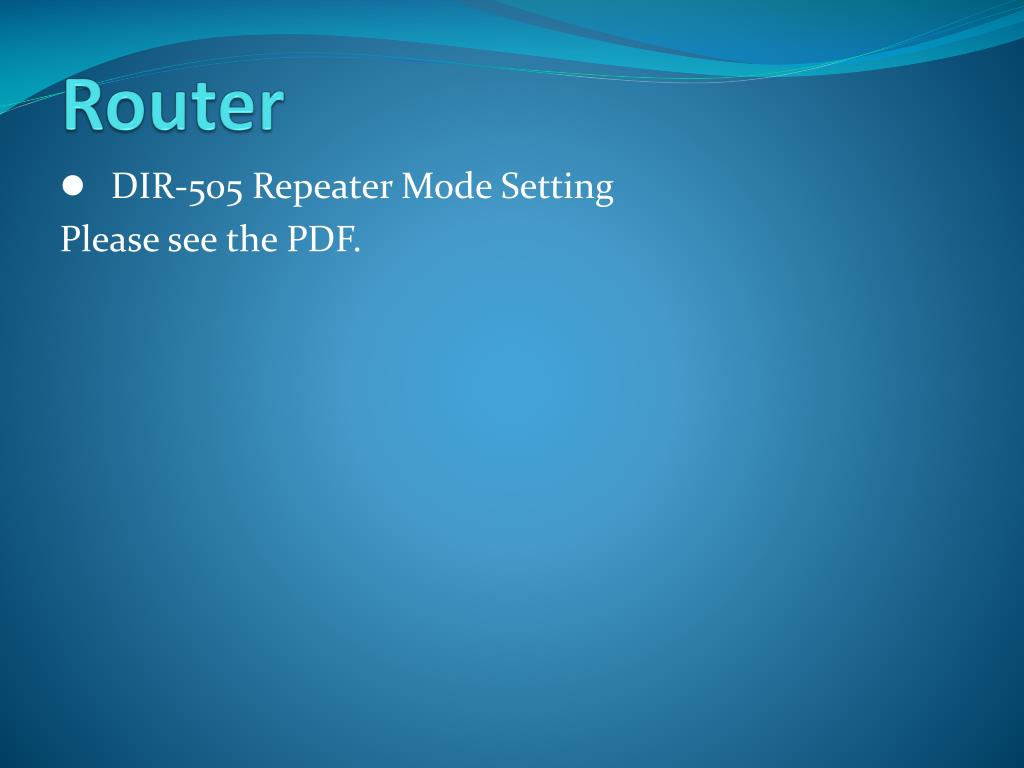

  23. Router DIR-505 Repeater Mode Setting Please see the PDF.
