DØSMT

DØ Silicon Microstrip Tracker

  • Design
  • Production
  • Assembly
  • Readout
  • Installation
  • Commissioning
  • Conclusions

Eric Kajfasz (CPPM/FNAL) - Breese Quinn (FNAL)

Como, October 15, 2001

presented by Alice Bean (Kansas/FNAL)

smt design
SMT Design

12 F Disks

4-layer barrel cross-section

4 H Disks

6 Barrels

SMT Statistics

72 ladders

12 cm long

6192 R/O chips = 792,576 channels

> 1.5 million wire bonds

E. Kajfasz/B. Quinn

smt design1
SMT Design

E. Kajfasz/B. Quinn

high density interconnect

SVXIIE chips

9-chip HDI for 20 sensor

Bus control and

power traces

Be substrate

High Density Interconnect
  • Kapton based flex circuits with0.2 mm pitch for chip mounting
  • Laminated to Beryllium substrateand glued to Silicon sensor
  • Connects Sensor to SVXII chips and SVXII chips to flex circuit via wire bonds(Al wedge bonding)
  • Connects to a Low Mass Cable which carries the signals out of the interaction region

E. Kajfasz/B. Quinn

svxiie chip

SVXIIFE

SVXIIBE

Pipeline Control Logic

I/O

Analog Pipeline

To Silicon Detector

To Readout System

128 channels

Sparsification FIFO

ADC Comparators

Integrators (128 channels)

ADC ramp

and counter

32 storage cells/channel

Analog section

Digital section

SVXIIe chip
  • 1.2 um CMOS amplifier/analog delay/ADC chip fabricated in the UTMC rad hard process
  • Designed by LBL/FNAL
  • Some features:
    • 128 channels
    • 32 cell pipeline/channel
    • 8-bit Wilkinson ADC
    • Sparsification
    • 53 MHz readout
    • 106 MHz digitization
    • 6.4 x 9.7 mm2
    • About 85,000 transistors

E. Kajfasz/B. Quinn

svxiie chip1
SVXIIe chip

Externally programmed to achieve optimal performance for 132 or 396ns beam crossings and detector capacitances from 10 to 35pF (preamp bandwidth adjustment)

Chip noise490e + 50e/pFi.e. ~1200e ENC for C=15pF1 MIP => ~4fC => ~25,000e=> S/N ~ 20

Max dealy in analog pipeline:32 x 132ns = 4.2us

E. Kajfasz/B. Quinn

production 3 chip ladders
Production: 3-chip ladders
  • 72 single-sided axial ladders
  • 2 sensors/ladder
  • Located on 1st and 3rd layer of 2 outer barrels
  • Be substrate, HDI and rohacell foam/carbon fiber rails glued on Silicon sensor

E. Kajfasz/B. Quinn

production 6 chip ladders
Production: 6-chip ladders

N-side

P-side

  • 144 double-sided double-metal axial/90° ladders
  • 1 sensor/ladder
  • Located on 1st and 3rd layer of 4 inner barrels

Be substrate, HDI and rohacell foam/carbon fiber rails glued on Silicon sensor

E. Kajfasz/B. Quinn

production 9 chip ladders
Production: 9-chip ladders

N-side

P-side

  • 216 double-sided axial/2° ladders
  • 2 sensors/ladder
  • Located on 2nd and 4th layer all 6 barrels

Be substrate, HDI and rohacell foam/carbon fiber rails glued on Silicon sensor

E. Kajfasz/B. Quinn

production f wedges
Production: F-wedges

N-side

P-side

Silicon sensor glued on HDI

  • 144 double-sided ±15° strips
  • 6 (n) and 8 (p) readout chips
  • 1 sensor/wedge
  • Located on 12 F-disks

E. Kajfasz/B. Quinn

production h wedges
Production: H-wedges
  • 96x2 back to back single-sided, ±7.5° strip angles
  • 6-chip readout per side
  • 2 sensors/wedge
  • Be substrate and HDI glued on Silicon sensor
  • Located on 4 H-disks

E. Kajfasz/B. Quinn

production sensor problems
Production: Sensor problems
  • Sensor lithography defects
    • A silicon manufacturing problem produced p-stop isolation defects in the 90° stereo ladders. This resulted in a 30% yield from the manufacturer.
  • Micro-discharge effect
    • With negative p-side bias on double-sided detectors, we observed micro- discharges producing large leakage currents and noise above a certain breakdown voltage.
    • The effect occurs along the edges of the p implants, where large field distortions and charge accumulations result from misalignment of electrodes with implants.

E. Kajfasz/B. Quinn

production testing
Production: Testing
  • Functional Test
    • Debug bad strips (broken capacitors), bonds, chips, etc.
    • Determine the V-I characteristics of the sensors
    • Measure V-max p-side breakdown voltage (micro-discharge effect)
  • Burn-in
    • Bias the ladder or wedge and test the readout for 72 hours
    • Measure pedestals, noise, gain and check sparse readout
  • Laser
    • Expose biased detectors to a narrow laser scan
    • Measure the depletion voltage and leakage currents and identify dead channels
  • Readout tested again after the detector is mounted on a barrel or disk

V-max

Fail

E. Kajfasz/B. Quinn

production rates
Production: Rates

Production mainly paced by problems with HDIs and Silicon sensors

(yields, delivery delays …)

E. Kajfasz/B. Quinn

production vop
Production: Vop

L6

L3

Vop (V)

Vop (V)

FW

L9

Vop (V)

Vop (V)

E. Kajfasz/B. Quinn

production v max
Production: V-max

L6

L9

|V-max| (V)

|V-max| (V)

FW

|V-max| (V)

E. Kajfasz/B. Quinn

production detector quality
Production: Detector Quality
  • Detector classification:
    • Dead channel: < 40 ADC count response to laser
    • Noisy channel: > 6 ADC count pedestal width
    • Grade A: less than 2.6% dead/noisy channels
    • Grade B: less than 5.2% dead/noisy channels
  • Only used mechanically OK Grade A and B detectors

Channel Fractions (%)

E. Kajfasz/B. Quinn

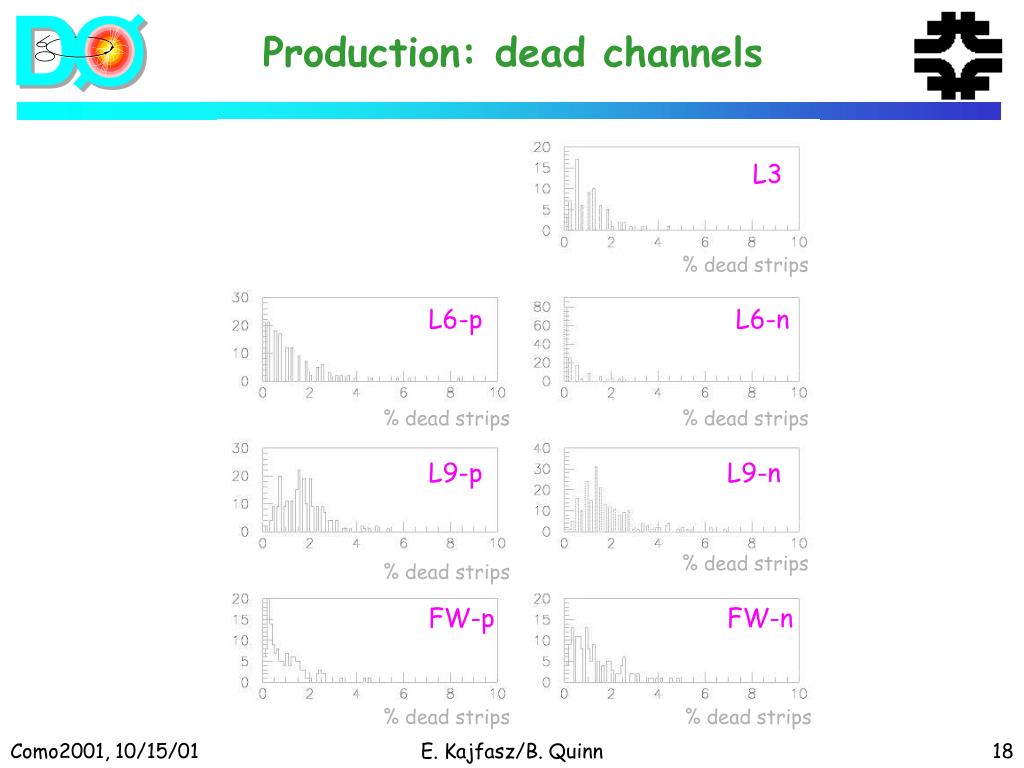

production dead channels
Production: dead channels

L3

% dead strips

L6-p

L6-n

% dead strips

% dead strips

L9-p

L9-n

% dead strips

% dead strips

FW-p

FW-n

% dead strips

% dead strips

E. Kajfasz/B. Quinn

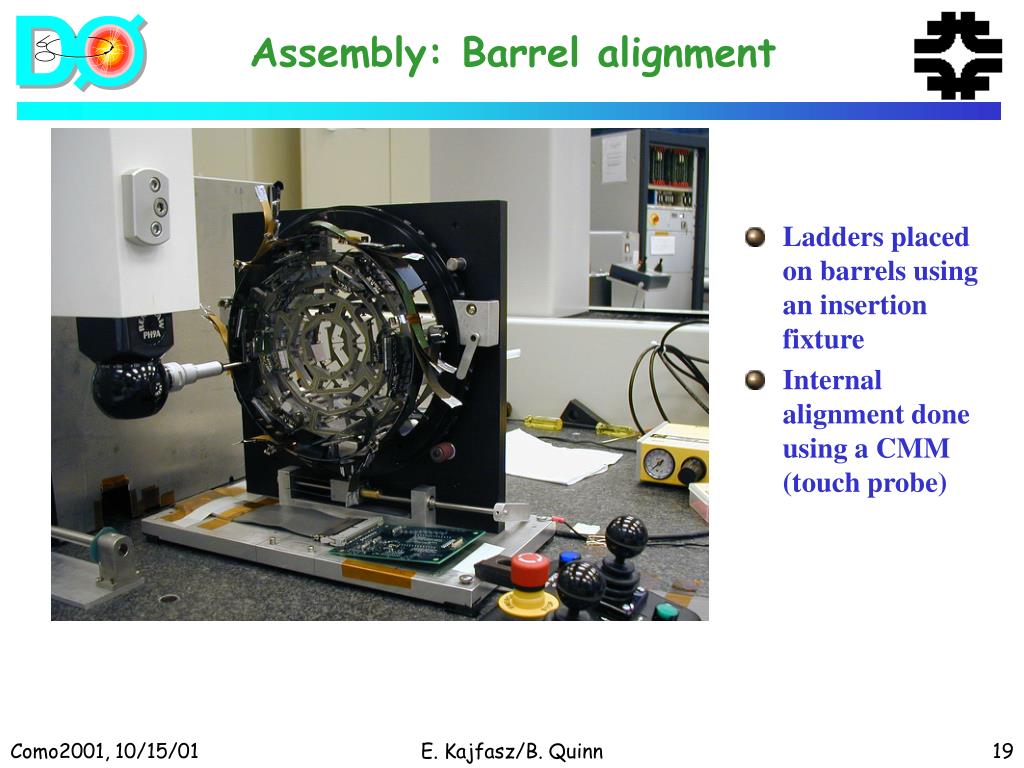

assembly barrel alignment
Assembly: Barrel alignment

Ladders placed on barrels using an insertion fixture

Internal alignment done using a CMM(touch probe)

E. Kajfasz/B. Quinn

barrel2 alignment rotations

Active BH

Passive BH

Barrel2 alignment - rotations

In the plane of the ladder

Around ladder short axis

Around ladder long axis

10um

48um

48um

(mm)

(mm)

(mm)

s(d)

=48um induces a 3um error

s(g)

=48um induces

a 2um error

s(D)

=10um induces a 3um error

E. Kajfasz/B. Quinn

assembly end fdisks mating
Assembly: End Fdisks mating

E. Kajfasz/B. Quinn

assembly hdisk
Assembly: Hdisk

E. Kajfasz/B. Quinn

assembly radiation monitors
Assembly: Radiation monitors

E. Kajfasz/B. Quinn

assembly cylinder
Assembly: ½-cylinder

HDI connection to low-mass cable

South Half Cylinder

E. Kajfasz/B. Quinn

smt readout data flow
SMT Readout: Data Flow

HV / LV

I,V,T Monitoring

8’ Low Mass Cable

~19’-30’ High Mass Cable (3M/80 conductor)

25’ High Mass Cable (3M/50 conductor)

3/6/8/9 Chip HDI

KSU

Interface Board

CLKs

CLKs

Adapter Card

SEQ

SEQ

SEQ

Sensor

SEQ

Controller

Optical Link

1Gb/s

Detector volume

Platform

Serial Command Link

VRB

VRB

VRB

VBD

PwrPC

1

5

5

3

VRB

Controller

VME

VRC

L3

Counting House

SDAQ

E. Kajfasz/B. Quinn

smt readout electronics
SMT Readout: Electronics
  • SEQuencers
    • 6 crates (120 boards) located on the detector platform
    • Use SVX control lines to actuate acquisition, digitization and readout
    • Convert SVX data to optical signals
  • VRBs (VME Readout Buffers)
    • 12 crates (120 boards) located in counting house
    • Data buffer pending L2 trigger decision
    • Input @ 5-10 kHz L1 accept rate ~ 50 Mb/s/channel
    • Output @ 1 kHz L2 accept rate ~ 50 Mb/s
  • Interface Boards
    • 8 crates (144 boards) located inside the detector volume
    • Regenerates signals
    • SVX monitoring and power management
    • Bias voltage distribution

E. Kajfasz/B. Quinn

installation
Installation

Fiber Tracker

  • Cylinder installation was completed on 12/20/00
    • A ½ cylinder of 3 barrels and 6 F disks was inserted into each end of the CFT bore
  • H Disk installation was completed on 2/6/01
  • The cabling (~15,000 connections) and electronics installation was completed in May 2001

Calorimeter

Low Mass Cables

SMT

High Mass

Cables

Interface Boards

E. Kajfasz/B. Quinn

commissioning status
Commissioning: Status
  • The entire detector has been connected and powered
  • The 30% glycol + water coolant is refrigerated at –10 degC (=> detectors run between –5 and 0 degC)
  • ~15% of the devices are not in the readout:
    • 10% ladders, 18% F wedges, 20% H wedges
    • Problems could be with boards, cables, connectors, chips, etc. We will debug each of them during the October/November shutdown, and expect to recover at least half of them.
  • Currently collecting calibration, alignment and commissioning data

E. Kajfasz/B. Quinn

commissioning event display
Commissioning; Event Display
  • Online SMT event display

E. Kajfasz/B. Quinn

commissioning monitoring
Commissioning: Monitoring

Online event monitoring program

E. Kajfasz/B. Quinn

commissioning charge collection
Commissioning: Charge Collection
  • A cluster is defined as a contiguous sequence of strips with
    • Each strip  6 ADC counts
    • Cluster  12 ADC counts
    • 1 MIP ~ 25 ADC counts
  • One can play on:
    • Timing settings, i.e. the delay of the integration window w.r.t. the beam crossing
    • Preamp bandwith (pabw)

E. Kajfasz/B. Quinn

commissioning timing and s n
Commissioning: Timing and S/N

Higher preamp bandwith does not significantly reduce noise on n-side

= 4x132ns + 1x18ns + 0x2ns

Highest value  smallest bandwith

E. Kajfasz/B. Quinn

commissioning calibrations
Commissioning: Calibrations
  • SMT pedestal, noise and gain measurements are taken using SDAQ.
  • Pedestal and noise measurements are used to calculate the threshold per chip to be used in sparse read out

E. Kajfasz/B. Quinn

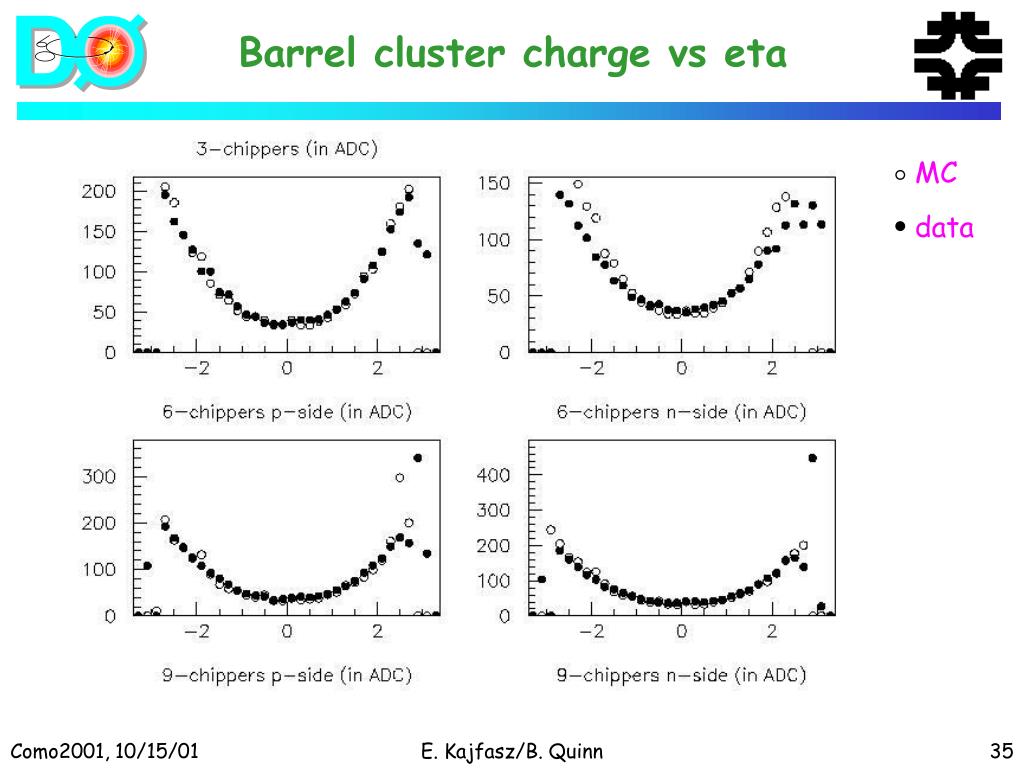

barrel cluster charge vs eta
Barrel cluster charge vs eta

MC

data

E. Kajfasz/B. Quinn

smt cft track matching
SMT & CFT Track Matching
  • Tracks were found separately in the SMT and the Central Fiber Tracker (CFT)
  • SMT tracks were extrapolated to the CFT at which point the track offsets were measured
  • Magnet off data

r = -3  36 m

E. Kajfasz/B. Quinn

smt cft primary tracks
SMT-CFT primary tracks

E. Kajfasz/B. Quinn

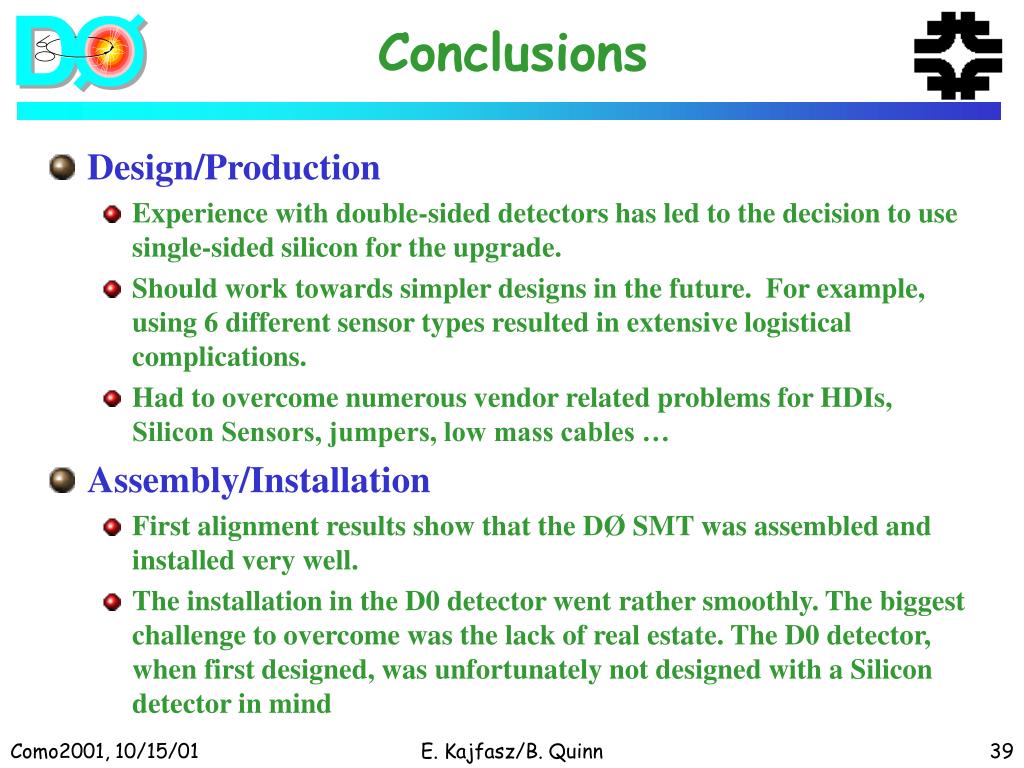

conclusions
Conclusions
  • Design/Production
    • Experience with double-sided detectors has led to the decision to use single-sided silicon for the upgrade.
    • Should work towards simpler designs in the future. For example, using 6 different sensor types resulted in extensive logistical complications.
    • Had to overcome numerous vendor related problems for HDIs, Silicon Sensors, jumpers, low mass cables …
  • Assembly/Installation
    • First alignment results show that the DØ SMT was assembled and installed very well.
    • The installation in the D0 detector went rather smoothly. The biggest challenge to overcome was the lack of real estate. The D0 detector, when first designed, was unfortunately not designed with a Silicon detector in mind

E. Kajfasz/B. Quinn

conclusions1
Conclusions
  • Commissioning
    • The SMT was the first major DØ Upgrade detector system fully operational for Run 2a. More than 85% of the channels were available for readout on startup, and most of the remaining channels will be debugged and recovered by November.
    • Calibrations and first look at physics show that we understand our detector.
    • The offline software is debugged at the same time as the hardware. Now that they are both reasonably stable, we can start systematic studies.
    • The detector should be commissioned by the end of the year.
    • We are eager to start doing good physics with it.
  • General
    • Construction and commissioning of the SMT has been an adventure full of challenges. But thanks to the relentless efforts of many physicists, engineers and technicians, D0 has now a vertex detector to play with.
    • We had so much fun building this detector for run 2a that we are already planning to build a completely new Silicon Microstrip detector for run 2b (see Alice’s talk)

E. Kajfasz/B. Quinn
