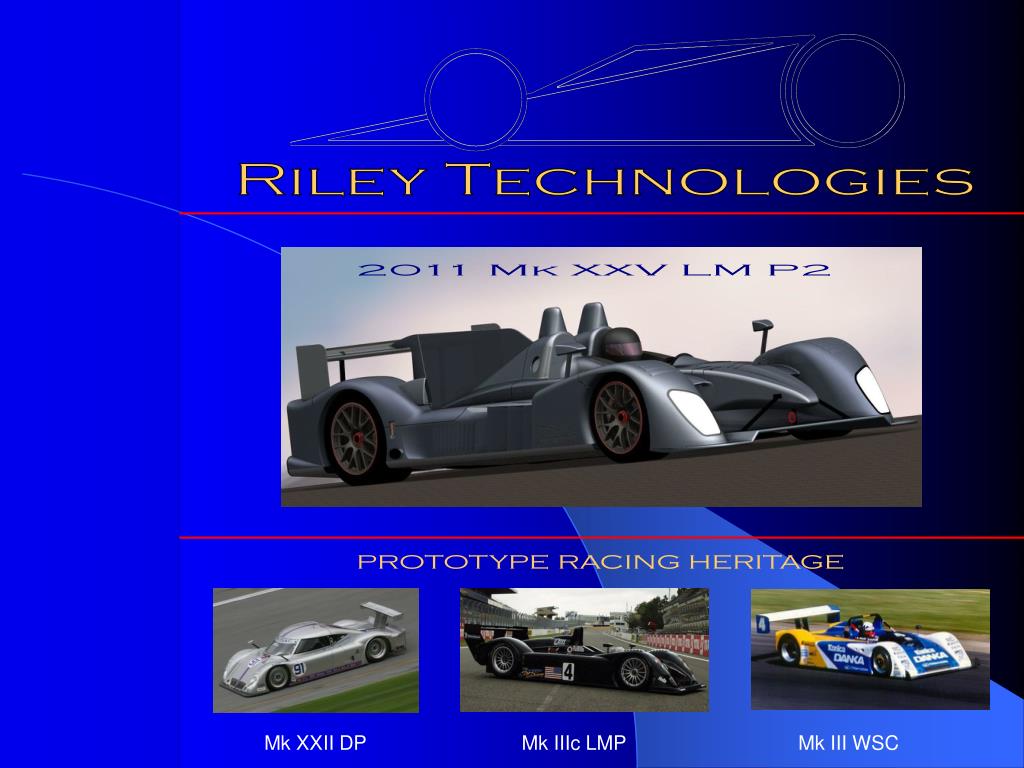

2011 Mk XXV LM P2
PROTOTYPE RACING HERITAGE
Mk XXII DP Mk IIIc LMP Mk III WSC

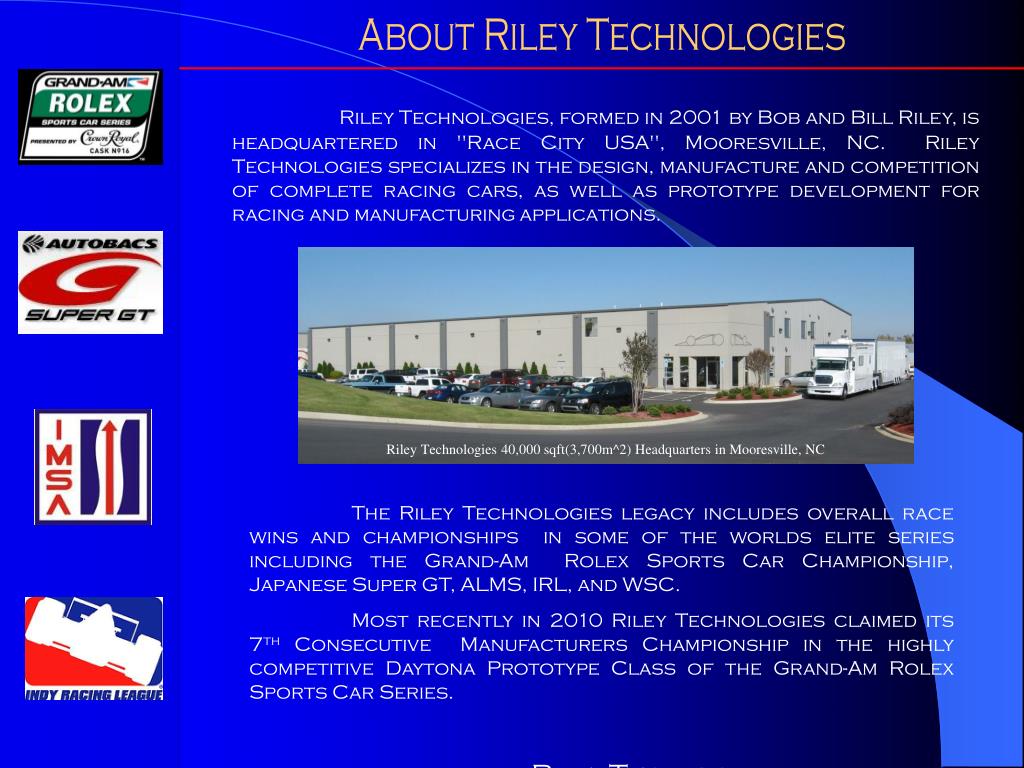

Riley Technologies, formed in 2001 by Bob and Bill Riley, is headquartered in "Race City USA", Mooresville, NC. Riley Technologies specializes in the design, manufacture and competition of complete racing cars, as well as prototype development for racing and manufacturing applications.
Riley Technologies 40,000 sqft(3,700m^2) Headquarters in Mooresville, NC
The Riley Technologies legacy includes overall race wins and championships in some of the worlds elite series including the Grand-Am Rolex Sports Car Championship, Japanese Super GT, ALMS, IRL, and WSC.
Most recently in 2010 Riley Technologies claimed its 7th Consecutive Manufacturers Championship in the highly competitive Daytona Prototype Class of the Grand-Am Rolex Sports Car Series.

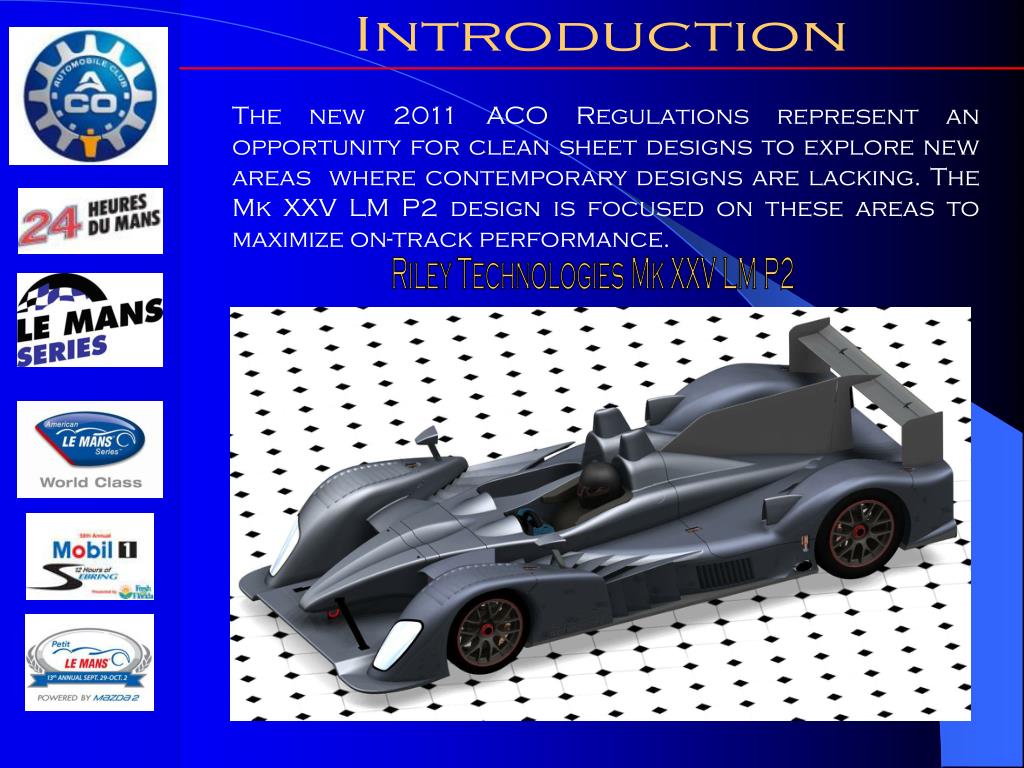

The new 2011 ACO Regulations represent an opportunity for clean sheet designs to explore new areas where contemporary designs are lacking. The Mk XXV LM P2 design is focused on these areas to maximize on-track performance.
Riley Technologies Mk XXV LM P2

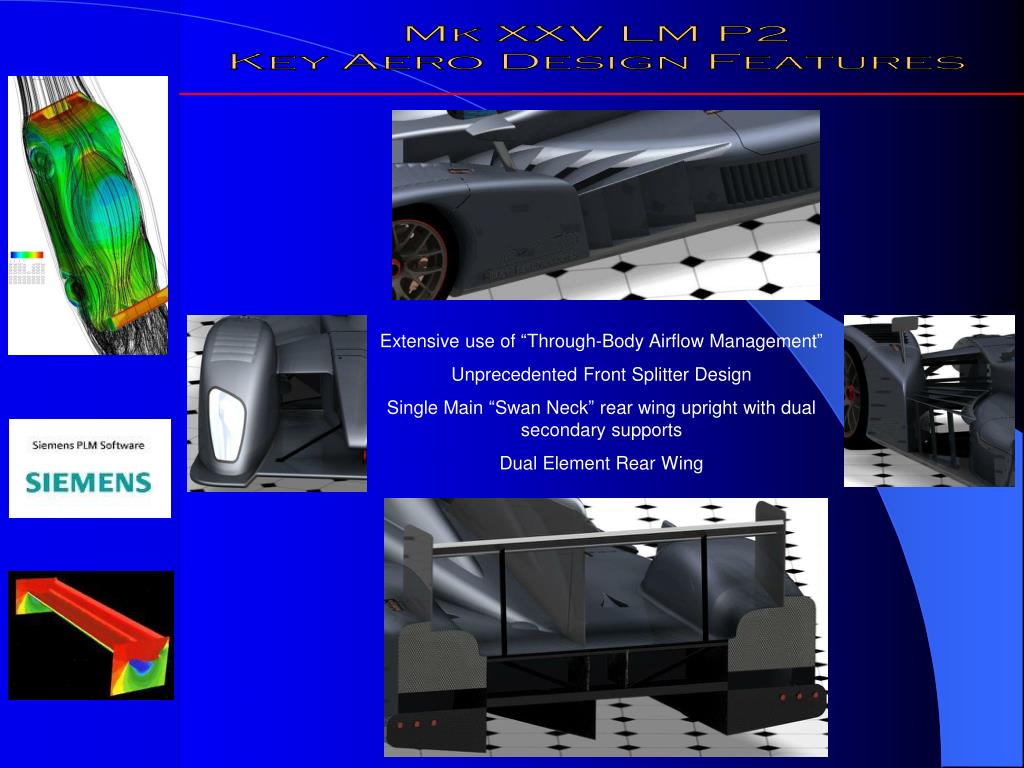

Key Aero Design Features
Extensive use of “Through-Body Airflow Management”
Unprecedented Front Splitter Design
Single Main “Swan Neck” rear wing upright with dual secondary supports
Dual Element Rear Wing

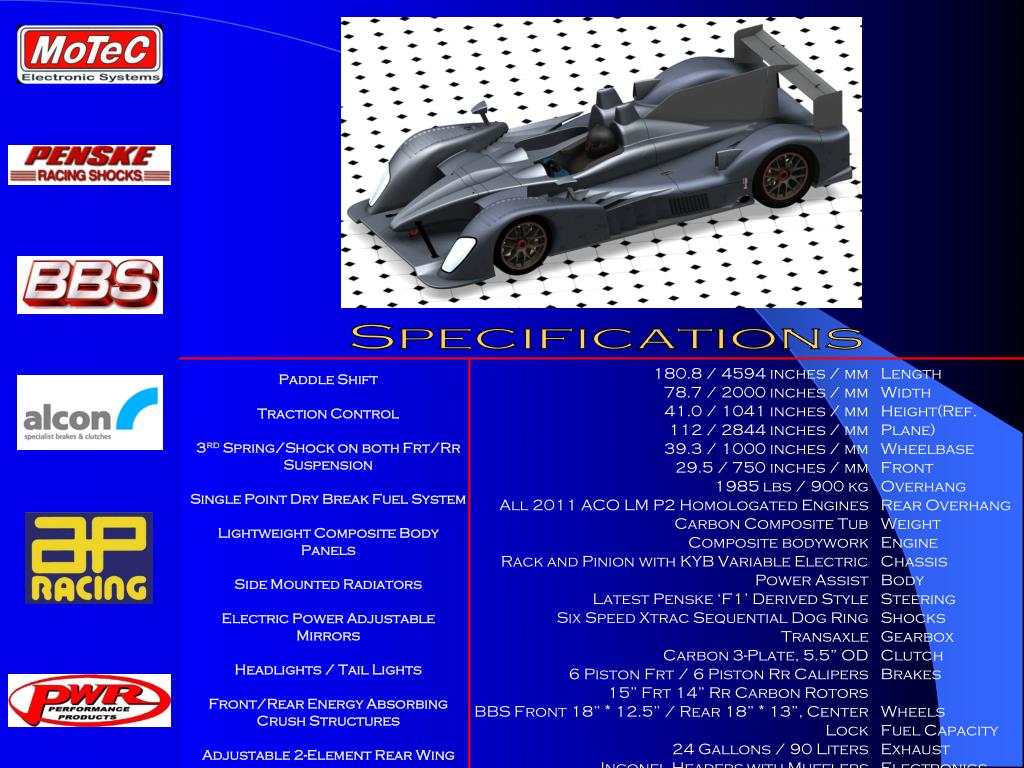

180.8 / 4594 inches / mm
78.7 / 2000 inches / mm
41.0 / 1041 inches / mm
112 / 2844 inches / mm
39.3 / 1000 inches / mm
29.5 / 750 inches / mm
1985 lbs / 900 kg
All 2011 ACO LM P2 Homologated Engines
Carbon Composite Tub
Rack and Pinion with KYB Variable Electric Power Assist
Latest Penske ‘F1’ Derived Style
Six Speed Xtrac Sequential Dog Ring Transaxle
Carbon 3-Plate, 5.5” OD
6 Piston Frt / 6 Piston Rr Calipers
15” Frt 14” Rr Carbon Rotors
BBS Front 18” * 12.5” / Rear 18” * 13”, Center Lock
24 Gallons / 90 Liters
Inconel Headers with Mufflers
Motec PDM32 Power Management
(Optional) Motec Data System with Digital Display
3rd Spring/Shock on both Frt/Rr Suspension
Single Point Dry Break Fuel System
Lightweight Composite Body Panels
Side Mounted Radiators
Electric Power Adjustable Mirrors
Headlights / Tail Lights
Front/Rear Energy Absorbing Crush Structures
Adjustable 2-Element Rear Wing
Riley Technologies is confident the Mk XXV LM P2 will build on the legacy established by the MkIII, MkIIIc, and MkXX Daytona Prototype Sportscars and give customers the speed, reliability, and serviceability needed to excel.
An Engineer and Assembly Technician are available to attend the first test. Riley Technologies is pleased to offer this state of the art car as described herein for $470,000.
170 Overhill Dr.
Mooresville, NC 28117
704.663.6319 ext 302
