slide1

Association of Academic

Dermatologic Surgeons

Content Review date: August 27, 2012

Originally Submitted: September 15, 2007

How to Write a Paper

Timothy M. Johnson MD

Lewis and Lillian Becker Professor University of Michigan

I have No COI-no relevant relationships with industry

slide2

How to Write a Paper

?

Disclaimer:My Perspective.Everyone is different. These are just guidelines and pearls that I have found useful.

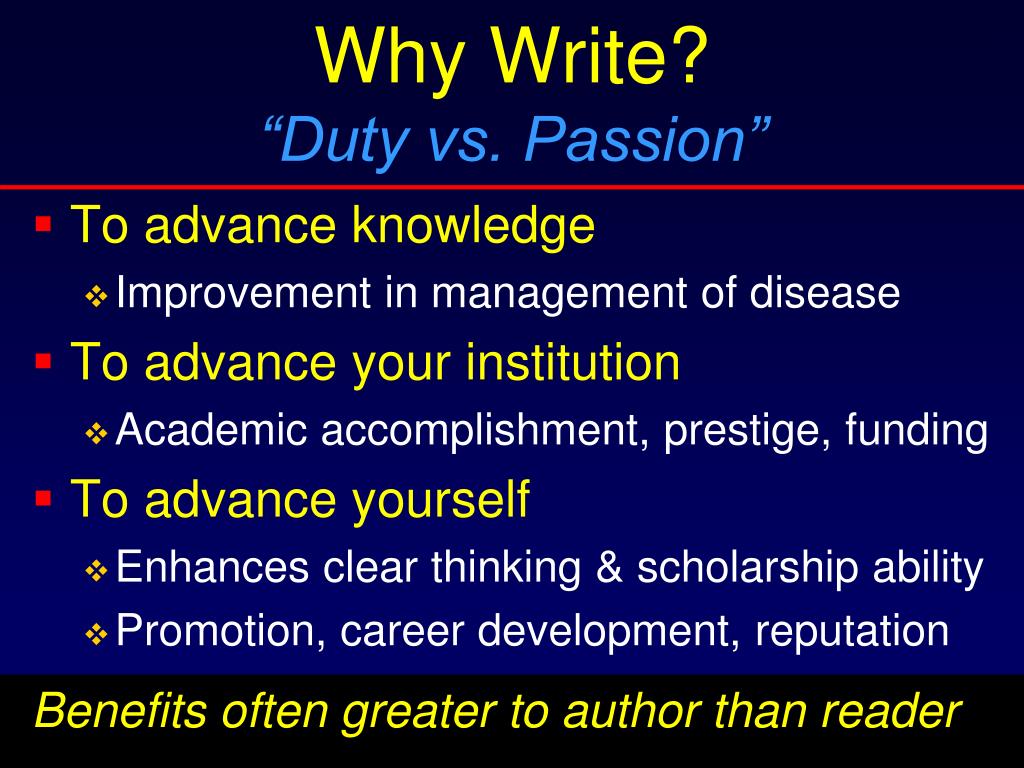

why write duty vs passion
Why Write?“Duty vs. Passion”
  • To advance knowledge
    • Improvement in management of disease
  • To advance your institution
    • Academic accomplishment, prestige, funding
  • To advance yourself
    • Enhances clear thinking & scholarship ability
    • Promotion, career development, reputation

Benefits often greater to author than reader

the evidence pyramid
The Evidence Pyramid

Systematic Review

& Meta-Analysis

Randomized Controlled

Trial (RCT) Double Blind

stages in a research study
Stages in a Research Study
  • Planning the study & writing the protocol
  • IRB approval
  • Funding/Infrastructure
  • Executing the study & collecting the data
  • Data analysis
  • Writing
  • Going through the editorial process

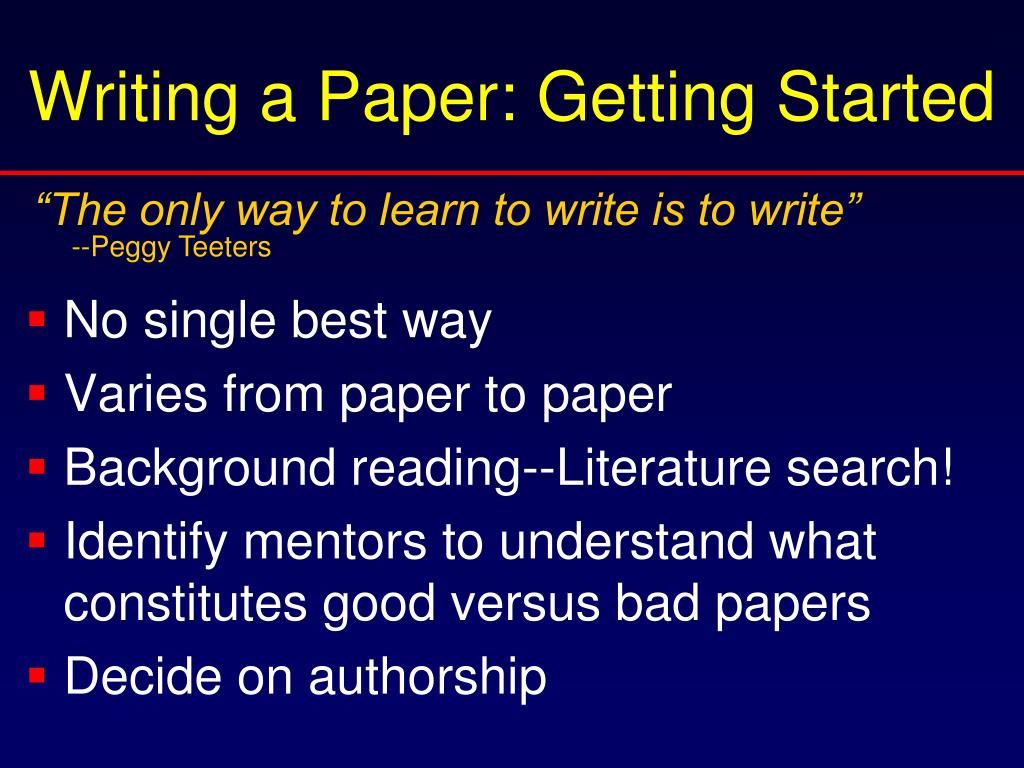

writing a paper getting started
Writing a Paper: Getting Started
  • No single best way
  • Varies from paper to paper
  • Background reading--Literature search!
  • Identify mentors to understand what constitutes good versus bad papers
  • Decide on authorship

“The only way to learn to write is to write”--Peggy Teeters

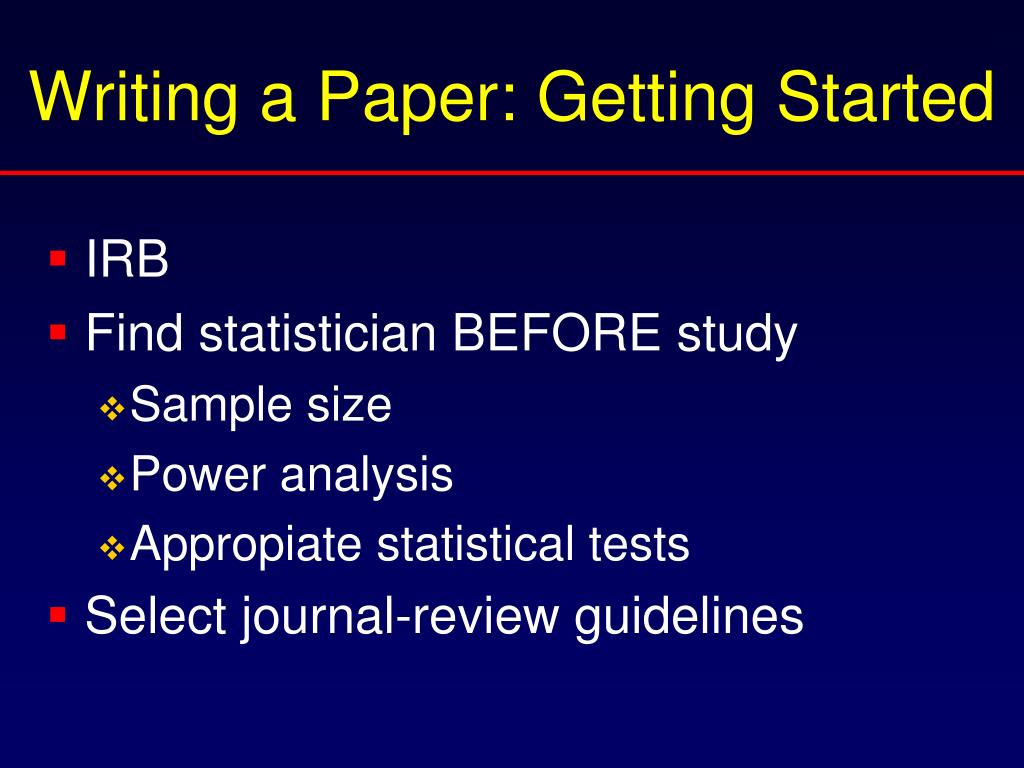

writing a paper getting started9
Writing a Paper: Getting Started
  • IRB
  • Find statistician BEFORE study
    • Sample size
    • Power analysis
    • Appropiate statistical tests
  • Select journal-review guidelines

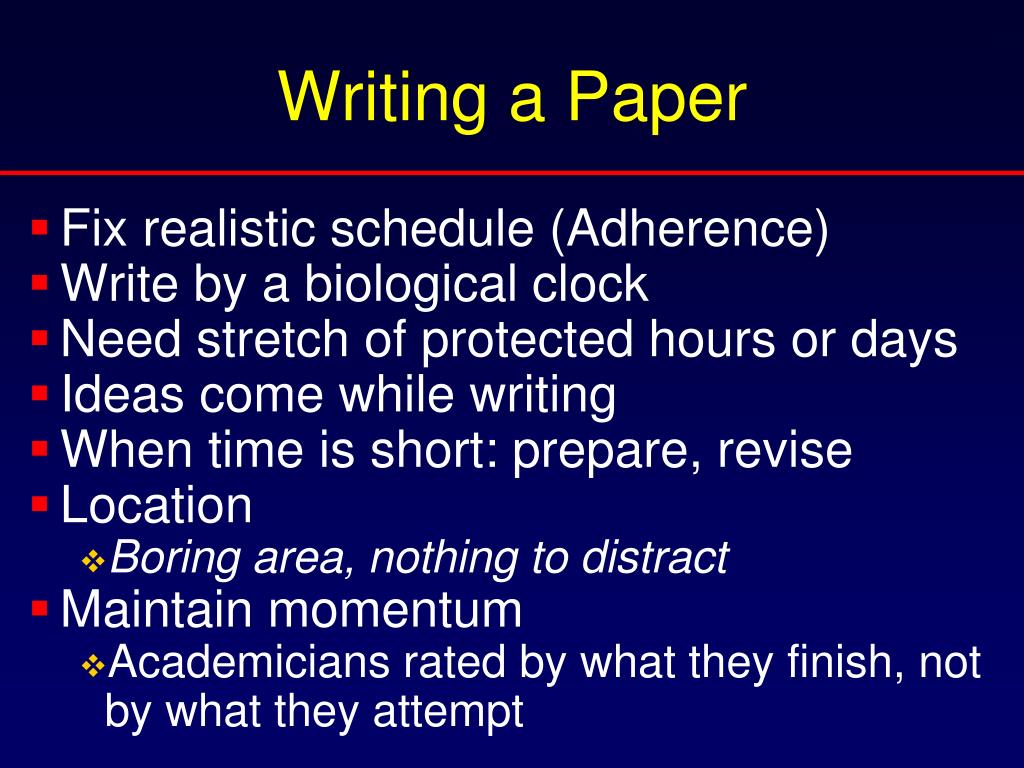

writing a paper
Writing a Paper
  • Fix realistic schedule (Adherence)
  • Write by a biological clock
  • Need stretch of protected hours or days
  • Ideas come while writing
  • When time is short: prepare, revise
  • Location
    • Boring area, nothing to distract
  • Maintain momentum
    • Academicians rated by what they finish, not by what they attempt
write in what order

Parts of a Manuscript--Structure

Write in What Order?

Title

Abstract

Introduction

Methods

Results

Discussion

References

“Writing is a lot easier if you have something to say”

--Sholem Asch

methods i

1

Methods I

WHAT DID YOU DO?

For informed readers this is the most important section

  • Past tense
  • Precision-study design-like a recipe
  • Explicit inclusion/exclusion criteria, retrospective or prospective, etc.
  • Detailed enough so results can be repeated by others
methods ii

1

Methods II
  • Ethical approval (IRB)
  • Statistical methods
  • Subheadings only if necessary-duplicate in results
  • Remember that you can put detailed methods on the web-i.e., questionnaire

WHAT DID YOU DO?

slide14
IRB !!
  • Start by reading your local IRB website http://www.med.umich.edu/irbmed/
  • PEERRS certification:Program for Education and Evaluation in Responsible Research and Scholarship
    • Fulfills the NIH requirement for human subjects training for PIs and "key personnel”
  • Trials MUST be enrolled for publication in the best journals
    • http://clincaltrials.gov
    • http://prsinfo.clinicaltrials.gov
slide15
IRB !!
  • Almost every study worth publishing requires IRB approval
  • Determination of exempt status is made by the IRB
    • Exemption Categories

4. Research, involving the collection or study of existing data, documents, records, pathological specimens, or diagnostic specimens, if these sources are publicly available or if the information is recorded by the investigator in such a manner that subjects cannot be identified, directly or through identifiers linked to the subjects.

results i

2

Results I
  • Just the facts, in a logical sequence
  • Past tense
  • Importance of accuracy cannot be overstated-check, recheck data/numbers-must add up
  • Give numbers and percentages:1 (10%) of 10…
  • P values and confidence intervals
  • Avoid discussion of results in this section

WHAT DID YOU FIND?

results ii

2

Results II

WHAT DID YOU FIND?

  • Tables & figures-straightforward, concise, not duplicative, should stand alone
  • Table(s) - short specific title at top of page, footnotes
  • Figure(s) - concise legends, QUALTY, avoid distracters, anonymity
  • You can put extra results on the web
statistical vs clinical significance is it real vs is it important
Statistical vs. Clinical SignificanceIs it real? vs. Is it important?

There are three kinds of lies:

lies, damned lies, and statistics.

In God we trust All others must bring data.

Mark Twain

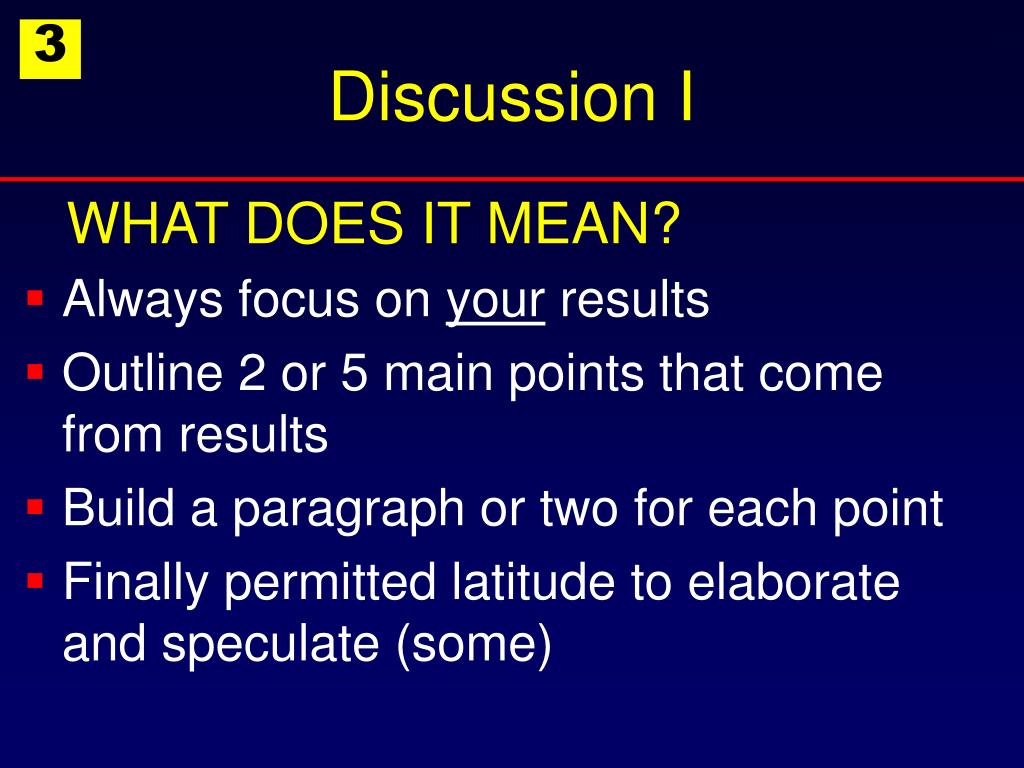

discussion i

3

Discussion I
  • Always focus on your results
  • Outline 2 or 5 main points that come from results
  • Build a paragraph or two for each point
  • Finally permitted latitude to elaborate and speculate (some)

WHAT DOES IT MEAN?

discussion ii

3

Discussion II

WHAT DOES IT MEAN?

  • First answer the question posed in the Introduction
  • Summarize previous work-compare your results
  • Explain what is new without exaggerating, perspectives, implications
  • What do your results mean? - clinical practice, management, policy
discussion iii

3

Discussion III

WHAT DOES IT MEAN?

  • Strengths and weaknesses in relation to other studies, particularly any differences in results
  • Usually avoid ending with a conclusions-summary section if redundant
  • “further studies are required”- usually not necessary and implies to some you need to do before submitting
introduction

4

Introduction

WHAT IS THE QUESTION/OBJECTIVE?

  • Short (3 paragraphs)-1 typewritten page
    • First paragraph

Brief background-establish context, relevance, nature of the problem/question/purpose

    • Second paragraph

Importance of the problem and unresolved issues

    • Last paragraph

Rationale: state hypothesis/main objective/purpose

What we know?

What we don’t know?

Why we did the study?

abstract
Abstract
  • Critical part of paper
  • Determines if paper will be read
  • Is distributed freely in databases
  • Structured per format
  • Avoid acronyms and abbreviations
  • Write and rewrite until flawless
  • Clear and concise - stand alone
references
References
  • Errors reflect scholarship-check & recheck
  • Be selective-cite only those vital
  • Relevant and recent (or seminal)
  • Balance
  • Read the references
  • Do not misquote
  • Use correct style for journal
title
Title
  • Determines how paper gets indexed
  • Often determines whether paper gets read
  • Should describe and identify subject matter
  • Avoid long title-impossible to comprehend at a glance
  • Avoid abbreviations
  • Question: may be easier to understand, more impact?
first draft
First Draft

What works for me?

  • Write as quickly as possible
  • Get everything down
  • Ignore spelling, grammar, style
  • Skip troublesome words
  • Correct and rewrite only when the whole text is on paper
  • Do not split the manuscript among the co-authors
style and authorship
Style and Authorship
  • Follow ICMJE* criteria:
    • Uniform Requirements for Manuscripts Submitted to Biomedical Journals http://www.icmje.org/index.html#top
  • Order:
    • First author-primarily responsible for collecting & analyzing data, and writing
    • Last author-usually an established investigator, assumes overall responsibility
    • Middle authors-list in order of contribution

* International Committee of Medical Journal Editors

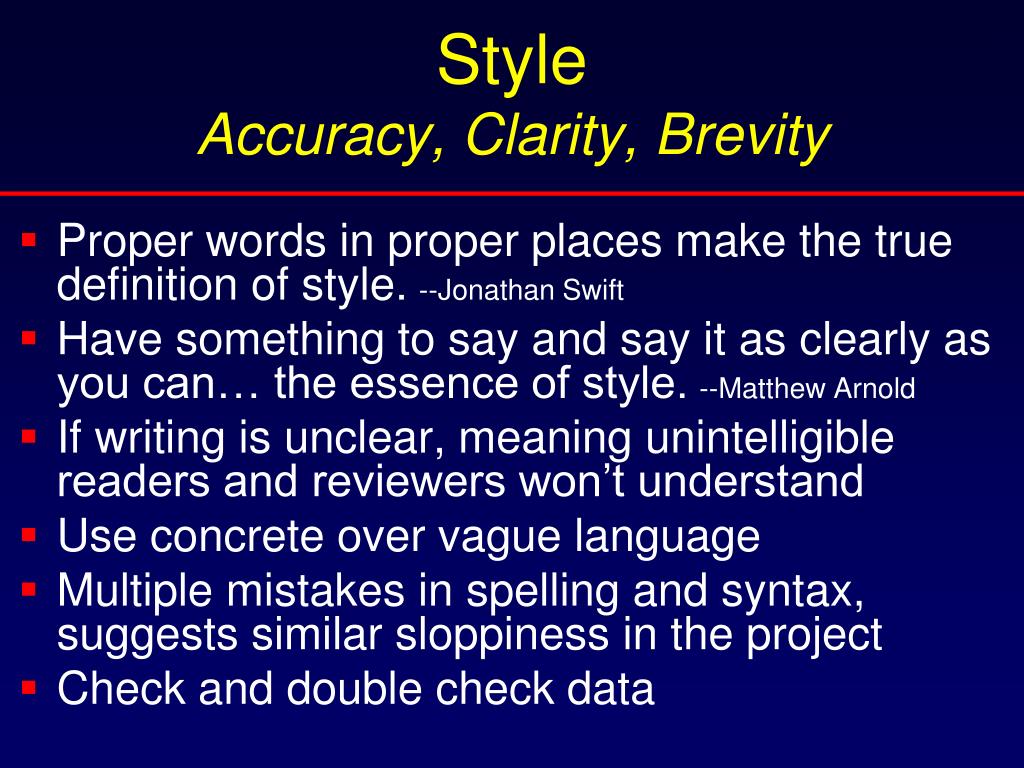

style accuracy clarity brevity
StyleAccuracy, Clarity, Brevity
  • Proper words in proper places make the true definition of style.--Jonathan Swift
  • Have something to say and say it as clearly as you can… the essence of style.--Matthew Arnold
  • If writing is unclear, meaning unintelligible readers and reviewers won’t understand
  • Use concrete over vague language
  • Multiple mistakes in spelling and syntax, suggests similar sloppiness in the project
  • Check and double check data
style accuracy clarity brevity29
StyleAccuracy, Clarity, Brevity
  • Use active voice whenever possible

Active voice: the subject is performing the verb

Passive voice: the subject receives the action expressed in the verb

Passive (more wordy) Active (more concise)

  • Avoid overusing there is, there are, it is, it was, etc.
    • There aretreatment guidelines for Merkel cell carcinoma that werereportedby Bichakjian, et al.
    • Correction:Treatment guidelines for Merkel cell carcinoma werereported by Bichakjian, et al.
    • Better:Bichakjian, et al.reportedtreatment guidelines for Merkel cell carcinoma. (Active voice)

Active:Scientists have conducted experiments to test the hypothesis

Passive:Experiments have been conducted by scientists to test the hypothesis

style accuracy clarity brevity30
StyleAccuracy, Clarity, Brevity
  • All first drafts have too many words
  • Next drafts: prune vigorously, avoid repetition, wordiness, long sentences, excessive adverbs/adjectives
  • Strip every sentence
  • Writing improves in proportion to deletion of unnecessary words
  • When you have the choice of two words, use the simpler one
  • The most valuable of all talents is that of never using two words when one will do.--Thomas Jefferson
simplify
Simplify
  • a majority of = most
  • a considerable amount of = much
  • a number of = several/some
  • on account of = because
  • referred to as = called
  • has the capacity to = can
  • it is clear that = clearly
  • at the present time = now
  • give rise to = cause
  • is defined as = is
  • subsequent to = after

“Those who have the most to say usually say it with the fewest words”

style accuracy clarity brevity32
StyleAccuracy, Clarity, Brevity
  • Liked by authors, disliked by readers
  • Reading should not require a glossary
  • Unwieldy word occurring > 10 times
  • Avoid using colloquial language

Abbreviations and Acronyms

troublesome terms
Troublesome Terms
  • And/or: and or oralone usually suffices
  • Diabetic as a noun may be condescending to some, patient with diabetes
  • Significant means statistically significant
  • “Firstness”-provide details if true, rarely needed

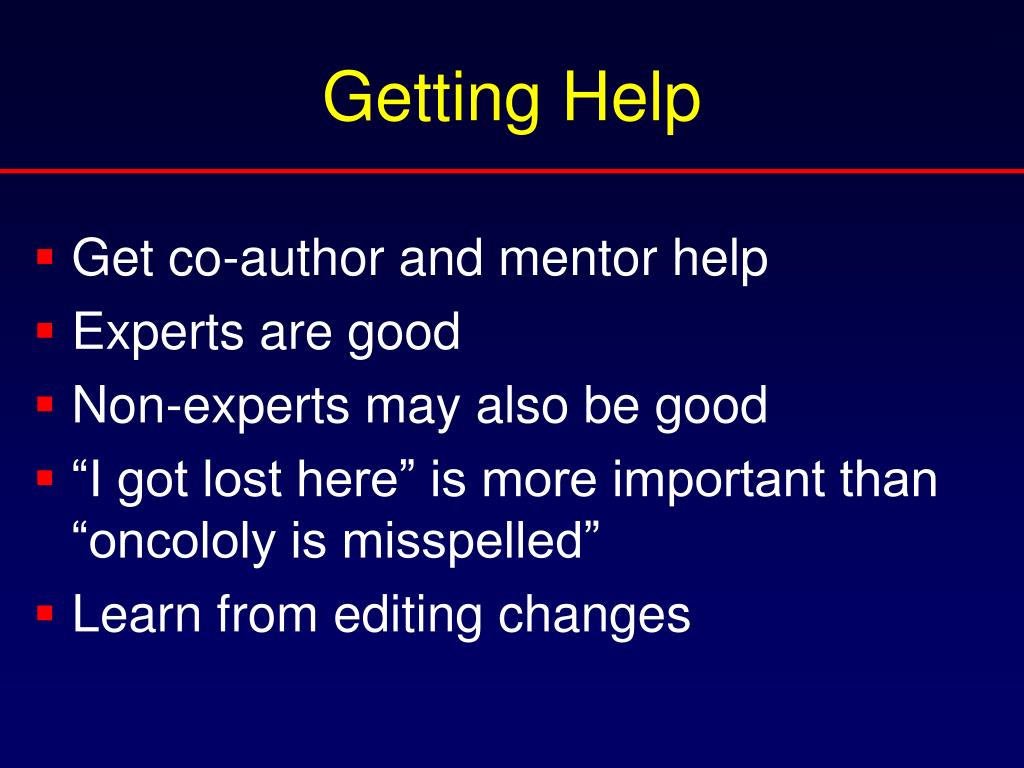

getting help
Getting Help
  • Get co-author and mentor help
  • Experts are good
  • Non-experts may also be good
  • “I got lost here” is more important than “oncololy is misspelled”
  • Learn from editing changes

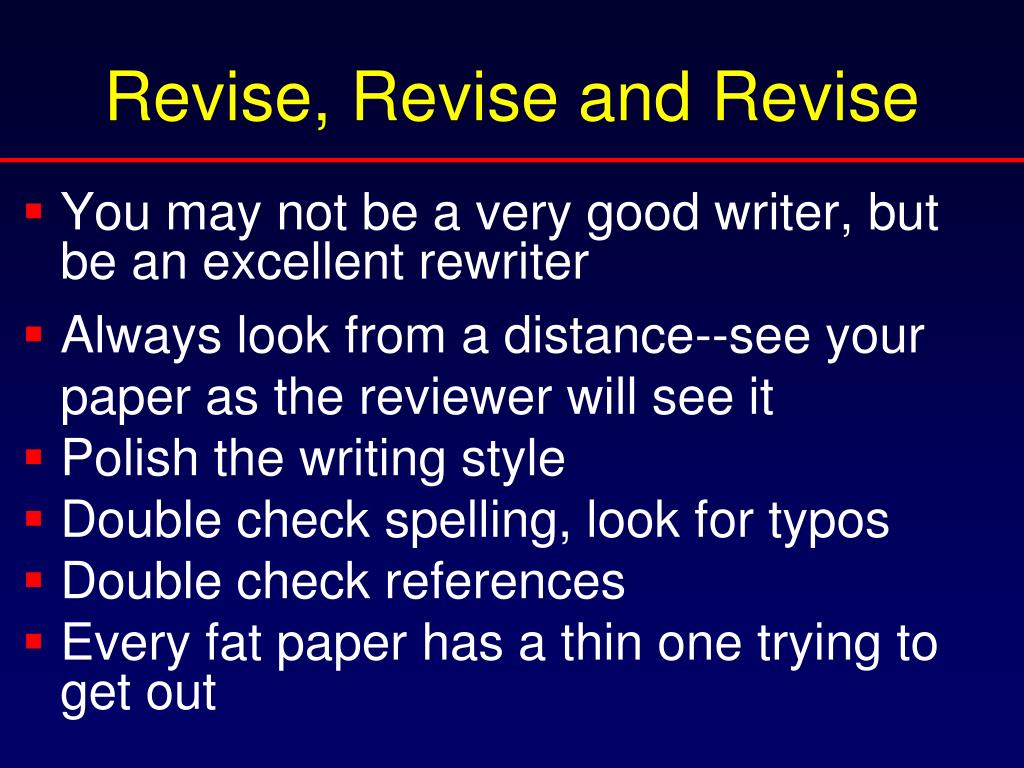

revise revise and revise
Revise, Revise and Revise
  • You may not be a very good writer, but be an excellent rewriter
  • Always look from a distance--see your paper as the reviewer will see it
  • Polish the writing style
  • Double check spelling, look for typos
  • Double check references
  • Every fat paper has a thin one trying to get out

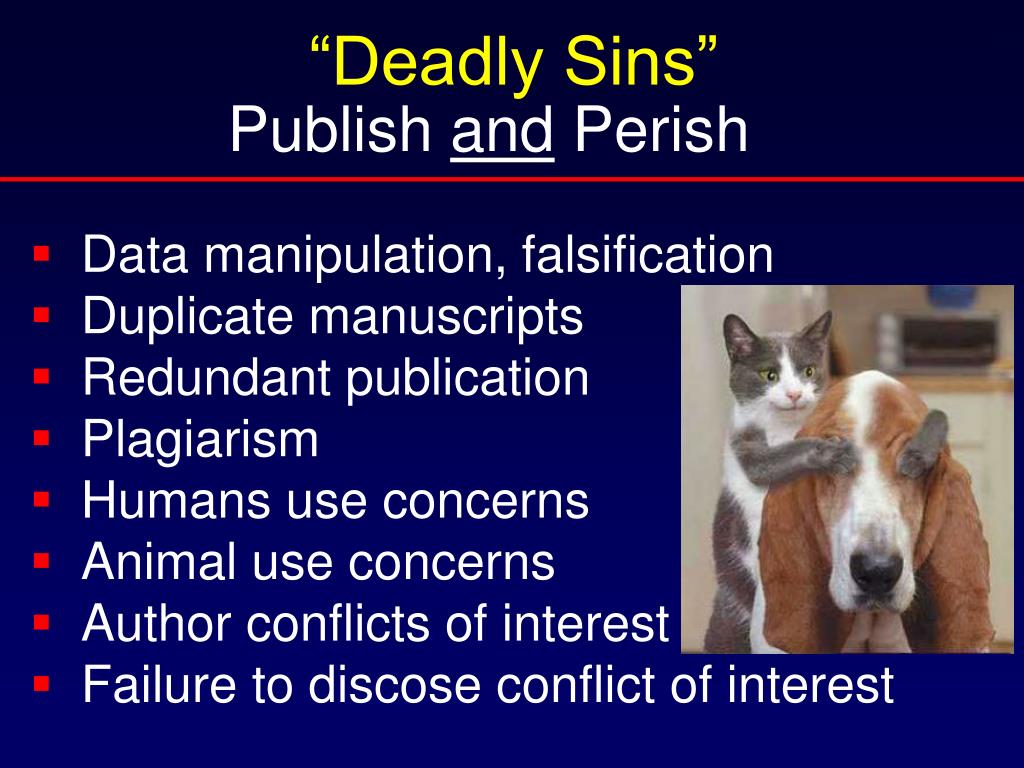

publish and perish

“Deadly Sins”

  • Data manipulation, falsification
  • Duplicate manuscripts
  • Redundant publication
  • Plagiarism
  • Humans use concerns
  • Animal use concerns
  • Author conflicts of interest
  • Failure to discose conflict of interest

Publish and Perish

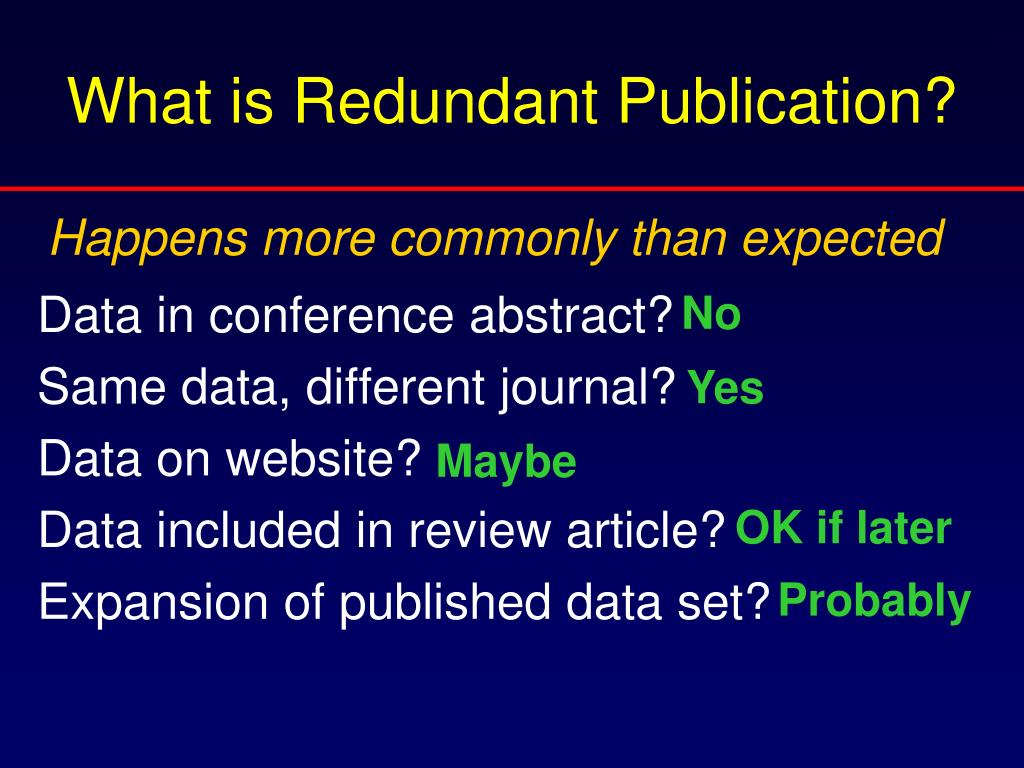

what is redundant publication

Happens more commonly than expected

What is Redundant Publication?

No

Yes

Maybe

Data in conference abstract?

Same data, different journal?

Data on website?

Data included in review article?

Expansion of published data set?

OK if later

Probably

redundant publication
Redundant Publication
  • Problem is not the publication but the lack of disclosure--disclosure is key
  • Always send copies of overlapping papers and reference them
  • Negative studies are often not published; positive studies are more likely be published more than once-creates BIAS
  • Distorts what the evidence says
submission
Submission
  • Read “Instructions for Authors” thoroughly
  • Conform to “Instructions” precisely
  • Write cover letter (suggest reviewers)
  • Know the journal, its editors, and why you submitted the paper there
  • Avoid careless mistakes
what editors like about papers

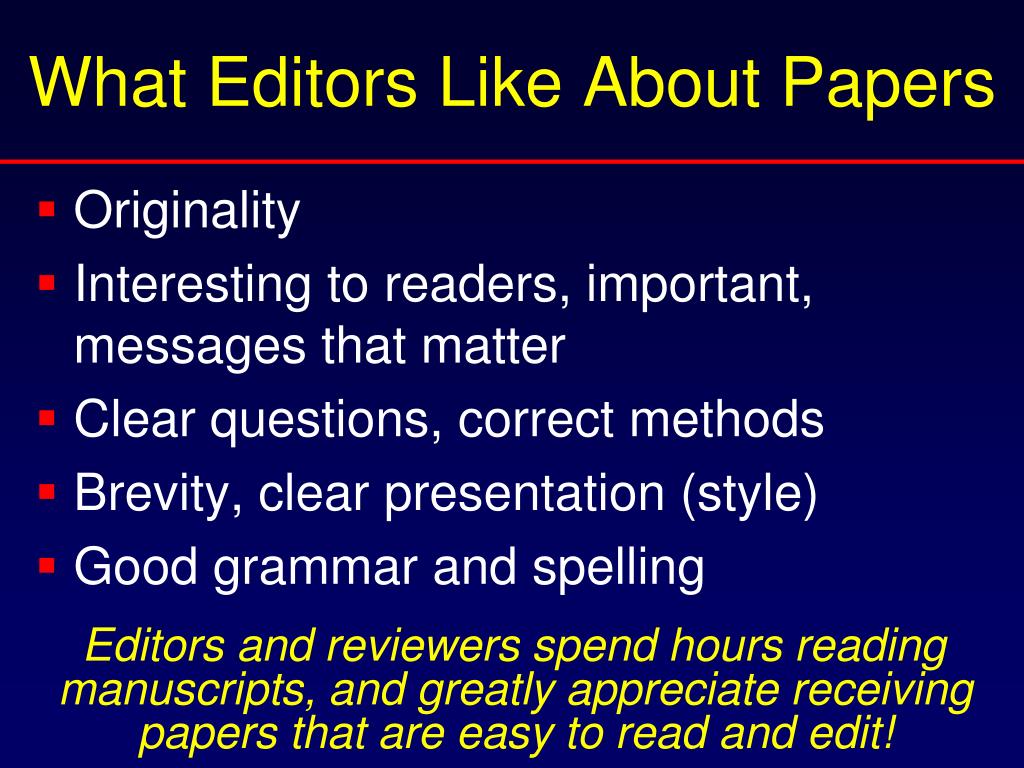

What Editors Like About Papers
  • Originality
  • Interesting to readers, important, messages that matter
  • Clear questions, correct methods
  • Brevity, clear presentation (style)
  • Good grammar and spelling

Editors and reviewers spend hours reading manuscripts, and greatly appreciate receiving papers that are easy to read and edit!

what editors dislike
What Editors Dislike
  • Very long papers (> 3,000 words)
  • Second-rate Style
  • Conclusions not justified by data, sweeping conclusions
  • Inability to follow “Instructions to Authors”
  • Splitting versus lumping
what happens next
What Happens Next?
  • Acceptance
  • Revision
  • Rejection

The Review Process

If at first you don’t succeed, you’re about average!

the post review phase revision
The Post Review Phase-Revision

Listen to your reviewers

  • Study reviews objectively and dispassionately
  • Read every criticism as something you could explain more clearly
  • Resist temptation to respond “you brainless person, I meant X”. Fix the paper so that X is apparent even to the most brainless reader.
  • Be open to criticism - do not get defensive -This isreally, reallyhard, but it isreally, really, really, reallyimportant
responding to reviewers revision

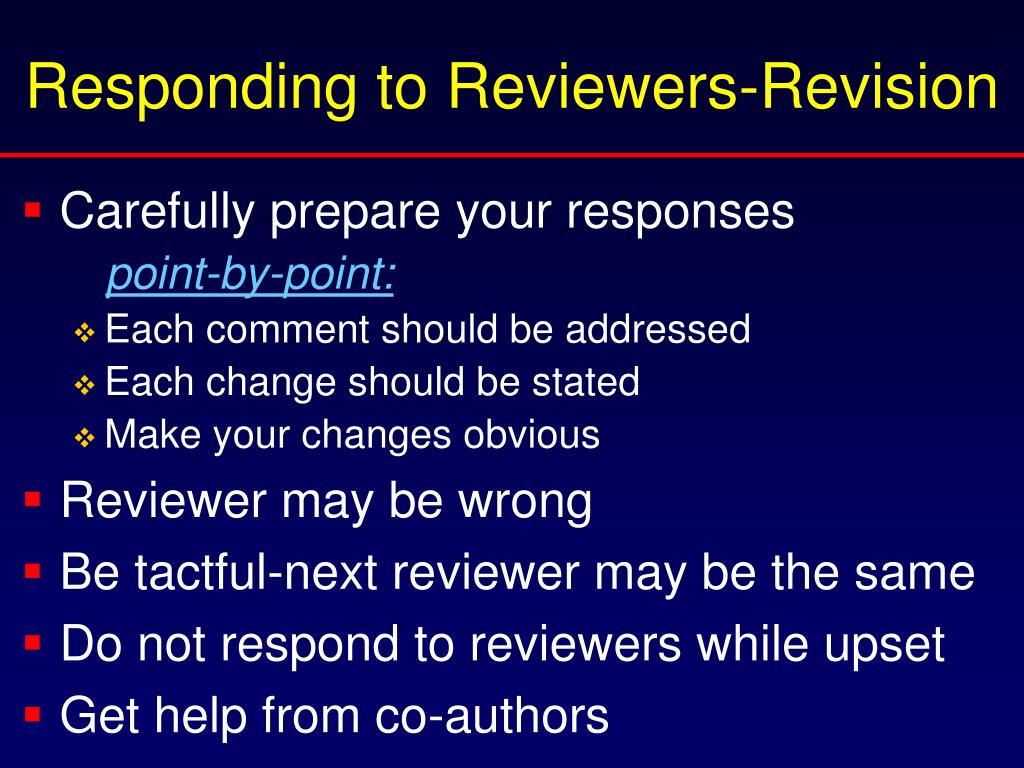

Responding to Reviewers-Revision
  • Carefully prepare your responses

point-by-point:

    • Each comment should be addressed
    • Each change should be stated
    • Make your changes obvious
  • Reviewer may be wrong
  • Be tactful-next reviewer may be the same
  • Do not respond to reviewers while upset
  • Get help from co-authors
rejection
Rejection

-disappointing at best

A journey of a thousand miles sometimes ends very, very badly

why papers are rejected i

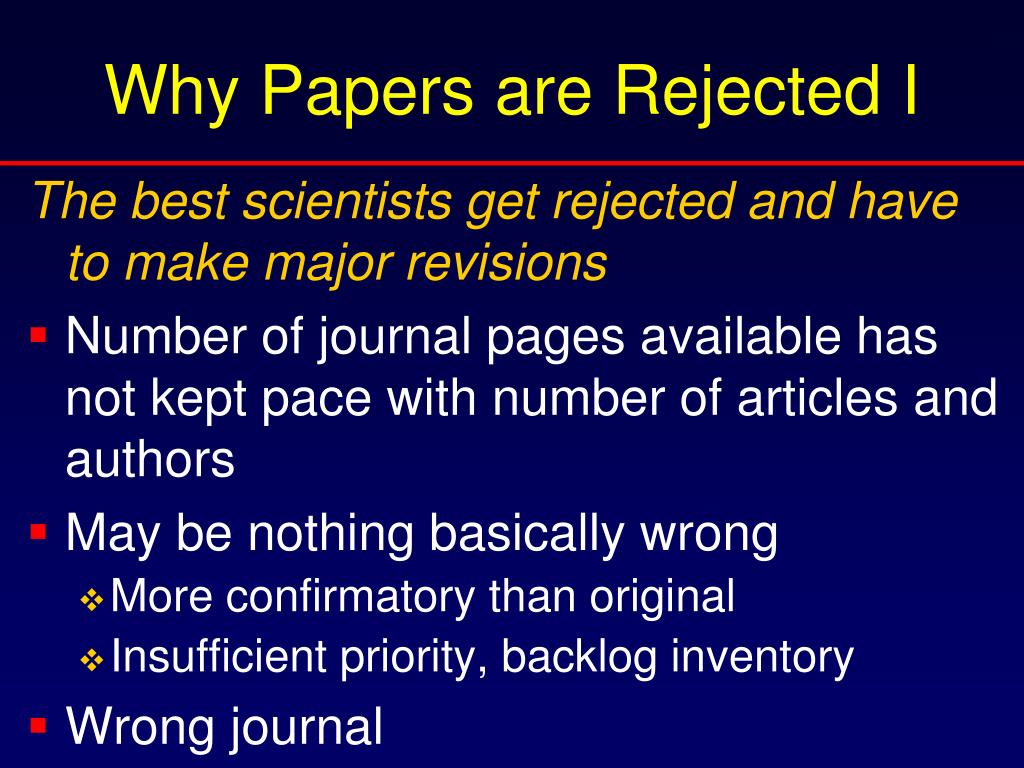

Why Papers are Rejected I

The best scientists get rejected and have to make major revisions

  • Number of journal pages available has not kept pace with number of articles and authors
  • May be nothing basically wrong
    • More confirmatory than original
    • Insufficient priority, backlog inventory
  • Wrong journal
why papers are rejected ii
Why Papers are Rejected II
  • Poorly written
  • Sweeping conclusions-unjustified by data
  • Ethics (IRB) approval not obtained
  • Flawed or poor study design-methods
    • Unrepresentative sample(s)
    • Uncontrolled, poor controls, nonrandomized interventions
    • Sample size too small
    • Incorrect statistical analysis
    • Hypothesis not adequately tested

Your manuscript is both good and original, but the part that is good is not original, and the part that is original is not good.

--Samuel Johnson

the post review phase rejection
The Post Review Phase-Rejection

Honest criticism is hard to take, particularly from a relative, a friend, an acquaintance, or a stranger.

--Franklin Jones

  • Get over it
  • Do not get defensive
  • Study reviews as objectively & unemotionally as possible-for resubmission to another journal
  • Address all of the reviewers’ concerns
  • Next reviewer may be the same

At least 50% of initially rejected articles are eventually published somewhere else!

the post review phase rejection49
The Post Review Phase-Rejection

Appeal Option

  • Do not call the editor---usually
  • Willing to consider first appeals--but must revise the paper, refute criticisms, not just say the subject is important
  • Few accepted on appeal
  • No second appeals; ends in hostility or tears; plenty of other journals
become a reviewer
Become a Reviewer

Become a Better Writer

  • Approach the editors and editorial staff
  • The best reviewers are often the best writers and vice versa
  • Apply principles from today

Professor Trisha Greenhalgh:

"How to Read a Paper" Series--BMJ

slide51

Introduction to Evidence Based Medicine: Critical Appraisal and Informed Medical practice

Introduction to Clinical Medicine - Professional Skills January 2005

http://www.health.library.mcgill.ca/ebm/greenhalgh.htm

Professor Trisha Greenhalgh(University College London)

"How to Read a Paper" Series

Getting your bearings (deciding what the paper is about). BMJ 1997;315:243-6.

Assessing the methodological quality of published papers. BMJ 1997;315:305-8.

Statistics for the non-statistician. II: "Significant" relations and their pitfalls. BMJ 1997; 315: 422-425.

Statistics for the non-statistician. I: Different types of data need different statistical tests. BMJ 1997;315:364-6.

Papers that go beyond numbers (qualitative research). BMJ 1997;315:740-3.

Papers that summarise other papers (systematic reviews and meta-analyses). BMJ 1997;315:672-5.

Papers that tell you what things cost (economic analyses). BMJ. 1997;315:596-9.

Papers that report diagnostic or screening tests. BMJ 1997;315:540-3.

Papers that report drug trials. BMJ 1997;315:480-3.
