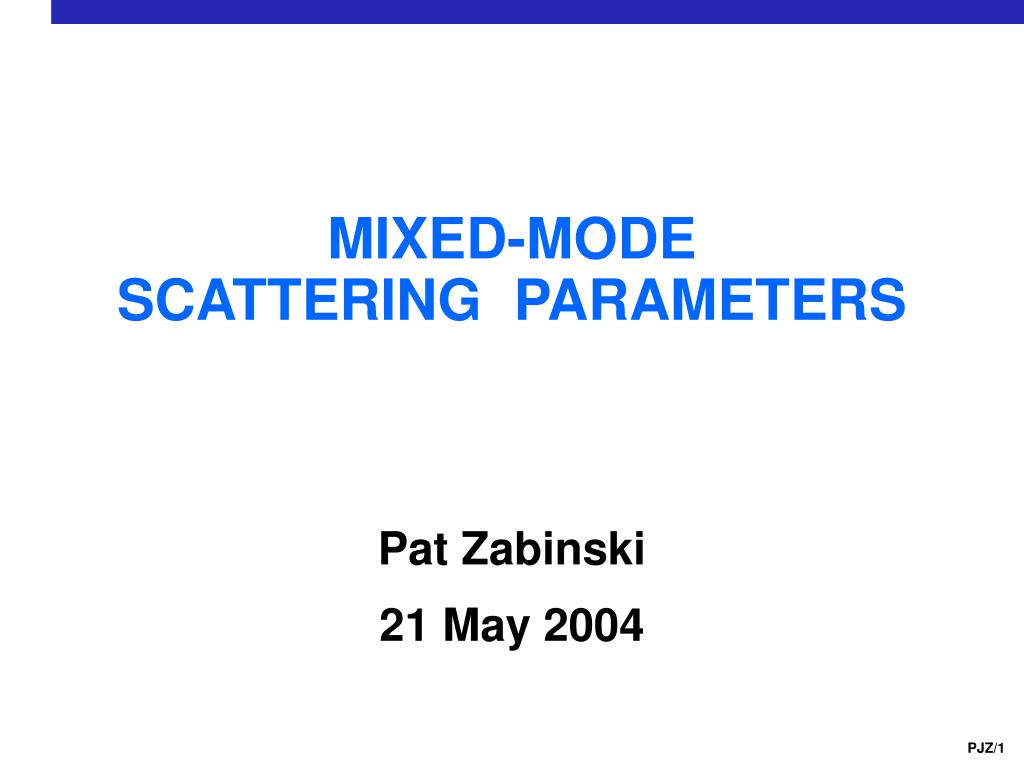

MIXED-MODESCATTERING PARAMETERS

Pat Zabinski

21 May 2004

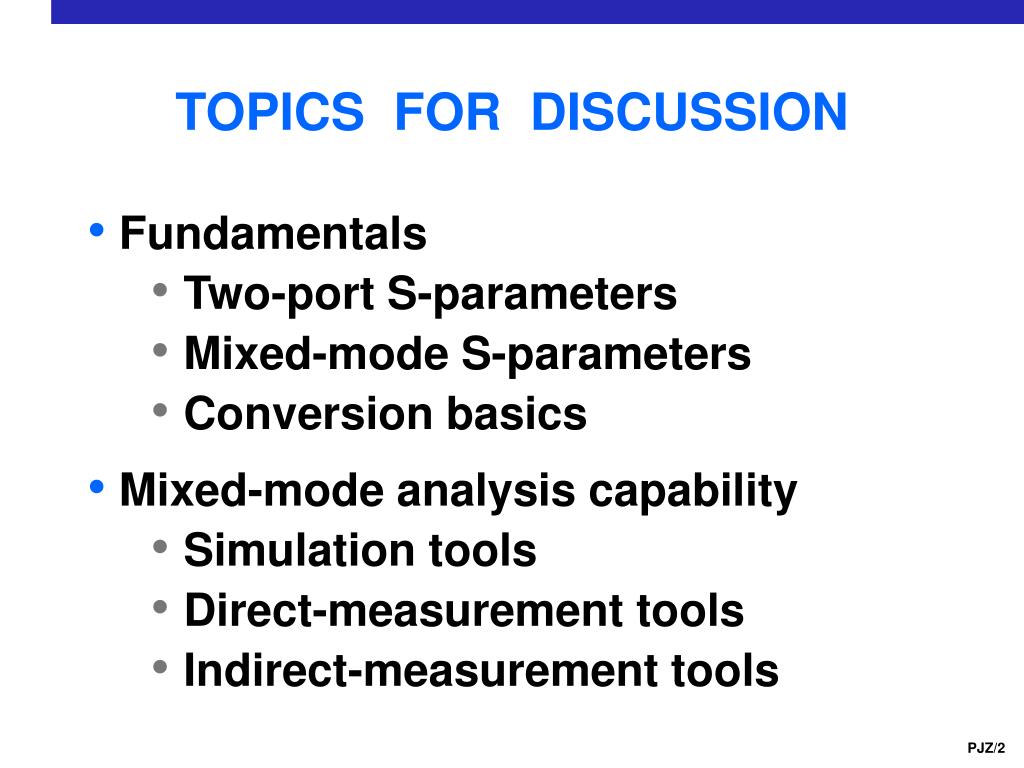

topics for discussion
TOPICS FOR DISCUSSION
  • Fundamentals
    • Two-port S-parameters
    • Mixed-mode S-parameters
    • Conversion basics
  • Mixed-mode analysis capability
    • Simulation tools
    • Direct-measurement tools
    • Indirect-measurement tools
two port scattering parameters
TWO-PORTSCATTERING PARAMETERS

Where:

Vi- and bi is the signal out from Port i

Vj+ and aj is the signal into Port j

With this definition, we can determine voltages at each node:

Note that S-parameters are defined to be linear relationships between

port voltages with respect to both magnitude and phase.

what is mixed mode

+

-

+

-

WHAT IS MIXED-MODE?
  • “Mixed Mode” refers to the fact that the trace signals have both even-mode and odd-mode components
  • Respectively, there exists a non-zero potential between the traces (odd mode)
  • Combined, the pair of traces has a non-zero potential to ground (even mode)
differential to differential parameters s dd

+

-

+

-

DIFFERENTIAL-TO-DIFFERENTIAL PARAMETERS: SDD
  • Analogous to single-ended S-parameters but specific to odd-mode propagation of signal
  • Generally of most interest in characterizing differential devices
  • Poor SDD performance results in direct degradation in bit error rate and attainable data rate or bandwidth

aD

bD

common to differential parameters s dc

+

-

+

-

COMMON-TO-DIFFERENTIAL PARAMETERS: SDC
  • Measure of susceptibility to noise from outside sources
  • Due to imbalance between true and complement traces
  • Poor SDC performance can result in outside noise affecting differential signal performance

bD

Note Convention

aC

differential to common parameters s cd

+

-

+

-

DIFFERENTIAL-TO-COMMON PARAMETERS: SCD
  • Measure of signal emission to outside environment
  • Due to imbalance between true and complement traces
  • Poor SCD performance can result in generation of unwanted noise coupling into other interconnect

aD

Note Convention

bC

common to common parameters s cc

+

-

+

-

COMMON-TO-COMMON PARAMETERS: SCC
  • Analogous to single-ended S-parameters but specific to even-mode propagation of signal
  • Poor SCC performance can result in common-mode shifts in signals and ground/supply-loop currents

aC

bC

coupled transmission lines
COUPLED TRANSMISSION LINES

Note that the traces do not need to be symmetric

I3

I4

+

+

V3

V4

-

-

+

+

V1

V2

I1

I2

-

-

mixed mode signal identification
MIXED-MODESIGNAL IDENTIFICATION

We can relate the differential- and common-mode

voltages directly to the single-ended voltages

b is the voltage out of the port; a is the voltage into the port

Scaling factor used to normalize power levels

mixed mode scattering parameters12
MIXED-MODESCATTERING PARAMETERS

Using the definitions of port voltages from the previous

page, we can now define the mixed-mode S-parameters.

For example, the differential-voltage out of Port 1 is:

Extending the same process to the full matrix results in:

conversion from single ended parameters
CONVERSION FROMSINGLE-ENDED PARAMETERS

Through variable substitution and carrying through the math, we can now obtain the relationship between single-ended and mixed-mode S-parameters

Differential-to-Differential

Common-to-Differential

Differential-to-Common

Common-to-Common

mixed mode parameter summary
MIXED-MODE PARAMETER SUMMARY
  • Mixed-mode parameters are analogous to and logical extensions of two-port S-parameters
  • Similar to two-port parameters, mixed-mode parameters are defined as linear relationships between port voltages
    • As a result, S-parameters are not applicable to nonlinear devices
  • Useful insight into second-order issues can be gained from mode-conversion parameters

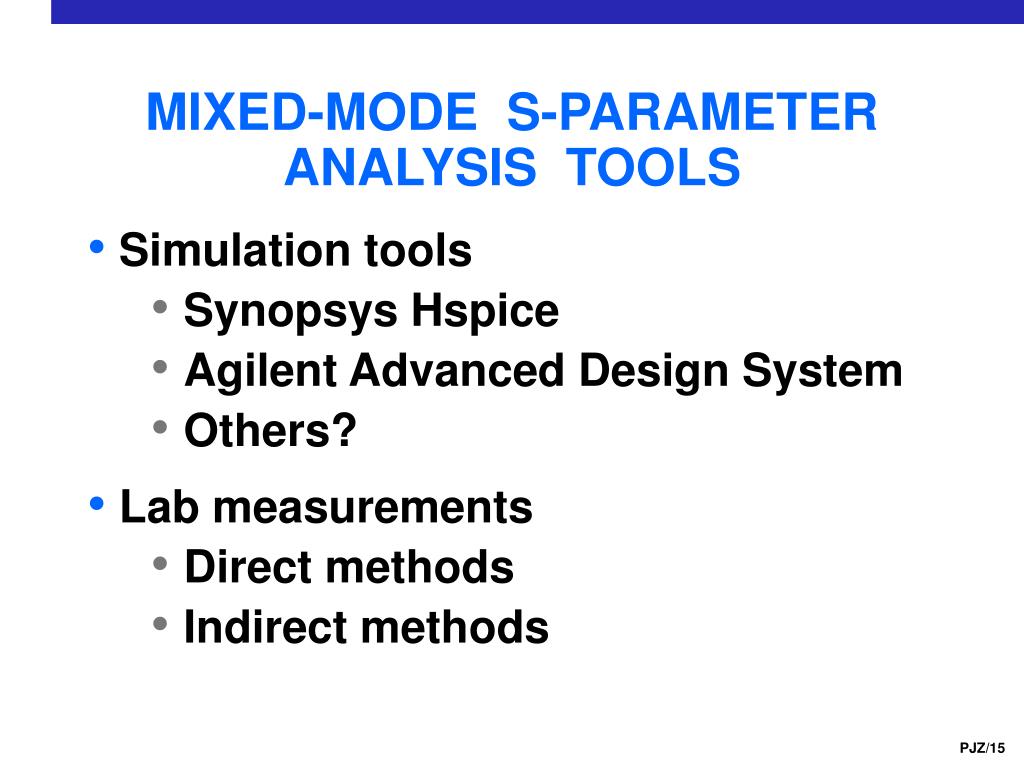

mixed mode s parameter analysis tools
MIXED-MODE S-PARAMETERANALYSIS TOOLS
  • Simulation tools
    • Synopsys Hspice
    • Agilent Advanced Design System
    • Others?
  • Lab measurements
    • Direct methods
    • Indirect methods
example hspice deck 1
EXAMPLE HSPICE DECK - 1

* DIFFERENTIAL S-PARAMETER SIMULATION EXAMPLE

VIN INP INN AC=1

TLINE INP INN OUTP OUTN ZO=100 TD=1ns

ROUT OUT OUTN 100K

RDUMMY1 INN 0 100K

RDUMMY2 OUTN 0 100K

.NET V(OUTP,OUTN) VIN RIN=100 ROUT=100

.AC LIN 401 45MEG 26.045G

.PRINT AC S11(db) S12(db) S21(db) S22(db)

.OPTIONS POST=2 INGOLD=2

.END

example hspice deck 2
EXAMPLE HSPICE DECK - 2

Differential Input Source

* DIFFERENTIAL S-PARAMETER SIMULATION EXAMPLE

VIN INP INN AC=1

TLINE INP INN OUTP OUTN ZO=100 TD=1ns

ROUT OUT OUTN 100K

RDUMMY1 INN 0 100K

RDUMMY2 OUTN 0 100K

.NET V(OUTP,OUTN) VIN RIN=100 ROUT=100

.AC LIN 401 45MEG 26.045G

.PRINT AC S11(db) S12(db) S21(db) S22(db)

.OPTIONS POST=2 INGOLD=2

.END

DUT

Connections to Ground

to make Hspice happy

Differential Port 2 is Between

OUTP and OUTN

Reference Impedance is 100 Ohms

Differential Port 1 is VIN

Sweep from 45 MHz to 26 GHz With 401 Points

Display S-Parameters in dB Scale

INGOLD Sets Output to Exponential Format

POST Sets Output to ASCII Format

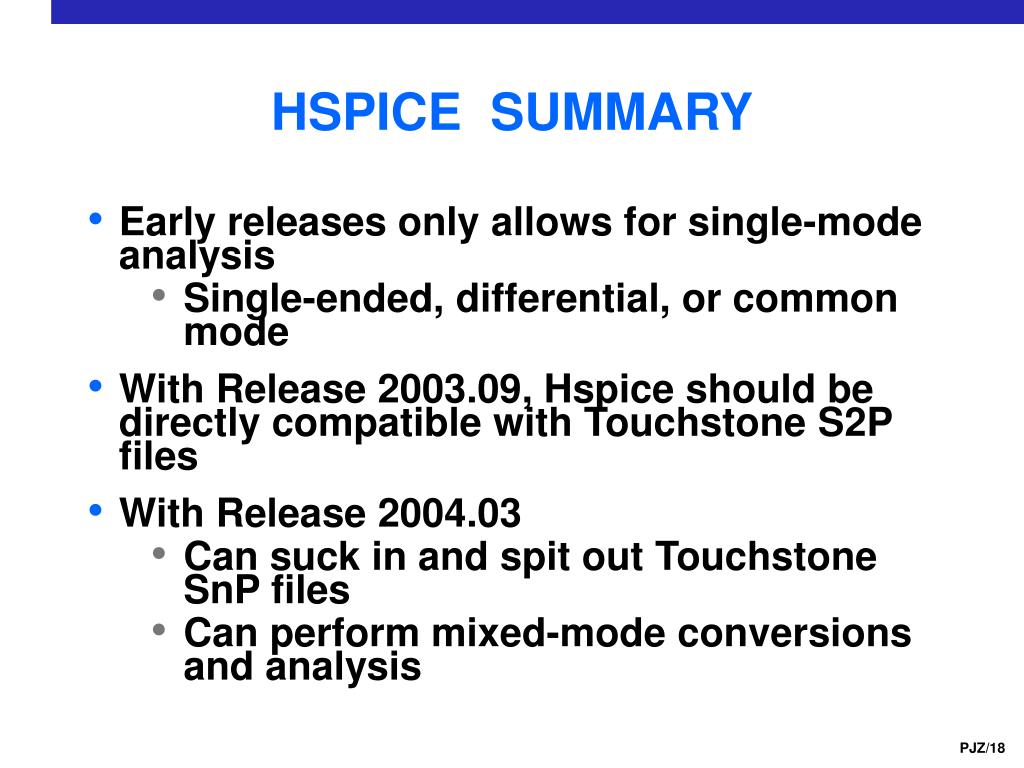

hspice summary
HSPICE SUMMARY
  • Early releases only allows for single-mode analysis
    • Single-ended, differential, or common mode
  • With Release 2003.09, Hspice should be directly compatible with Touchstone S2P files
  • With Release 2004.03
    • Can suck in and spit out Touchstone SnP files
    • Can perform mixed-mode conversions and analysis
example ads schematic
EXAMPLE ADS SCHEMATIC

Differential Output Port

Differential Input Port

DUT

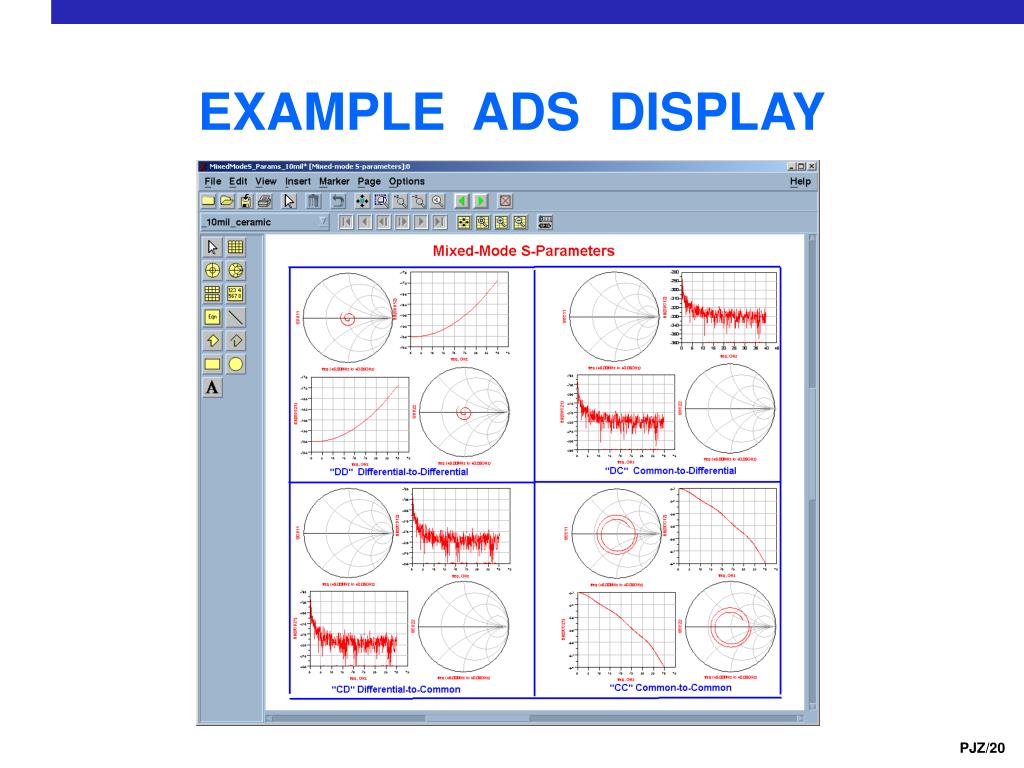

ads summary
ADS SUMMARY
  • Readily accepts and generates Touchstone SnP file formats
  • Can perform single-mode or mixed-mode analysis
other simulation tools
OTHER SIMULATION TOOLS
  • Expect other tools might provide mixed-mode S-parameters as well
    • HFSS?
    • SONNET?
direct measurement method baluns
DIRECT-MEASUREMENT METHOD -BALUNS
  • Use baluns to provide differential signals
  • Bandwidth limited to available baluns
  • Only provides differential-mode parameters
  • Appropriate calibration standards not available
direct measurement method rat races
DIRECT-MEASUREMENT METHOD -RAT-RACES
  • Use rat-races (i.e., 180º hybrids) to convert single-ended signals
  • Provides  and  ports for differential and common modes, respectively
  • Obtains all mixed mode parameters with exception of return loss
  • Bandwidth limited to available hybrids
  • Appropriate calibration standards not available
  • Time consuming to make the full matrix of measurements

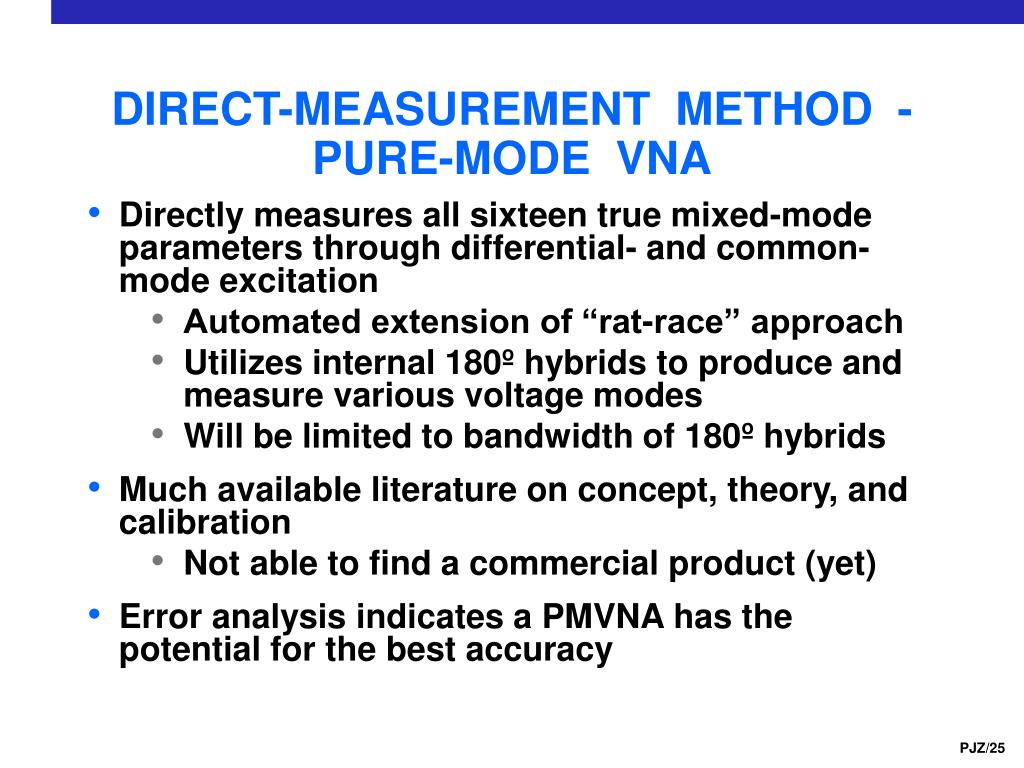

direct measurement method pure mode vna
DIRECT-MEASUREMENT METHOD -PURE-MODE VNA
  • Directly measures all sixteen true mixed-mode parameters through differential- and common-mode excitation
    • Automated extension of “rat-race” approach
    • Utilizes internal 180º hybrids to produce and measure various voltage modes
    • Will be limited to bandwidth of 180º hybrids
  • Much available literature on concept, theory, and calibration
    • Not able to find a commercial product (yet)
  • Error analysis indicates a PMVNA has the potential for the best accuracy
indirect measurement method tdr tdt conversion
INDIRECT-MEASUREMENT METHOD -TDR/TDT CONVERSION
  • Using FFT, convert differential TDR/TDT measurements to S-parameters
  • NIST developed code that is available to public
    • Unaware of its present status
  • Limited to TDR bandwidth (roughly 10 GHz for 35 ps edge rates)
    • Proven to be reasonably accurate

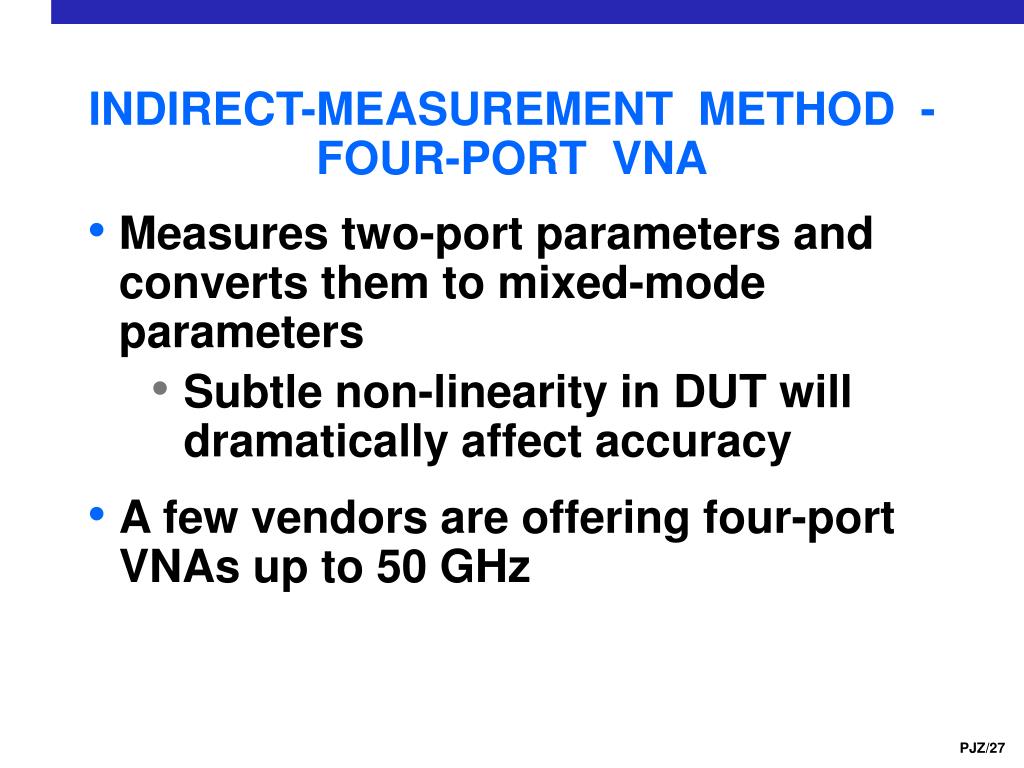

indirect measurement method four port vna
INDIRECT-MEASUREMENT METHOD -FOUR-PORT VNA
  • Measures two-port parameters and converts them to mixed-mode parameters
    • Subtle non-linearity in DUT will dramatically affect accuracy
  • A few vendors are offering four-port VNAs up to 50 GHz
indirect measurement method post measurement conversion
INDIRECT-MEASUREMENT METHOD -POST-MEASUREMENT CONVERSION
  • Using custom scripts/tools, two-port S-parameter measurement data can be converted into mixed-mode data
    • Using matrix conversion presented earlier
  • Requires a minimum of three measurements for a balanced, bidirectional DUT
    • Up to six measurements for unbalanced, unidirectional DUT
  • Subtle non-linearity in DUT will affect accuracy
needed measurements
The VNA port connections must follow a consistent convention for the conversion to work

The bottom (or top) three measurements are optional for a balanced, bidirectional DUT

Unused ports must be properly terminated

NEEDED MEASUREMENTS

3

1

+

+

S31

IN(1)

S21

OUT(2)

4

2

-

S41

-

- AND -

3

1

+

+

S32

S43

IN(1)

OUT(2)

S42

4

2

-

-

mixed mode analysis summary
MIXED-MODE ANALYSISSUMMARY
  • Many tools exist to simulate and measure mixed-mode S-parameters
  • Great care must be taken to appropriately address port numbering
    • Different tools use different conventions
  • Measurement capability is still a bit problematic
    • Good four-port calibration tools do not exist
    • Port reference-plane locations must be consistent
    • Many separate calibrations and measurements are needed to obtain a single set of mixed-mode parameters
conclusions
CONCLUSIONS
  • Mixed-mode S-parameters are becoming more important as we proceed into higher data rates
  • There is much existing simulation, analysis, and measurement capability
    • Future enhancements are likely
  • Companies are developing analogous time-domain tools (i.e., TDR/TDT)
references
REFERENCES
  • David E. Bockelman and William R. Eisenstadt, “Combined Differential and Common-Mode Scattering Parameters: Theory and Simulation,” IEEE Trans. On MTT, vol. 43, pp.1530–1539, July 1995.
  • Anritsu Application Note “Three and Four Port S-Parameter Measurements”, November 2001.
  • Guillermo Gonzalez, “Microwave Transistor Amplifiers, 2nd ed.,” Prentice Hall, 1997.
