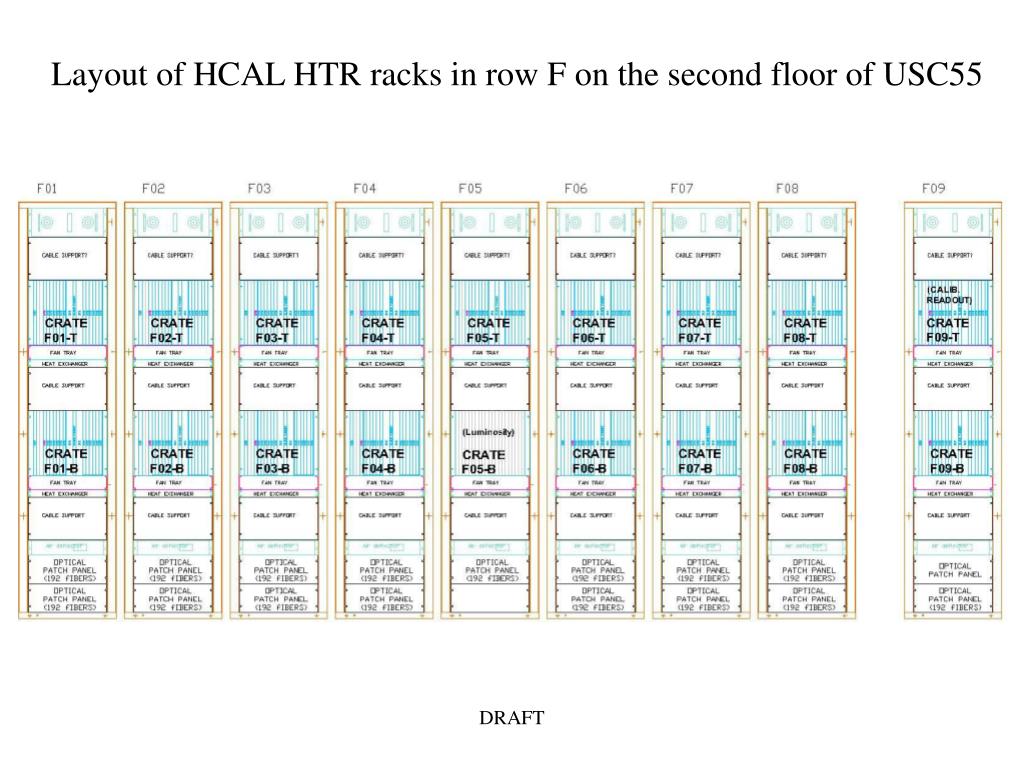

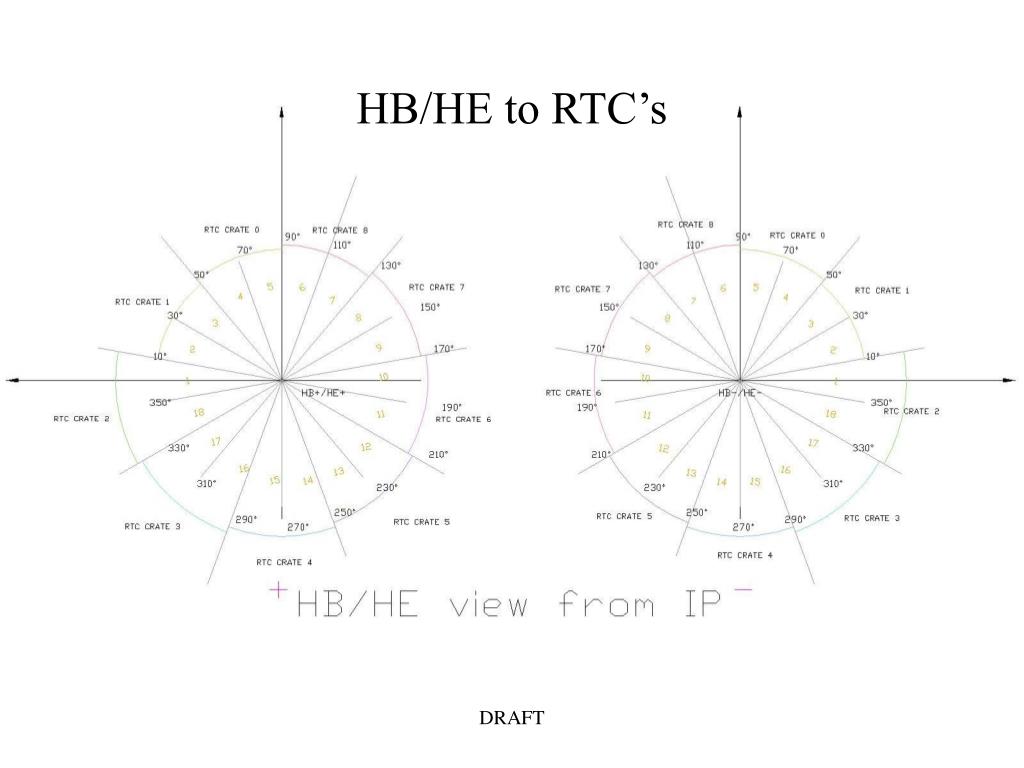

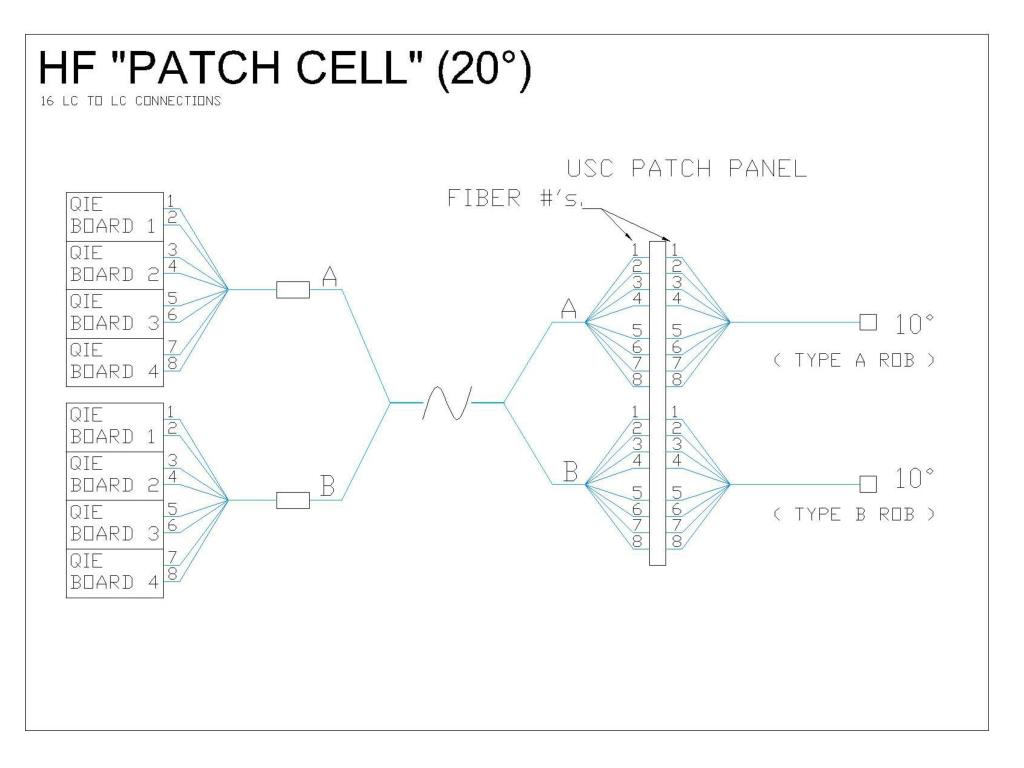

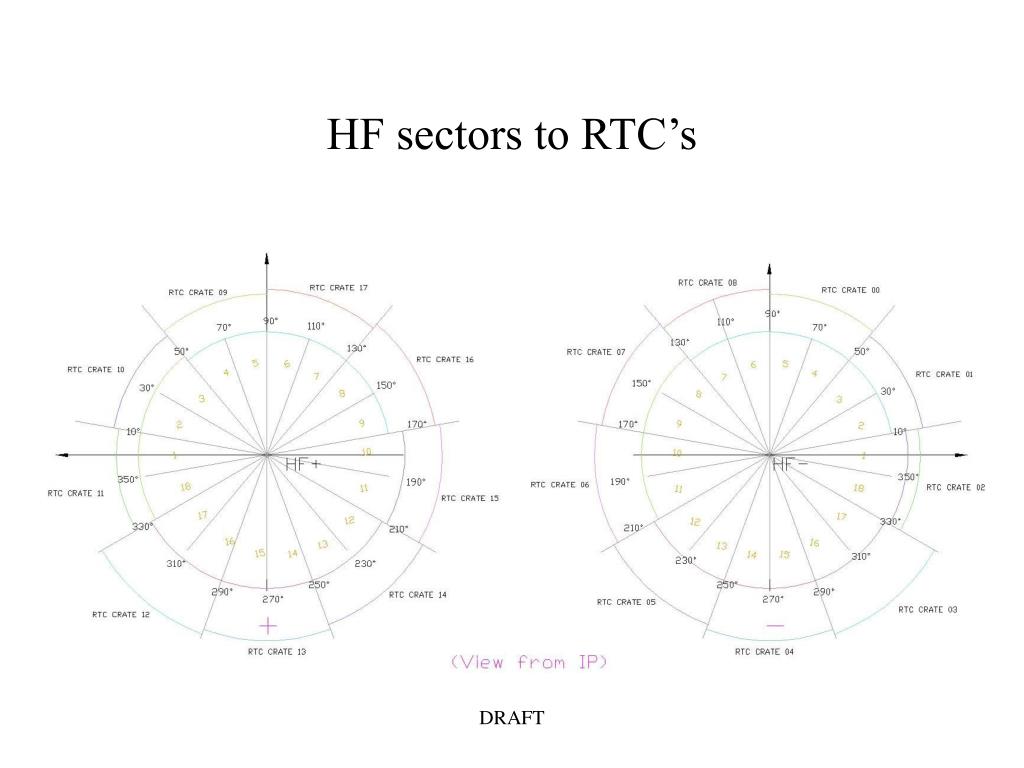

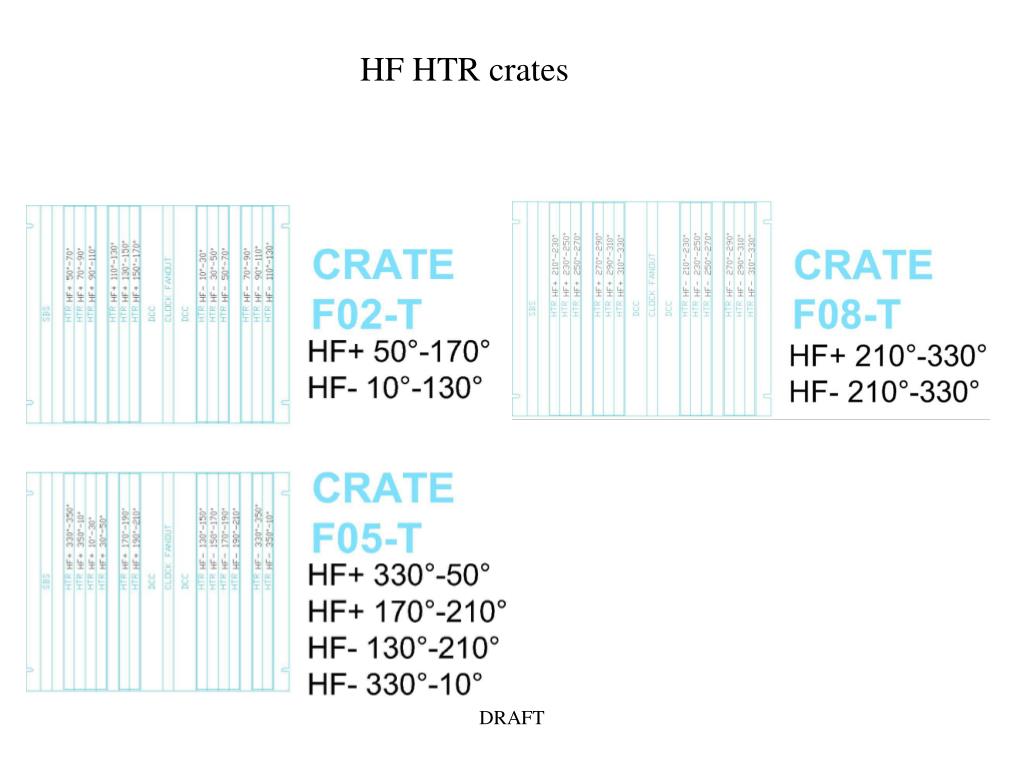

HCAL digital optic link and trigger mapping. DRAFT. HCAL HTR crates mapping to RTC crates. Layout of HCAL HTR racks in row F on the second floor of USC55. HB/HE to RTC’s.

loader
I am the owner, or an agent authorized to act on behalf of the owner, of the copyrighted work described.
capcha
Download Presentation

PowerPoint Slideshow about 'HCAL digital optic link and trigger mapping' - ivana


An Image/Link below is provided (as is) to download presentation

Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author.While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server.


- - - - - - - - - - - - - - - - - - - - - - - - - - E N D - - - - - - - - - - - - - - - - - - - - - - - - - -
Presentation Transcript
slide8

Tower Mapping for HE RM1, 4 QIE Ch.# HE Tower Card1 Card2 Card30 17 28f 19r 1 16 28m 20f 2 26f 29f 22r 3 26r 24f 22f 4 18f 28r 19f 5 18r 24r 20r

Tower Mapping for HB

QIE

Ch.# HB Tower

Card1 Card2 Card3

0 16r 10 11

1 15r 6 7

2 14 2 3

3 16f 12 9

4 15f 8 5

5 13 4 1

Tower Mapping for HE RM2, 3

QIE

Ch.# HE Tower

Card1 Card2 Card3

0 17 27f 19r

1 16 27m 20f

2 25f 29m 21r

3 25r 23f 21f

4 18f 27r 19f

5 18r 23r 20r

f – front section; m – middle section; r – rear section

DRAFT
