Presentation Transcript
slide1

Reconfigurable Avionics for Hubble Servicing Missions

Ed Cheung – Jackson & Tull

Will Clement – Clement Engineering

Ray Bietry – Orbital Sciences Corp.

new carrier avionics
New Carrier Avionics
  • The Hubble Space Telescope Project regularly flies new components to the observatory on Space Shuttle Carriers.
  • Current generation of avionics for HST carriers are aging and need replacement.
  • New avionics will be reconfigurable and flexible with the use of reprogrammable FPGAs from Xilinx (Virtex series).
  • The approach will be to use three redundant Xilinx FPGAs (XFPGA) with one non-reprogrammable Actel FGPA (AFPGA).
    • AFPGA votes on the outputs of the three XFPGA to mitigate SEU events.
    • XFPGAs will contain core avionics functions.
  • Test flight will be in May 2005 time frame.

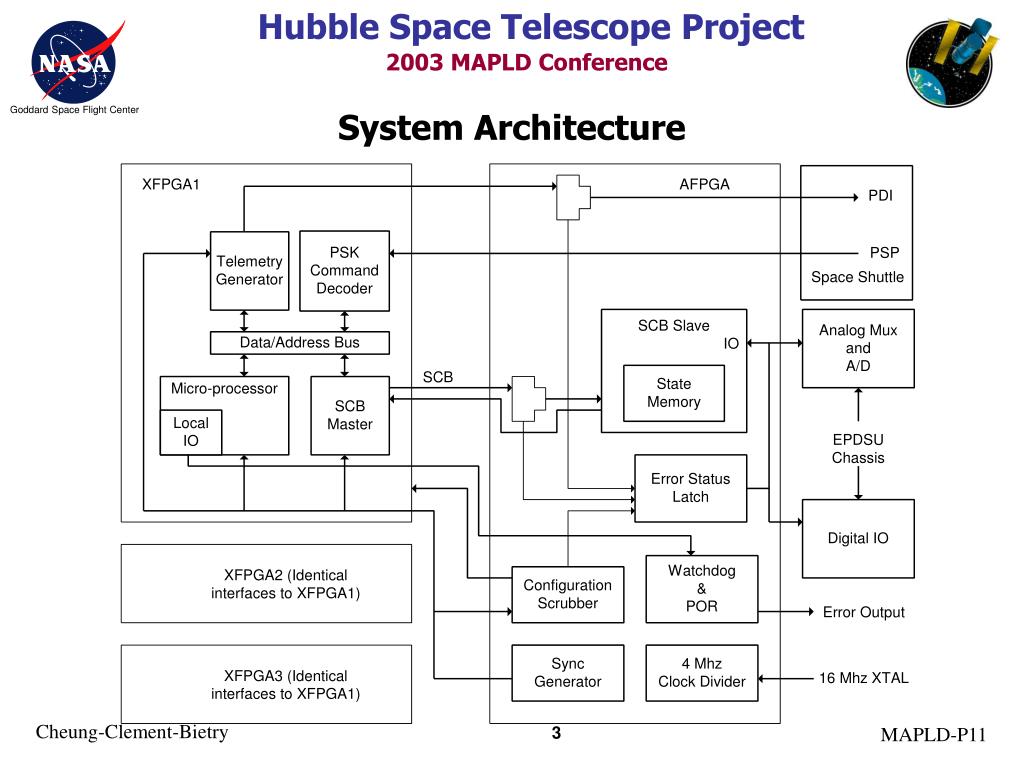

sync generator
Sync Generator
  • Sync resets all three XFPGAs so they are synchronized.
    • - Allows voting to reject single faults.

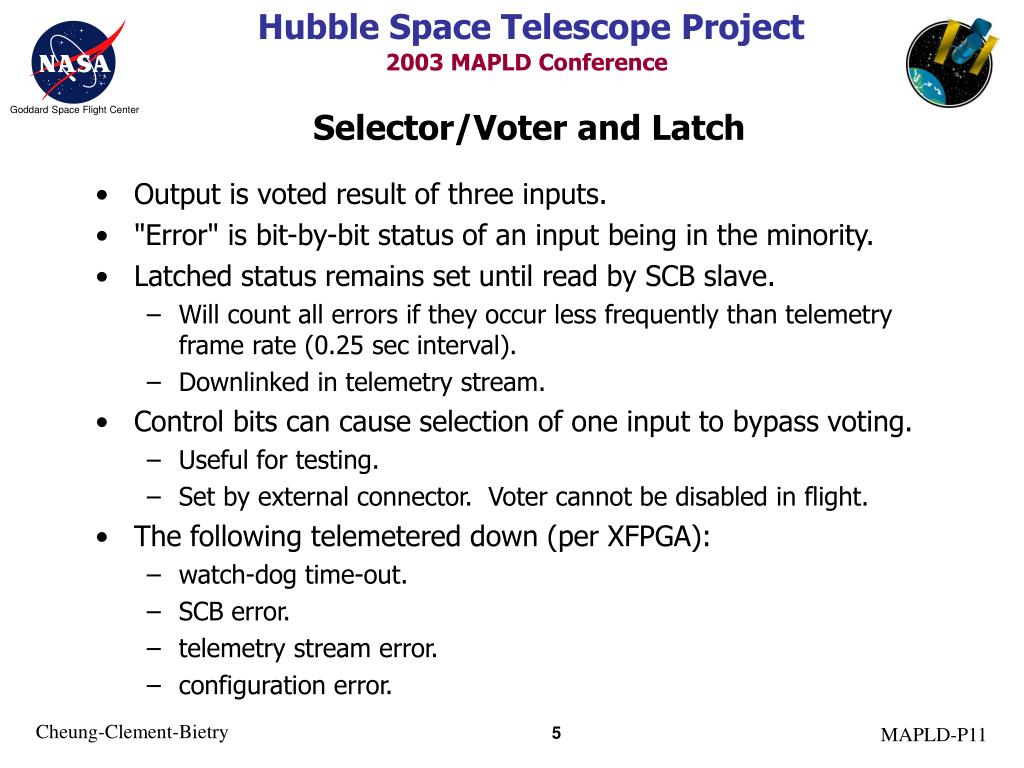

selector voter and latch
Selector/Voter and Latch
  • Output is voted result of three inputs.
  • "Error" is bit-by-bit status of an input being in the minority.
  • Latched status remains set until read by SCB slave.
    • Will count allerrors if they occur less frequently than telemetry frame rate (0.25 sec interval).
    • Downlinked in telemetry stream.
  • Control bits can cause selection of one input to bypass voting.
    • Useful for testing.
    • Set by external connector. Voter cannot be disabled in flight.
  • The following telemetered down (per XFPGA):
    • watch-dog time-out.
    • SCB error.
    • telemetry stream error.
    • configuration error.
voter selector and error latch
Voter/Selector and Error latch
  • This voting method requires temporal synchronization of the three XFPGAs

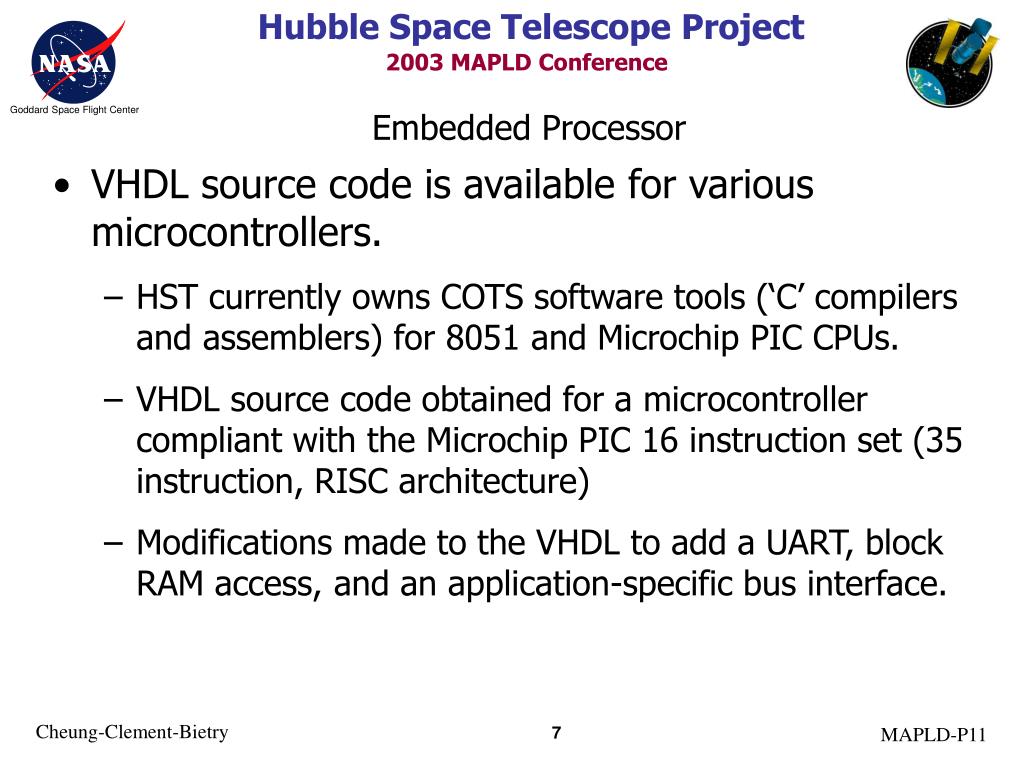

embedded processor
Embedded Processor
  • VHDL source code is available for various microcontrollers.
    • HST currently owns COTS software tools (‘C’ compilers and assemblers) for 8051 and Microchip PIC CPUs.
    • VHDL source code obtained for a microcontroller compliant with the Microchip PIC 16 instruction set (35 instruction, RISC architecture)
    • Modifications made to the VHDL to add a UART, block RAM access, and an application-specific bus interface.
serial communications bus

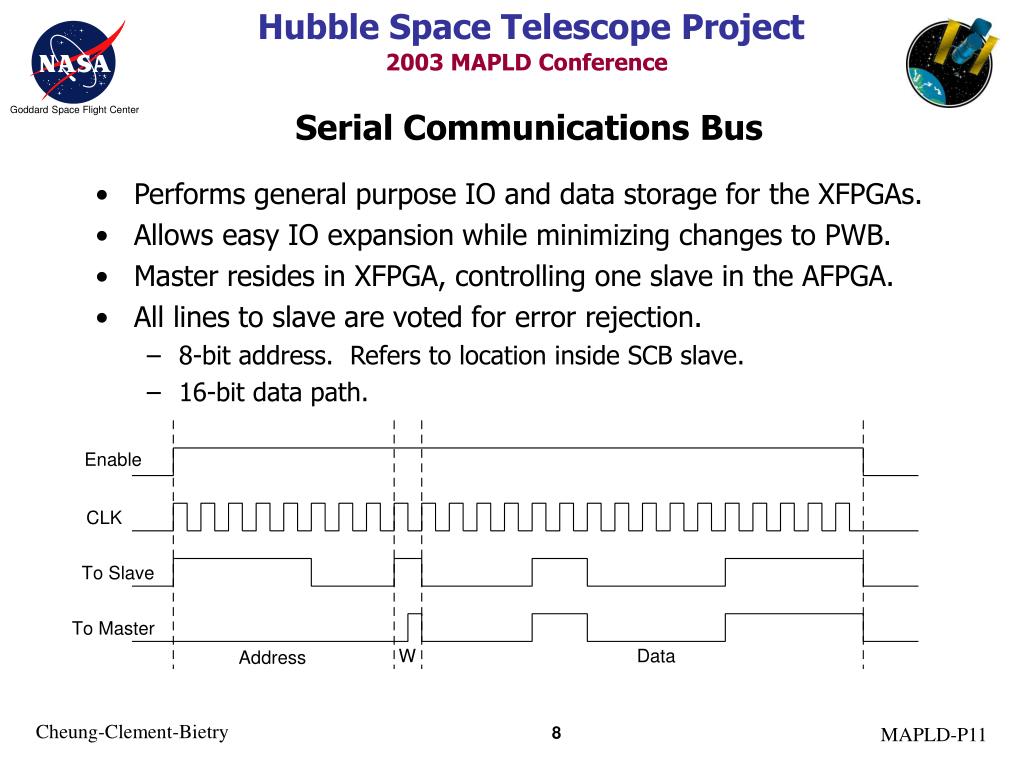

Serial Communications Bus
  • Performs general purpose IO and data storage for the XFPGAs.
  • Allows easy IO expansion while minimizing changes to PWB.
  • Master resides in XFPGA, controlling one slave in the AFPGA.
  • All lines to slave are voted for error rejection.
    • 8-bit address. Refers to location inside SCB slave.
    • 16-bit data path.
telemetry frame generator
Telemetry Frame Generator

Note: The processor reads the telemetry

generator’s address lines in order to watch

for the start of a new frame. This allows it

to update the frame counter and start I/O

Operations (so each frame has fresh data).

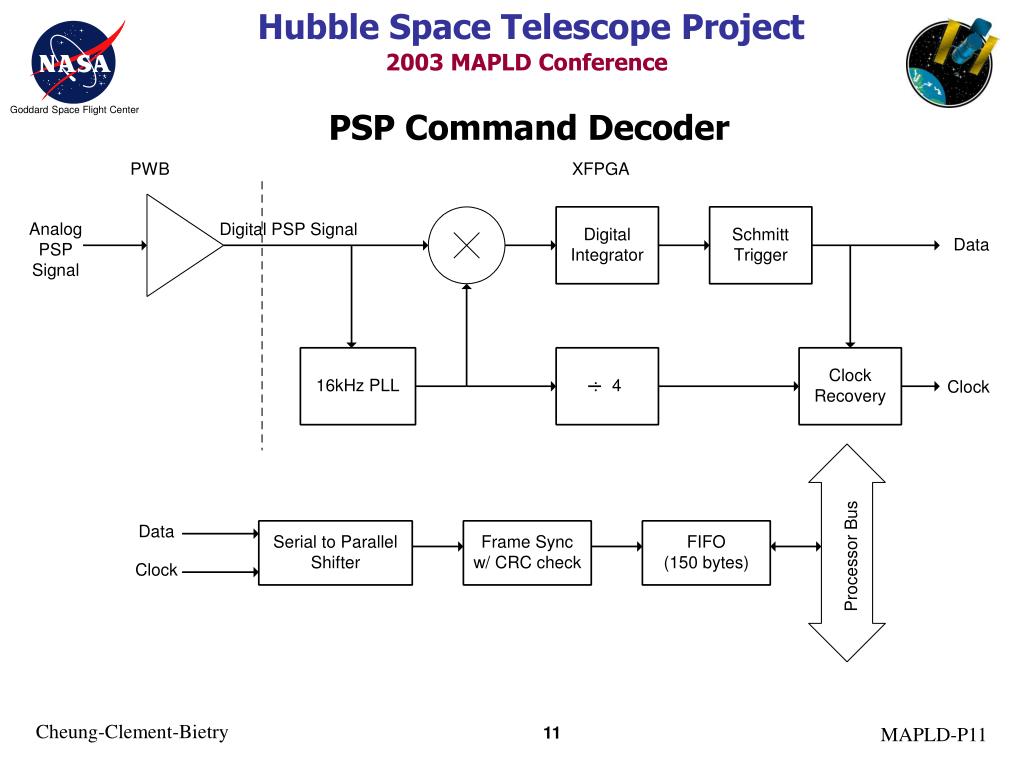

psp command interface
PSP Command Interface
  • Conforms to ICD-19001 PSP Shuttle Interface.
  • Data stream is 16kHz carrier with 180 degree phase change.
  • Simple interface circuit consists of “422” receiver and discrete components.
    • Allows analog or digital PSK stream.
    • High sensitivity and dynamic range. 1 - 15 Vp-p input voltage range.
      • 3 to 4.5Vp-p required.
    • Can use differential or single-ended source.
  • Data presented byte-wide to Microprocessor in FIFO.
    • Minimizes processor work load.
watch dog
Watch Dog
  • MDM output is normally low.
  • If 1 processor stops stroking watchdog for > 600 seconds, error output will go high.
    • Allows for at least one reconfiguration and sync cycle.
  • If > 1 processor stops for > 2 seconds, Error Output will go high.
  • Stroke input is produced by Microprocessor software. Synchronous to telemetry frame (high during idle period).
    • 4 Hz frequency.
configuration scrubber
Configuration Scrubber
  • Configuration Scrubber consists of 2 subsystems:
    • Readback & Compare
    • Configure
configuration scrubber14

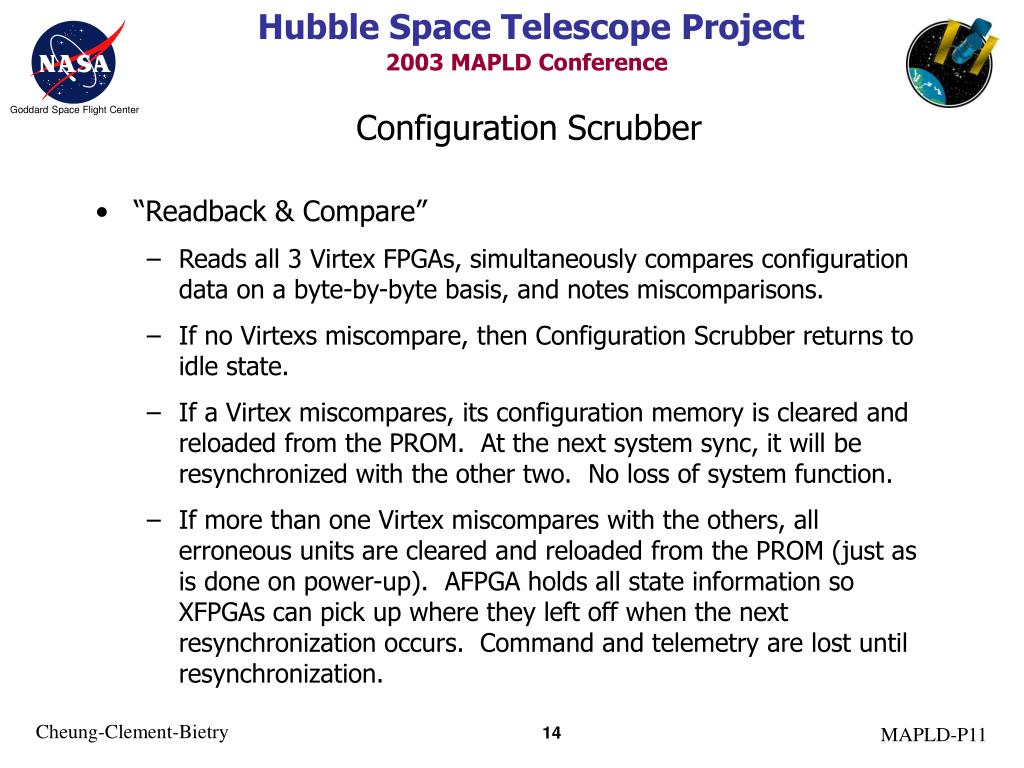

Configuration Scrubber
  • “Readback & Compare”
    • Reads all 3 Virtex FPGAs, simultaneously compares configuration data on a byte-by-byte basis, and notes miscomparisons.
    • If no Virtexs miscompare, then Configuration Scrubber returns to idle state.
    • If a Virtex miscompares, its configuration memory is cleared and reloaded from the PROM. At the next system sync, it will be resynchronized with the other two. No loss of system function.
    • If more than one Virtex miscompares with the others, all erroneous units are cleared and reloaded from the PROM (just as is done on power-up). AFPGA holds all state information so XFPGAs can pick up where they left off when the next resynchronization occurs. Command and telemetry are lost until resynchronization.
configuration scrubber15
Configuration Scrubber
  • PROM SEU issues and mitigation
    • PROM memory is hard to SEUs
    • PROM readback is susceptible to SEUs
    • Only the XFPGA which miscompares with the others is scrubbed.
    • If readback encounters an SEU, the XFPGA will receive a bad load (but it already had a bad load).
    • When the next scrub interval arrives, that XFPGA will again miscompare and be scrubbed.
    • Probability(2 consecutive PROM readback SEUs) < 7.1e-16
      • (435 days/SEU, readback time ~ 1 second ―› λ = 2.66e-8 SEU/readback)
xfpga seu statistics
XFPGA SEU Statistics
  • Xilinx SEU statistics (per device):
  • Results obtained by GSFC Radiation Group for XQVR1000 device
see mitigation configuration ram
SEE Mitigation – Configuration RAM
  • Expected rate : 1.1 Days/SEU in a XQVR1000 device.
  • Mitigation : read back and rewrite configuration if needed.
    • Afterwards, synchronization pulse puts system in lock-step.
  • Net effect : Probability of <2 during one scrub period is 98.7%.
    • Assumes 50% of a ‘1000 device utilized and 14 day mission.

Numbers in chart

presume a ‘1000 device

see mitigation configuration ram18
SEE Mitigation – Configuration RAM

For each XFPGA:

Mean SEU/scrub period

Poisson Distribution

Probability of 0 errors

Probability of 1 or more errors

For system:

Probability of >1 XFPGA with SEU

Probability of <2 for duration of mission

*This presumes 50% utilization of an XQVR1000 device

see mitigation block ram

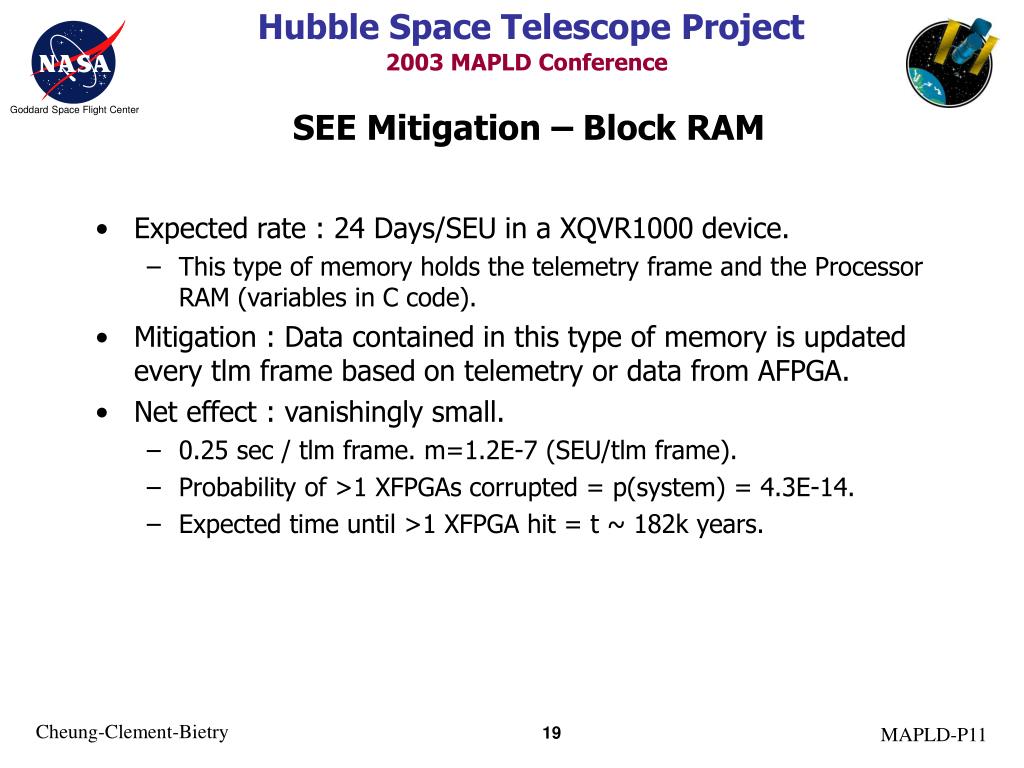

SEE Mitigation – Block RAM
  • Expected rate : 24 Days/SEU in a XQVR1000 device.
    • This type of memory holds the telemetry frame and the Processor RAM (variables in C code).
  • Mitigation : Data contained in this type of memory is updated every tlm frame based on telemetry or data from AFPGA.
  • Net effect : vanishingly small.
    • 0.25 sec / tlm frame. m=1.2E-7 (SEU/tlm frame).
    • Probability of >1 XFPGAs corrupted = p(system) = 4.3E-14.
    • Expected time until >1 XFPGA hit = t ~ 182k years.
see mitigation clb flip flops
SEE Mitigation – CLB Flip Flops
  • Expected rate : 29 Days/SEU in a XQVR1000.
    • Holds variables (signals) in VHDL code.
  • Mitigation : sync pulse.
    • Acts as a Power-On-Reset, resets everything except PSP.
    • PSP Command Decoder is reset by processor when S/W detects stopped command counter, by comparing to other two.
  • Net effect : One corruption in telemetry every 511 years.
    • 2.1 minutes / sync pulse. m = 5.2E-5 (SEU/sync interval).
    • Probability of >1 XFPGAs corrupted = p(system) = 8.07E-9.
    • Expected time until >1 XFPGA hit = t ~ 511 years.

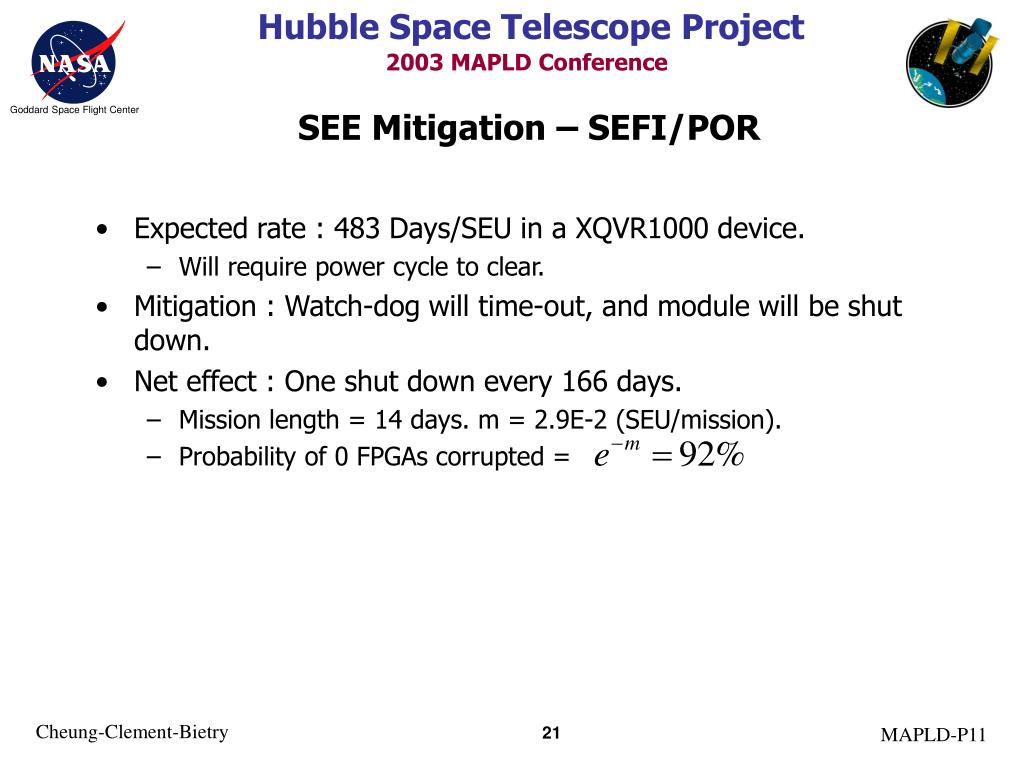

see mitigation sefi por
SEE Mitigation – SEFI/POR
  • Expected rate : 483 Days/SEU in a XQVR1000 device.
    • Will require power cycle to clear.
  • Mitigation : Watch-dog will time-out, and module will be shut down.
  • Net effect : One shut down every 166 days.
    • Mission length = 14 days. m = 2.9E-2 (SEU/mission).
    • Probability of 0 FPGAs corrupted =
see mitigation half latches
SEE Mitigation – Half Latches
  • Introduced by Xilinx synthesis/layout tools to store constant values.
    • Set up during configuration of the FPGA.
    • Can be initiated by asserting the ‘PROGRAM’ line.
  • Their state cannot be read from the configuration memory or any other means.
  • Unknown upset statistics.
    • GSFC Radiation report recommends elimination from design as they are not directly observable.
  • Eliminated using a procedure developed by Xilinx.
  • Continued functional errors can be used to trigger reconfiguration.
eeprom see statistics
EEPROM SEE Statistics
  • 18V04 SEU statistics:

* Does not include protons

  • Results obtained by GSFC Radiation Group

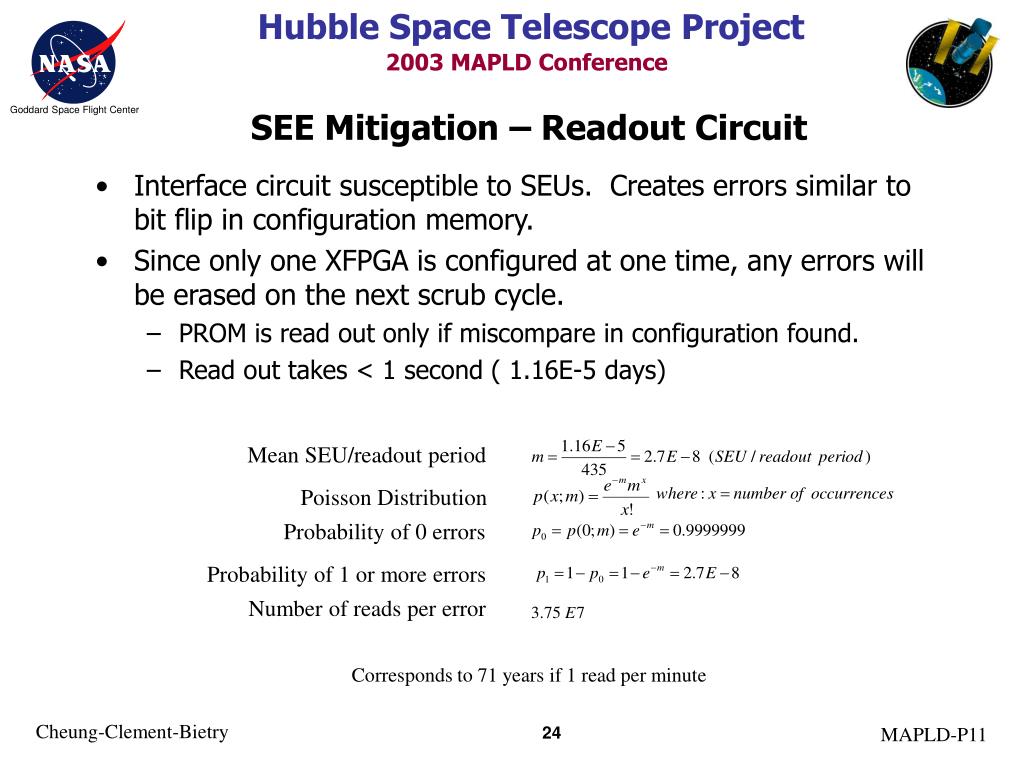

see mitigation readout circuit
SEE Mitigation – Readout Circuit
  • Interface circuit susceptible to SEUs. Creates errors similar to bit flip in configuration memory.
  • Since only one XFPGA is configured at one time, any errors will be erased on the next scrub cycle.
    • PROM is read out only if miscompare in configuration found.
    • Read out takes < 1 second ( 1.16E-5 days)

Mean SEU/readout period

Poisson Distribution

Probability of 0 errors

Probability of 1 or more errors

Number of reads per error

Corresponds to 71 years if 1 read per minute
