Average shear stress

Average shear stress. External loads. Free-body diagram of unsupported section. Simple or direct shear. Single lap shear. Area of hole. Area of overlap. Single shear. Double lap shear. Tractor pin. Single & double lap-shear are standard tests to evaluate adhesives,.

ishana
Download Presentation

Average shear stress

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript


  1. Average shear stress External loads Free-body diagram of unsupported section Simple or direct shear

  2. Single lap shear Area of hole Area of overlap Single shear

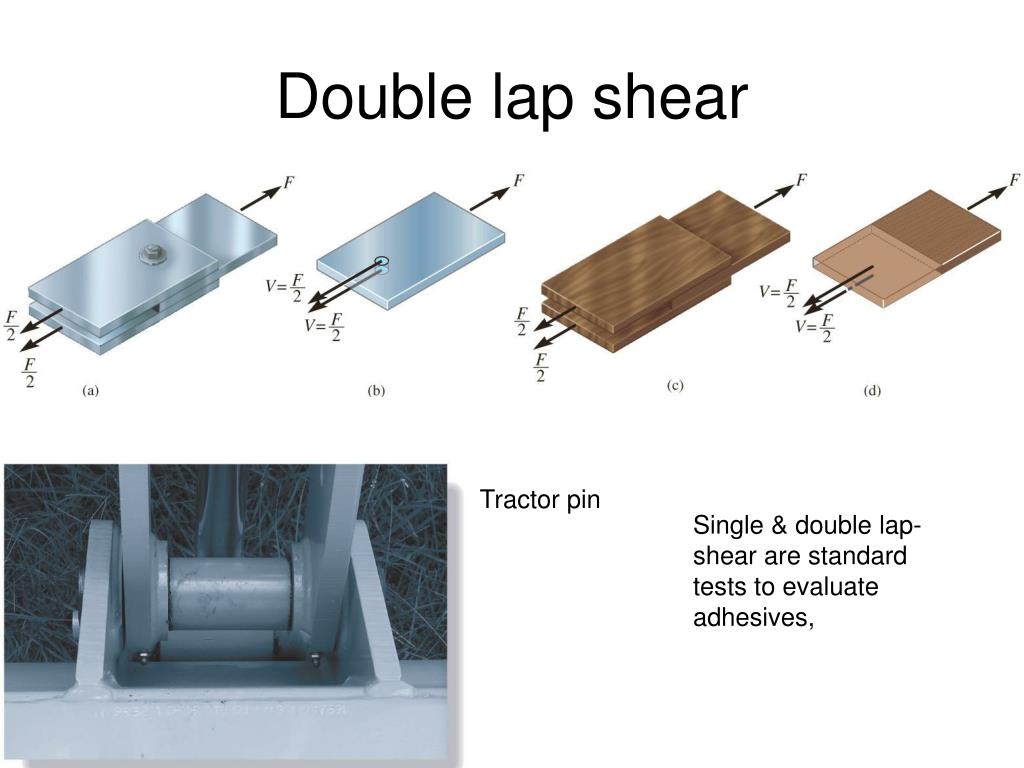

  3. Double lap shear Tractor pin Single & double lap-shear are standard tests to evaluate adhesives,

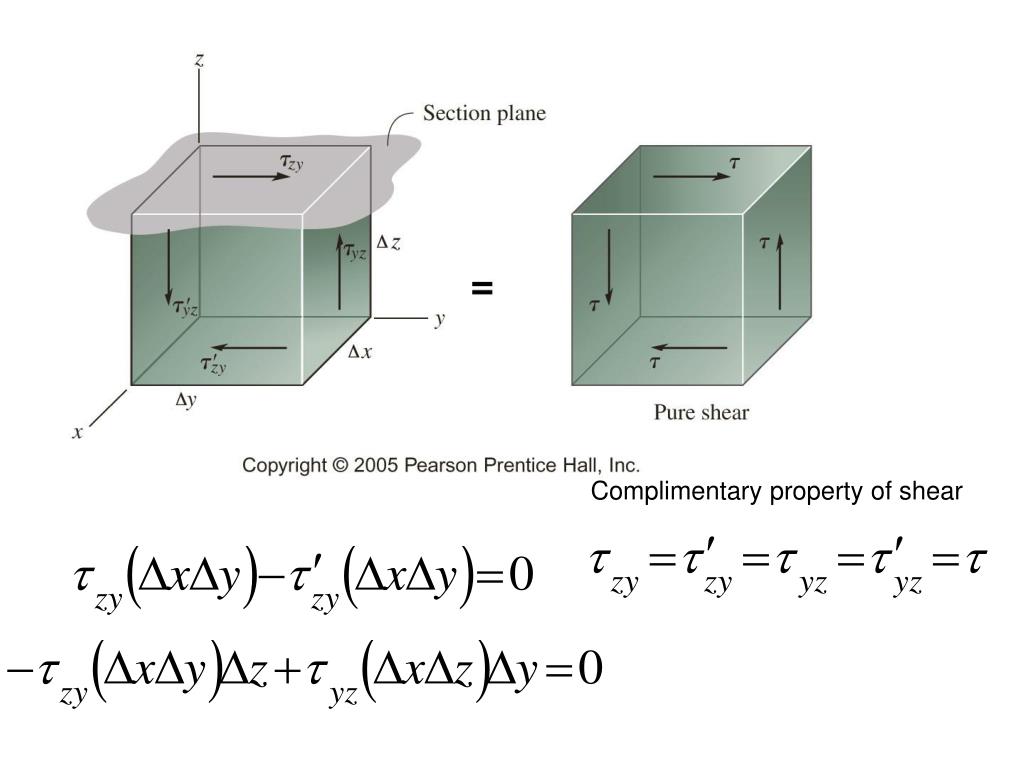

  4. Complimentary property of shear

  5. The inclined member is subjected to a compressive force of 600lb. Determine the average compressive stress along the smooth areas of contact defined by AB & BC, and the average shear stress along the horizontal plane defined by EDB.

  6. Free-body diagram In x direction FAB-600.(3/5)=0 FAB=360lb In y direction FBC-600,(4/5)=0 FBC=480lb
