Presentation Transcript
slide1

Panel III: Inspection Practices

John Vergunst – Mining Engineer – Ontario Ministry of Labour

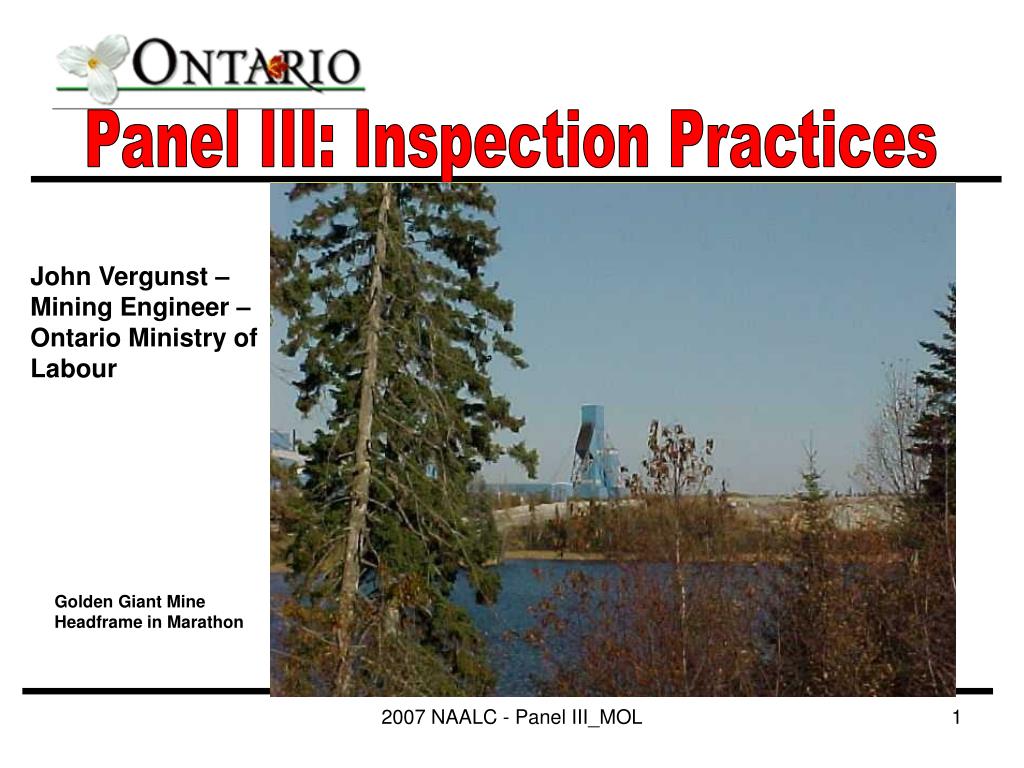

Golden Giant Mine Headframe in Marathon

2007 NAALC - Panel III_MOL

slide2

This presentation will focus on:

  • Code of Professionalism
  • Policy
  • inspections
  • investigations
  • enforcement

AJ inspecting bail for 15-ton bucket. Goldcorp #3 Shaft

2007 NAALC - Panel III_MOL

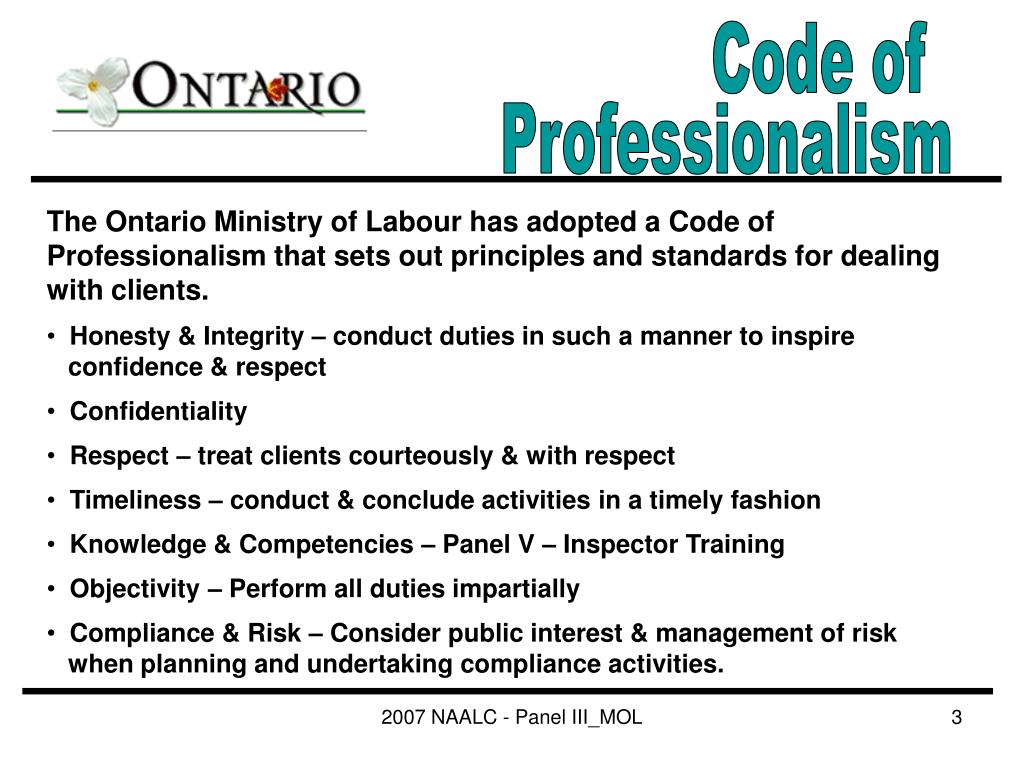

slide3

Code of

Professionalism

  • The Ontario Ministry of Labour has adopted a Code of Professionalism that sets out principles and standards for dealing with clients.
  • Honesty & Integrity – conduct duties in such a manner to inspire
  • confidence & respect
  • Confidentiality
  • Respect – treat clients courteously & with respect
  • Timeliness – conduct & conclude activities in a timely fashion
  • Knowledge & Competencies – Panel V – Inspector Training
  • Objectivity – Perform all duties impartially
  • Compliance & Risk – Consider public interest & management of risk
  • when planning and undertaking compliance activities.

2007 NAALC - Panel III_MOL

slide4

Code of

Professionalism

  • Requires that on initial (First Ever) contact with a client, an inspector, will:
  • Introduce themselves and the ministry / program they represent
  • Identify the statutory authority for the inspection, investigation or
  • audit;
  • Provide contact numbers
  • Provide general information regarding the inspection, audit or
  • enforcement process;

2007 NAALC - Panel III_MOL

slide5

Policies

  • Inspection – a planned visit to monitor compliance & promotes IRS
  • Consultation – to promote IRS, advise workplace parties of rights
  • and responsibilities, advise on MOL policies & procedures, &
  • discuss requirements of legislation
  • Investigation – a response to an event & takes priority & includes:
    • fatal or critical injuries
    • other injuries & occupational disease
    • work refusals
    • reportable incidents – fires, explosions, flooding, failures of a
    • hoist, rope, shaft conveyance, flammable gas, a major failure
    • or equipment or structure, rockbursts, collisions, run-a-way
    • vehicles, etc

2007 NAALC - Panel III_MOL

slide6

INB: Inspector's

Note Book

  • Reports & orders are produced using standardized formats on the inspector’s portable lab top & printer before they leave the workplace
  • update data from the field
  • through internet
  • connections
  • improve efficiency by
  • increasing time in the
  • field.

2007 NAALC - Panel III_MOL

slide7

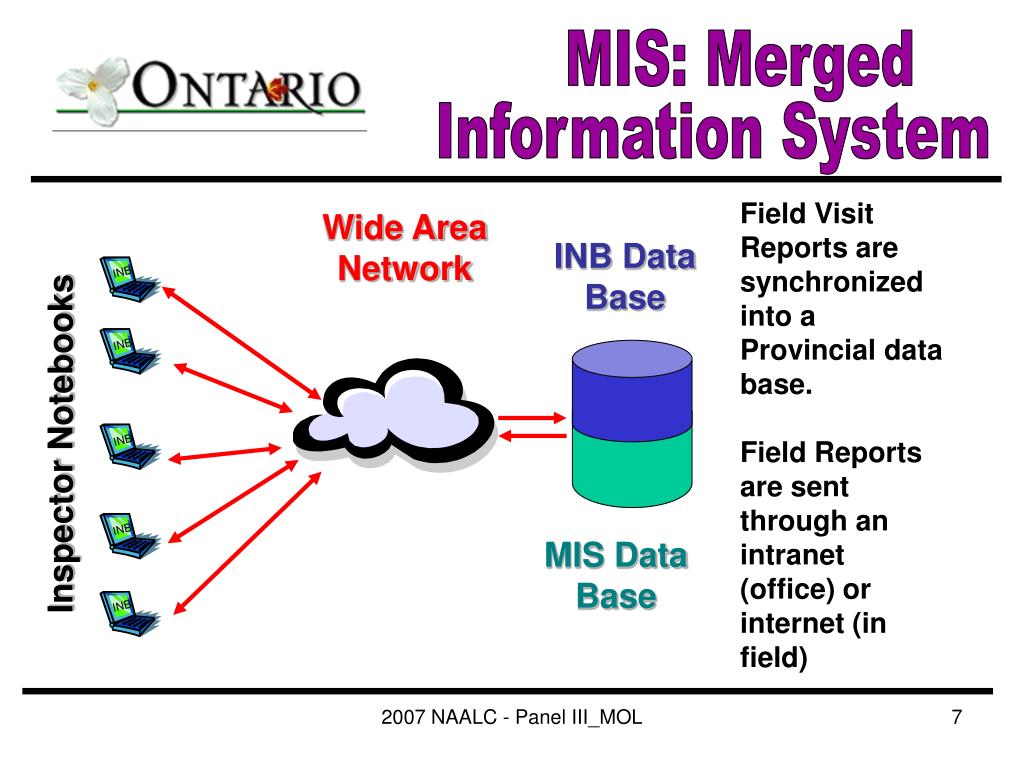

Wide Area Network

INB Data Base

INB

Synchronization

INB

Inspector Notebooks

INB

INB

MIS Data Base

INB

MIS: Merged

Information System

Field Visit Reports are synchronized into a Provincial data base.

Field Reports are sent through an intranet (office) or internet (in field)

2007 NAALC - Panel III_MOL

slide8

MIS: Merged

Information System

  • Stores province-wide information about employers, workplaces,
  • Ministry field visits, orders, and compliance
  • Used for planning, managing, tracking and measuring
  • Ministry health and safety activities
  • Weekly Reports
  • Activity Reports – used to track time
  • Quarterly Reports – tracks number of visits, events, etc
  • Yearly Reports for DEC – visits by program, events, etc
  • Special or customized reports – most frequent orders, type
  • & number of events, etc

2007 NAALC - Panel III_MOL

slide9

Notification

  • Inspectors are NOT to give notification of an inspection.
  • Inspectors may give notice – where a joint proposal (management & labour) has been agreed to by the Director
  • common in larger mines
  • remote sites (i.e. fly-in)
  • worker or management representative (i.e. ventilation technician) may be underground

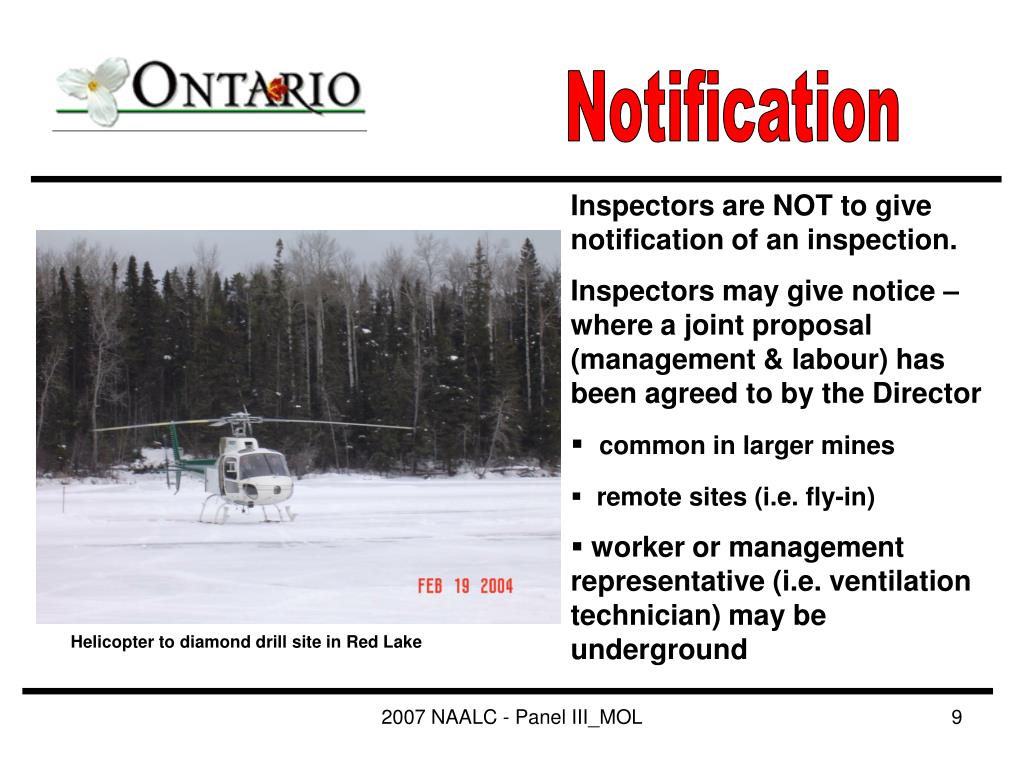

Helicopter to diamond drill site in Red Lake

2007 NAALC - Panel III_MOL

slide10

Inspection

Inspectors must record their hand-written notes in police-type notebooks

Note taking is a critical core skill

Accurate notes provide only facts, explain what has happened or is occurring

It is difficult for an inspector to go to court will sloppy notes.

If you write things down at the time or while fresh in your memory, you can remember and if necessary, testify effectively.

2007 NAALC - Panel III_MOL

slide11

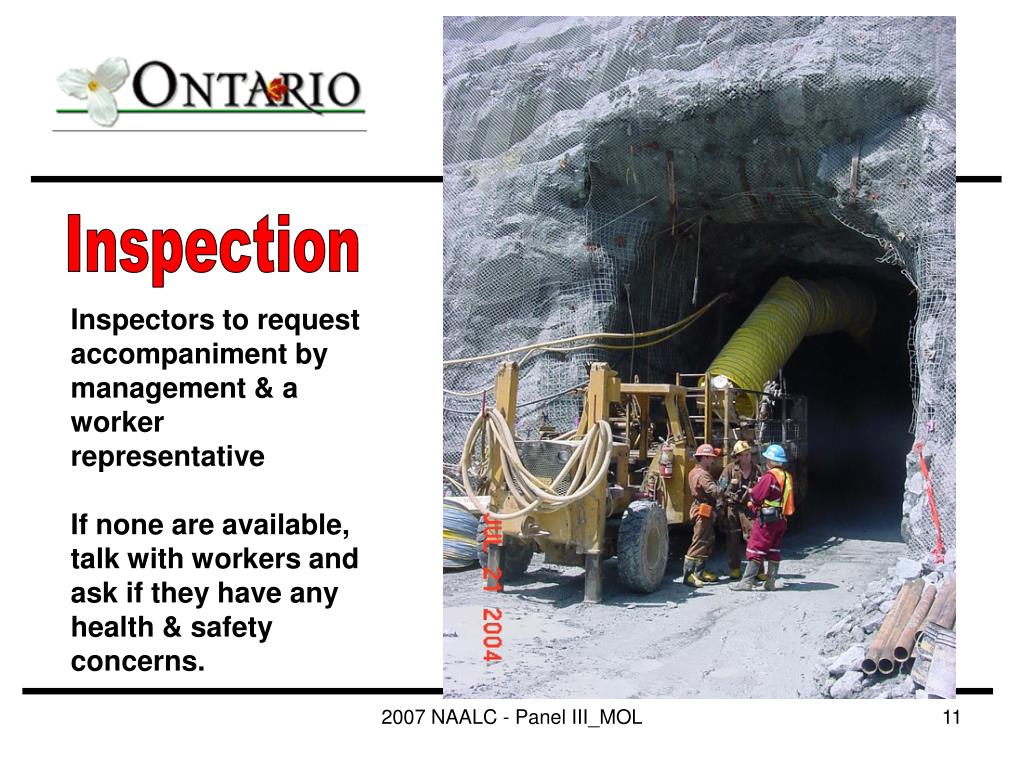

Inspection

Inspectors to request accompaniment by management & a worker representative

If none are available, talk with workers and ask if they have any health & safety concerns.

2007 NAALC - Panel III_MOL

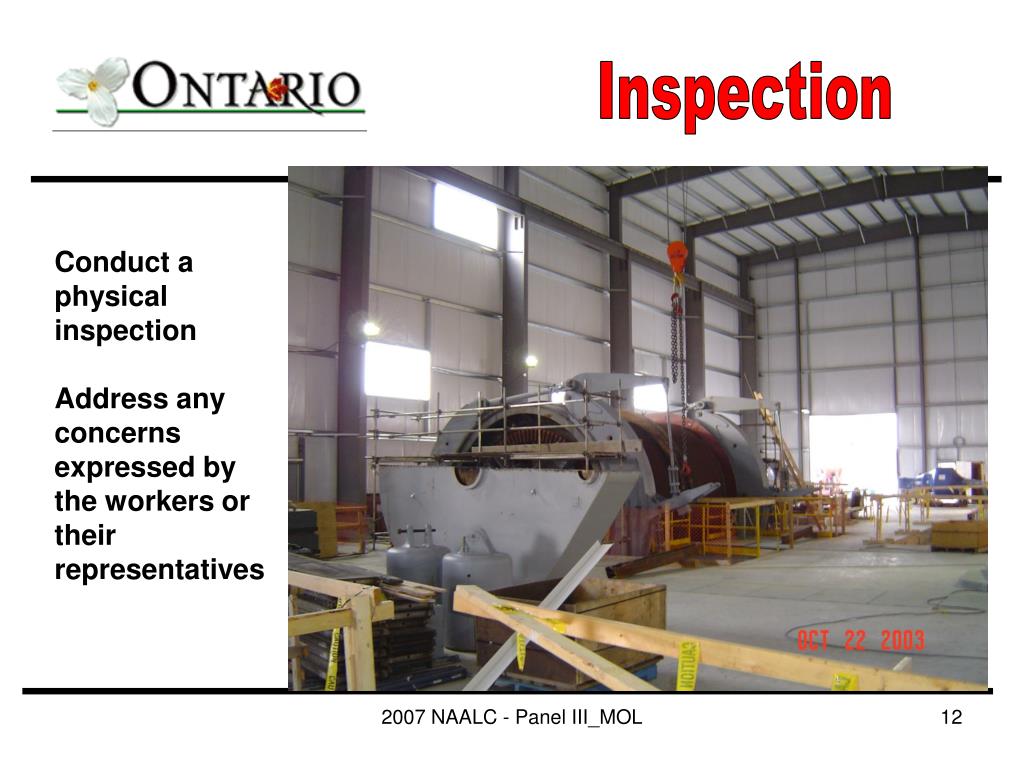

slide12

Inspection

Conduct a physical inspection

Address any concerns expressed by the workers or their representatives

2007 NAALC - Panel III_MOL

slide13

Inspection

Normally the inspector will only see CONDITIONS.

It is normal for workers to stop working underground while the inspector is at their workplace.

IRS: Check workplace inspection forms, pre-operational vehicle checks

2007 NAALC - Panel III_MOL

slide14

Inspection

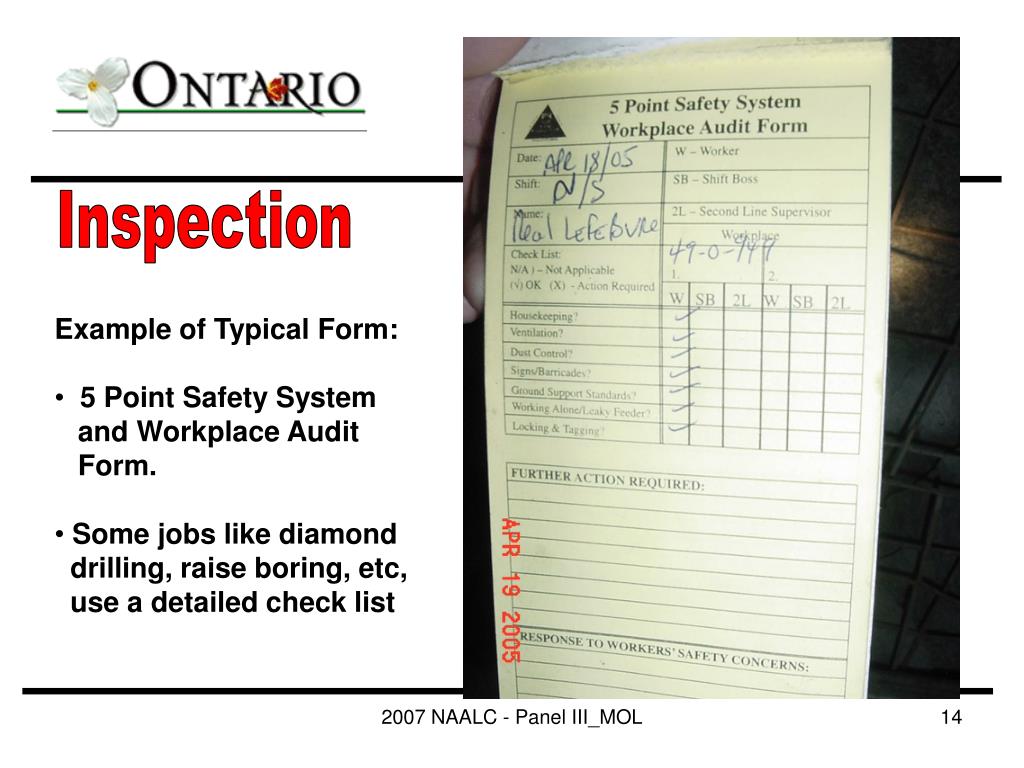

  • Example of Typical Form:
  • 5 Point Safety System
  • and Workplace Audit
  • Form.
  • Some jobs like diamond
  • drilling, raise boring, etc,
  • use a detailed check list

2007 NAALC - Panel III_MOL

slide15

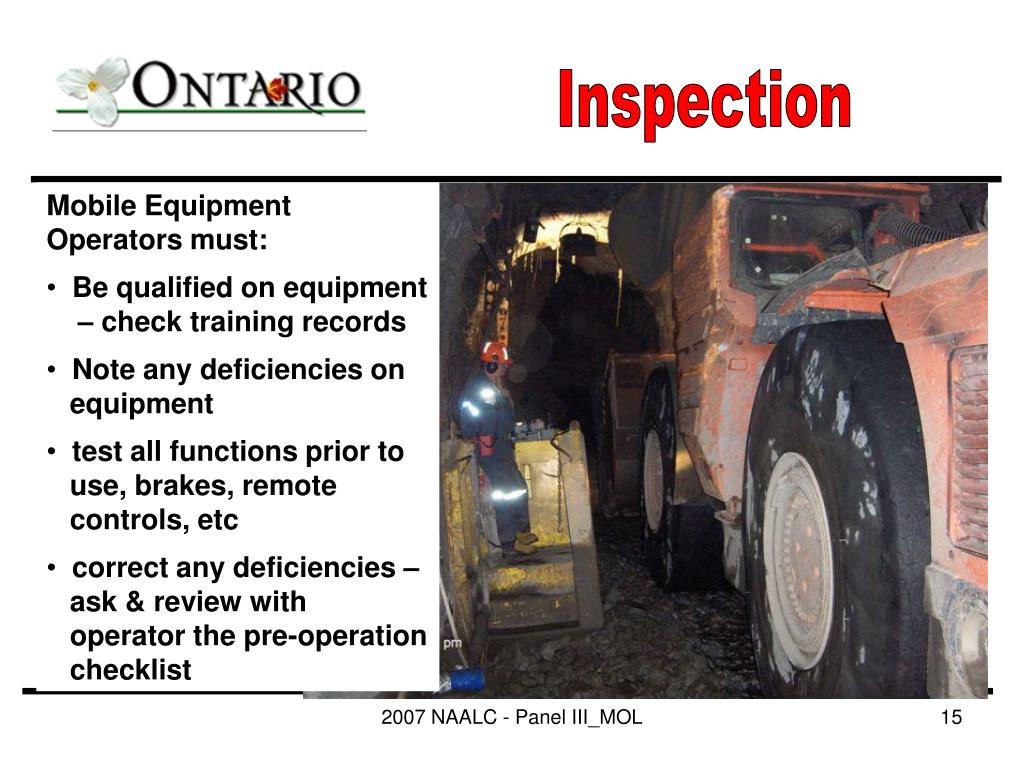

Inspection

  • Mobile Equipment Operators must:
  • Be qualified on equipment
  • – check training records
  • Note any deficiencies on
  • equipment
  • test all functions prior to
  • use, brakes, remote
  • controls, etc
  • correct any deficiencies –
  • ask & review with
  • operator the pre-operation
  • checklist

2007 NAALC - Panel III_MOL

slide16

Remote Pre-Op

Chestlist

WANT TO SEE THIS FOR REMOTES

2007 NAALC - Panel III_MOL

slide17

Inspection

  • Inspector documents:
  • Physical conditions
  • of the workplace
  • Locations visited
  • Persons contacted
  • Concerns discussed
  • Contraventions noted
  • with any immediate
  • hazards addressed
  • immediately – stop
  • work

2007 NAALC - Panel III_MOL

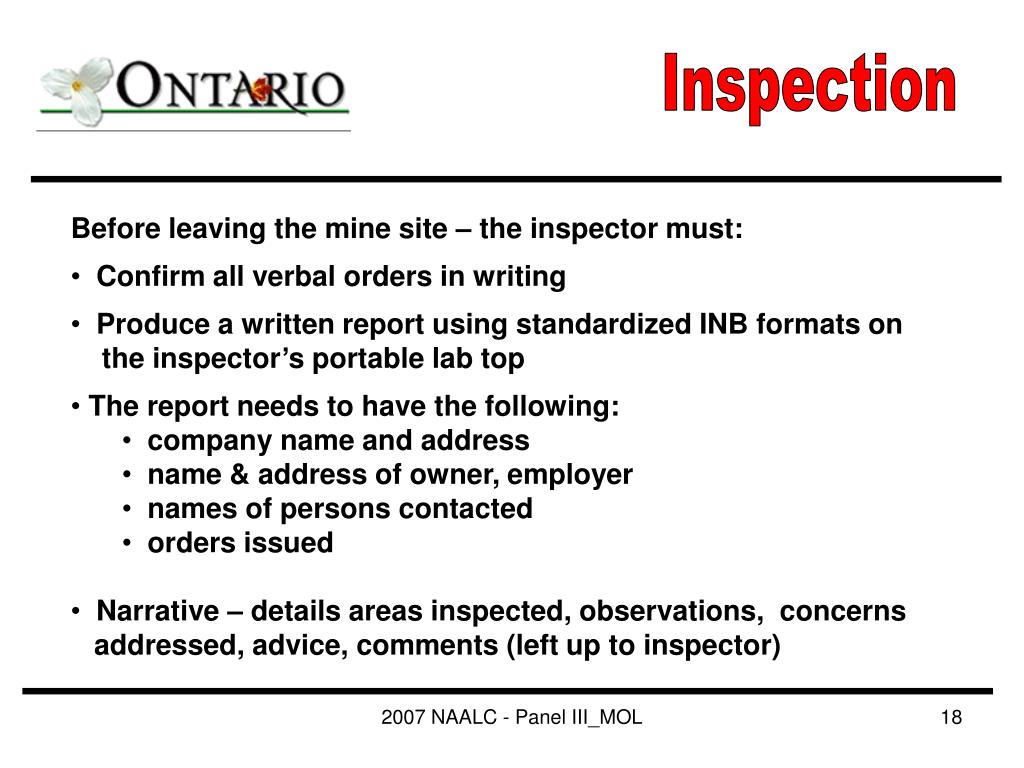

slide18

Inspection

  • Before leaving the mine site – the inspector must:
  • Confirm all verbal orders in writing
  • Produce a written report using standardized INB formats on
  • the inspector’s portable lab top
  • The report needs to have the following:
    • company name and address
    • name & address of owner, employer
    • names of persons contacted
    • orders issued
  • Narrative – details areas inspected, observations, concerns
  • addressed, advice, comments (left up to inspector)

2007 NAALC - Panel III_MOL

slide19

Inspection

Reports

  • Front Page of INB Field Visit Report
  • Showing:
  • information
  • required
  • first order &
  • compliance date

2007 NAALC - Panel III_MOL

slide20

Inspection

Reports

  • First page of narrative in INB Field Visit Report – 11 pages
  • Showing:
  • purpose of visit
  • persons contacted
  • advice on escapeway
  • & fire procedures

2007 NAALC - Panel III_MOL

slide21

Enforcement

Orders

  • Stop Use – immediate machine or process hazard
  • Stop Work – immediate task hazard
    • Both issued with or without a repeat inspection before work may resume
  • Forthwith – requires compliance measures to begin immediately
  • Time Based – specifies the time required to become compliant
  • Plan Based – requires employer to submit a plan on how compliance will be achieved, by what means and when

2007 NAALC - Panel III_MOL

slide22

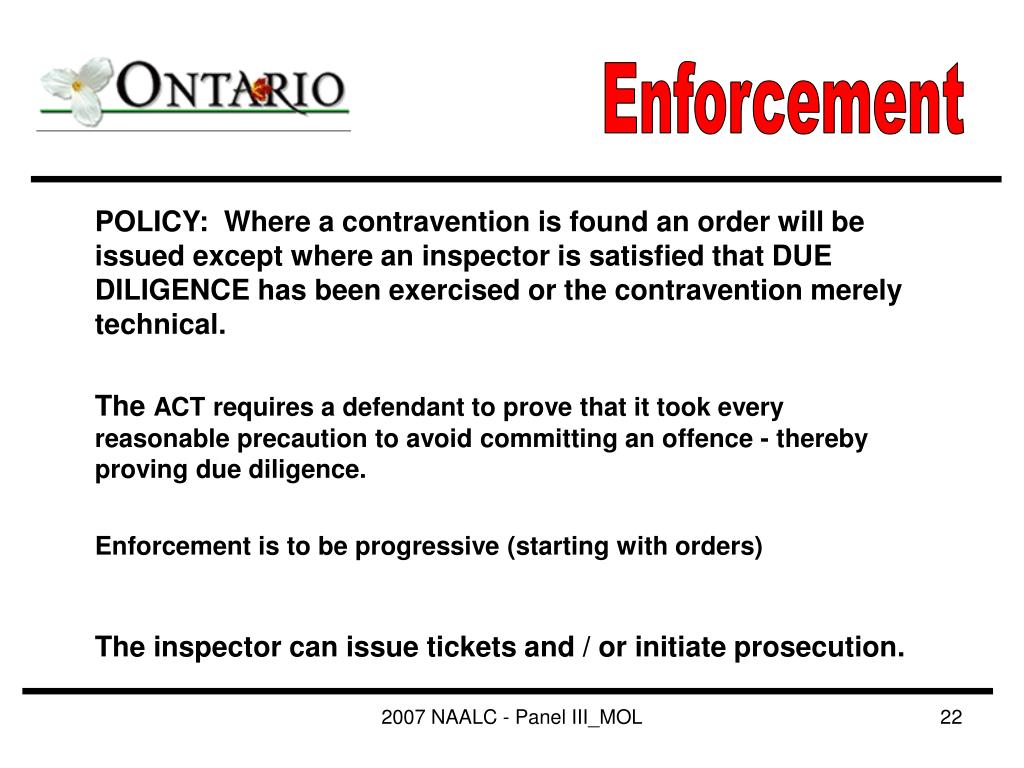

Enforcement

POLICY: Where a contravention is found an order will be issued except where an inspector is satisfied that DUE DILIGENCE has been exercised or the contravention merely technical.

The ACT requires a defendant to prove that it took every reasonable precaution to avoid committing an offence - thereby proving due diligence.

Enforcement is to be progressive (starting with orders)

The inspector can issue tickets and / or initiate prosecution.

2007 NAALC - Panel III_MOL

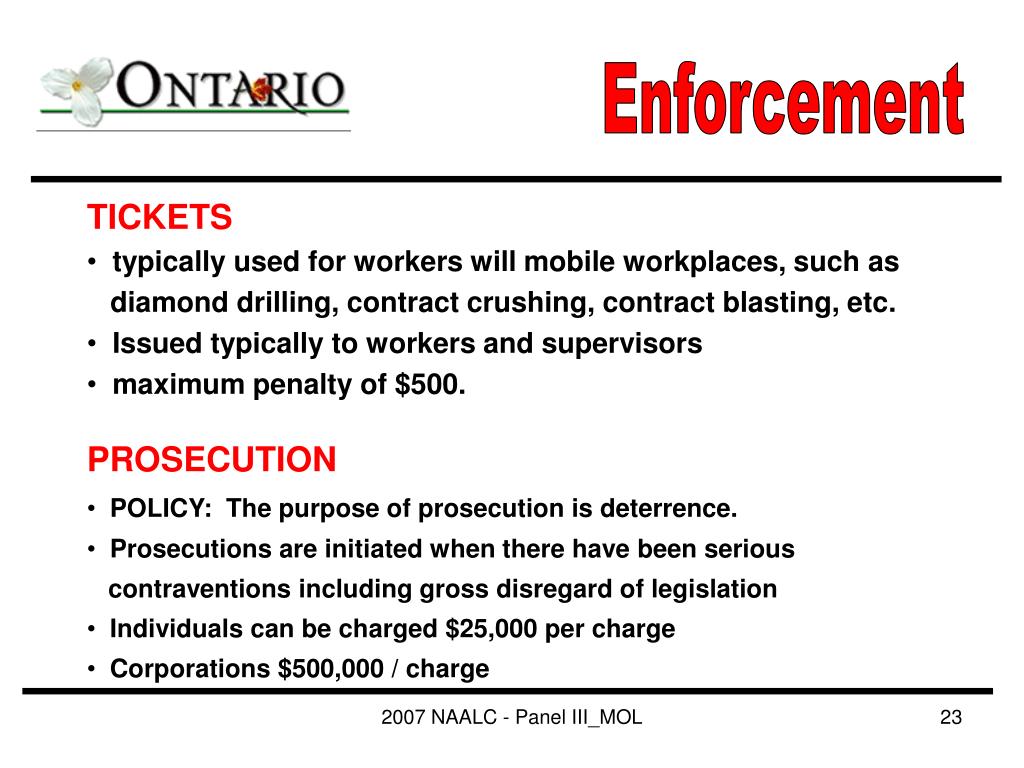

slide23

Enforcement

  • TICKETS
  • typically used for workers will mobile workplaces, such as
  • diamond drilling, contract crushing, contract blasting, etc.
  • Issued typically to workers and supervisors
  • maximum penalty of $500.
  • PROSECUTION
  • POLICY: The purpose of prosecution is deterrence.
  • Prosecutions are initiated when there have been serious
  • contraventions including gross disregard of legislation
  • Individuals can be charged $25,000 per charge
  • Corporations $500,000 / charge

2007 NAALC - Panel III_MOL

slide24

Summary

Mines know that the Ministry will seriously consider prosecution for all fatal and serious injuries.

Prosecution is a last resort in fixing an employer’s health and safety

The purpose of prosecution is deterrence – both to the offender and potential offenders.

Regular inspections, orders, deterrence and promotion of the Internal Responsibility System have all had an effect on reducing injuries in the Ontario Mining Industry.

2007 NAALC - Panel III_MOL

slide25

Questions ?

Comments ?
