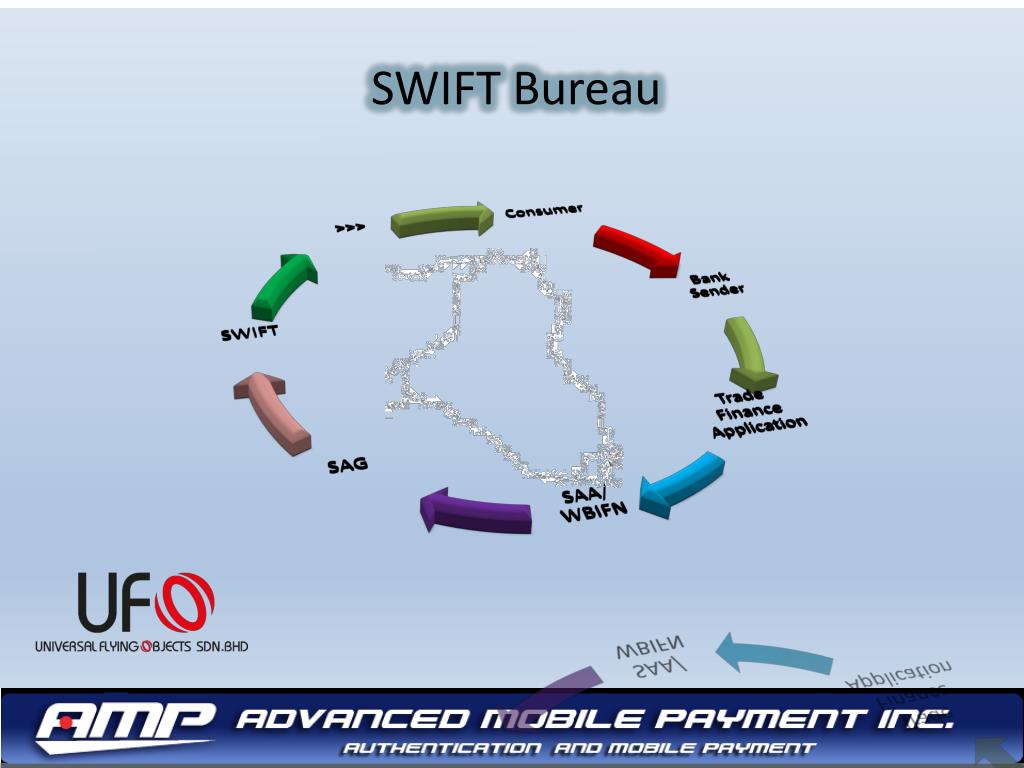

  1. SWIFT Bureau

  2. IBM WBIFN + SAG • Treasury Middle Ware • ERPs

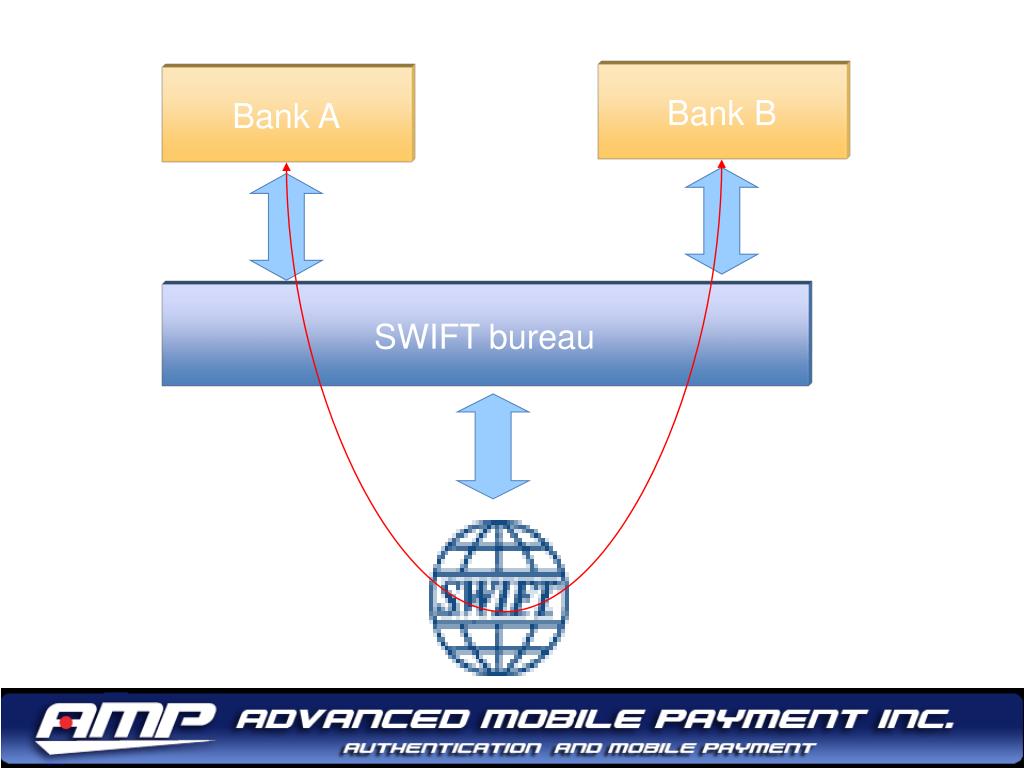

  3. Bank B Bank A SWIFT bureau

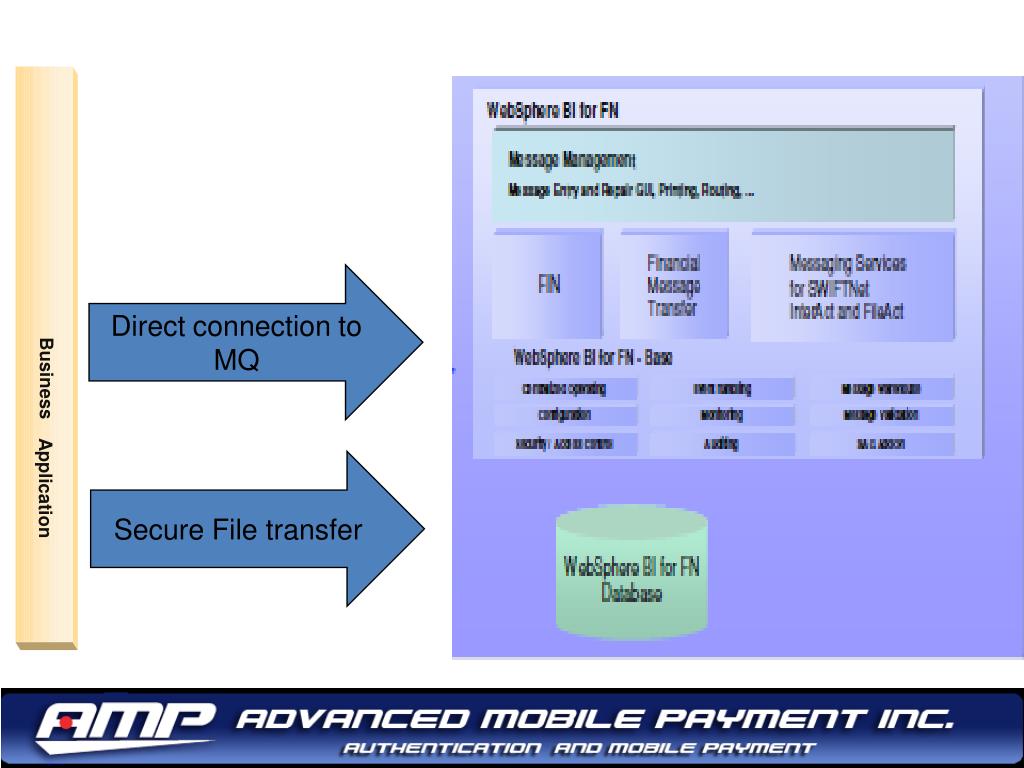

  4. Direct connection to MQ Business Secure File transfer Application

  5. Bank B Bank A WebSphere BI for FN

  6. Bank A Inst 1 Bank A Inst 2 Bank B Bank A Inst 1 WebSphere BI for FN

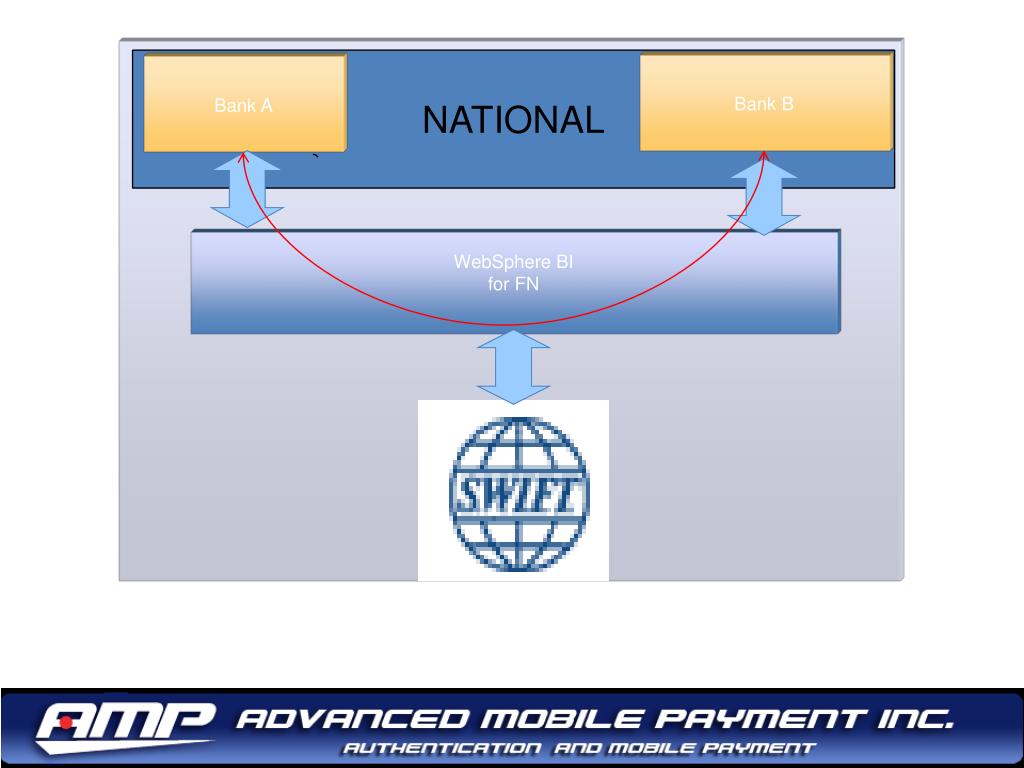

  7. NATIONAL Bank B Bank A WebSphere BI for FN

  8. WebSphere BI for FN Message Management Message Entry and Repair GUI, Printing, Routing, … FMT Messaging Servicesfor SWIFTNet InterAct and FileAct EnhancedInterAct(deprecated) DirectInterAct(deprecated) FIN Message Warehouse Event handling Centralized Operating Message Validation Configuration Monitoring Auditing SAG AddOn Security / Access Control WebSphere BI for FN - Base SWIFTAlliance Gateway (SAG) WebSphere BI for FN V3.1.0 – Structure Business Application WebSphere Message Broker WebSphere MQ, DB2. WebSphere Application Server Timer Service Accounting

  9. WMQ Queue WMQ Queue WebSphere BI for FN Server Service Service Service Secure IP Network(SIPN) WebSphere BI for FN - Organizational Units Operation / Administrationvia Command Line Interface BusinessApplication Audit Log OU1 OU2 Organizational UnitOU1 WebSphere BI Message Broker MessageWarehouse OU1 OU2 Organizational UnitOU2 Event Log OU1 / OU2 ConfigurationData WebSphere BI for FN Instance OU1 / OU2 SAG

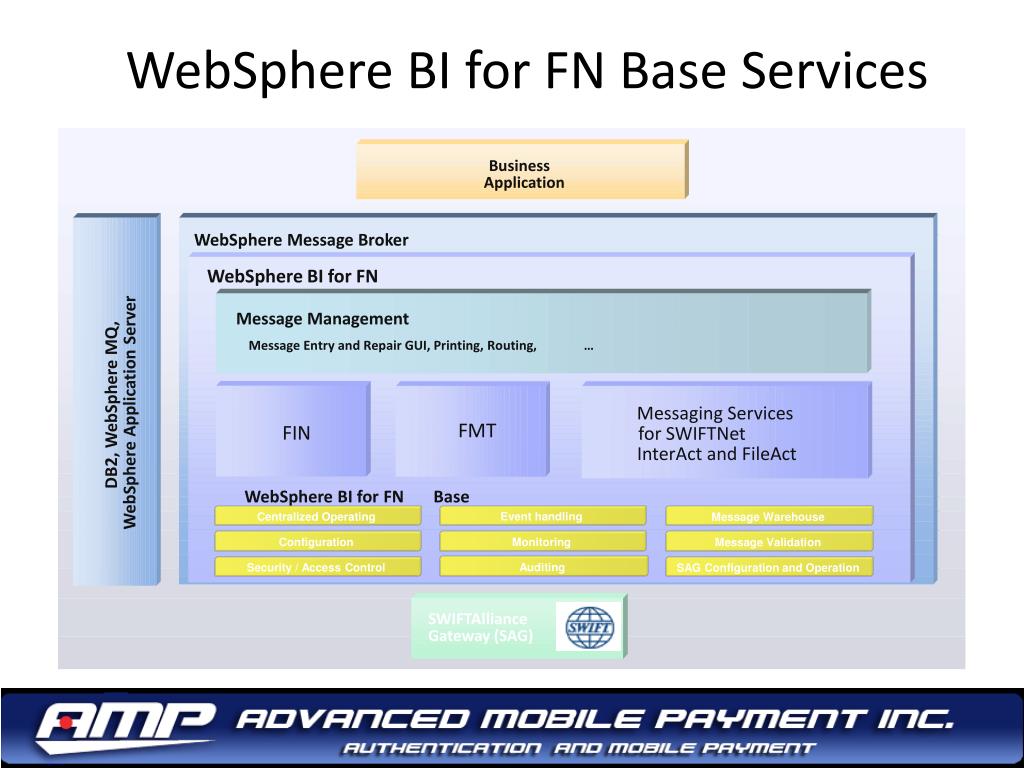

  10. WebSphere BI for FN Base Services Business Application WebSphere Message Broker WebSphere BI for FN Message Management Message Entry and Repair GUI, Printing, Routing, … DB2, WebSphere MQ, WebSphere Application Server Messaging Services Message Warehouse Event handling Centralized Operating FMT FIN FIN for SWIFTNet Message Validation Configuration Monitoring InterAct and FileAct Auditing SAG Configuration and Operation Security / Access Control WebSphere BI for FN Base SWIFTAlliance SWIFTAlliance Gateway (SAG) Gateway (SAG)

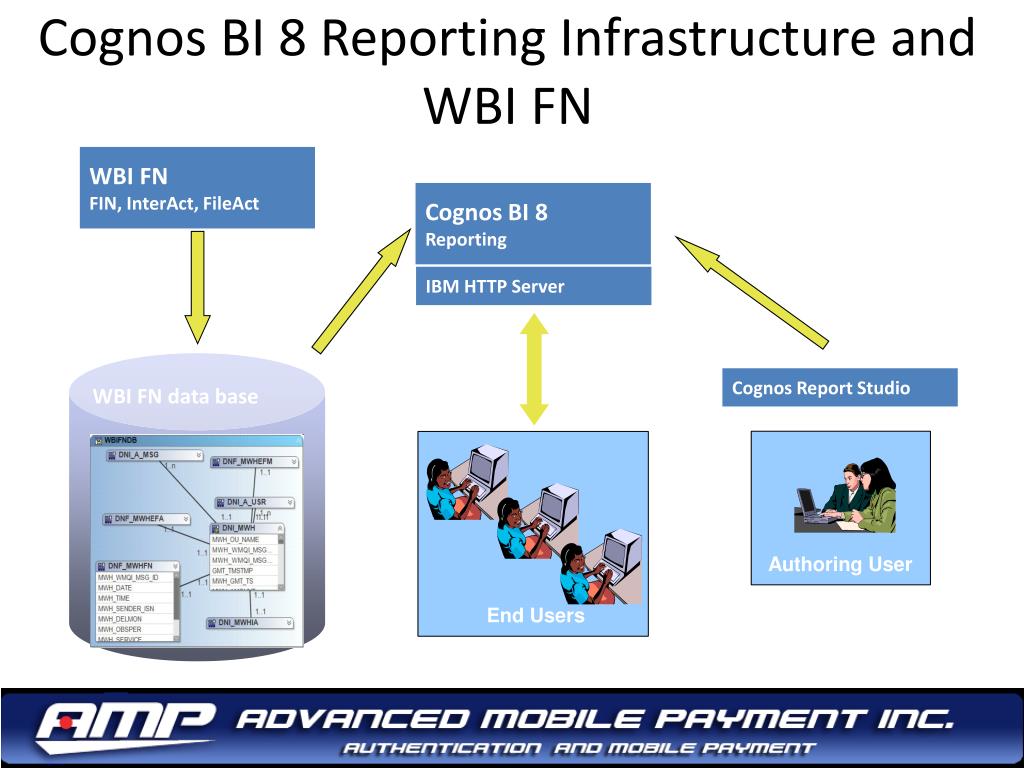

  11. Authoring User Cognos BI 8 Reporting Infrastructure and WBI FN WBI FNFIN, InterAct, FileAct Cognos BI 8Reporting IBM HTTP Server Cognos Report Studio WBI FN data base End Users

  12. Thank you
