Presentation Transcript

  1. BSAC Standardised Disc Susceptibility Test User Group Day.Royal College of Physicians, London.8 June 2007 Susceptibility testing of mucoid Pseudomonas and Burkholderia strains from patients with cystic fibrosis including evaluation of the BSAC standardised method. J.D. Perry Freeman Hospital Newcastle upon Tyne

  2. Contents: • Direct susceptibility testing of whole sputum from CF patients to detect resistant strains of P. aeruginosa. • Preliminary work to validate disc susceptibility testing with P. aeruginosa and B. cepacia from CF patients. • MCBT testing of resistant strains of P. aeruginosa and B. cepacia from CF patients.

  3. Direct susceptibility testing of Pseudomonas aeruginosa from sputa of patients with cystic fibrosis

  4. Phenotypic variability of Pseudomonas aeruginosa in sputa from patients with acute infective exacerbation of cystic fibrosis and its impact on the validity of antimicrobial susceptibility testing J. E. Foweraker*, C. R. Laughton, D. F. J. Brown and D. Bilton Department of Microbiology, Papworth Hospital, Papworth Everard, Cambridge CB3 8RE, UK; Health Protection Agency, Clinical Microbiology and Public Health Laboratory, Addenbrooke’s Hospital, Cambridge CB2 2QW, UK; Department of Chest Medicine, Papworth Hospital, Papworth Everard, Cambridge CB3 8RE, UK Journal of Antimicrobial Chemotherapy (2005) 55, 921–927

  5. Foweraker et al. 2005. Methods: • One hundred and one sputa were cultured. Four colonies of each P.aeruginosa morphotype were suspended. • Susceptibility to 12 agents by disc diffusion was tested individually or by pooling the four suspensions.

  6. Foweraker et al. 2005. Results / Conclusions • In some cases, all four colonies of a single morphotype had different antibiograms. • The susceptibility profiles of single isolates of P. aeruginosa correlated poorly with pooled cultures, with the pooled tests missing resistance. • A range of susceptibility patterns is seen, even within a morphotype. Routine test results are not reproducible and underestimate resistance.

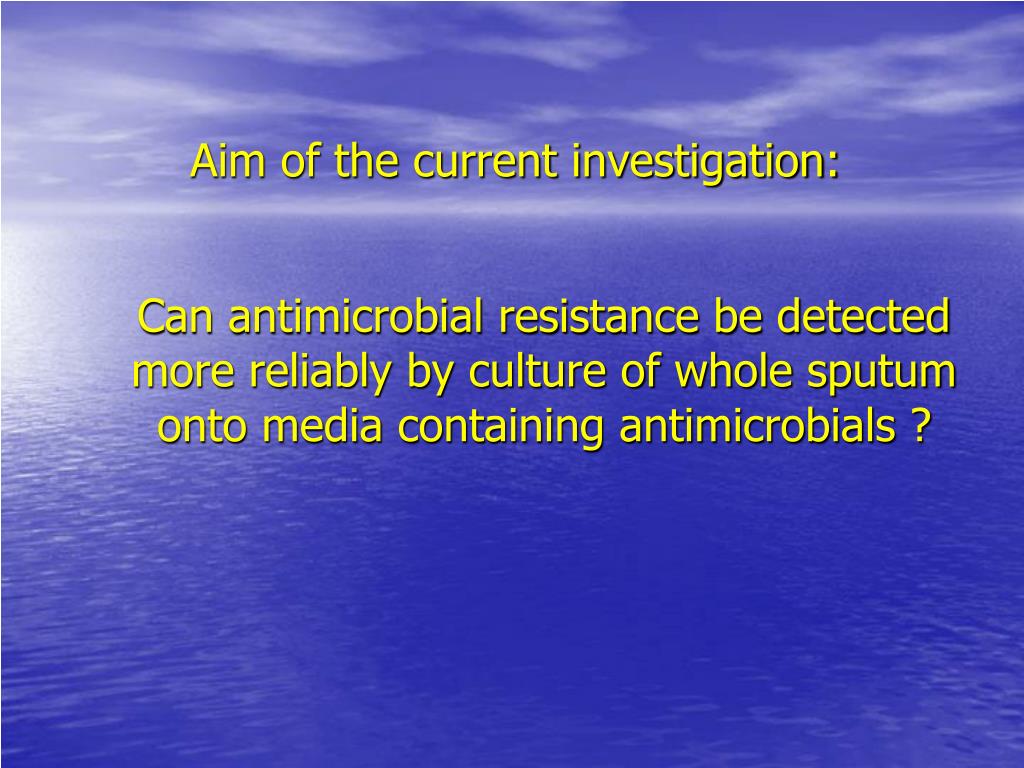

  7. Can antimicrobial resistance be detected more reliably by culture of whole sputum onto media containing antimicrobials ? Aim of the current investigation:

  8. Routine culture: • Sputum samples were homogenized 1:1 with Sputasol. • Routine culture: • 10 µl aliquots of liquid sputum were plated onto: • Chocolate agar (+Bacitracin), Blood agar, CLED agar, Isosensitest agar, Pseudomonas Selective agar & Burkholderia cepacia Selective agar.

  9. Routine culture (continued): • A 10 µl aliquot of liquid sputum was diluted by addition to 9.99 ml sterile water (1/1000). • 10 µl of this diluted sample was also plated onto: • Chocolate agar (+Bacitracin), Blood agar, CLED agar, Isosensitest agar, Pseudomonas Selective agar & Burkholderia cepacia Selective agar.

  10. Amikacin (16 mg/L) Gentamicin (4 mg/L) Tobramycin (4 mg/L) Aztreonam (8 mg/L) Ceftazidime (8 mg/L) Meropenem (4 mg/L) Temocillin (16 mg/l) Ciprofloxacin (1 mg/L). Piperacillin-tazobactam (16 mg/L) Ticarcillin-clavulanic acid (32 mg/L) Selective culture:A 10 µl aliquot of liquid sputum was inoculated onto 10 distinct Isosensitest agar plates incorporating the following antimicrobials:

  11. Routine culture: 10 µl of Neat and diluted homogenized sputa were inoculated onto: Cholcolate-Bacitracin Blood agar. CLED agar. Isosensitest agar. Pseudomonas selective agar. B. cepacia selective agar. (Total = 10 culture plates). ‘Selective’ culture Culture of neat homogenized sputa on Isosensitest agar (x 10) containing: Amikacin Gentamicin Tobramycin Aztreonam Ceftazidime Meropenem Temocillin Ciprofloxacin Piperacillin-tazobactam Ticarcillin-clavulanic acid Summary of media used

  12. Interpretation of cultures: • All plates were incubated for 72 hours and examined after 24, 48 and 72 hours. • All colonial variants or ‘morphotypes’ of Gram-negative bacteria were sub-cultured onto a blood agar plate to obtain pure cultures. These subcultures were used for MIC testing, identification and storage in glycerol for potential further studies.

  13. Identification: • P. aeruginosa was identified by inoculation of all morphotypes onto PC agar, cetrimide agar and blood agar to test for growth at 42°C. • PC agar contains: • 30 mg/L 9-chloro-9-[4-(diethylamino)phenyl]-9,10-dihydro-10-phenylacridine hydrochloride (C-390) and • 30 mg/L 1,10-phenantholine. • Growth on this agar is diagnostic for P. aeruginosa with 100 % specificity1. 1 J Clin Microbiol. 1988 Sep;26(9):1910-2.

  14. Identification: • For this study: • Growth on cetrimide + growth on PC agar + growth at 42°C = P. aeruginosa. • All other strains were identified by API 20 NE.

  15. Susceptibility testing: • All morphotypes (from any medium) were referred for MIC testing against 10 antibiotics. • MIC testing was performed using agar dilution in Isosensitest agar with a final inoculum of 10 000 cfu/spot. • MIC’s were recorded after both 24 and 48 hours of incubation at 37°C.

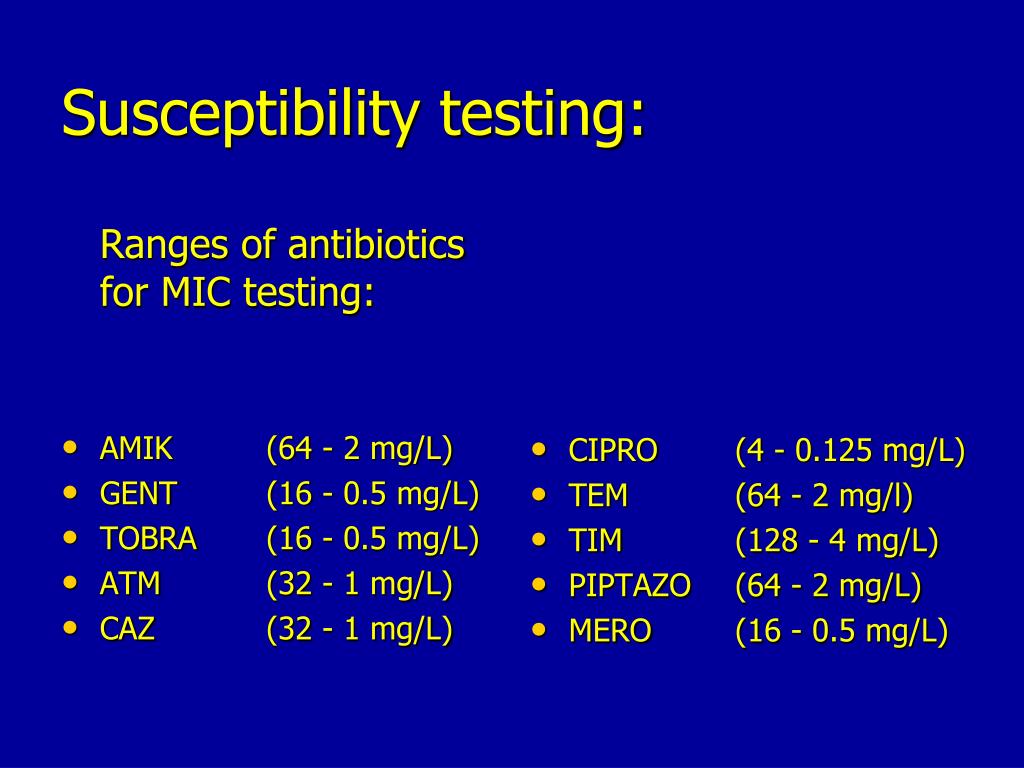

  16. Ranges of antibiotics for MIC testing: AMIK (64 - 2 mg/L) GENT (16 - 0.5 mg/L) TOBRA (16 - 0.5 mg/L) ATM (32 - 1 mg/L) CAZ (32 - 1 mg/L) CIPRO (4 - 0.125 mg/L) TEM (64 - 2 mg/l) TIM (128 - 4 mg/L) PIPTAZO (64 - 2 mg/L) MERO (16 - 0.5 mg/L) Susceptibility testing:

  17. Results: • From 45 sputum samples, 705 bacterial morphotypes were referred for identification and susceptibility testing:

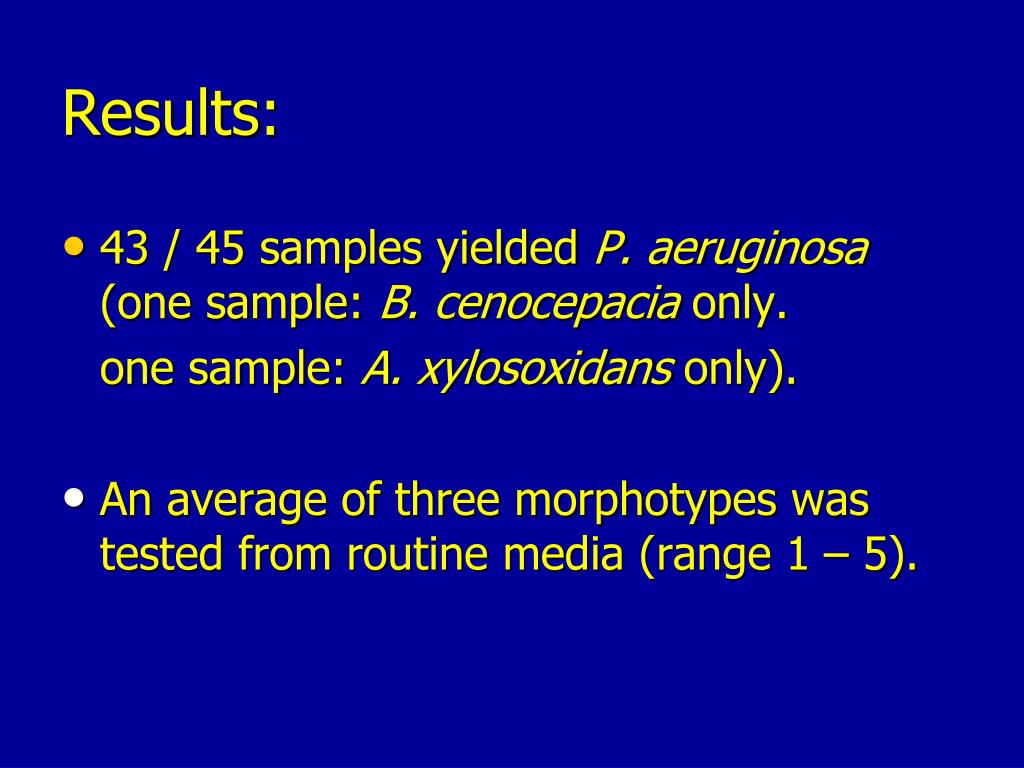

  18. Results: • 43 / 45 samples yielded P. aeruginosa (one sample: B. cenocepacia only. one sample: A. xylosoxidans only). • An average of three morphotypes was tested from routine media (range 1 – 5).

  19. Conclusions: • Growth on selective media containing breakpoint concentrations of antimicrobials can be used to detect antimicrobial resistance in P. aeruginosa (PPV: 88 – 100 %). • For most antimicrobials, the use of selective media facilitates detection of more antimicrobial resistance when compared with routine methods that involve selection of morphotypes for susceptibility testing.

  20. Disc susceptibility testing of Pseudomonas aeruginosa from sputa of patients with cystic fibrosis

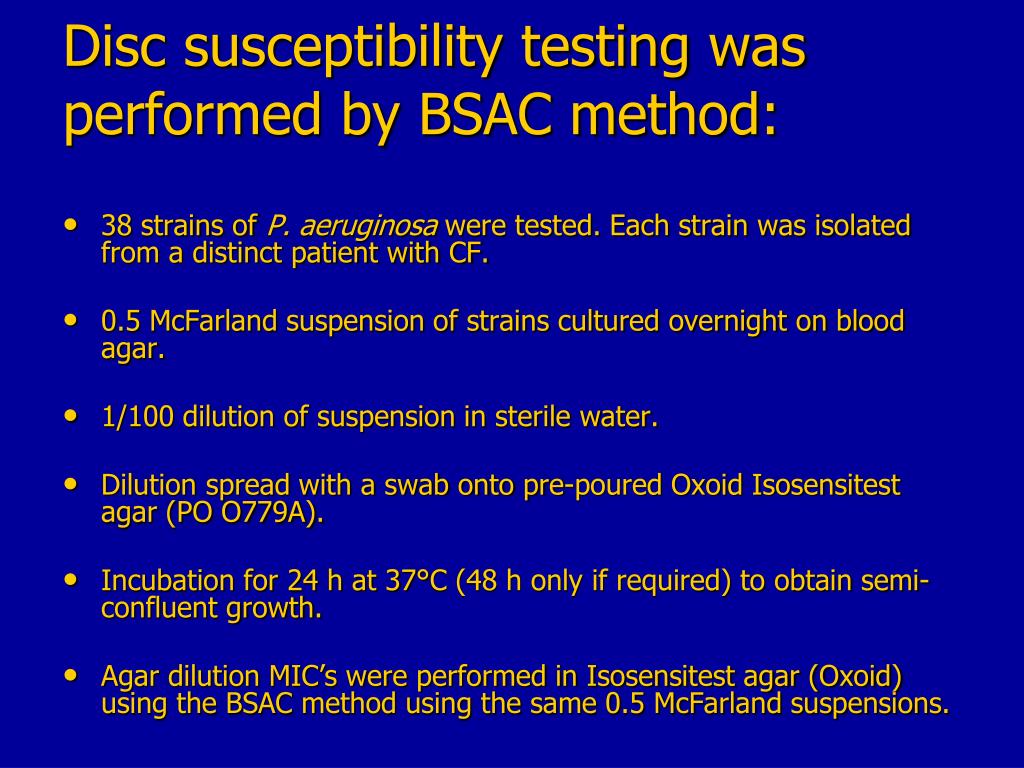

  21. Disc susceptibility testing was performed by BSAC method: • 38 strains of P. aeruginosa were tested. Each strain was isolated from a distinct patient with CF. • 0.5 McFarland suspension of strains cultured overnight on blood agar. • 1/100 dilution of suspension in sterile water. • Dilution spread with a swab onto pre-poured Oxoid Isosensitest agar (PO O779A). • Incubation for 24 h at 37°C (48 h only if required) to obtain semi-confluent growth. • Agar dilution MIC’s were performed in Isosensitest agar (Oxoid) using the BSAC method using the same 0.5 McFarland suspensions.

  22. Disc susceptibility testing was performed by BSAC method: • Controls: • With each batch of disc susceptibility tests and agar dilution tests we included: • Pseudomonas aeruginosa NCTC 10662 • Escherichia coli NCTC 10418 This was performed to ensure that zones of inhibition fell within published acceptable limits and MIC values were within one dilution of published acceptable values.

  23. Results: • 36 / 38 strains of P. aeruginosa grew well within 24 h and produced an ideal semi-confluent inoculum. • 1 strain generated a light growth within the ‘acceptable range’. • One strain produced no growth on repeated disc susceptibility testing. • (Control strains produced acceptable results)

  24. Sensitive Intermediate Resistant ≤ 8 mg/L 16 mg/L ≥ 32 mg/L ≥ 19 mm 16-18 mm ≤ 15 mm

  25. Sensitive Resistant ≤ 4 mg/L ≥ 8 mg/L ≥ 18 mm ≤ 17 mm

  26. Sensitive Resistant ≤ 4 mg/L ≥ 8 mg/L ≥ 20 mm ≤ 19 mm

  27. Sensitive Intermediate Resistant ≤ 0.5 mg/L 1 mg/L ≥ 2 mg/L ≥ 30 mm 20-29 mm ≤ 19 mm

  28. Sensitive Resistant ≤ 8 mg/L ≥ 16 mg/L ≥ 23 mm ≤ 22 mm

  29. Sensitive Resistant ≤ 8 mg/L ≥ 16 mg/L ≥ 24 mm ≤ 23 mm

  30. Sensitive Intermediate Resistant ≤ 2 mg/L 4-8 mg/L ≥ 16 mg/L ≥ 27 mm 22-26 mm ≤ 21 mm

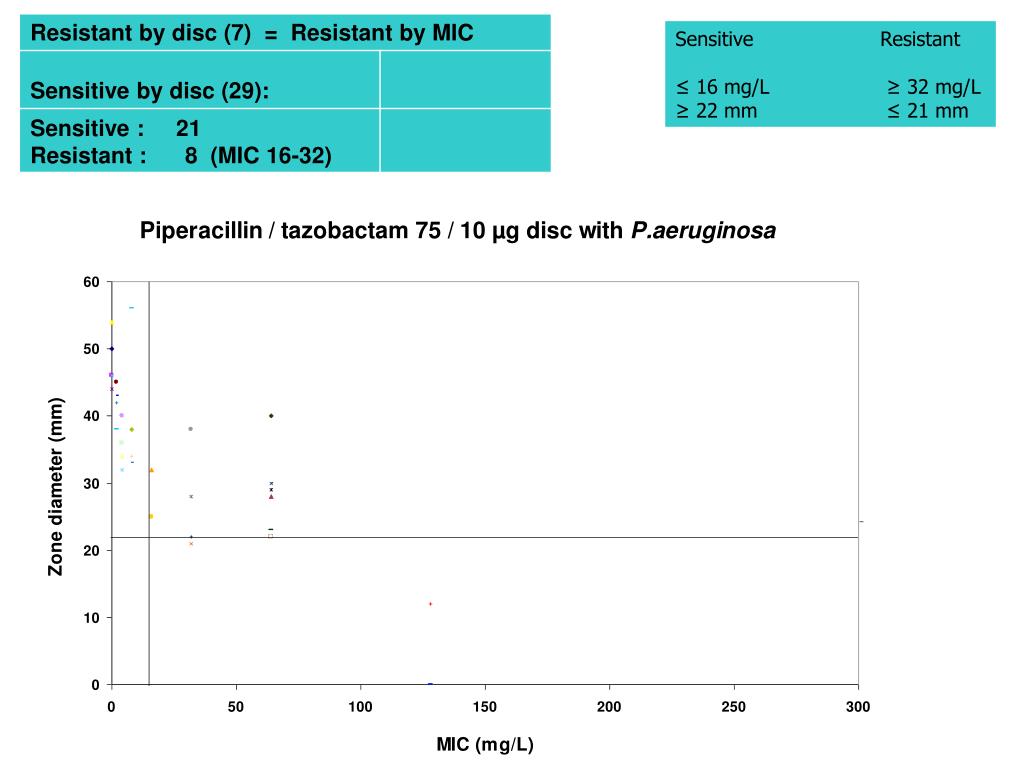

  31. Sensitive Resistant ≤ 16 mg/L ≥ 32 mg/L ≥ 22 mm ≤ 21 mm

  32. S ≤ 8 mg/L (Unconfirmed) R > 8 mg/L (Unconfirmed) S ≥ 20 mm (Unconfirmed) R ≤ 19 mm (Unconfirmed) P. aeruginosa NCTC 10662 MIC = > 64 mg/L E. coli NCTC 10418 MIC = 4 mg/L

  33. Disc susceptibility testing of Burkholderia cepacia complex using BSAC criteria for interpretation of Pseudomonas spp.

  34. Disc susceptibility testing was performed by BSAC method: • 0.5 McFarland suspension of strains cultured overnight on blood agar. • 1/100 dilution of suspension in sterile water. • Dilution spread with a swab onto pre-poured Oxoid Isosensitest agar (PO O779A). • Incubation for 24 h at 37°C (48 h only if required) to obtain semi-confluent growth. • Agar dilution MIC’s were performed in Isosensitest agar (Oxoid) using the BSAC method using the same 0.5 McFarland suspensions.

  35. 40 strains of Burkholderia cepacia complex used for disc susceptibility testing :

  36. 40 strains of Burkholderia cepacia complex (cont…)

  37. Results: • 35 / 40 strains of B. cepacia complex grew well within 24 h and produced an ideal semi-confluent inoculum. • 5 strains generated a light growth within the ‘acceptable range’. • One strain produced an unacceptable lawn (too light) which required incubation for 48 h.

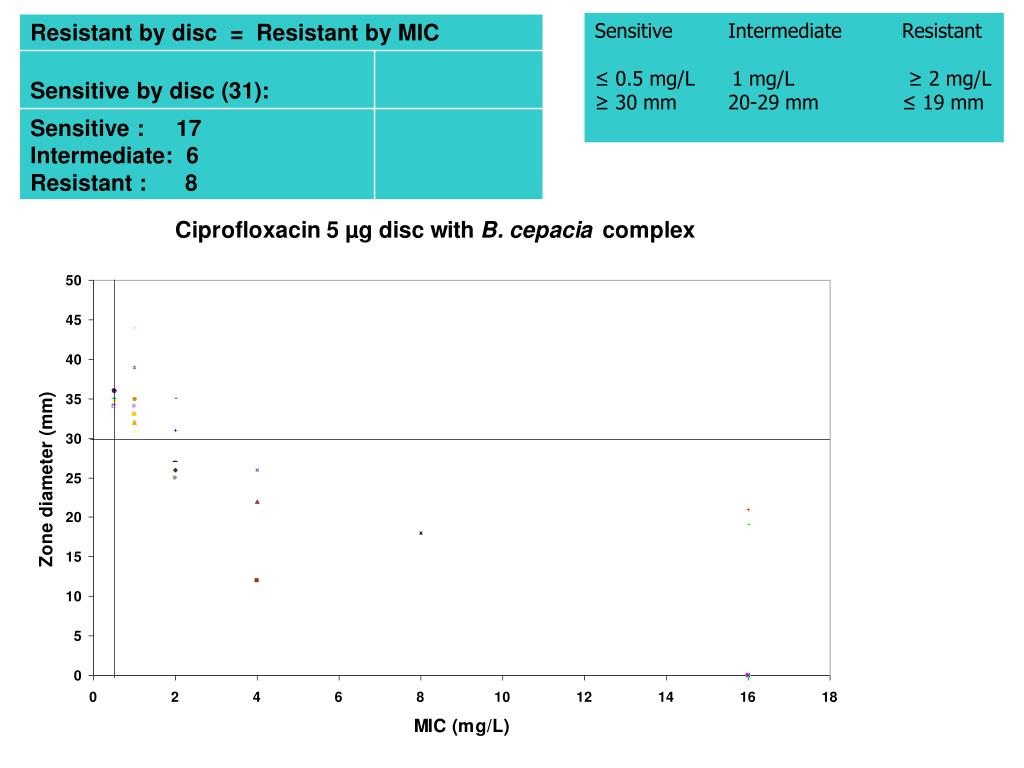

  38. Sensitive Intermediate Resistant ≤ 0.5 mg/L 1 mg/L ≥ 2 mg/L ≥ 30 mm 20-29 mm ≤ 19 mm

  39. Sensitive Resistant ≤ 8 mg/L ≥ 16 mg/L ≥ 23 mm ≤ 22 mm

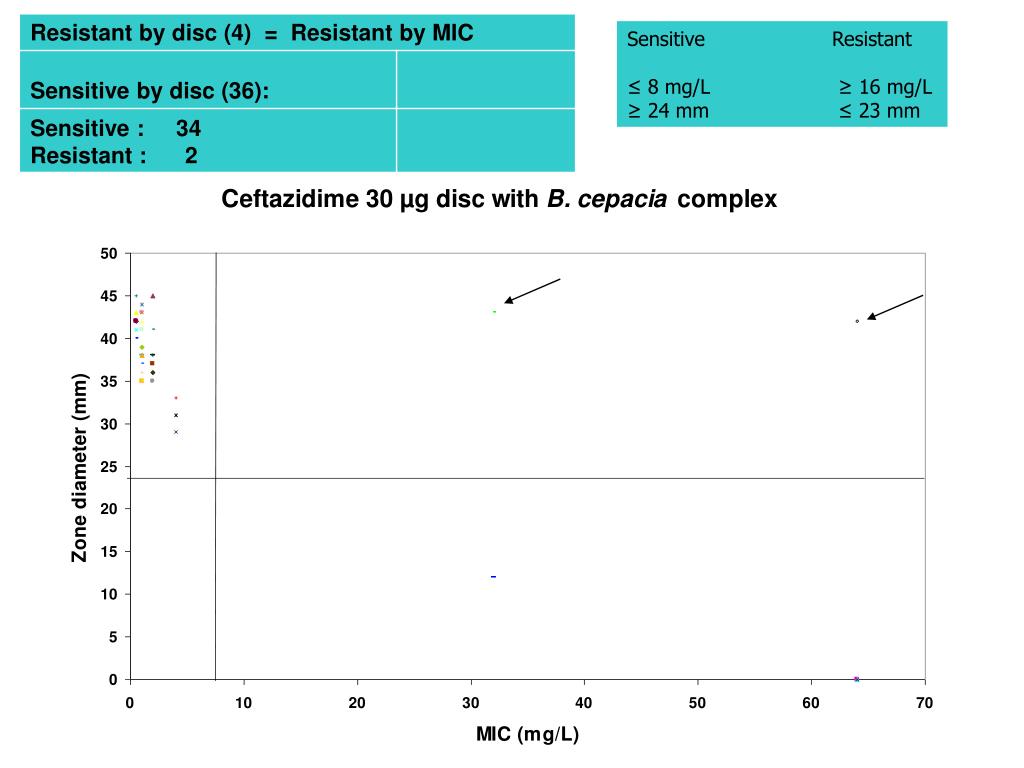

  40. Sensitive Resistant ≤ 8 mg/L ≥ 16 mg/L ≥ 24 mm ≤ 23 mm

  41. Sensitive Intermediate Resistant ≤ 2 mg/L 4-8 mg/L ≥ 16 mg/L ≥ 27 mm 22-26 mm ≤ 21 mm

  42. Sensitive Resistant ≤ 16 mg/L ≥ 32 mg/L ≥ 22 mm ≤ 21 mm

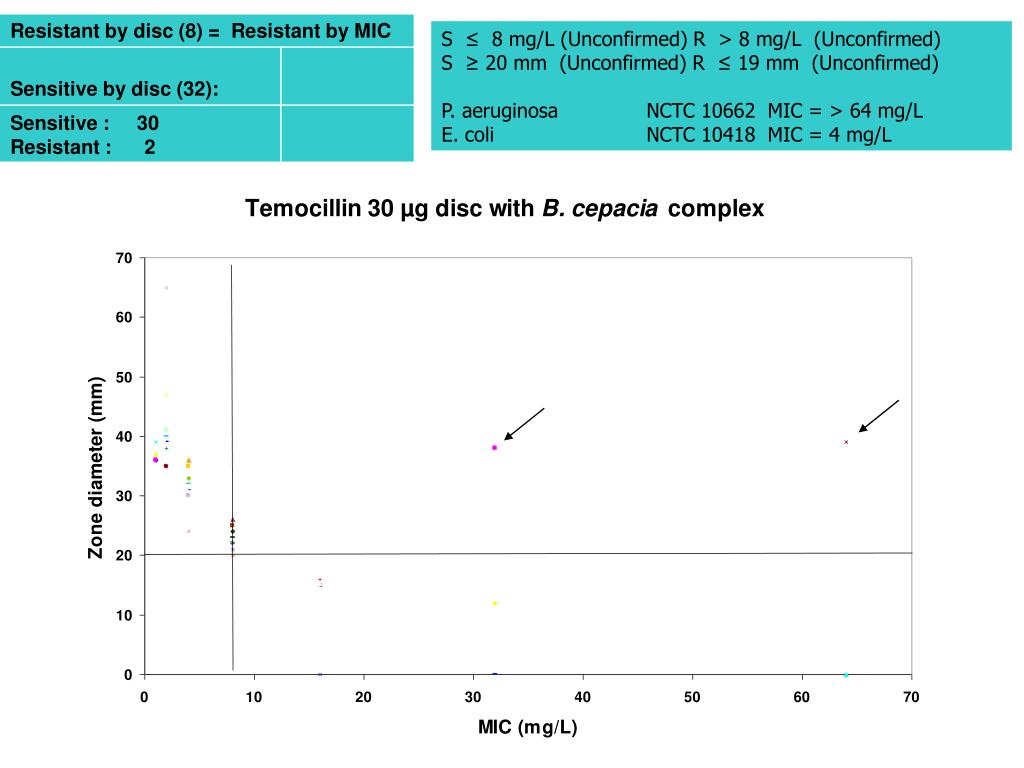

  43. S ≤ 8 mg/L (Unconfirmed) R > 8 mg/L (Unconfirmed) S ≥ 20 mm (Unconfirmed) R ≤ 19 mm (Unconfirmed) P. aeruginosa NCTC 10662 MIC = > 64 mg/L E. coli NCTC 10418 MIC = 4 mg/L

  44. MULTIPLE ANTIBIOTIC SYNERGY TESTING AGAINST P. AERUGINOSA AND B. CEPACIA COMPLEX STRAINS FROM CYSTIC FIBROSIS PATIENTS.

  45. Principles: • Inoculation of 106 cfu/ml test bacteria into Isosensitest broth with 78 distinct antimicrobial combinations. • Incubation for 48 h at 37°C.

  46. Antimicrobial combinations tested: Tests performed in microtitre wells. Final volume: 100µl.

  47. Microtitre wells interpreted as :‘growth’ or ‘no growth’ by spectrophotometry.
