Presentation Transcript
pwm pulse width modulation api

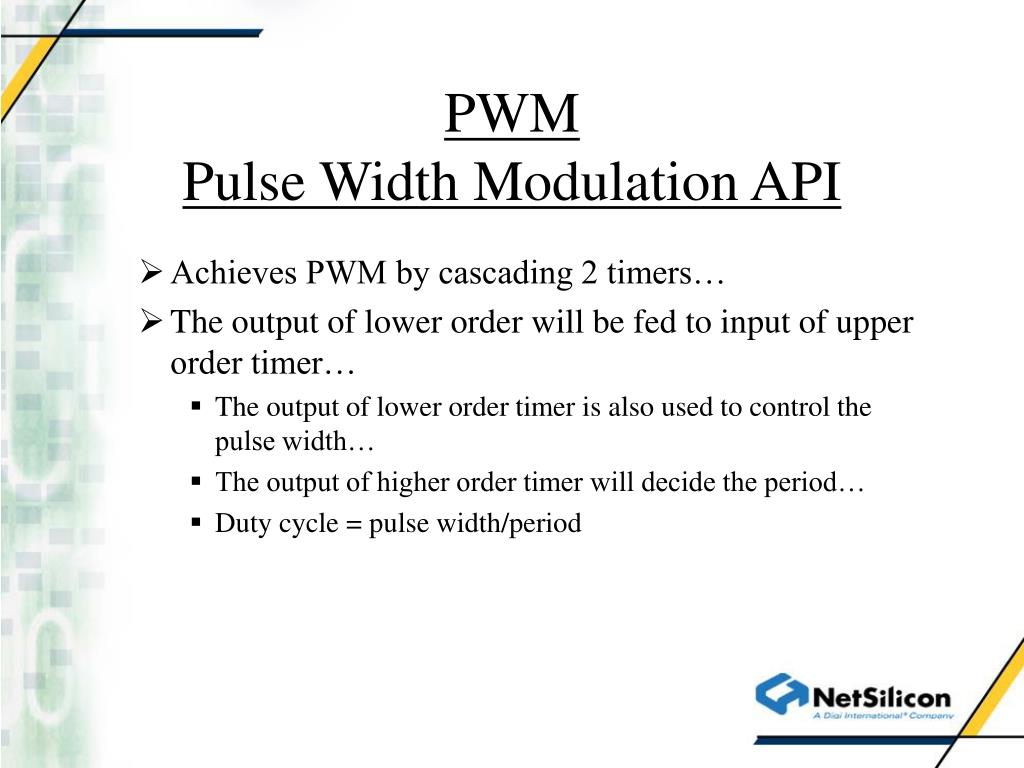

PWMPulse Width Modulation API
  • Achieves PWM by cascading 2 timers…
  • The output of lower order will be fed to input of upper order timer…
    • The output of lower order timer is also used to control the pulse width…
    • The output of higher order timer will decide the period…
    • Duty cycle = pulse width/period
about pwm

Timer/

Counter 2

Pulse width Control

PWM1

PWM1 output

Timer/

Counter 3

Period Control

Pulse width Control

Period Control

PWM1 output

About PWM
api calls
API Calls
  • naPwmOpen
    • Opens the specified channel and returns the handle
  • naPwmSetPulseWidth
    • Sets the pulse width and period in nanoseconds, returns the actual value set
  • naPwmStart
    • Enables the PWM channel
  • naPwmStop
    • Disables the PWM channel
  • naPwmClose
    • Closes the channel and releases the resources
