Ribosomes and Protein Synthesis

Ribosomes and Protein Synthesis. 13.2 3/18/2011. How Genes Are Expressed. DNA. TRANSCRIPTION. RNA. TRANSLATION. PROTEIN. Protein REVIEW. Proteins are polymers of amino acids

hop
Download Presentation

Ribosomes and Protein Synthesis

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Ribosomes and Protein Synthesis 13.2 3/18/2011

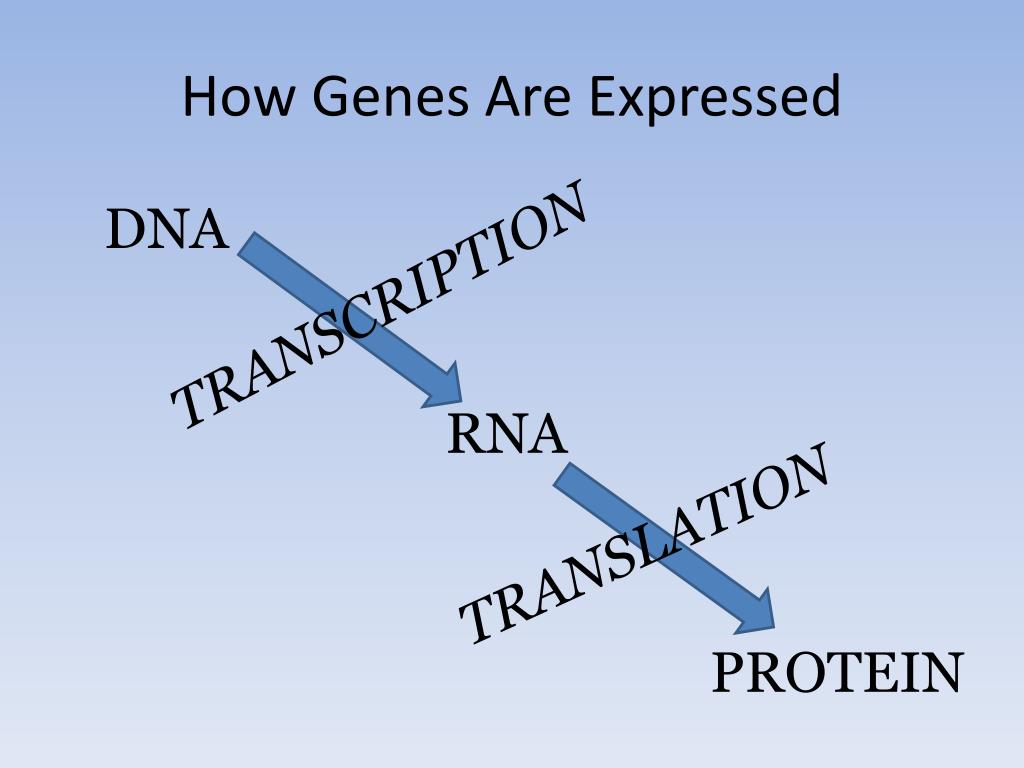

  2. How Genes Are Expressed DNA TRANSCRIPTION RNA TRANSLATION PROTEIN

  3. Protein REVIEW • Proteins are polymers of amino acids • Proteins are also called peptides or polypeptides because the amino acids that make them up are held together by peptide bonds • There are 20 different amino acids which make up all the proteins in living things • Different numbers & combinations = different proteins with individual properties

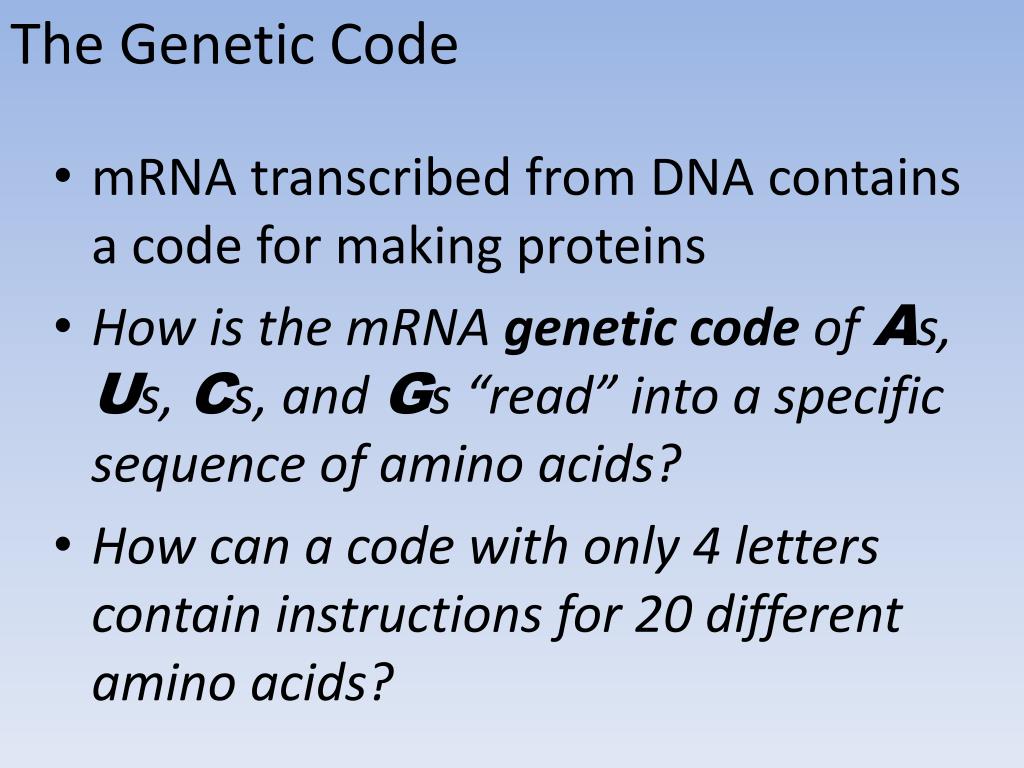

  4. The Genetic Code • mRNA transcribed from DNA contains a code for making proteins • How is the mRNA genetic code of As, Us, Cs, and Gs “read” into a specific sequence of amino acids? • How can a code with only 4 letters contain instructions for 20 different amino acids?

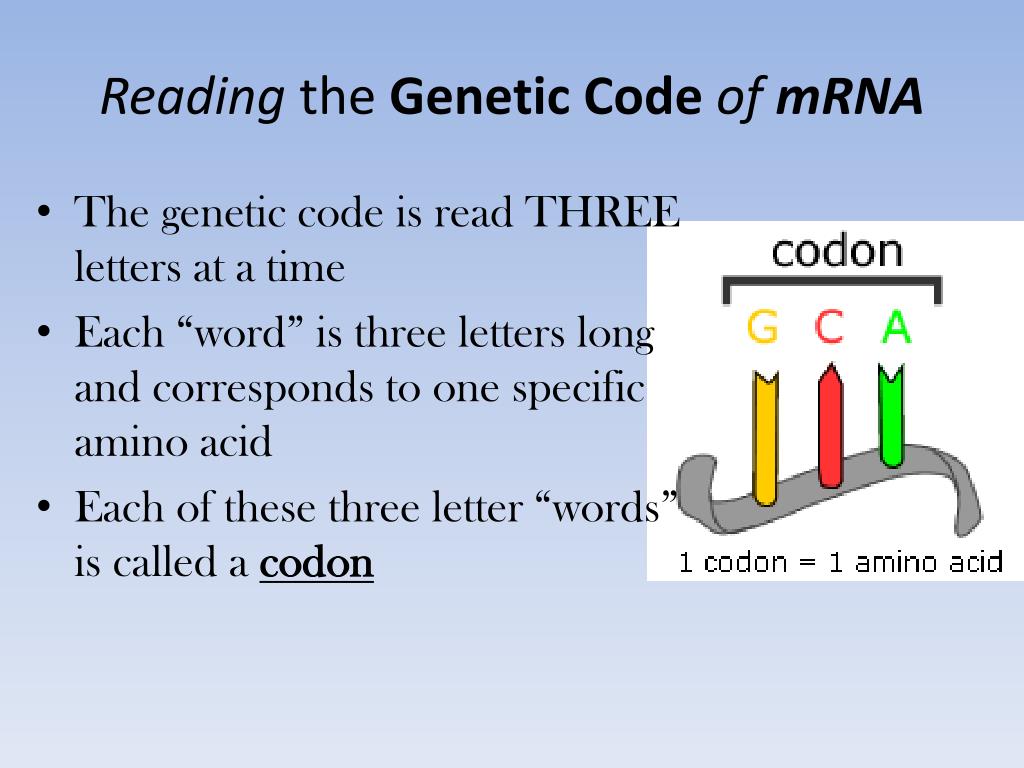

  5. Reading the Genetic Code of mRNA • The genetic code is read THREE letters at a time • Each “word” is three letters long and corresponds to one specific amino acid • Each of these three letter “words” is called a codon

  6. How to Read mRNA Codons • Read the Genetic Code chart from the inside out • Start & stop codons • Think of as “punctuation” • Translation begins at start codon • AUG, the codon for methionine • Translation ends at one of three stop codons • UGA, UAA, UAG

  7. Transfer RNA • Two sided: one side has anti-codon, the other is carrying an amino acid • tRNAanti codon matches mRNA codon

  8. Protein Synthesis (Translation • During translation, or protein synthesis, the cell uses information from mRNA to produce proteins • The ribosomes of the cell read the instructions (the mRNA) and assemble the parts (the amino acids) into proteins

  9. Steps of Translation • Initiation • Ribosome attaches to mRNA in the cytoplasm • Elongation • As each mRNA codon passes through the ribosome, the tRNAs bring the appropriate amino acid • One at a time, the ribosome attaches the amino acid from the tRNA to the growing chain of amino acids (this is forming the protein) • This “assembly line” continues until… • Termination • STOP codon reached, then… • mRNA and protein released from the ribosome

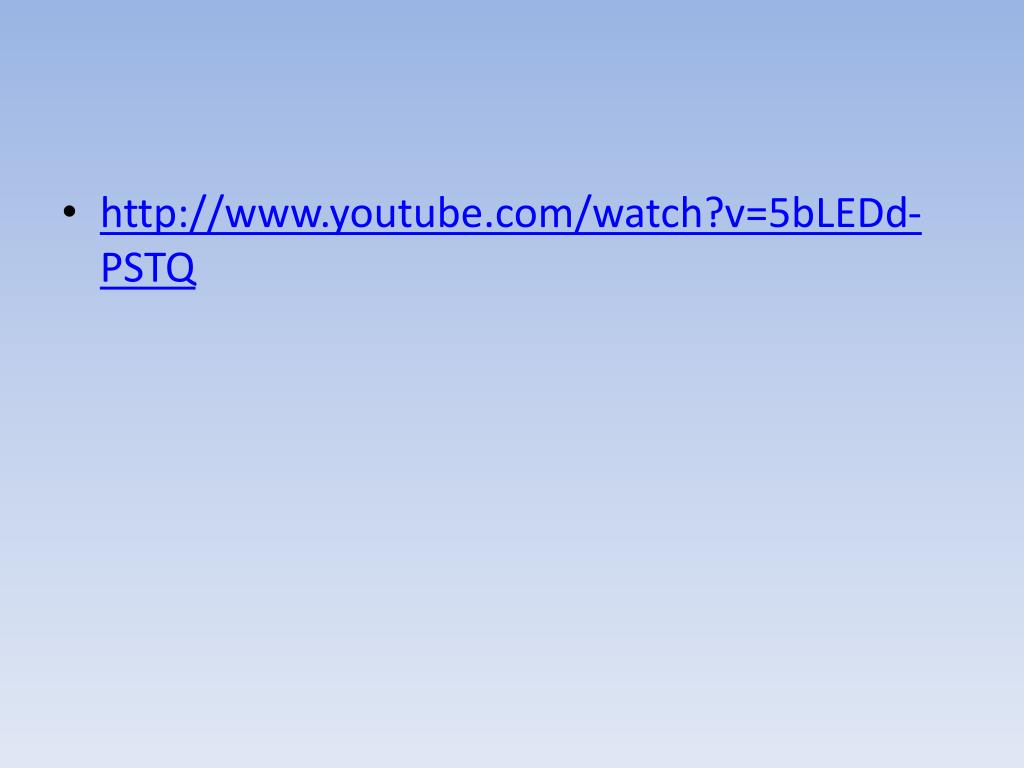

  10. http://www.youtube.com/watch?v=5bLEDd-PSTQ
