Protein Synthesis

Protein Synthesis. Honors Biology (grab a textbook). Protein Synthesis. Sometimes proteins need to be made but DNA is trapped inside nucleus How does the “ code” for making proteins get out ?. DNA ---> RNA---> Protein.

claude
Download Presentation

Protein Synthesis

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript


  1. Protein Synthesis Honors Biology (grab a textbook)

  2. Protein Synthesis • Sometimes proteins need to be made but DNA is trapped inside nucleus • How does the “code” for making proteins get out?

  3. DNA ---> RNA---> Protein • 1. Transcription - DNA is a template or pattern for making RNA • 2. RNA moves outside nucleus through pores • 3. Translation– RNA directs assembly of amino acids to form proteins

  4. Transcription Step 1 • RNA polymerase binds to a “promoter” on the DNA; says where to “start” • DNA starts unwinding

  5. Transcription Step 2 • RNA polymerase adds free RNA nucleotides (bases that are complementary to those on DNA strand) • A mRNA strand forms • Only involves a specific gene on DNA strand, not entire strand

  6. Transcription Step 3 • RNA polymerase reaches a “termination” signal; says “stop” • RNA is released and DNA rewinds

  7. Questions (don’t copy) • Where does transcription take place in the cell? • What is the product of transcription? • How much of the DNA strand is copied?

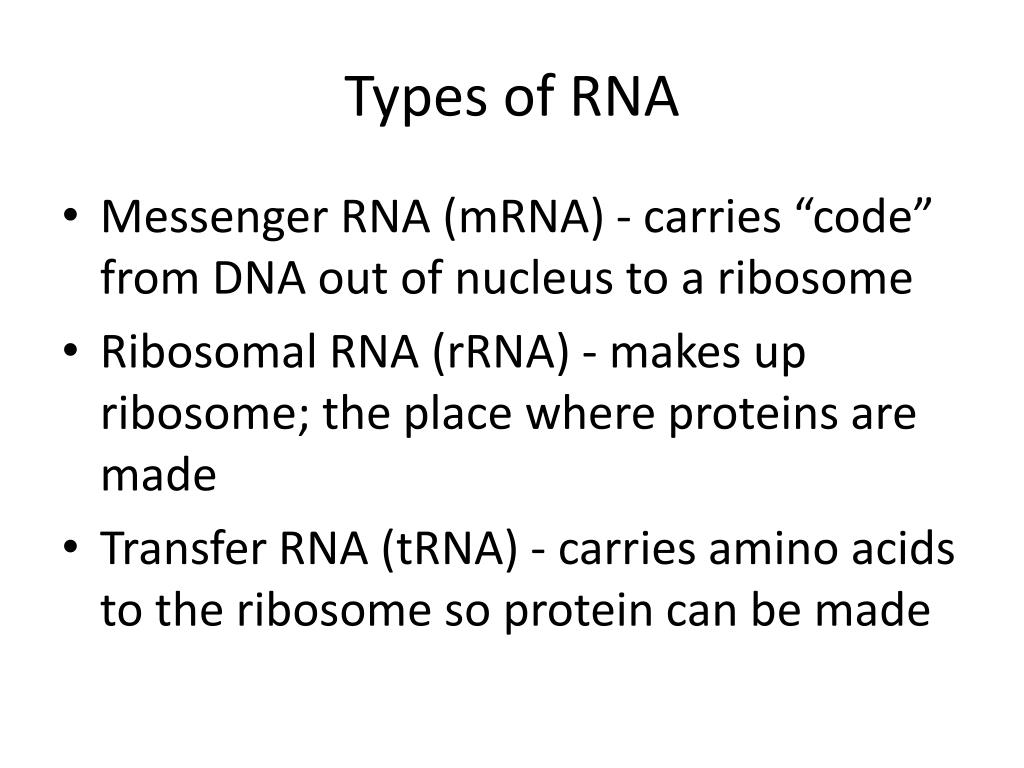

  8. Types of RNA • Messenger RNA (mRNA) - carries “code” from DNA out of nucleus to a ribosome • Ribosomal RNA (rRNA) - makes up ribosome; the place where proteins are made • Transfer RNA (tRNA) - carries amino acids to the ribosome so protein can be made

  9. The genetic code • The sequence of bases on mRNA determines how amino acids are put together • Genetic code - 3 bases together determine a specific amino acid • 3 bases on a mRNAcalled a “codon”

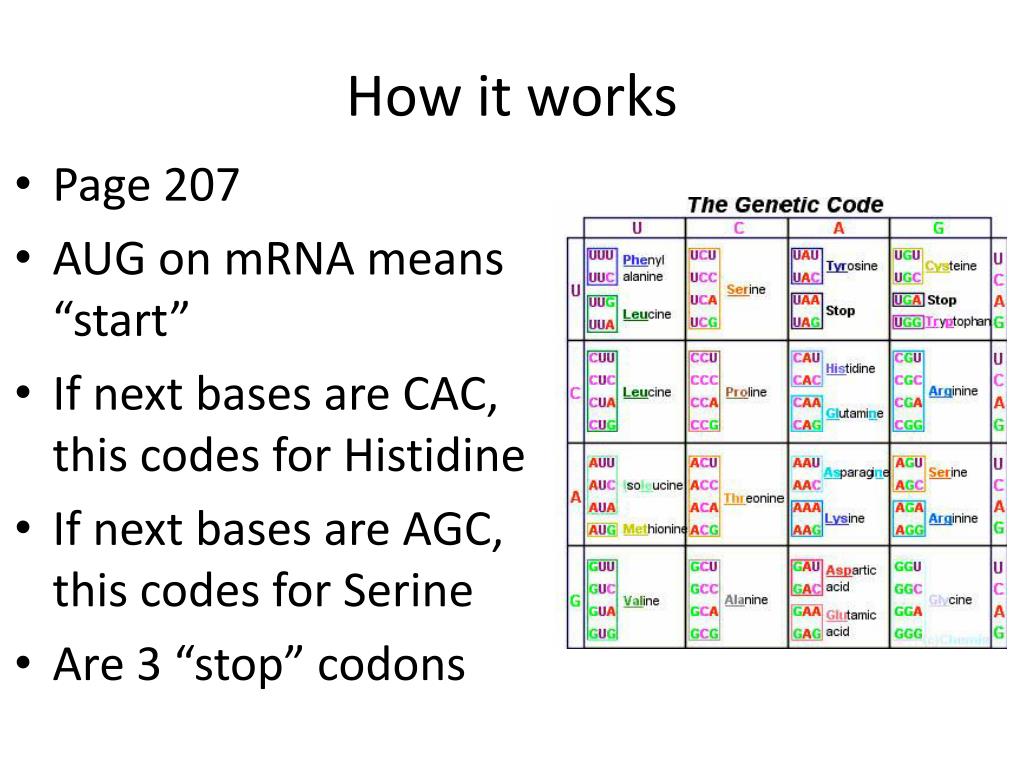

  10. How it works • Page 207 • AUG on mRNA means “start” • If next bases are CAC, this codes for Histidine • If next bases are AGC, this codes for Serine • Are 3 “stop” codons

  11. Translation (making proteins) • mRNA comes from nucleus and goes to a ribosome • If DNA code is: ATACGG • Then mRNA code is: UAUGCC (remember U is found in RNA, not T) Chargaff’s Rule: A pairs with T (or U) C pairs with G

  12. Translation – Step 1 • mRNA moves along a ribosome • A tRNA arrives - on one end is the amino acid, on other end is anti-codon • codonof mRNA matches up to anticodon of tRNA (complementary)

  13. Translation – Step 2 • Codon & anti-codon meet; tRNA releases amino acid • Next tRNAarrives; codon & anti-codon meet; another a.a. is released and forms peptide bond with adjacent a.a.

  14. Translation – Step 3 • Enough amino acids bind together to form a polypeptide chain until a “stop” codon is reached • Chain falls off and a protein is made

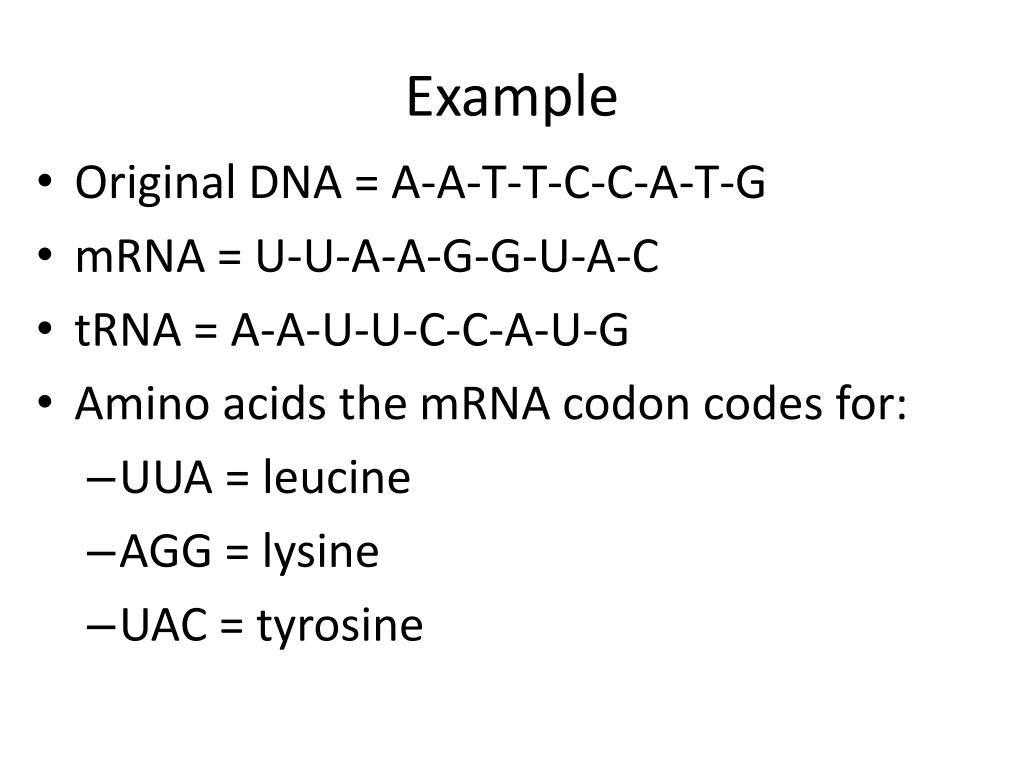

  15. Example • Original DNA = A-A-T-T-C-C-A-T-G • mRNA = U-U-A-A-G-G-U-A-C • tRNA= A-A-U-U-C-C-A-U-G • Amino acids the mRNA codon codes for: • UUA = leucine • AGG = lysine • UAC = tyrosine

  16. Now you try… • Original DNA = G-C-T-T-A-G-C-T-A • mRNA = • tRNA = • Amino acids the mRNA codon codes for:?

  17. Answers • Original DNA = G-C-T-T-A-G-C-T-A • mRNA = C-G-A-A-U-C-G-A-U • tRNA = G-C-U-U-A-G-C-U-A • Amino acids the mRNA codon codes for: • C-G-A = arginine • A-U-C = isoleucine • G-A-U = aspartic acid

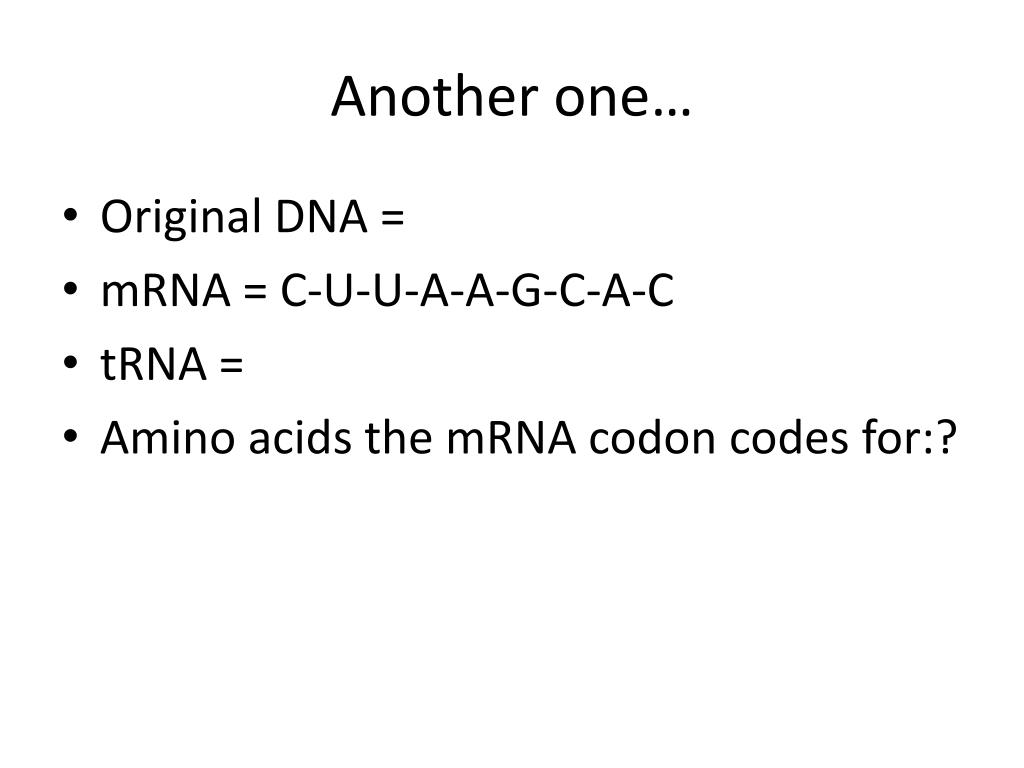

  18. Another one… • Original DNA = • mRNA = C-U-U-A-A-G-C-A-C • tRNA = • Amino acids the mRNA codon codes for:?

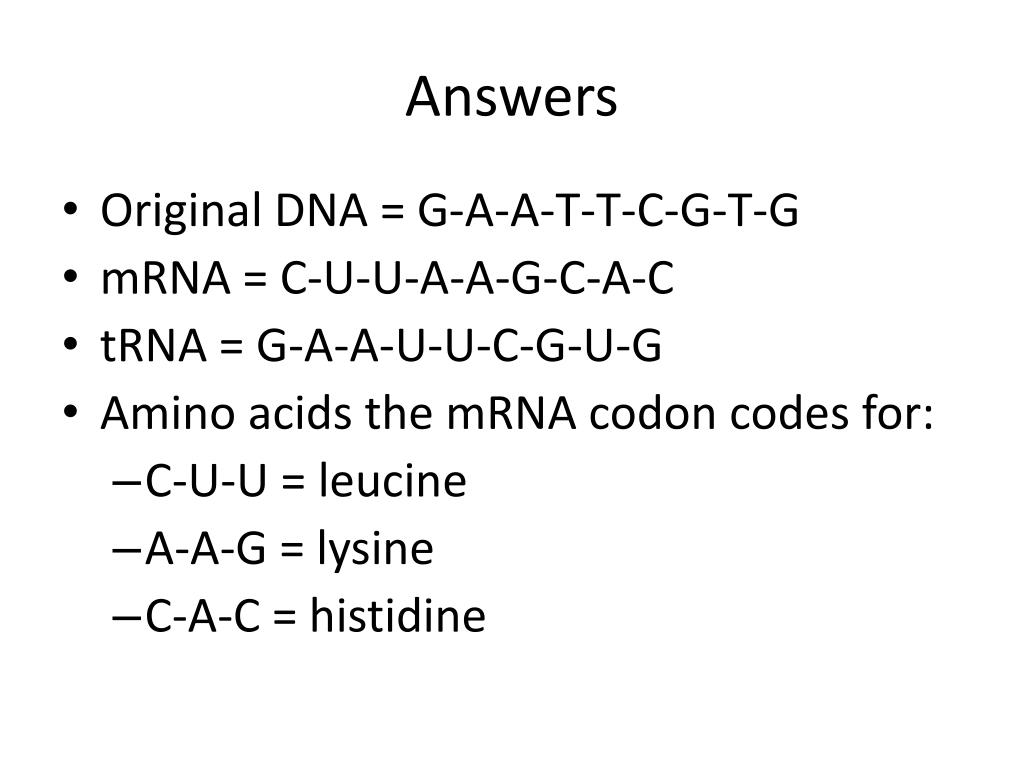

  19. Answers • Original DNA = G-A-A-T-T-C-G-T-G • mRNA = C-U-U-A-A-G-C-A-C • tRNA = G-A-A-U-U-C-G-U-G • Amino acids the mRNA codon codes for: • C-U-U = leucine • A-A-G = lysine • C-A-C = histidine

  20. One more… • Original DNA = • mRNA = • tRNA = C-C-G-U-U-A-U-G-A • Amino acids the mRNA codon codes for:?

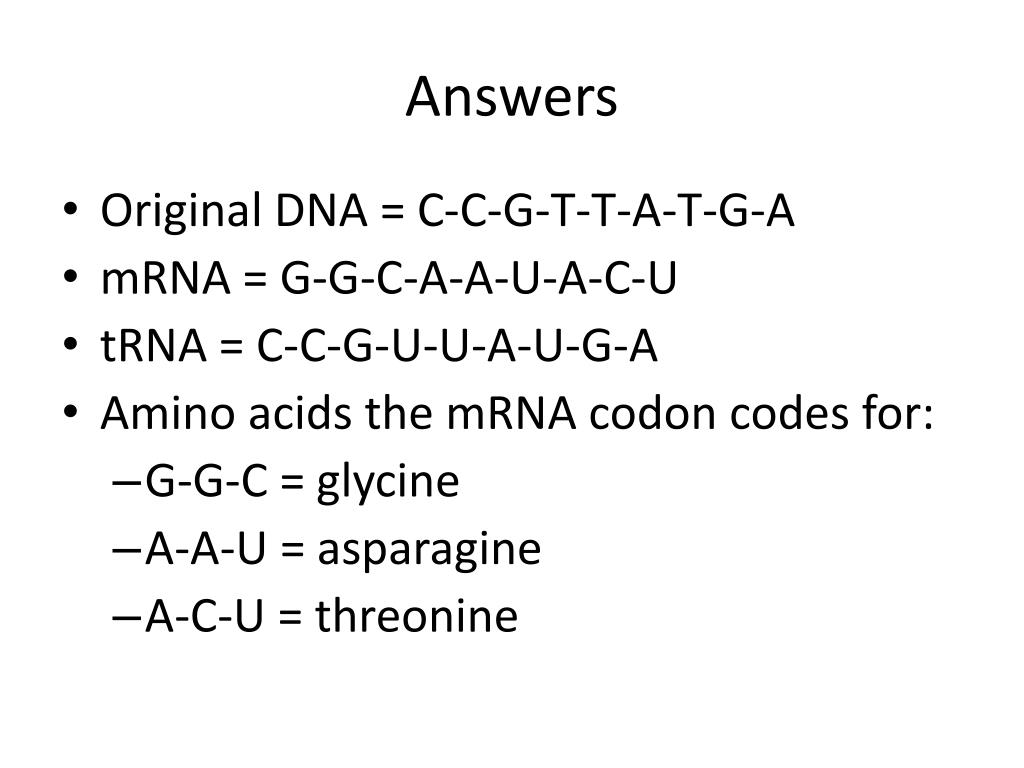

  21. Answers • Original DNA = C-C-G-T-T-A-T-G-A • mRNA = G-G-C-A-A-U-A-C-U • tRNA = C-C-G-U-U-A-U-G-A • Amino acids the mRNA codon codes for: • G-G-C = glycine • A-A-U = asparagine • A-C-U = threonine
