  1. Metal Working Tools

  2. Metal Working Tools • Tap & Die Sets • “Heli-Coil” • Tin Snips • Grinders

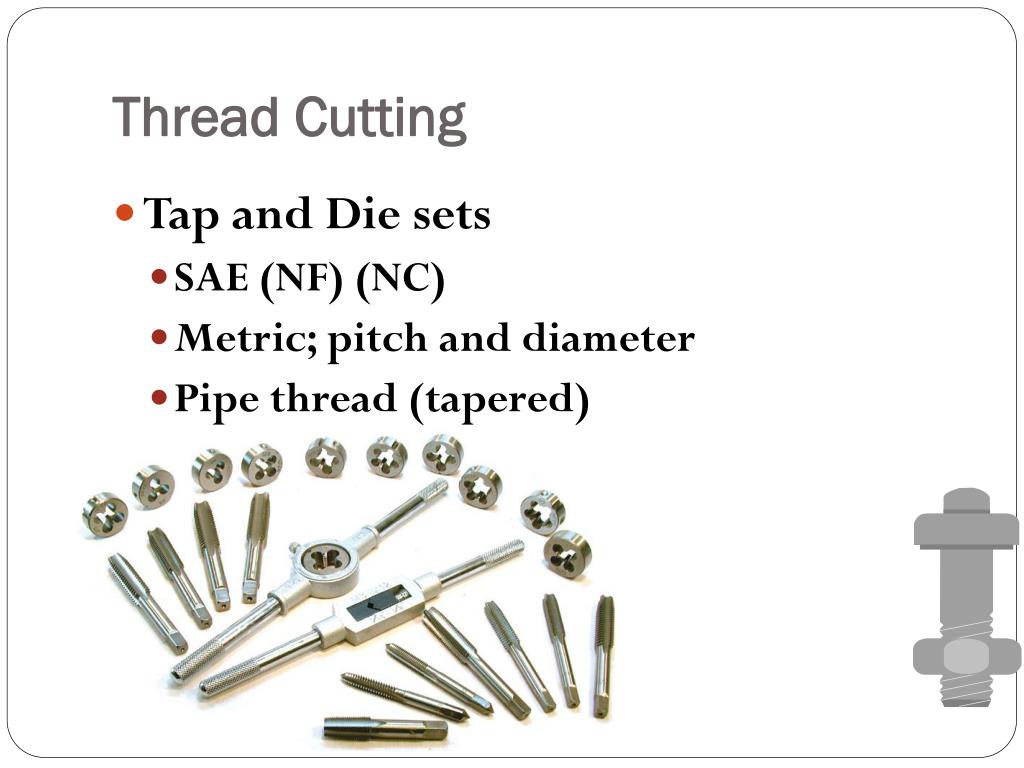

  3. Thread Cutting • Tap and Die sets • SAE (NF) (NC) • Metric; pitch and diameter • Pipe thread (tapered)

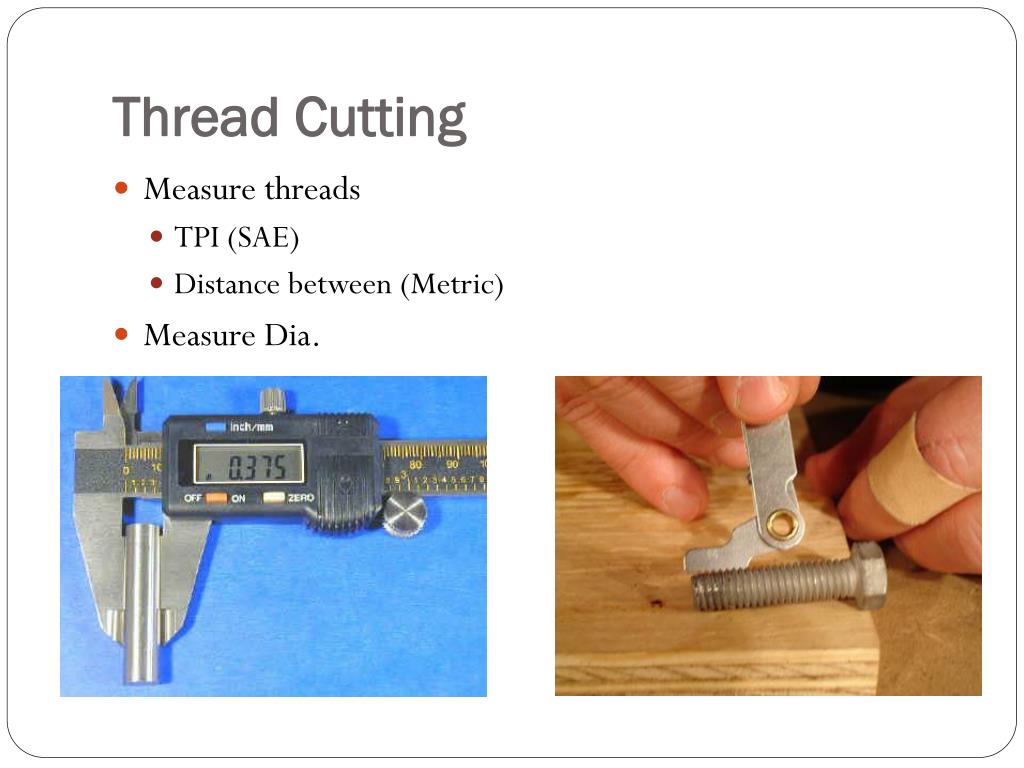

  4. Thread Cutting • Measure threads • TPI (SAE) • Distance between (Metric) • Measure Dia.

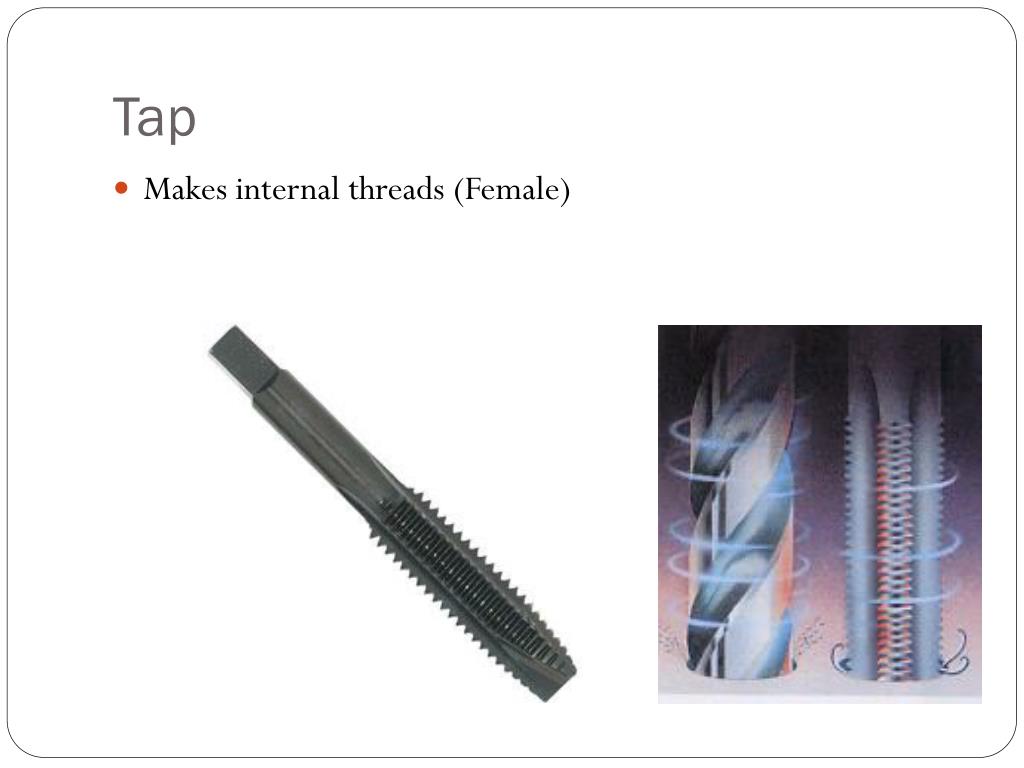

  5. Tap • Makes internal threads (Female)

  6. Die • Makes External Threads (male)

  7. Metal Working Tools • Heli-Coil Drill Tap Insert Fasten

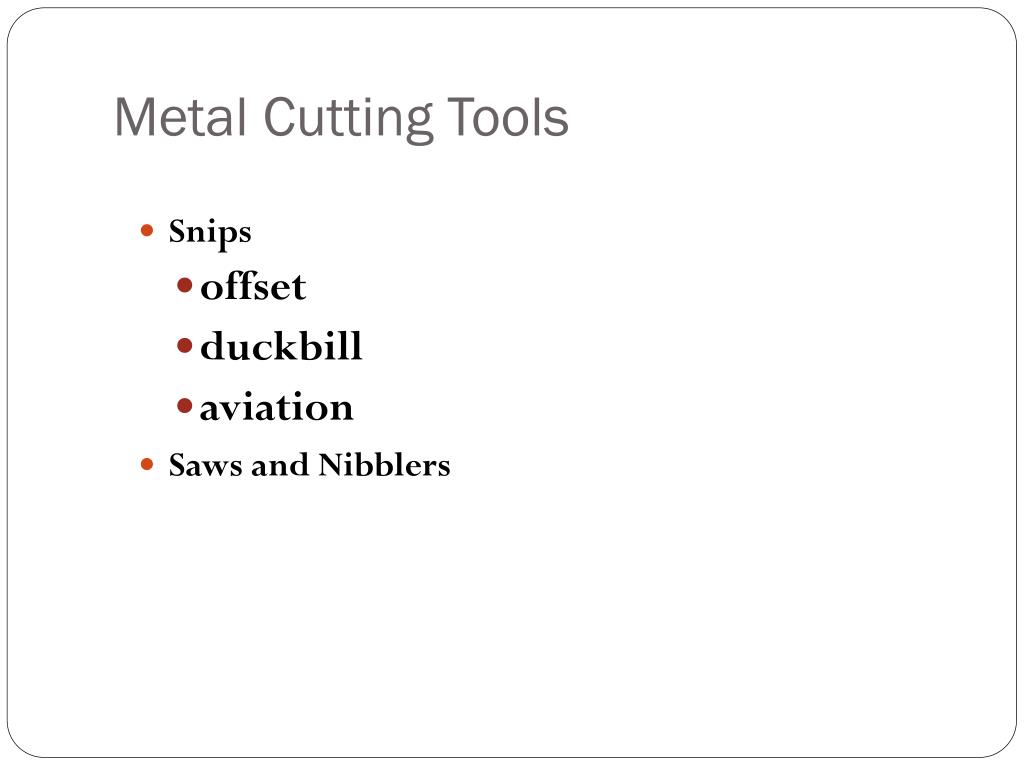

  8. Metal Cutting Tools • Snips • offset • duckbill • aviation • Saws and Nibblers

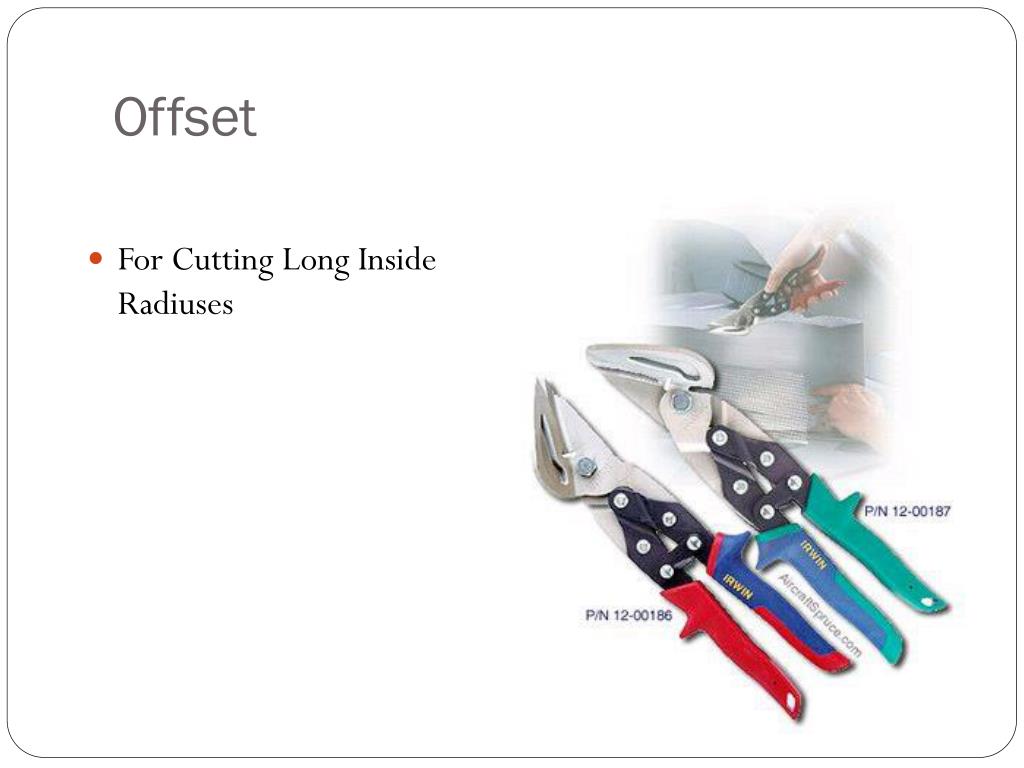

  9. Offset • For Cutting Long Inside Radiuses

  10. Duckbill • Used for cutting circles, other curved designs

  11. Aviation • Cut easier because of compound leverage.

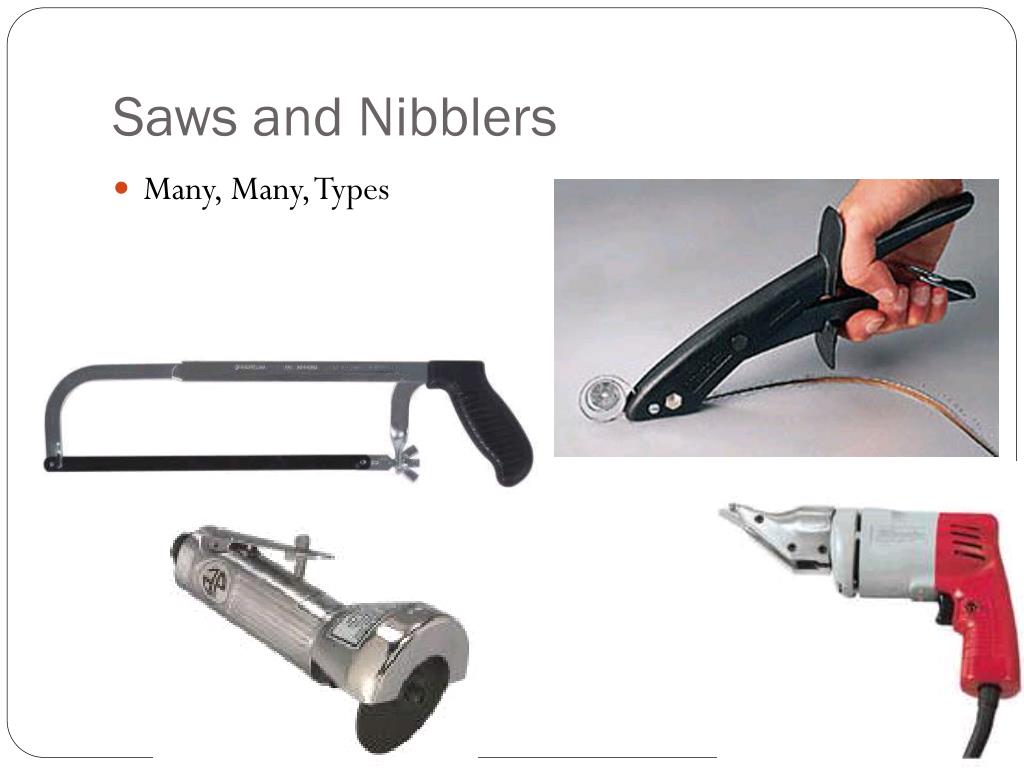

  12. Saws and Nibblers • Many, Many, Types

  13. Saws and Nibblers • Must remember: • There is always a correct tool for the job

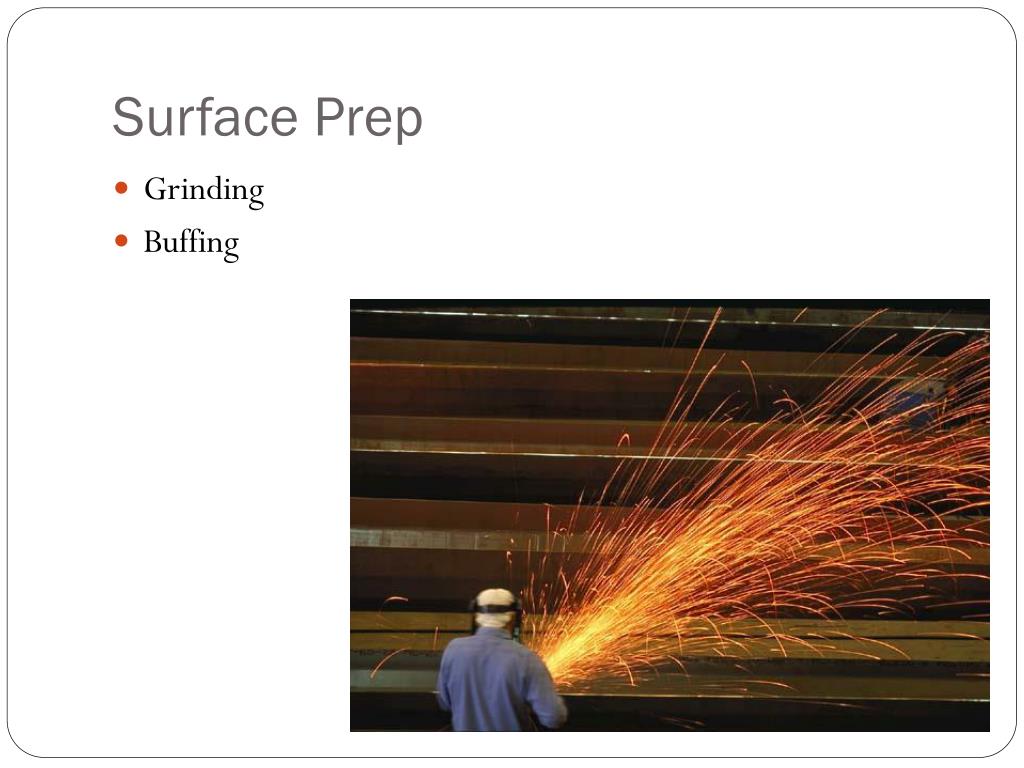

  14. Surface Prep • Grinding • Buffing

  15. Grinding • Rapid removal of material

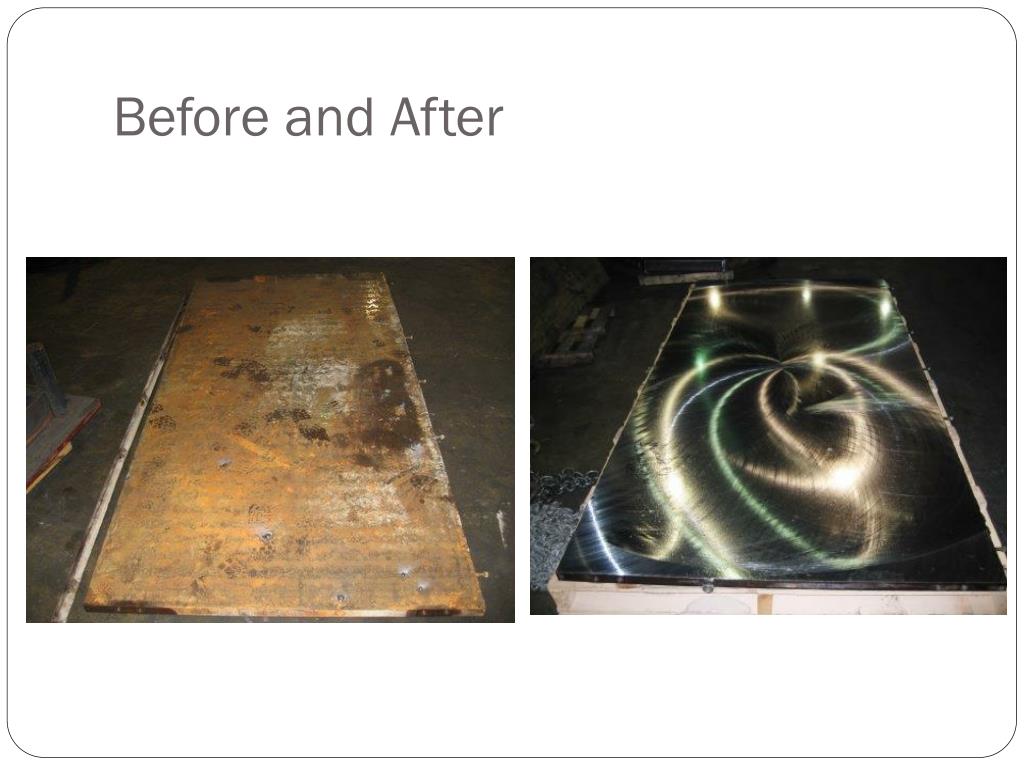

  16. Before and After

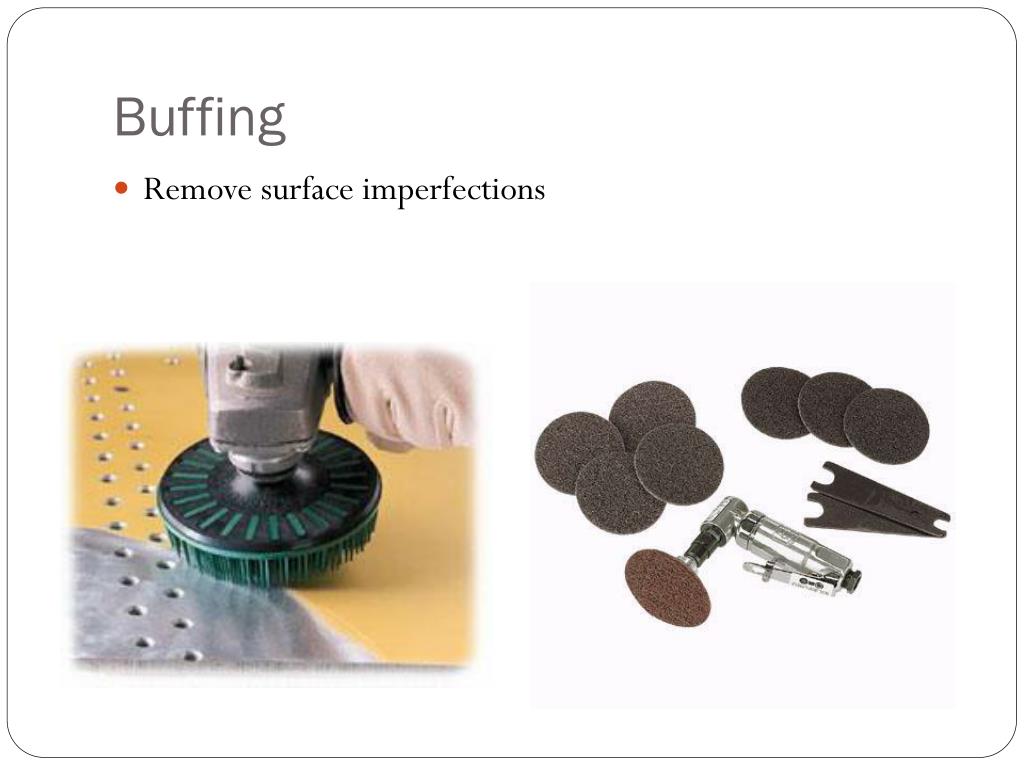

  17. Buffing • Remove surface imperfections

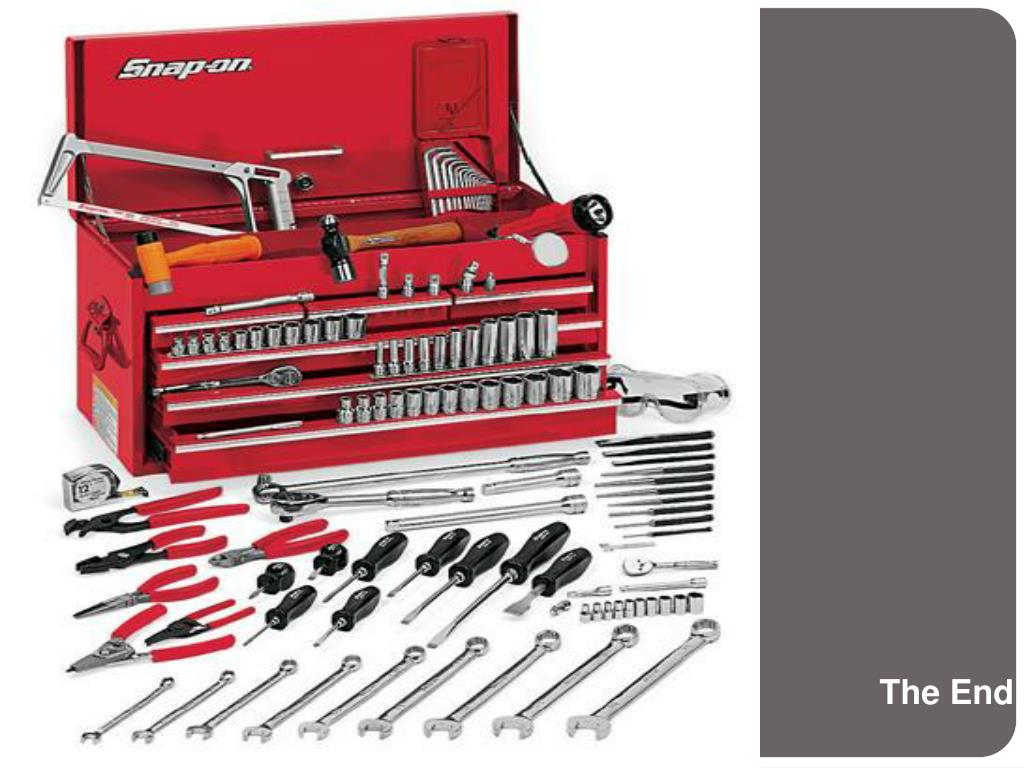

  18. The End
