slide1

ME 333 PRODUCTION PROCESSES II

CHAPTER 5

METAL WORKING PROCESSES

5.1INTRODUCTION

Metal forming includes a large group of manufacturing processes in which plastic deformation is used to change the shape of metal workpieces.

Deformation results from the use of a tool, usually a die in metal forming, which applies stresses that exceeds the yield strength of the metal.

The metal therefore deforms to take a shape determined by the geometry of the die.

Stresses applied to plastically deform the metal are usually compressive. However, some forming processes stretch the metal, while others bend the metal, still others shear the metal.

To be successfully formed, a metal must posses certain properties.

Desirable properties for forming usually include low yield strength and high ductility.

These properties are affected by temperature.

Ductility is increased and yield strength is reduced when work temperature is raised.

CHAPTER 5 METAL WORKING PROCESSES

slide2

ME 333 PRODUCTION PROCESSES II

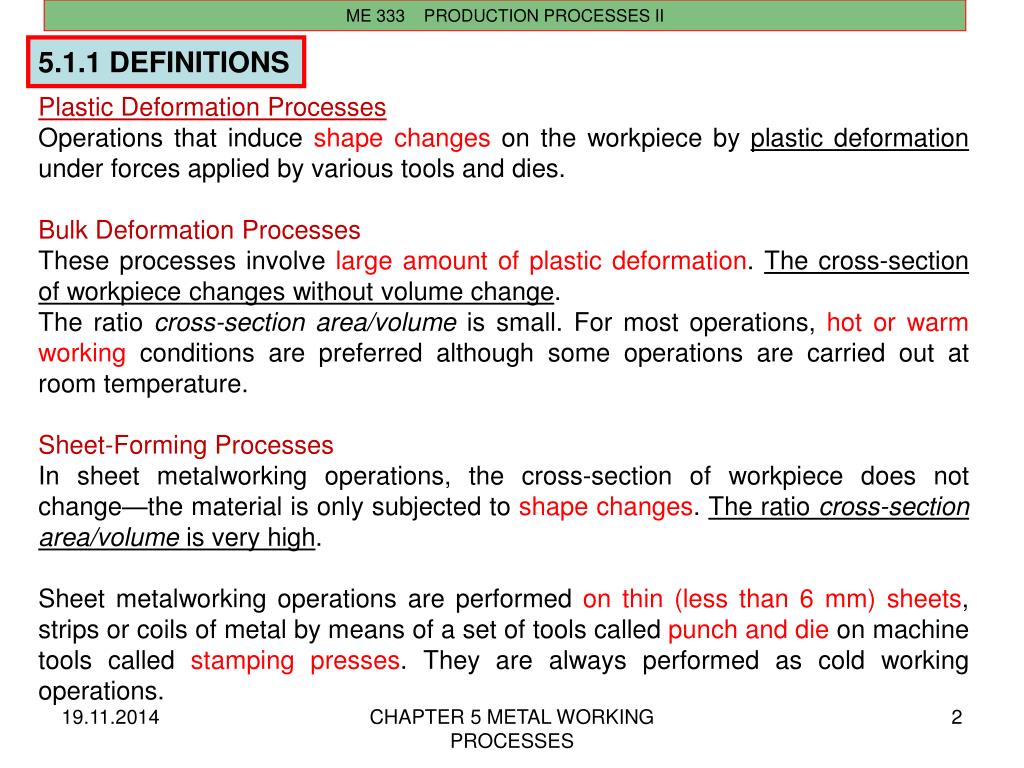

5.1.1 DEFINITIONS

Plastic Deformation Processes

Operations that induce shape changes on the workpiece by plastic deformation under forces applied by various tools and dies.

Bulk Deformation Processes

These processes involve large amount of plastic deformation. The cross-section of workpiece changes without volume change.

The ratio cross-section area/volume is small. For most operations, hot or warm working conditions are preferred although some operations are carried out at room temperature.

Sheet-Forming Processes

In sheet metalworking operations, the cross-section of workpiece does not change—the material is only subjected to shape changes. The ratio cross-section area/volume is very high.

Sheet metalworking operations are performed on thin (less than 6 mm) sheets, strips or coils of metal by means of a set of tools called punch and die on machine tools called stamping presses. They are always performed as cold working operations.

CHAPTER 5 METAL WORKING PROCESSES

slide3

ME 333 PRODUCTION PROCESSES II

5.1.2Material considerations

Material Behavior

In the plastic region, the metal behavior is expressed by the flow curve:

σ = Κεn

Where;

Kis the strength coefficient and

n is the strain-hardening (or work- hardening) exponent.

K and n are given in the tables of material properties or are calculated from the material testing curves.

Flow stress

For some metalworking calculations, the flow stressσf of the work material (the instantaneous value of stress required to continue deforming the metal) must be known:

σf = Κεn

CHAPTER 5 METAL WORKING PROCESSES

slide4

ME 333 PRODUCTION PROCESSES II

Average (mean) flow stress

In some cases, analysis is based not on the instantaneous flow stress, but on an average value over the strain-stress curve from the beginning of strain to the final (maximum) value that occurs during deformation:

σf = Κεn

Fig. 5.1 Stress-strain curve indicating location of average flowstressf in relation to yield strength y and final flowstress f.

CHAPTER 5 METAL WORKING PROCESSES

slide5

ME 333 PRODUCTION PROCESSES II

The mean flow stress is defined as:

here εf is the maximum strain value during deformation.

Work-hardening

It is an important material characteristic since it determines both the properties of the workpiece andprocess power. It could be removed by annealing.

Work hardening, also known as strain hardening or cold working, is the strengthening of a metal by plastic deformation. This strengthening occurs because of dislocation movements within the crystal structure of the material.

Any material with a reasonably high melting point such as metals and alloys can be strengthened in this fashion.

CHAPTER 5 METAL WORKING PROCESSES

slide6

ME 333 PRODUCTION PROCESSES II

5.1.3Temperature in metal forming

The flow curve is valid for an ambient work temperature. For any material, K and n depend on temperature, and therefore material properties are changed with the work temperature:

Fig. 5.2 True stress-strain curve showing decrease in strengthcoefficient K and strain-hardening exponent n withwork temperature

CHAPTER 5 METAL WORKING PROCESSES

slide7

ME 333 PRODUCTION PROCESSES II

There are three temperature ranges-cold, warm & hot working:

Fig. 5.3 Temperature range for different metal formingoperations. TA is the ambient (room) temperature,and Tm is the work metal meltingtemperature

CHAPTER 5 METAL WORKING PROCESSES

slide8

ME 333 PRODUCTION PROCESSES II

Metal forming processes can also be classified according to the working temperature.

The effect of temperature gives the rise to distinctions between cold working, warm working, and hot working.

Hot and cold working of metals is of great importance in engineering production. Processes such as forging, rolling, drawing and extrusion predominate in the primary stages of production and have been perfected through developments.

Hot Workingis the initial step in the mechanical working of most metals and alloys. Hot working reduces the energy required to deform the metal. It also increases ability of metals to flow without cracking. However, due to high temperature, surface oxidation and decarburisation can not be prevented.

Cold Workingof a metal results in an increase in strength or hardness and a decrease in ductility. But, when cold working is excessive, the metal will fracture before final size has been reached (<0.3Tm).

Hot Working of metals takes place above the recrystallization temperature.

Cold Working must be done below the recrystallization range (0.5Tm to 0.75Tm).

CHAPTER 5 METAL WORKING PROCESSES

slide9

ME 333 PRODUCTION PROCESSES II

Cold workingis metal forming performed at room temperature.

Advantages:better accuracy, better surface finish, high strength and hardness of the part, noheating is required.

Disadvantages:higher forces and power, limitations to the amount of forming, additionalannealing for some material is required, and some material are not capable ofcold working.

Warm workingis metal forming at temperatures above the room temperature but below therecrystallization one.

Advantages: lower forces and power, more complex part shapes, no annealing is required.

Disadvantages:some investment in furnaces is needed.

CHAPTER 5 METAL WORKING PROCESSES

slide10

ME 333 PRODUCTION PROCESSES II

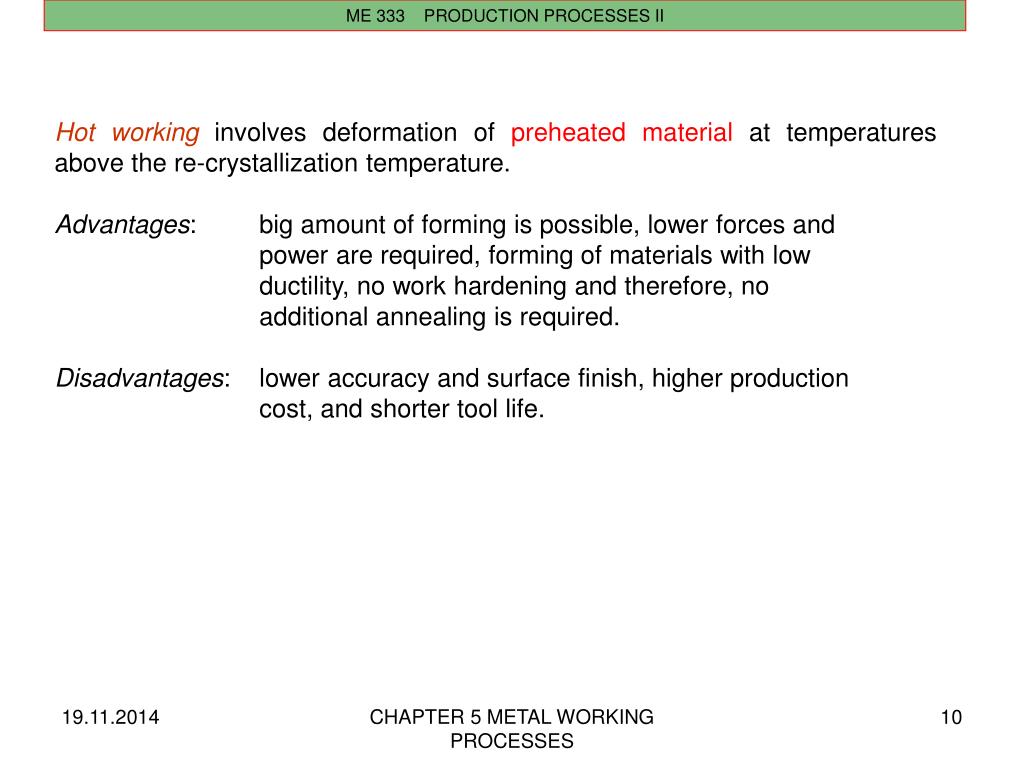

Hot workinginvolves deformation of preheated material at temperatures above the re-crystallizationtemperature.

Advantages:big amount of forming is possible, lower forces and power are required, formingof materials with low ductility, no work hardening and therefore, no additionalannealing is required.

Disadvantages:lower accuracy and surface finish, higher production cost, and shorter tool life.

CHAPTER 5 METAL WORKING PROCESSES

slide11

ME 333 PRODUCTION PROCESSES II

5.1.4Friction effects

Homogeneous Deformation

If a solid cylindrical workpiece is placed between two flat platens and an applied load P is increased untilthe stress reaches the flow stress of the material then its height will be reduced from initial value of hoto h1.

Under ideal homogeneous condition in absence of friction between platens and work, any heightreduction causes a uniform increase in diameter and area from original area of Ao to final area Af.

The load required, i.e. the press capacity, is defined by;

Fig. 5.4Homogeneous deformation

CHAPTER 5 METAL WORKING PROCESSES

slide12

ME 333 PRODUCTION PROCESSES II

Inhomogeneous deformation

In practice, the friction between platens and workpiece cannot be avoided and the latter develops a“barrel” shape.

This is called inhomogeneous deformation and changes the load estimation as follows:

where μ is the frictional coefficient between workpiece and platen.

Fig. 5.5Inhomogeneous deformation withbarreling of the workpiece

CHAPTER 5 METAL WORKING PROCESSES

slide13

ME 333 PRODUCTION PROCESSES II

Metal forming processes can be classified as:

1. Bulk deformation processes: Forging, Rolling, Extrusion and Drawing (wire);

2. Sheet metalworking processes: Bending, Drawing (cup, deep), Shearing

Fig. 5.6 Typical metal-working operations

CHAPTER 5 METAL WORKING PROCESSES

slide14

ME 333 PRODUCTION PROCESSES II

h0

hf

Flash

(çapak)

Flash Gutter

(çapak haznesi)

A0h0 = Afhf

Closed die forging

Open die forging

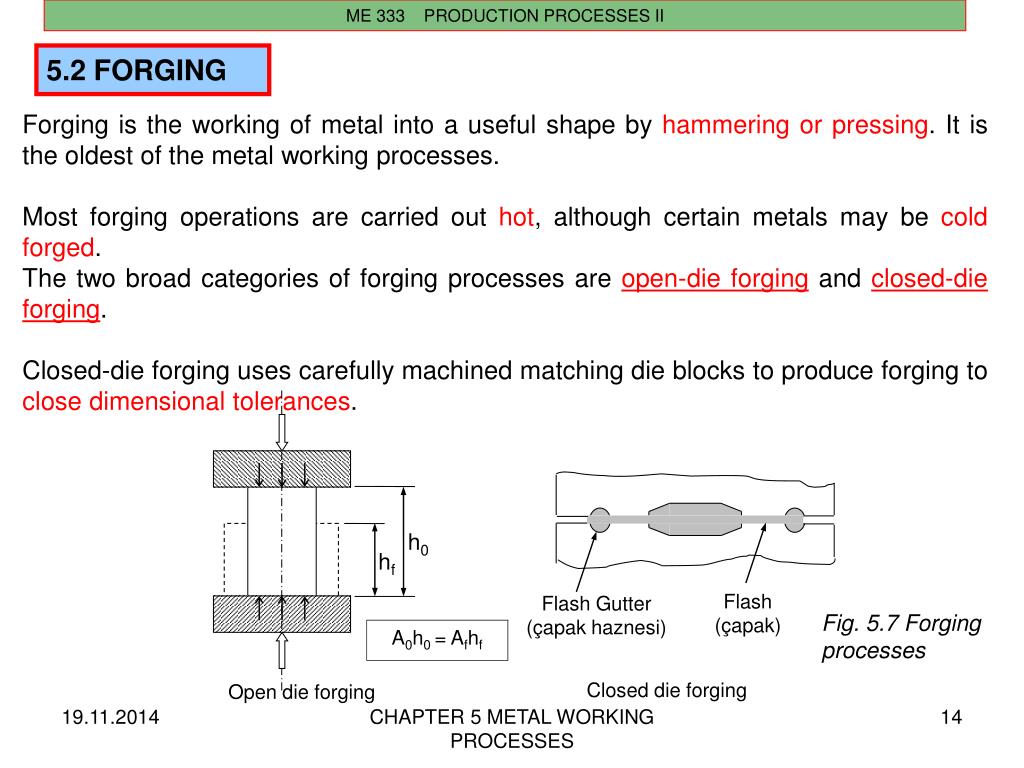

5.2 FORGING

Forging is the working of metal into a useful shape by hammering or pressing. It is the oldest of the metal working processes.

Most forging operations are carried out hot, although certain metals may be cold forged.

The two broad categories of forging processes are open-die forgingand closed-die forging.

Closed-die forging uses carefully machined matching die blocks to produce forging to close dimensional tolerances.

Fig. 5.7Forging processes

CHAPTER 5 METAL WORKING PROCESSES

slide15

ME 333 PRODUCTION PROCESSES II

  • According tothe degree to which the flow of the metal is constrained by the dies there are three types of forging:
  • Open-die forging
  • Impression-die forging
  • Flashless forging

Fig. 5.8 Three types of forging: (a) open-die forging, (b) impression die forging, and (c) flashless forging

CHAPTER 5 METAL WORKING PROCESSES

slide16

ME 333 PRODUCTION PROCESSES II

Open-die forging

Known as upsetting, it involves compression of a work between two flat dies, or platens. Force calculationswere discussed earlier.

Fig.5.9 Sequence in open-die forging illustrating theunrestrained flow of material. Note the barrel shapethat forms due to friction and inhomogeneousdeformation in the work

Fig. 5.10 Open-die forging of a multi diameter shaft

CHAPTER 5 METAL WORKING PROCESSES

slide17

ME 333 PRODUCTION PROCESSES II

Impression-die forging

In impression-die forging, some of the material flows radially outward toform a flash:

Fig. 5.11 Schematics of the impression-die forging process showingpartial die filling at the beginning of flash formation inthe center sketch, and the final shape with flash in theright-hand sketch

Fig. 5.12 Stages (from bottom to top) inthe formation of a crankshaft byhot impression-die forging

CHAPTER 5 METAL WORKING PROCESSES

slide18

ME 333 PRODUCTION PROCESSES II

Flashless forging

The work material is completely surrounded by the die cavity during compression and no flash isformed:

Fig. 13 Flashless forging: (1) just before initial contact with the workpiece, (2) partial compression, and (3) final push and die closure. Symbol v indicates motion, and F - applied force.

Most important requirement in flashless forging is that the work volume must equal the space in the die cavity to a very close tolerance.

CHAPTER 5 METAL WORKING PROCESSES

slide19

ME 333 PRODUCTION PROCESSES II

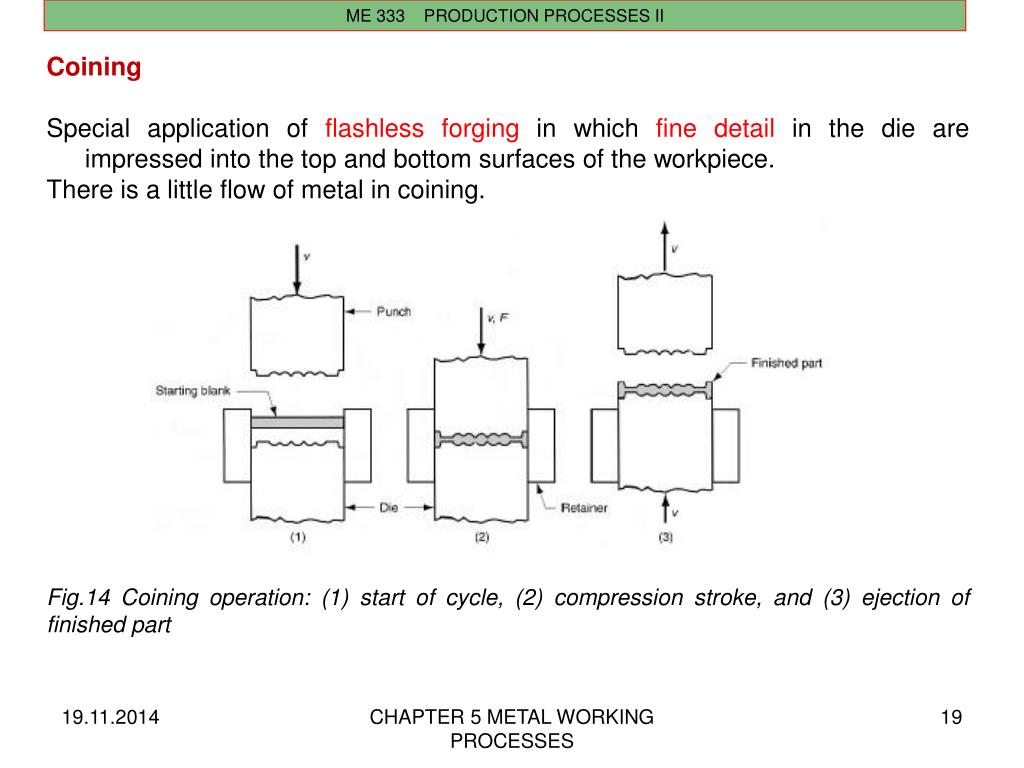

Coining

Special application of flashless forging in which fine detail in the die are impressed into the top andbottom surfaces of the workpiece.

There is a little flow of metal in coining.

Fig.14 Coining operation: (1) start of cycle,(2) compression stroke, and (3) ejectionof finished part

CHAPTER 5 METAL WORKING PROCESSES

slide20

ME 333 PRODUCTION PROCESSES II

Raising Rollers

PE = m g h = W h

Upper Die

Lower Die

W

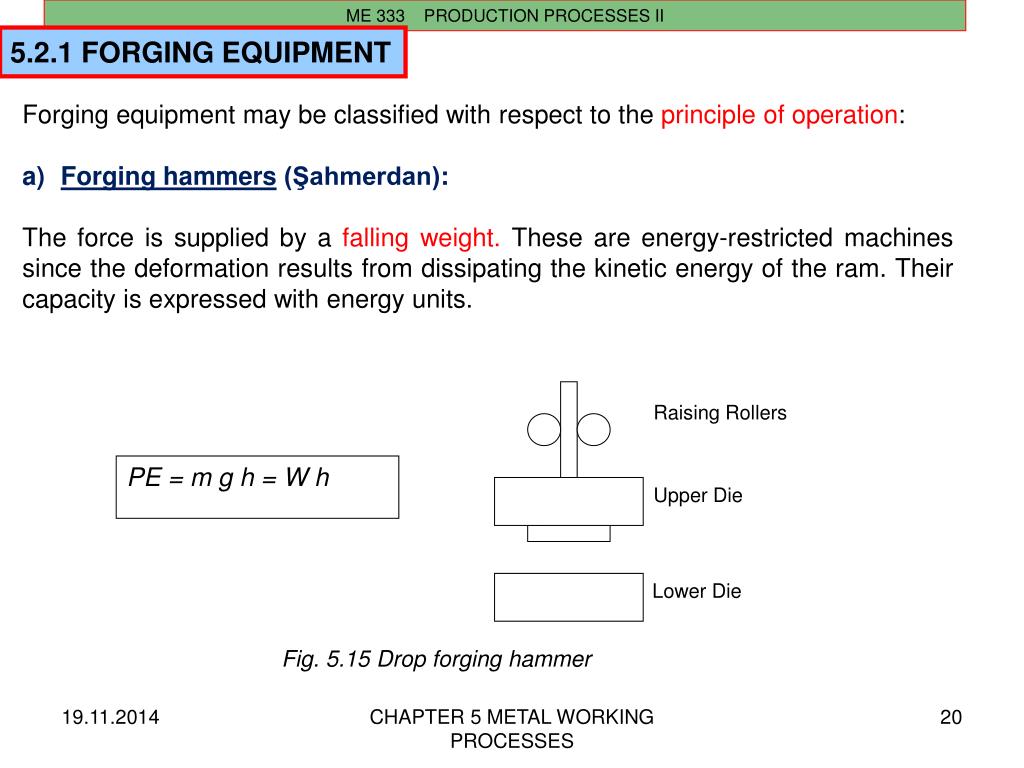

5.2.1 FORGING EQUIPMENT

  • Forging equipment may be classified with respect to the principle of operation:
  • Forging hammers (Şahmerdan):
  • The force is supplied by a falling weight. These are energy-restricted machines since the deformation results from dissipating the kinetic energy of the ram. Their capacity is expressed with energy units.

Fig. 5.15 Drop forging hammer

CHAPTER 5 METAL WORKING PROCESSES

slide21

ME 333 PRODUCTION PROCESSES II

Pressurized oil

WW

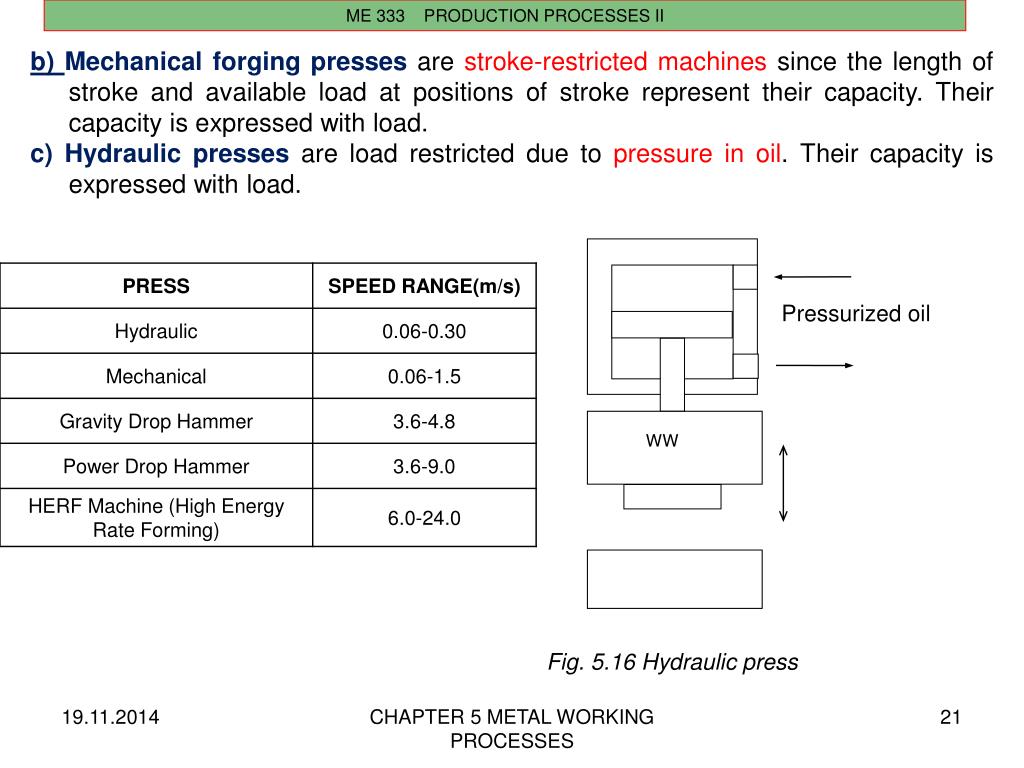

b) Mechanical forging presses are stroke-restricted machines since the length of stroke and available load at positions of stroke represent their capacity. Their capacity is expressed with load.

c) Hydraulic presses are load restricted due to pressure in oil. Their capacity is expressed with load.

Fig. 5.16 Hydraulic press

CHAPTER 5 METAL WORKING PROCESSES

slide22

ME 333 PRODUCTION PROCESSES II

Fig. 5.17Drop forging hammer, fed by conveyor and heating unit at the right of the scene.

CHAPTER 5 METAL WORKING PROCESSES

slide23

ME 333 PRODUCTION PROCESSES II

Stroke

W

Load (P)

o

5.2.2 FORGING LOAD

  • In determination forging load for free upsetting (open die), two assumptions can be made for simplicity:
    • Material is perfectly plastic
    • No friction between material and die surfaces.

CHAPTER 5 METAL WORKING PROCESSES

slide24

ME 333 PRODUCTION PROCESSES II

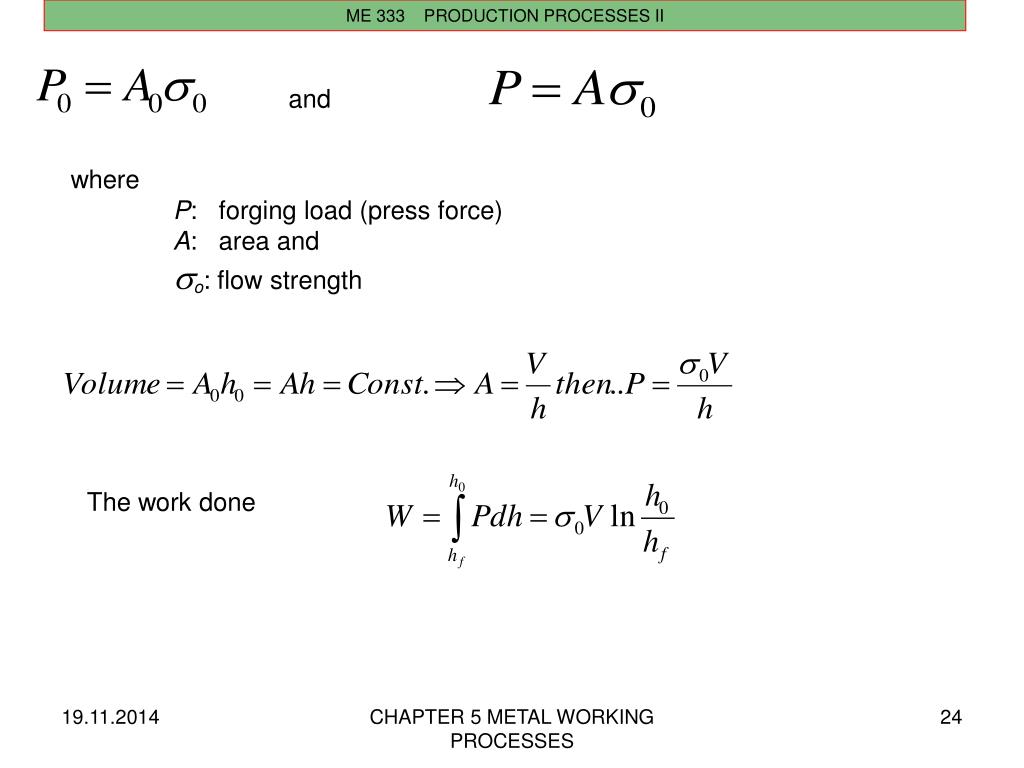

and

where

P: forging load (press force)

A: area and

o: flow strength

The work done

CHAPTER 5 METAL WORKING PROCESSES

slide25

ME 333 PRODUCTION PROCESSES II

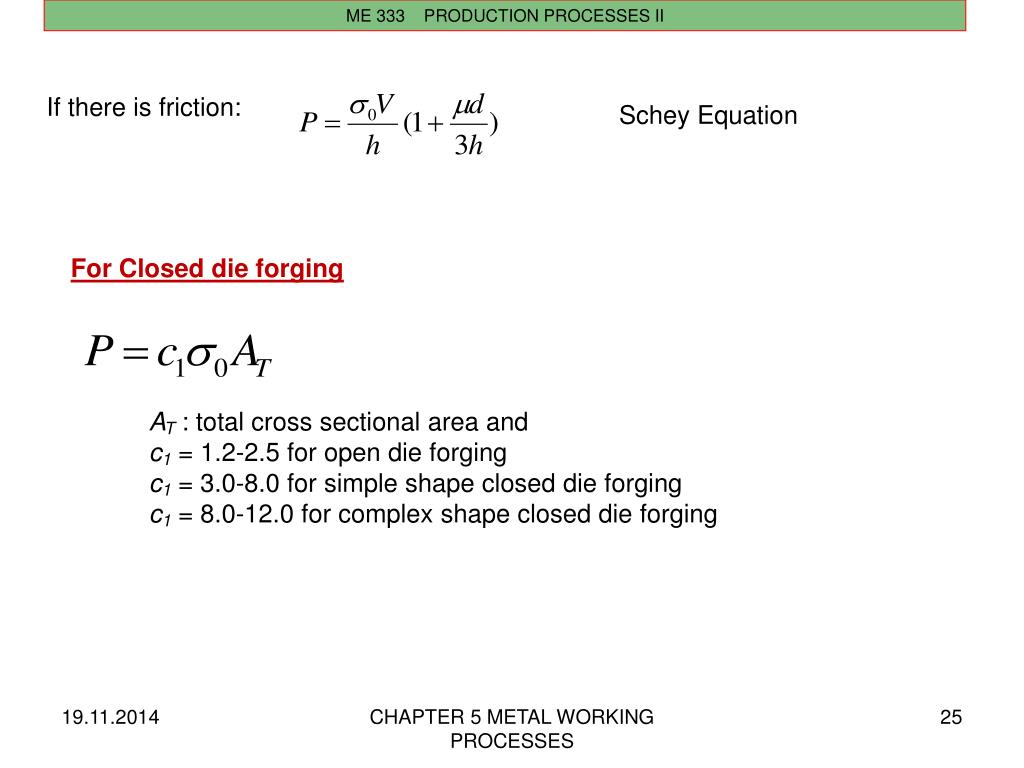

If there is friction:

Schey Equation

For Closed die forging

AT: total cross sectional area and

c1 = 1.2-2.5 for open die forging

c1 = 3.0-8.0 for simple shape closed die forging

c1 = 8.0-12.0 for complex shape closed die forging

CHAPTER 5 METAL WORKING PROCESSES

slide26

ME 333 PRODUCTION PROCESSES II

5.3. ROLLING

Rolling is a metal deformation process where the thickness of the metal is reduced by successive passes from rolls.

Fig.18 The process of flat rolling

CHAPTER 5 METAL WORKING PROCESSES

slide27

ME 333 PRODUCTION PROCESSES II

The metal emerges from the rolls traveling at the higher speed than it enters

or

CHAPTER 5 METAL WORKING PROCESSES

slide28

ME 333 PRODUCTION PROCESSES II

Flat Rolling

Fig. 19 Side view of flat rolling and the velocity diagram indicating work and rollvelocities along the contact length L

CHAPTER 5 METAL WORKING PROCESSES

slide29

ME 333 PRODUCTION PROCESSES II

Fig. 5.20-a Various configurations of rolling mills

CHAPTER 5 METAL WORKING PROCESSES

slide30

ME 333 PRODUCTION PROCESSES II

Fig. 5.20-b Various configurations of rolling mills

CHAPTER 5 METAL WORKING PROCESSES

slide31

ME 333 PRODUCTION PROCESSES II

5.3.1 STEEL ROLLING

  • Rolling into intermediate shapes-blooms, billets, slabs.
  • Processing blooms, billets, slabs into plates, sheets, bar stock, foils.
  • Steel is cast into ingots. Theare storedy in that shape. When milling is necessary, ingots are heated in soaking pits, up to 1200oC. Ingots are rolled into intermediate shapes: A bloom has a square section above 150x150 mm. A billet is smaller than a bloom with square section from 40x40 mm up to bloom. Slabs have a rectangular section with min. width 250 mm and min. thickness 40 mm. The strips are rolled from slabs.

Steps in rolling

The preheated at 1200oC cast ingot (the process is known as soaking) is rolled into one of the three intermediate shapes called blooms, slabs, or billets.

* Bloom has a square cross section of 150/150 mm or more

* Slab (40/250 mm or more) is rolled from an ingot or a bloom

* Billet (40/40 mm or more) is rolled from a bloom

CHAPTER 5 METAL WORKING PROCESSES

slide32

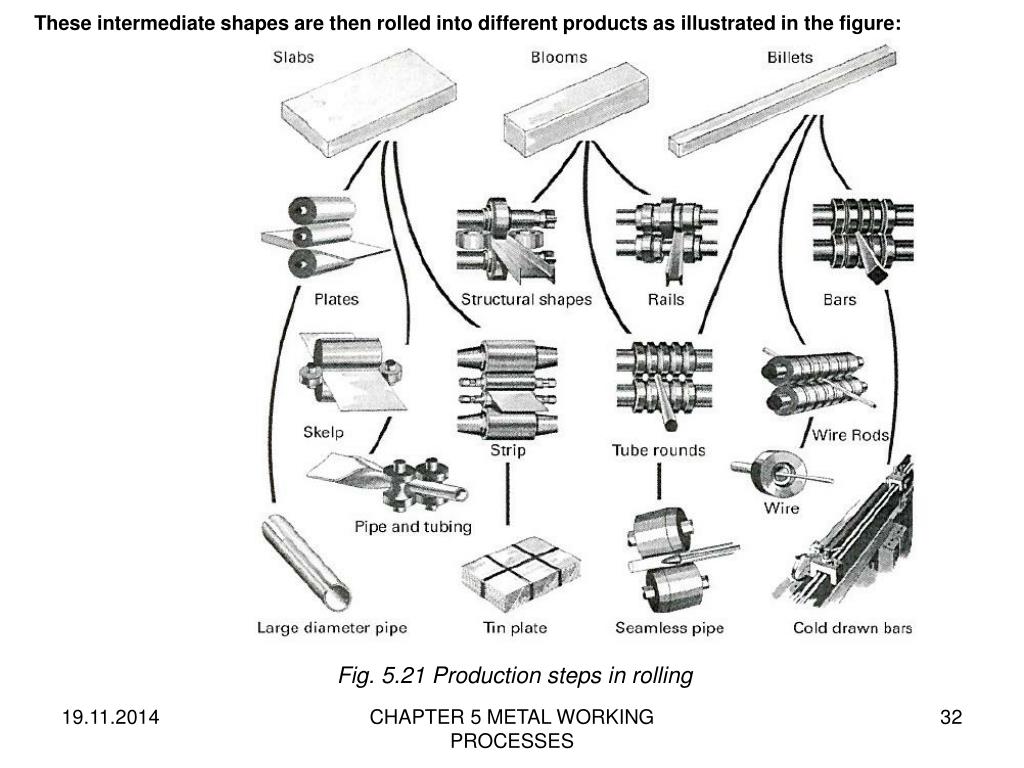

These intermediate shapes are then rolled into different products as illustrated in the figure:

Fig. 5.21 Production steps in rolling

CHAPTER 5 METAL WORKING PROCESSES

slide33

ME 333 PRODUCTION PROCESSES II

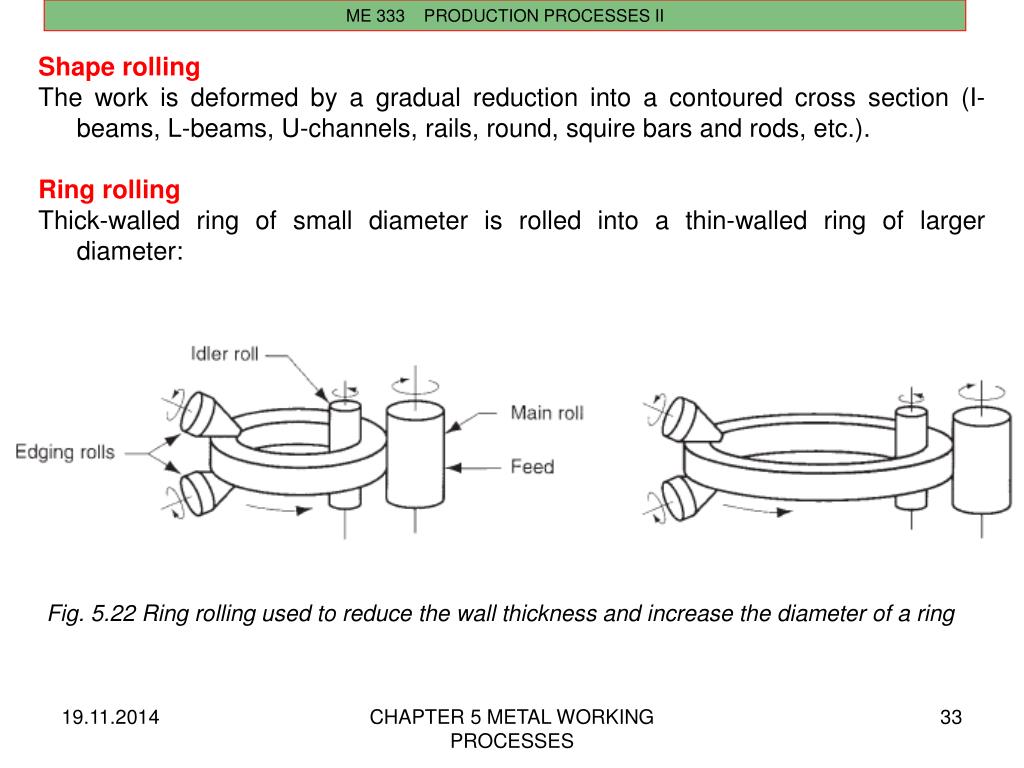

Shape rolling

The work is deformed by a gradual reduction into a contoured crosssection (I-beams, L-beams,U-channels, rails, round, squire bars and rods, etc.).

Ring rolling

Thick-walled ring of small diameter is rolled into a thin-walled ring oflarger diameter:

Fig. 5.22 Ring rolling used to reduce the wall thickness and increase the diameter of a ring

CHAPTER 5 METAL WORKING PROCESSES

slide34

ME 333 PRODUCTION PROCESSES II

Thread rolling

Threads are formed on cylindrical parts by rolling them between two thread dies:

Fig. 5.23 Thread rolling with flat dies

CHAPTER 5 METAL WORKING PROCESSES

slide35

ME 333 PRODUCTION PROCESSES II

Gear rolling

Gear rolling is similar to thread rolling with three gears (tools) that form the gear profile on the work

Fig. 5.24 Gear rolling between three gear roll tools

CHAPTER 5 METAL WORKING PROCESSES

slide36

ME 333 PRODUCTION PROCESSES II

5.3.2 LIMITING ROLLING CONDITION

Plain strain conditions are valid for rolling (i.e. no change in width of plate) and speed of neutral plane (N) is equal to tangential speed of rolls:

b hovo = b hf vf = b h vb: width

CHAPTER 5 METAL WORKING PROCESSES

slide37

ME 333 PRODUCTION PROCESSES II

The angle  between the entrance plane and the centerline of the rolls is called angle of contact or angle of bite. For the workpiece to enter into the gap between the rolls, horizontal component of the normal force Pr and the frictional force F should be equal or frictional force should be bigger.

where

limiting condition for rolling.

CHAPTER 5 METAL WORKING PROCESSES

slide38

ME 333 PRODUCTION PROCESSES II

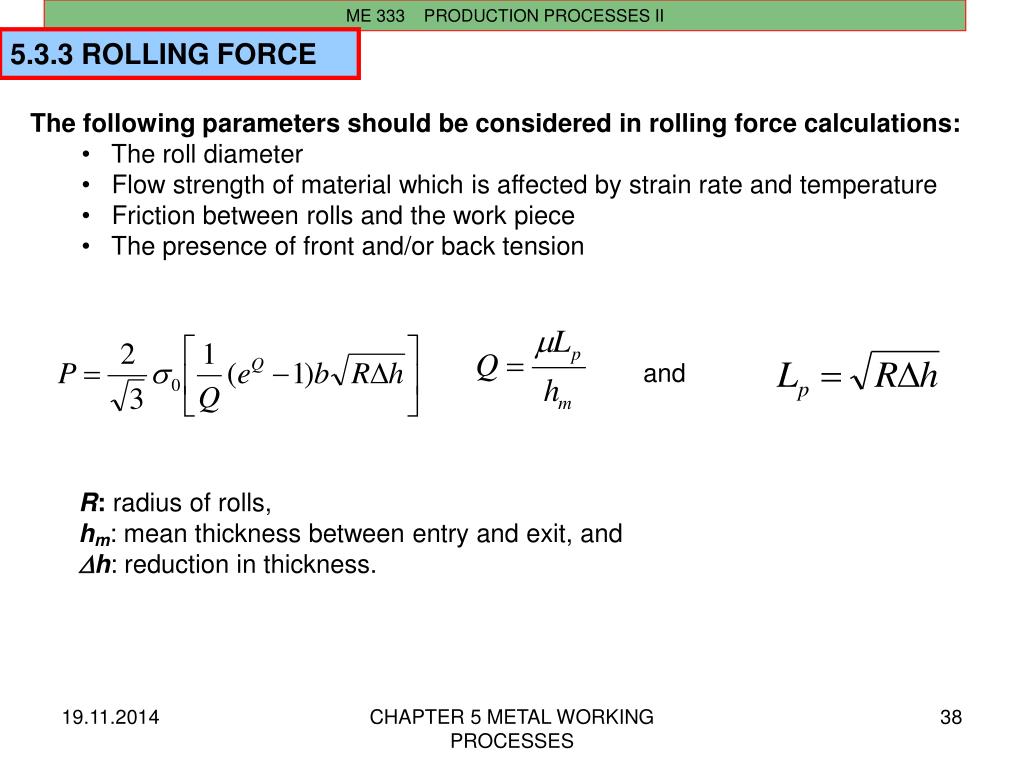

5.3.3 ROLLING FORCE

  • The following parameters should be considered in rolling force calculations:
    • The roll diameter
    • Flow strength of material which is affected by strain rate and temperature
    • Friction between rolls and the work piece
    • The presence of front and/or back tension

and

R: radius of rolls,

hm: mean thickness between entry and exit, and

h: reduction in thickness.

CHAPTER 5 METAL WORKING PROCESSES

slide39

ME 333 PRODUCTION PROCESSES II

5.3.4 ROLLING CALCULATIONS

Volume

Volume rate

CHAPTER 5 METAL WORKING PROCESSES

slide40

ME 333 PRODUCTION PROCESSES II

There is a point where

which is called no-slip point or neutral point.

Before and after this point slipping and friction occur between roll and workpiece.

The amount of the slip can be measured by means of the forward slip:

The reduction ratio sometimes used as draft

In practice max. draft:

(i.e. μ=0 no draft)

μ: coefficient of friction

R: roll radius

μ ~ 0.1 0.2 0.4

cold warm hot

CHAPTER 5 METAL WORKING PROCESSES

slide41

ME 333 PRODUCTION PROCESSES II

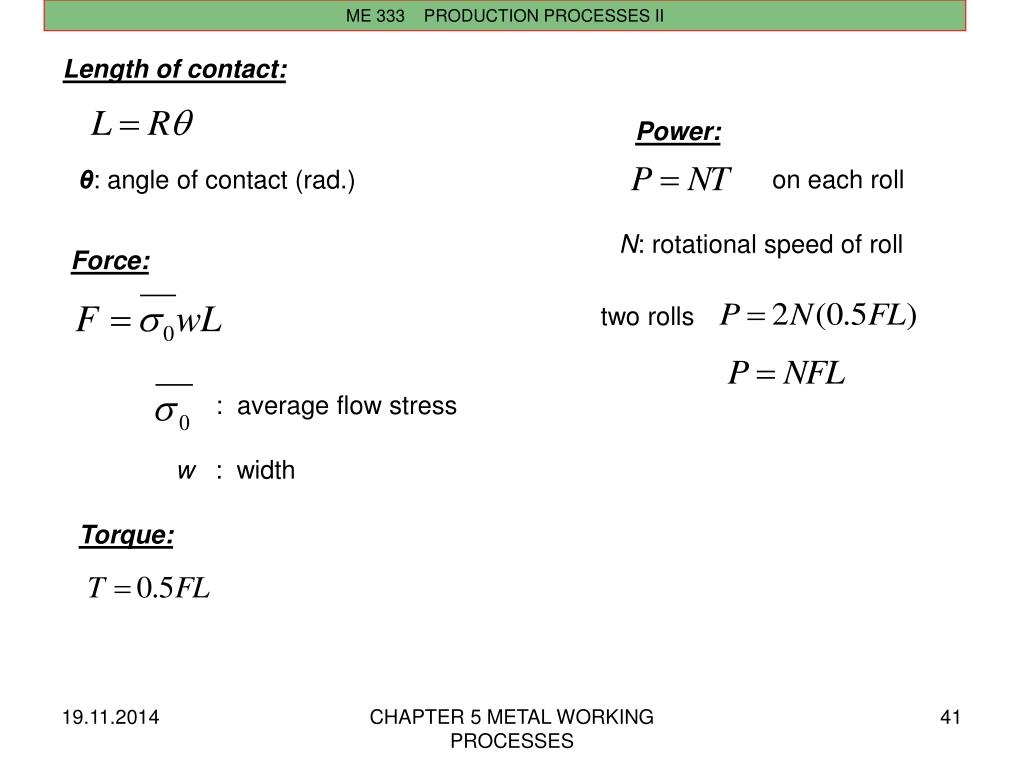

Length of contact:

Power:

θ: angle of contact (rad.)

on each roll

N: rotational speed of roll

Force:

two rolls

: average flow stress

w : width

Torque:

CHAPTER 5 METAL WORKING PROCESSES

slide42

ME 333 PRODUCTION PROCESSES II

Example:

A 300x25 mm strip is fed through a rolling mill with two powered rolls each of 250 mm radius. The work thickness is to be reduced to 22 mm in one pass at a roll speed of 50 rpm. The flow stress of work material is 180 MPa and the coefficient of friction between roll and work is about 0.12. Determine if the friction is sufficient to permit rolling operation to be accomplished. If so calculate the roll force, torque and horsepower.

for limiting rolling conditions

feasible

CHAPTER 5 METAL WORKING PROCESSES

slide43

ME 333 PRODUCTION PROCESSES II

OR draft

feasible

CHAPTER 5 METAL WORKING PROCESSES

slide44

ME 333 PRODUCTION PROCESSES II

5.4 EXTRUSION

Extrusion is a Bulk Deformation Process in which the work is forced to flow through a die opening toproduce a desired cross-sectional shape.

Extrusion is the process by which a block of metal is reduced in cross-section by forging it to flow through a die under pressure. In general, extrusion is used to produce cylindrical bars or hollow tubes, but irregular cross-sections may also be produced. Lead, tin, aluminum alloys can be cold extruded. Horizontal type presses are used. Speed is depends on temperature and type of material used.

Fig. 5.25 Typical shapes produced by extrusion

CHAPTER 5 METAL WORKING PROCESSES

slide45

ME 333 PRODUCTION PROCESSES II

5.4.1 EXTRUSION TYPES

  • Extrusion is performed in different ways therefore different classifications are available:
    • Direct and indirect extrusion
    • Hot and cold extrusion
    • Continuous and discrete extrusion

Fig. 5.26 Direct extrusion to produce hollow or semihollowcross section

CHAPTER 5 METAL WORKING PROCESSES

slide46

ME 333 PRODUCTION PROCESSES II

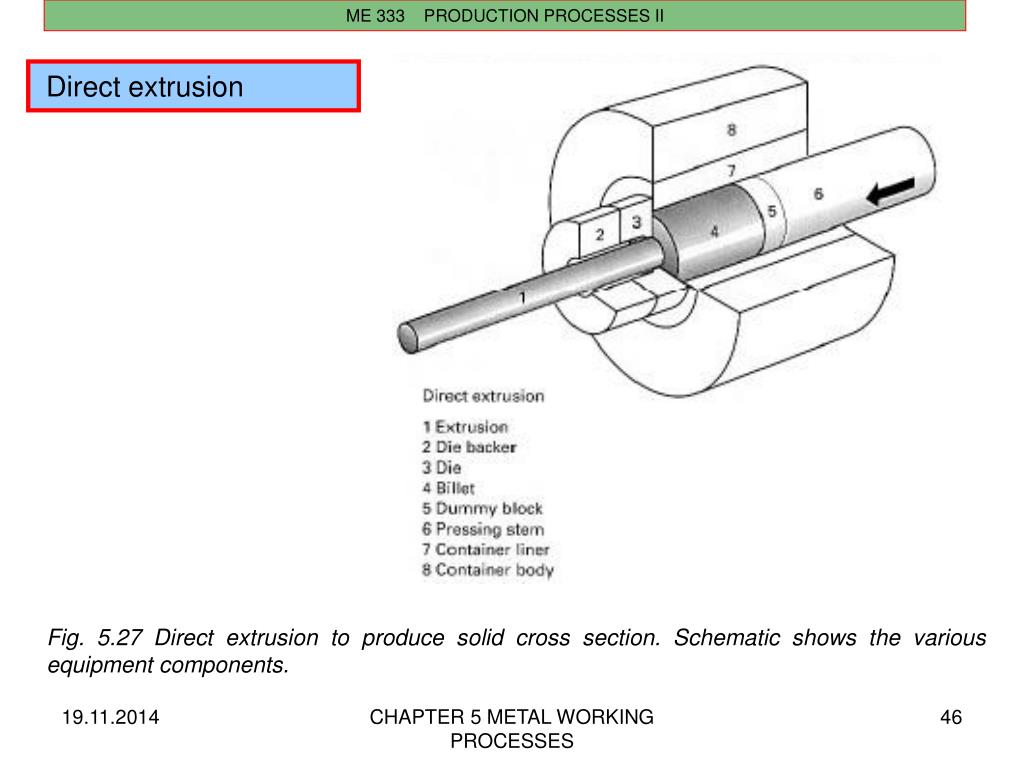

Direct extrusion

Fig. 5.27Direct extrusion to produce solidcross section. Schematic shows the various equipmentcomponents.

CHAPTER 5 METAL WORKING PROCESSES

slide47

ME 333 PRODUCTION PROCESSES II

Indirect extrusion

Fig. 5.28In indirect extrusion (backward, inverse extrusion) the material flows in the direction opposite to the motion of the ram to produce a solid (left) or a hollow cross section (right)

CHAPTER 5 METAL WORKING PROCESSES

slide48

ME 333 PRODUCTION PROCESSES II

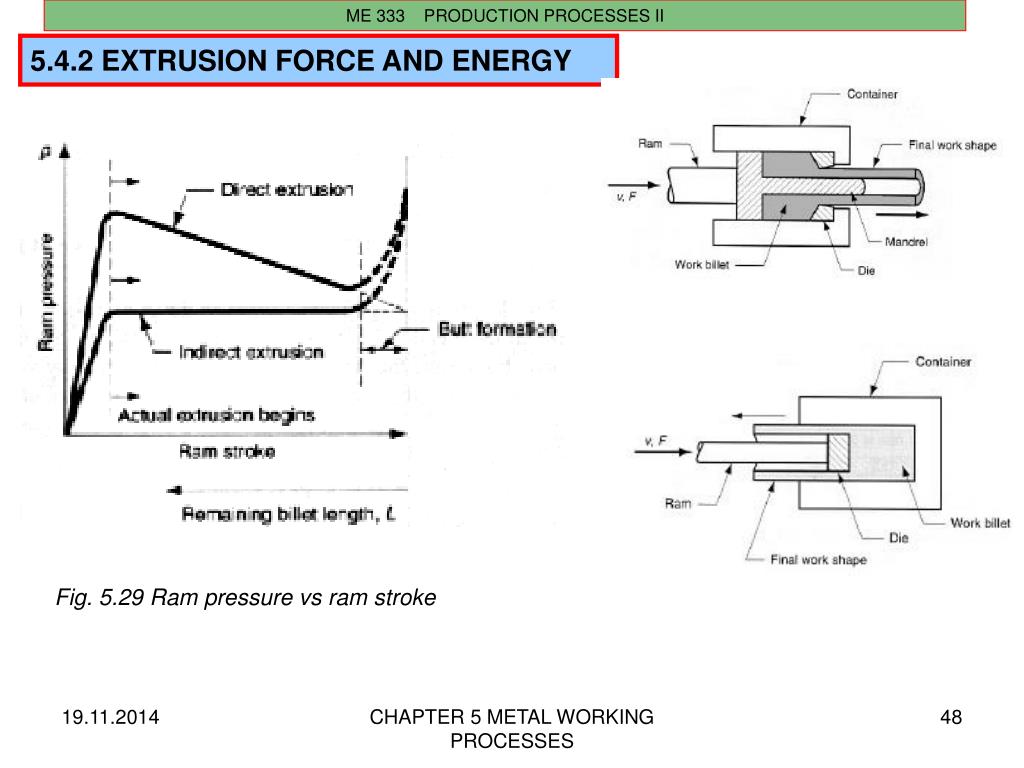

5.4.2 EXTRUSION FORCE AND ENERGY

Fig. 5.29Ram pressure vs ram stroke

CHAPTER 5 METAL WORKING PROCESSES

slide49

ME 333 PRODUCTION PROCESSES II

Df

hf

ho

It can be calculated similar to forging. Here, ram power and ram force are:

and

CHAPTER 5 METAL WORKING PROCESSES

slide50

ME 333 PRODUCTION PROCESSES II

5.5 WIRE DRAWING

Drawing operation involves pulling a metal through a die by means of a tensile force applied to the exit side. The end is grasped by tongs on a draw bench and pulled through. There may be few successive drawing dies on continuous drawing.

Wire and Bar Drawing is a Bulk Deformation Process in which the cross-section of a bar, rod or wire isreduced by pulling it through a die opening, as in the next figure:

Fig. 5.30Drawing of a rod, bar, or wire

CHAPTER 5 METAL WORKING PROCESSES

slide51

ME 333 PRODUCTION PROCESSES II

5.5.1 DRAWING LOAD

If friction is zero, then;

Fig. 5.31 Wire drawing processes

The number of dies varies between 4 to12. The maximum possible reduction per pas is 0.63. In practice, draw reductions per pass are well below the theoretical limit. Reductions of 0.5 for single-draft bar drawing and 0.3 for multiple-draft wire drawing seem to be the upper limits in industrial practice.

CHAPTER 5 METAL WORKING PROCESSES

the end

ME 333 PRODUCTION PROCESSES II

THE END

CHAPTER 5 METAL WORKING PROCESSES
