  1. Wind Turbines Jerry Hudgins And Joel Jacobs

  2. Wind Resource Facts • Double the wind speed results in 8 times the power! • Wind speed is larger as you move higher above the ground. • Doubling the area swept by the blades doubles the power captured from the wind.

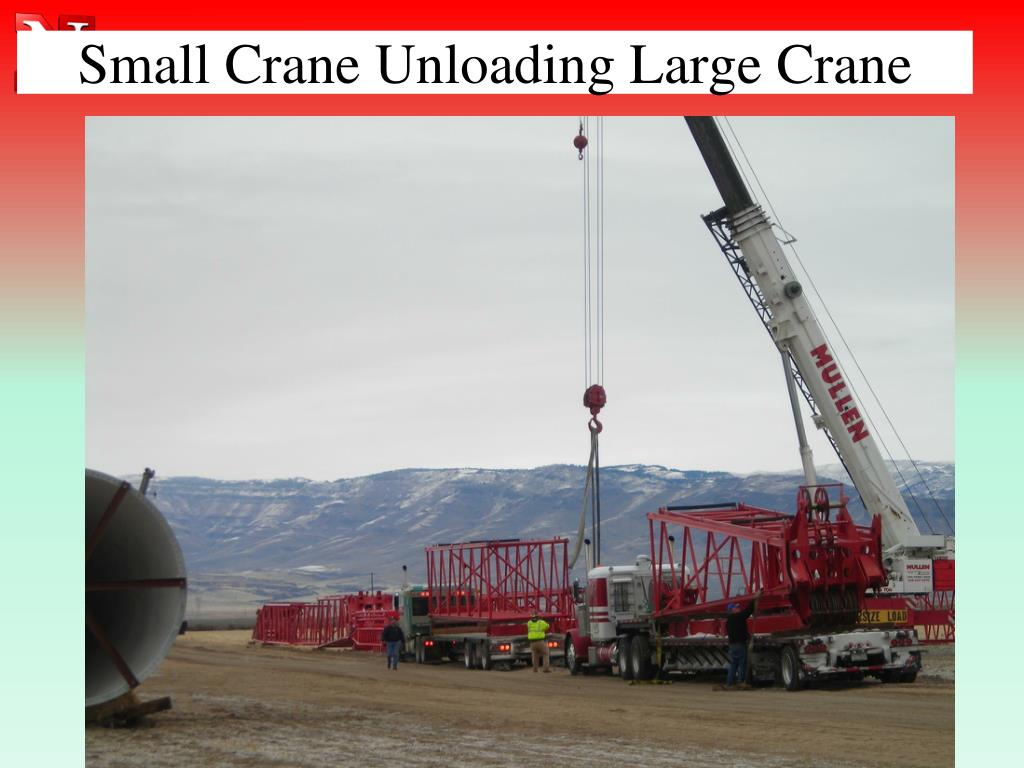

  3. Small Crane Unloading Large Crane

  4. Wind turbines are therefore generally designed so that they yield maximum output at wind speeds around 15 m/s (33 mph). It does not pay to design turbines that maximize their output at stronger winds, because such strong winds are rare. • In case of stronger winds it is necessary to waste part of the excess energy of the wind in order to avoid damaging the wind turbine. All wind turbines are therefore designed with some sort of power control. There are two different ways of doing this safely on modern wind turbines.

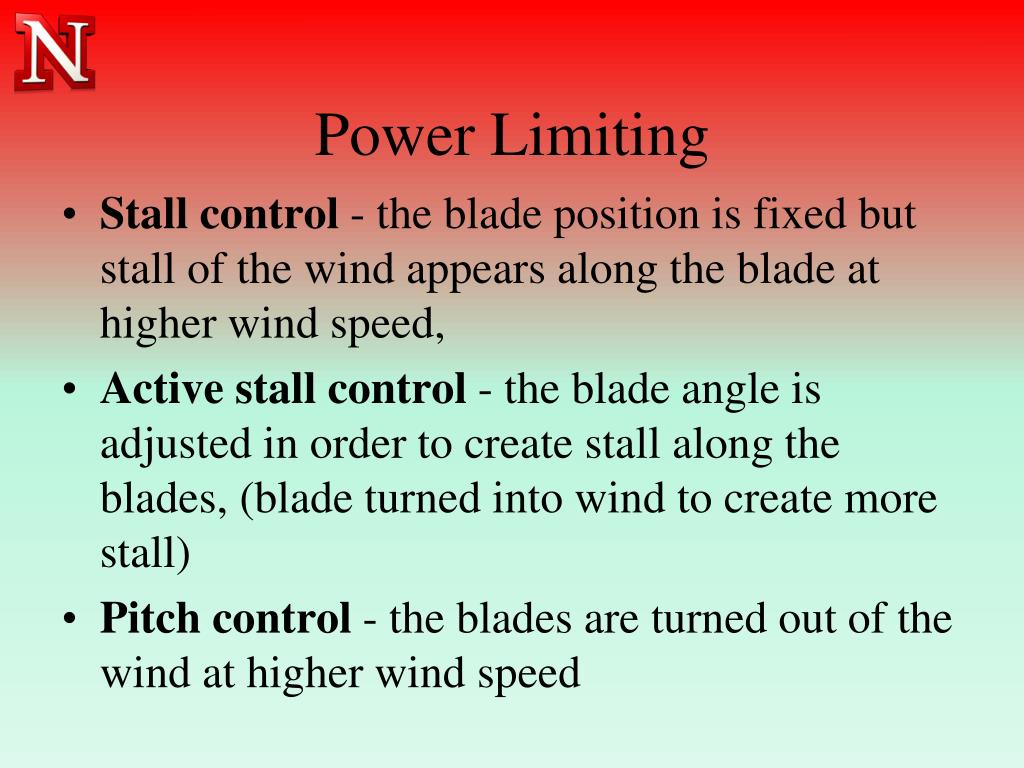

  5. Power Limiting • Stall control - the blade position is fixed but stall of the wind appears along the blade at higher wind speed, • Active stall control - the blade angle is adjusted in order to create stall along the blades, (blade turned into wind to create more stall) • Pitch control - the blades are turned out of the wind at higher wind speed

  6. Stall

  7. Power curve can be made smooth by active control (active stall or pitch) • Stall control has an overshoot depending on blade design

  8. Turbine Sub-systems

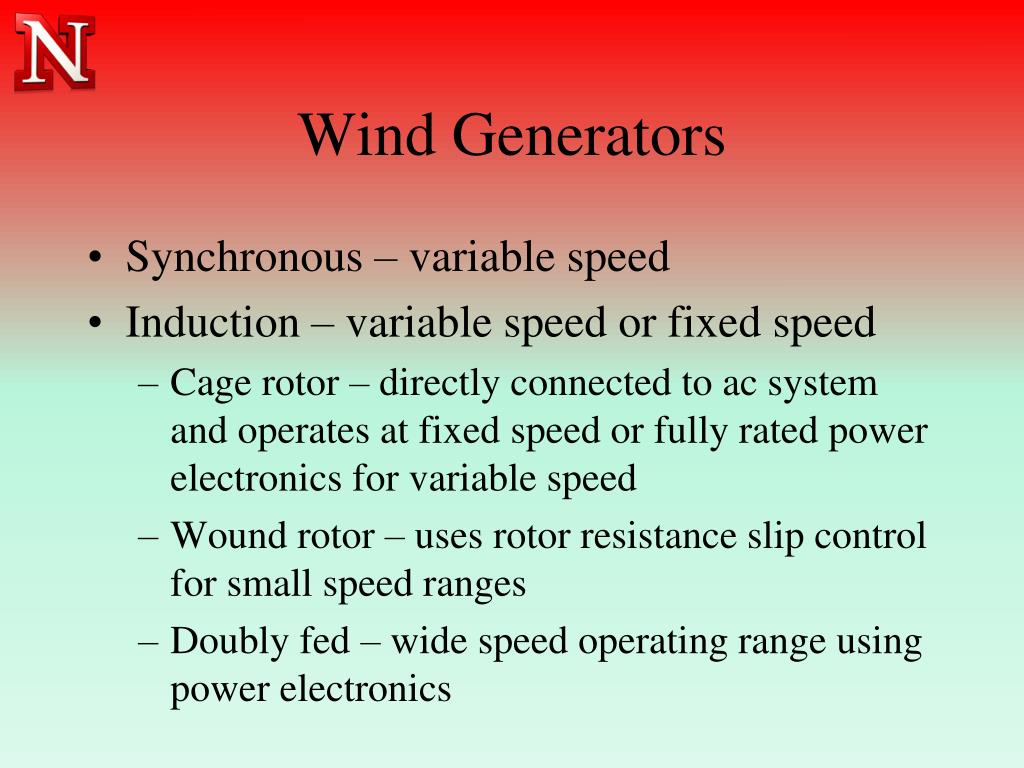

  9. Wind Generators • Synchronous – variable speed • Induction – variable speed or fixed speed • Cage rotor – directly connected to ac system and operates at fixed speed or fully rated power electronics for variable speed • Wound rotor – uses rotor resistance slip control for small speed ranges • Doubly fed – wide speed operating range using power electronics

  10. Variable-Speed Wind Turbines with Partially Rated Power Converters – Doubly Fed IG • Slip rings make the electrical connection to the rotor. • If the generator is running super-synchronously, electrical power is delivered to the grid through both the rotor and the stator. • If the generator is running sub-synchronously, electrical power is delivered into the rotor from the grid. • A speed variation of ±30% around synchronous speed can be obtained by the use of a power converter rated for 30% of nominal power. • It is possible to control both active (Pref) and reactive power (Qref), which gives better grid performance, and the power electronics enables the wind turbine to act as a more dynamic power source to the grid. • The DFIG system does not need either a soft starter or a reactive power compensator. • The system is naturally more expensive compared to the direct-connected systems. • Possible to save money on the safety margin of gear and reactive power compensation units, and it is also possible to capture more energy from the wind.

  11. Fully Rated Power Electronics Converter Turbine-Systems • The synchronous generator shown in (a) is a cage rotor IG. • The synchronous generator shown in (b) needs a small power converter for field excitation. • Multi-pole systems with the synchronous generator without a gearbox are shown in (c) and (d). • The last system uses permanent magnets, which are becoming cheaper and thereby attractive. • All four systems have almost the same controllable characteristics since the generator is decoupled from the grid by a dc link. • The power converter to the grid enables the system to control active and reactive power quickly. However, the disadvantage is a more complex system with more sensitive electronic parts.

  12. FULL RATED POWER ELECTRONIC INTERFACE WIND TURBINE SYSTEMS • Cage induction generators and synchronous generators can be integrated into the system by full rated power electronic converters. • A passive rectifier and a boost converter are used in order to boost the voltage at low speed. • It is possible to control the active power from the generator. A grid inverter interfaces the dc-link to the grid. • It is also possible to control the reactive power to the grid. • The system is able to control reactive and active power quickly and then the turbine may take part in the power system control.

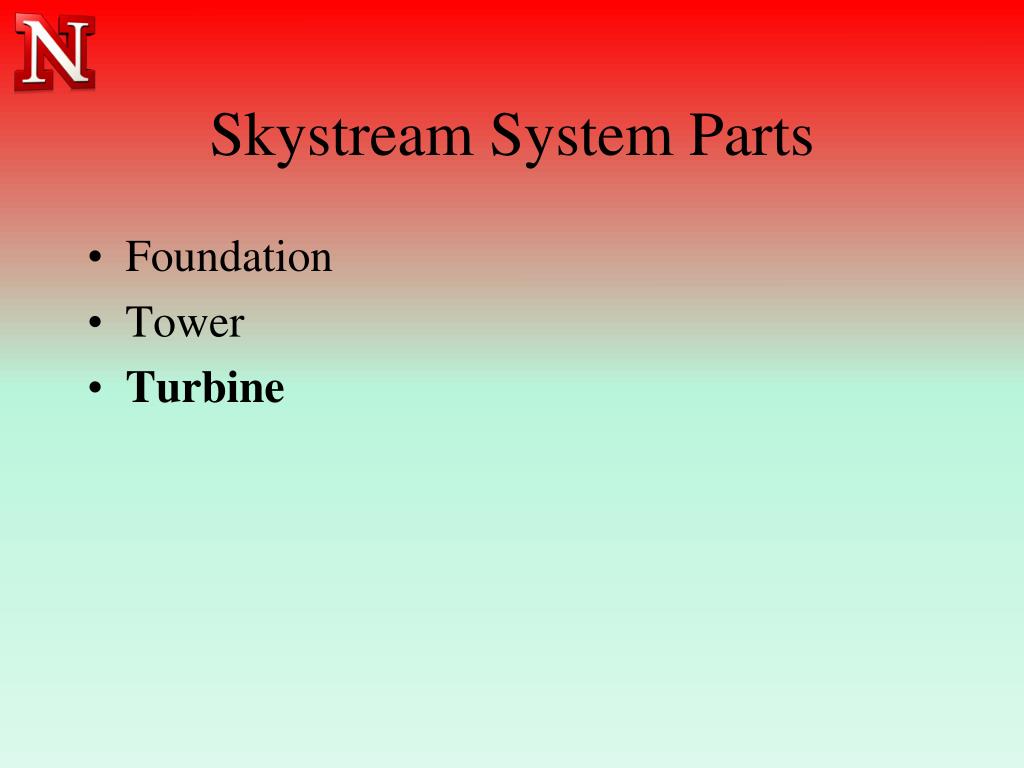

  13. Skystream System Parts • Foundation • Tower • Turbine

  14. Smart Foundation(good for towers up to 60’)

  15. Pier Foundation • Excavating, rebar, concrete • Bolt Template • 28-day Strength • County Building Inspection $4038.64

  16. Foundation bolt assembly

  17. Disconnect Switchgear

  18. Bushings and bolt assembly for connecting turbine to tower.

  19. Grounding wire connecting turbine to tower.

  20. Ground wire from tower base to ground stake.

  21. Split Phase • commonly used in North America for single-family residential and light commercial • 3-Phase • Used in industrial applications
