Presentation Transcript
what does it mean for two categorical variables to be related
What does it mean for two categorical variables to be related?
  • Remember that Chi-Square is used to test for a relationship between 2 Categorical variables.

Ho: There is no relationship between the variables.

Ha: There is a relationship between the variables.

  • If two categorical variables are related, it means the chance that an individual falls into a particular category for one variable depends upon the particular category they fall into for the other variable.
  • Let’s say that we wanted to determine if there is a relationship between religion (Christian, Jew, Muslim, Other) and smoking. When we test if there is a relationship between these two variables, we are trying to determine if being part of a particular religion makes an individual more likely to be a smoker. If that is the case, then we can say that Religion and Smoking are related or associated.
chi square test for 2 way tables
Chi-Square test for 2-way tables
  • Suppose we are studying two categorical variables in a population, where the first variable has r levels (i.e. possible outcomes) and the second one has s levels.
  • We can summarize a sample from this population using a table with r rows and c columns.
  • A two-way table, also called contingency table, displays the counts of how many individuals fall into each possible combination of categories of two categorical variables. So, each cell of the table (total number of cells is r xc) represents a combination of categories of the two variables.
  • The following table presents the data on race and smoking. The two variables of interest, race and smoking, have r = 4 and c = 2, resulting in 4x2=8 combinations of categories.
chi square test for 2 way tables4

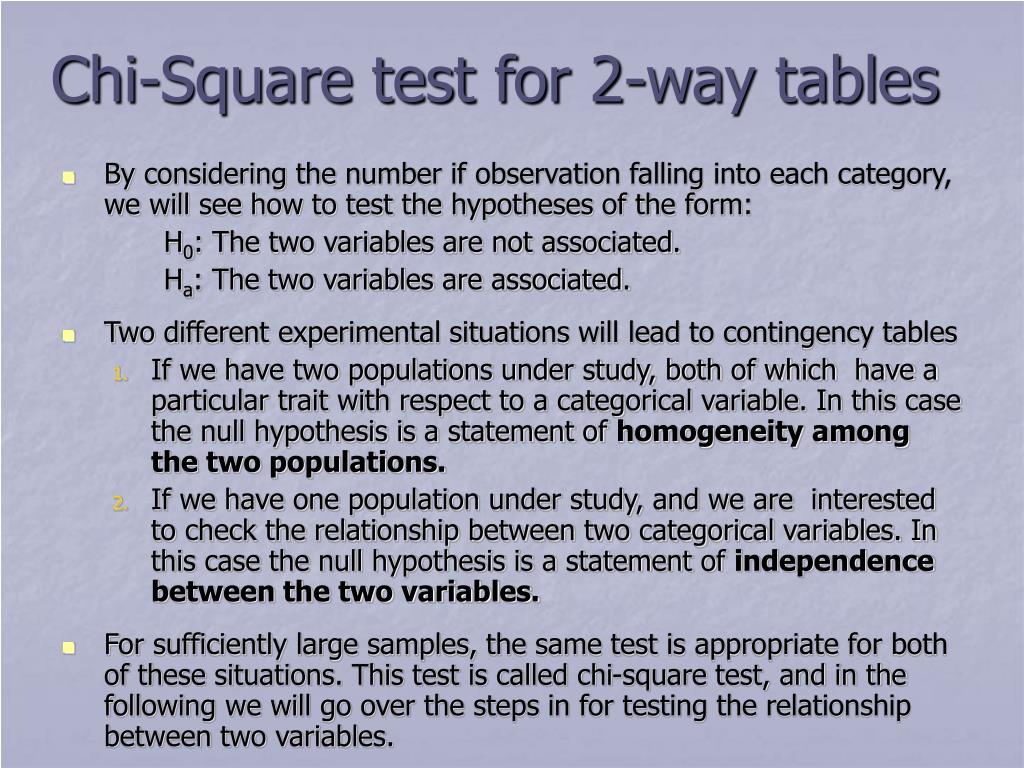

Chi-Square test for 2-way tables
  • By considering the number if observation falling into each category, we will see how to test the hypotheses of the form:

H0: The two variables are not associated.

Ha: The two variables are associated.

  • Two different experimental situations will lead to contingency tables
    • If we have two populations under study, both of which have a particular trait with respect to a categorical variable. In this case the null hypothesis is a statement of homogeneityamong the two populations.
    • If we have one population under study, and we are interested to check the relationship between two categorical variables. In this case the null hypothesis is a statement of independencebetween the two variables.
  • For sufficiently large samples, the same test is appropriate for both of these situations. This test is called chi-square test, and in the following we will go over the steps in for testing the relationship between two variables.
some notation
Some Notation!
  • For i taking values from 1 to r (number of rows) and j taking values from 1 to c (number of columns), denote:

Ri = total count of observations in the i-th row.

Cj = total count of observations in the j-th column.

Oij = observed count for the cell in the i-th row and the j-th column.

Eij = expected count for the cell in the i-th row and the j-th column if the two variables were independent, i.e if H0 was true. These counts are calculated as

example

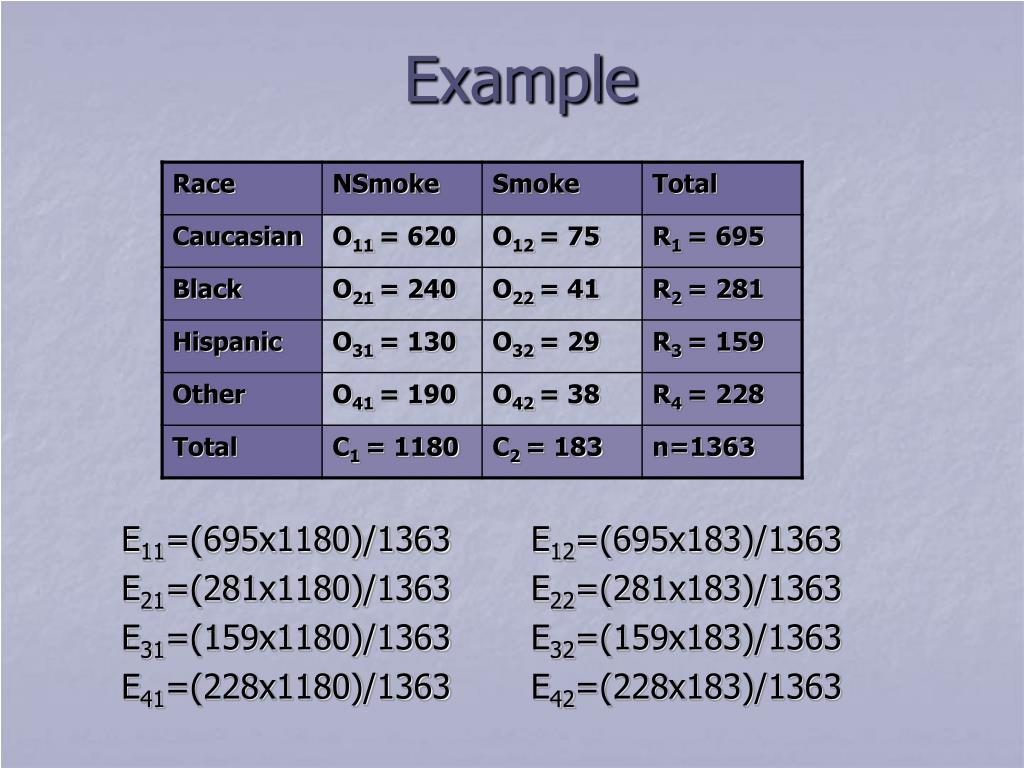

Example

E11=(695x1180)/1363 E12=(695x183)/1363

E21=(281x1180)/1363 E22=(281x183)/1363

E31=(159x1180)/1363 E32=(159x183)/1363

E41=(228x1180)/1363 E42=(228x183)/1363

chi square analysis details

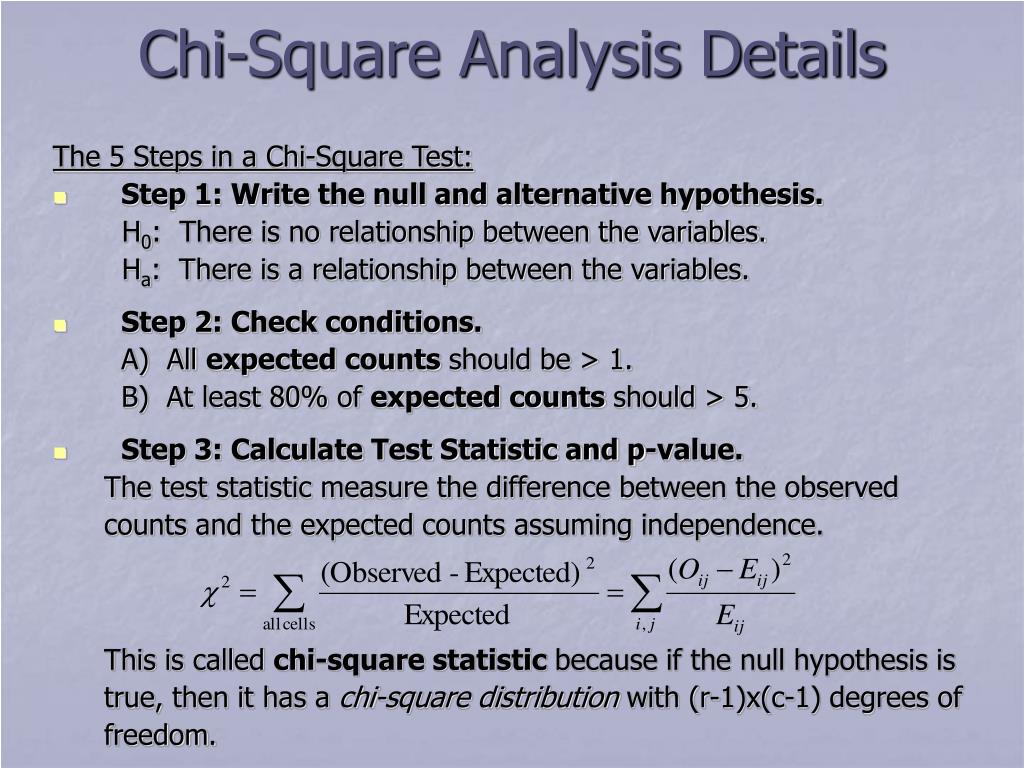

Chi-Square Analysis Details

The 5 Steps in a Chi-Square Test:

  • Step 1: Write the null and alternative hypothesis.

H0: There is no relationship between the variables.

Ha: There is a relationship between the variables.

  • Step 2: Check conditions.

A) All expected counts should be > 1.

B) At least 80% of expected counts should > 5.

  • Step 3: Calculate Test Statistic and p-value.

The test statistic measure the difference between the observed

counts and the expected counts assuming independence.

This is called chi-square statistic because if the null hypothesis is

true, then it has a chi-square distribution with (r-1)x(c-1) degrees of

freedom.

chi square analysis details8

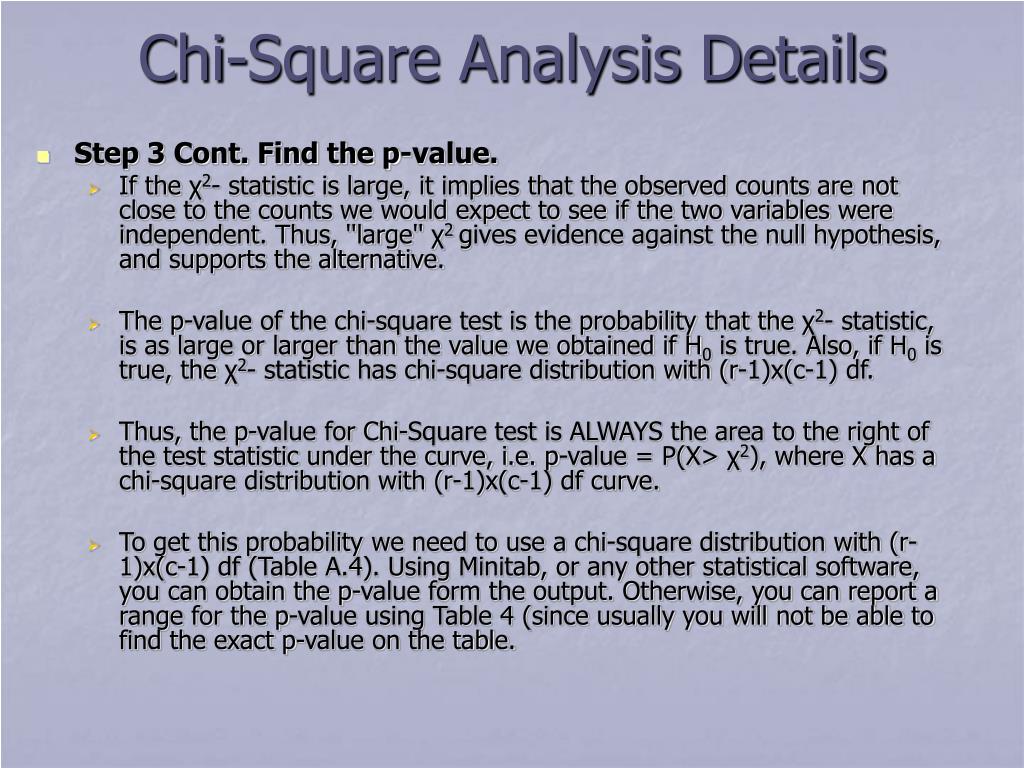

Step 3 Cont. Find the p-value.

If the χ2- statistic is large, it implies that the observed counts are not close to the counts we would expect to see if the two variables were independent. Thus, ''large'' χ2 gives evidence against the null hypothesis, and supports the alternative.

The p-value of the chi-square test is the probability that the χ2- statistic, is as large or larger than the value we obtained if H0 is true. Also, if H0 is true, the χ2- statistic has chi-square distribution with (r-1)x(c-1) df.

Thus, the p-value for Chi-Square test is ALWAYS the area to the right of the test statistic under the curve, i.e. p-value = P(X> χ2), where X has a chi-square distribution with (r-1)x(c-1) df curve.

To get this probability we need to use a chi-square distribution with (r-1)x(c-1) df (Table A.4). Using Minitab, or any other statistical software, you can obtain the p-value form the output. Otherwise, you can report a range for the p-value using Table 4 (since usually you will not be able to find the exact p-value on the table.

Chi-Square Analysis Details
chi square analysis details9
Chi-Square Analysis Details
  • Step 4: Decide whether or not the result is statistically significant.

The results are statistically significant if the p-value is less than

alpha, where alpha is the significance level (usually α = 0.05).

  • Step 5: Report the conclusion in the context of the situation.
    • Thep-valueis ______ which is< a, this result is statistically significant. Reject the H0 Conclude that (the two variables) are related.
    • Thep-valueis ______ which is> a, this result is NOT statistically significant. We cannot reject the H0 Cannot conclude that (the two variables) are related.
detailed example
Detailed Example
  • Derek wants to know if the geographical area that a student grew up in is associated with whether or not that the student drinks alcohol. Below are the results he obtained from a random sample of PSU students
detailed example11

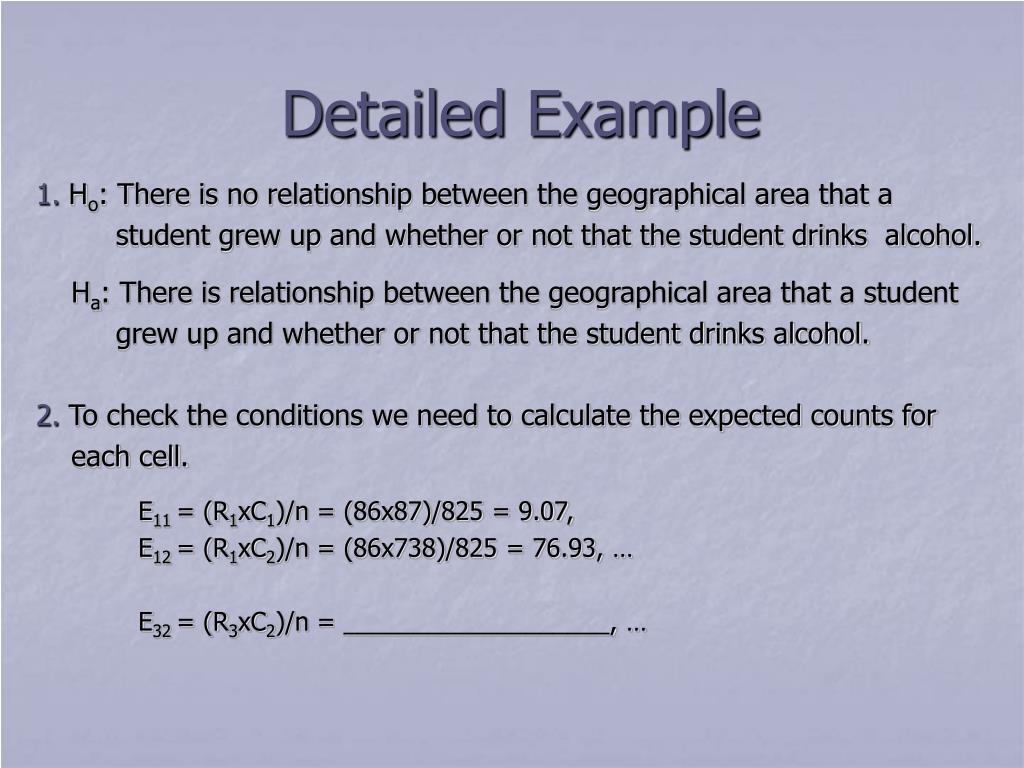

Detailed Example

1. Ho: There is no relationship between the geographical area that a

student grew up and whether or not that the student drinks alcohol.

Ha: There is relationship between the geographical area that a student

grew up and whether or not that the student drinks alcohol.

2. To check the conditions we need to calculate the expected counts for

each cell.

E11 = (R1xC1)/n = (86x87)/825 = 9.07,

E12 = (R1xC2)/n = (86x738)/825 = 76.93, …

E32 = (R3xC2)/n = ___________________, …

detailed example12
Detailed Example

No Yes All

Big_City 21 65 86

9.07 76.93 86.00

Rural 11 130 141

14.87 126.13 141.00

SmallTow 18 198 216

22.78 193.22 216.00

Suburban 37 345 382

40.28 341.72 382.00

All 87 738 825

87.00 738.00 825.00

Here is the Minitab output

with the Observed and

Expected counts for each

cell. We can see that the

conditions are satisfied!

detailed example13

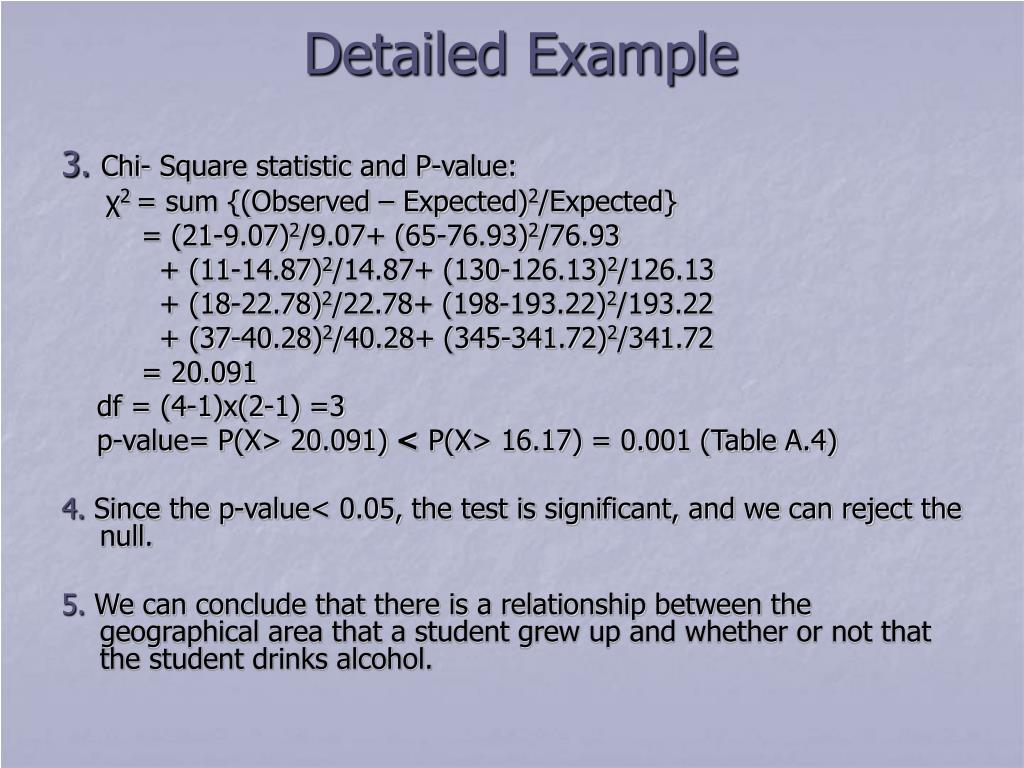

Detailed Example

3.Chi- Square statistic and P-value:

χ2 = sum {(Observed – Expected)2/Expected}

= (21-9.07)2/9.07+ (65-76.93)2/76.93

+ (11-14.87)2/14.87+ (130-126.13)2/126.13

+ (18-22.78)2/22.78+ (198-193.22)2/193.22

+ (37-40.28)2/40.28+ (345-341.72)2/341.72

= 20.091

df = (4-1)x(2-1) =3

p-value= P(X> 20.091) < P(X> 16.17) = 0.001 (Table A.4)

4. Since the p-value< 0.05, the test is significant, and we can reject the null.

5. We can conclude that there is a relationship between the geographical area that a student grew up and whether or not that the student drinks alcohol.

special case analyzing 2x2 tables

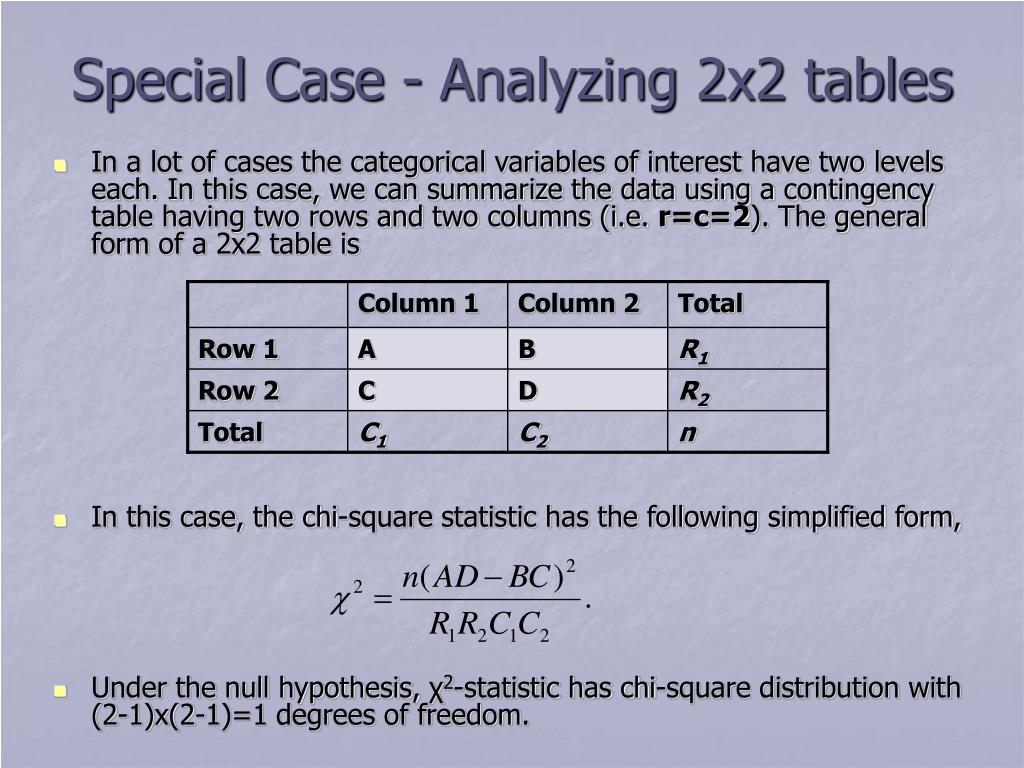

Special Case - Analyzing 2x2 tables
  • In a lot of cases the categorical variables of interest have two levels each. In this case, we can summarize the data using a contingency table having two rows and two columns (i.e. r=c=2). The general form of a 2x2 table is
  • In this case, the chi-square statistic has the following simplified form,
  • Under the null hypothesis, χ2-statistic has chi-square distribution with (2-1)x(2-1)=1 degrees of freedom.
example for 2x2 table is there relationship between gender and smoking habits
Example for 2x2 table: Is there relationship between gender and smoking habits?

Minitab Output

C1 C2 Total

1 540 52 592

540.17 51.83

2 325 31 356

324.83 31.17

Total 865 83 948

Chi-Sq = 0.000 + 0.001 +

0.000 + 0.001 = 0.002

DF = 1, P-Value = 0.968

Minitab uses the general formula

of the χ2 test statistic.

relationship between chi square and 2 proportions tests
Relationship Between Chi-Square and 2 Proportions Tests

When do we use Chi-Square and when do we use 2 proportions?

  • Situation 1: Both categorical variables of interest have exactly 2 levels. Question - Is there a relationship between the variables, or is there a difference in the proportions?

Answer - Either Chi-Square or Two Sided Test of 2-proportions will lead to the same conclusion!

In this case, the χ2 –statistic = (z-statistic)2, and the p-values of the two tests are equal, i.e.

P(X(1df) > χ2 –stat) = 2 P (Z > |z-stat|).

  • Situation 2: Both categorical variables of interest have exactly 2 levels. Question - Is one proportion greater/smaller than the other.

Answer - This is a one-sided test and you MUST use a test of 2 proportions.

  • Situation 3: At least one of the two categorical variables of interest has MORE than 2 levels.

Question - Is there a relationship between the variables?

Answer - MUST use a Chi-Square Test.

examples of chi square and 2 proportions

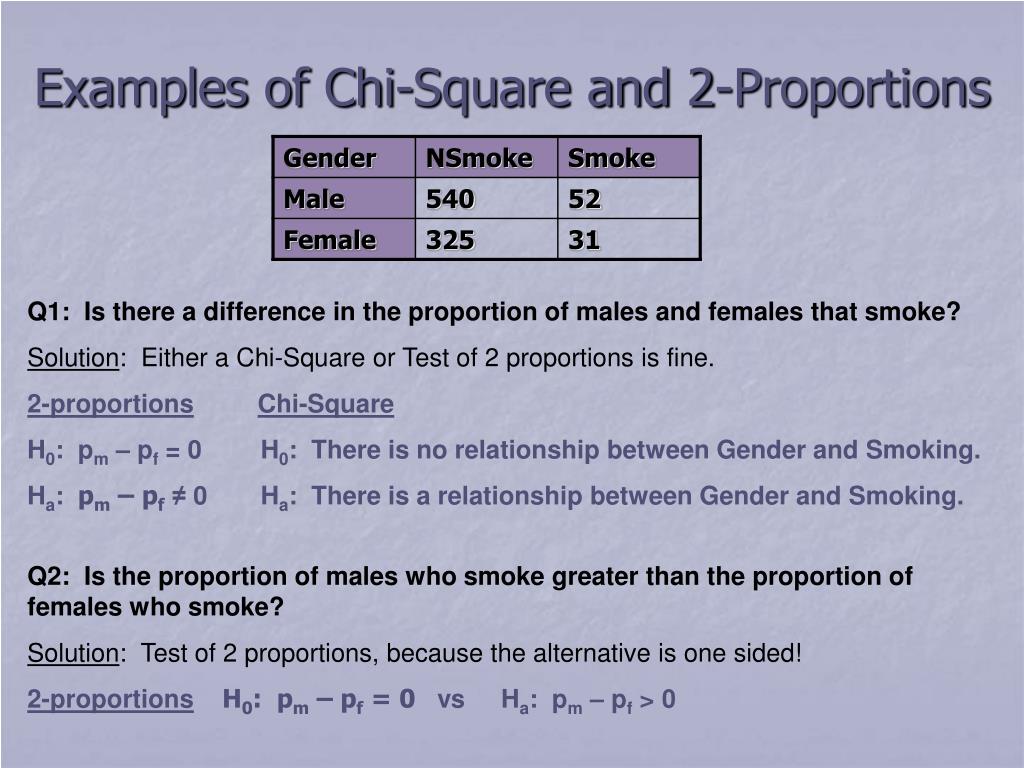

Examples of Chi-Square and 2-Proportions

Q1: Is there a difference in the proportion of males and females that smoke?

Solution: Either a Chi-Square or Test of 2 proportions is fine.

2-proportionsChi-Square

H0: pm – pf = 0 H0: There is no relationship between Gender and Smoking.

Ha: pm – pf≠ 0 Ha: There is a relationship between Gender and Smoking.

Q2: Is the proportion of males who smoke greater than the proportion of females who smoke?

Solution: Test of 2 proportions, because the alternative is one sided!

2-proportionsH0: pm – pf = 0 vs Ha: pm – pf > 0

examples of chi square and 2 proportions18
Examples of Chi-Square and 2-Proportions

Q: Is there a relationship between Race and Smoking? Is there a difference in the proportion smokers of the different races?

Solution: Chi-Square because Race has more than 2 levels!

Chi-Square Test

H0: There is no relationship between Race and Smoking.

Ha: There is a relationship between Race and Smoking.
