  1. 70-297: MCSE Guide to Designing a Microsoft Windows Server 2003 Active Directory and Network Infrastructure Chapter 2: Developing the Active Directory Infrastructure Design

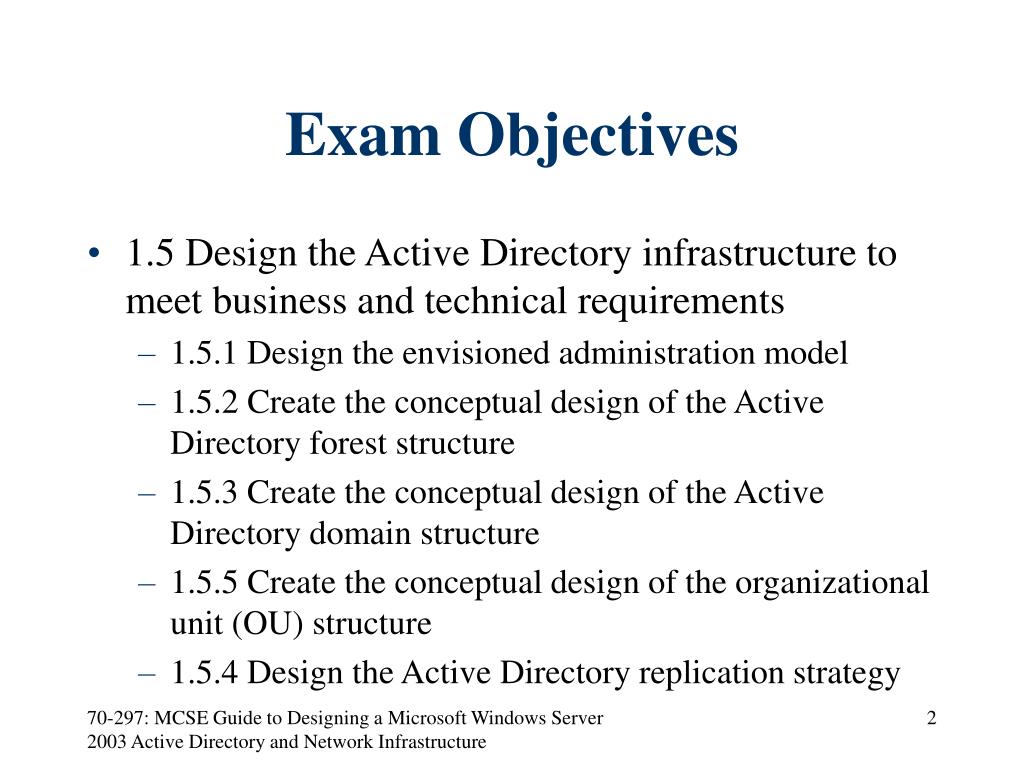

  2. Exam Objectives • 1.5 Design the Active Directory infrastructure to meet business and technical requirements • 1.5.1 Design the envisioned administration model • 1.5.2 Create the conceptual design of the Active Directory forest structure • 1.5.3 Create the conceptual design of the Active Directory domain structure • 1.5.5 Create the conceptual design of the organizational unit (OU) structure • 1.5.4 Design the Active Directory replication strategy 70-297: MCSE Guide to Designing a Microsoft Windows Server 2003 Active Directory and Network Infrastructure

  3. Introduction • Active Directory designs are developed after the environment has been assessed and fully documented • During the initial stages of the Active Directory services infrastructure design, identify the administrative model that will be implemented 70-297: MCSE Guide to Designing a Microsoft Windows Server 2003 Active Directory and Network Infrastructure

  4. Assessing and Designing the Administrative Model • Service administrators are responsible for: • Maintaining the Active Directory infrastructure • Ensuring that the infrastructure provides the necessary functions and services to end users • Not the same people performing the data administrator role 70-297: MCSE Guide to Designing a Microsoft Windows Server 2003 Active Directory and Network Infrastructure

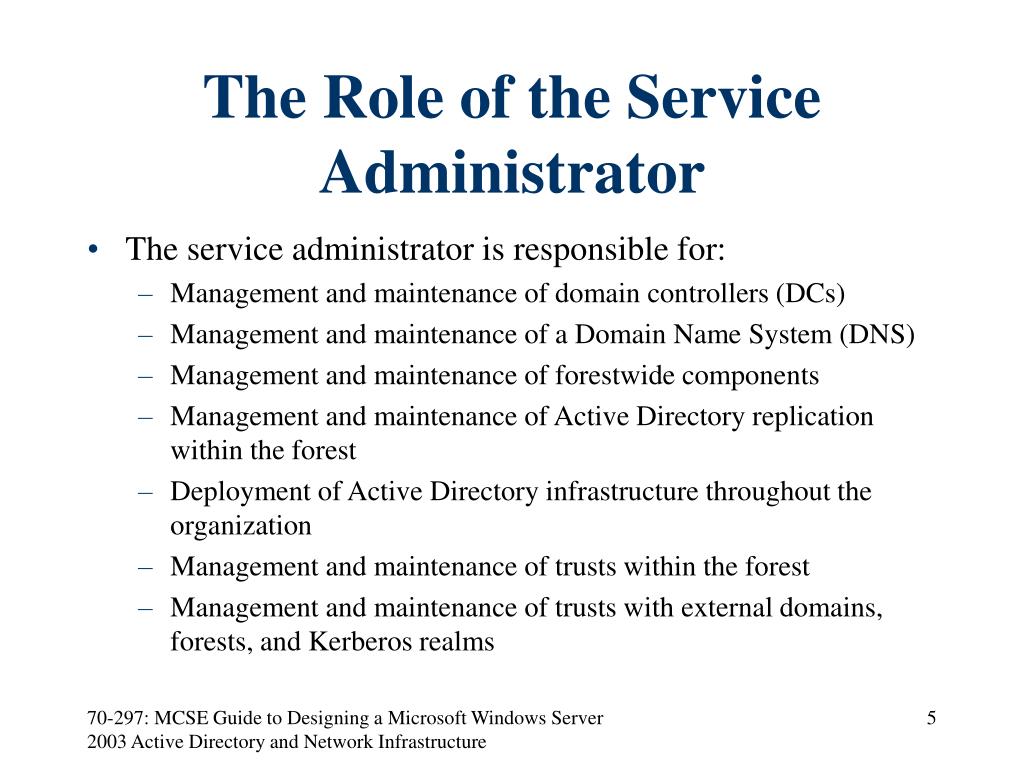

  5. The Role of the Service Administrator • The service administrator is responsible for: • Management and maintenance of domain controllers (DCs) • Management and maintenance of a Domain Name System (DNS) • Management and maintenance of forestwide components • Management and maintenance of Active Directory replication within the forest • Deployment of Active Directory infrastructure throughout the organization • Management and maintenance of trusts within the forest • Management and maintenance of trusts with external domains, forests, and Kerberos realms 70-297: MCSE Guide to Designing a Microsoft Windows Server 2003 Active Directory and Network Infrastructure

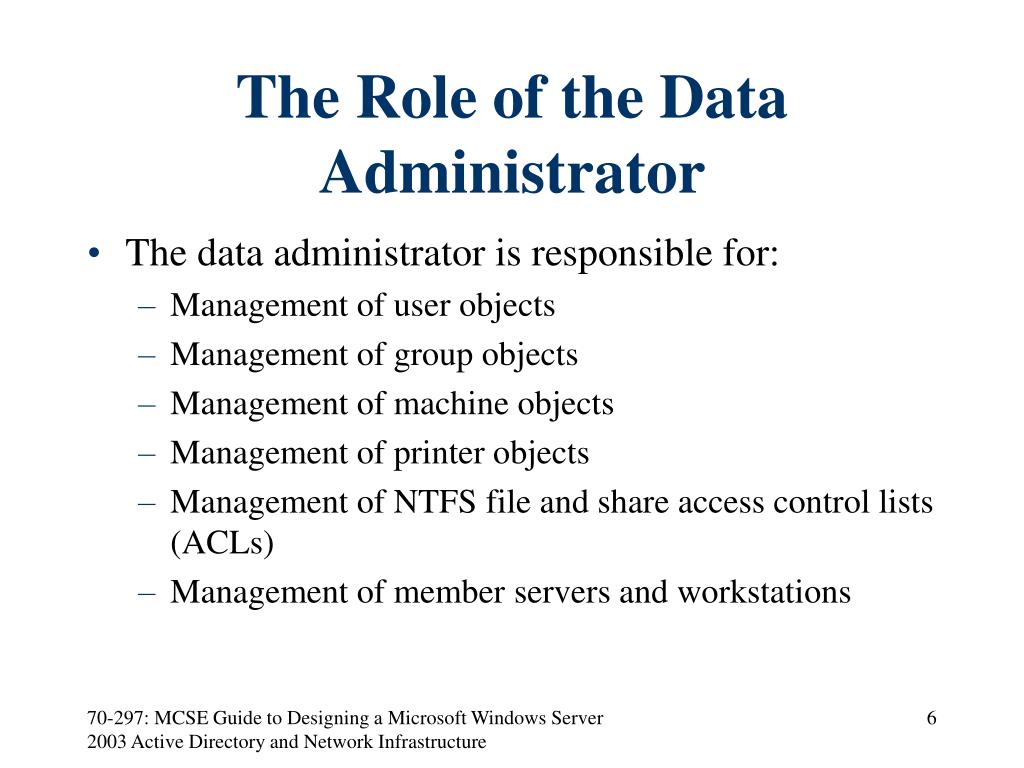

  6. The Role of the Data Administrator • The data administrator is responsible for: • Management of user objects • Management of group objects • Management of machine objects • Management of printer objects • Management of NTFS file and share access control lists (ACLs) • Management of member servers and workstations 70-297: MCSE Guide to Designing a Microsoft Windows Server 2003 Active Directory and Network Infrastructure

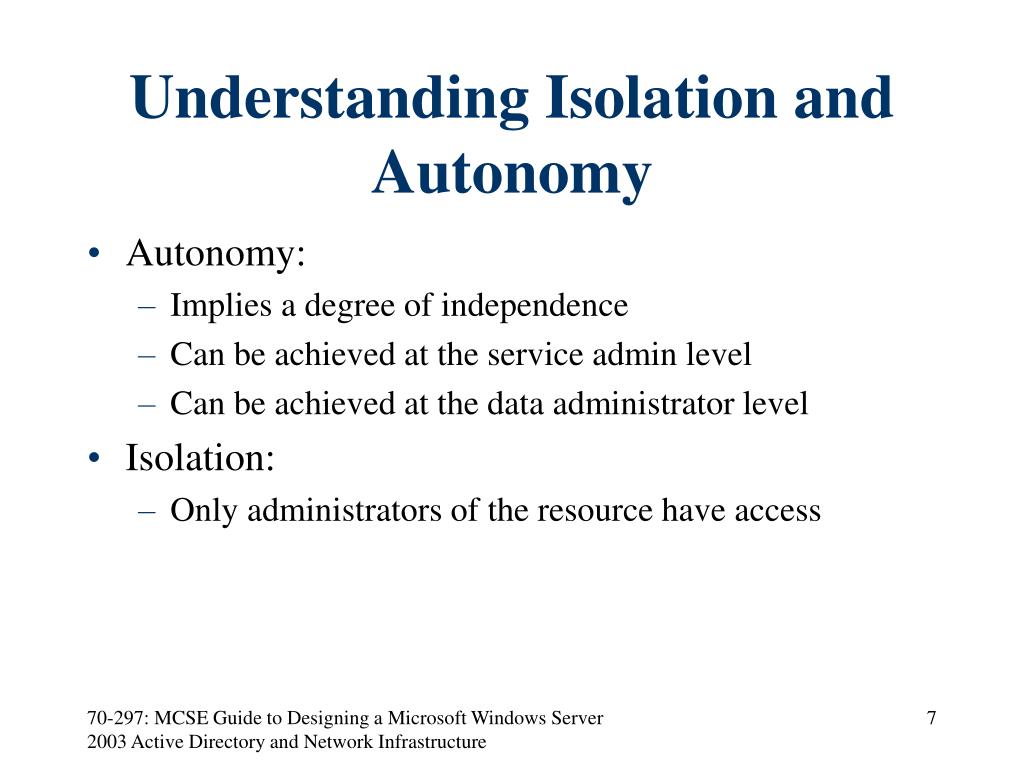

  7. Understanding Isolation and Autonomy • Autonomy: • Implies a degree of independence • Can be achieved at the service admin level • Can be achieved at the data administrator level • Isolation: • Only administrators of the resource have access 70-297: MCSE Guide to Designing a Microsoft Windows Server 2003 Active Directory and Network Infrastructure

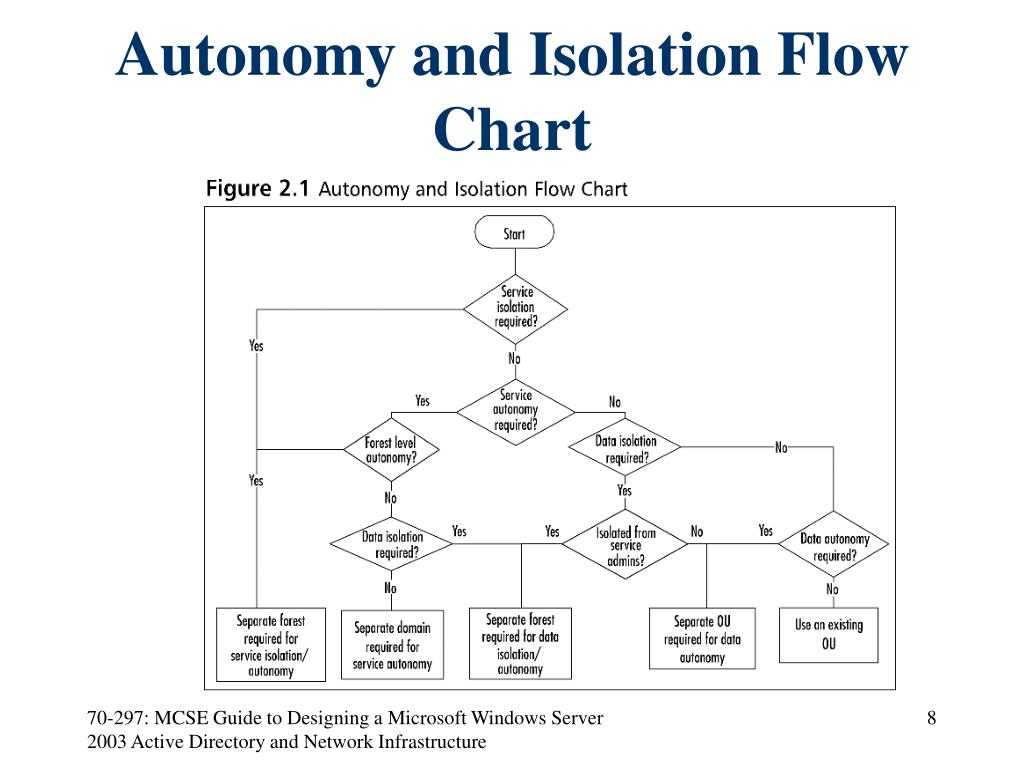

  8. Autonomy and Isolation Flow Chart 70-297: MCSE Guide to Designing a Microsoft Windows Server 2003 Active Directory and Network Infrastructure

  9. Assessing andDefining the Forest Design • Forest design factors: • Organizational • Operational • Legal • Naming considerations • Timescales • Management overhead • Test environments • External facing environments 70-297: MCSE Guide to Designing a Microsoft Windows Server 2003 Active Directory and Network Infrastructure

  10. Forest Models • Multiple forest scenarios: • The Service Provider model • The Restricted Access model • The Resource model • The Organizational model • The Single-Forest model 70-297: MCSE Guide to Designing a Microsoft Windows Server 2003 Active Directory and Network Infrastructure

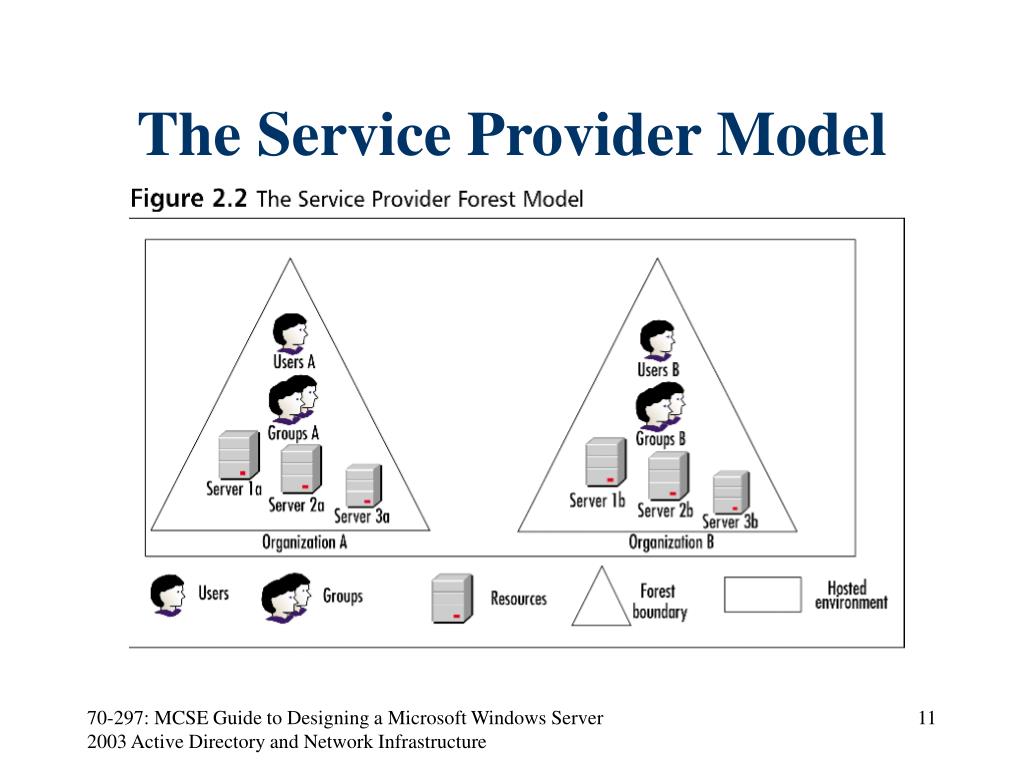

  11. The Service Provider Model 70-297: MCSE Guide to Designing a Microsoft Windows Server 2003 Active Directory and Network Infrastructure

  12. The Restricted Access Model 70-297: MCSE Guide to Designing a Microsoft Windows Server 2003 Active Directory and Network Infrastructure

  13. The Resource Model 70-297: MCSE Guide to Designing a Microsoft Windows Server 2003 Active Directory and Network Infrastructure

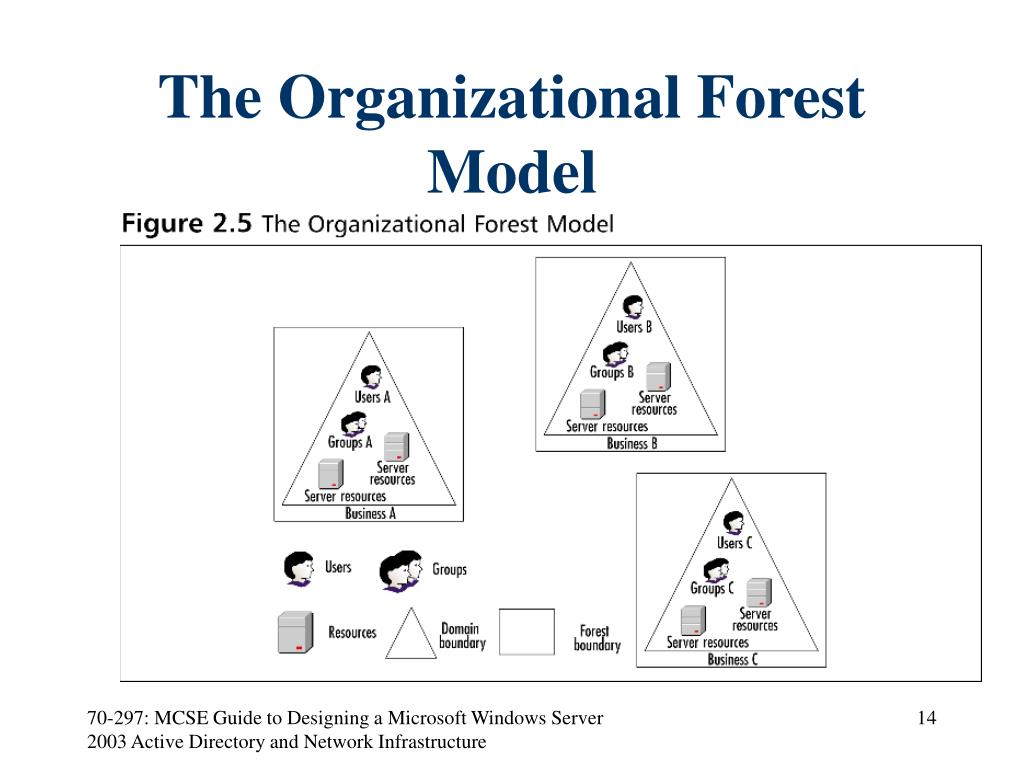

  14. The Organizational Forest Model 70-297: MCSE Guide to Designing a Microsoft Windows Server 2003 Active Directory and Network Infrastructure

  15. The Single Forest Model • Simplest to design, engineer, and deploy • Cheapest option to deploy and the cheapest to own • Isolation requires a separate forest to be established • Autonomy needs a separate domain to be established 70-297: MCSE Guide to Designing a Microsoft Windows Server 2003 Active Directory and Network Infrastructure

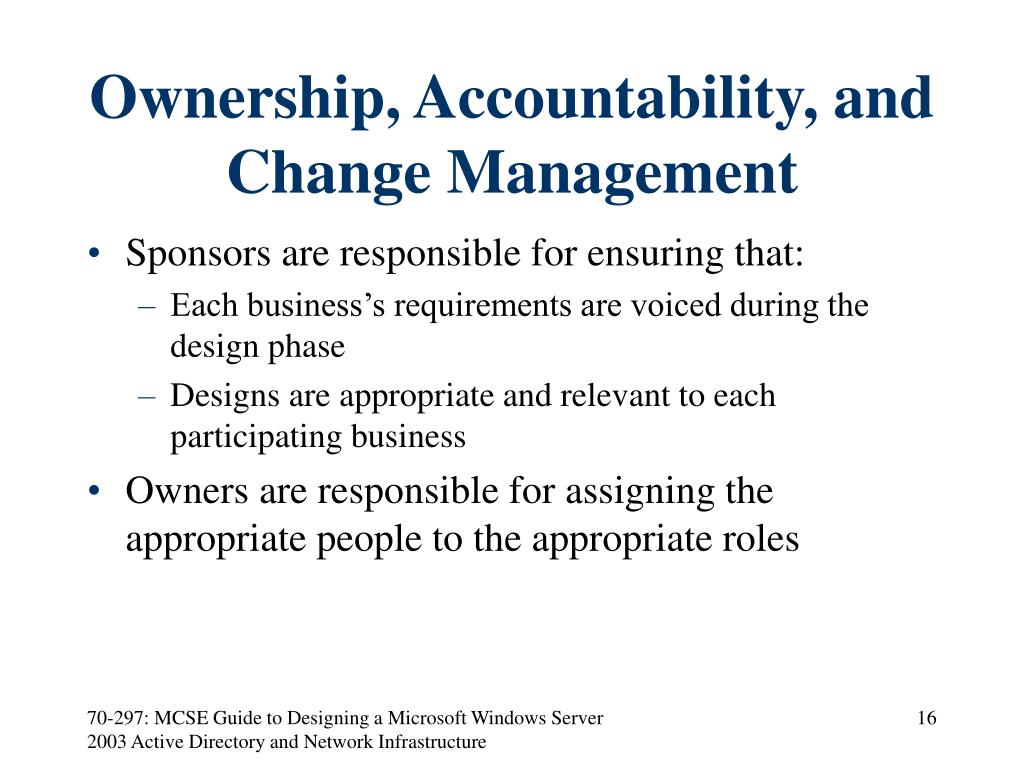

  16. Ownership, Accountability, and Change Management • Sponsors are responsible for ensuring that: • Each business’s requirements are voiced during the design phase • Designs are appropriate and relevant to each participating business • Owners are responsible for assigning the appropriate people to the appropriate roles 70-297: MCSE Guide to Designing a Microsoft Windows Server 2003 Active Directory and Network Infrastructure

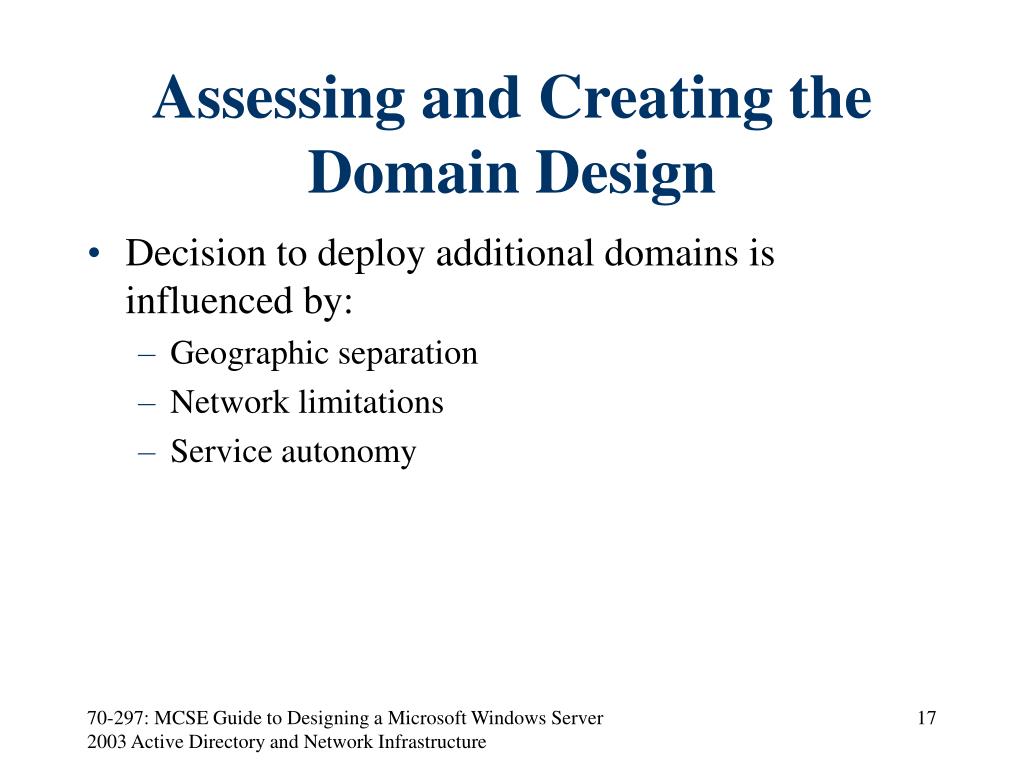

  17. Assessing and Creating the Domain Design • Decision to deploy additional domains is influenced by: • Geographic separation • Network limitations • Service autonomy 70-297: MCSE Guide to Designing a Microsoft Windows Server 2003 Active Directory and Network Infrastructure

  18. Maximum Number of Users Supported in a Single Domain 70-297: MCSE Guide to Designing a Microsoft Windows Server 2003 Active Directory and Network Infrastructure

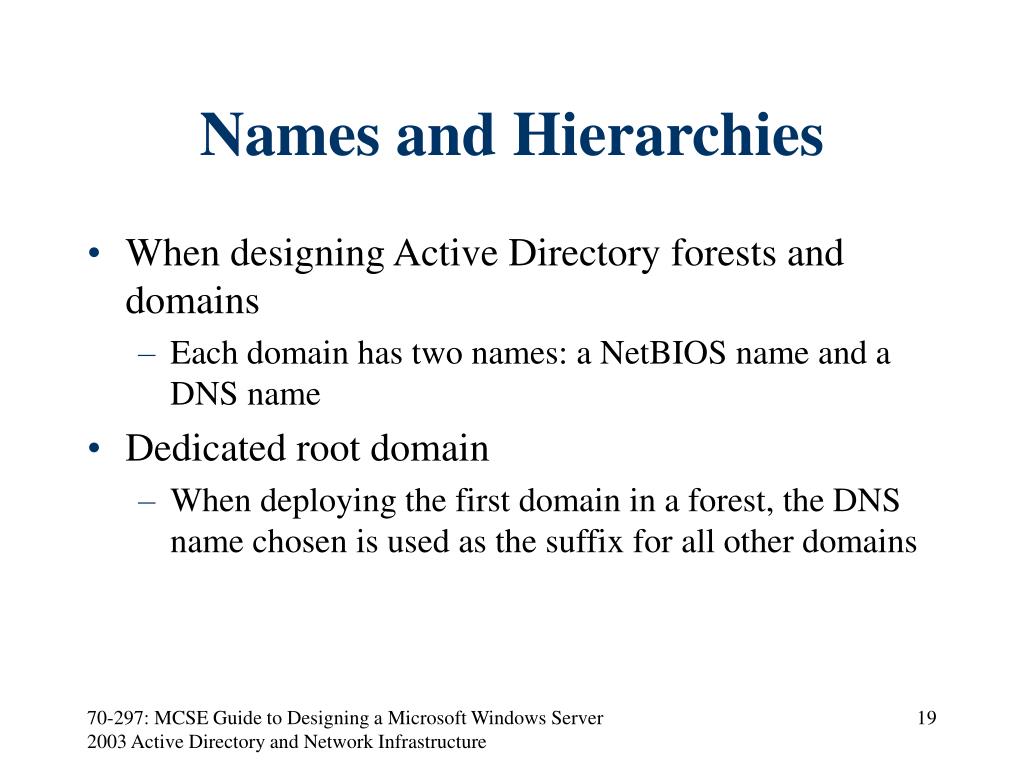

  19. Names and Hierarchies • When designing Active Directory forests and domains • Each domain has two names: a NetBIOS name and a DNS name • Dedicated root domain • When deploying the first domain in a forest, the DNS name chosen is used as the suffix for all other domains 70-297: MCSE Guide to Designing a Microsoft Windows Server 2003 Active Directory and Network Infrastructure

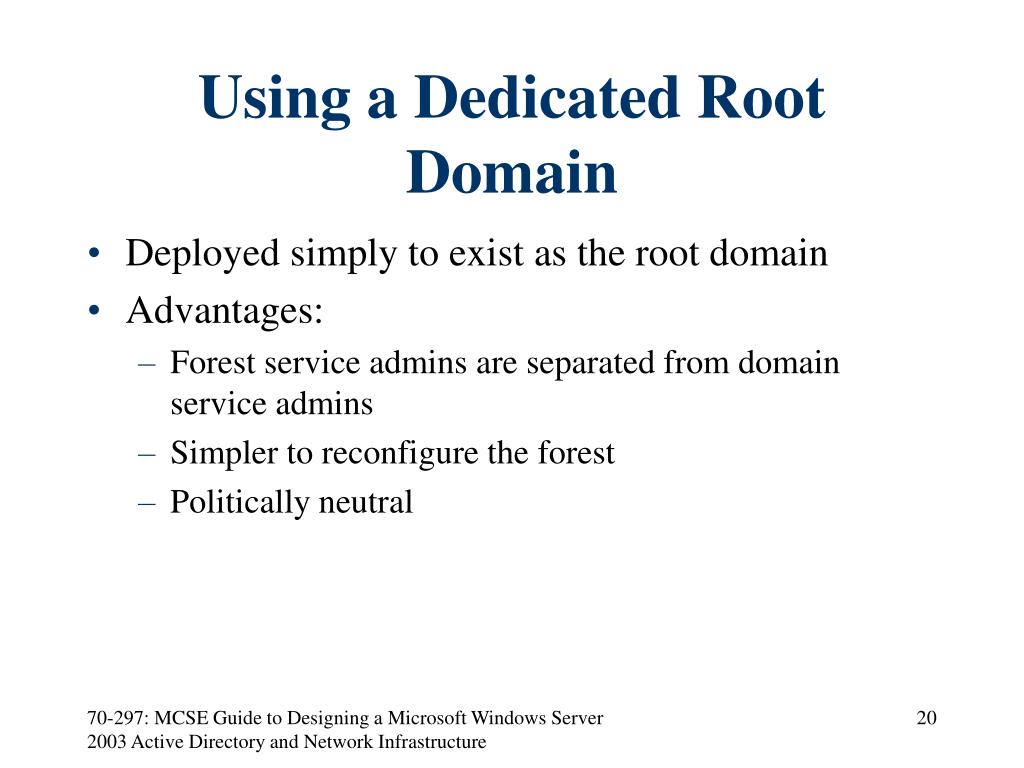

  20. Using a Dedicated Root Domain • Deployed simply to exist as the root domain • Advantages: • Forest service admins are separated from domain service admins • Simpler to reconfigure the forest • Politically neutral 70-297: MCSE Guide to Designing a Microsoft Windows Server 2003 Active Directory and Network Infrastructure

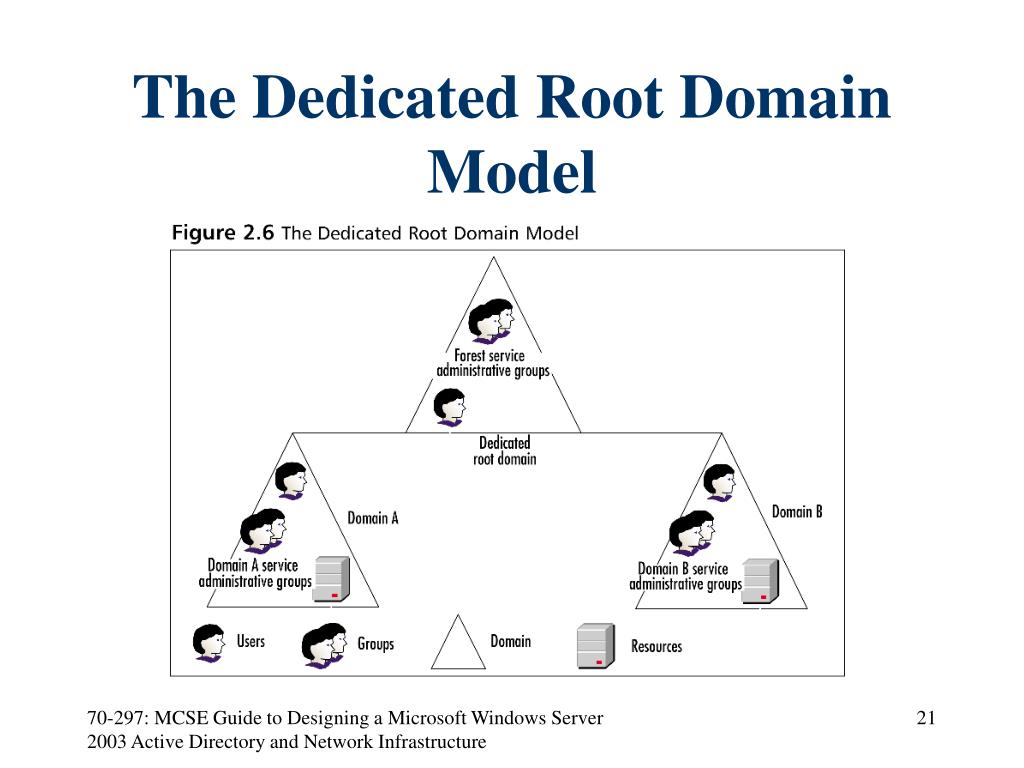

  21. The Dedicated Root Domain Model 70-297: MCSE Guide to Designing a Microsoft Windows Server 2003 Active Directory and Network Infrastructure

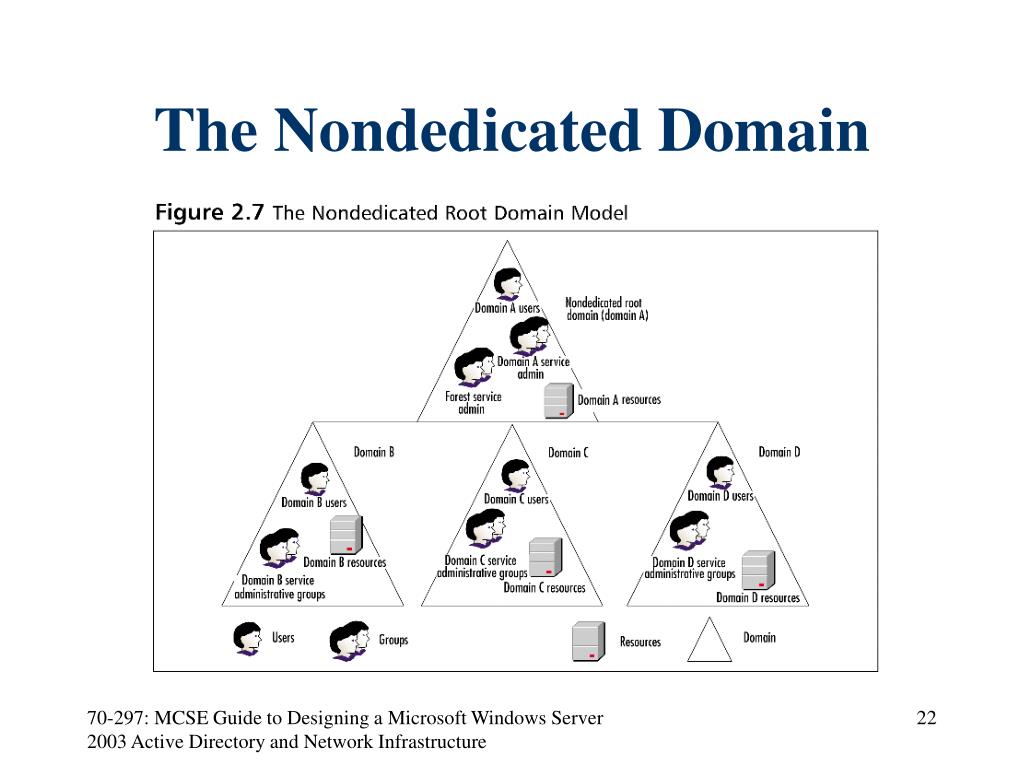

  22. The Nondedicated Domain 70-297: MCSE Guide to Designing a Microsoft Windows Server 2003 Active Directory and Network Infrastructure

  23. Regional Domains • Regional model implies that a separate domain is created for each distinct region within the organization • Disadvantages associated with introducing additional regional domains: • Multiple service admin groups • Additional overhead in duplicating settings • Interdomain object moves 70-297: MCSE Guide to Designing a Microsoft Windows Server 2003 Active Directory and Network Infrastructure

  24. The Regional Domain Model 70-297: MCSE Guide to Designing a Microsoft Windows Server 2003 Active Directory and Network Infrastructure

  25. Functional Domains • Established per functional group or business group within the organization • Within the functional domain model: • Forest might be home to multiple, disparate, autonomous businesses • Degree of collaboration is required 70-297: MCSE Guide to Designing a Microsoft Windows Server 2003 Active Directory and Network Infrastructure

  26. The Functional Domain Model 70-297: MCSE Guide to Designing a Microsoft Windows Server 2003 Active Directory and Network Infrastructure

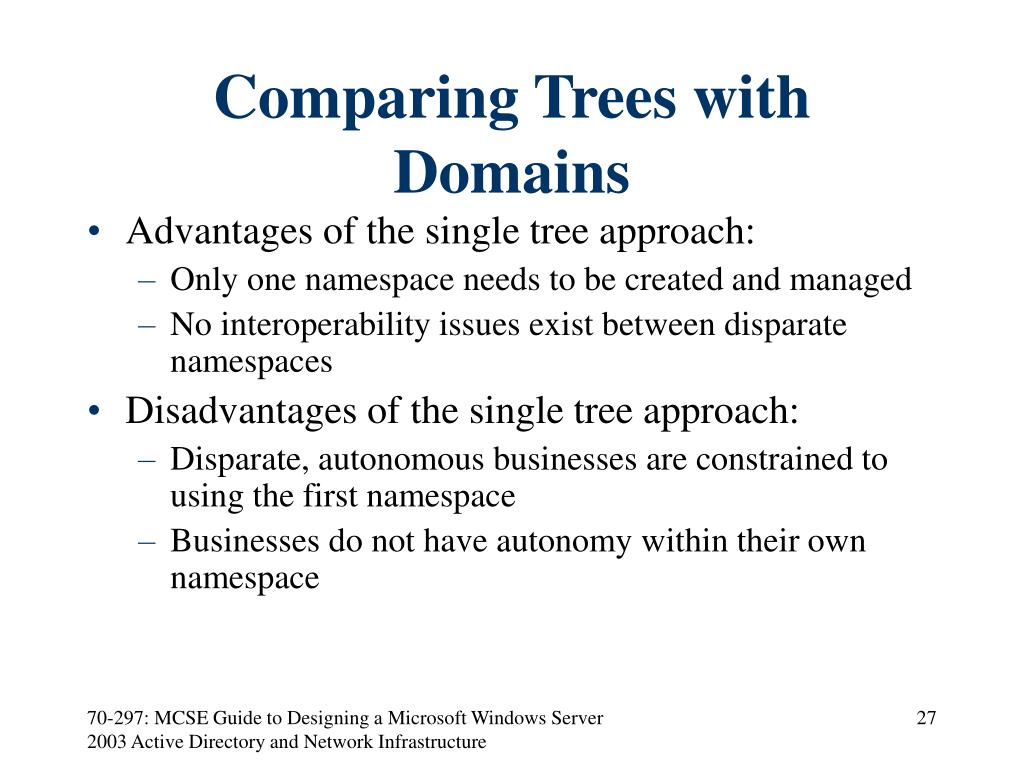

  27. Comparing Trees with Domains • Advantages of the single tree approach: • Only one namespace needs to be created and managed • No interoperability issues exist between disparate namespaces • Disadvantages of the single tree approach: • Disparate, autonomous businesses are constrained to using the first namespace • Businesses do not have autonomy within their own namespace 70-297: MCSE Guide to Designing a Microsoft Windows Server 2003 Active Directory and Network Infrastructure

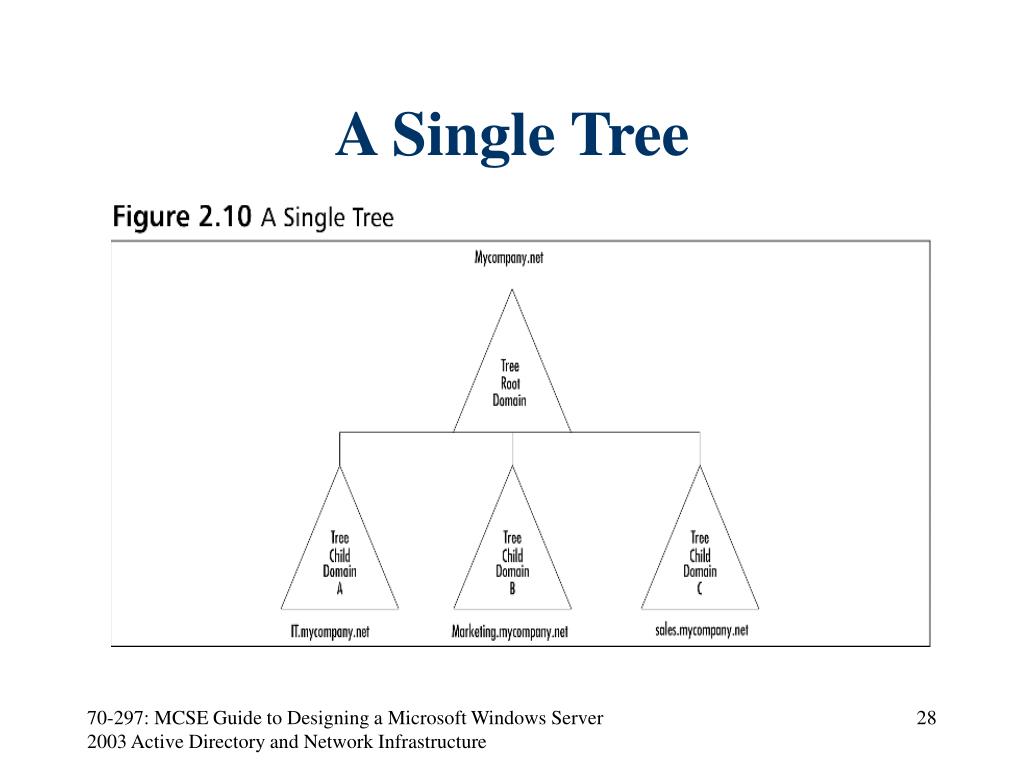

  28. A Single Tree 70-297: MCSE Guide to Designing a Microsoft Windows Server 2003 Active Directory and Network Infrastructure

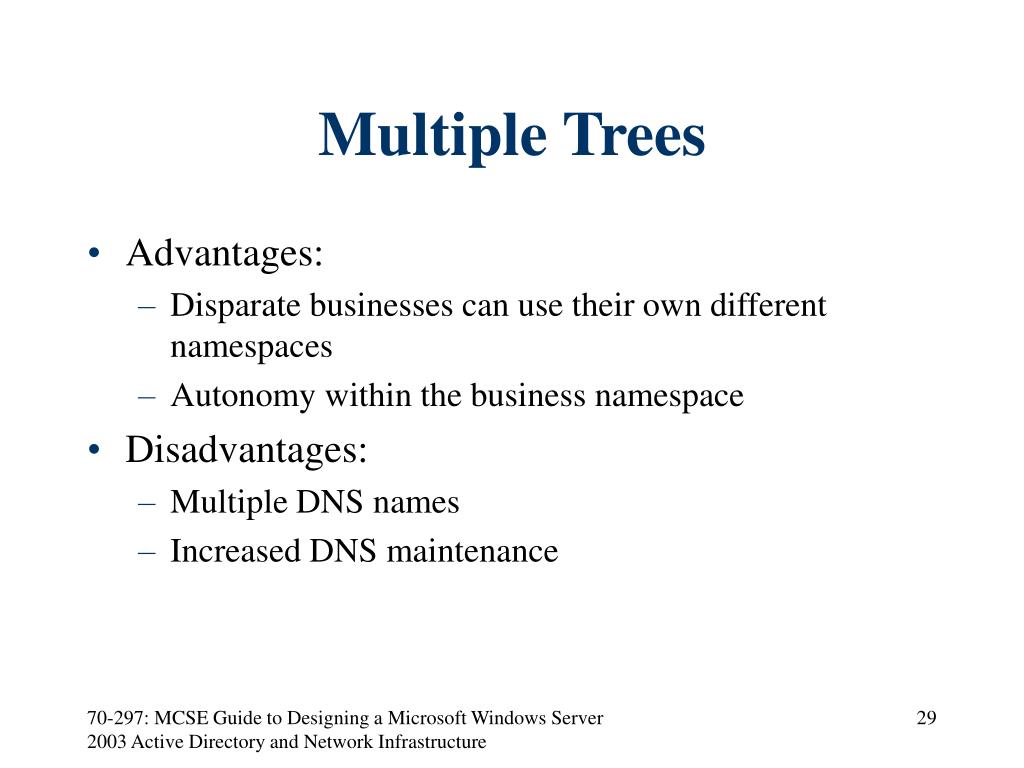

  29. Multiple Trees • Advantages: • Disparate businesses can use their own different namespaces • Autonomy within the business namespace • Disadvantages: • Multiple DNS names • Increased DNS maintenance 70-297: MCSE Guide to Designing a Microsoft Windows Server 2003 Active Directory and Network Infrastructure

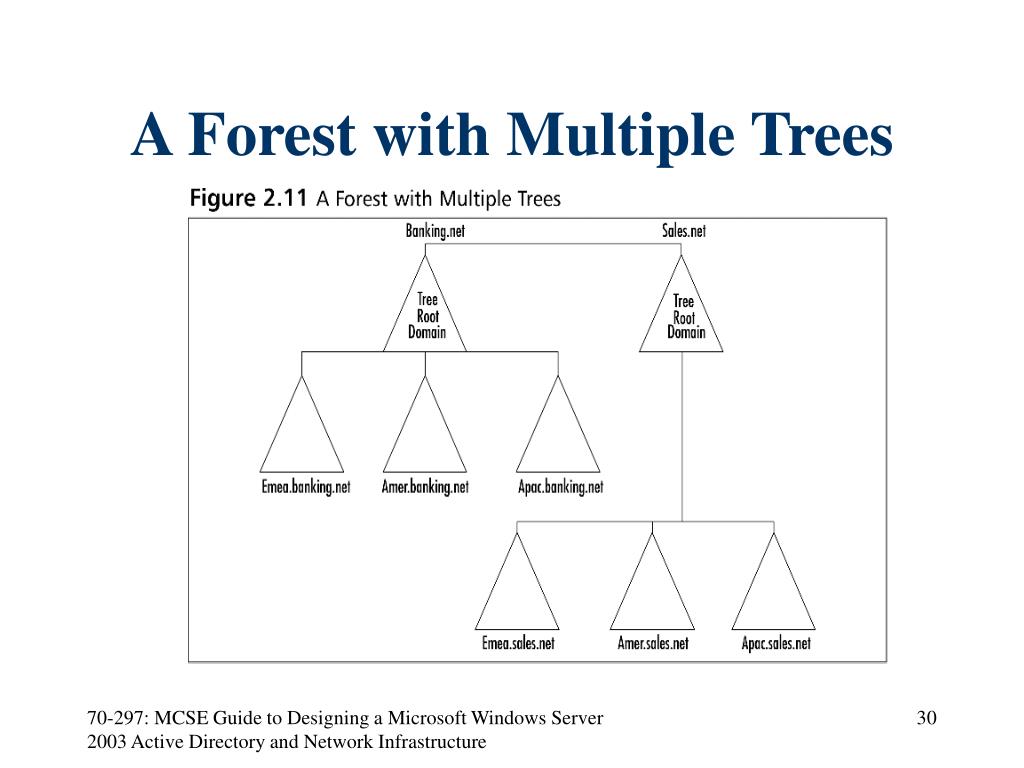

  30. A Forest with Multiple Trees 70-297: MCSE Guide to Designing a Microsoft Windows Server 2003 Active Directory and Network Infrastructure

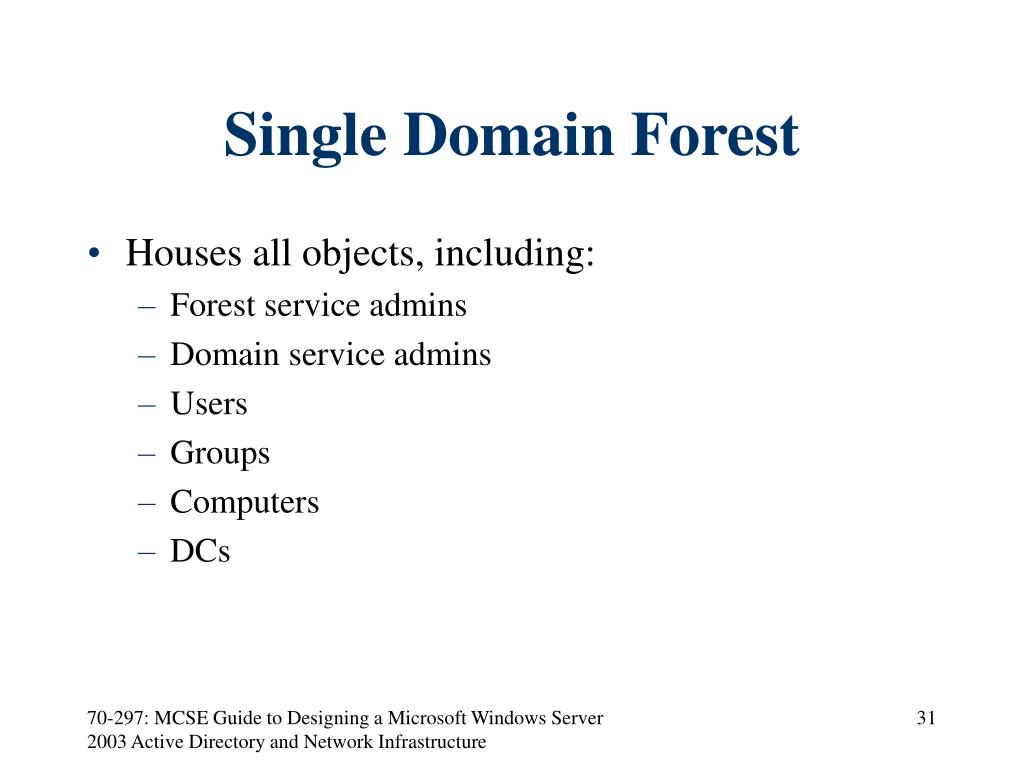

  31. Single Domain Forest • Houses all objects, including: • Forest service admins • Domain service admins • Users • Groups • Computers • DCs 70-297: MCSE Guide to Designing a Microsoft Windows Server 2003 Active Directory and Network Infrastructure

  32. Advantages and Disadvantages of a Single Domain Forest 70-297: MCSE Guide to Designing a Microsoft Windows Server 2003 Active Directory and Network Infrastructure

  33. Developing the OU Model • OU design factors are dictated by: • The way in which the business is administered • The way in which group policy needs to be • The need to hide sensitive objects from users 70-297: MCSE Guide to Designing a Microsoft Windows Server 2003 Active Directory and Network Infrastructure

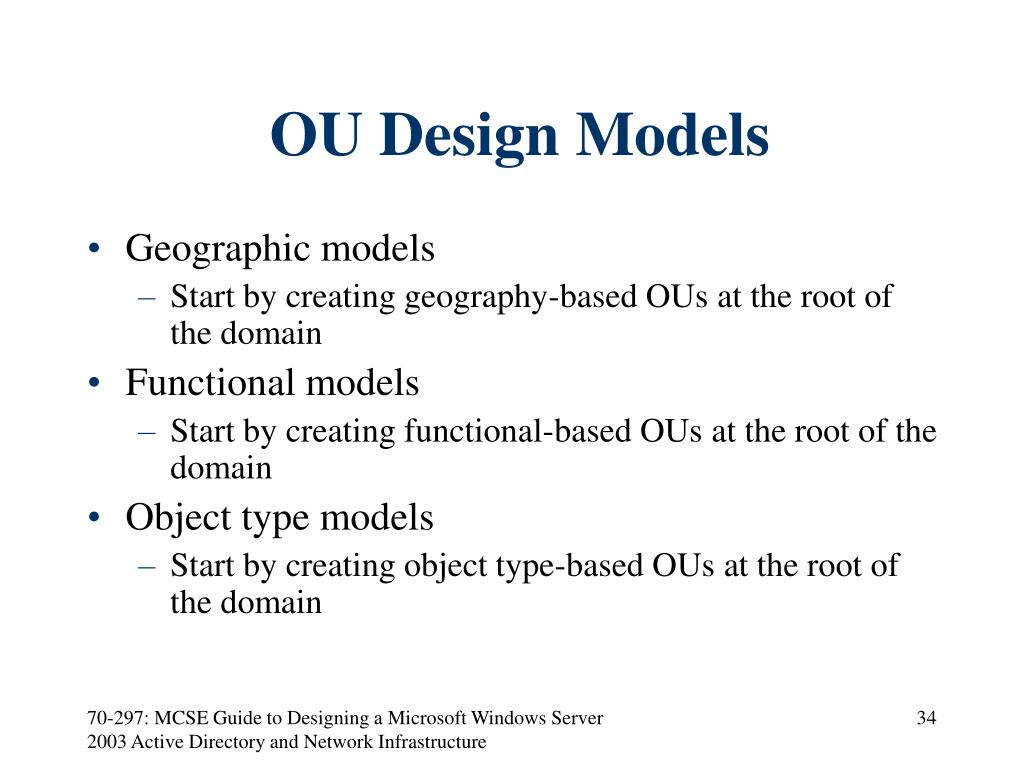

  34. OU Design Models • Geographic models • Start by creating geography-based OUs at the root of the domain • Functional models • Start by creating functional-based OUs at the root of the domain • Object type models • Start by creating object type-based OUs at the root of the domain 70-297: MCSE Guide to Designing a Microsoft Windows Server 2003 Active Directory and Network Infrastructure

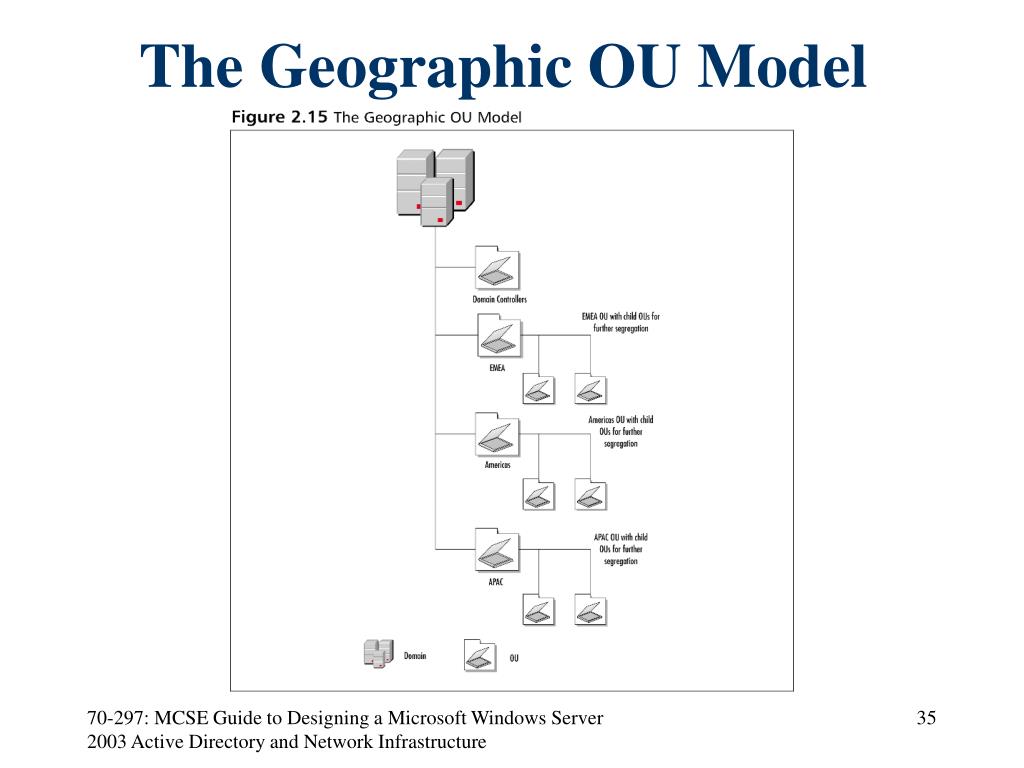

  35. The Geographic OU Model 70-297: MCSE Guide to Designing a Microsoft Windows Server 2003 Active Directory and Network Infrastructure

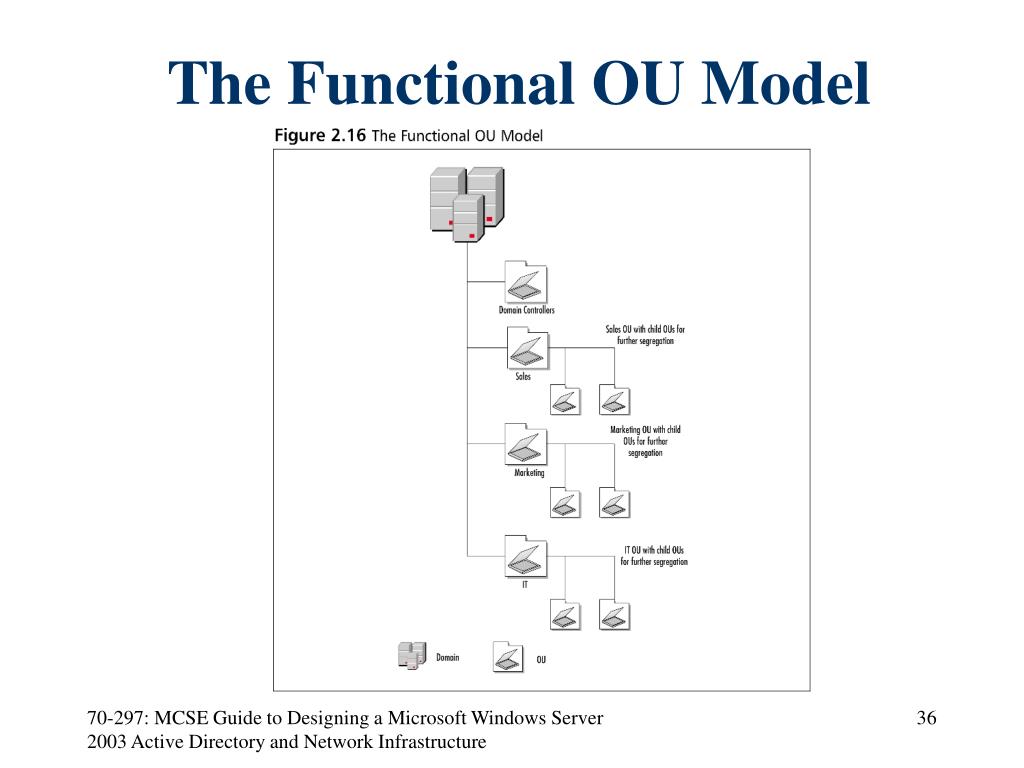

  36. The Functional OU Model 70-297: MCSE Guide to Designing a Microsoft Windows Server 2003 Active Directory and Network Infrastructure

  37. The Object Type OU Model 70-297: MCSE Guide to Designing a Microsoft Windows Server 2003 Active Directory and Network Infrastructure

  38. Developing the Replication Design • Principles and concepts surrounding replication: • Sites • Subnets • Site links • Site link bridges • Connection objects • Multimaster replication 70-297: MCSE Guide to Designing a Microsoft Windows Server 2003 Active Directory and Network Infrastructure

  39. Developing the Replication Design (continued) • Principles and concepts surrounding replication: • Knowledge Consistency Checker (KCC) • Inter Site Topology Generator and bridgehead servers • SYSVOL • File Replication System (FRS) • Topology options • Ownership 70-297: MCSE Guide to Designing a Microsoft Windows Server 2003 Active Directory and Network Infrastructure

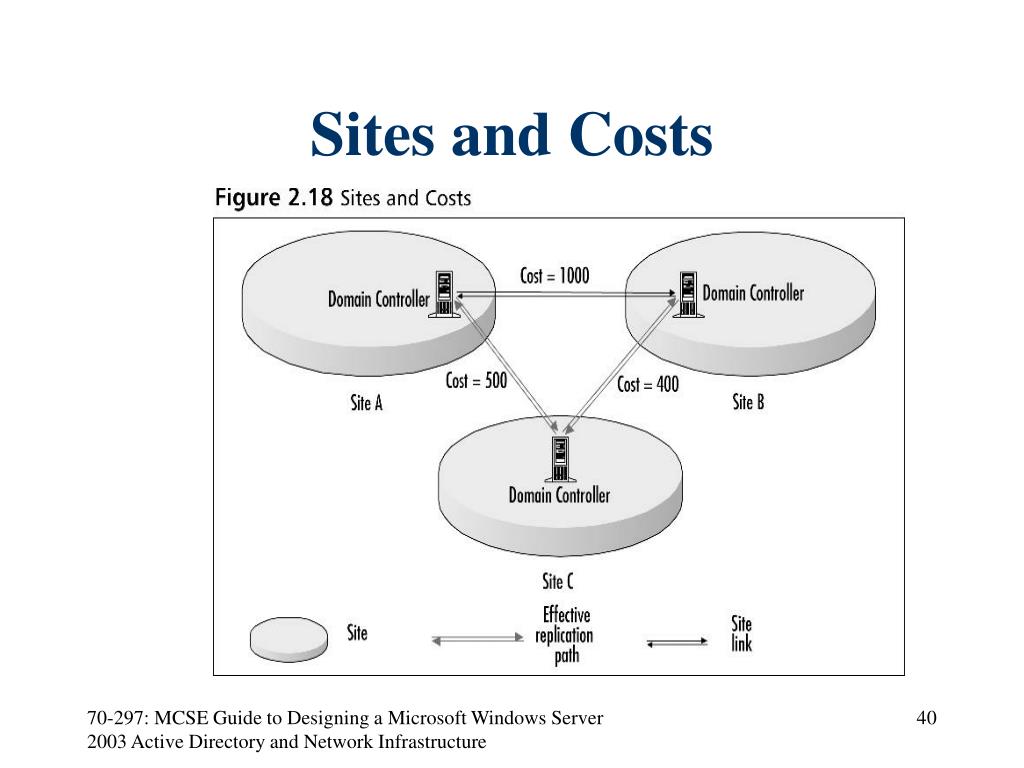

  40. Sites and Costs 70-297: MCSE Guide to Designing a Microsoft Windows Server 2003 Active Directory and Network Infrastructure

  41. Site Link Bridging 70-297: MCSE Guide to Designing a Microsoft Windows Server 2003 Active Directory and Network Infrastructure

  42. The Bridgehead and ISTG Roles 70-297: MCSE Guide to Designing a Microsoft Windows Server 2003 Active Directory and Network Infrastructure

  43. Summary • Service administrators manage the Active Directory infrastructure • Data administrators manage data contained within Active Directory and member computers • If service or data isolation is required, create a separate forest • If disparate schemas or Configuration partition data is required, create a separate forest 70-297: MCSE Guide to Designing a Microsoft Windows Server 2003 Active Directory and Network Infrastructure

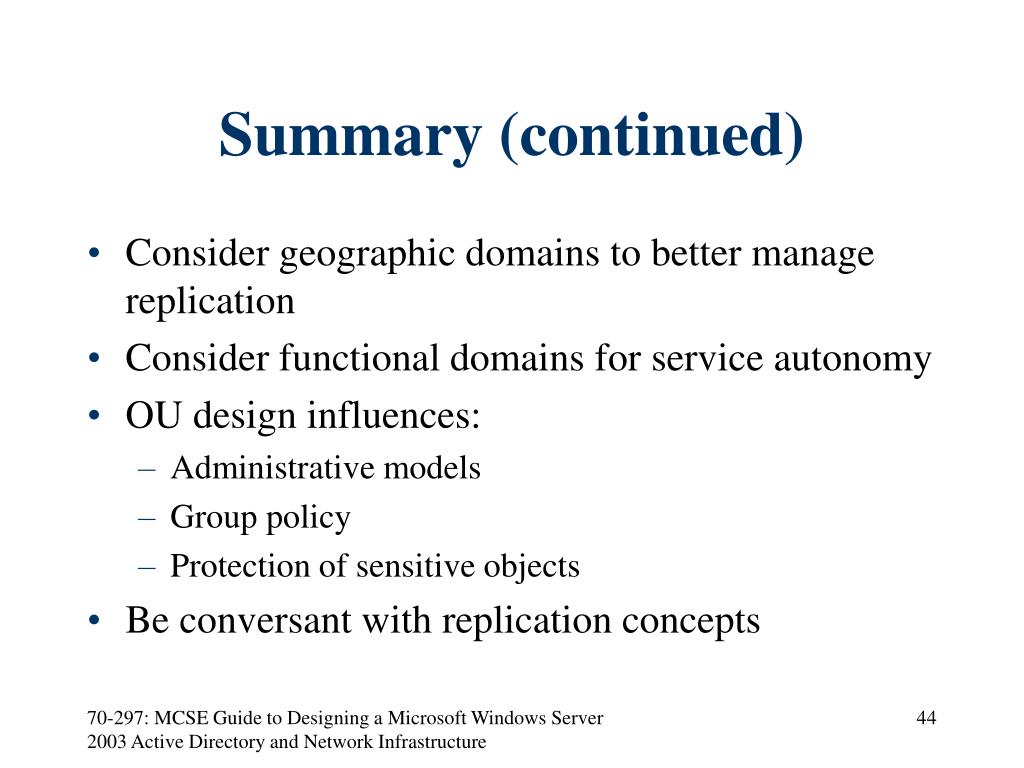

  44. Summary (continued) • Consider geographic domains to better manage replication • Consider functional domains for service autonomy • OU design influences: • Administrative models • Group policy • Protection of sensitive objects • Be conversant with replication concepts 70-297: MCSE Guide to Designing a Microsoft Windows Server 2003 Active Directory and Network Infrastructure
