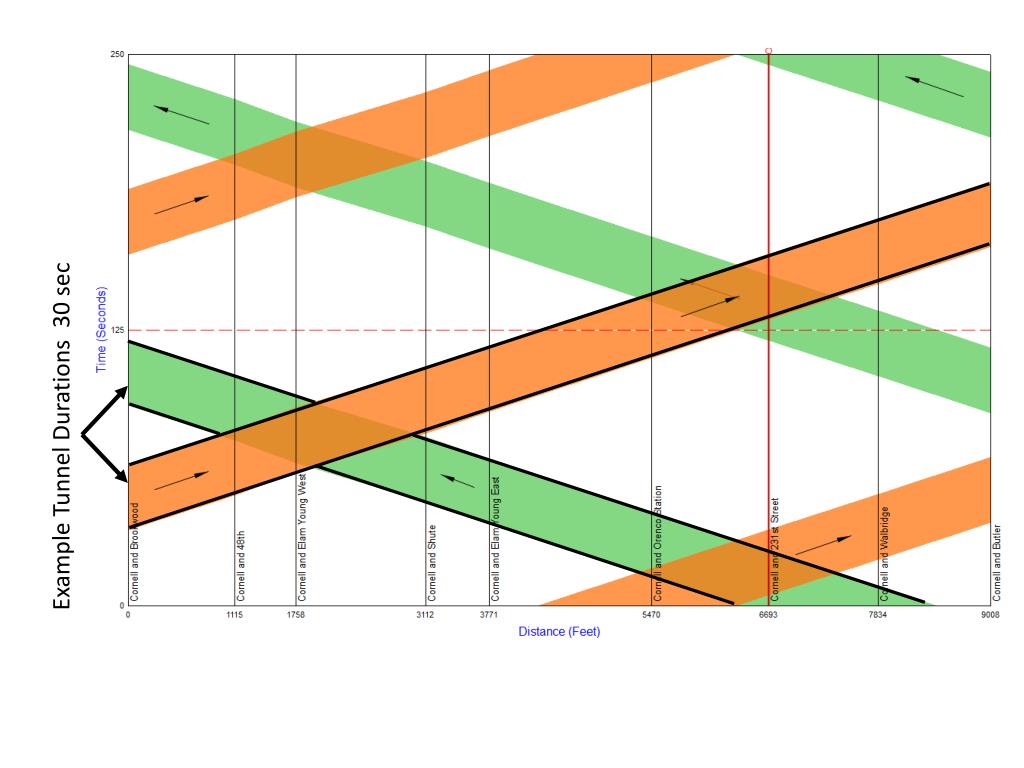

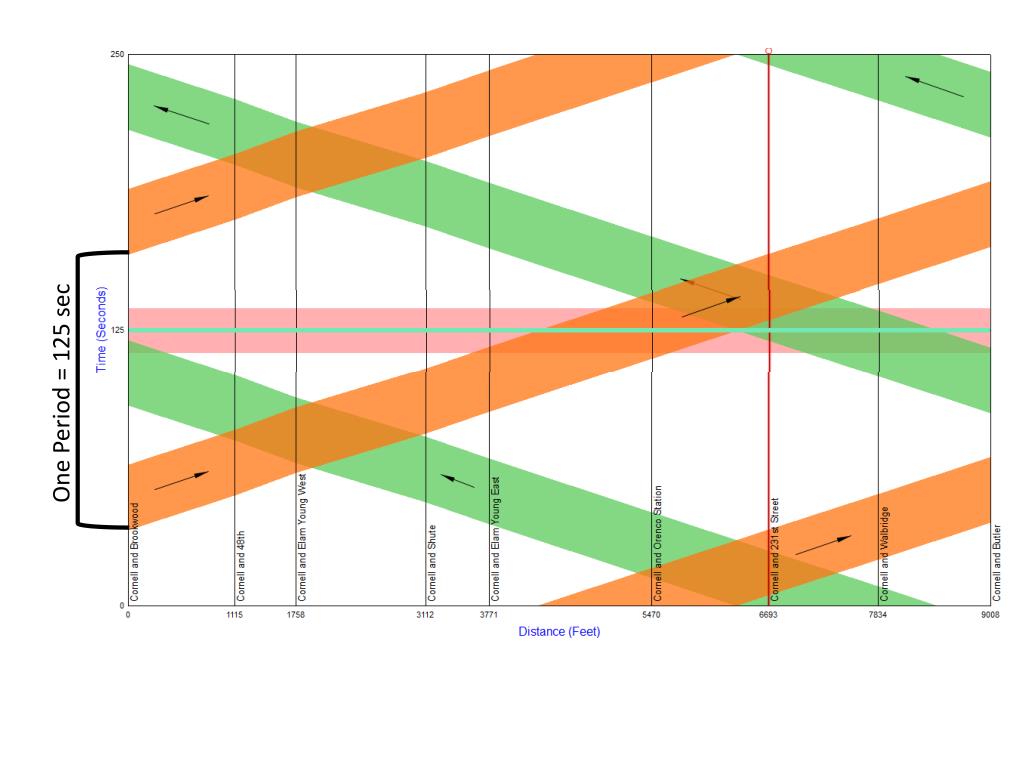

One Period = 125 sec. Example Tunnel Durations 30 sec. Unique Offsets. One Period = 105 sec. Explicit Durations. Dynamic Timeframe. One Period = 125 sec. Additional Time Given for Secondary Movements. Shifted Period = 128 sec. Shifted Period = 120 sec. Dynamic Timeframe.

loader
I am the owner, or an agent authorized to act on behalf of the owner, of the copyrighted work described.
capcha
Download Presentation

PowerPoint Slideshow about 'One Period = 125 sec' - gil


An Image/Link below is provided (as is) to download presentation

Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author.While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server.


- - - - - - - - - - - - - - - - - - - - - - - - - - E N D - - - - - - - - - - - - - - - - - - - - - - - - - -
Presentation Transcript
slide3

Unique

Offsets

One Period = 105 sec

Explicit

Durations

slide4

Dynamic

Timeframe

One Period = 125 sec

slide5

Additional

Time Given for

Secondary Movements

Shifted Period = 128 sec

slide7

Dynamic

Timeframe

One Period = 125 sec

slide8

Dynamic

Timeframe

One Period = 125 sec

slide9

Normal Operations

Decreased Period

Service

Timeframe is

Normalized

Period Shifts Down – step 2

slide10

Service

Timeframe

Decreases

Period

Shift

Service

Timeframe

Increases

Period

Shift

Initial Period Shift

Normal Operations

Service

Timeframe

Expands

Period Shifts Down – step 1

slide11

Normal Operations

Increased Period

Service

Timeframe is

Normalized

Period Shifts Up – step 2

slide12

Service

Timeframe

Increases

Period

Shift

Service

Timeframe

Decreases

Period

Shift

Initial Shifted Period

Normal Operations

Period Shifts Up – step 1

slide13

Normal Operations

Normal Operations

Timeframe Imbalances

without Transition

Increased Period

Irregular & Somewhat Close Intersection Spacing

Normal Operations

slide14

Potential to

Reduce Optimal

Pedestrian Service

Service

Timeframe

Decreases

Initial Period Shift

Normal Operations

Service

Timeframe

Expands

Period Shifts Down – Pedestrian Implication

slide16

Allowable States or Phase Pairs (User Determined)

Allowable Sequences (User Determined)

North South Lead

East West Lead

North South Lead North Overlap

East West Lead East Overlap

North South Lead South Overlap

East West Lead West Overlap

North South Lag

East West Lag

North South Lag North Overlap

East West Lag East Overlap

North South Lag South Overlap

East West Lag West Overlap

South Lead North Lag

West Lead East Lag

North Lead South Lag

East Lead West Lag

slide17

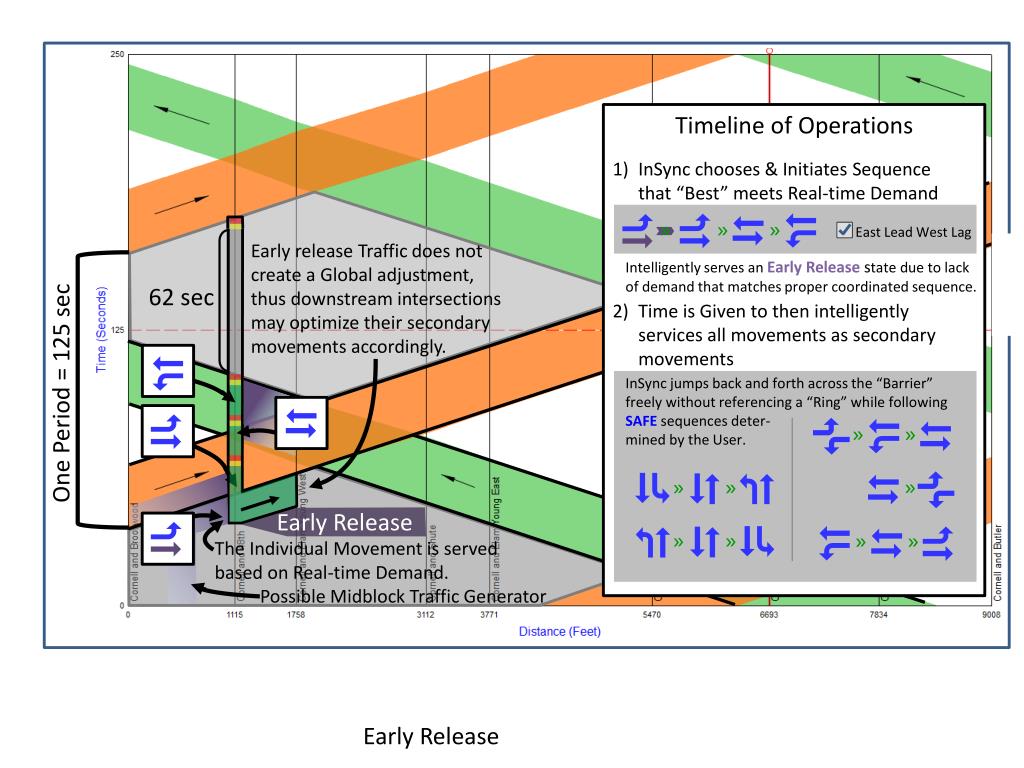

Timeline of Operations
