1. Verilog HDL

2. HDLs • Hardware Description Languages • Widely used in logic design • Verilog and VHDL • Describe hardware using code • Document logic functions • Simulate logic before building • Synthesize code into gates and layout • Requires a library of standard cells

3. Module name Module ports Declaration of port modes Declaration of internal signal Instantiation of primitive gates Verilog keywords Taste of Verilog module Add_half ( sum, c_out, a, b ); input a, b; output sum, c_out; wire c_out_bar; xor (sum, a, b); nand (c_out_bar, a, b); not (c_out, c_out_bar); endmodule a sum b c_out_bar c_out

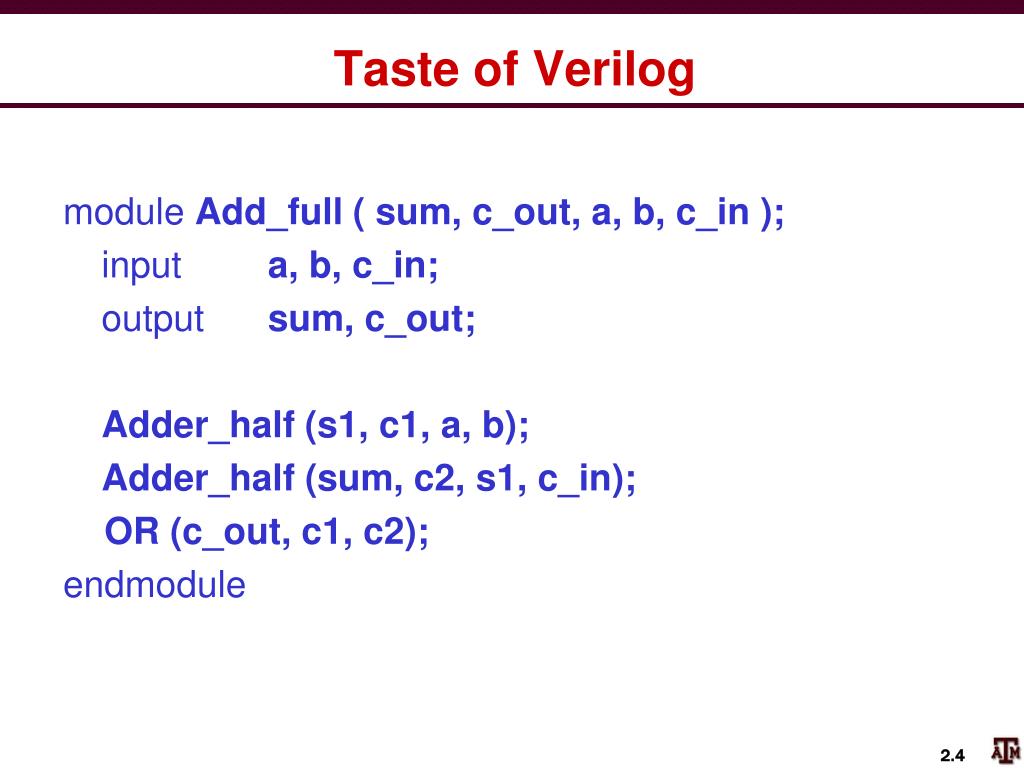

4. Taste of Verilog module Add_full ( sum, c_out, a, b, c_in ); input a, b, c_in; output sum, c_out; Adder_half (s1, c1, a, b); Adder_half (sum, c2, s1, c_in); OR (c_out, c1, c2); endmodule

5. a sum Add_half b c_out Behavioral Description module Add_half ( sum, c_out, a, b ); input a, b; output sum, c_out; reg sum, c_out; always @ ( a or b ) begin sum = a ^ b; // Exclusive or c_out = a & b; // And end endmodule

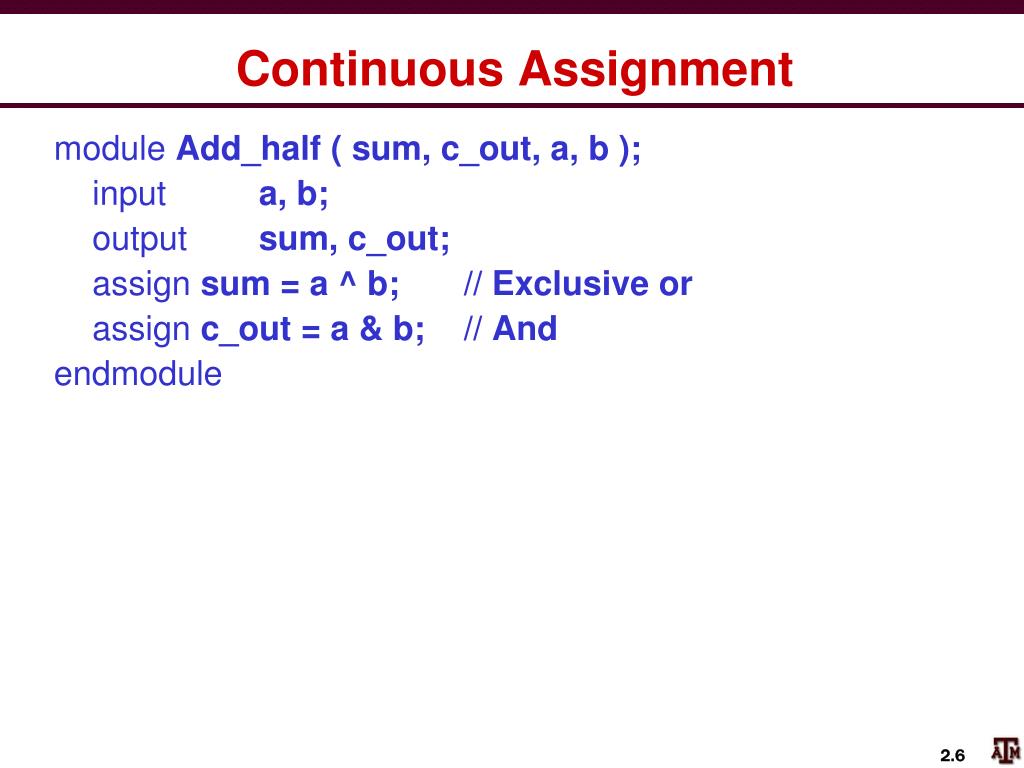

6. Continuous Assignment module Add_half ( sum, c_out, a, b ); input a, b; output sum, c_out; assign sum = a ^ b; // Exclusive or assign c_out = a & b; // And endmodule

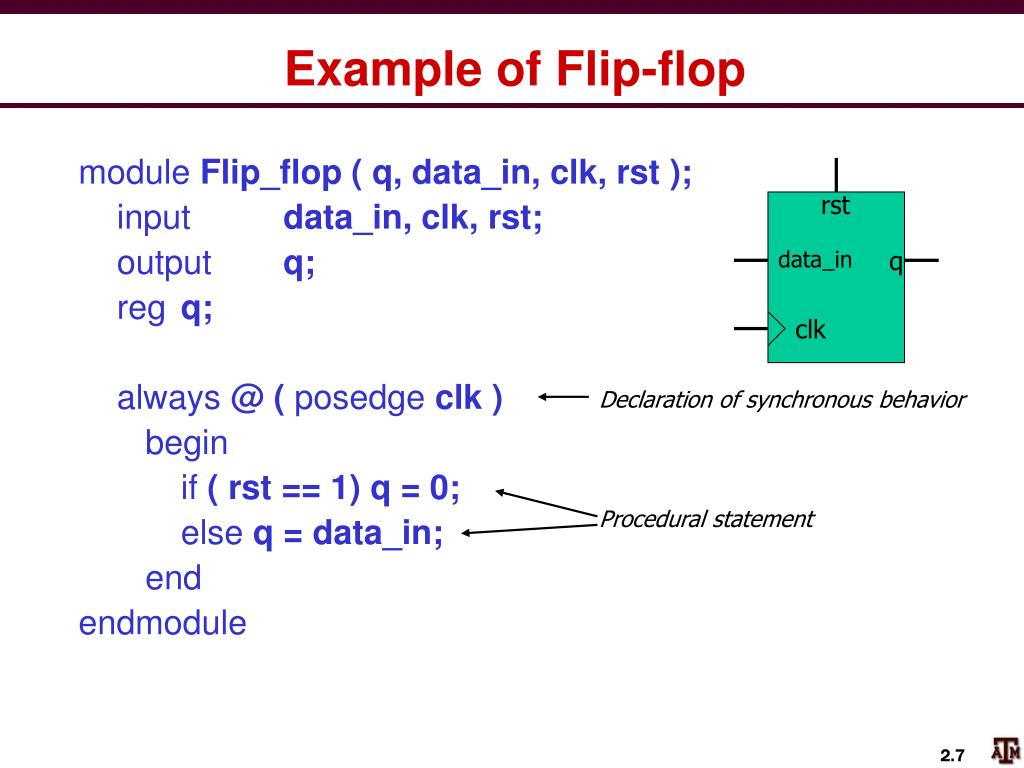

7. rst data_in q clk Declaration of synchronous behavior Procedural statement Example of Flip-flop module Flip_flop ( q, data_in, clk, rst ); input data_in, clk, rst; output q; reg q; always @ ( posedge clk ) begin if ( rst == 1) q = 0; else q = data_in; end endmodule

8. Gate Delay • and (yout, x1, x2); // default, zero gate delay • and #3 (yout, x1, x2); // 3 units delay for all transitions • and #(2,3) G1(yout, x1, x2); // rising, falling delay • and #(2,3) G1(yout, x1, x2), G2(yout2, x3, x4); // Multiple instances

9. Time Scales • Time scale directive: ‘ timescale <time_unit>/<time_precision> • time_unit -> physical unit of measure, time scale of delay • time_precision -> time resolution/minimum step size during simulation • time_unit  time_precision

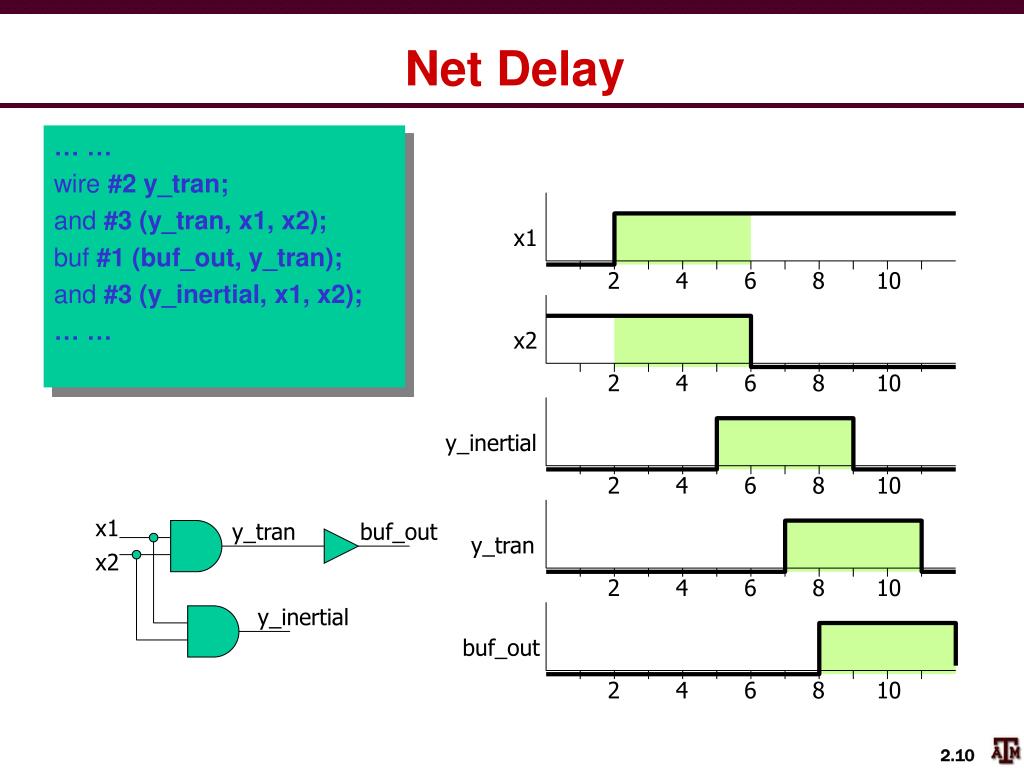

10. 2 2 2 2 2 4 4 4 4 4 6 6 6 6 6 8 8 8 8 8 10 10 10 10 10 Net Delay … … wire #2 y_tran; and #3 (y_tran, x1, x2); buf #1 (buf_out, y_tran); and #3 (y_inertial, x1, x2); … … x1 x2 y_inertial x1 y_tran buf_out y_tran x2 y_inertial buf_out

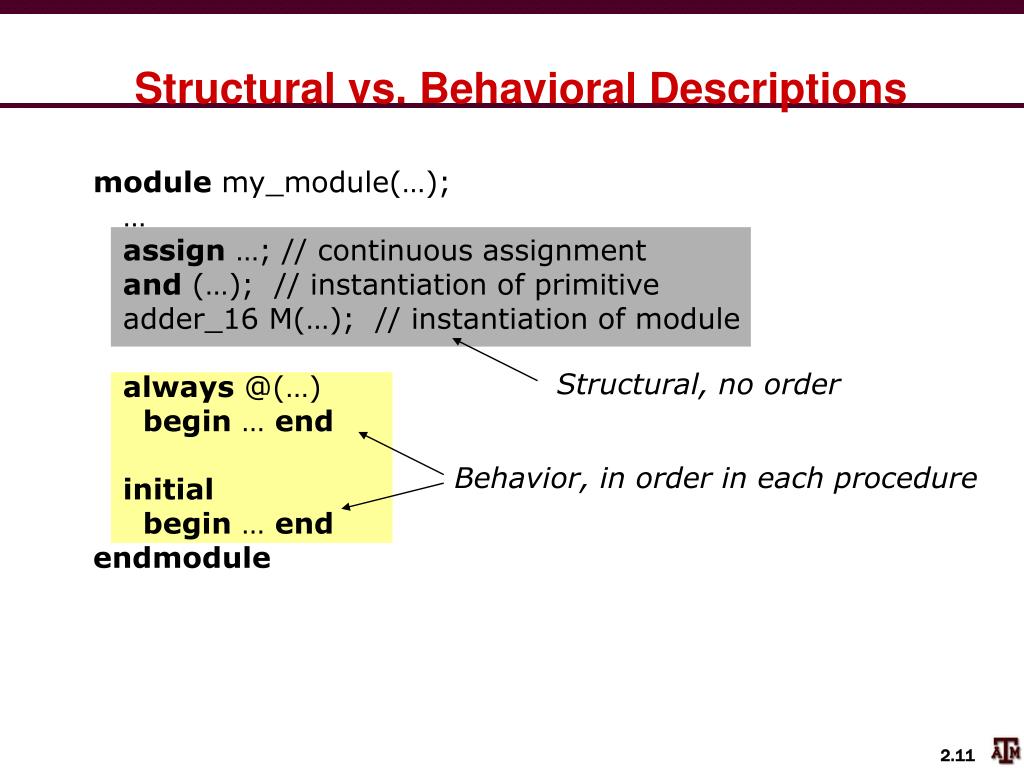

11. Structural vs. Behavioral Descriptions module my_module(…); … assign …; // continuous assignment and (…); // instantiation of primitive adder_16 M(…); // instantiation of module always @(…) begin … end initial begin … end endmodule Structural, no order Behavior, in order in each procedure

12. initial | always single_statement; | begin block_of_statements; end initial Activated from tsim = 0 Executed once Initialize a simulation always Activated from tsim = 0 Executed cyclically Continue till simulation terminates Behavioral Statements

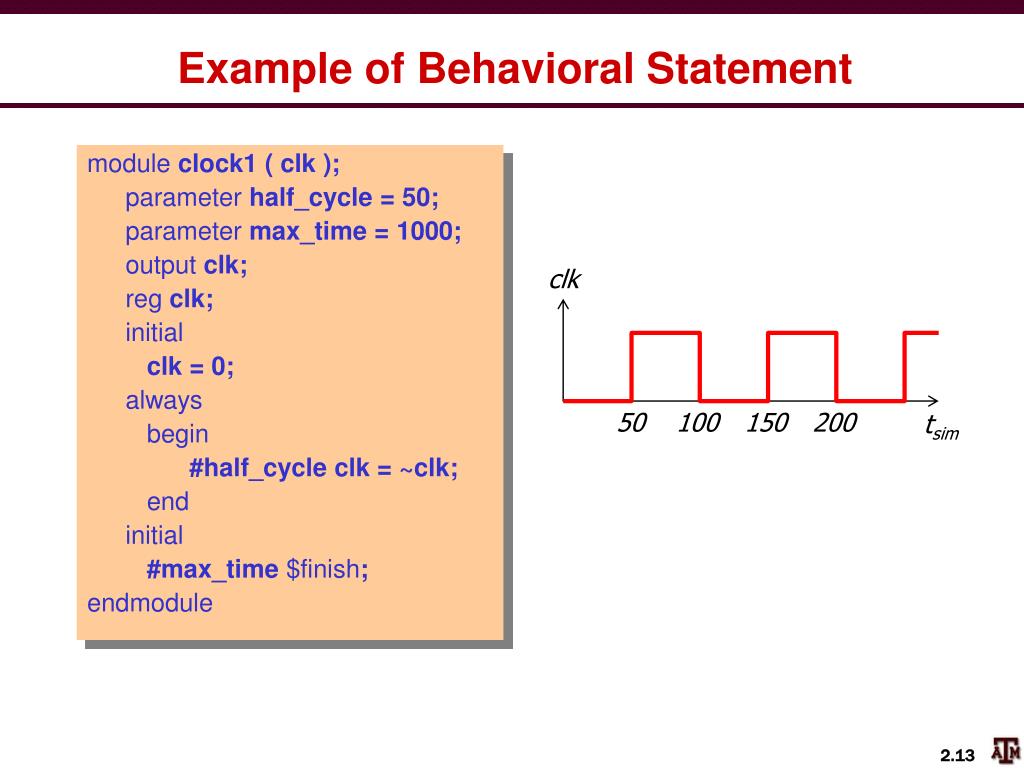

13. Example of Behavioral Statement module clock1 ( clk ); parameter half_cycle = 50; parameter max_time = 1000; output clk; reg clk; initial clk = 0; always begin #half_cycle clk = ~clk; end initial #max_time $finish; endmodule clk 50 100 150 200 tsim

14. Assignment • Continuous assignment • Values are assigned to net variables due to some input variable changes • “assign …=… “ • Procedural assignment • Values are assigned to register variables when certain statement is executed in a behavioral description • Procedural assignment, “=“

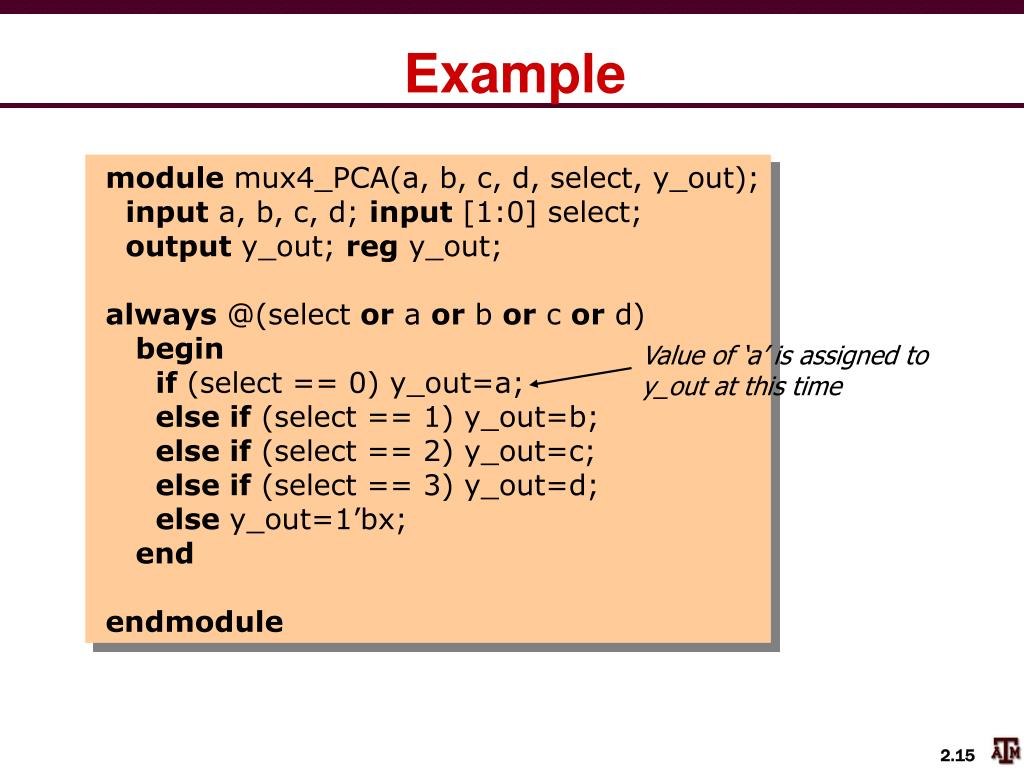

15. Example module mux4_PCA(a, b, c, d, select, y_out); input a, b, c, d; input [1:0] select; output y_out; reg y_out; always @(select or a or b or c or d) begin if (select == 0) y_out=a; else if (select == 1) y_out=b; else if (select == 2) y_out=c; else if (select == 3) y_out=d; else y_out=1’bx; end endmodule Value of ‘a’ is assigned to y_out at this time

16. initial begin a = 1; b = 0; a = b; // a = 0; b = a; // b = 0; end initial begin a = 1; b = 0; a <= b; // a = 0; b <= a; // b = 1; end Blocking assignment “=“ Statement order matters A statement has to be executed before next statement Non-blocking assignment “<=“ Concurrent assignment If there are multiple non-blocking assignments to same variable in same behavior, latter overwrites previous Blocking and Non-blocking Assignment

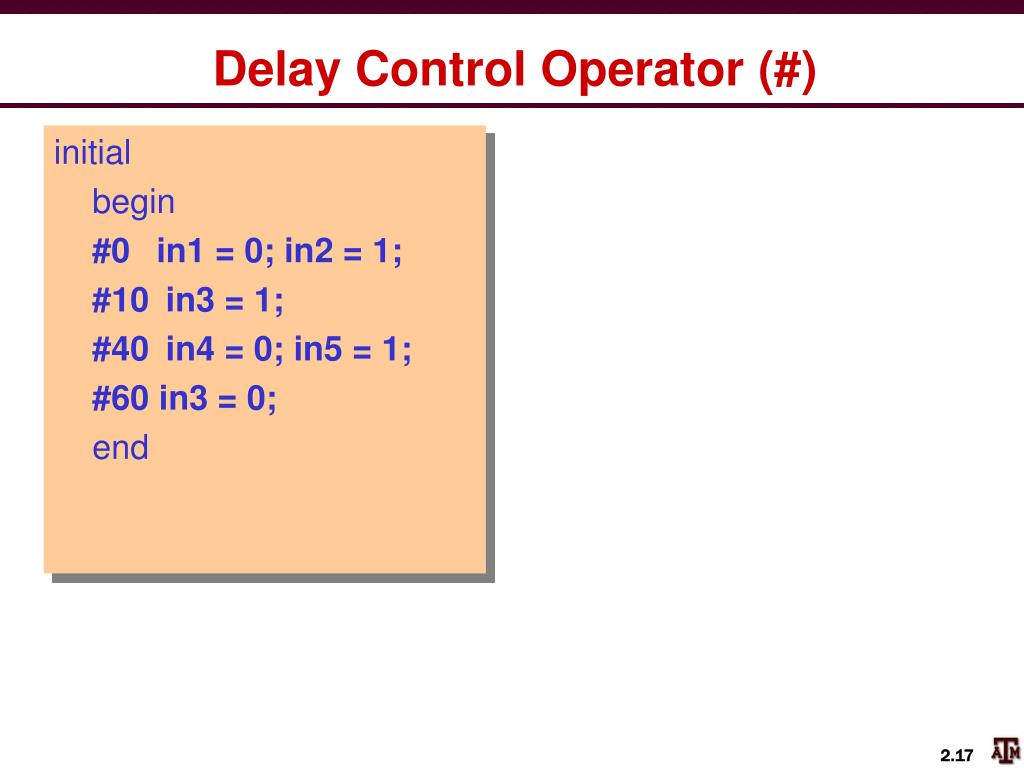

17. Delay Control Operator (#) initial begin #0 in1 = 0; in2 = 1; #10 in3 = 1; #40 in4 = 0; in5 = 1; #60 in3 = 0; end

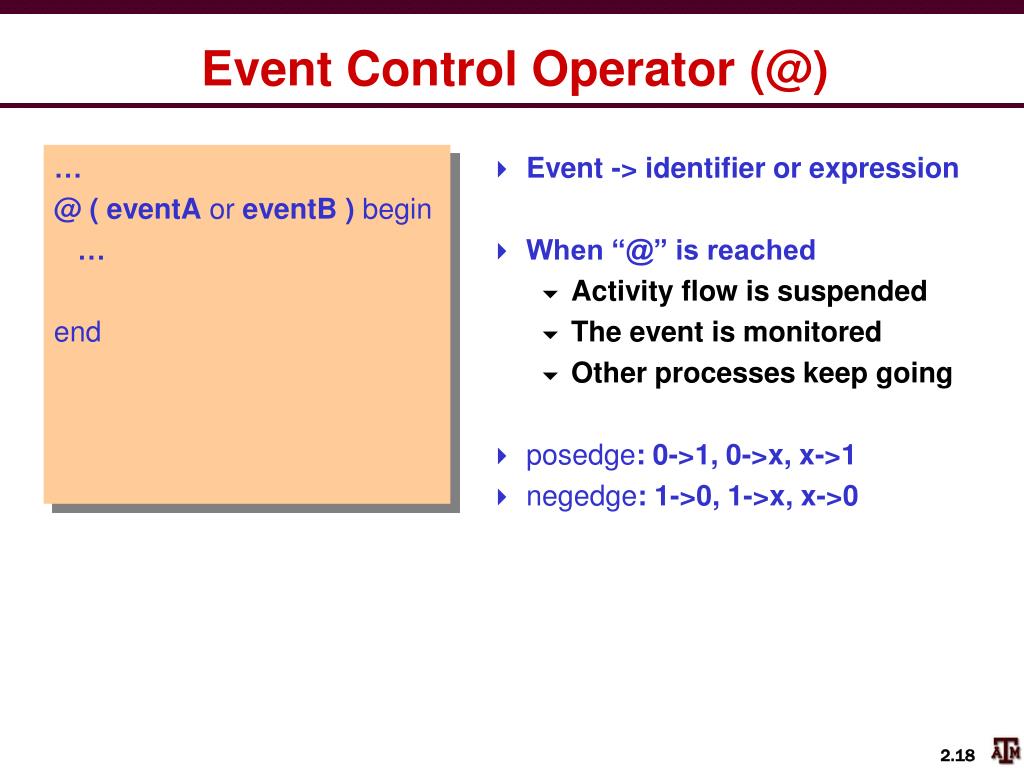

18. … @ ( eventA or eventB ) begin … end Event -> identifier or expression When “@” is reached Activity flow is suspended The event is monitored Other processes keep going posedge: 0->1, 0->x, x->1 negedge: 1->0, 1->x, x->0 Event Control Operator (@)

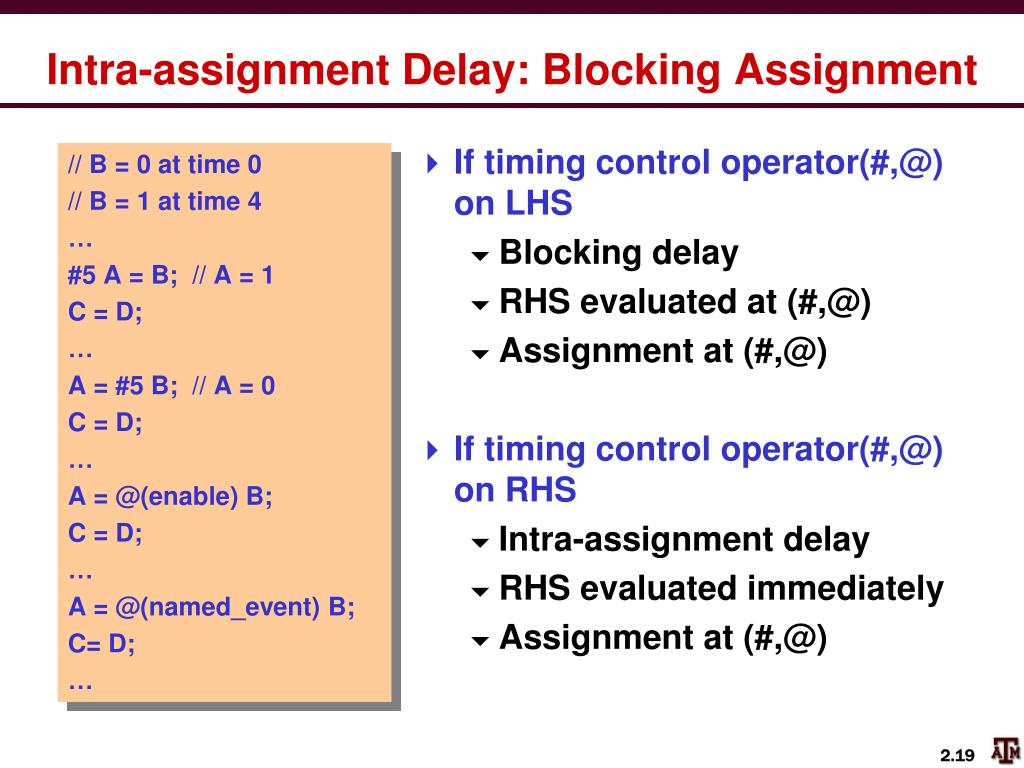

19. // B = 0 at time 0 // B = 1 at time 4 … #5 A = B; // A = 1 C = D; … A = #5 B; // A = 0 C = D; … A = @(enable) B; C = D; … A = @(named_event) B; C= D; … If timing control operator(#,@) on LHS Blocking delay RHS evaluated at (#,@) Assignment at (#,@) If timing control operator(#,@) on RHS Intra-assignment delay RHS evaluated immediately Assignment at (#,@) Intra-assignment Delay: Blocking Assignment

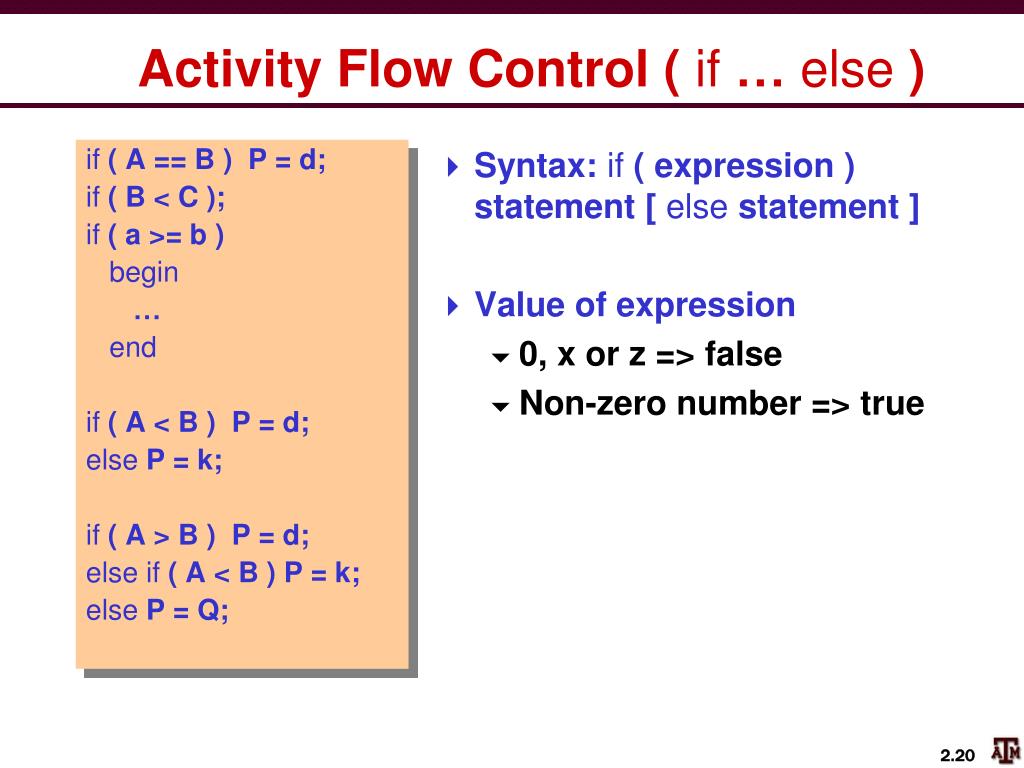

20. if ( A == B ) P = d; if ( B < C ); if ( a >= b ) begin … end if ( A < B ) P = d; else P = k; if ( A > B ) P = d; else if ( A < B ) P = k; else P = Q; Syntax: if ( expression ) statement [ else statement ] Value of expression 0, x or z => false Non-zero number => true Activity Flow Control ( if … else )

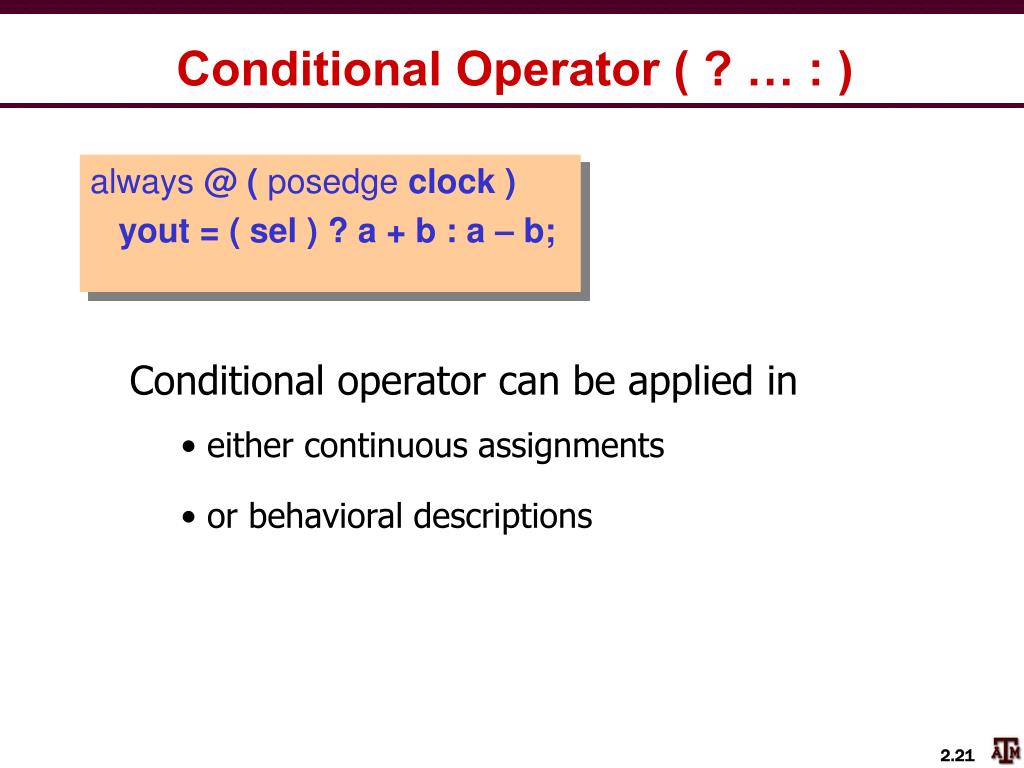

21. Conditional Operator ( ? … : ) always @ ( posedge clock ) yout = ( sel ) ? a + b : a – b; • Conditional operator can be applied in • either continuous assignments • or behavioral descriptions

22. module mux4 ( a, b, c, d, select, yout ); input a, b, c, d; input [1:0] select; output yout; reg yout; always @( a or b or c or d or select ) begin case ( select ) 0: yout = a; 1: yout = b; 2: yout = c; 3: yout = d; default yout = 1`bx; endcase endmodule Case items are examined in order Exact match between case expression and case item casez – treats “z” as don’t cares casex – treats both “x” and “z” as don’t cares The case Statement

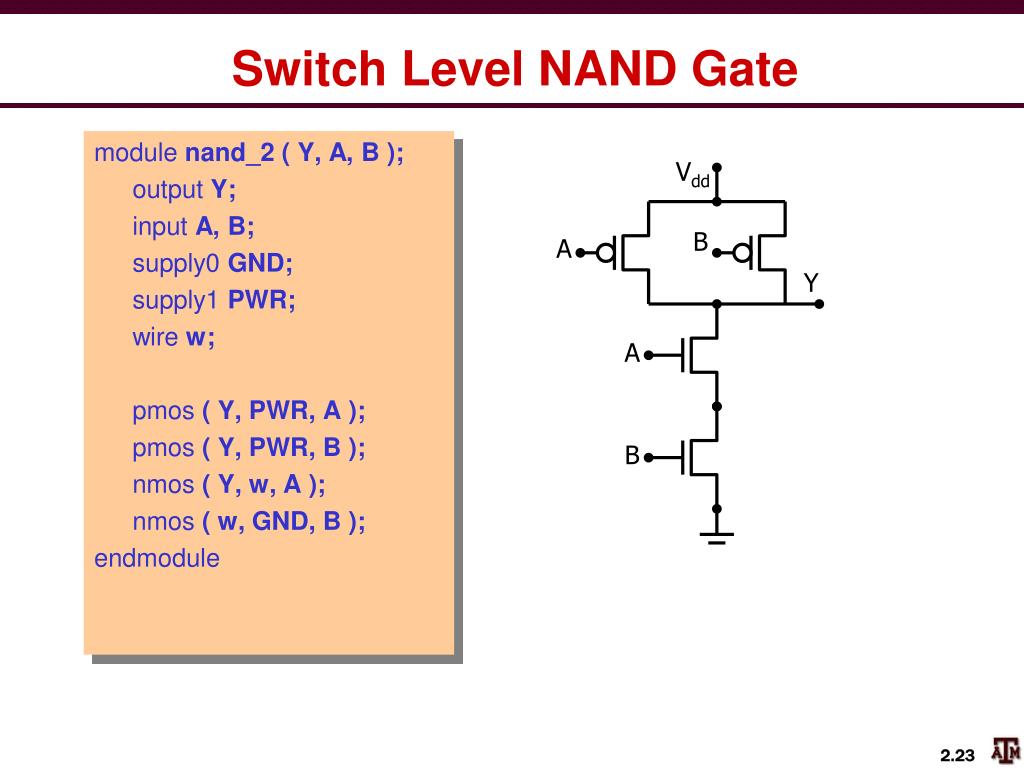

23. Switch Level NAND Gate module nand_2 ( Y, A, B ); output Y; input A, B; supply0 GND; supply1 PWR; wire w; pmos ( Y, PWR, A ); pmos ( Y, PWR, B ); nmos ( Y, w, A ); nmos ( w, GND, B ); endmodule Vdd B A Y A B
