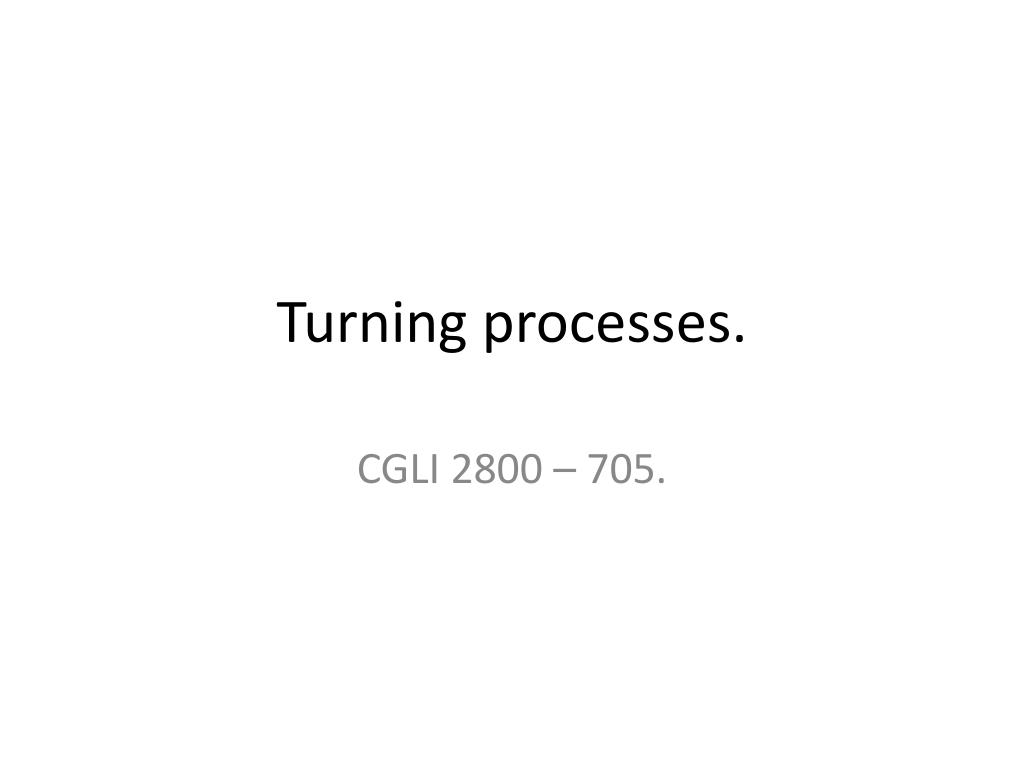

  1. Turning processes. CGLI 2800 – 705.

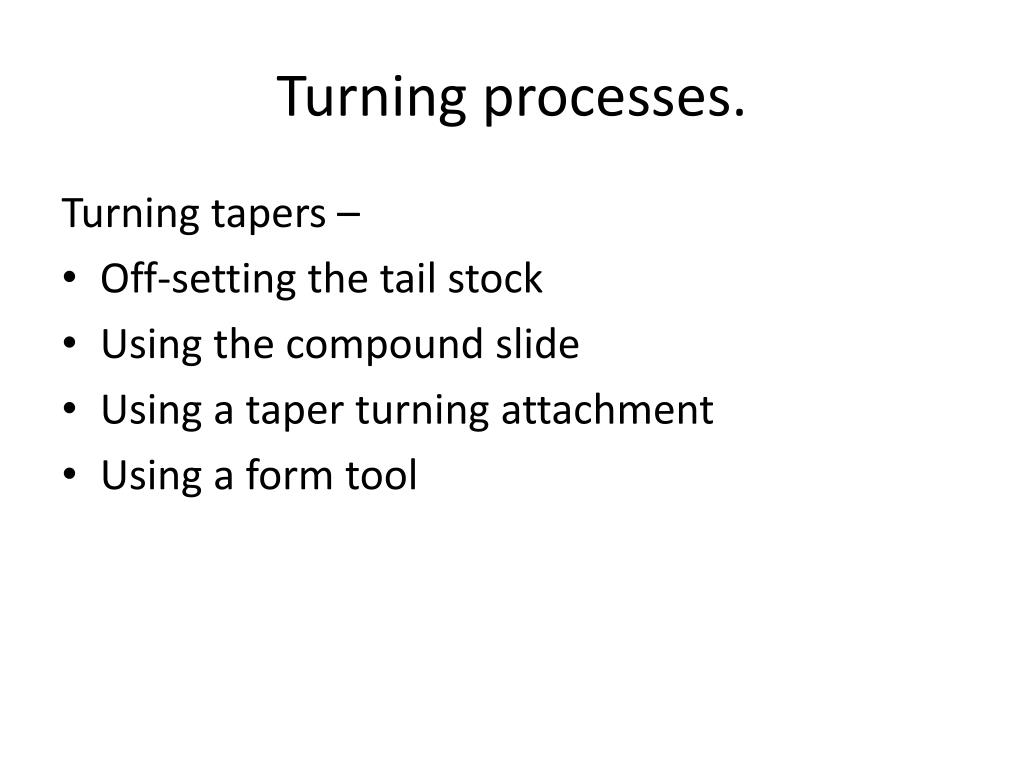

  2. Turning processes. Turning tapers – • Off-setting the tail stock • Using the compound slide • Using a taper turning attachment • Using a form tool

  3. Turning processes. Fixed steady – supports work piece when protruding from chuck. Taper turning attachment - used in conjunction with feed mechanism. Taper turning. Image:http://www.astronomiainumbria.org

  4. Turning processes. Tailstock off set – by adjusting tailstock the work piece is deflected from the centre lathe axis to permit tapers to be turned. Headstock end – chuck replaced with dead centre and carrier. Work piece is aligned off set. www.tpub.com/.../Od1645/Od16450071im.jpg Off setting the tailstock.

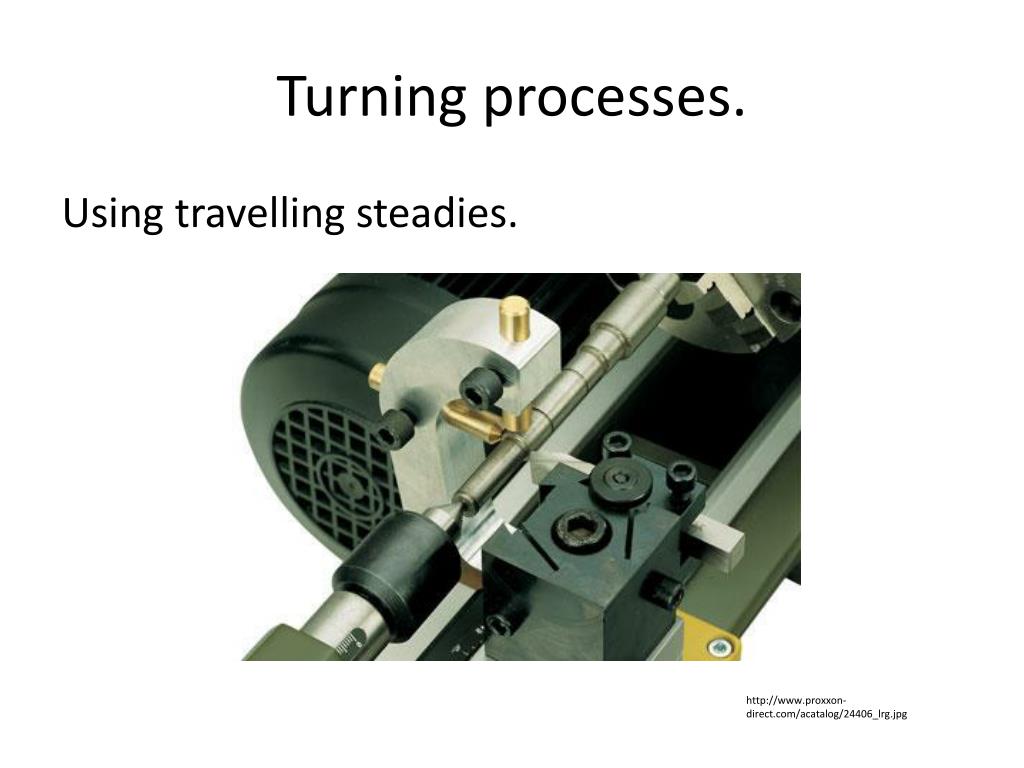

  5. Turning processes. Using travelling steadies. http://www.proxxon-direct.com/acatalog/24406_lrg.jpg

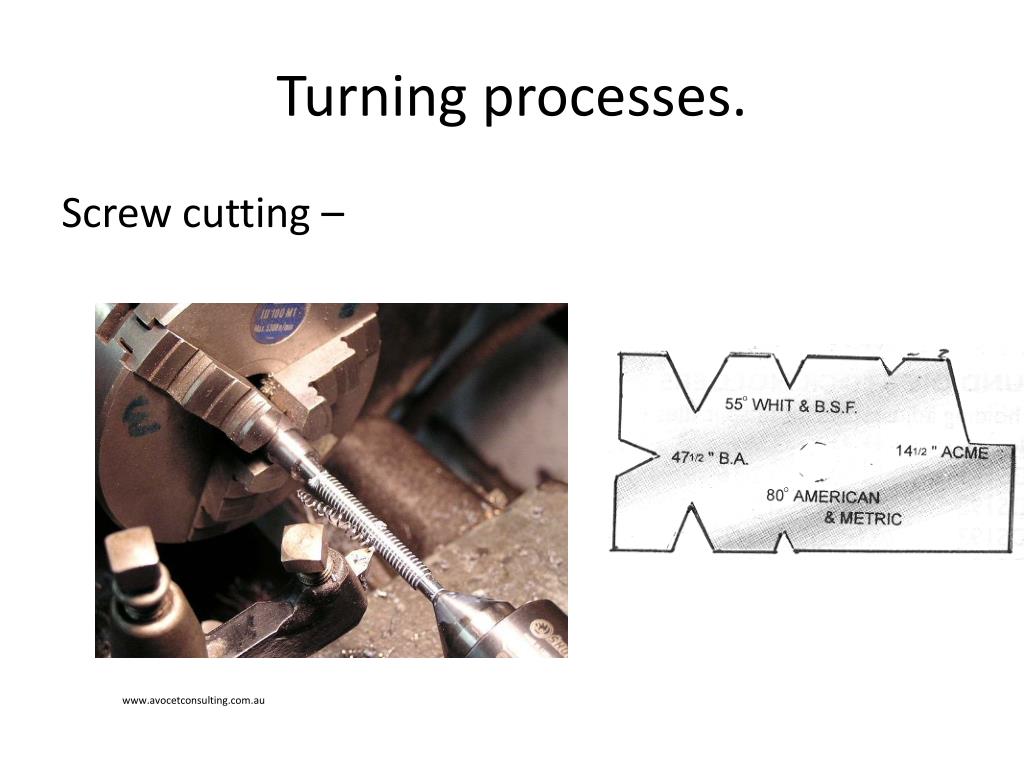

  6. Turning processes. Screw cutting – www.avocetconsulting.com.au
