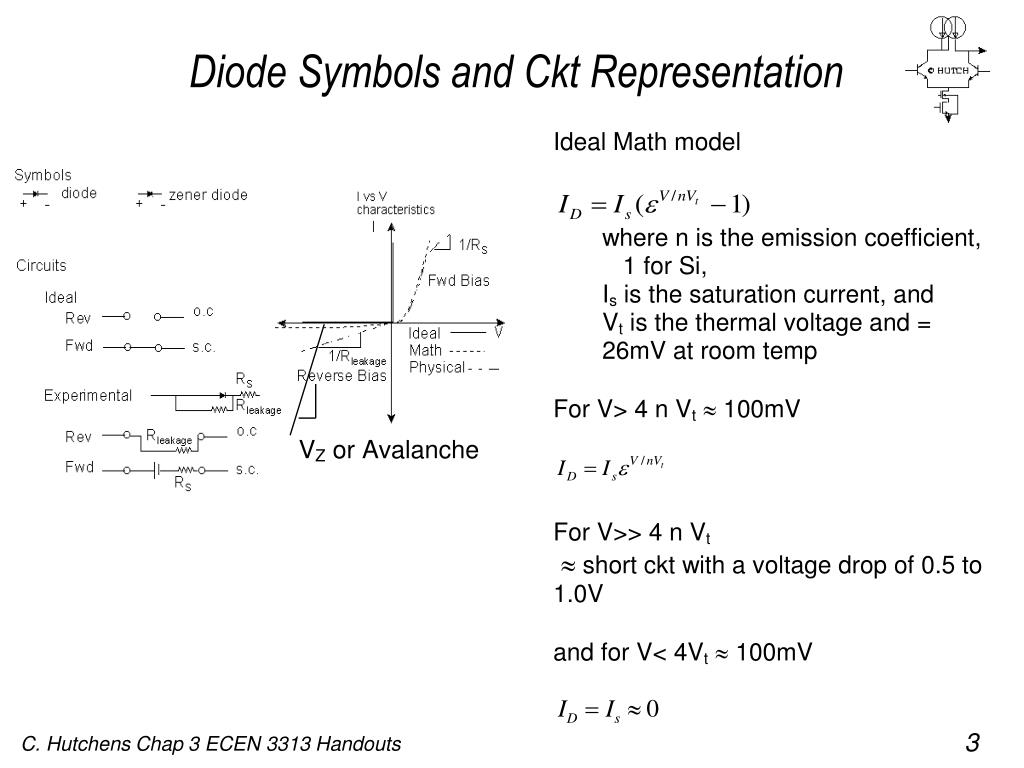

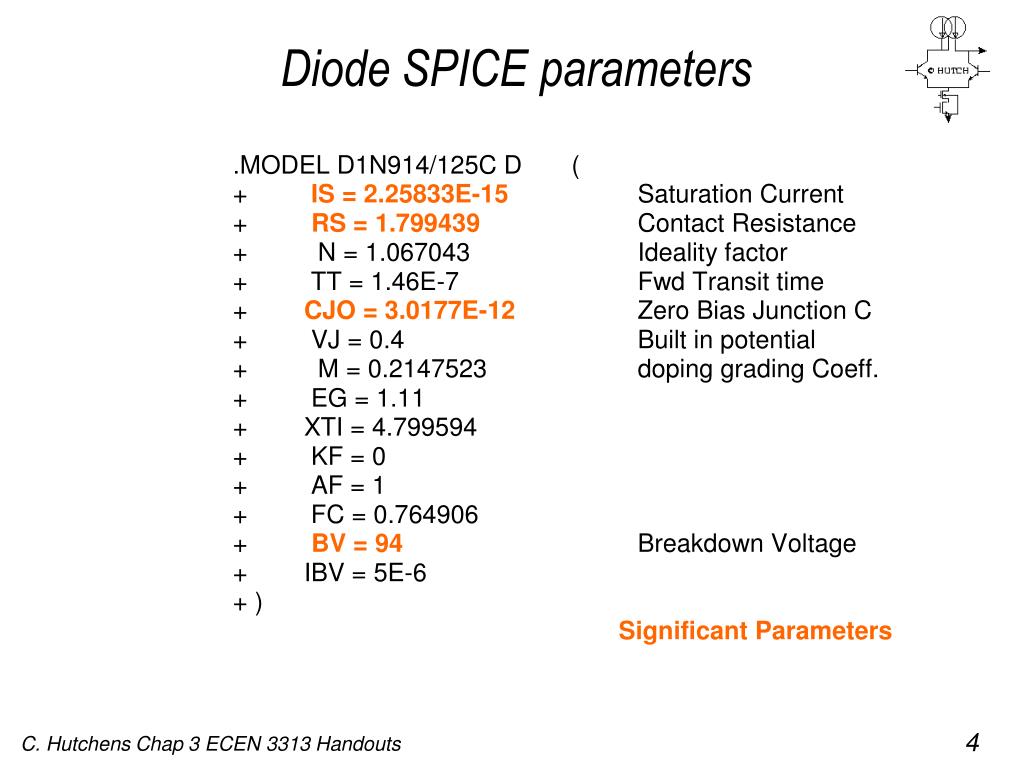

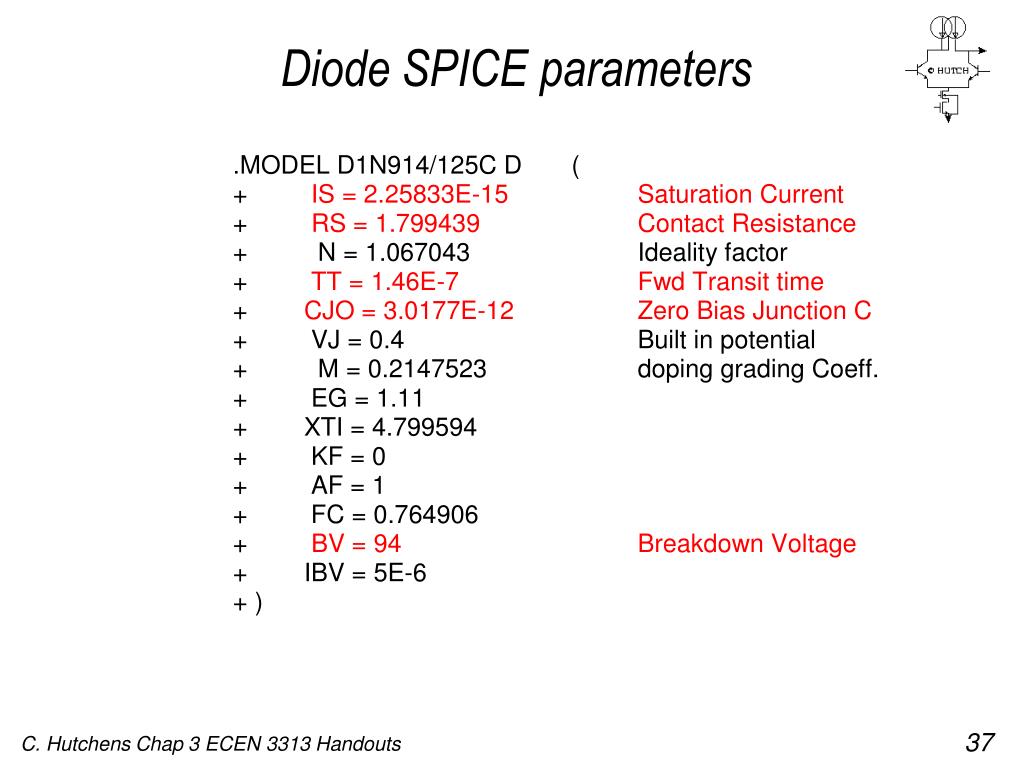

Chap 3. Simple Diode I-V Representation. V ON = 0.7v. Ideal. R Leak. R ON =ohms. Diode Symbols and Ckt Representation. Diode SPICE parameters. Simple Diode Rectifer. R Leak. R on =RS =10 ohms. Limiters/Clippers. R Leak. 10V. -8V. Limiters/Clippers Con’t Zeners. V  +V Z. V Z.

loader
I am the owner, or an agent authorized to act on behalf of the owner, of the copyrighted work described.
capcha
Download Presentation

PowerPoint Slideshow about 'Chap 3' - gage


An Image/Link below is provided (as is) to download presentation

Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author.While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server.


- - - - - - - - - - - - - - - - - - - - - - - - - - E N D - - - - - - - - - - - - - - - - - - - - - - - - - -
Presentation Transcript
slide2

Simple Diode I-V Representation

VON = 0.7v

Ideal

RLeak

RON =ohms

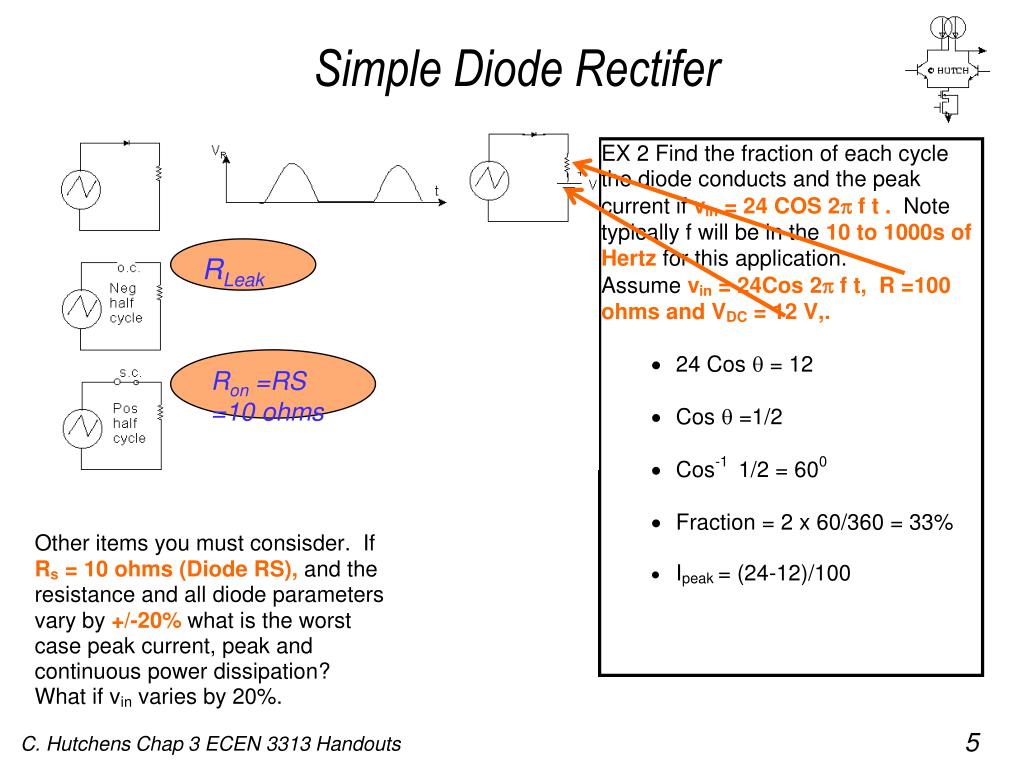

simple diode rectifer
Simple Diode Rectifer

RLeak

Ron =RS =10 ohms

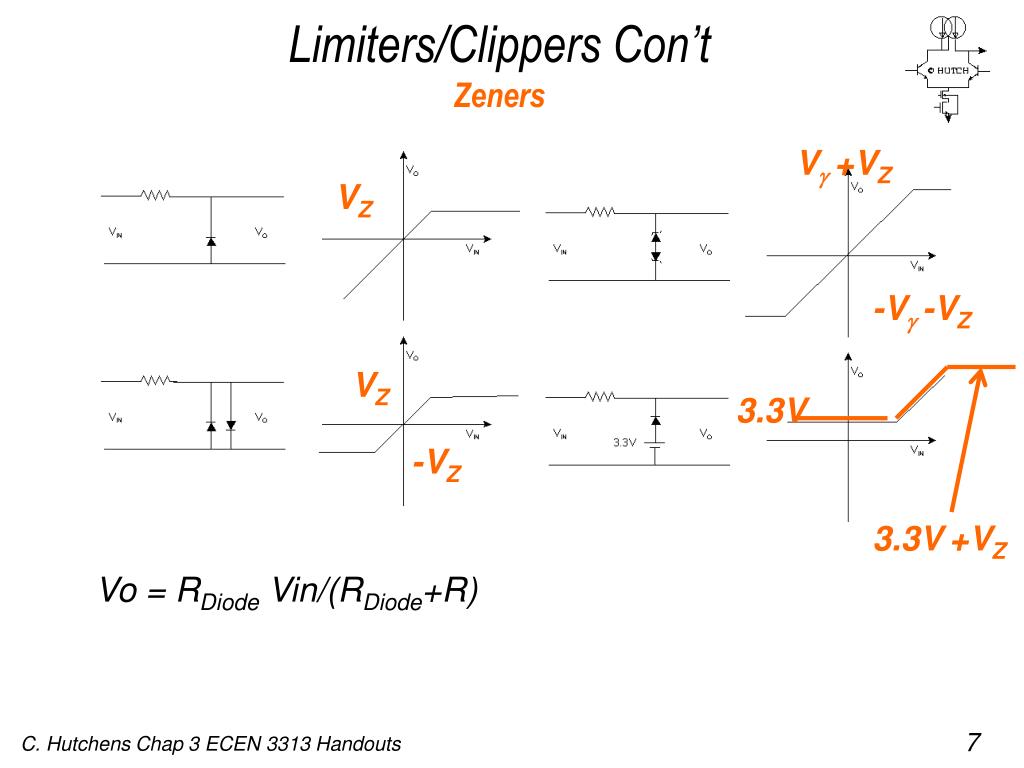

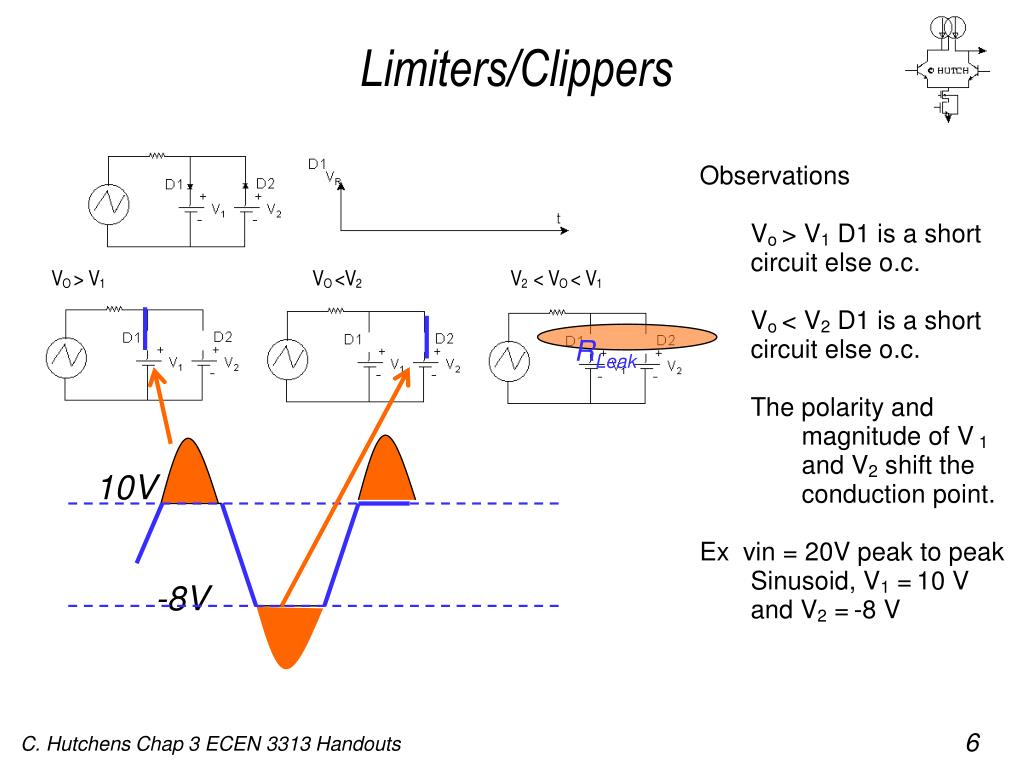

slide7

Limiters/Clippers Con’t

Zeners

V+VZ

VZ

-V-VZ

VZ

3.3V

-VZ

3.3V+VZ

Vo = RDiode Vin/(RDiode+R)

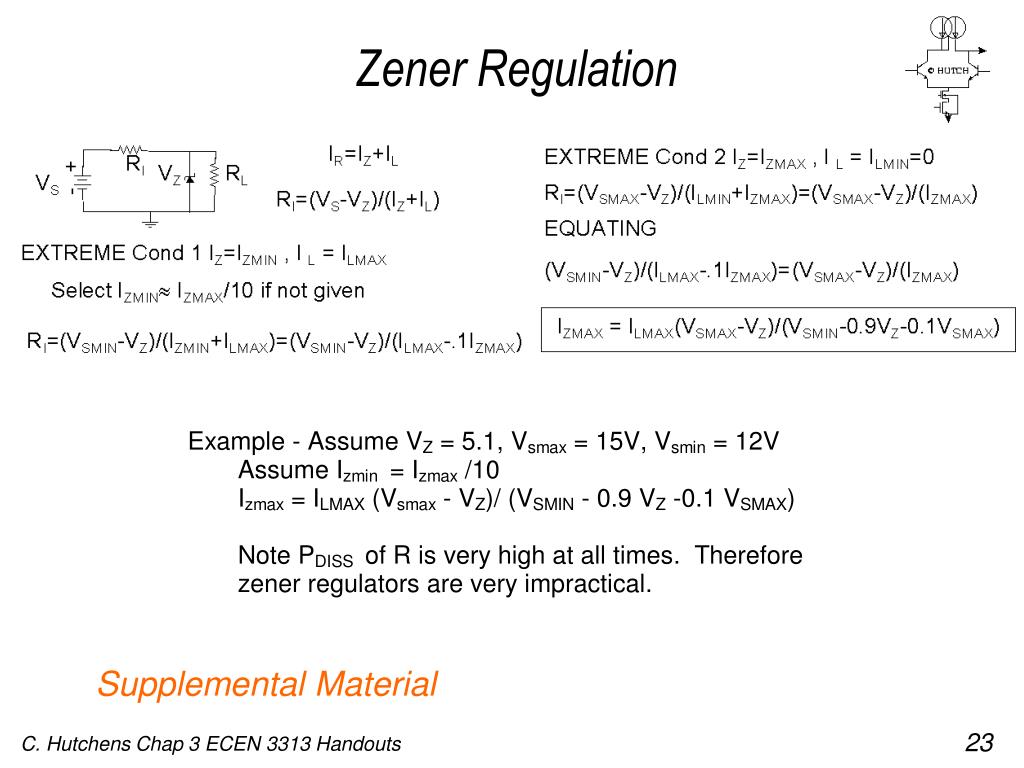

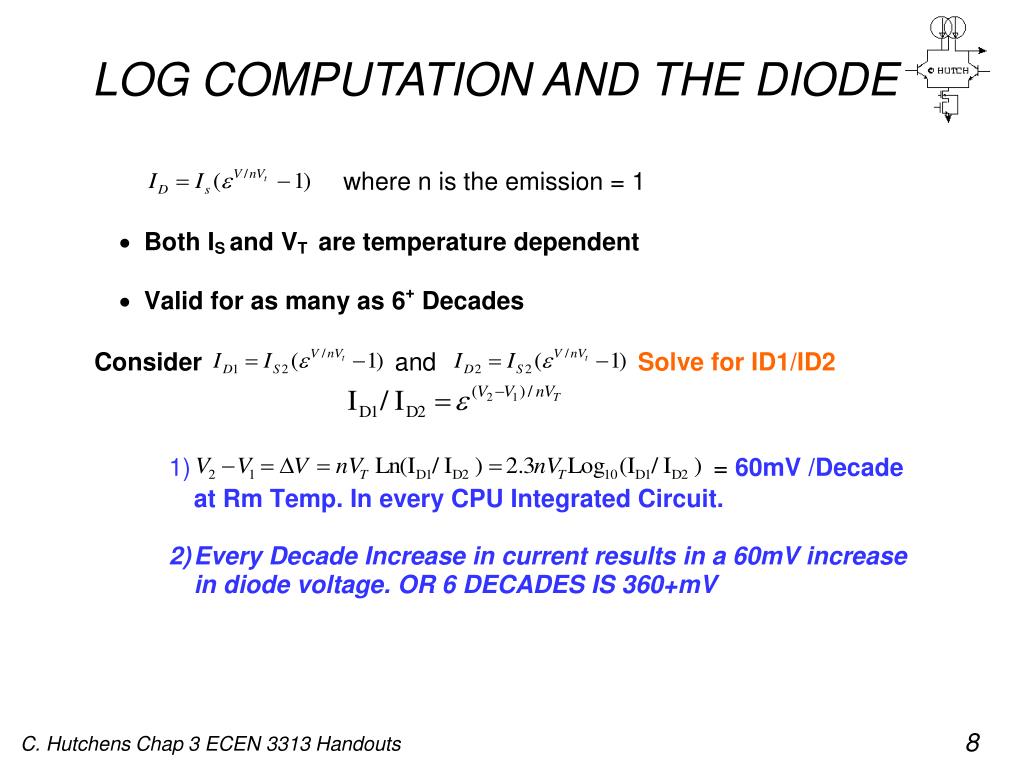

zener regulation
Zener Regulation

Supplemental Material

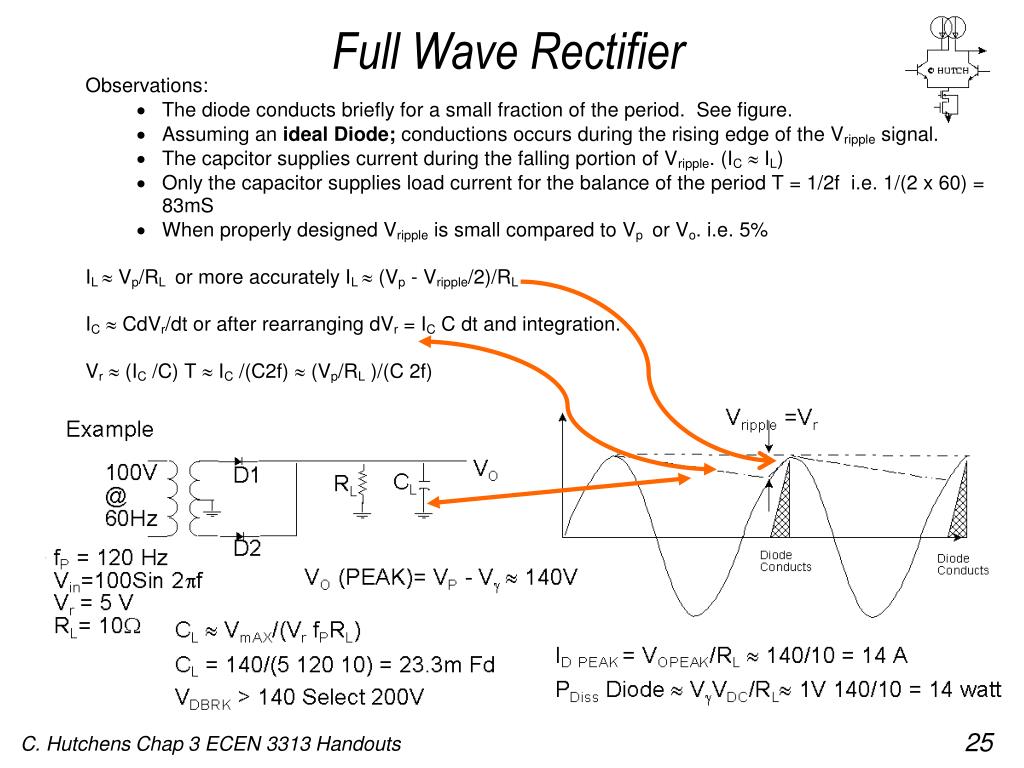

full wave rectifier

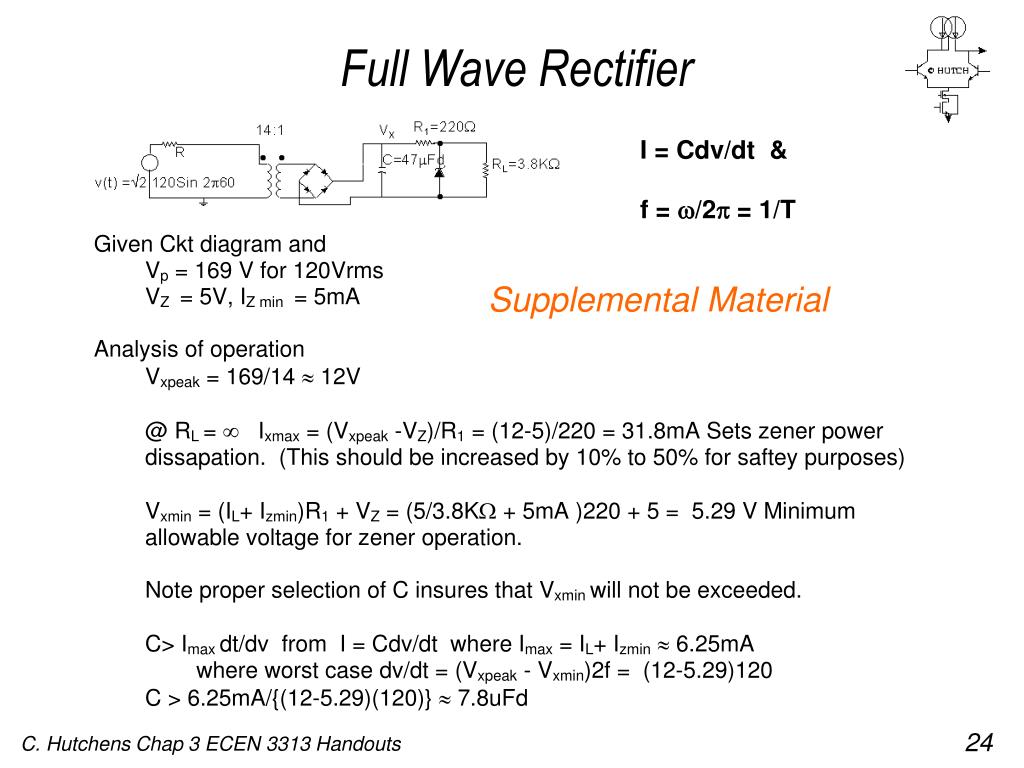

Full Wave Rectifier

Supplemental Material

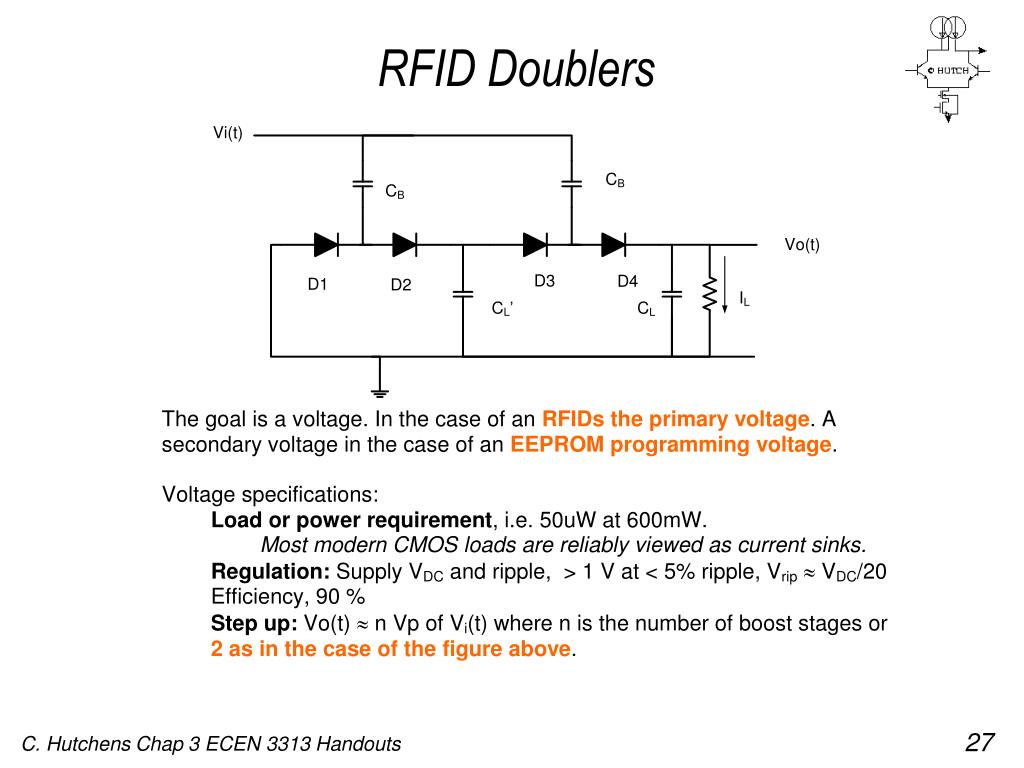

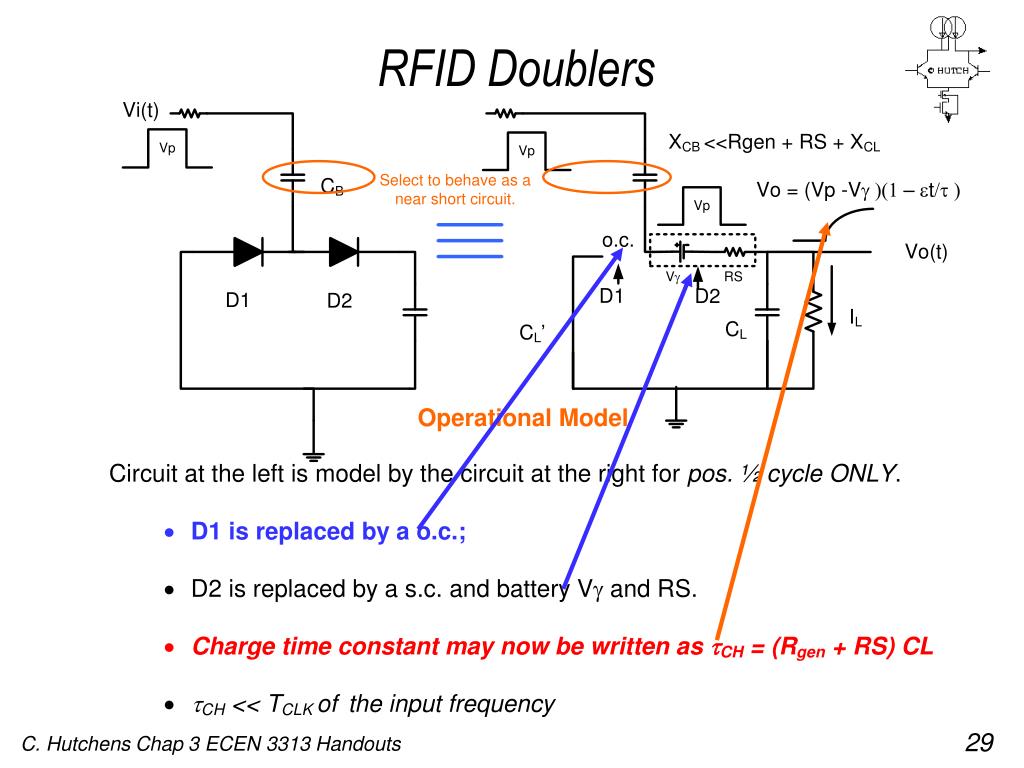

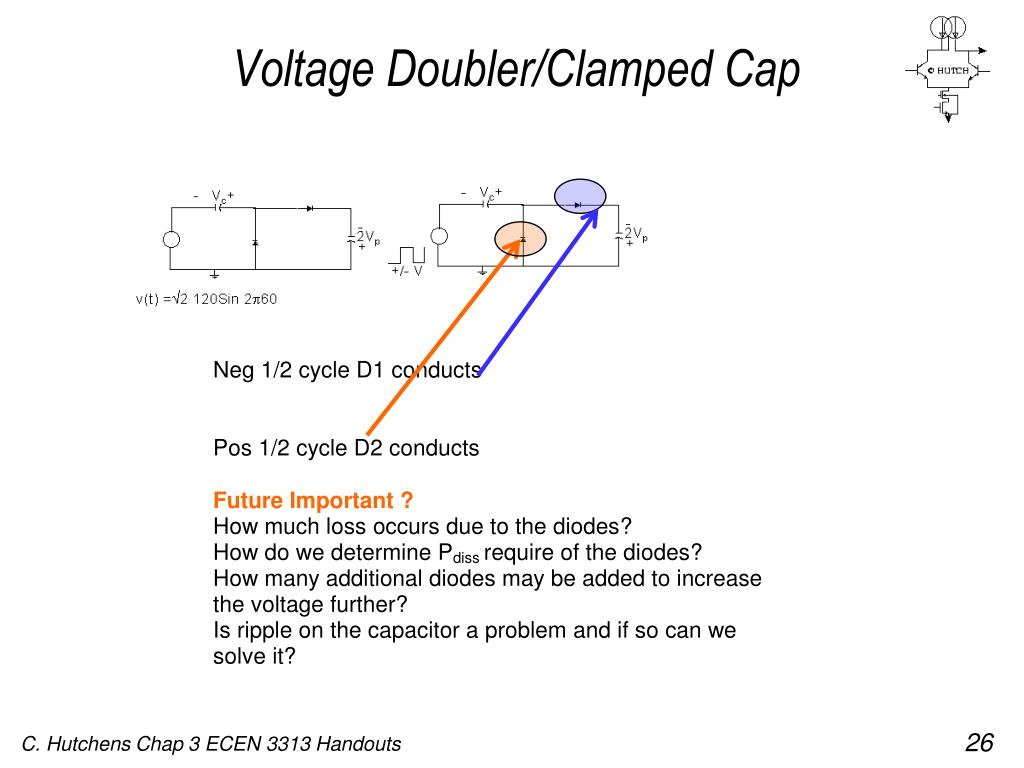

rfid doublers1

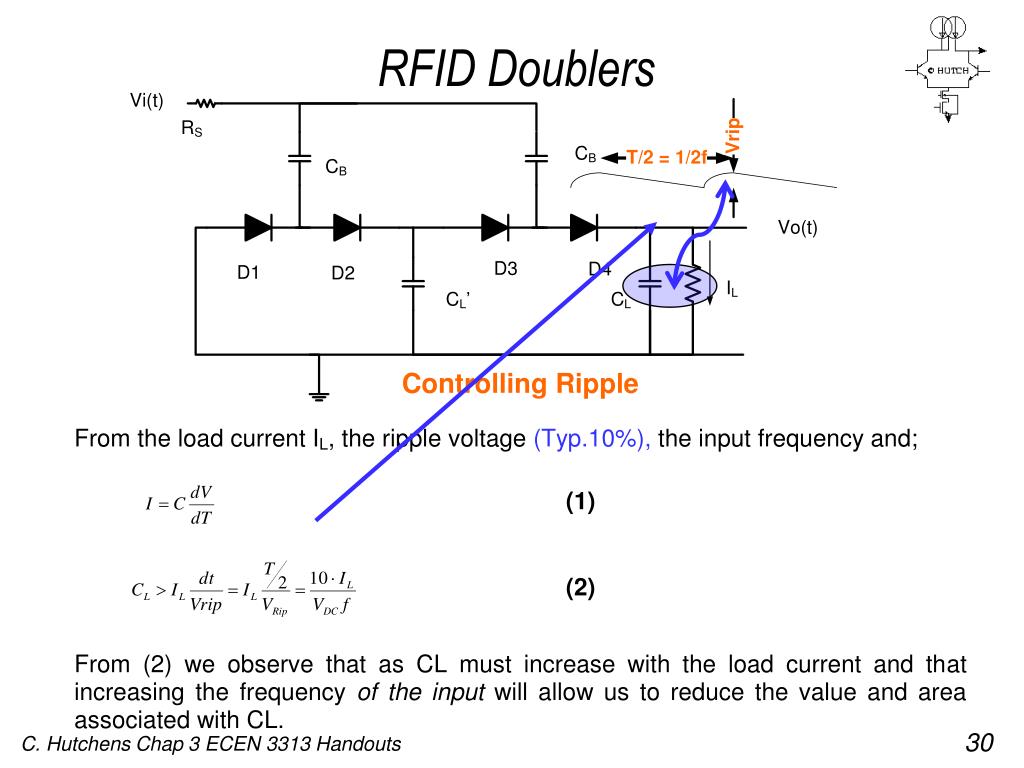

RFID Doublers

|RS + jXCB | <

|20xRL + JXCL|

“Short Ckt”

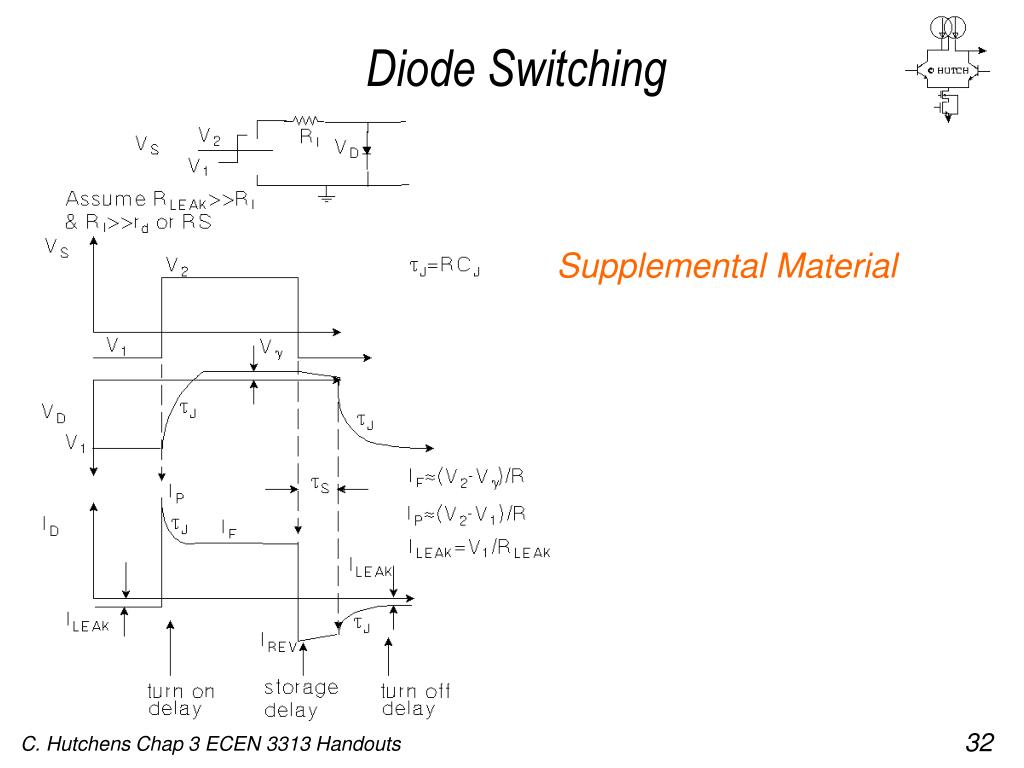

diode switching
Diode Switching

Supplemental Material

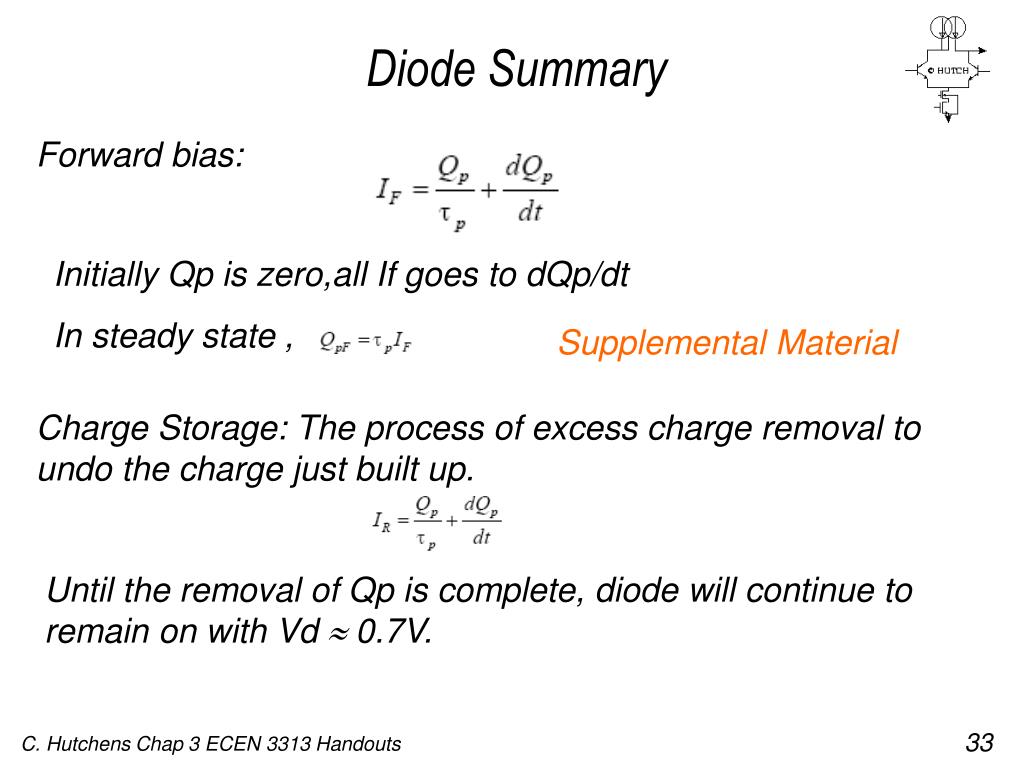

diode summary

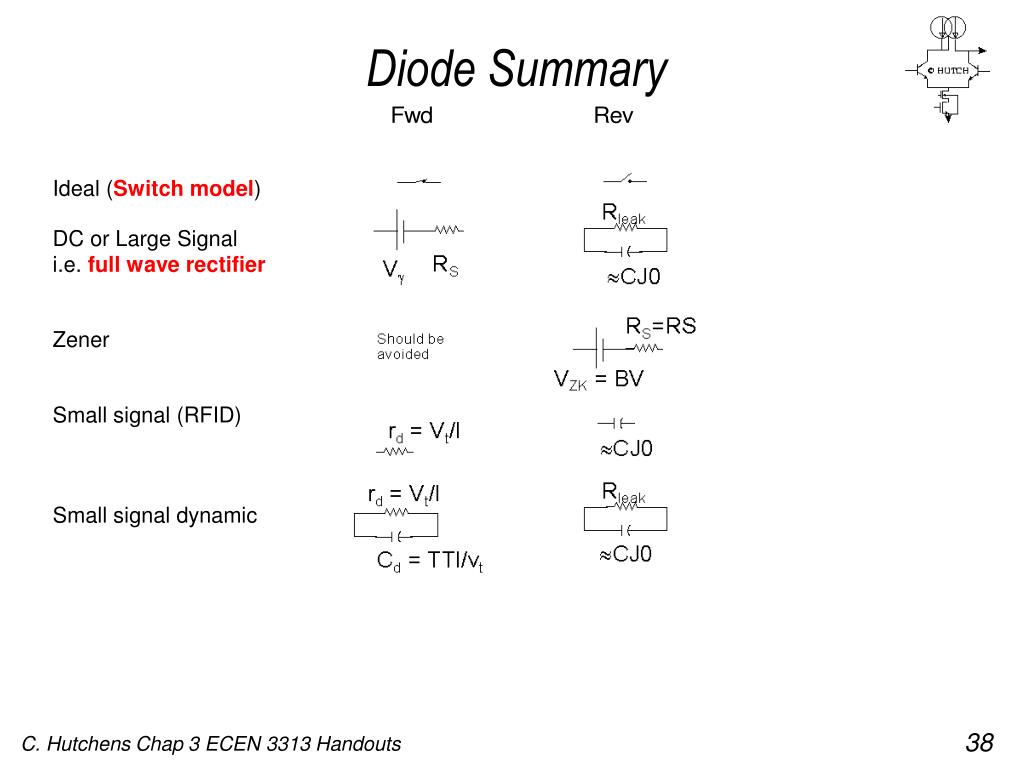

Diode Summary

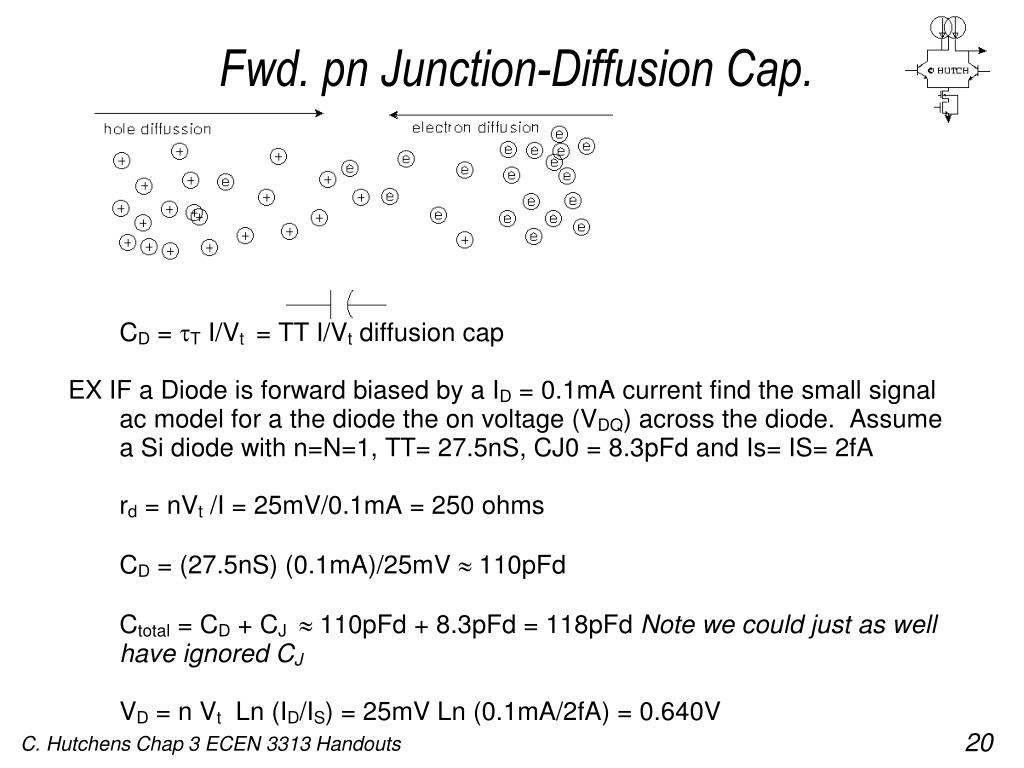

Forward bias:

Initially Qp is zero,all If goes to dQp/dt

In steady state ,

Supplemental Material

Charge Storage: The process of excess charge removal to undo the charge just built up.

Until the removal of Qp is complete, diode will continue to remain on with Vd  0.7V.

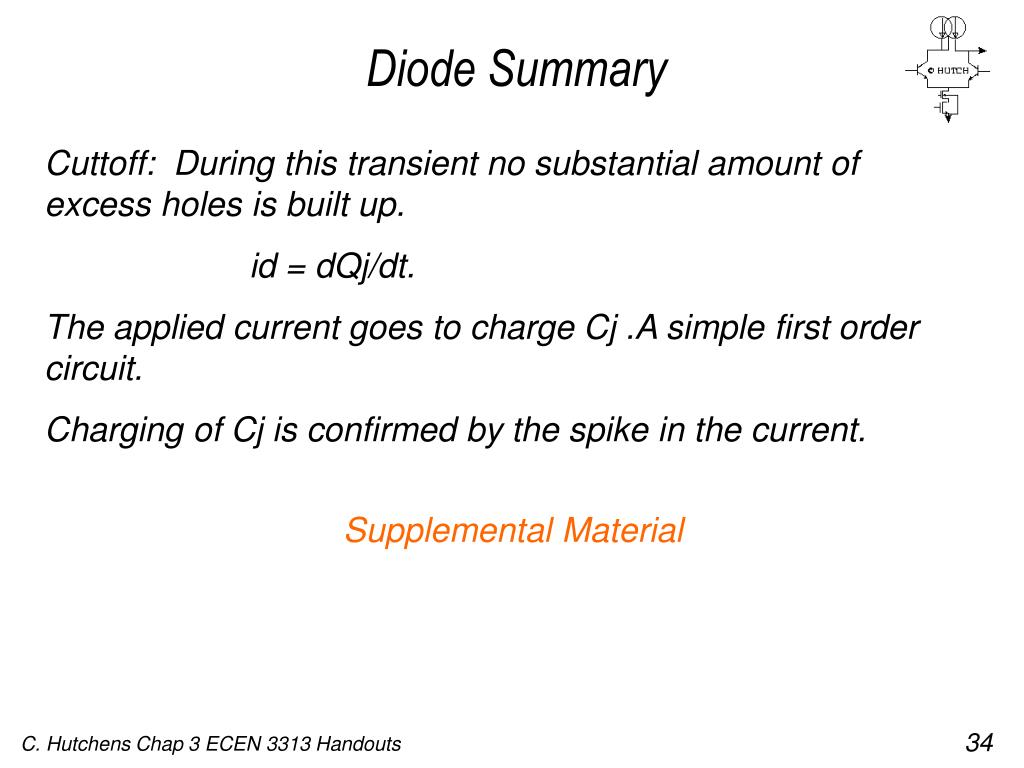

diode summary1
Diode Summary

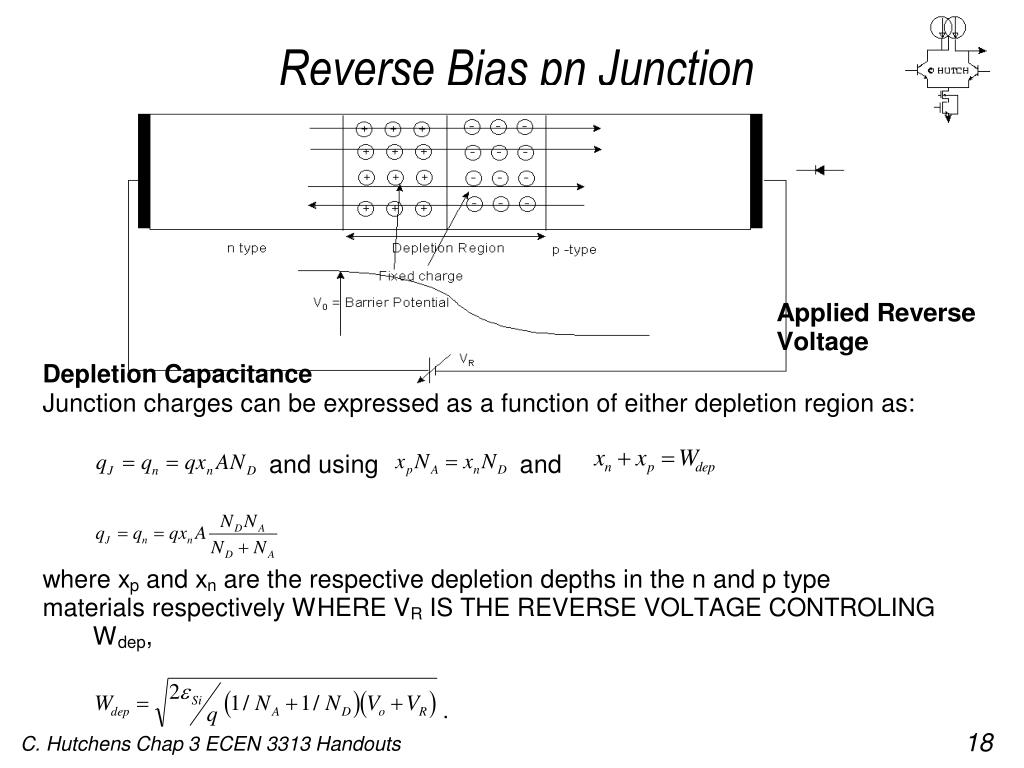

Cuttoff: During this transient no substantial amount of excess holes is built up.

id = dQj/dt.

The applied current goes to charge Cj .A simple first order circuit.

Charging of Cj is confirmed by the spike in the current.

Supplemental Material

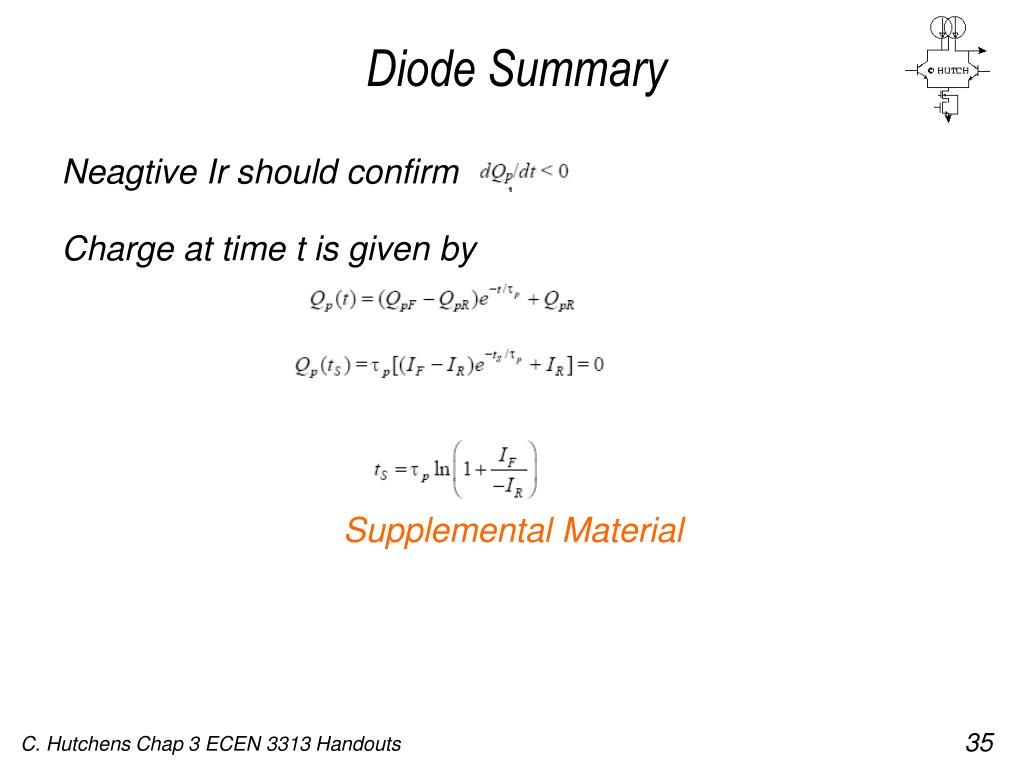

diode summary2
Diode Summary

Neagtive Ir should confirm

Charge at time t is given by

Supplemental Material

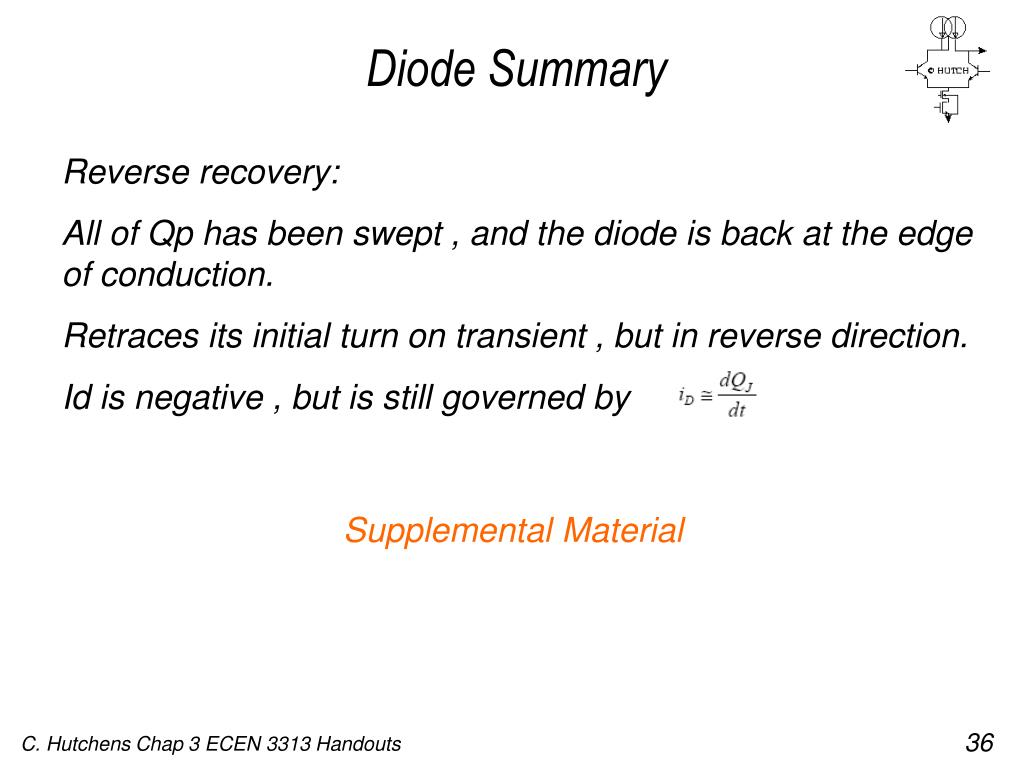

diode summary3
Diode Summary

Reverse recovery:

All of Qp has been swept , and the diode is back at the edge of conduction.

Retraces its initial turn on transient , but in reverse direction.

Id is negative , but is still governed by

Supplemental Material
