  1. Space Air Diffusion

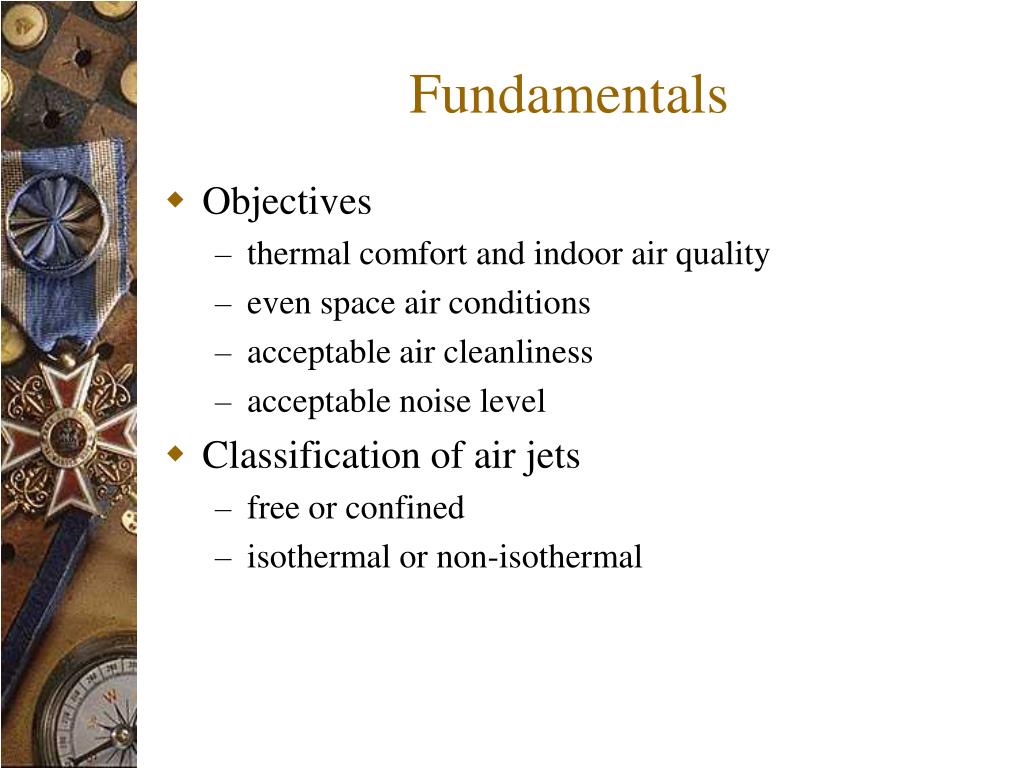

  2. Fundamentals • Objectives • thermal comfort and indoor air quality • even space air conditions • acceptable air cleanliness • acceptable noise level • Classification of air jets • free or confined • isothermal or non-isothermal

  3. Outlet Air jet Induced air Fundamentals • Behaviour of free jet • increase in volume of air jet through induction of surrounding air with momentum transfer across the boundary • gradual approach of jet velocity and temperature towards ambient air

  4. Fundamentals • Terminology • throw: axial distance from outlet to where the jet velocity drops to a specified value, e.g. 0.75 m/s, 0.5 m/s or 0.25 m/s; denoted by Tv • entrainment ratio: Qx / Qo • spread: width of jet at a specified jet velocity, usually 0.5 m/s or 0.25 m/s • drop: vertical distance from outlet to where the jet velocity is 0.25 m/s; occurs with jet temperature lower than ambient • characteristic length: usually the horizontal distance from outlet to opposite wall or to mid-plane between two outlets where the jets meet

  5. Fundamentals • Surface effect of confined jet • low pressure region created by high jet velocity leading to induction of ambient air into the jet • jet being pushed against ceiling for further mixing to prevent premature entry to conditioned space

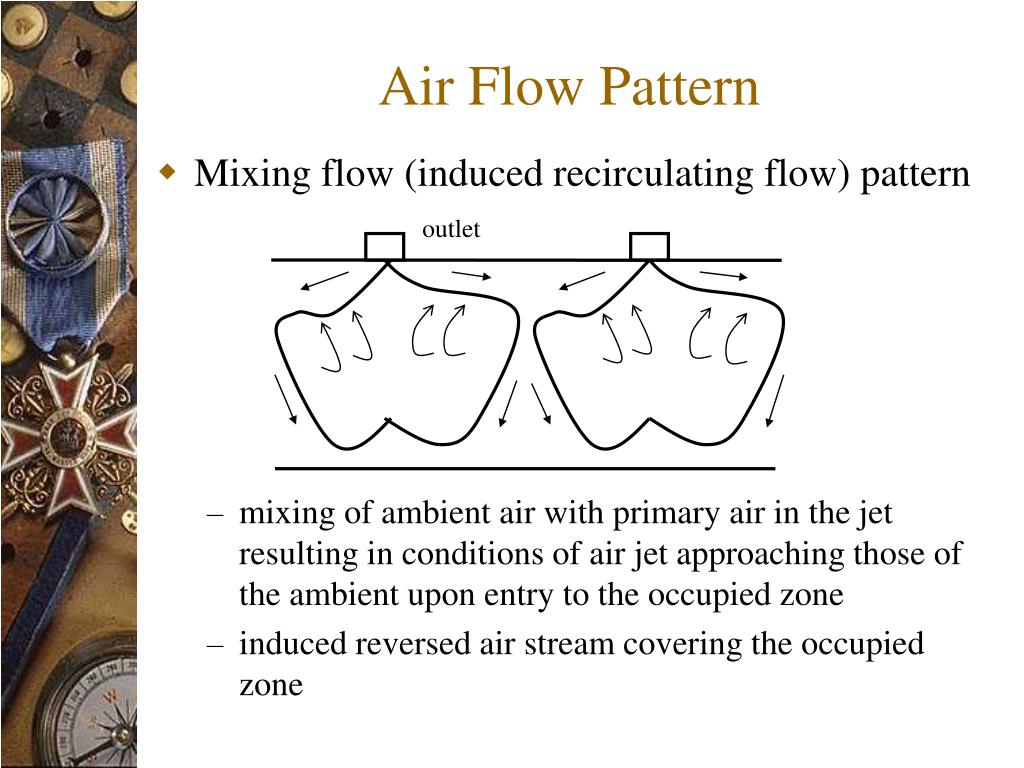

  6. outlet Air Flow Pattern • Mixing flow (induced recirculating flow) pattern • mixing of ambient air with primary air in the jet resulting in conditions of air jet approaching those of the ambient upon entry to the occupied zone • induced reversed air stream covering the occupied zone

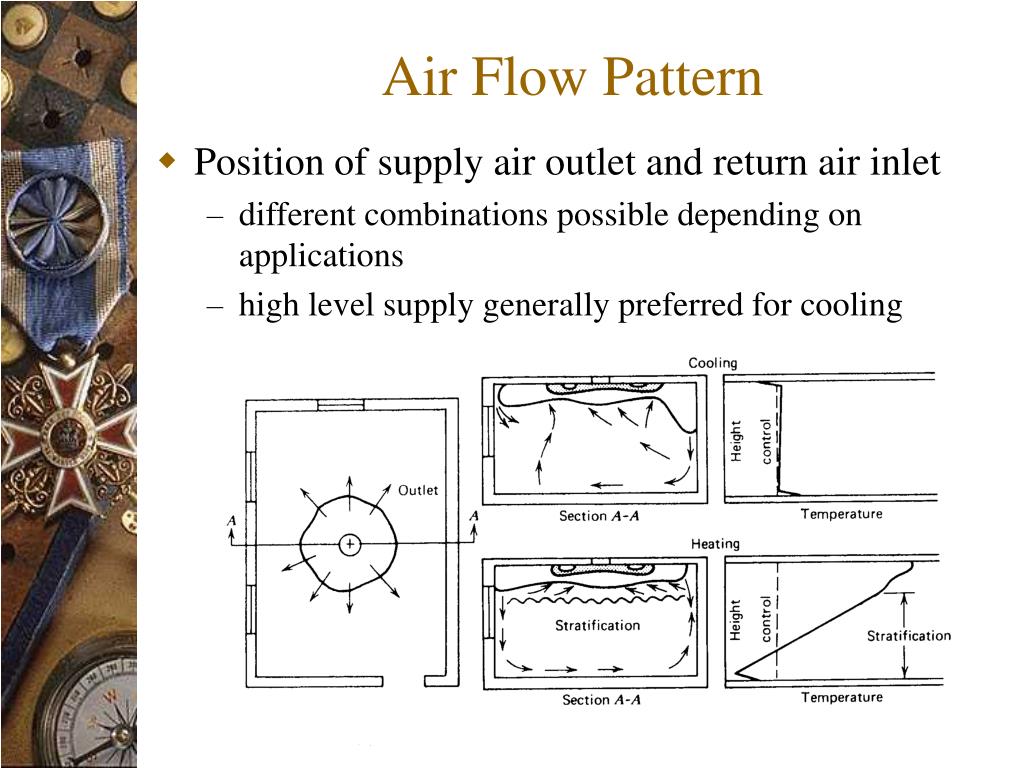

  7. Air Flow Pattern • Position of supply air outlet and return air inlet • different combinations possible depending on applications • high level supply generally preferred for cooling

  8. Air Flow Pattern • Position of supply air outlet and return air inlet • low level perimeter type supply generally preferred for heating applications • location of return air inlet not so important as supply air outlet

  9. Supply Air Outlets • Ceiling diffusers • various types (square/circular, different ways of flow) • high induction ratio and good surface effect • particularly suitable for low headroom situations • specification of neck and face sizes

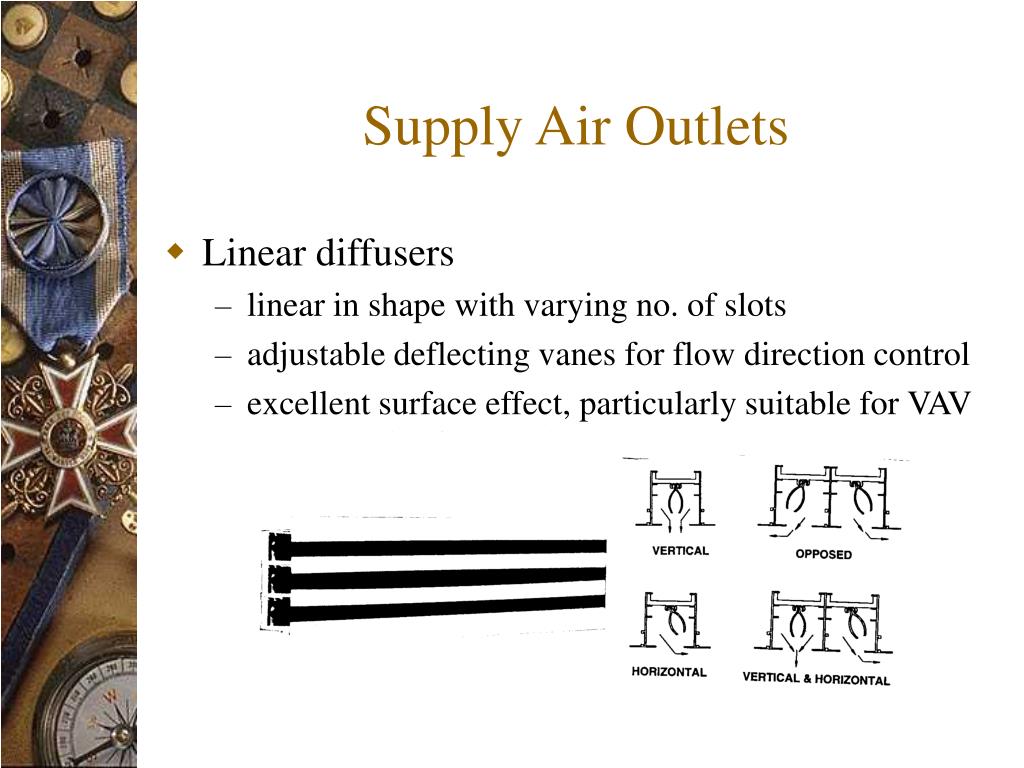

  10. Supply Air Outlets • Linear diffusers • linear in shape with varying no. of slots • adjustable deflecting vanes for flow direction control • excellent surface effect, particularly suitable for VAV systems with flow variation

  11. Supply Air Outlets • Side grilles • various types (fixed blade, single/double deflection) • low entrainment ratio, greater drop, long throw • not suitable for rooms with low ceiling and great depth

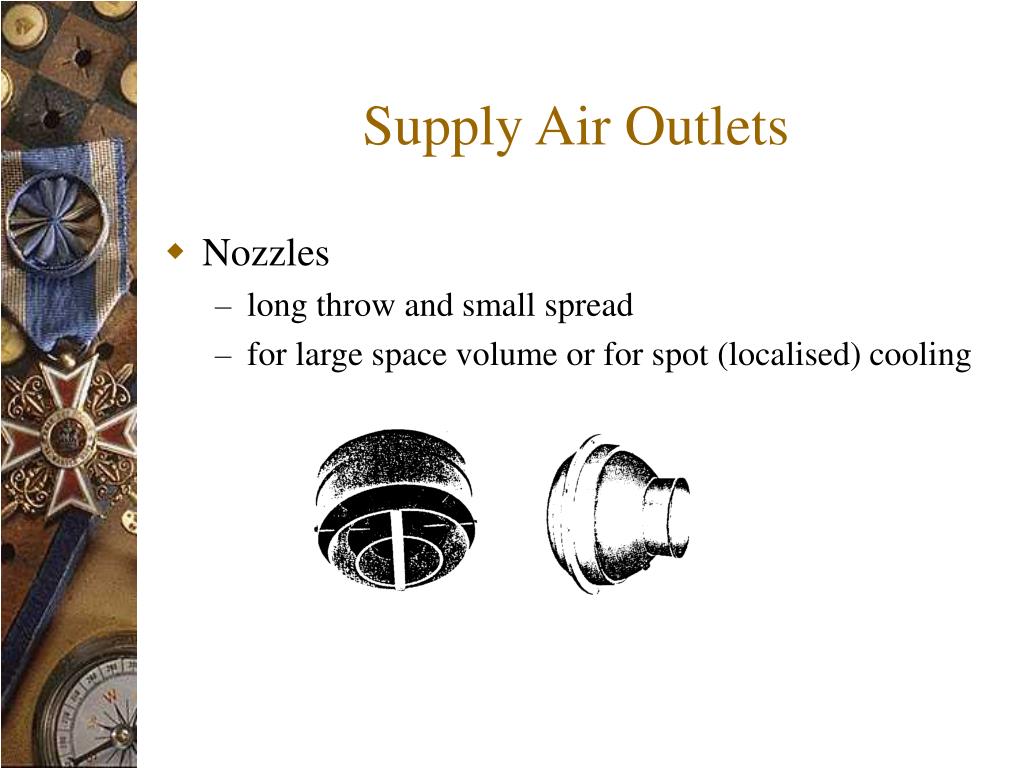

  12. Supply Air Outlets • Nozzles • long throw and small spread • for large space volume or for spot (localised) cooling

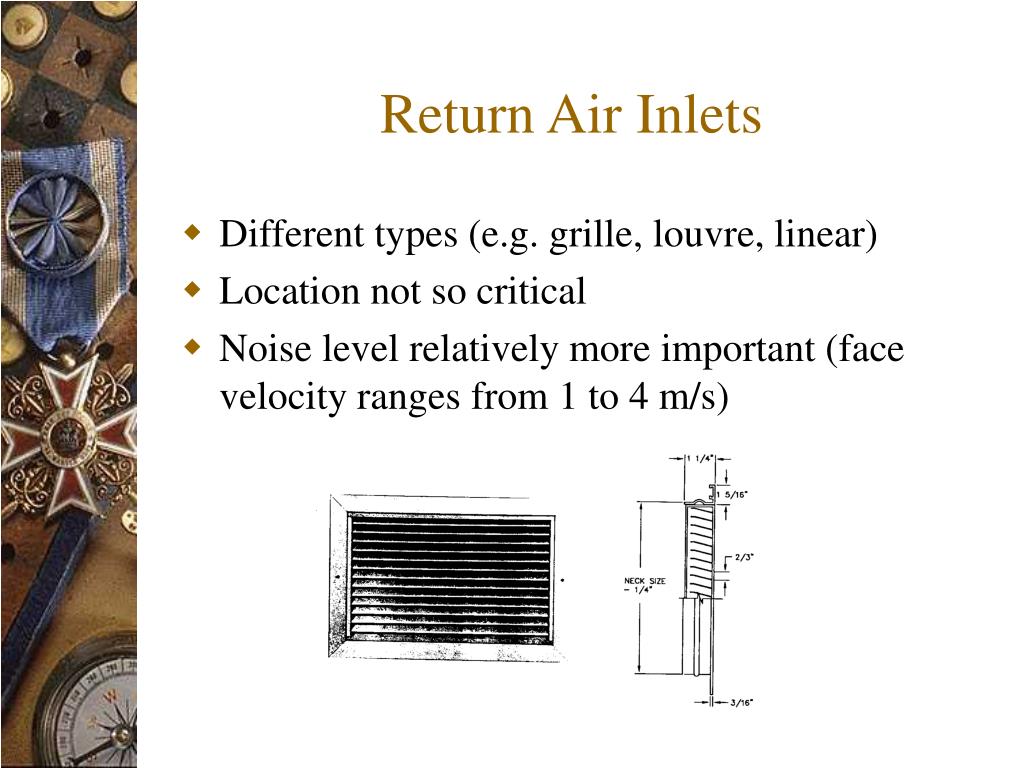

  13. Return Air Inlets • Different types (e.g. grille, louvre, linear) • Location not so critical • Noise level relatively more important (face velocity ranges from 1 to 4 m/s)

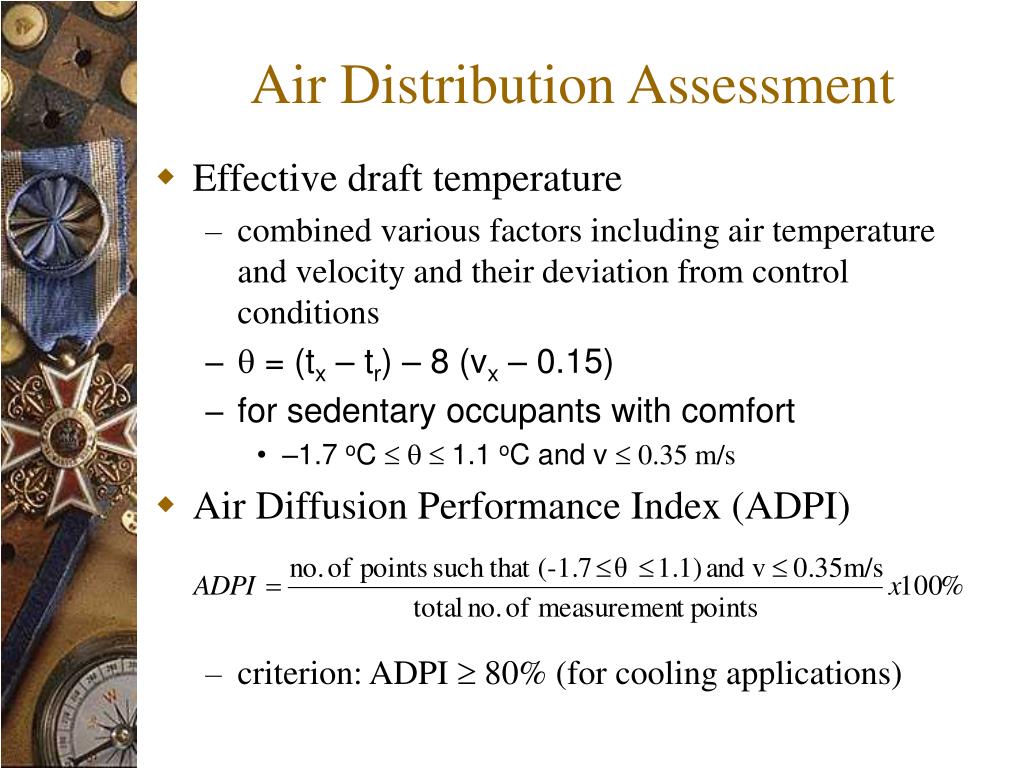

  14. Air Distribution Assessment • Effective draft temperature • combined various factors including air temperature and velocity and their deviation from control conditions •  = (tx – tr) – 8 (vx – 0.15) • for sedentary occupants with comfort • –1.7 oC  1.1 oC and v  0.35 m/s • Air Diffusion Performance Index (ADPI) • criterion: ADPI  80% (for cooling applications)

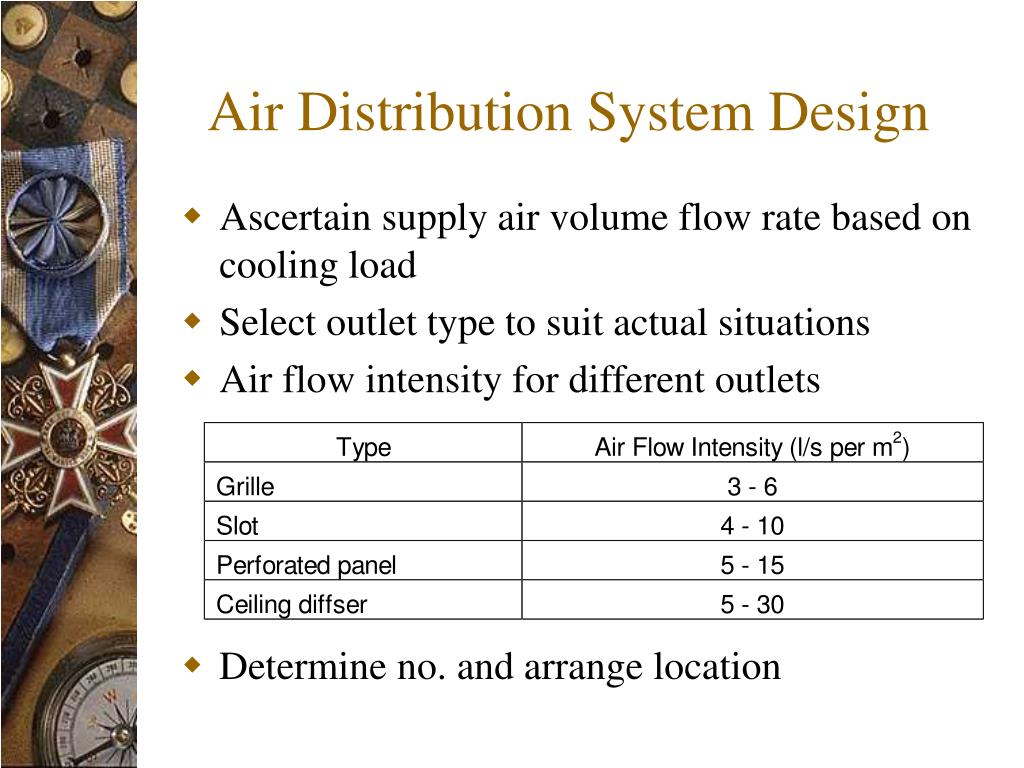

  15. Air Distribution System Design • Ascertain supply air volume flow rate based on cooling load • Select outlet type to suit actual situations • Air flow intensity for different outlets • Determine no. and arrange location

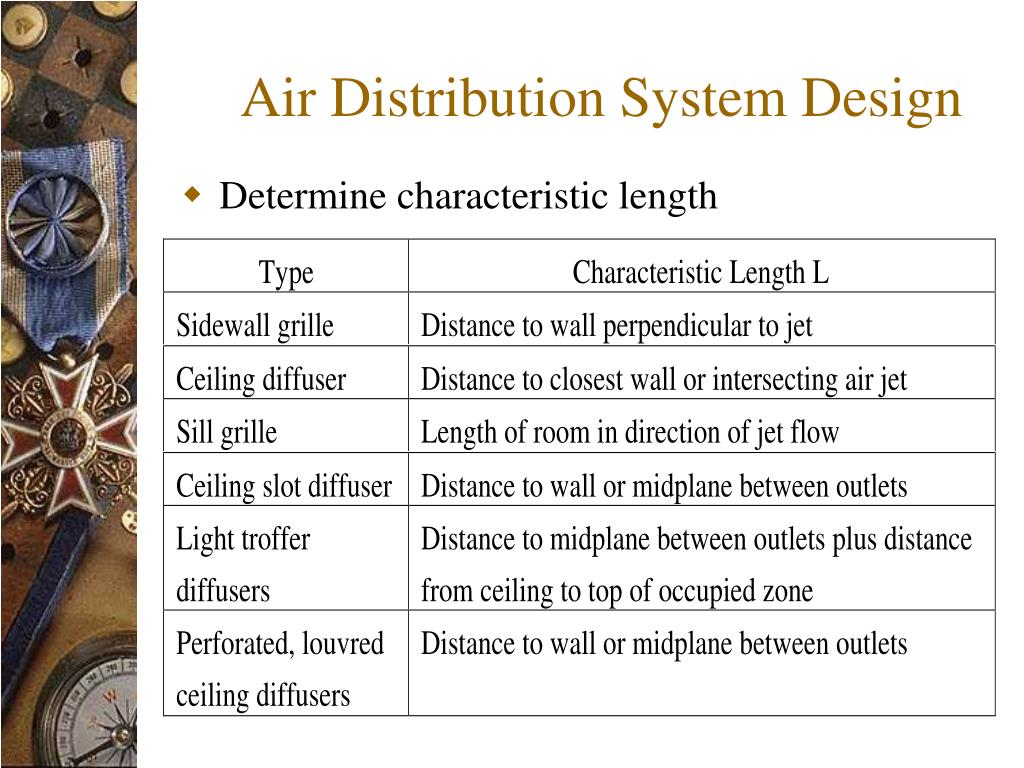

  16. Air Distribution System Design • Determine characteristic length

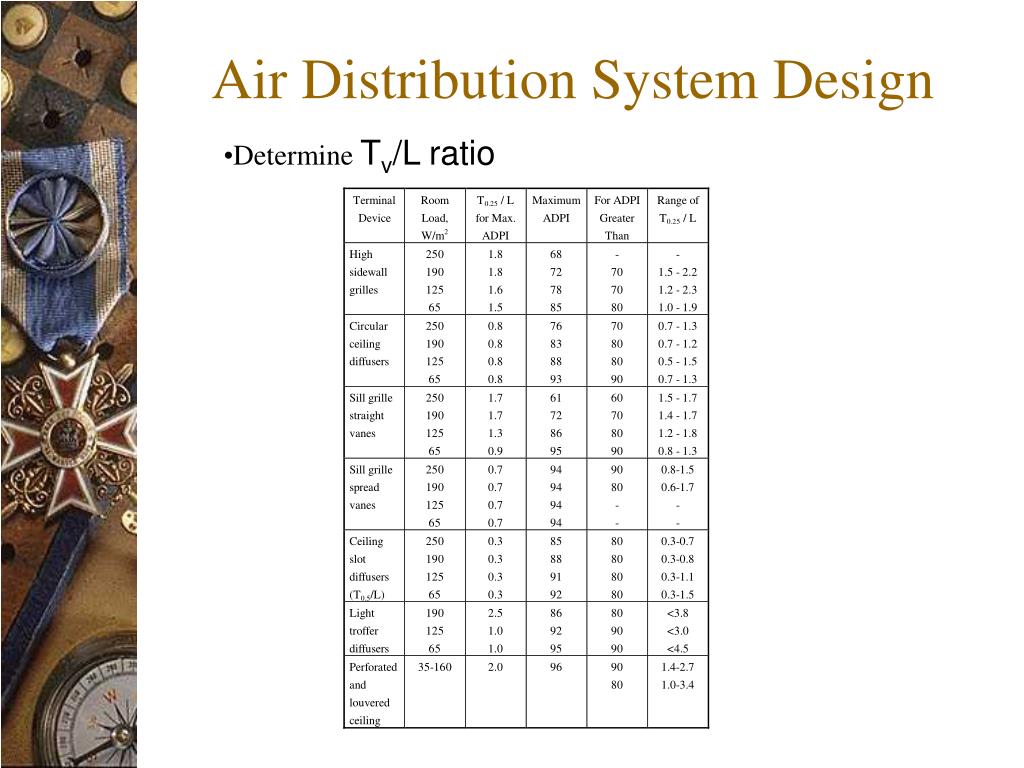

  17. Air Distribution System Design • Determine Tv/L ratio

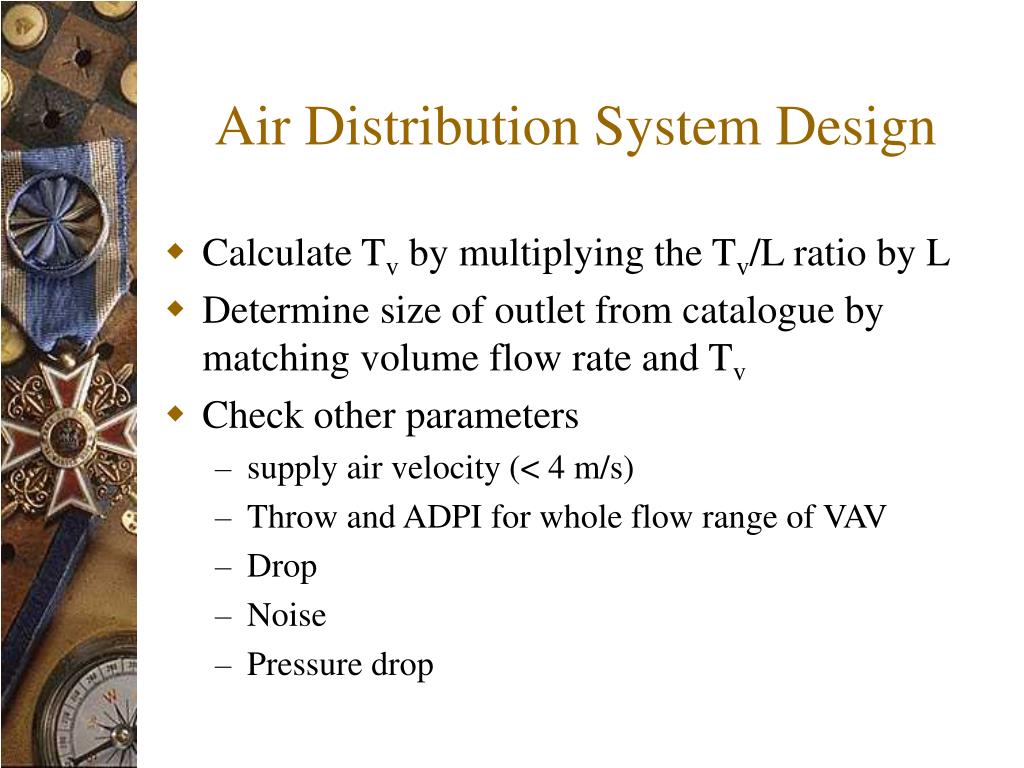

  18. Air Distribution System Design • Calculate Tv by multiplying the Tv/L ratio by L • Determine size of outlet from catalogue by matching volume flow rate and Tv • Check other parameters • supply air velocity (< 4 m/s) • Throw and ADPI for whole flow range of VAV • Drop • Noise • Pressure drop

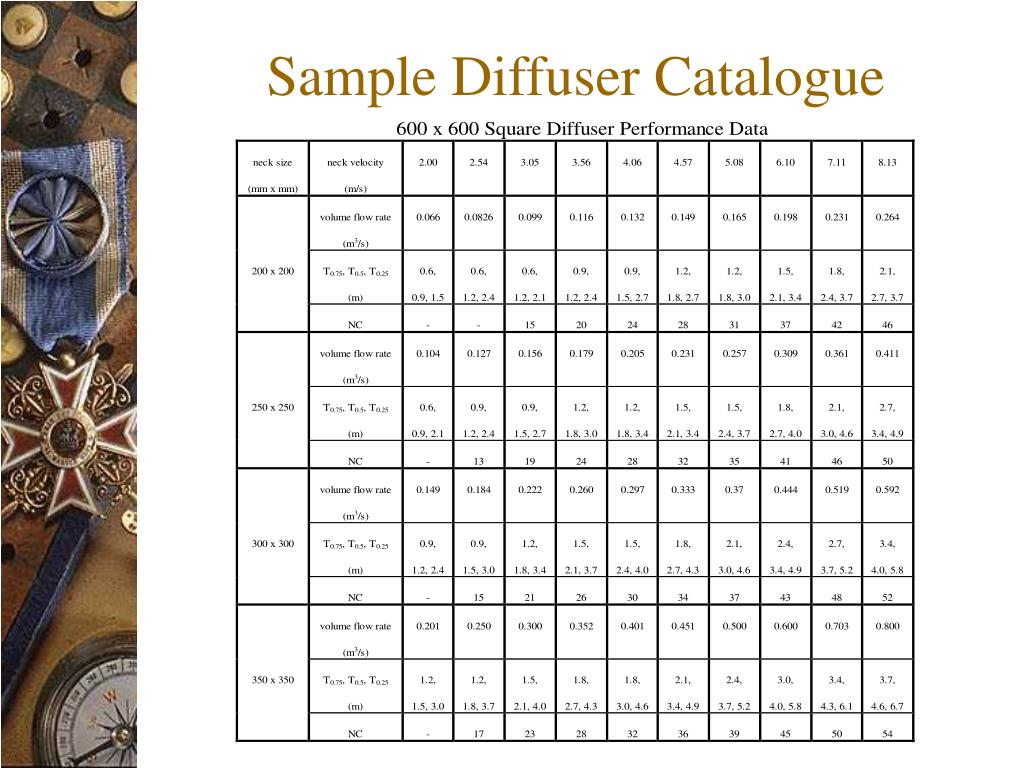

  19. Sample Diffuser Catalogue

  20. THE END
