Op Amp Circuits

Op Amp Circuits. Objective of Lecture. Apply the ‘almost ideal’ op amp model in the following circuits: Inverting Amplifier Noninverting Amplifier Voltage Follower Summing Amplifier Difference Amplifier Cascaded Amplifiers Chapter 5.4-5.8 Fundamentals of Electric Circuits.

francine-richard
Download Presentation

Op Amp Circuits

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Op Amp Circuits

  2. Objective of Lecture • Apply the ‘almost ideal’ op amp model in the following circuits: • Inverting Amplifier • Noninverting Amplifier • Voltage Follower • Summing Amplifier • Difference Amplifier • Cascaded Amplifiers • Chapter 5.4-5.8 Fundamentals of Electric Circuits

  3. Almost Ideal Op Amp Model Ri = ∞ W andRo = 0 W i2 = 0 Linear Region: When V+< vo< V- , vo is determined from the closed loop gain Av times v2 as v1 = v2 (vd = 0 V). i1 = 0 Saturation: When Av v2 ≥ V+, vo = V+. When Av v2 ≤ V-, vo = V-.

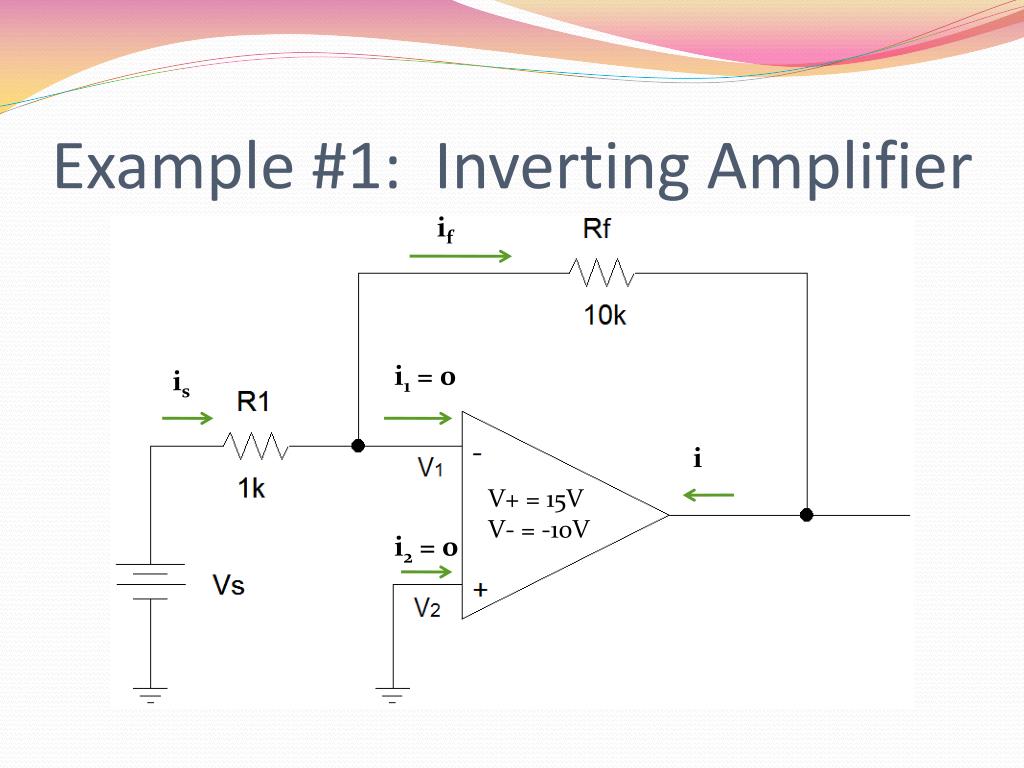

  4. Example #1: Inverting Amplifier if i1 = 0 is i V+ = 15V V- = -10V i2 = 0

  5. Example #1 (con’t) if i1 = 0 is i i2 = 0 V+ = 15V V- = -10V

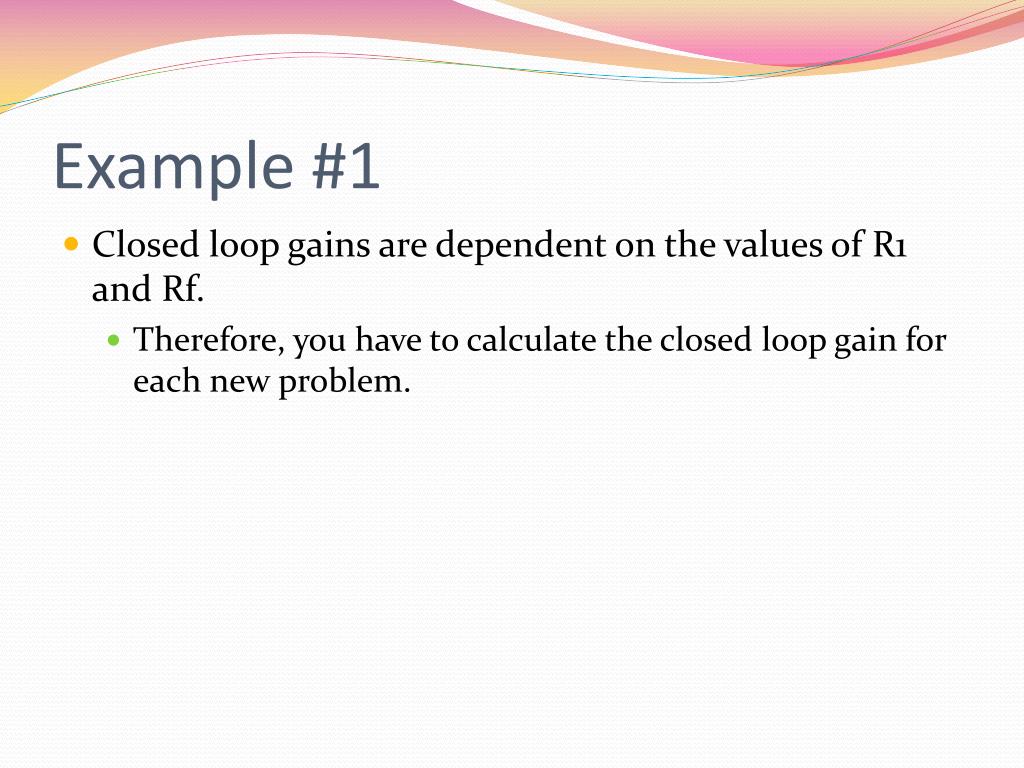

  6. Example #1 • Closed loop gains are dependent on the values of R1 and Rf. • Therefore, you have to calculate the closed loop gain for each new problem.

  7. Example #1 (con’t) if i1 = 0 is i i2 = 0 vo

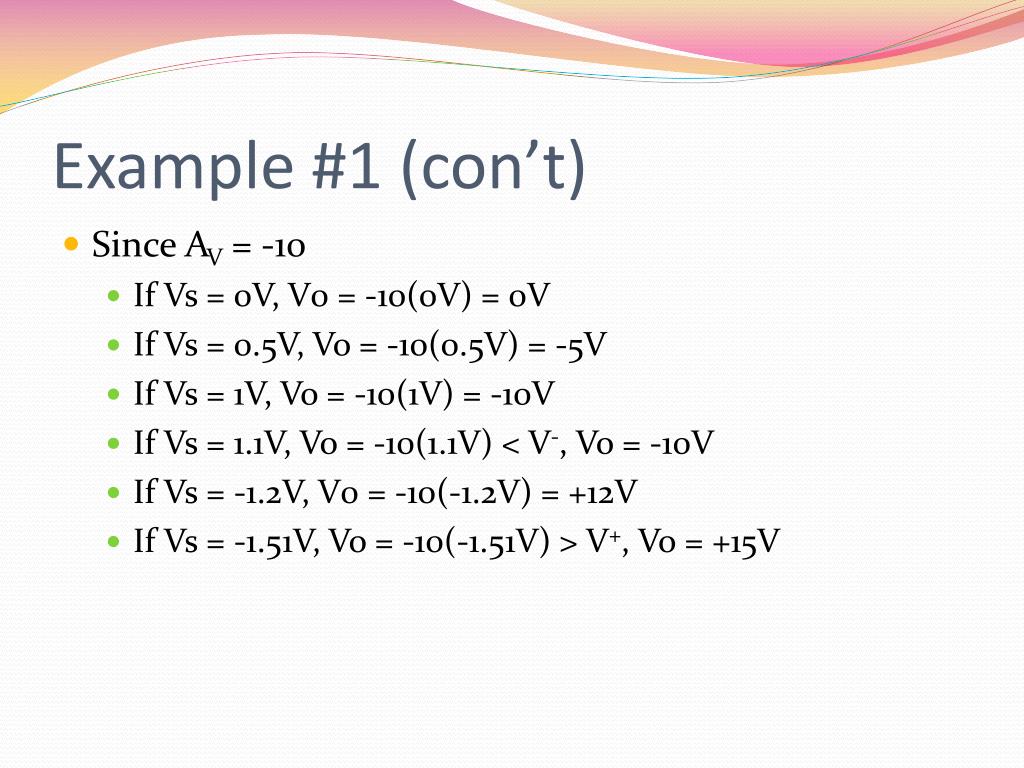

  8. Example #1 (con’t) • Since AV = -10 • If Vs = 0V, V0 = -10(0V) = 0V • If Vs = 0.5V, Vo = -10(0.5V) = -5V • If Vs = 1V, Vo = -10(1V) = -10V • If Vs = 1.1V, Vo = -10(1.1V) < V-, Vo = -10V • If Vs = -1.2V, V0 = -10(-1.2V) = +12V • If Vs = -1.51V, Vo = -10(-1.51V) > V+, Vo = +15V

  9. Example #1 (con’t) • Voltage transfer characteristic Slope of the voltage transfer characteristic in the linear region is equal to AV.

  10. Example #2: Noninverting Amplifier

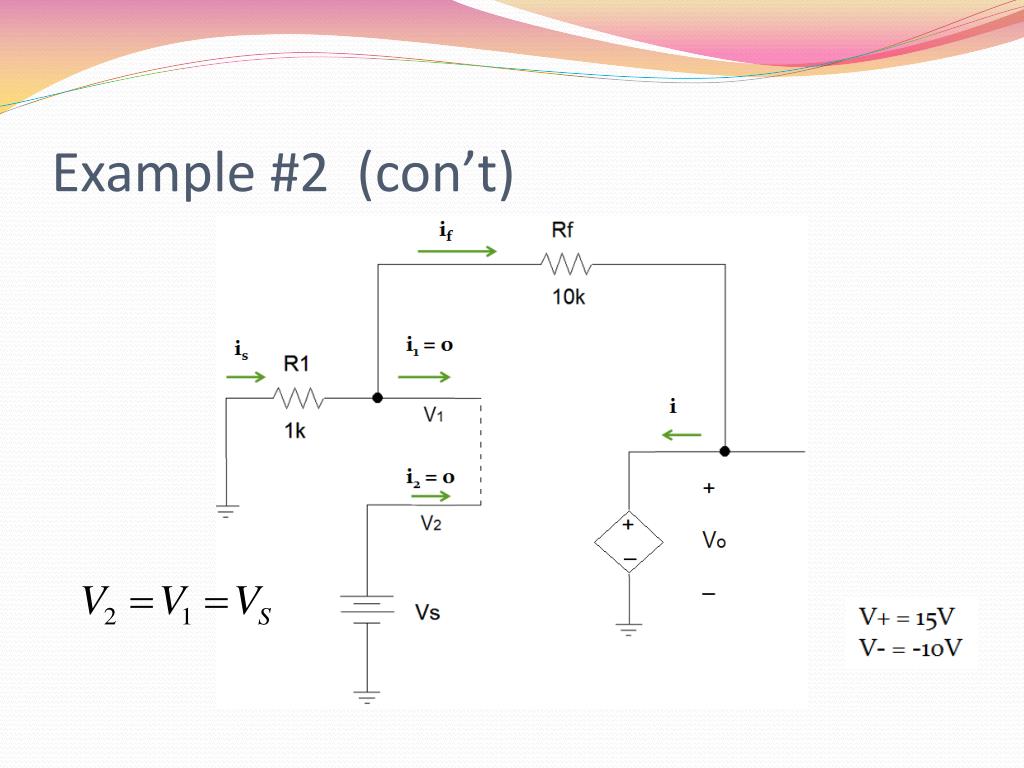

  11. Example #2 (con’t)

  12. Example #2 (con’t)

  13. Example #2 (con’t)

  14. Example #2: Noninverting Amplifier

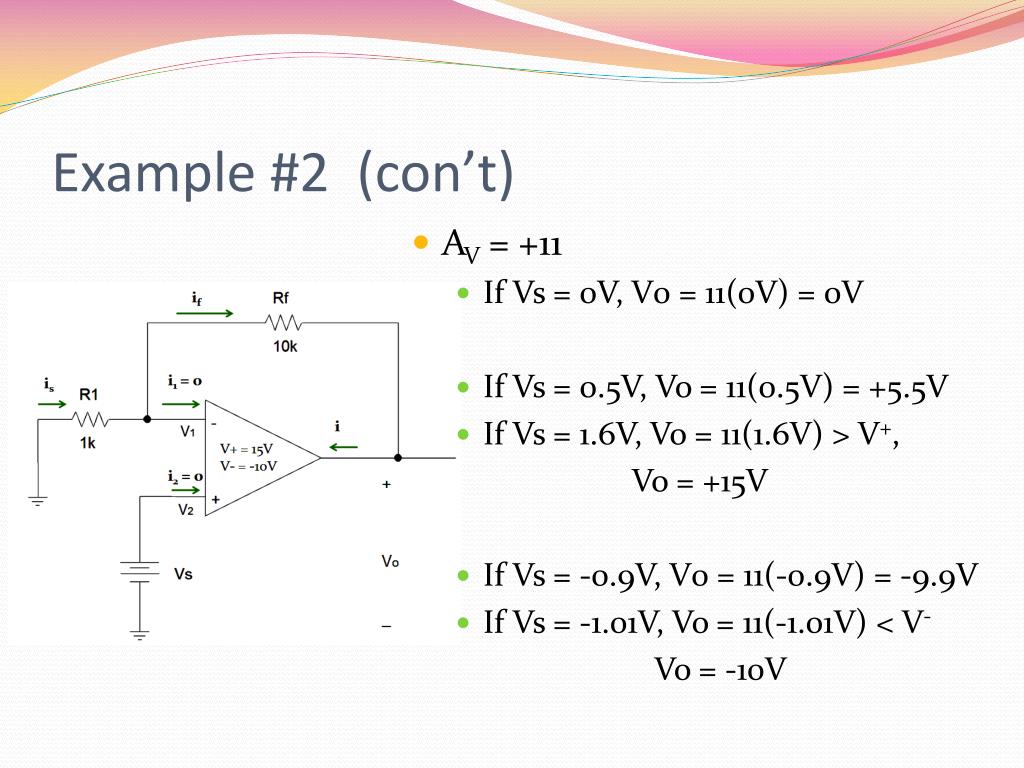

  15. Example #2 (con’t) • AV = +11 • If Vs = 0V, V0 = 11(0V) = 0V • If Vs = 0.5V, Vo = 11(0.5V) = +5.5V • If Vs = 1.6V, Vo = 11(1.6V) > V+, Vo = +15V • If Vs = -0.9V, V0 = 11(-0.9V) = -9.9V • If Vs = -1.01V, Vo = 11(-1.01V) < V- Vo = -10V

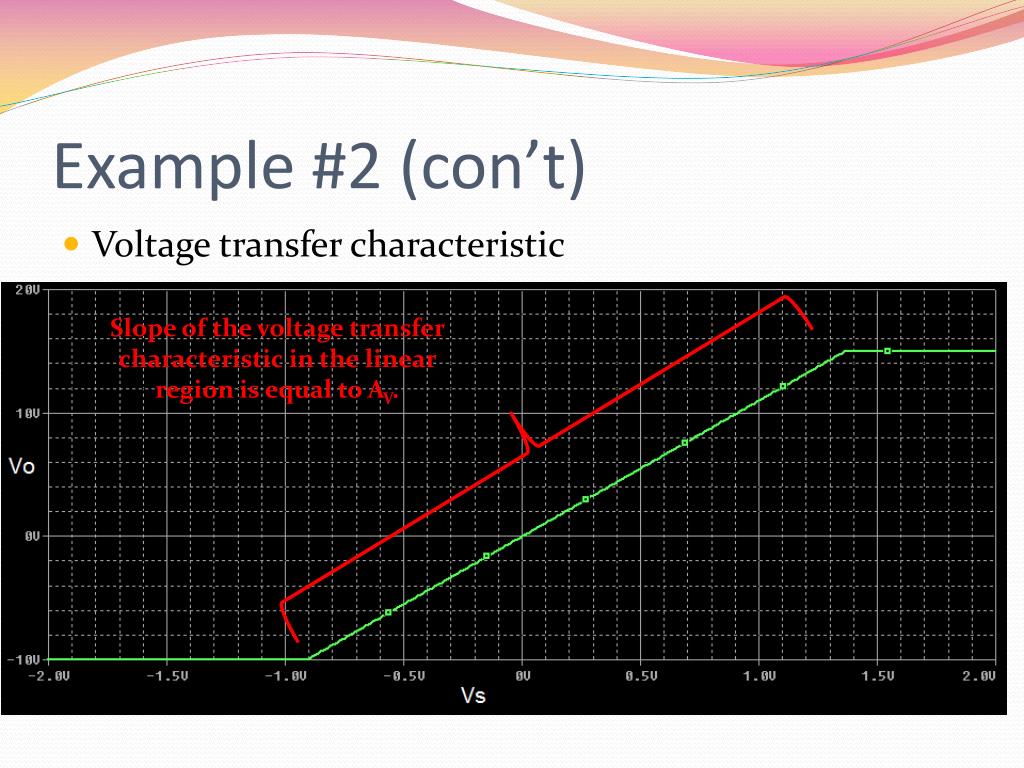

  16. Example #2 (con’t) • Voltage transfer characteristic Slope of the voltage transfer characteristic in the linear region is equal to AV.

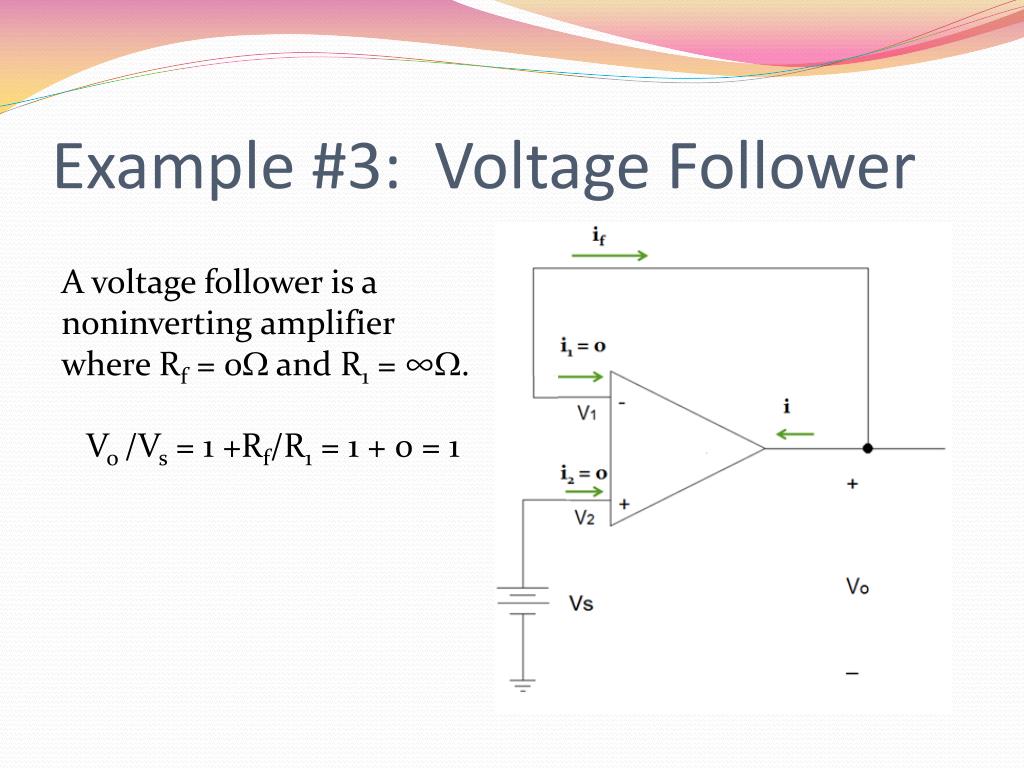

  17. Example #3: Voltage Follower A voltage follower is a noninverting amplifier where Rf = 0W and R1 = ∞W. Vo /Vs = 1 +Rf/R1 = 1 + 0 = 1

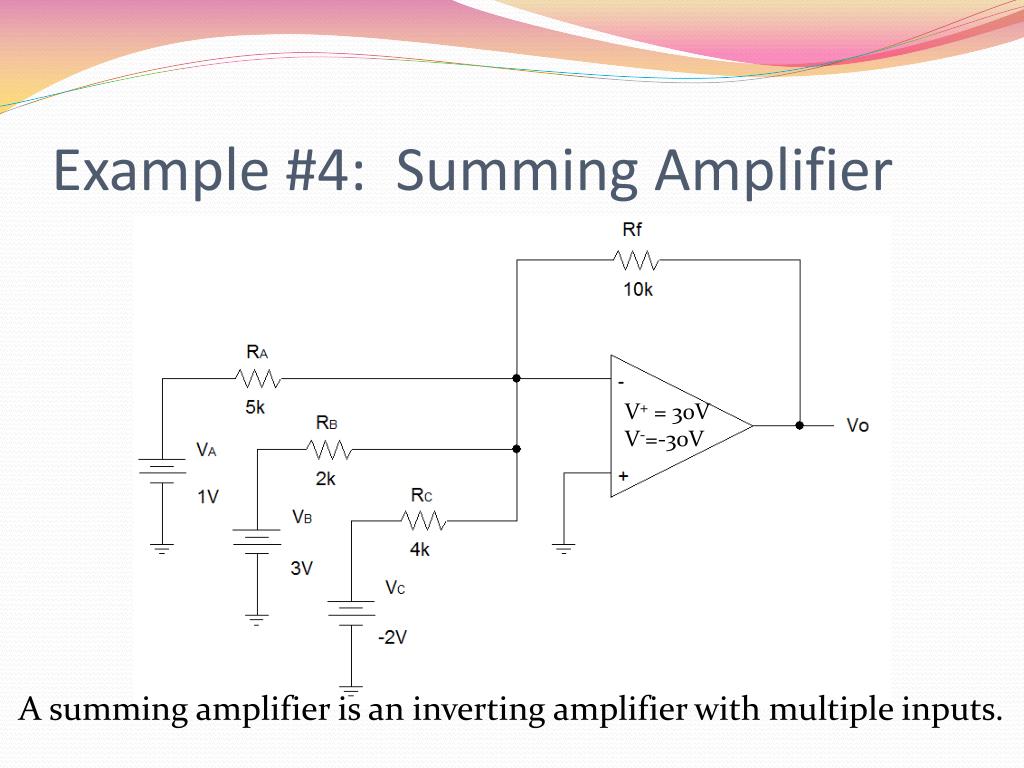

  18. Example #4: Summing Amplifier V+ = 30V V-=-30V A summing amplifier is an inverting amplifier with multiple inputs.

  19. Example #4 (con’t) if i1 = 0 iA v1 iB i2 = 0 v2 iC We apply superposition to obtain a relationship between Vo and the input voltages.

  20. Example #4 (con’t) A virtual ground

  21. Example #4 (con’t)

  22. Example #4 (con’t) Note that the voltages at both nodes of RC are 0V.

  23. Example #4 (con’t)

  24. Example #4 (con’t)

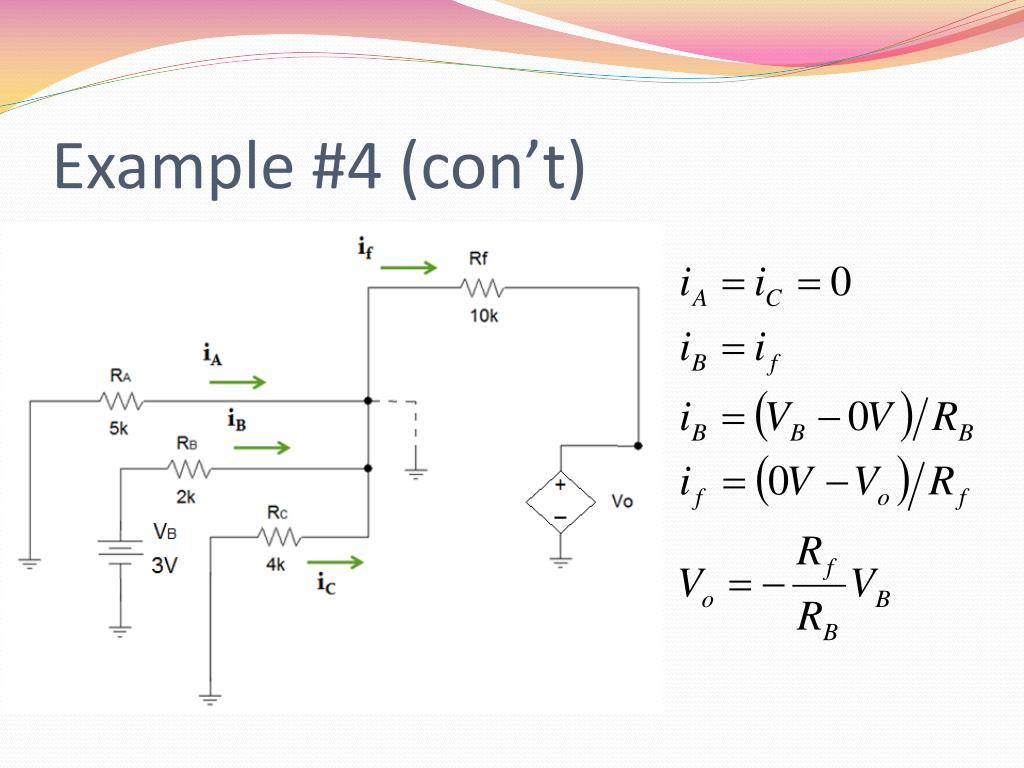

  25. Example #4 (con’t)

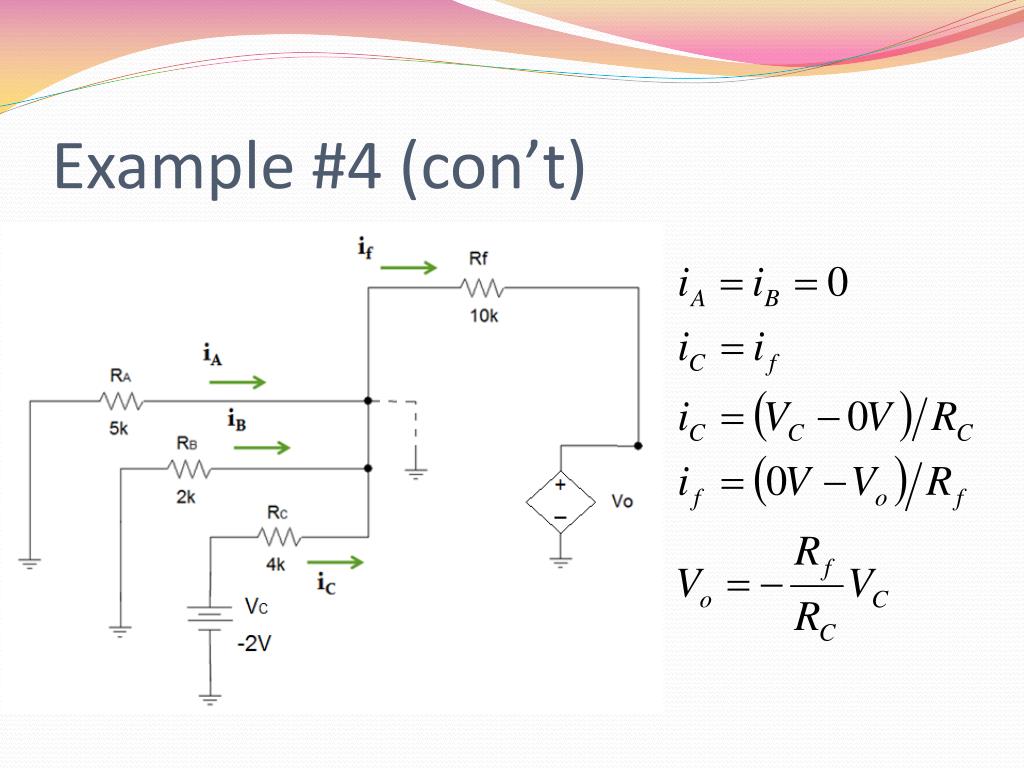

  26. Example #4 (con’t)

  27. Example #4 (con’t) • Do not apply the limits on vo (V+≥ vo ≥ V-) until after adding the results from the three circuits together.

  28. Example #5: Difference Amplifier

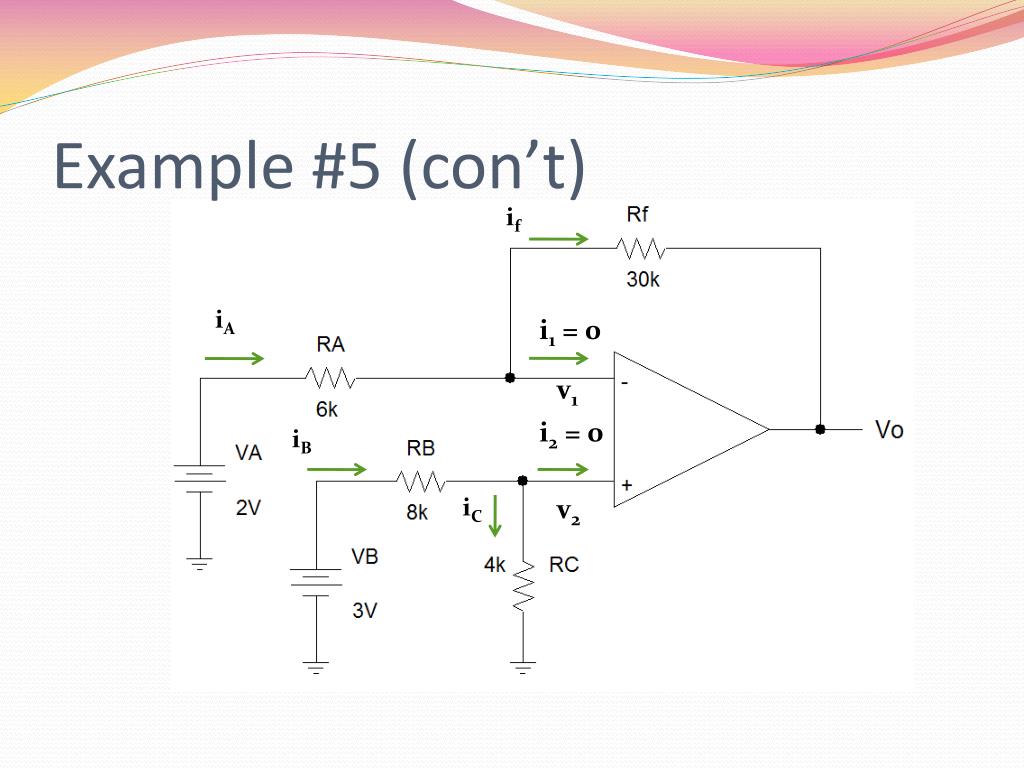

  29. Example #5 (con’t) if iA i1 = 0 v1 i2 = 0 iB iC v2

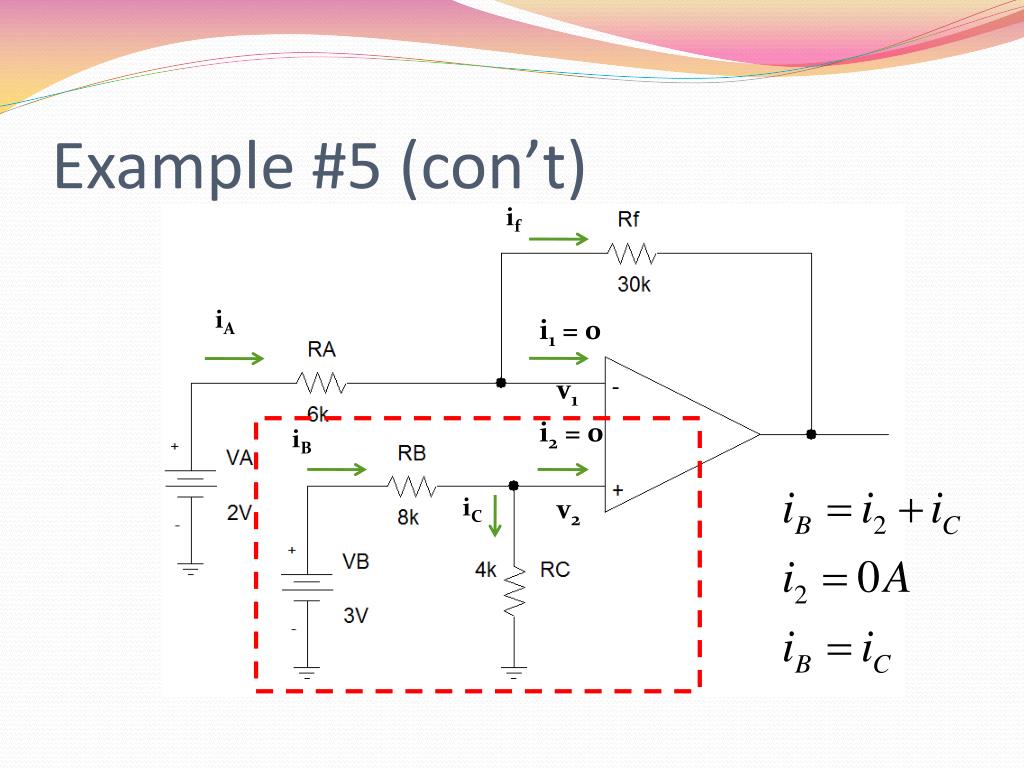

  30. Example #5 (con’t) if iA i1 = 0 v1 i2 = 0 iB iC v2

  31. Example #5 (con’t) if iA i1 = 0 v1 i2 = 0 iB iC v2

  32. Example #5 (con’t) if iA

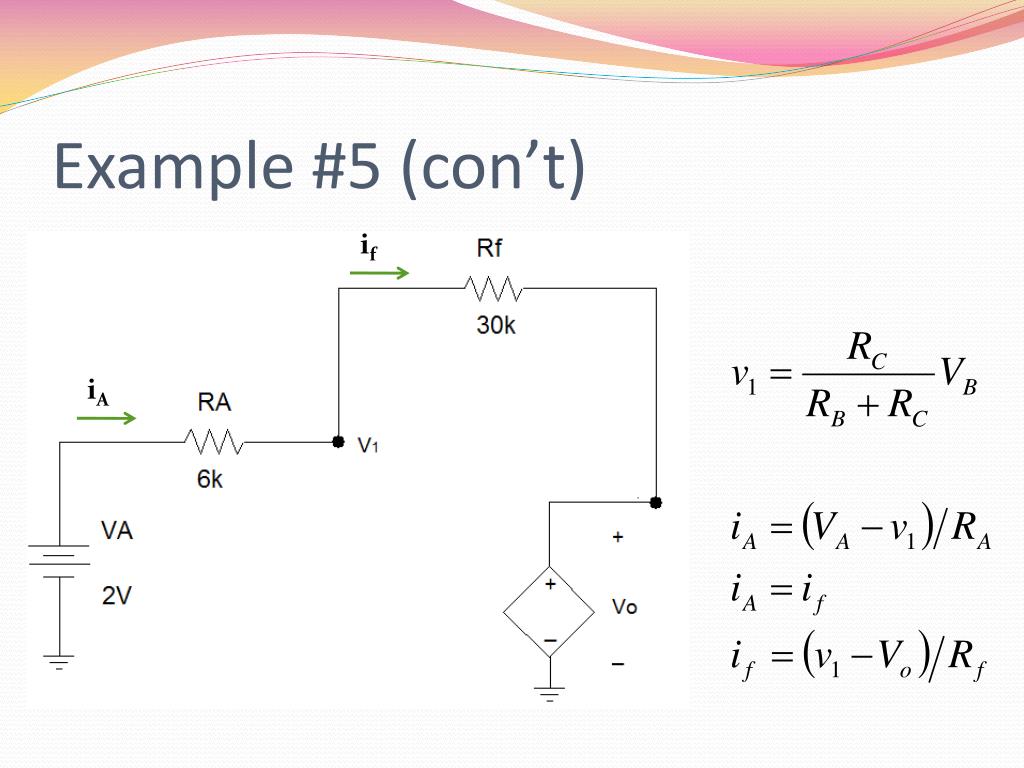

  33. Example #5 (con’t)

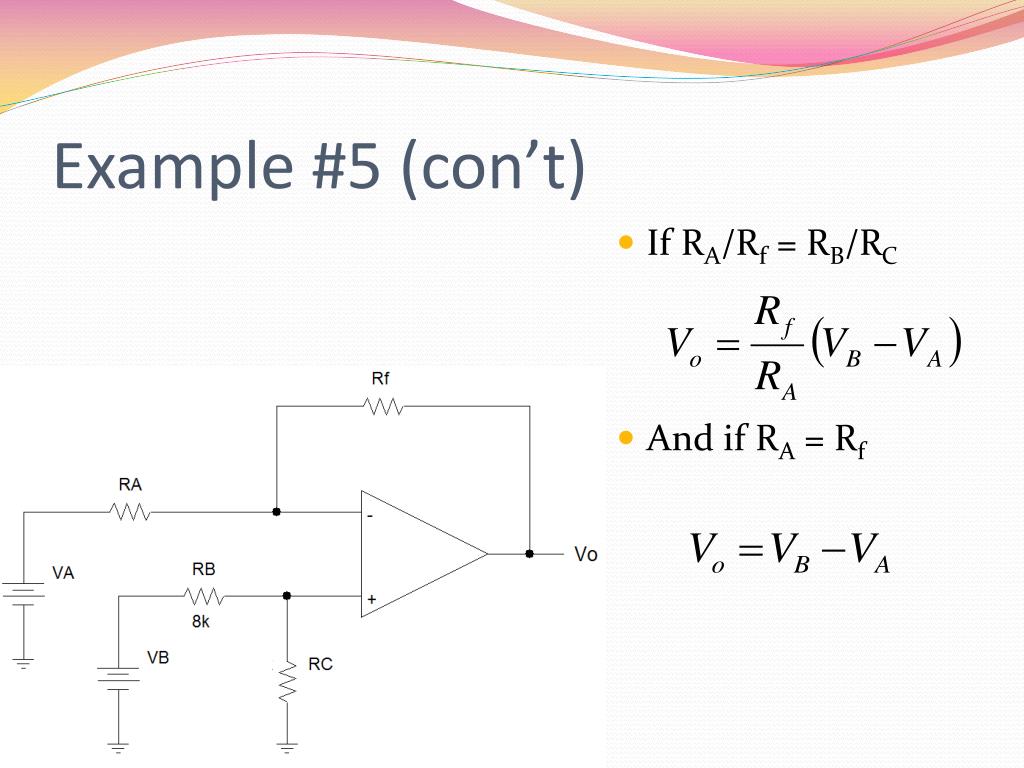

  34. Example #5 (con’t) • If RA/Rf = RB/RC • And if RA = Rf

  35. Example #6: Cascading Op Amps

  36. Example #6 (con’t) • Treat as two separate amplifier circuits

  37. Example #6 (con’t) First Circuit Second Circuit

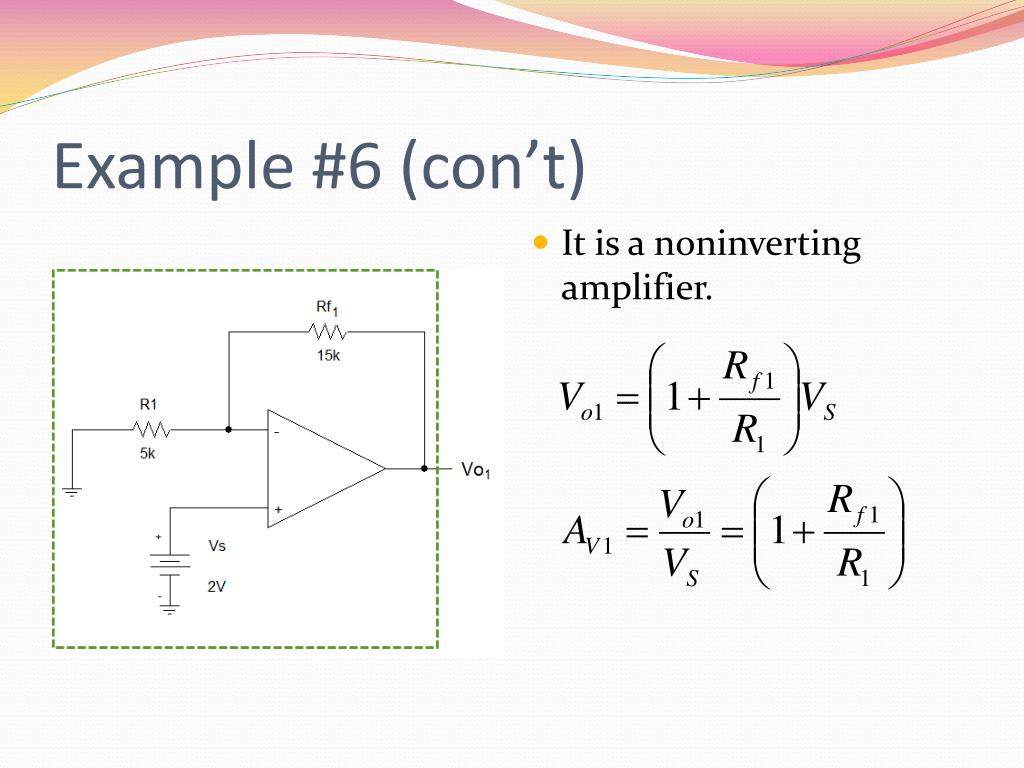

  38. Example #6 (con’t) • It is a noninverting amplifier.

  39. Example #6 (con’t) • It is a inverting amplifier.

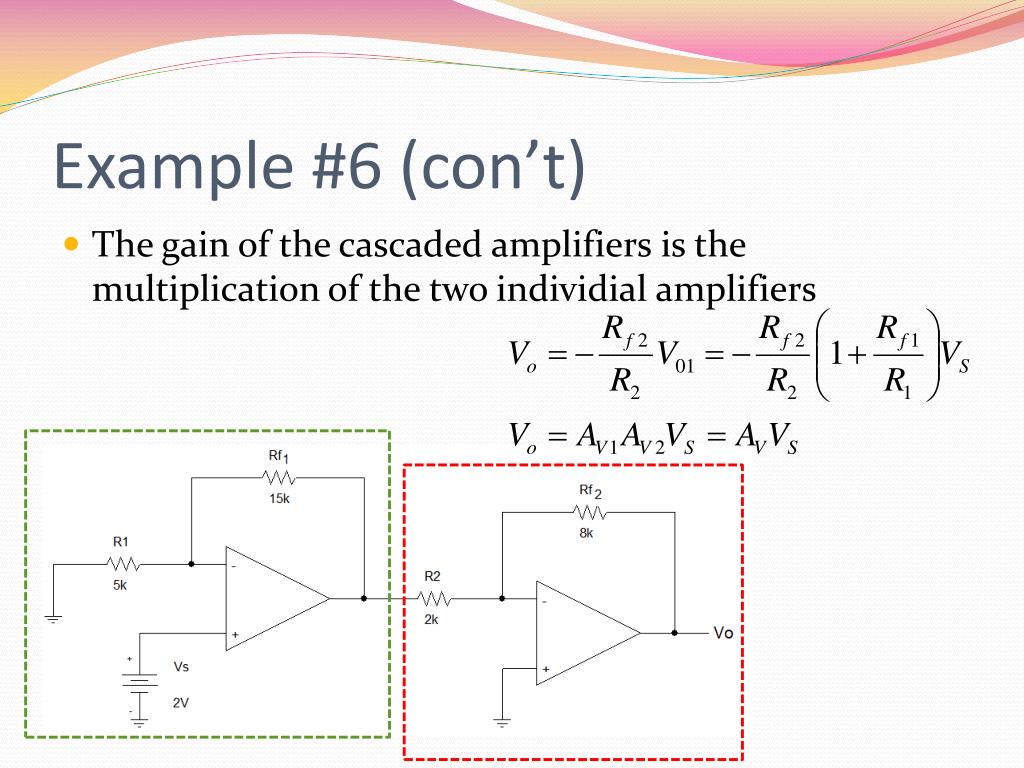

  40. Example #6 (con’t) • The gain of the cascaded amplifiers is the multiplication of the two individial amplifiers

  41. Summary • The ‘almost ideal’ op amp model: • Ri = ∞W. • i1 = i2 = 0A; v1 = v2 • Ro = 0W. • No power/voltage loss between the dependent voltage source and vo. • The output voltage is limited by the voltages applied to the positive and negative rails. • V+ ≥ vo ≥ V- • This model can be used to determine the closed loop voltage gain for any op amp circuit. • Superposition can be used to solve for the output of a summing amplifier. • Cascaded op amp circuits can be separated into individual amplifiers and the overall gain is the multiplication of the gain of each amplifier.
