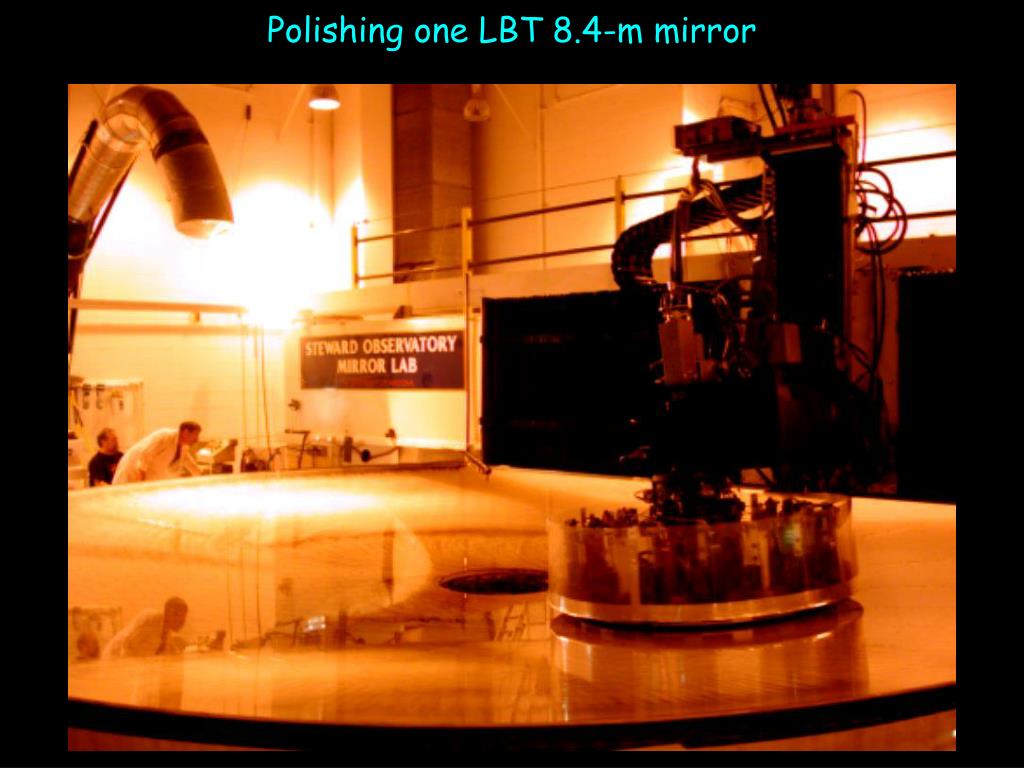

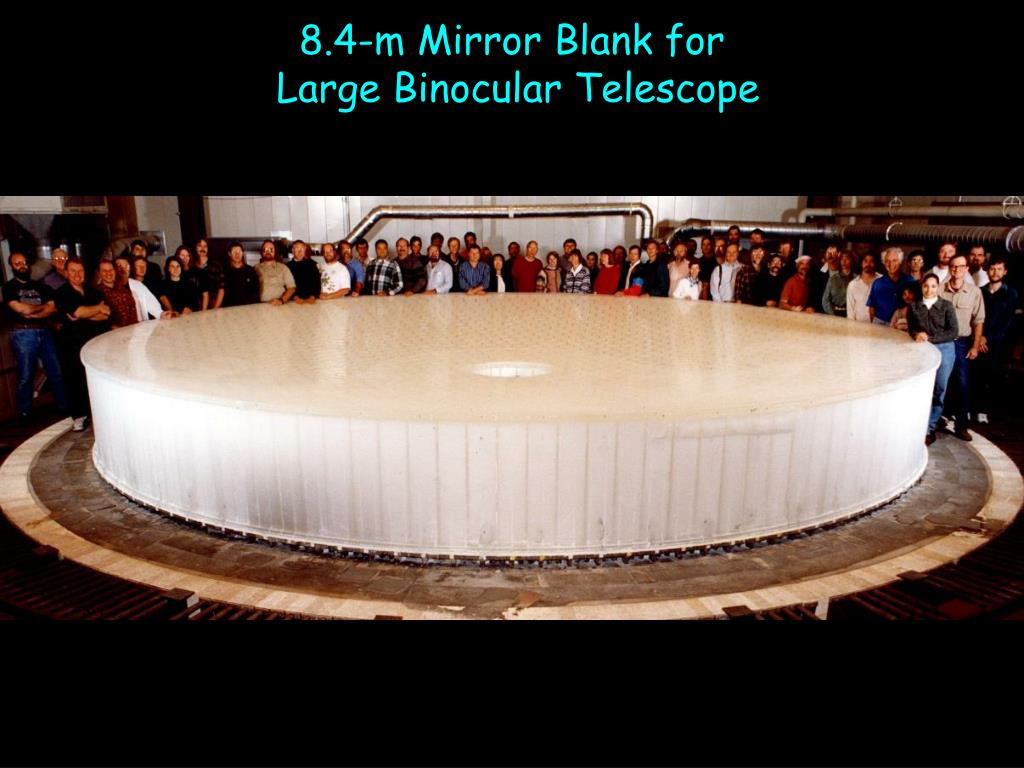

8.4-m Mirror Blank for Large Binocular Telescope. Polishing one LBT 8.4-m mirror. TELESCOPES. Palomar 200-in. The Electromagnetic Spectrum. Functions of Telescopes. Collect more light --- depends on (diam) 2 Resolve sources better (see more detail) Magnify images.

loader
I am the owner, or an agent authorized to act on behalf of the owner, of the copyrighted work described.
capcha
Download Presentation

PowerPoint Slideshow about '8.4-m Mirror Blank for Large Binocular Telescope' - forrest-james


An Image/Link below is provided (as is) to download presentation

Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author.While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server.


- - - - - - - - - - - - - - - - - - - - - - - - - - E N D - - - - - - - - - - - - - - - - - - - - - - - - - -
Presentation Transcript
telescopes
TELESCOPES

Palomar

200-in

functions of telescopes

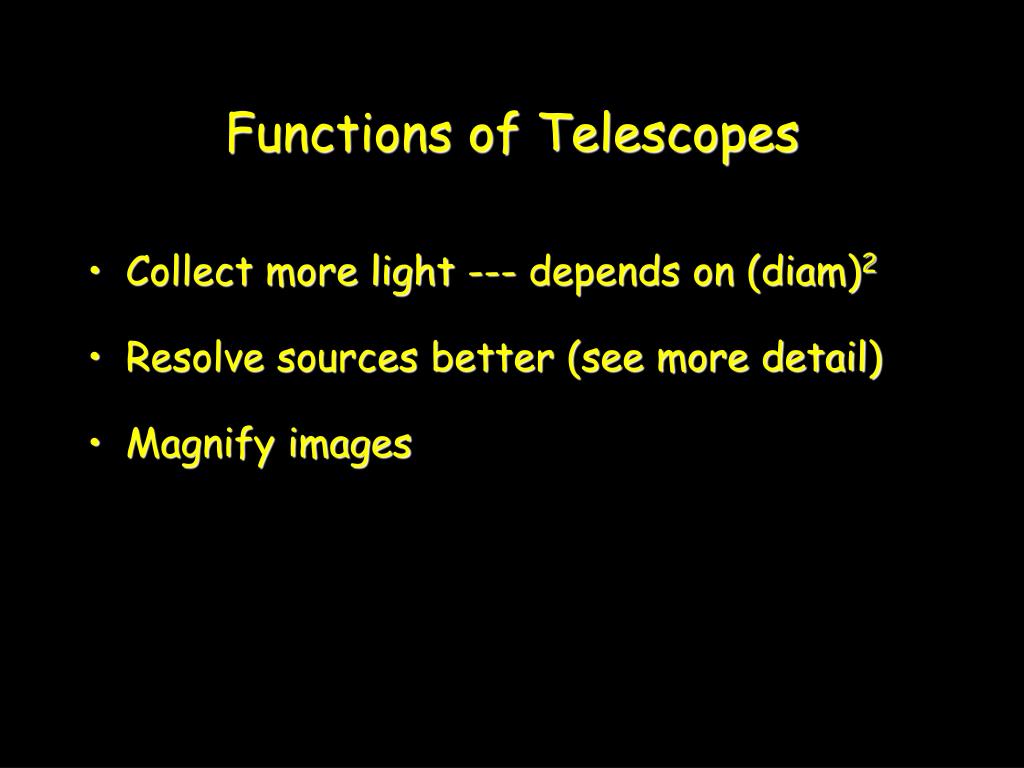

Functions of Telescopes
  • Collect more light --- depends on (diam)2
  • Resolve sources better (see more detail)
  • Magnify images
telescope objectives specially shaped main optical element
Telescope “Objectives”: Specially Shaped Main Optical Element

Purpose: form an accurate representation of original scene at a “focus”

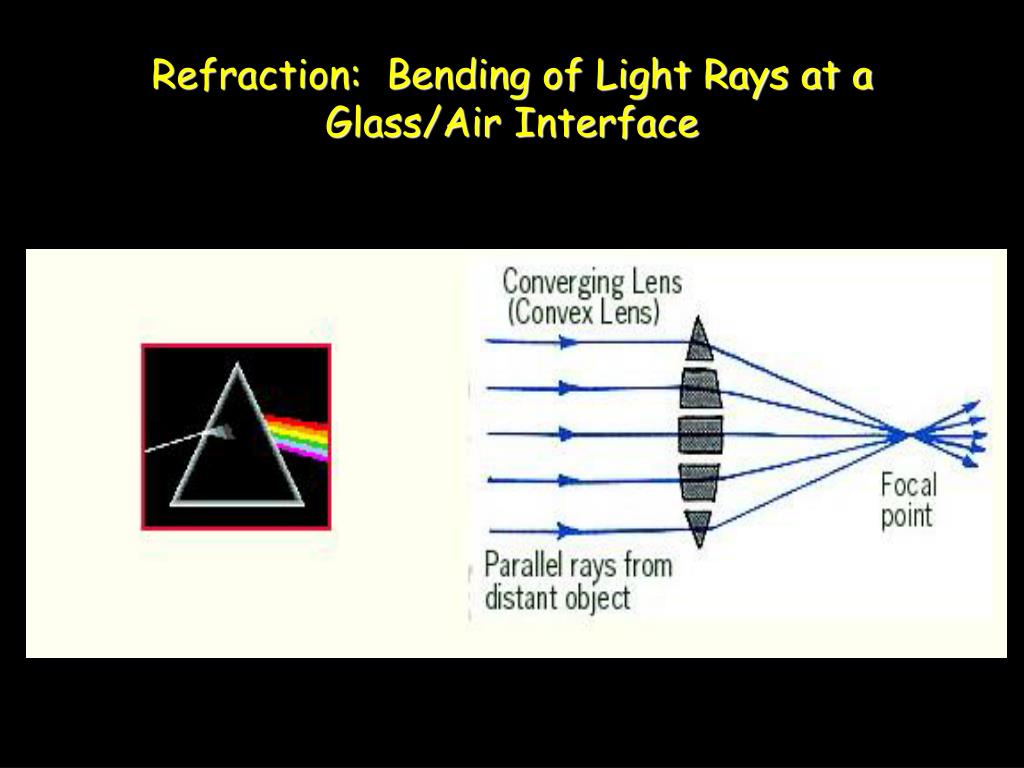

  • Lens ---> “refracting” telescope

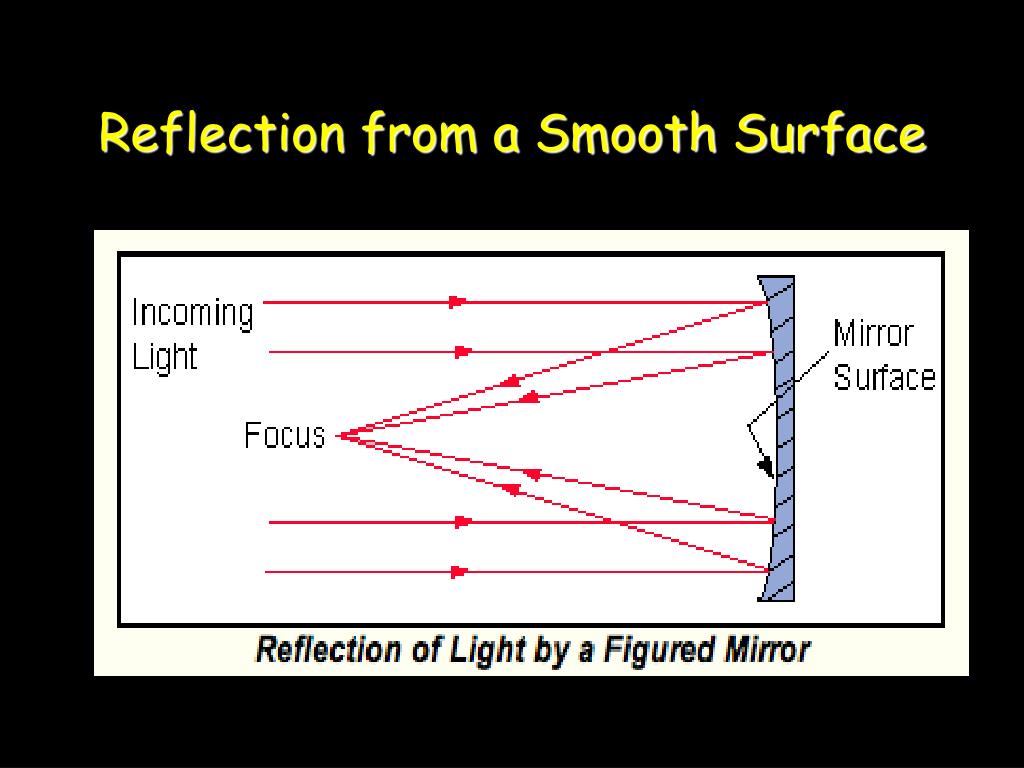

  • Mirror ---> “reflecting” telescope
refracting telescope
Refracting Telescope

Minimum 2 lenses needed for visual use

Place detector here

telescope performance characteristics
Telescope Performance Characteristics
  • Focal Ratio (f/ number)
  • Magnification ("power")
  • Field of view
  • Light Gathering Power
  • Resolution
focal ratio
Focal Ratio
  • f/ number = Obj FL / Obj Diam
  • Smaller numbers give more concentrated light in focal plane (better for faint extended objects); allow shorter exposures with film/electronic detectors
  • Higher numbers have better resolution; better for high magnification (e.g. for planets)
magnification

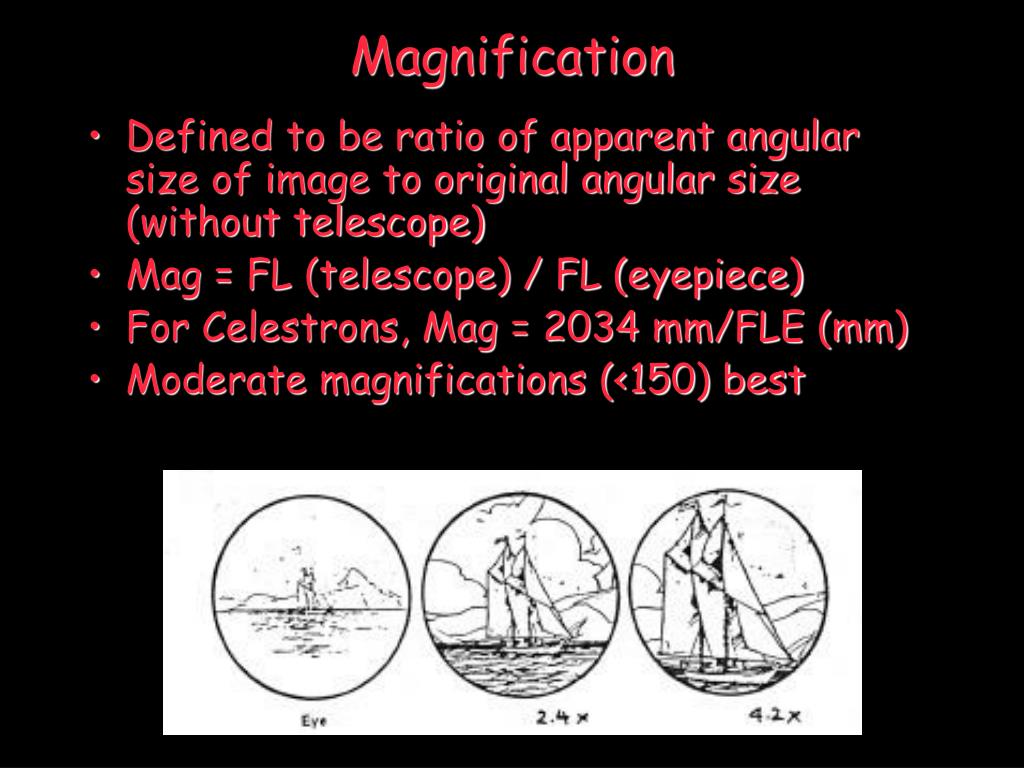

Magnification
  • Defined to be ratio of apparent angular size of image to original angular size (without telescope)
  • Mag = FL (telescope) / FL (eyepiece)
  • For Celestrons, Mag = 2034 mm/FLE (mm)
  • Moderate magnifications (<150) best
field of view
Field of View
  • True angular diameter -- i.e. as viewed without telescope -- of field visible in eyepiece.
  • Usually quoted in degrees or minutes of arc
  • Depends on eyepiece used
  • Is smaller for higher magnification with given telescope
light gathering power
Light Gathering Power
  • Most important attribute of telescope
  • Light collected is proportional to the area of the objective, or to Dobj2
  • If the pupil diameter of your eye is 5mm, an 8" telescope collects (203/5)2 = 1600x more light
slide23

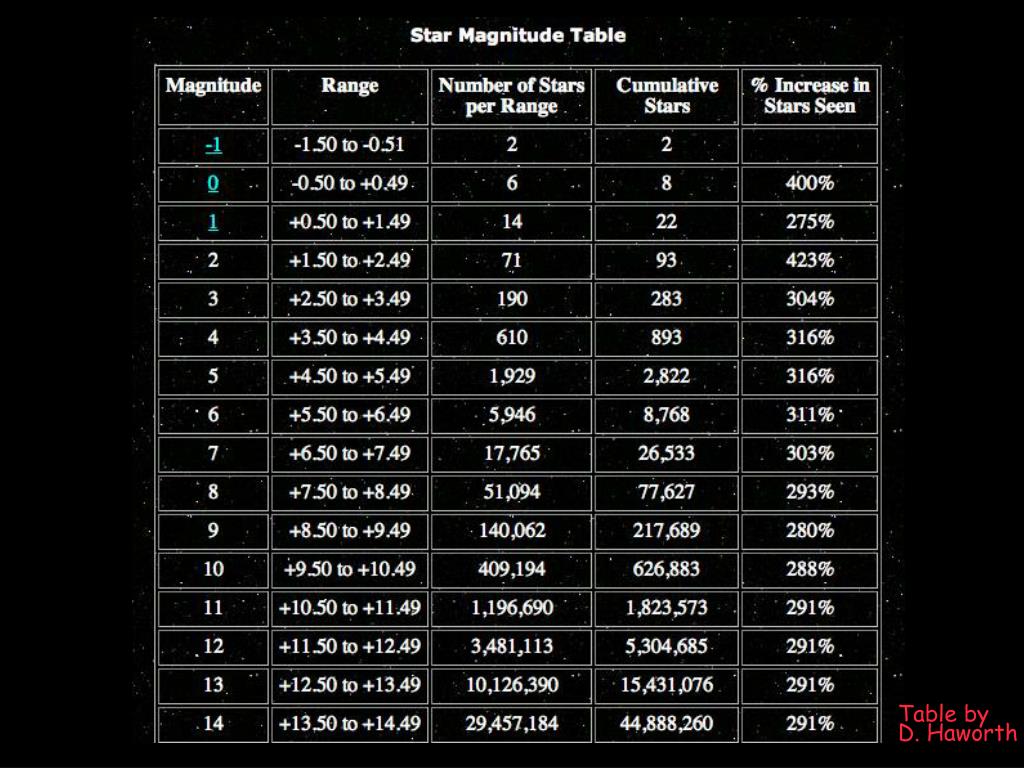

Table by

D. Haworth

image quality resolution

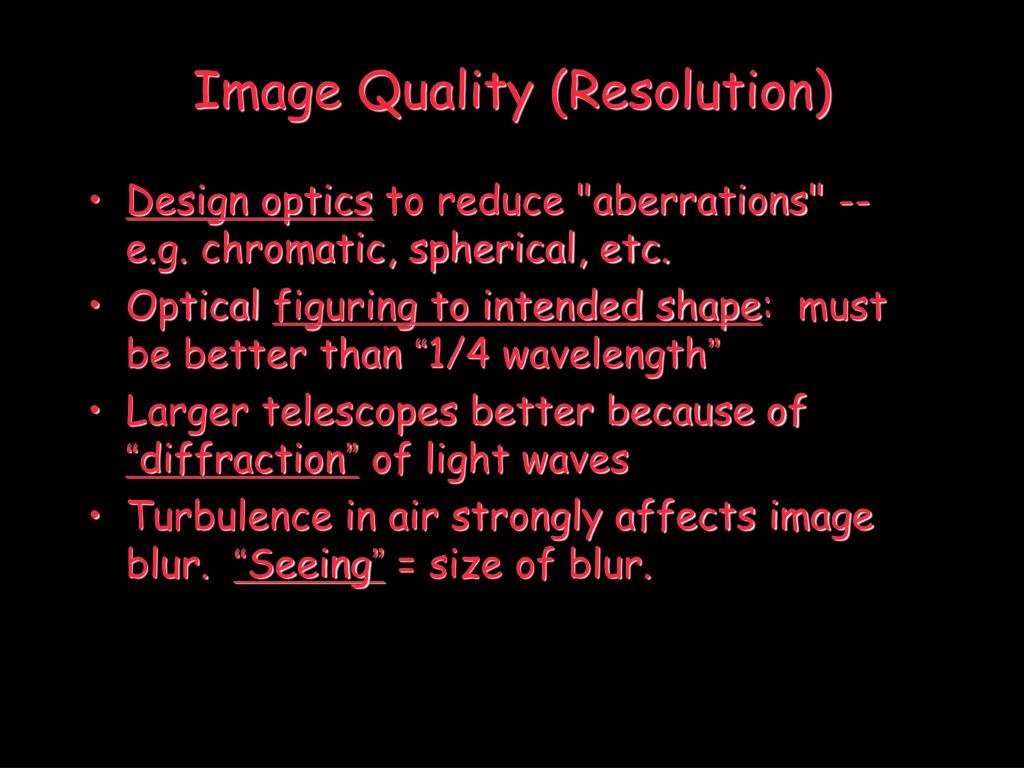

Image Quality (Resolution)

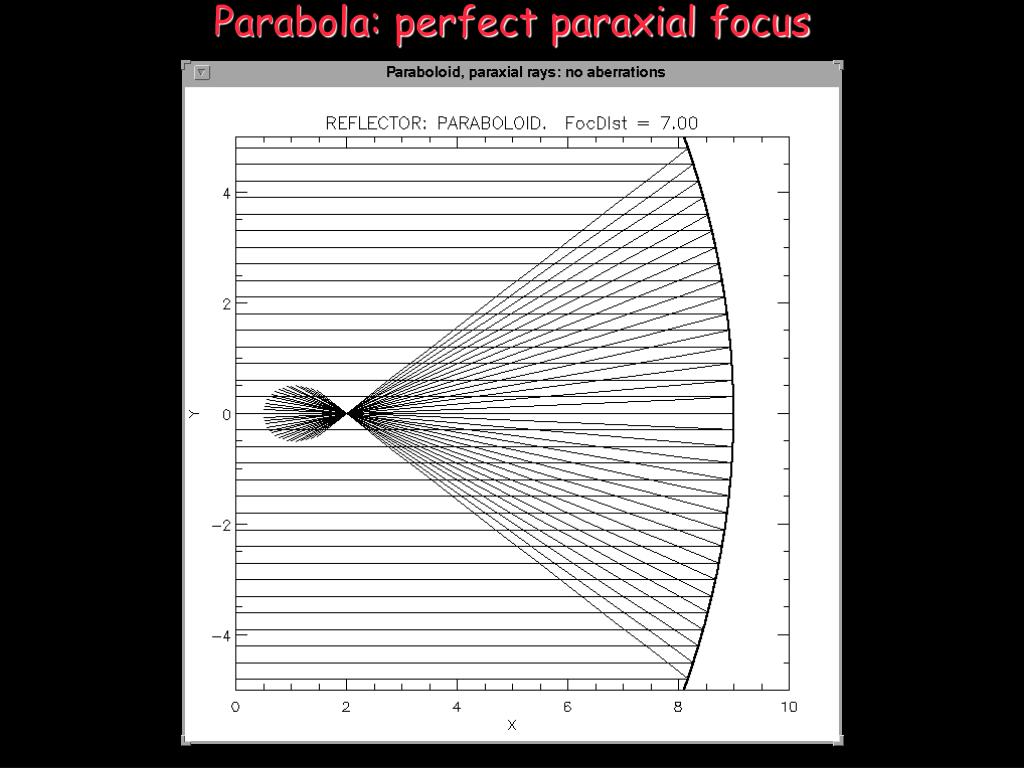

  • Design optics to reduce "aberrations" -- e.g. chromatic, spherical, etc.
  • Optical figuring to intended shape: must be better than “1/4 wavelength”
  • Larger telescopes better because of “diffraction” of light waves
  • Turbulence in air strongly affects image blur. “Seeing” = size of blur.
slide30

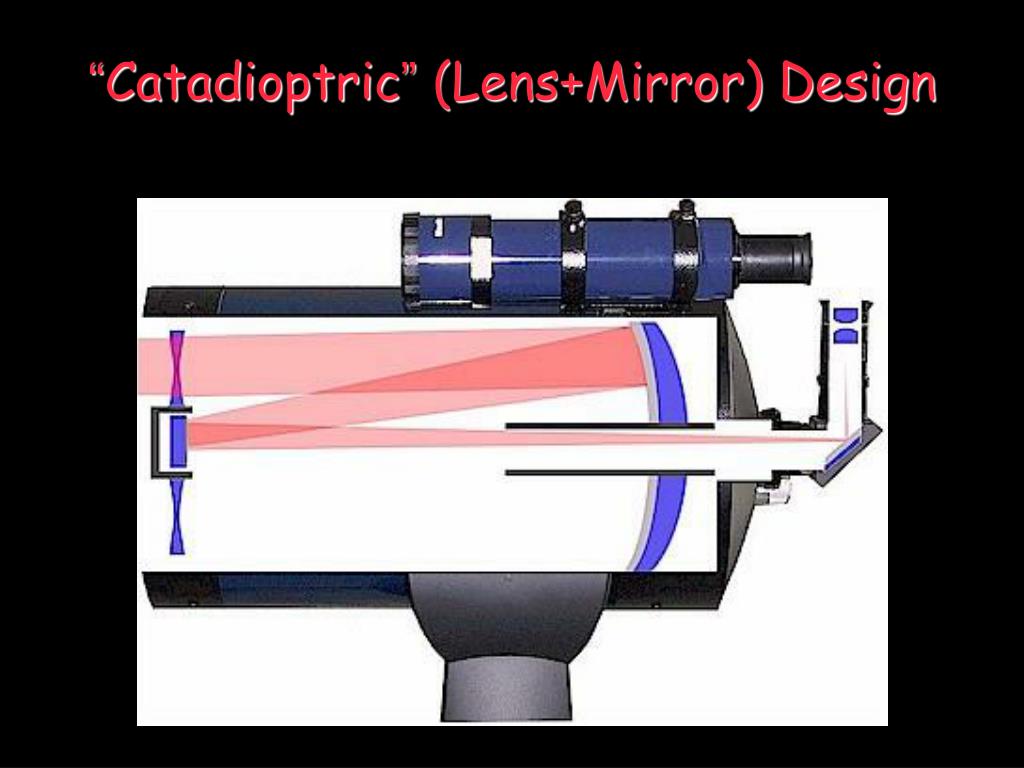

“Schmidt-Cassegrain” design uses a thin refractive corrector to eliminate spherical aberration from a spherically-shaped primary
slide36
Video of enlarged image of bright star

in a large telescope. Image size/motion caused by

Earth’s atmosphere.

telescope designs a multitude
Telescope Designs: A Multitude

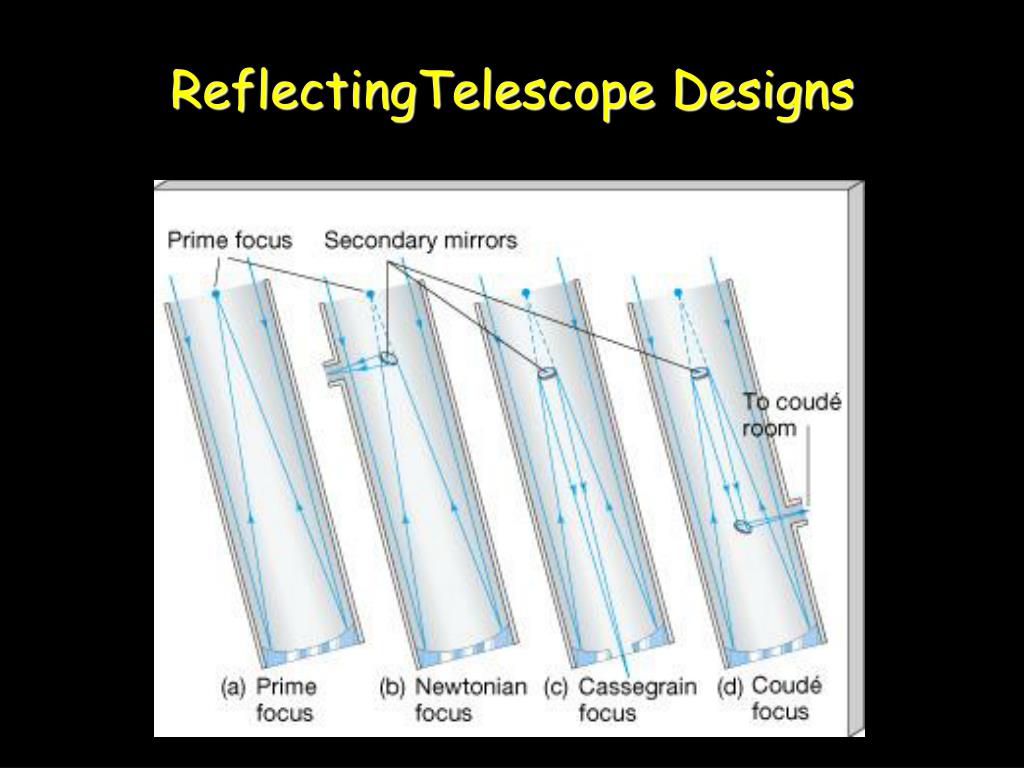

  • Optical design
  • Mounting design
    • Equatorial
    • Altitude-Azimuth
slide42
200-in

Dedication (1948)

(Largest equatorial mount for

optical telescope; "horseshoe")

slide52
McCormick 26-in

Refractor.

Equatorial mount
