Agilent 3070

Equip-Test provides high-quality stainless steel Agilent 3070 at affordable prices. Also, find Agilent 3070 technical features that include external dimension, area, and many more. You can also find the varieties of Agilent 3070: VFS - E90 - 2ST - HP 3070 - VC09, VFS - E90 - HP 3070, VFS - E92 - HP 3070, VFT - E91 - HP 3070 and lots more. If you want to know more in detail, please donu2019t hesitate to contact us at 36 1 533 3165.

equiptest
Download Presentation

Agilent 3070

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

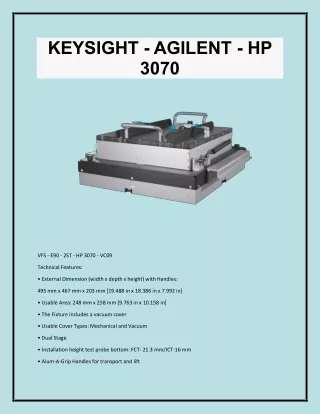

  1. KEYSIGHT - AGILENT - HP 3070 VFS - E90 - 2ST - HP 3070 - VC09 Technical Features: • External Dimension (width x depth x height) with Handles: 495 mm x 467 mm x 203 mm [19.488 in x 18.386 in x 7.992 in] • Usable Area: 248 mm x 258 mm [9.763 in x 10.158 in] • The Fixture includes a vacuum cover • Usable Cover Types: Mechanical and Vacuum • Dual Stage • Installation height test probe bottom: FCT- 21.3 mm/ICT-16 mm • Alum-A-Grip Handles for transport and lift

  2. KEYSIGHT - AGILENT - HP 3070 VFS - E90 - HP 3070 Technical Features: • External Dimension (width x depth x height) with Handles: 495 mm x 467 mm x 87 mm [19.488 in x 18.386 in x 3.425 in] • Usable Area (not DUT size): 320 mm x 400 mm [12.598 in x 15.748 in] • The Fixture doesn’t include a cover • Usable Cover Types: Mechanical and Vacuum • Installation height test probe bottom: 16 mm • Alum-A-Grip Handles for transport and lift

  3. KEYSIGHT - AGILENT - HP 3070 DOUBLE - BANK Technical Features: • External Dimension (width x depth x height) with Handles: 857 mm x 465 mm x 93 mm [33.740 in x 18.307 in x 3.661 in] • Usable Area (not DUT size): 680 mm x 400 mm [26.772 in x 15.748 in] • The Fixture doesn’t include a cover Contact us: Address: H - 2220 Vecsés Vágóhíd u. 19,Hungary / Europe Phone: +36 1 533 3165 Email: info@equip-test.com
