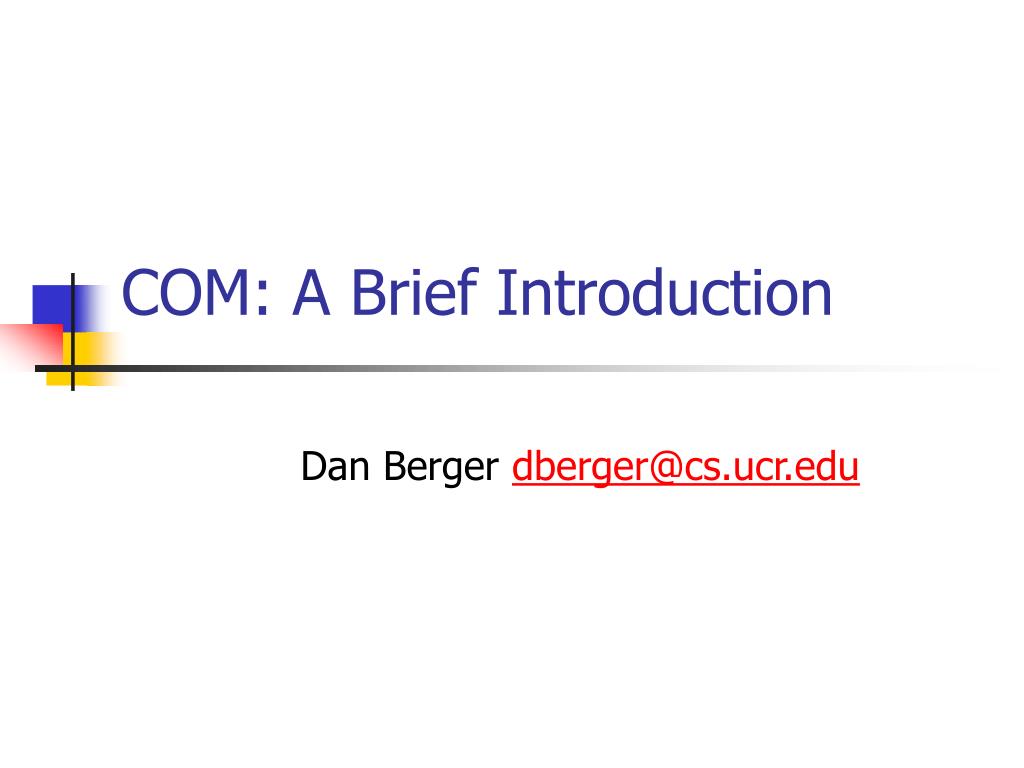

  1. COM: A Brief Introduction Dan Berger dberger@cs.ucr.edu

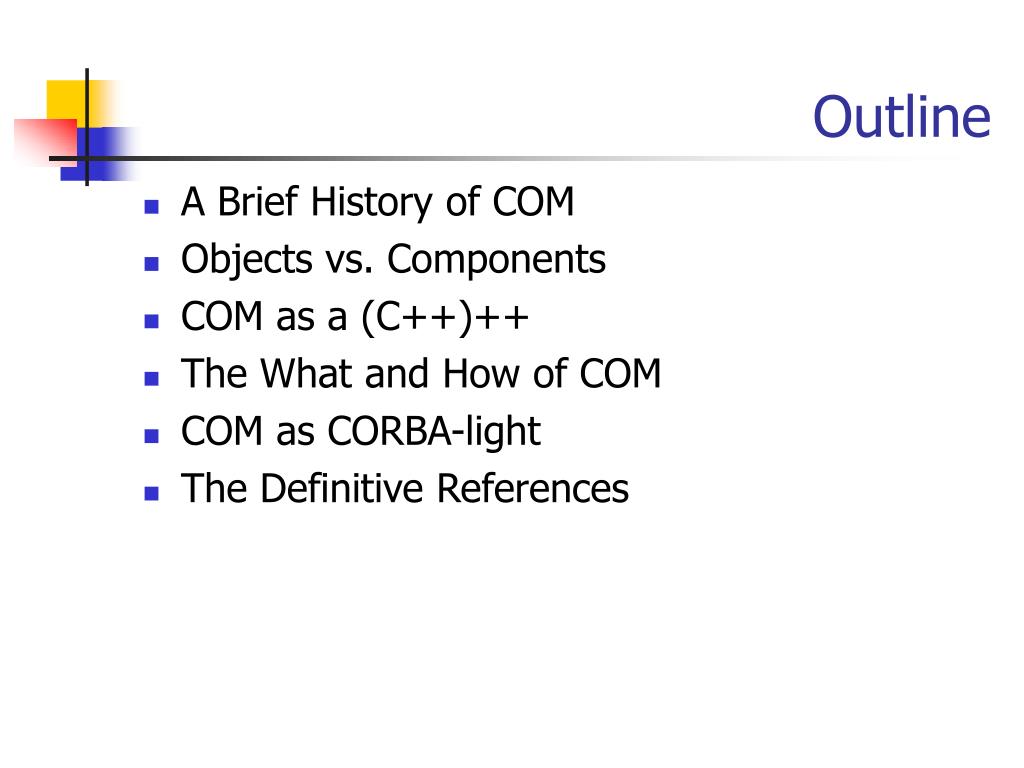

  2. Outline • A Brief History of COM • Objects vs. Components • COM as a (C++)++ • The What and How of COM • COM as CORBA-light • The Definitive References

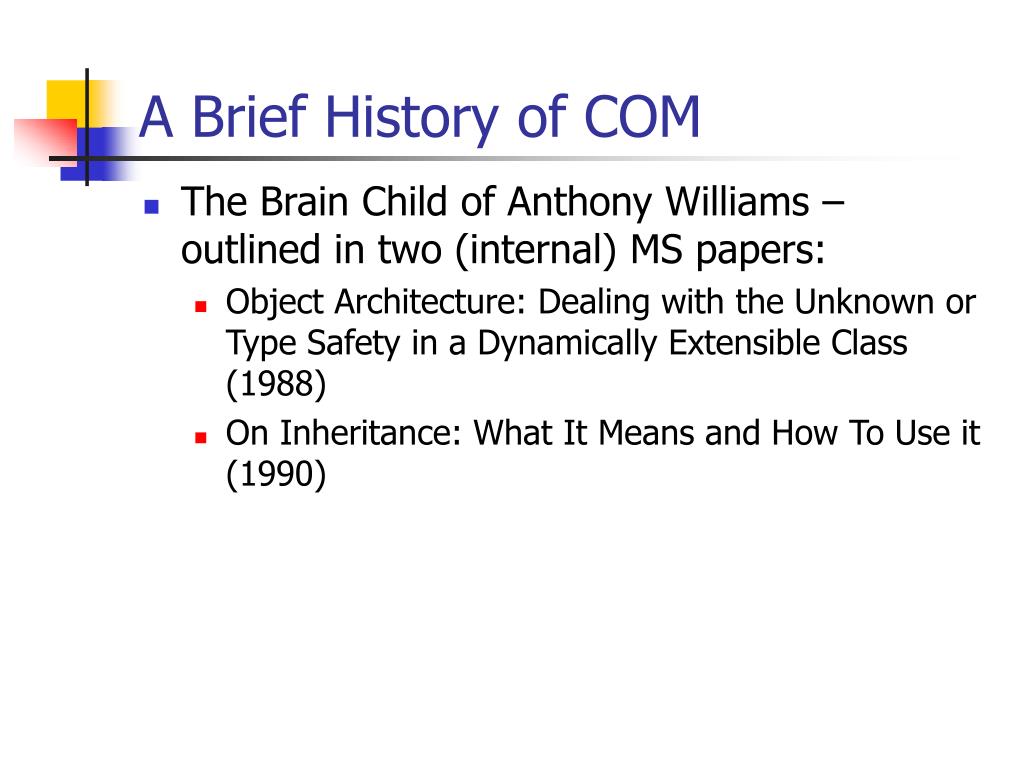

  3. A Brief History of COM • The Brain Child of Anthony Williams – outlined in two (internal) MS papers: • Object Architecture: Dealing with the Unknown or Type Safety in a Dynamically Extensible Class (1988) • On Inheritance: What It Means and How To Use it (1990)

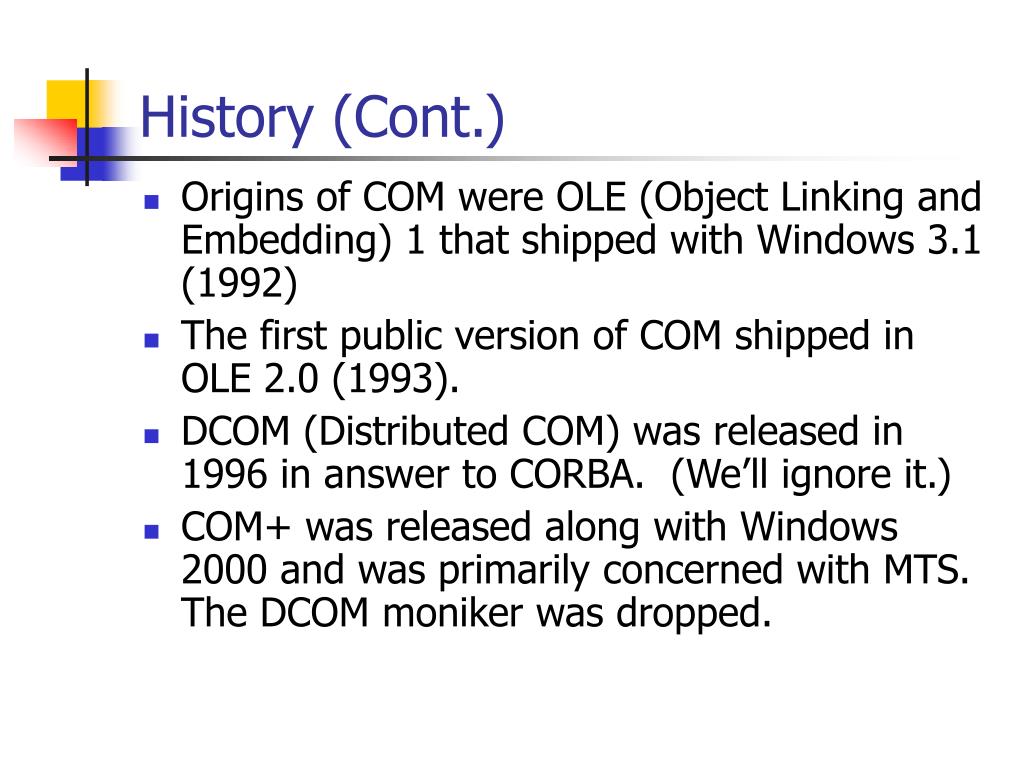

  4. History (Cont.) • Origins of COM were OLE (Object Linking and Embedding) 1 that shipped with Windows 3.1 (1992) • The first public version of COM shipped in OLE 2.0 (1993). • DCOM (Distributed COM) was released in 1996 in answer to CORBA. (We’ll ignore it.) • COM+ was released along with Windows 2000 and was primarily concerned with MTS. The DCOM moniker was dropped.

  5. Objects vs. Components • “Object Oriented Programming = Polymorphism + (Some) Late Binding + (Some) Encapsulation + Inheritance • Component Oriented Programming = Polymorphism + (Really) Late Binding + (Real, Enforced) Encapsulation + Interface Inheritance + Binary Reuse” Charlie Kindel “COM Guy” Microsoft Corp. 9/97

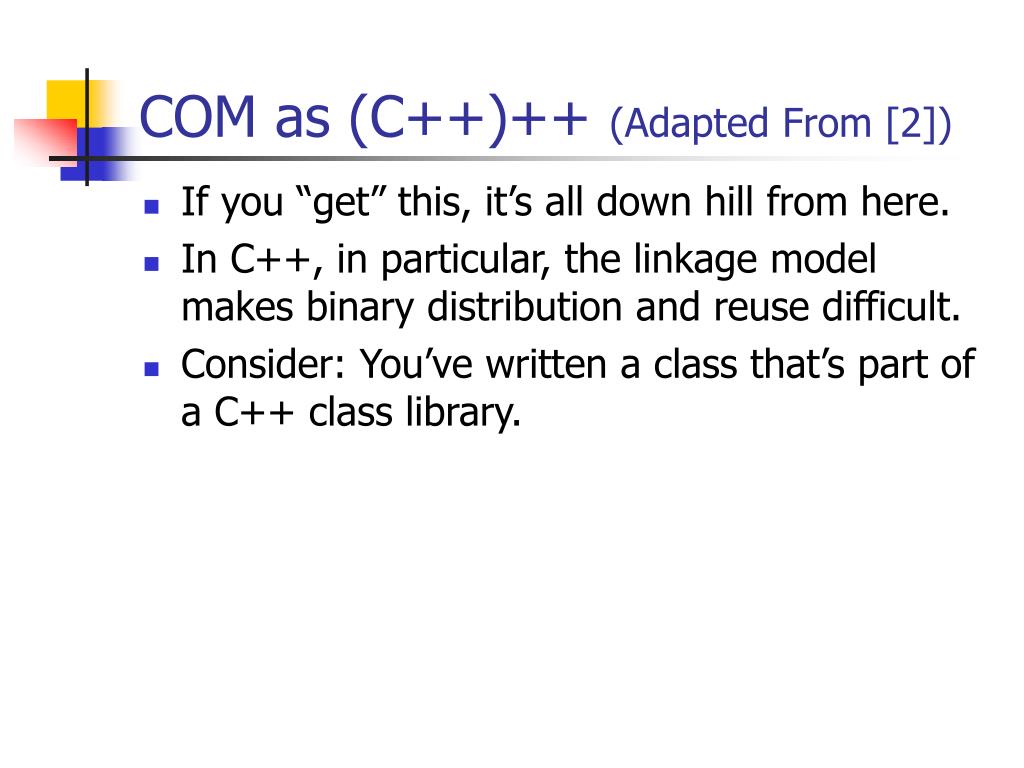

  6. COM as (C++)++ (Adapted From [2]) • If you “get” this, it’s all down hill from here. • In C++, in particular, the linkage model makes binary distribution and reuse difficult. • Consider: You’ve written a class that’s part of a C++ class library.

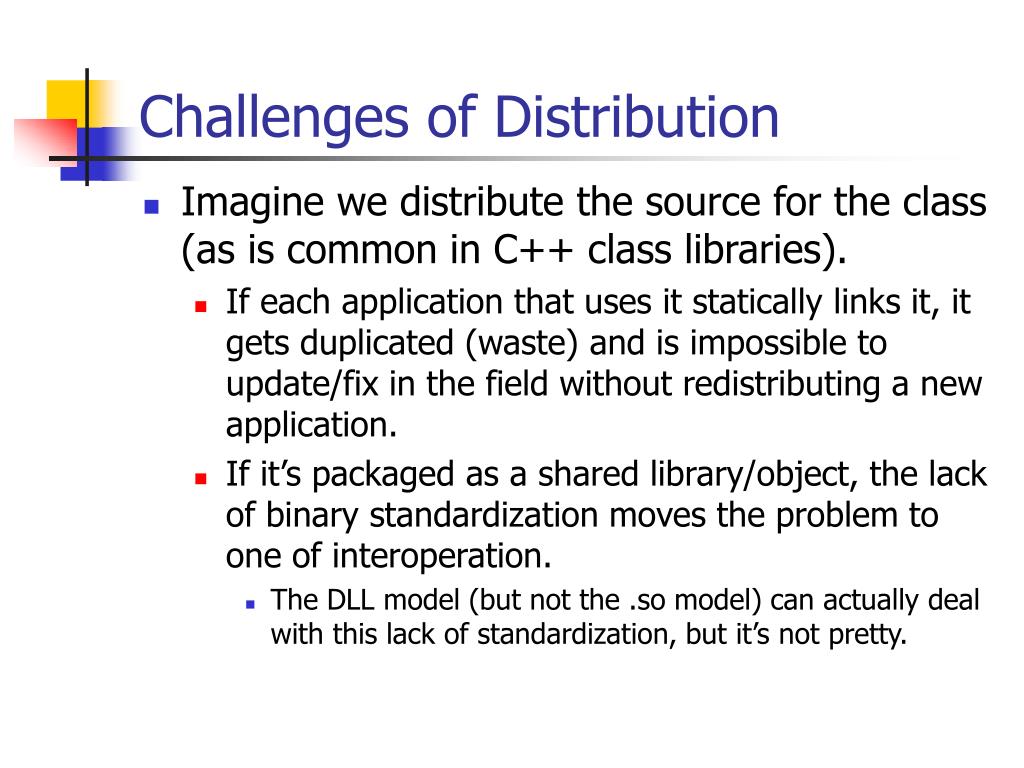

  7. Challenges of Distribution • Imagine we distribute the source for the class (as is common in C++ class libraries). • If each application that uses it statically links it, it gets duplicated (waste) and is impossible to update/fix in the field without redistributing a new application. • If it’s packaged as a shared library/object, the lack of binary standardization moves the problem to one of interoperation. • The DLL model (but not the .so model) can actually deal with this lack of standardization, but it’s not pretty.

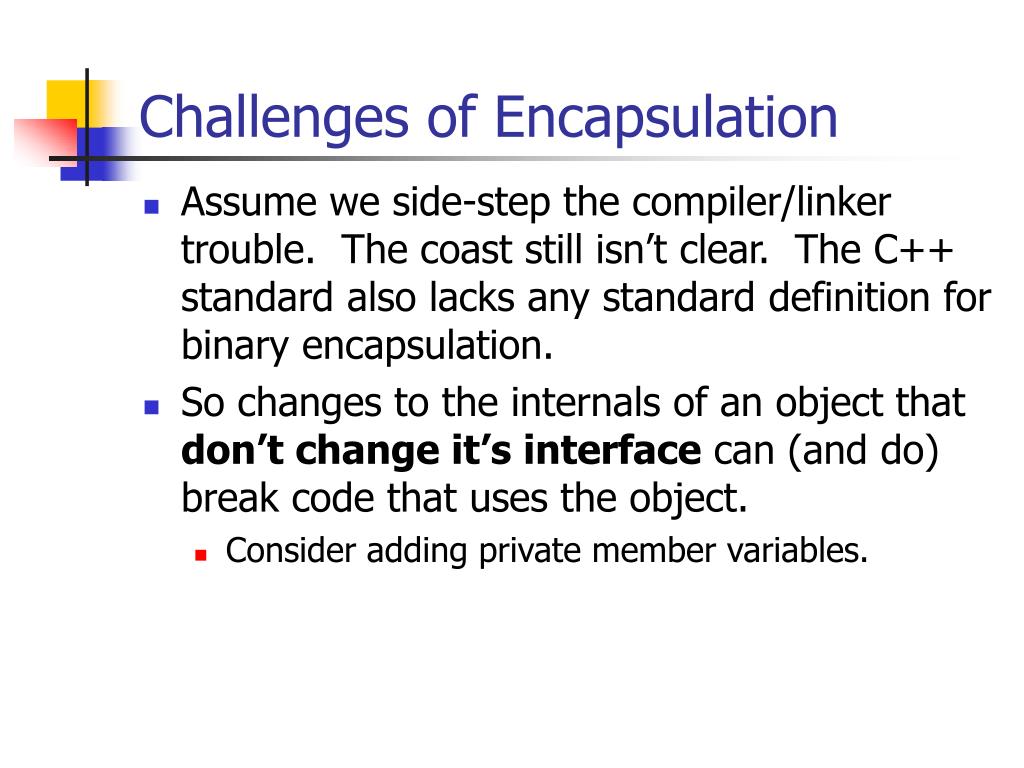

  8. Challenges of Encapsulation • Assume we side-step the compiler/linker trouble. The coast still isn’t clear. The C++ standard also lacks any standard definition for binary encapsulation. • So changes to the internals of an object that don’t change it’s interface can (and do) break code that uses the object. • Consider adding private member variables.

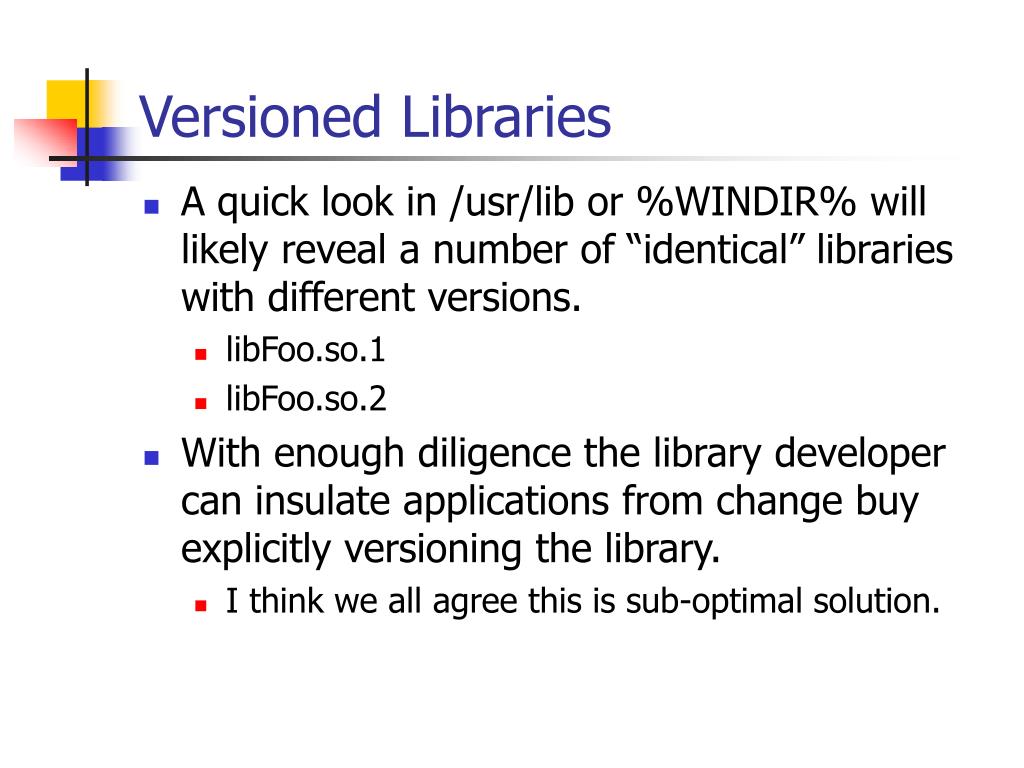

  9. Versioned Libraries • A quick look in /usr/lib or %WINDIR% will likely reveal a number of “identical” libraries with different versions. • libFoo.so.1 • libFoo.so.2 • With enough diligence the library developer can insulate applications from change buy explicitly versioning the library. • I think we all agree this is sub-optimal solution.

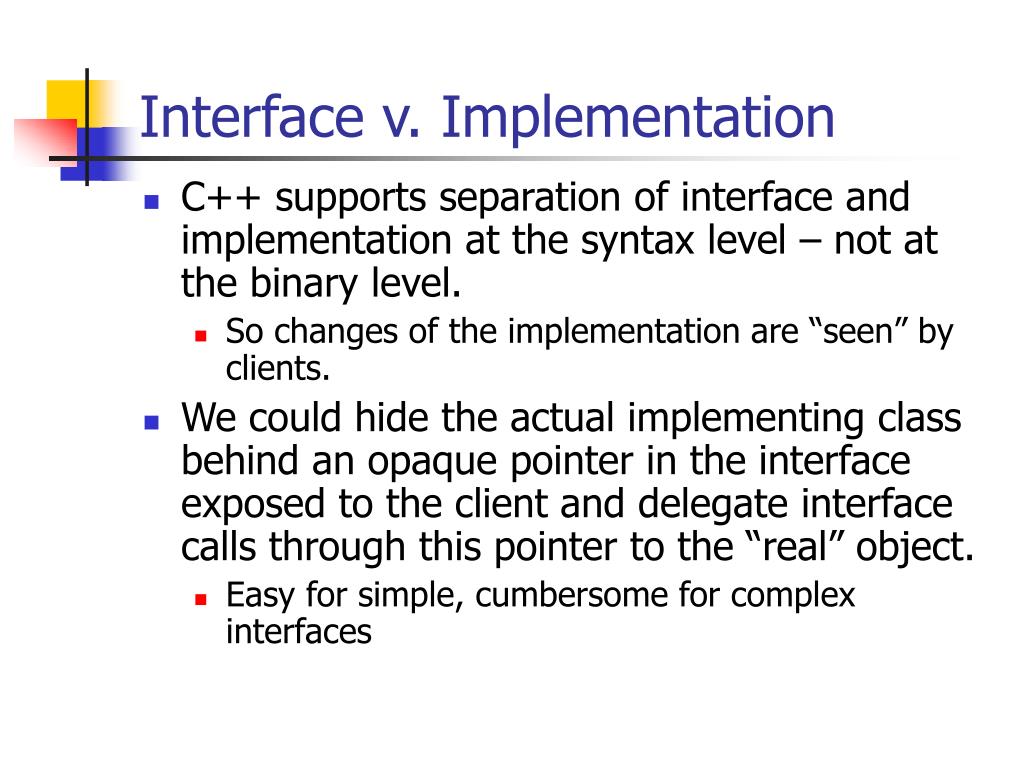

  10. Interface v. Implementation • C++ supports separation of interface and implementation at the syntax level – not at the binary level. • So changes of the implementation are “seen” by clients. • We could hide the actual implementing class behind an opaque pointer in the interface exposed to the client and delegate interface calls through this pointer to the “real” object. • Easy for simple, cumbersome for complex interfaces

  11. Abstract Classes as Interfaces • With three assumptions, we can use abstract classes to solve these problems: • C-style structs are represented identically across (C++) compilers. • All compilers can be forced to use common call conventions. • All compilers on a platform use equivalent virtual call implementations.

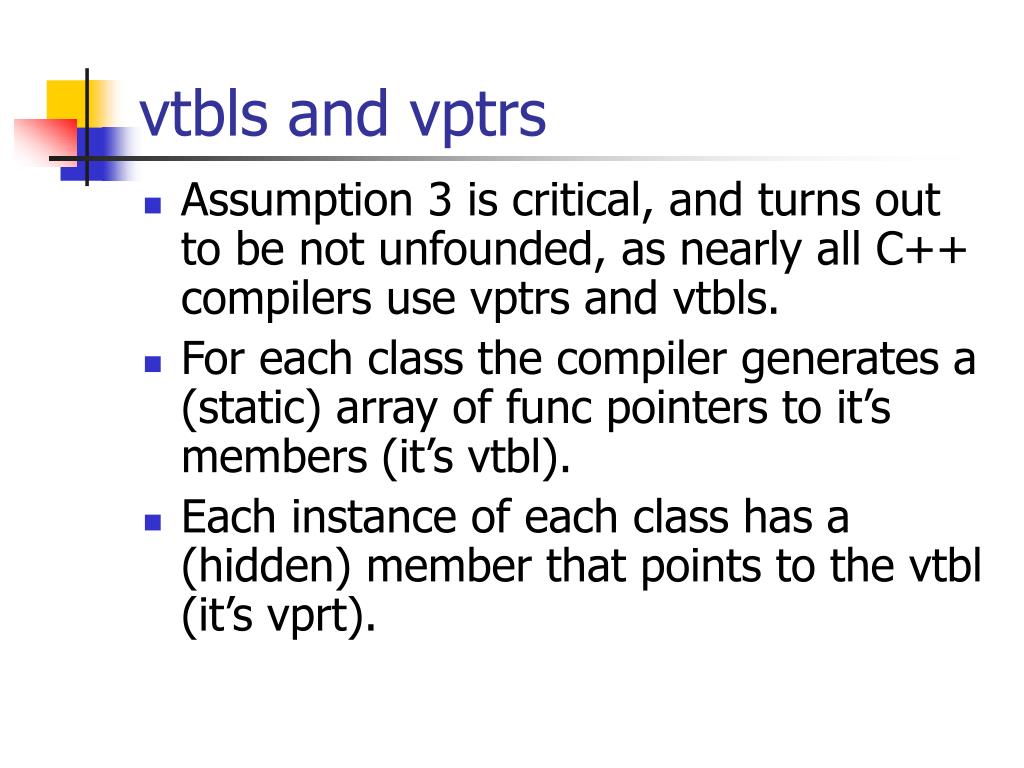

  12. vtbls and vptrs • Assumption 3 is critical, and turns out to be not unfounded, as nearly all C++ compilers use vptrs and vtbls. • For each class the compiler generates a (static) array of func pointers to it’s members (it’s vtbl). • Each instance of each class has a (hidden) member that points to the vtbl (it’s vprt).

  13. Example class ISearchableString { public: virtual int Length(void) const = 0; virtual int Find(const char *s) = 0; }; IsearchableString vtbl vptr Length (null) Find (null)

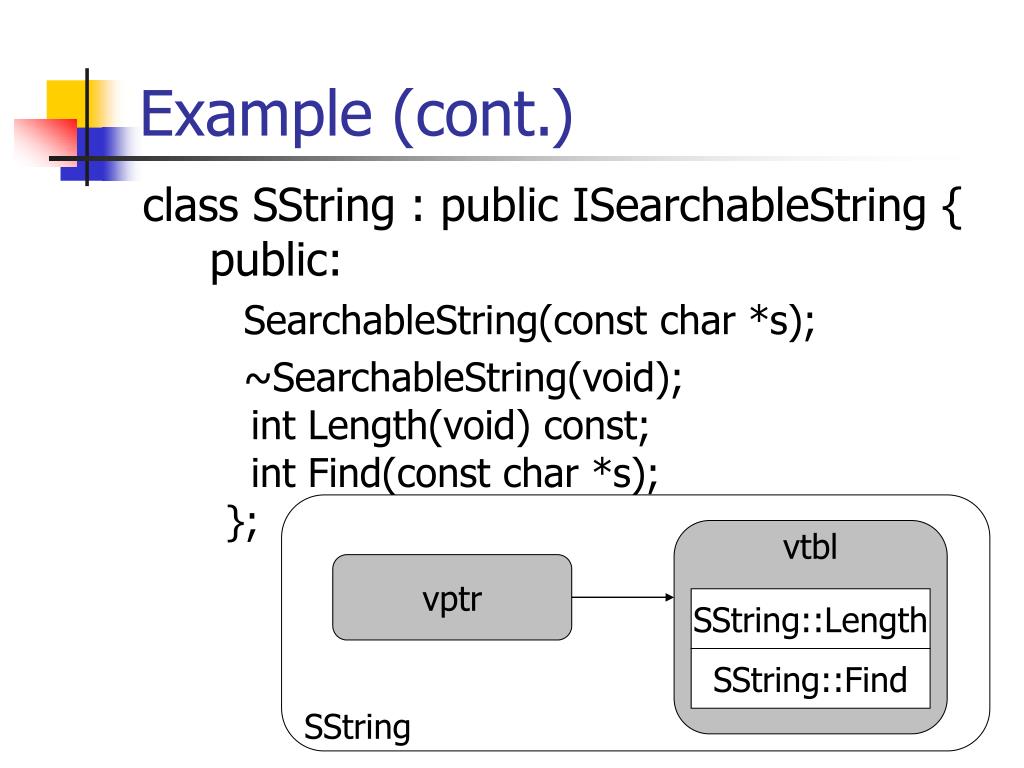

  14. Example (cont.) class SString : public ISearchableString { public: SearchableString(const char *s); ~SearchableString(void); int Length(void) const; int Find(const char *s);}; SString vtbl vptr SString::Length SString::Find

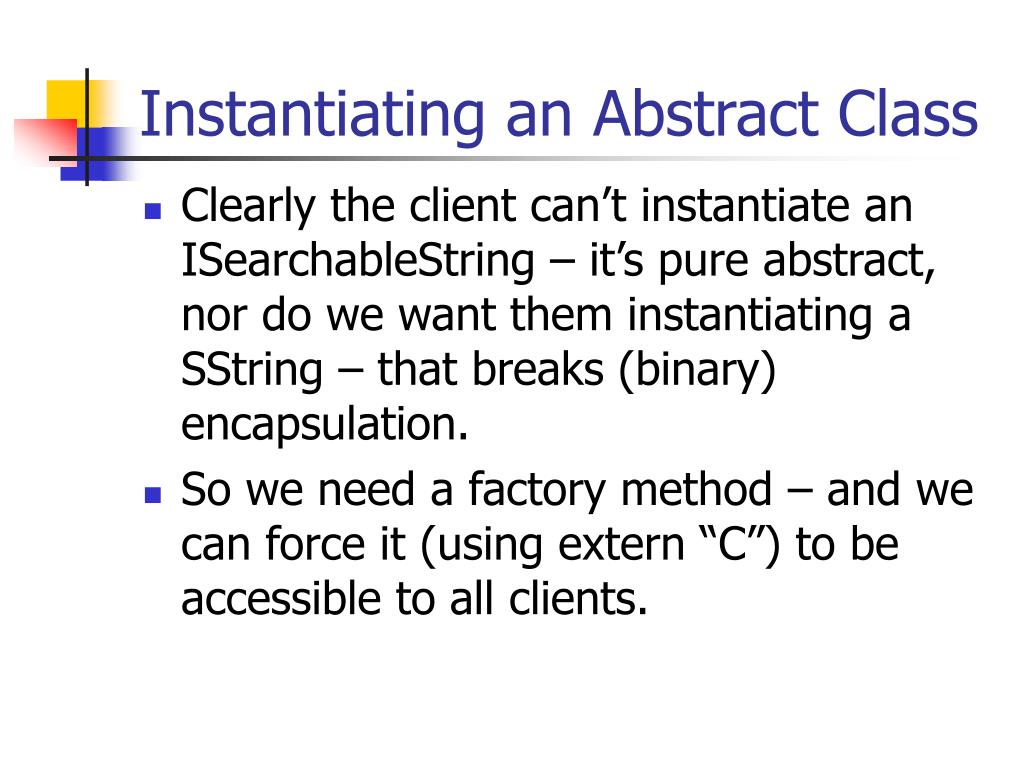

  15. Instantiating an Abstract Class • Clearly the client can’t instantiate an ISearchableString – it’s pure abstract, nor do we want them instantiating a SString – that breaks (binary) encapsulation. • So we need a factory method – and we can force it (using extern “C”) to be accessible to all clients.

  16. Virtual Destructors • Unfortunately, there’s a problem – our class lacks a virtual d’tor – so calls to delete will use the (default) d’tor on the ISearchableString class. • We can’t add a virtual d’tor to the abstract class because different compilers put dtor’s in different places in the vtbl. (blech) • So we add a virtual “Delete” method to the abstract class.

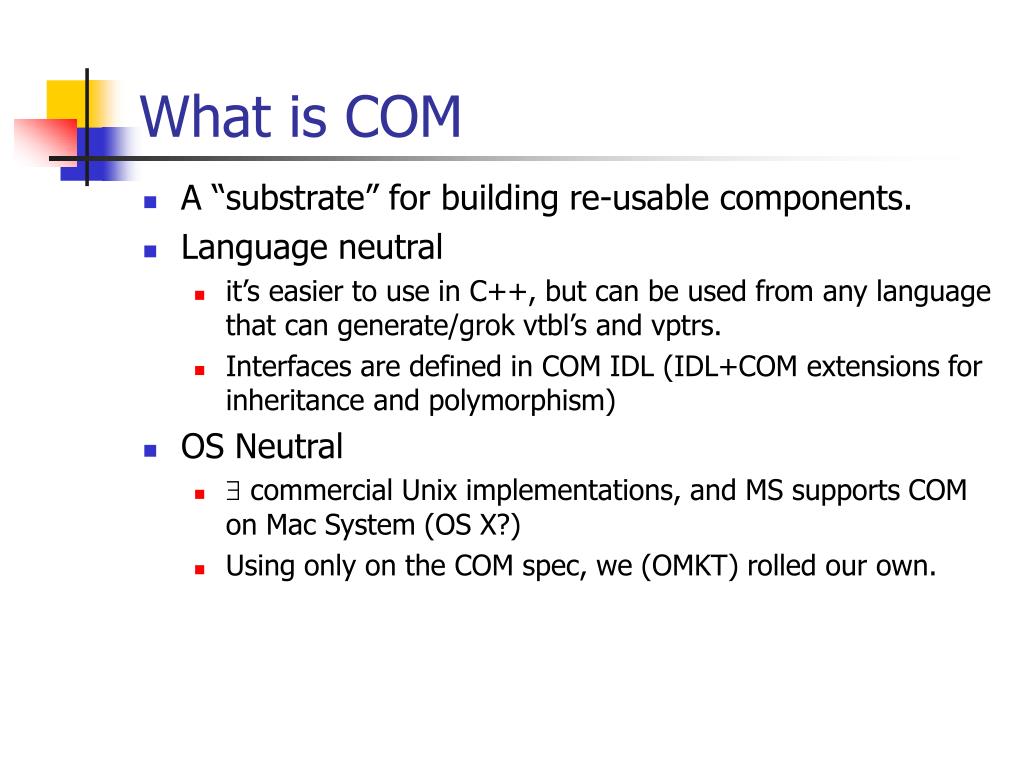

  17. What is COM • A “substrate” for building re-usable components. • Language neutral • it’s easier to use in C++, but can be used from any language that can generate/grok vtbl’s and vptrs. • Interfaces are defined in COM IDL (IDL+COM extensions for inheritance and polymorphism) • OS Neutral •  commercial Unix implementations, and MS supports COM on Mac System (OS X?) • Using only on the COM spec, we (OMKT) rolled our own.

  18. Interfaces • Interfaces are uniquely identified by UUID’s (often called GUID’s – the terms are equivalent) called their IID (interface ID). • Implementers of an interface are uniquely identified by a UUID called their CLSID (class ID). • All COM objects implement the IUnknown interface.

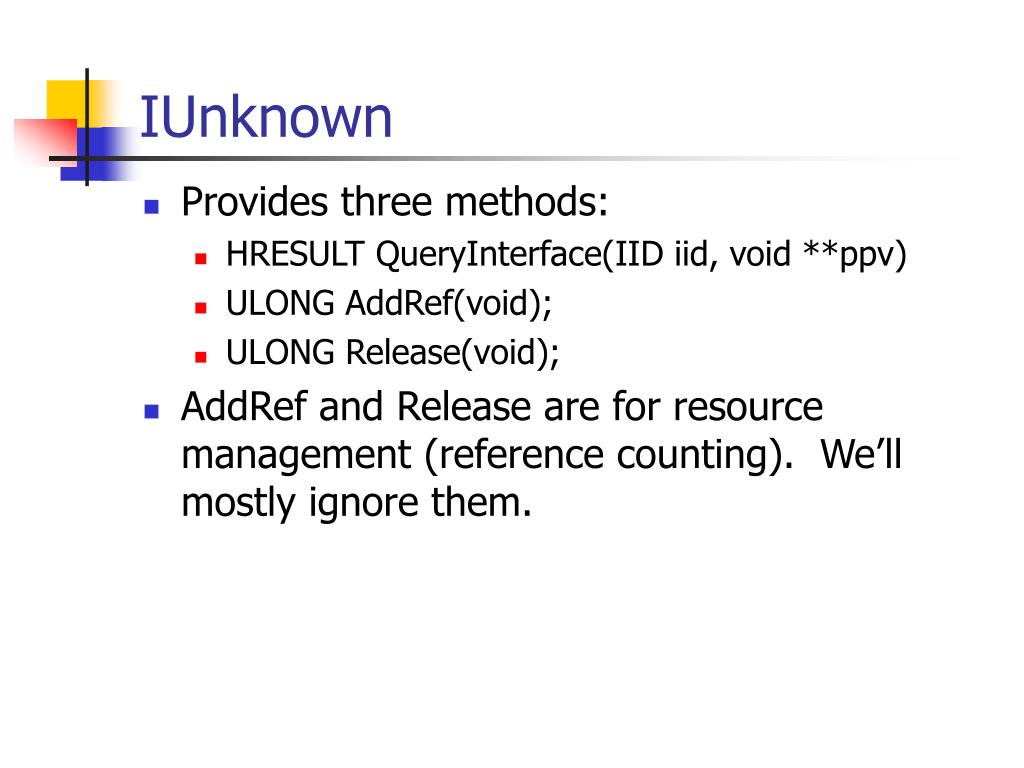

  19. IUnknown • Provides three methods: • HRESULT QueryInterface(IID iid, void **ppv) • ULONG AddRef(void); • ULONG Release(void); • AddRef and Release are for resource management (reference counting). We’ll mostly ignore them.

  20. QueryInterface • QueryInterface is essentially a run-time cast – it allows you to ask a component if it implements a specific interface. • If it does, it returns a pointer to that interface pointer in ppv. • Think of it as a compiler/language neutral dynamic_cast operation.

  21. HRESULT • This is language neutral – so no exceptions. HRESULTS are a packed bit field return value used all over COM. • Honestly it’s one of the ugliest parts of COM. • The most used return value is defined as S_OK (success, ok), the other is E_FAIL (error, failure) but there are others. • There are macros SUCCEEDED() and FAILED() that take an HRESULT and report success or failure.

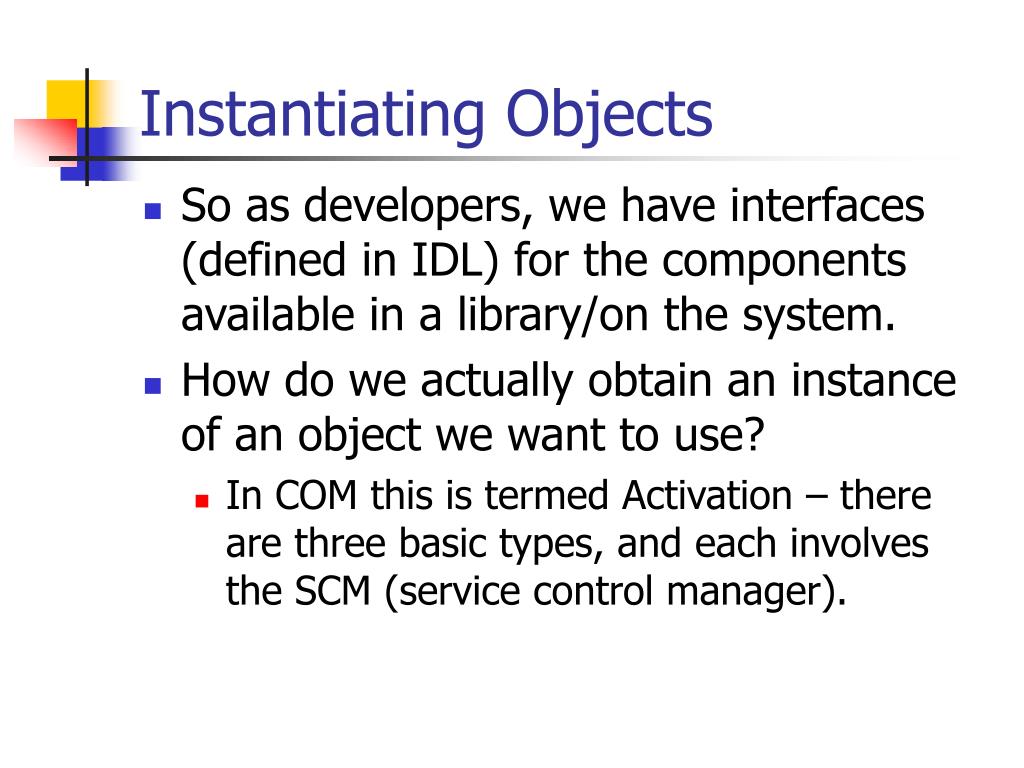

  22. Instantiating Objects • So as developers, we have interfaces (defined in IDL) for the components available in a library/on the system. • How do we actually obtain an instance of an object we want to use? • In COM this is termed Activation – there are three basic types, and each involves the SCM (service control manager).

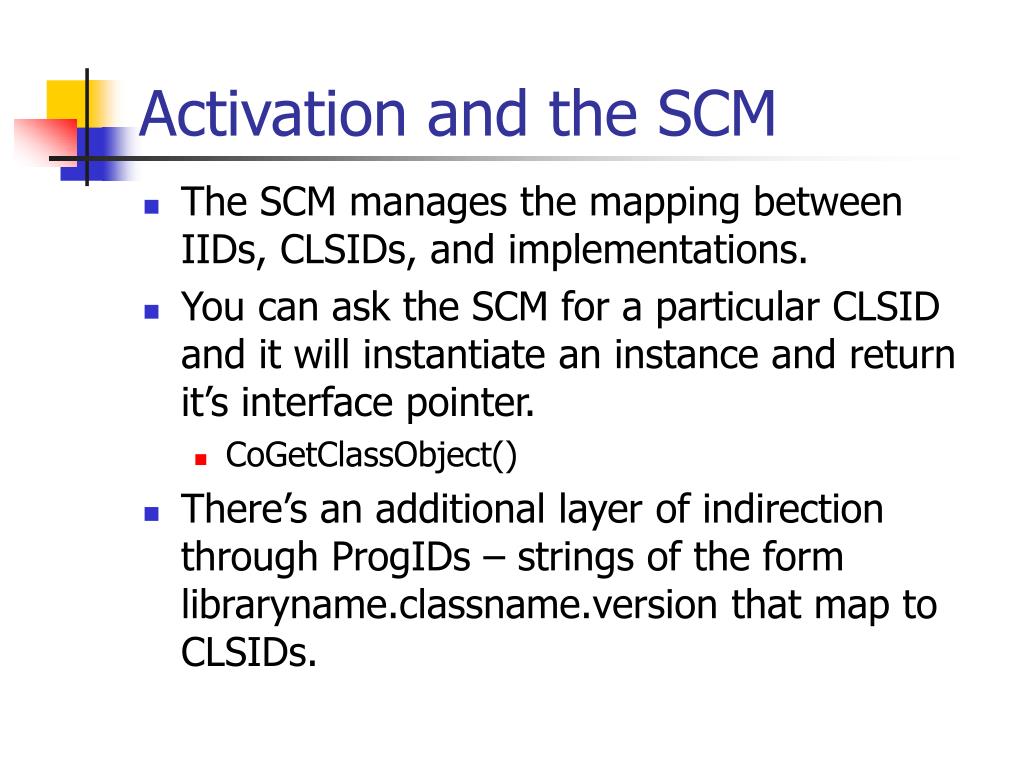

  23. Activation and the SCM • The SCM manages the mapping between IIDs, CLSIDs, and implementations. • You can ask the SCM for a particular CLSID and it will instantiate an instance and return it’s interface pointer. • CoGetClassObject() • There’s an additional layer of indirection through ProgIDs – strings of the form libraryname.classname.version that map to CLSIDs.

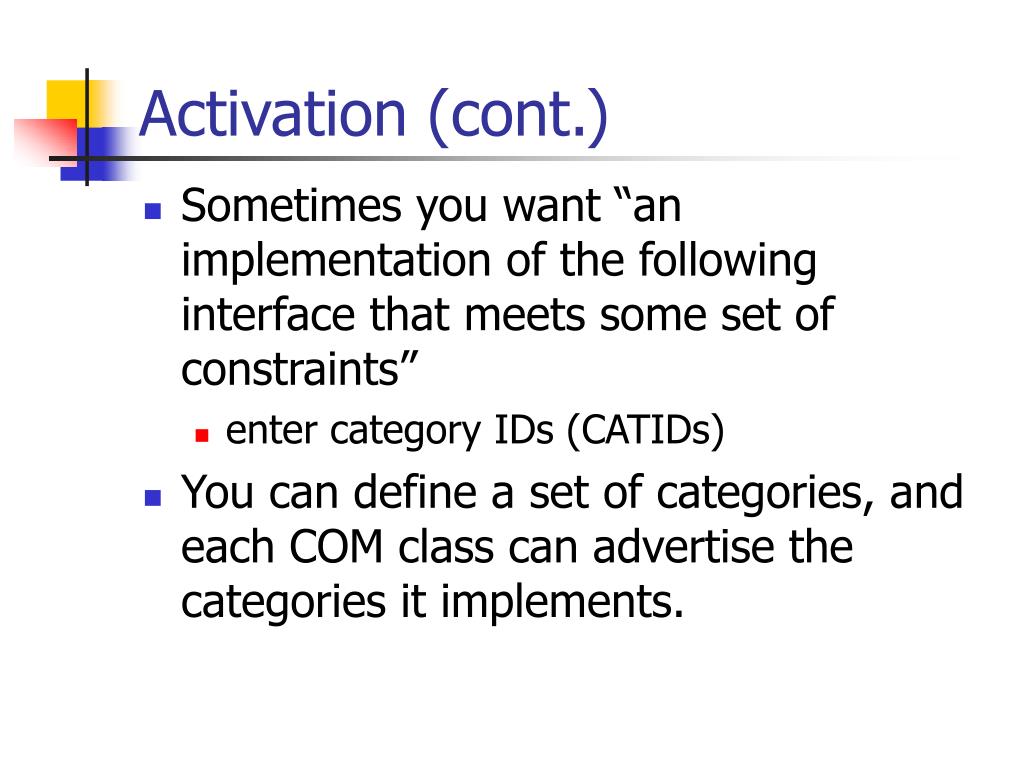

  24. Activation (cont.) • Sometimes you want “an implementation of the following interface that meets some set of constraints” • enter category IDs (CATIDs) • You can define a set of categories, and each COM class can advertise the categories it implements.

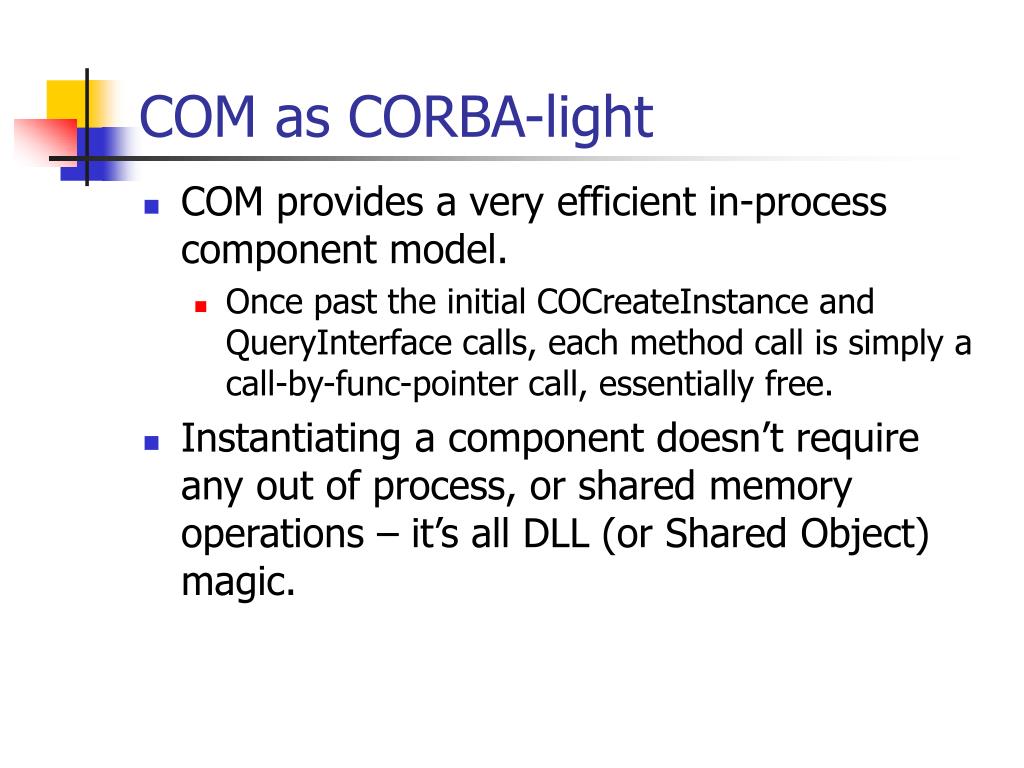

  25. COM as CORBA-light • COM provides a very efficient in-process component model. • Once past the initial COCreateInstance and QueryInterface calls, each method call is simply a call-by-func-pointer call, essentially free. • Instantiating a component doesn’t require any out of process, or shared memory operations – it’s all DLL (or Shared Object) magic.

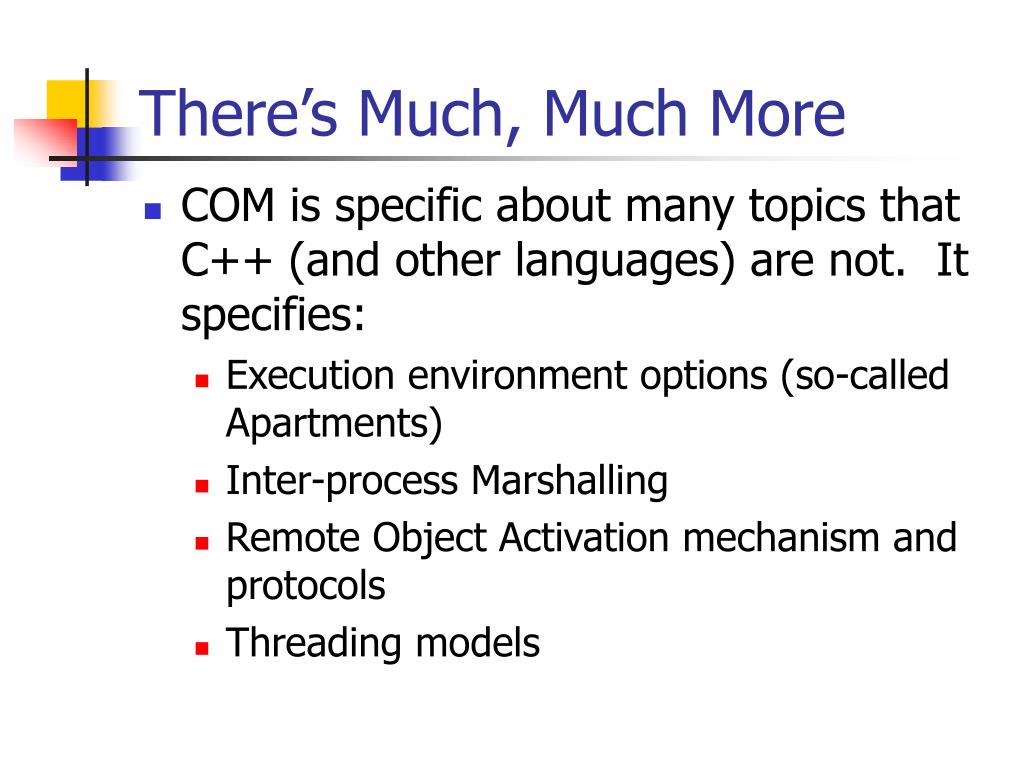

  26. There’s Much, Much More • COM is specific about many topics that C++ (and other languages) are not. It specifies: • Execution environment options (so-called Apartments) • Inter-process Marshalling • Remote Object Activation mechanism and protocols • Threading models

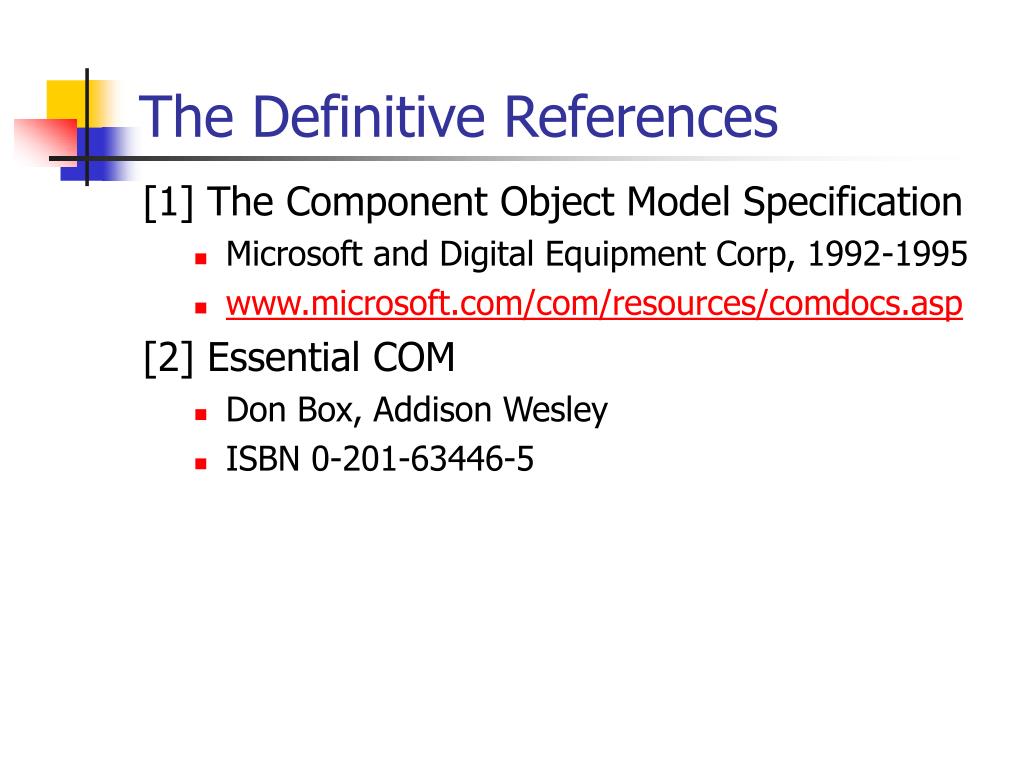

  27. The Definitive References [1] The Component Object Model Specification • Microsoft and Digital Equipment Corp, 1992-1995 • www.microsoft.com/com/resources/comdocs.asp [2] Essential COM • Don Box, Addison Wesley • ISBN 0-201-63446-5
