conformation networks an application to protein folding

Center for Nonlinear Studies

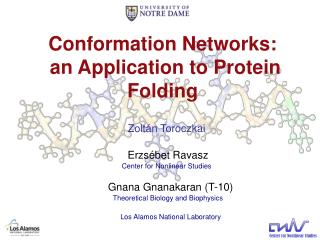

Conformation Networks: an Application to Protein Folding

Zoltán Toroczkai

Erzsébet Ravasz

Center for Nonlinear Studies

Gnana Gnanakaran (T-10)

Theoretical Biology and Biophysics

Los Alamos National Laboratory

proteins
Proteins
  • the most complex molecules in nature
  • globular or fibrous
  • basic functional units of a cell
  • chains of amino acids (50 – 103)
  • peptide bonds link the backbone

Native state

  • unique 3D structure (native physiological conditions)
  • biological function
  • fold in nanoseconds to minutes
  • about 1000 known 3D structures: X-ray crystallography, NMR
slide3

Myoglobin

153 Residues, Mol. Weight=17181 [D], 1260 Atoms

Main function: primary oxygen storage and carrier in muscle tissue

It contains a heme (iron-containing porphyrin ) group in the center. C34H32N4O4FeHO

protein conformations
Protein conformations

Amino-acid

  • defined by dihedral angles
    • 2 angles with 2-3 local minima of the torsion energy
  • N monomers  about 10N different conformations
levinthal s paradox
Levinthal’s paradox
  • Anfinsen: thermodynamic hypothesis
    • native state is at the global minimum of the free energy

Epstain, Goldberger, & Anfinsen, Cold Harbor Symp. Quant. Biol.28, 439 (1963)

  • Levinthal’s paradox, 1968
    • finding the native state by random sampling is not possible
    • 40 monomer polypeptide  1013 conf/s

 3 1019 years to sample all

 universe ~ 2 1010 years old

Levinthal, J. Chim. Phys. 65, 44-45 (1968)

Wetlaufer, P.N.A.S. 70, 691 (1973)

  • nucleation
  • folding pathways
free energy landscapes
Free energy landscapes
  • Bryngelson & Wolynes, 1987
    • free energy landscape

Bryngelson & Wolynes, P.N.A.S. 84, 7524 (1987)

  • a random hetero-polymer typically does NOT fold
  • Experiment:
    • random sequences
    • GLU, ARG, LEU
    • 80-100 amino-acids
  • ~ 95% did not fold
  • in a stable manner

Davidson & Sauer, P.N.A.S.91, 2146 (1994)

funnels
Funnels

Given any amino-acid sequence: can we tell if it is a good folder?

  • experiments (X-ray, NMR)
  • molecular dynamics simulations
  • homology modeling
  • Leopold, Mortal & Onuchic, 1992

Leopold, Mortal & Onuchic, P.N.A.S. 89, 8721 (1992)

Energy funnels

Difficult and slow

  • many folding pathways
molecular dynamics
Molecular dynamics

Sanbonmatsu, Joseph & Tung, P.N.A.S. 102 15854 (2005)

  • State of the art
    • supercomputer (LANL)
  • Ribosome in explicit solvent:
  • targeted MD
  • 2.64x106 atoms (2.5x105 + water)
  • Q machine, 768 processors
  • 260 days of simulation (event: 2 ns)

~ 1016 times

slower

  • distributed computing (Stanford, Folding@home)
  • more than 100,000 CPU’s
  • simulation of complete folding event
    • BBA5, 23-residue, implicit water
    • 10,000 CPU days/folding event (~1s)

Shirts & Pande, Science290, 1903 (2000)

Snow, Nguyen, Pande, Gruebele, Nature420,102 (2002)

configuration networks
Configuration networks

Ramachandran map

PDB structures

  • Configuration networks

Protein conformations

  • dihedral angles have few preferred values

Ramachandran & Sasisekharan, J.Mol.Biol.7, 95 (1963)

  • Helix
  • Sheet
  • other

NODE configuration

LINK change of one degree of freedom (angle)

  • refinement of angle values  continuous case
why networks
Why networks?
  • VERY LARGE: 100 monomers  10100 nodes. However:

Generic features of folding are determined

by STATISTICAL properties

of the configuration network

  • degree distribution
  • average distance
  • clustering
  • degree correlations
  • toolkit from network research
  • captures the high dimensionality

Albert & Barabási, Rev. Mod. Phys.74, 67 (2002); Newman, SIAM Rev.45, 167 (2003)

  • faster algorithms to simulate folding events
  • pre-screening synthetic proteins
  • insights into misfolding
a real example
A real example
  • The Protein Folding Network: F. Rao, A. Caflisch, J.Mol.Biol, 342, 299 (2004)
  • beta3s: 20 monomers, antiparallel beta sheets
  • MD simulation, implicit water
  • 330K, equilibrium folded  random coil

NODE -- 8 letters / AA (local secondary struct)

LINK -- 2ps transition

slide12

Its native conformation has been studied by NMR experiments:

De Alba et.al. Prot.Sci. 8, 854 (1999).

Beta3s in aqueous solution forms a monomeric triple-stranded antiparallel beta sheet in equilibrium with the denaturated state.

  • Simulations @ 330K
  • The average folding time from denaturated state ~ 83ns
  • The average unfolding time ~83ns
  • Simulation time ~12.6s
  • Coordinates saved at every 20ps (5105 snapshots in 10s)
  • Secondary structures: H,G,I,E,B,T,S,- (-helix, 310 helix, -helix, extended, isolated -bridge, hydrogen-bonded turn, bend and unstructured).
  • The native state: -EEEESSEEEEEESSEEEE-
  • There are approx. 818 1016 conformations.
  • Nodes: conformations, transitions: links.
scale free network
Scale-free network

Many real-world networks are scale free

  • hubs

beta3s

randomized

  • co-authorship (=1 - 2.5)
  • citations (=3)
  • sexual contacts (=3.4)
  • movie actors (=2.3)
  • Internet (y=2.4)
  • World Wide Web (=2.1/2.5)
  • Genetic regulation (=1.3)
  • Protein-protein interactions ( =2.4)
  • Metabolic pathways (=2.2)
  • Food webs (=1.1)

Barabási & Albert, Science 286, 509, (1999);

Many reasons

behind SF topology

  • Why is the protein network scale free?
  • Why does the randomized chain have

similar degree distribution?

  • Why is  = - 2 ?
robot arm networks
Robot arm networks

12

n=0

22

02

11

01

21

0

2

1

20

n=1

00

10

00

22

n=2

01

21

02

20

021

021

10

12

11

020

020

010

010

000

000

100

100

200

200

  • Steric constraints?
    • missing nodes
    • missing links
  • n-dimensional hypercube
  • binomial degree distribution

Homogeneous

Swiss cheese

a bead chain model
A bead-chain model
  • Beads on a chain in 3D: robot arm model
    • similar to C protein models
    • rod-rod angle 
    • 3 positions around axis

Honeycutt & Thirumalai, Biopolymers32, 695 (1992)

N=6;  = 90

N=18;  = 120

2212112212111122

  • Homogeneous network
slide16

Another example:

L = 7,  = 75 , r = 0.25

“00100”

state “00100”

allowed state

forbidden state

slide17

Adding monomers not only increases the number of nodes in the network but also its dimensionality!! The combined effect is small-world.

the dilemma
The “dilemma”

SCALE FREE

  • from polypeptide MD simulations
    • beta3s
    • randomized version

HOMOGENEOUS

  • from studies of conformation networks
    • bead chain
    • robot arm

?

slide21

Gradient Networks

Gradients of a scalar (temperature, concentration, potential, etc.) induce flows (heat, particles, currents, etc.).

Naturally, gradients will induce flows on networks as well.

Ex.:

Load balancing in parallel computation and packet routing on the internet

Y. Rabani, A. Sinclair and R. Wanka, Proc. 39th Symp. On Foundations of Computer Science (FOCS), 1998:“Local Divergence of Markov Chains and the Analysis of Iterative Load-balancing Schemes”

References:

Z. T. and K.E. Bassler, “Jamming is Limited in Scale-free Networks”, Nature, 428, 716 (2004)

Z. T., B. Kozma, K.E. Bassler, N.W. Hengartner and G. Korniss “Gradient Networks”, http://www.arxiv.org/cond-mat/0408262

slide22

Setup:

Let G=G(V,E) be an undirected graph, which we call the substrate network.

The vertex set:

The edge set:

A simple representation of E is via the Nx N adjacency (or incidence) matrix

A

(1)

Let us consider a scalar field

Set of nearest neighbor nodes on G of i :

slide23

Definition 1

The gradient h(i) of the field {h} in node i is a directed edge:

(2)

Which points from i to that nearest neighbor

for G for which the increase in the

scalar is the largest, i.e.,:

(3)

The weight associated with edge (i,) is given by:

.

.

The self-loop

is a loop through i

with zero weight.

Definition 2

The set F of directed gradient edges on G together with the vertex set V forms the gradient network:

If (3) admits more than one solution, than the gradient in i is degenerate.

slide24

In the following we will only consider scalar fields with non-degenerate gradients. This means:

Theorem 1

Non-degenerate gradient networks form forests.

Proof:

slide25

0.48

0.82

0.67

0.46

0.65

0.6

0.53

0.44

0.5

0.67

0.7

0.2

0.22

0.65

0.1

0.19

0.16

0.87

0.14

0.15

0.32

0.2

0.2

0.18

0.05

0.55

0.44

0.15

0.05

0.24

0.43

0.16

0.8

0.13

0.65

0.65

Theorem 2

The number of trees in this forest = number of local maxima of {h} on G.

slide26

For Erdős - Rényi random graph substrates with i.i.d random numbers as scalars, the in-degree distribution is:

slide28

The Configuration model

A. Clauset, C. Moore, Z.T., E. Lopez, to be published.

slide29

Generating functions:

K-th Power of a Ring

the energy landscape
The energy landscape
  • Energy associated with each node (configuration)
    • the gradient network
      • most favorable transitions
      • T=0 backbone of the flow
    • MD simulation
      • tracks the flow network
      • biased walk close to the gradient network
    • trees
      • basins of local minima

What generates  = - 2 ?

The REM generates an exponent of -1.

model ingredients
Model ingredients

k, E increases

constrained (folded)

small kconf

lower energy

loose (random coil)

large kconf

higher energy

  • A network model of configuration spaces
    • network topology
      • homogeneous
      • degree correlations
  • how to associate energies
random geometric graph
Random geometric graph

R=0.113, <k>=20

  • Energy proportional to connectivity

E

k

  • random geometric graph

Dall & Christensen, Phys.Rev.E 66, 026121 (2002)

  • in higher D: similar to hypercube with holes
  • degree correlations
exponent is 2
Exponent is - 2

2 essential ingredients:

k1-k2 correlations

<E> with k monotonic

bead chain model
Bead-chain model

Lennard-Jones potential

Repulsive

Attractive

  • more realistic model: bead-chain
    • configuration network
      • excluded volume
    • energy: Lennard-Jones
the case of the helix
The case of the -helix

AKA peptide

  • ALA: orange
  • LYS: blue
  • TYR: green

MD simulations, no water.

the md traced network
The MD traced network

T = 400

More than one simulation

3 different runs: yellow, red and green

The role of temperature

conclusions
Conclusions
  • A network approach was introduced to study sterically constrained conformations of ball-chain like objects.
  • This networks approach is based on the “statistical dogma” stating that generic features must be the result of statistical properties of the networks and should not depend on details.
  • Protein conformation dynamics happens in high dimensional spaces that are not adequately described by simplistic reaction coordinates.
  • The dynamics performs a locally biased sampling of the full conformational network. For low enough temperatures the sampled network is a gradient graph which is typically a scale-free structure.
  • The -2 degree exponent appears at and bellow the temperature where the basins of the local energy minima become kinetically disconnected.
  • Understanding the protein folding network has the potential of leading to faster simulation algorithms towards closing the gap between nature’s speed and ours.

Coming up: conditions on side chain distributions for the existence of funneled energy landscapes.
