Presentation Transcript
slide1

Data processing (Making figures and tables)

陳舜華 Shun-Hua Chen

Dept. Microbiology and Immunology

College of Medicine

National Cheng Kung University

Room: 82-1119

Tel: +886-6-2353535 ext. 5633

E-mail: shunhua@mail.ncku.edu.tw

slide2

Examples of tables

The number of samples tested is shown in the parentheses.

  • Tables are preferred for presenting repetitive data and exact numbers.
  • Tables contain headings that are sufficiently clear so that the meaning of the data is understandable without reference to the text. (A sentence in present or past tense or a term).
  • Tables contain explanatory footnotesthat are to explain the meaning of data, not the details for repeating the experiments.
slide3

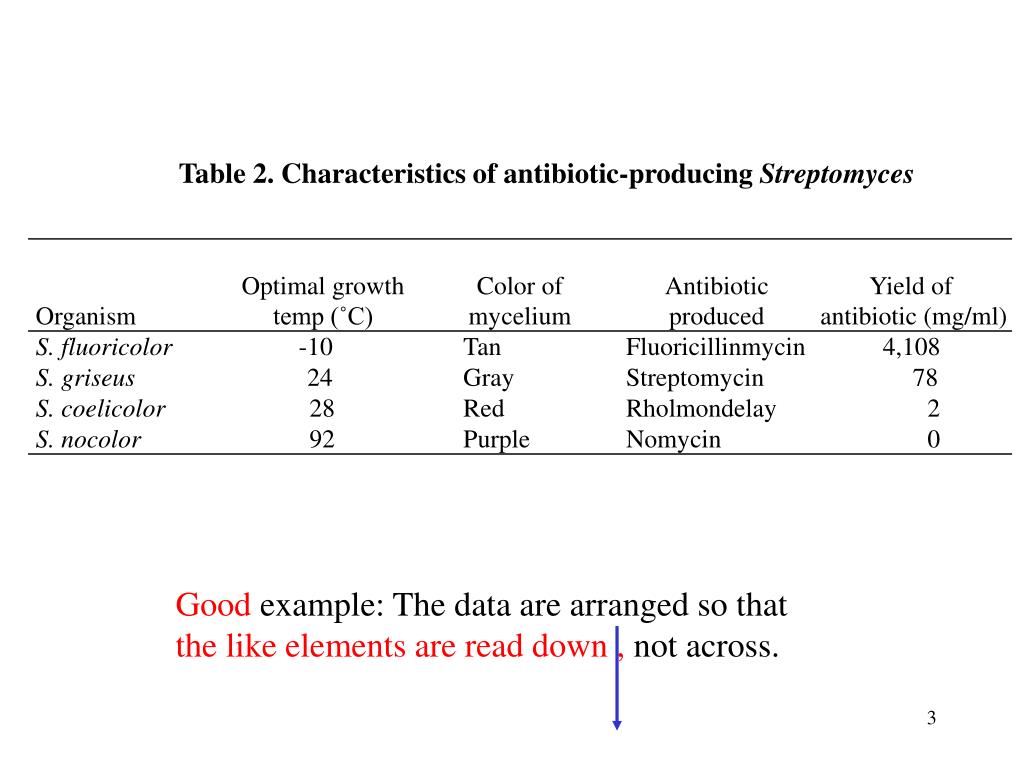

Table 2. Characteristics of antibiotic-producing Streptomyces

Good example: The data are arranged so that the like elements are read down , not across.

slide4

Table 3. Characteristics of antibiotic-producing Streptomyces

Bad example: The data are arranged in a way that the like elements are read across.

slide5

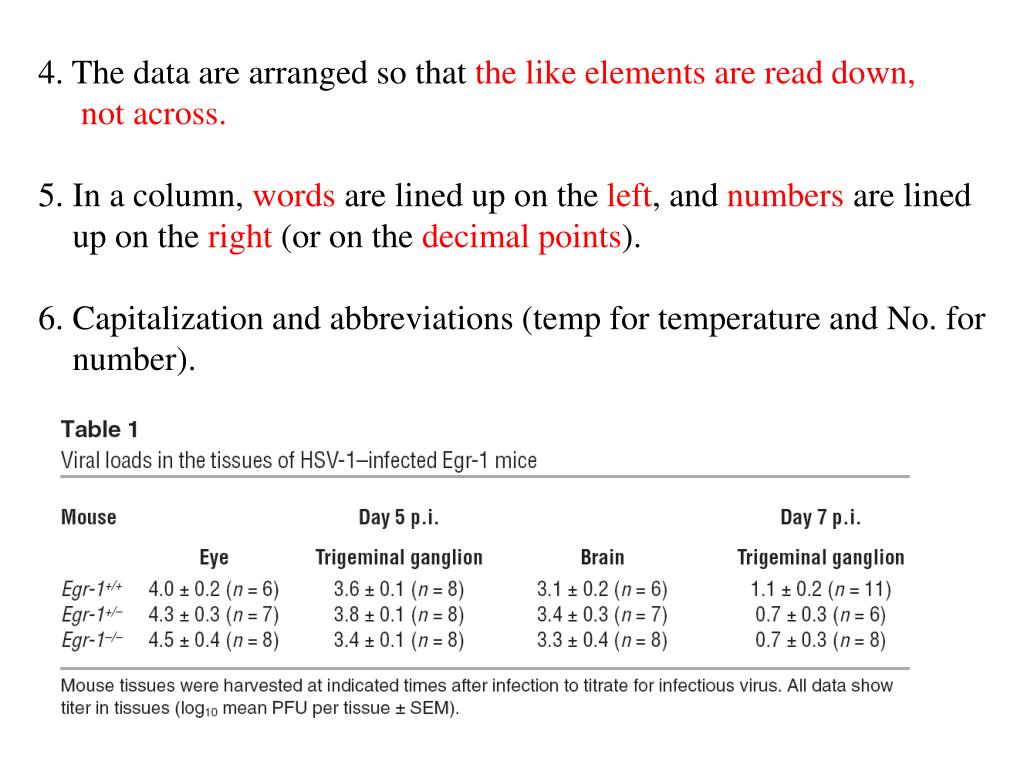

4. The data are arranged so that the like elements are read down,

not across.

5.In a column, words are lined up on the left, and numbers are lined

up on the right (or on the decimal points).

6. Capitalization and abbreviations (temp for temperature and No. for

number).

slide6

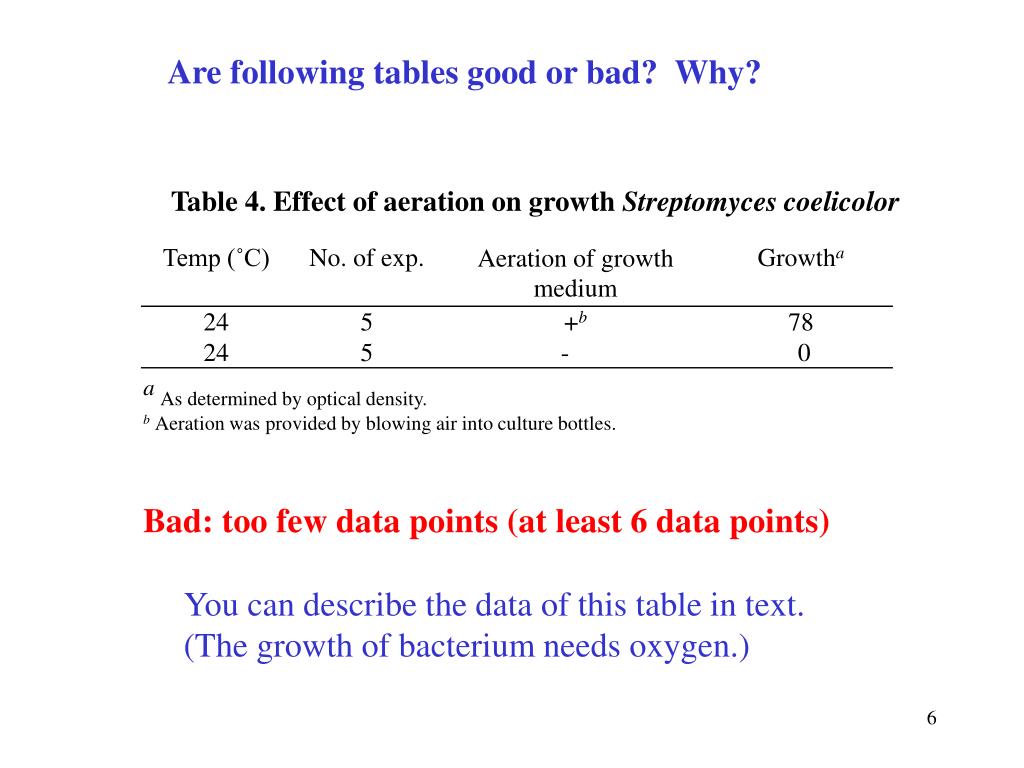

Are following tables good or bad? Why?

Table 4. Effect of aeration on growth Streptomyces coelicolor

a As determined by optical density.

bAeration was provided by blowing air into culture bottles.

Bad: too few data points (at least 6 data points)

You can describe the data of this table in text.

(The growth of bacterium needs oxygen.)

slide7

Table 5. Bacteriological failure rates

a Results expressed as number of failures/total, which is then converted to a percentage (within parentheses). P = 0.21

slide8

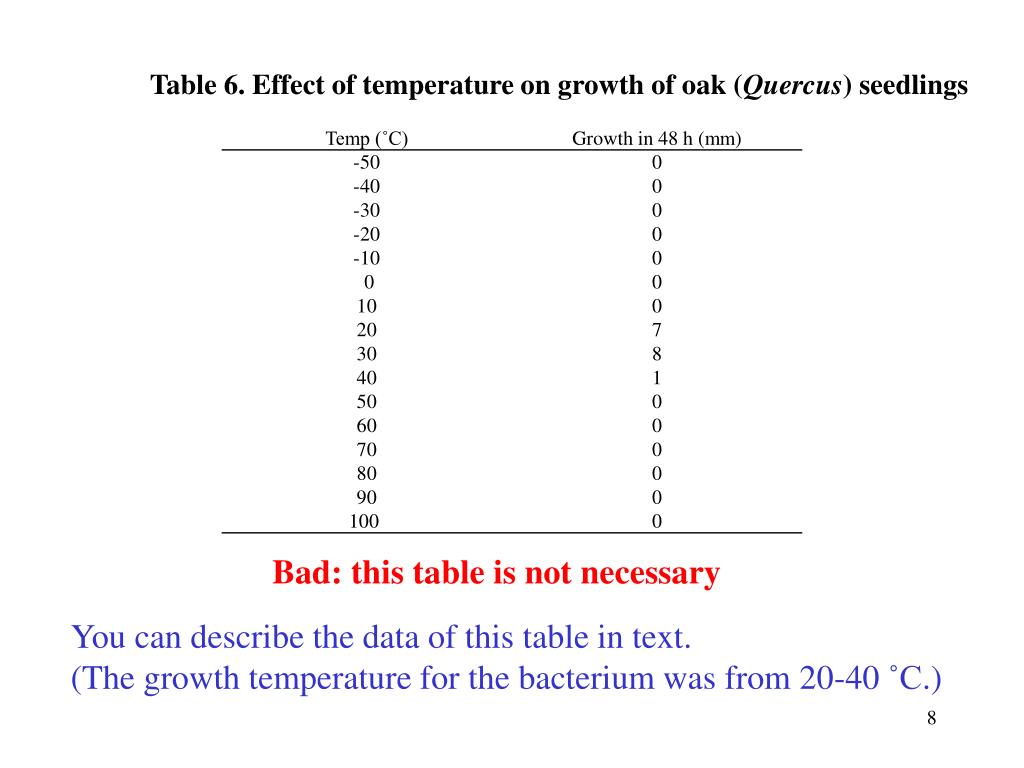

Table 6. Effect of temperature on growth of oak (Quercus) seedlings

Bad: this table is not necessary

You can describe the data of this table in text.

(The growth temperature for the bacterium was from 20-40 ˚C.)

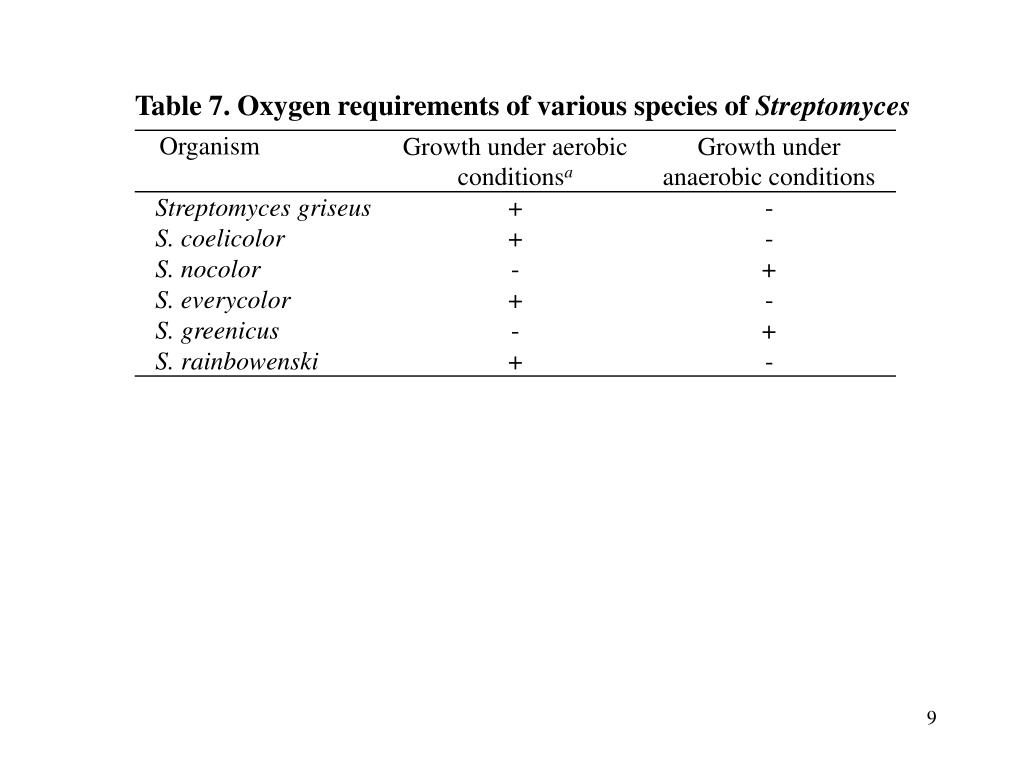

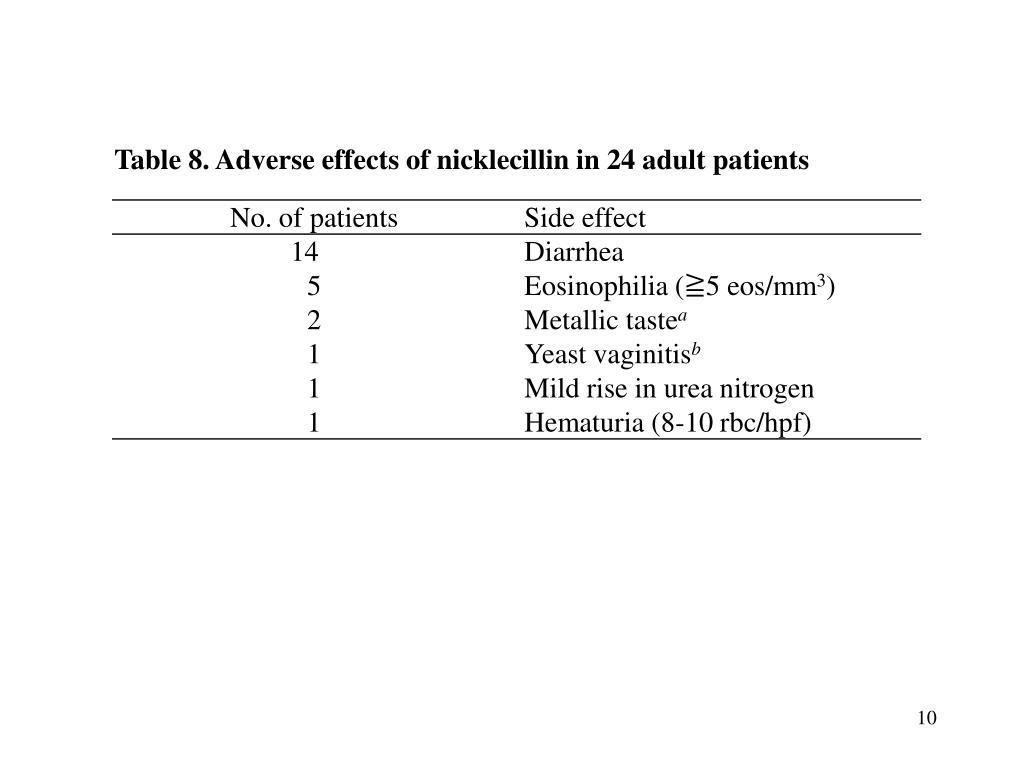

slide11

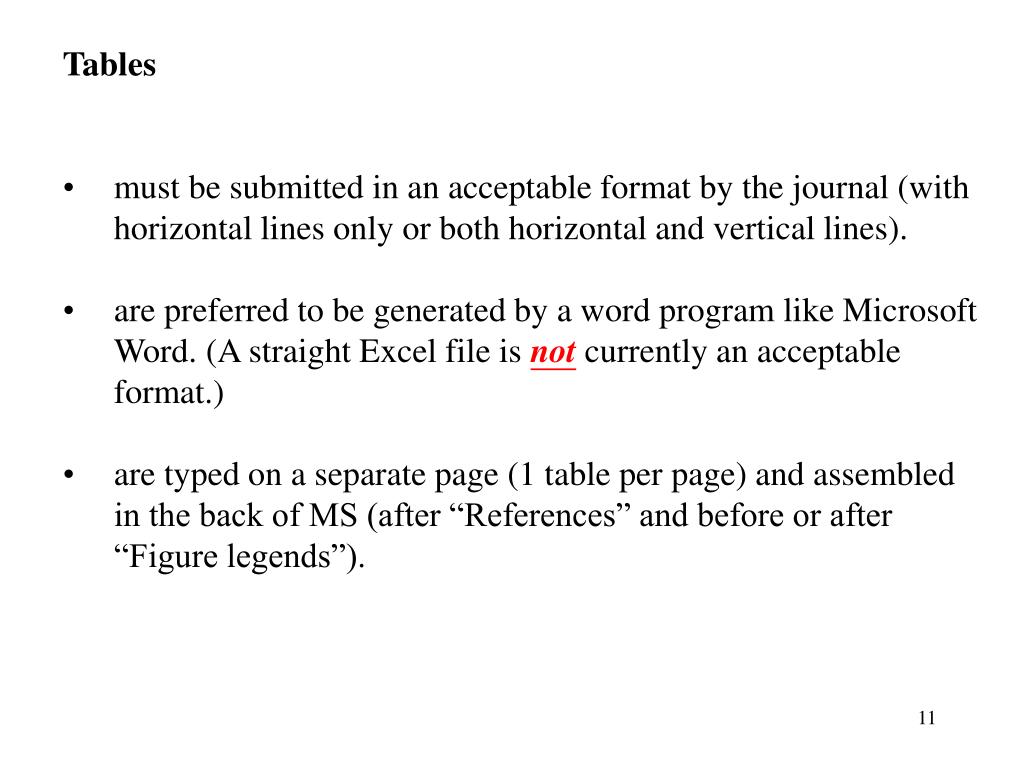

Tables

  • must be submitted in an acceptable format by the journal (with horizontal lines only or both horizontal and vertical lines).
  • are preferred to be generated by a word program like Microsoft Word. (A straight Excel file is notcurrently an acceptable format.)
  • are typed on a separate page (1 table per page) and assembled in the back of MS (after “References” and before or after “Figure legends”).
slide12

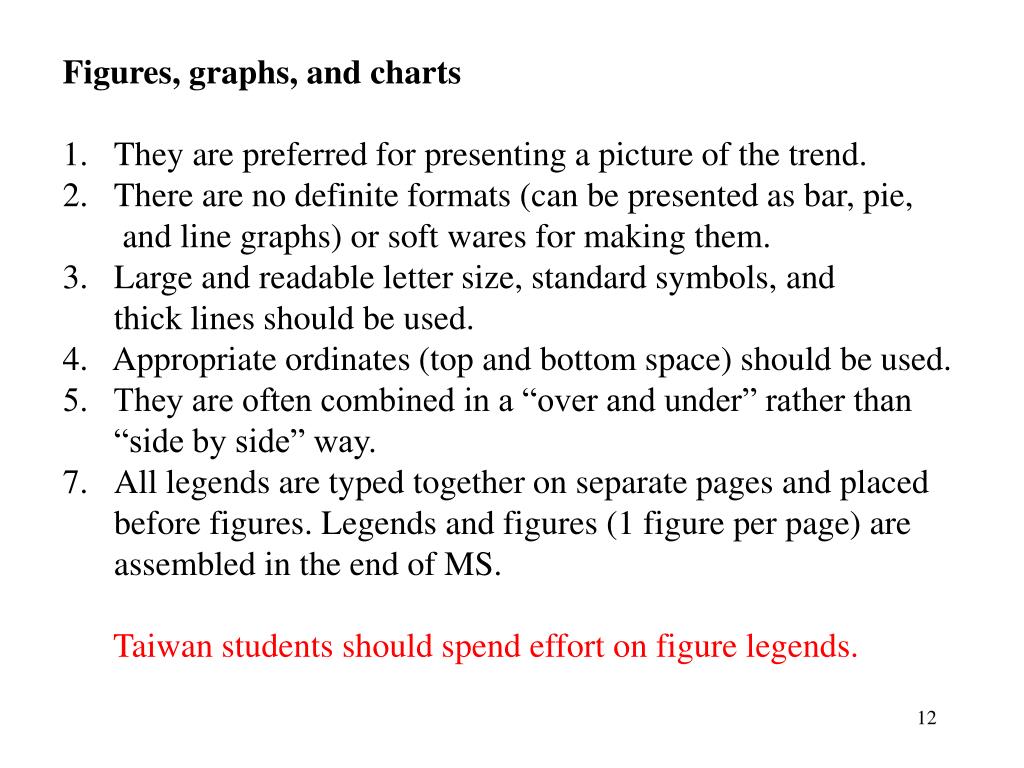

Figures, graphs, and charts

  • They are preferred for presenting a picture of the trend.
  • There are no definite formats (can be presented as bar, pie,
  • and line graphs) or soft wares for making them.
  • Large and readable letter size, standard symbols, and
  • thick lines should be used.
  • 4. Appropriate ordinates (top and bottom space) should be used.
  • 5. They are often combined in a “over and under” rather than
  • “side by side” way.
  • All legends are typed together on separate pages and placed before figures. Legends and figures (1 figure per page) are assembled in the end of MS.
  • Taiwan students should spend effort on figure legends.
slide13

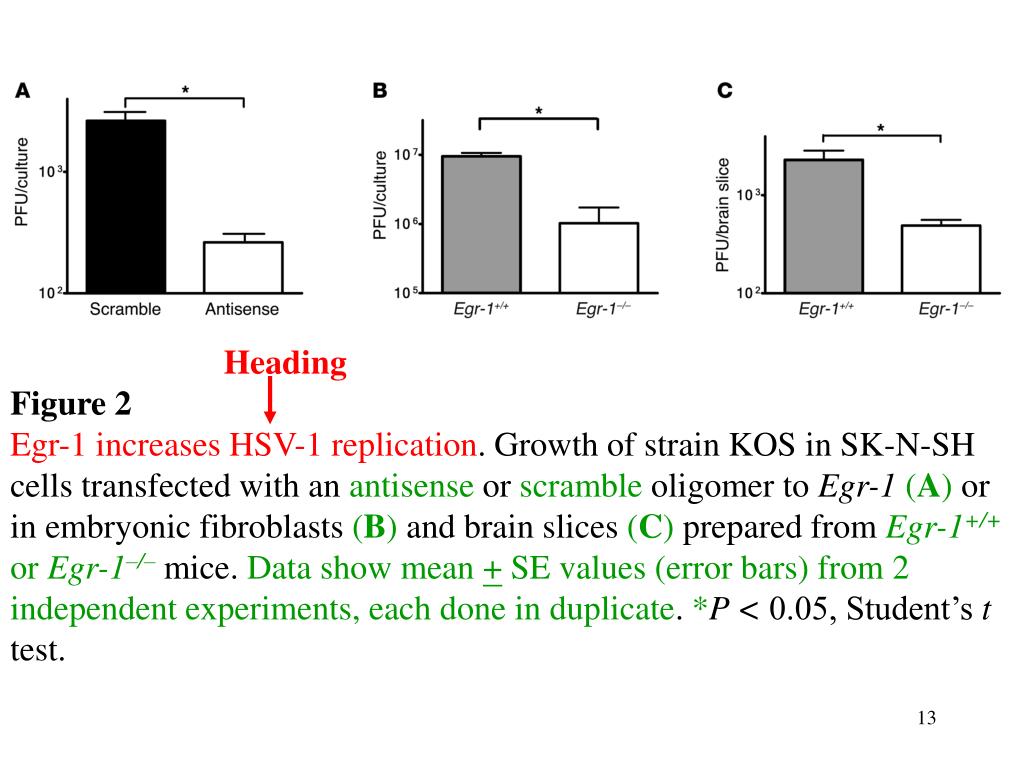

Heading

Figure 2

Egr-1 increases HSV-1 replication. Growth of strain KOS in SK-N-SH cells transfected with an antisense or scramble oligomer to Egr-1 (A) or in embryonic fibroblasts (B) and brain slices (C) prepared from Egr-1+/+or Egr-1–/–mice. Data show mean + SE values (error bars) from 2 independent experiments, each done in duplicate. *P < 0.05, Student’s t test.

slide14

Figure 3. Reduction of the mortality and subsequent paralysis sequelae of EV71-infected mice by ribavirin, via reduction of viral loads in tissues. Infected mice were treated with PBS (white symbols; n =11) or ribavirin (black symbols; n =10). The survival rates (A)and clinical scores (B)of mice were recorded. C, In separate experiments, the indicated organs of infected mice treated with PBS (n =6) or ribavirin (n =6) were collected on day 5 after infection to determine viral titers. Data shown in B and C are mean +SE values.*P < 0.05, by log-rank test (A), Wilcoxon test (B), and Mann-Whitney U test (C).

slide15

Figure Legends

  • 1. A term or a sentence (in present or past tense) is used as headings should be sufficiently clear so that the meaning of the data is understandable without reference to the text.
  • 2. Legendsare to explain the meaning of data, not the details for repeating the experiments. They should define all symbols used in the figures and define all abbreviations that are not used in the text.
slide16

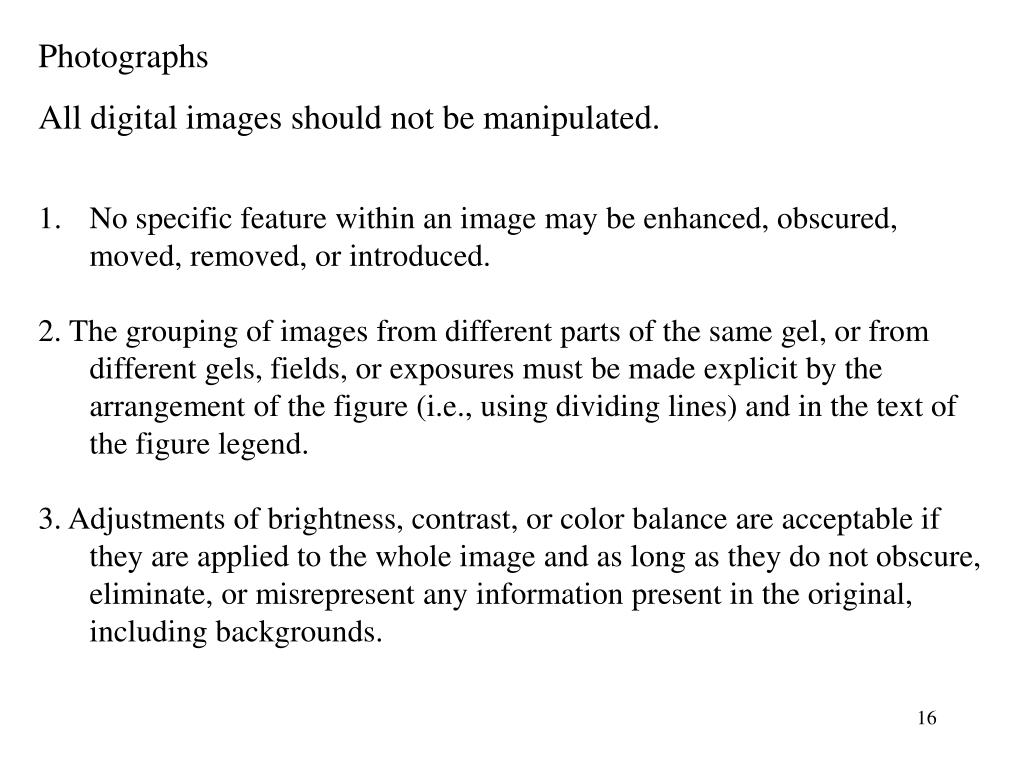

Photographs

  • All digital images should not be manipulated.
  • No specific feature within an image may be enhanced, obscured, moved, removed, or introduced.
  • 2. The grouping of images from different parts of the same gel, or from different gels, fields, or exposures must be made explicit by the arrangement of the figure (i.e., using dividing lines) and in the text of the figure legend.
  • 3. Adjustments of brightness, contrast, or color balance are acceptable if they are applied to the whole image and as long as they do not obscure, eliminate, or misrepresent any information present in the original, including backgrounds.
slide17

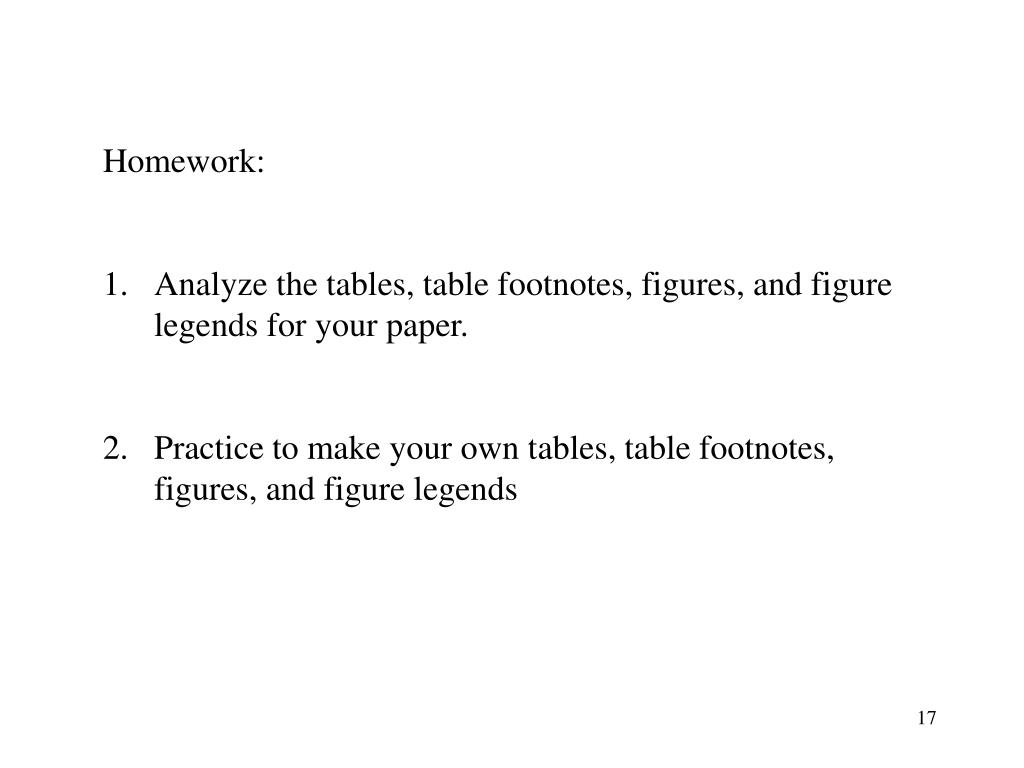

Homework:

  • Analyze the tables, table footnotes, figures, and figure legends for your paper.
  • Practice to make your own tables, table footnotes, figures, and figure legends
