  1. How to calculate the momentum of an electron ? Measuring the radius of curvature in a magnetic field … Dora Wagner & Miguel Vieira HST 2001

  2. If electrons are entering a magnetic field, they are forced to go on a circle. They go on spirals if they are also loosing energy Dora Wagner & Miguel Vieira HST 2001

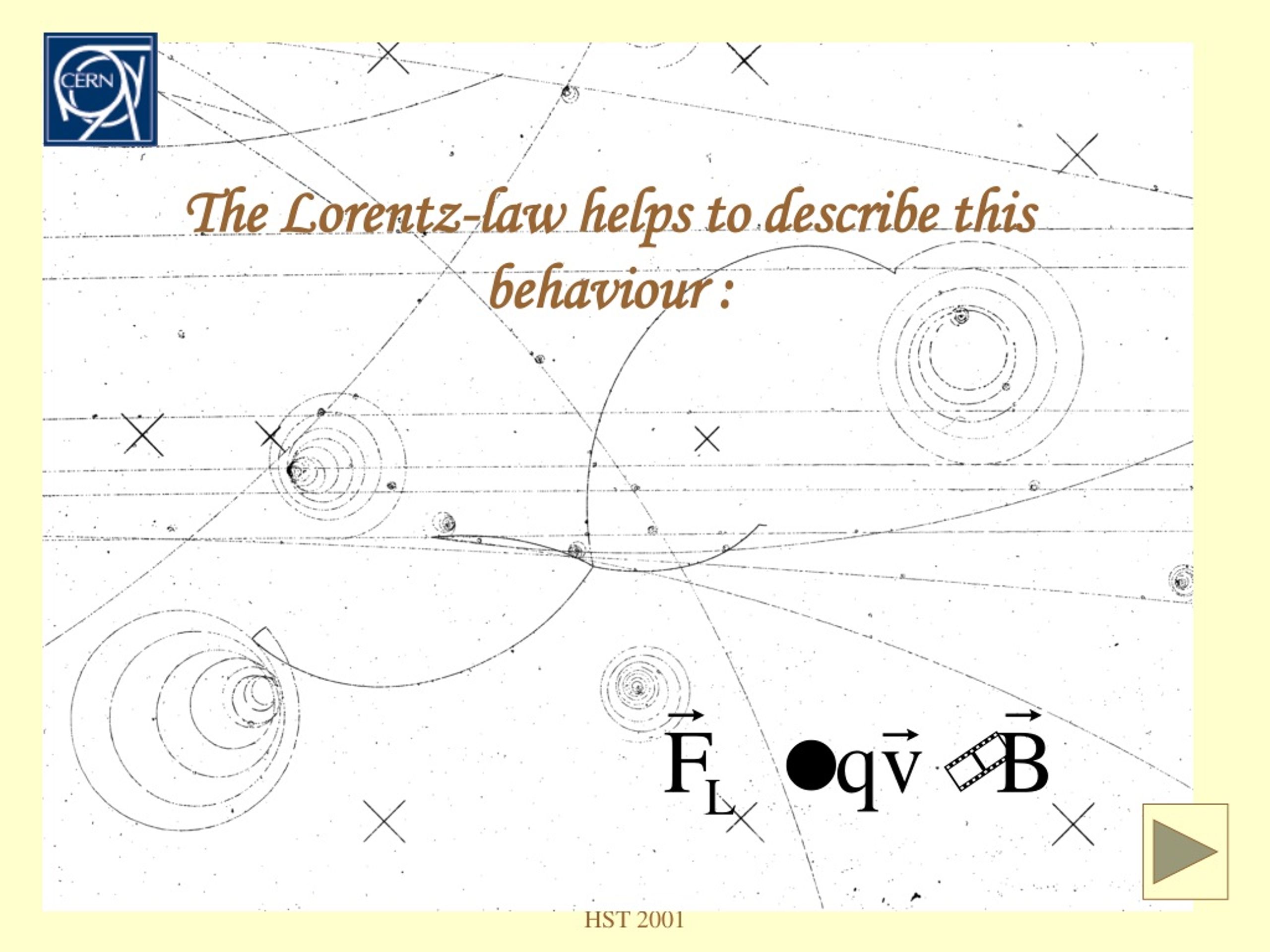

  3. The Lorentz-law helps to describe this behaviour : Dora Wagner & Miguel Vieira HST 2001

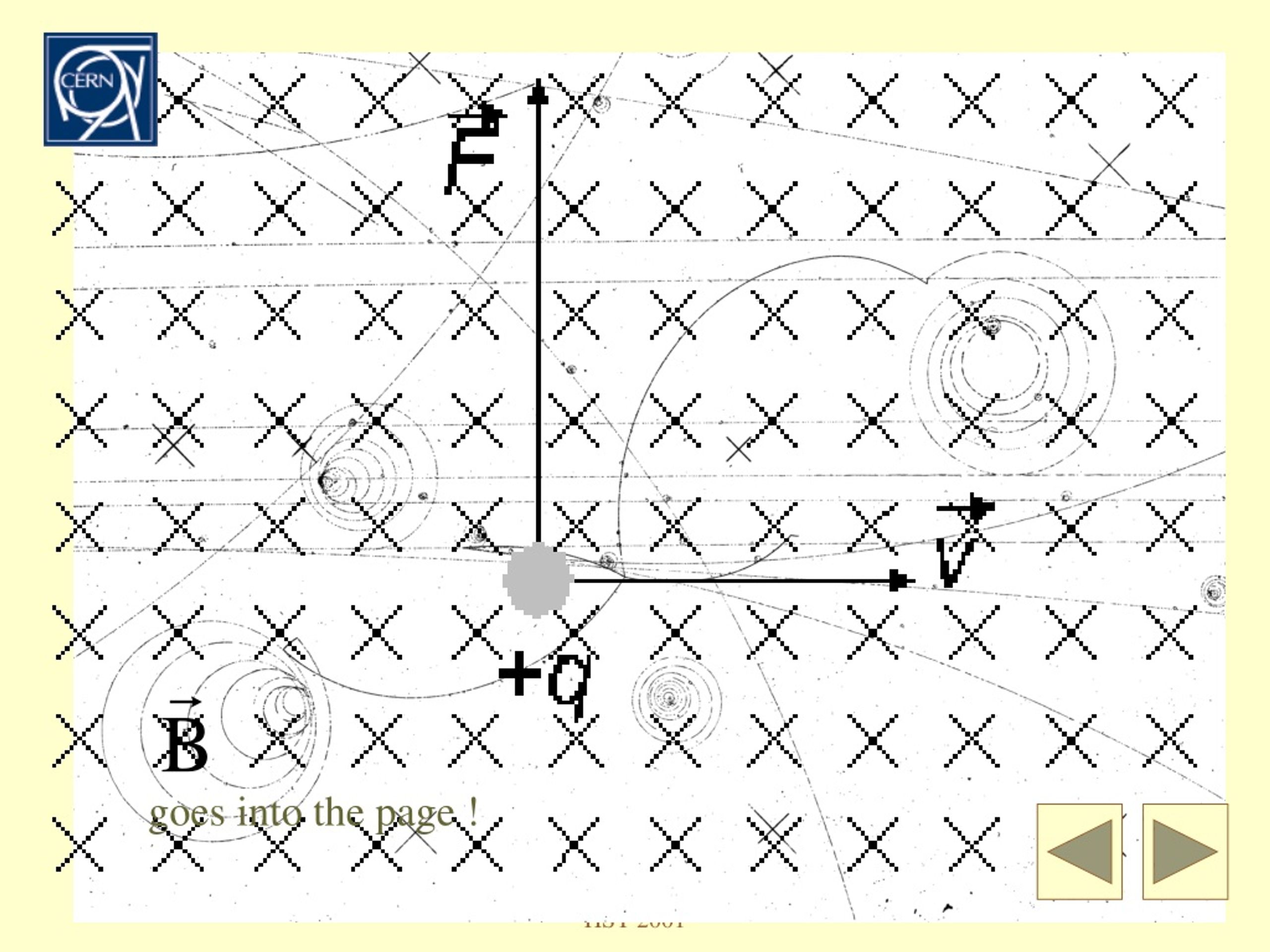

  4. goes into the page ! Dora Wagner & Miguel Vieira HST 2001

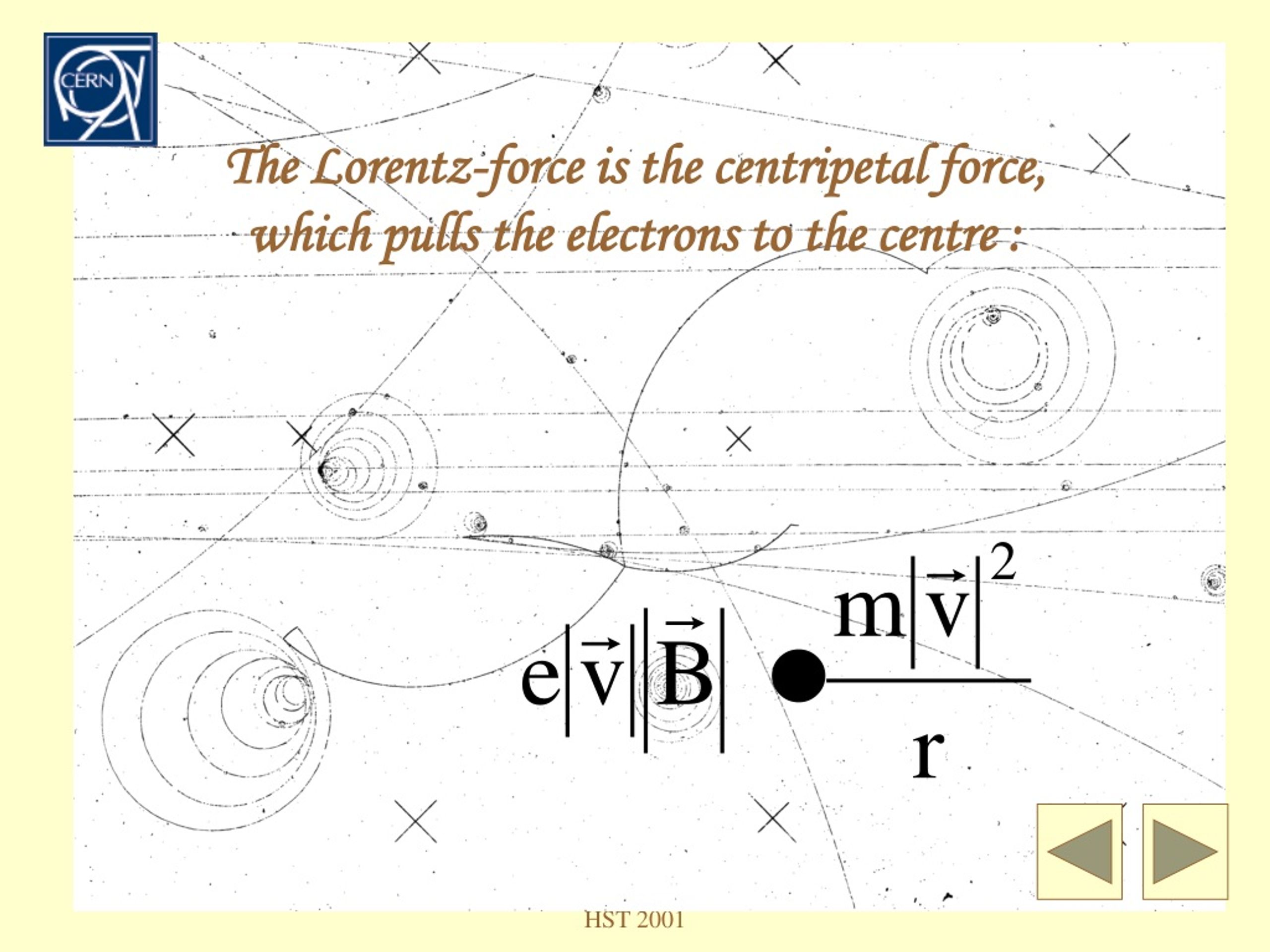

  5. The Lorentz-force is the centripetal force, which pulls the electrons to the centre : Dora Wagner & Miguel Vieira HST 2001

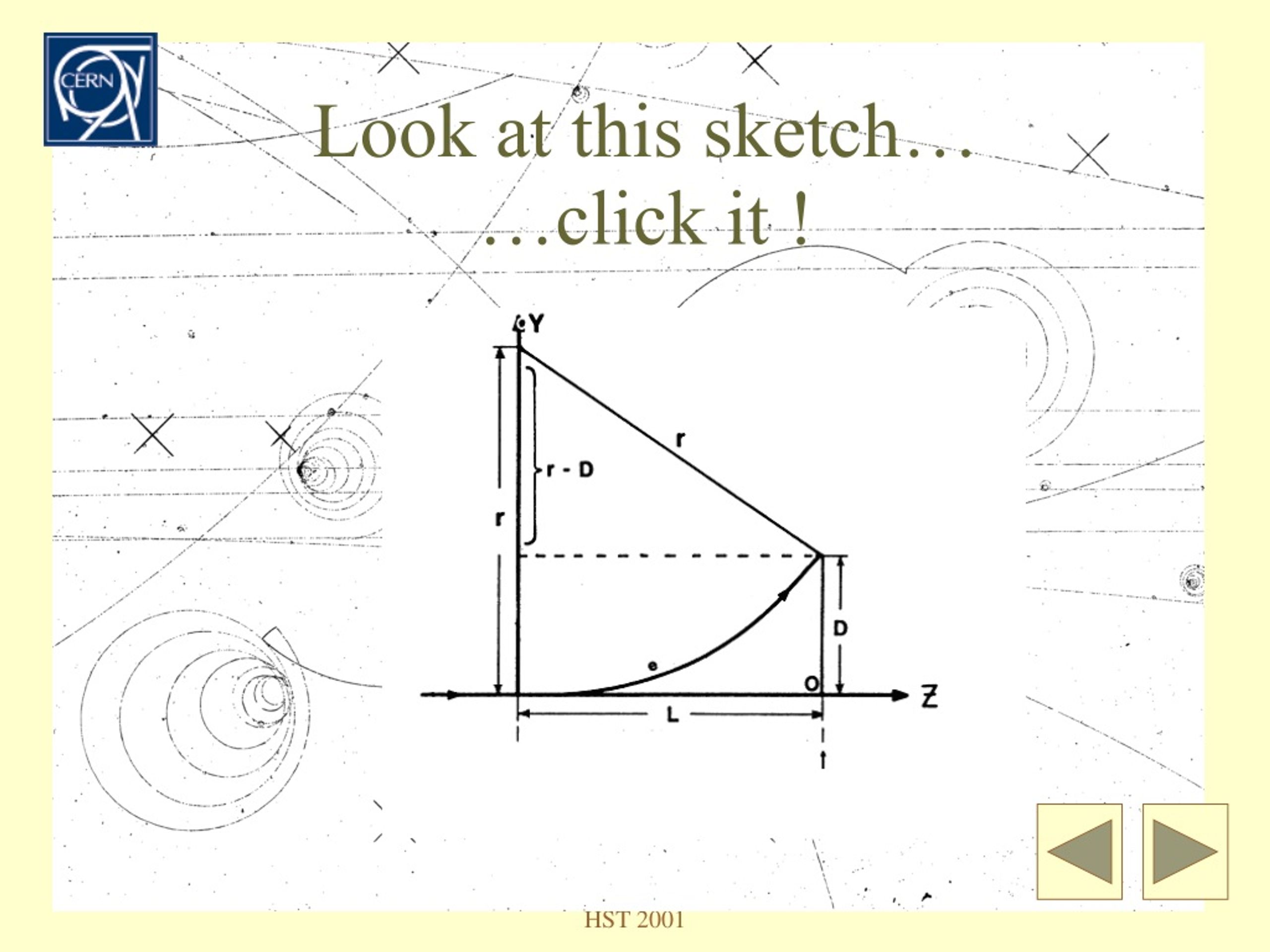

  6. Look at this sketch……click it ! Dora Wagner & Miguel Vieira HST 2001

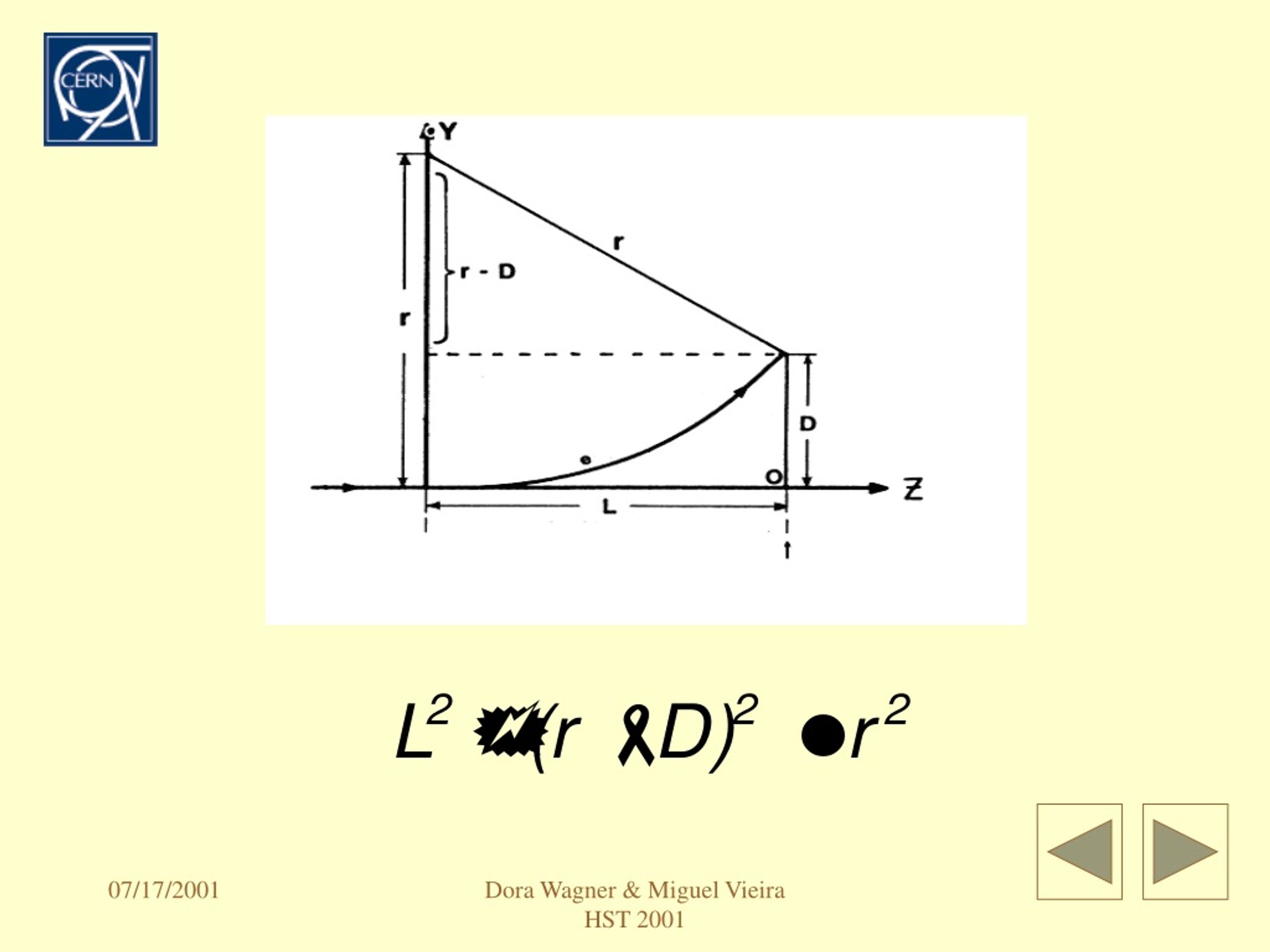

  7. Dora Wagner & Miguel Vieira HST 2001

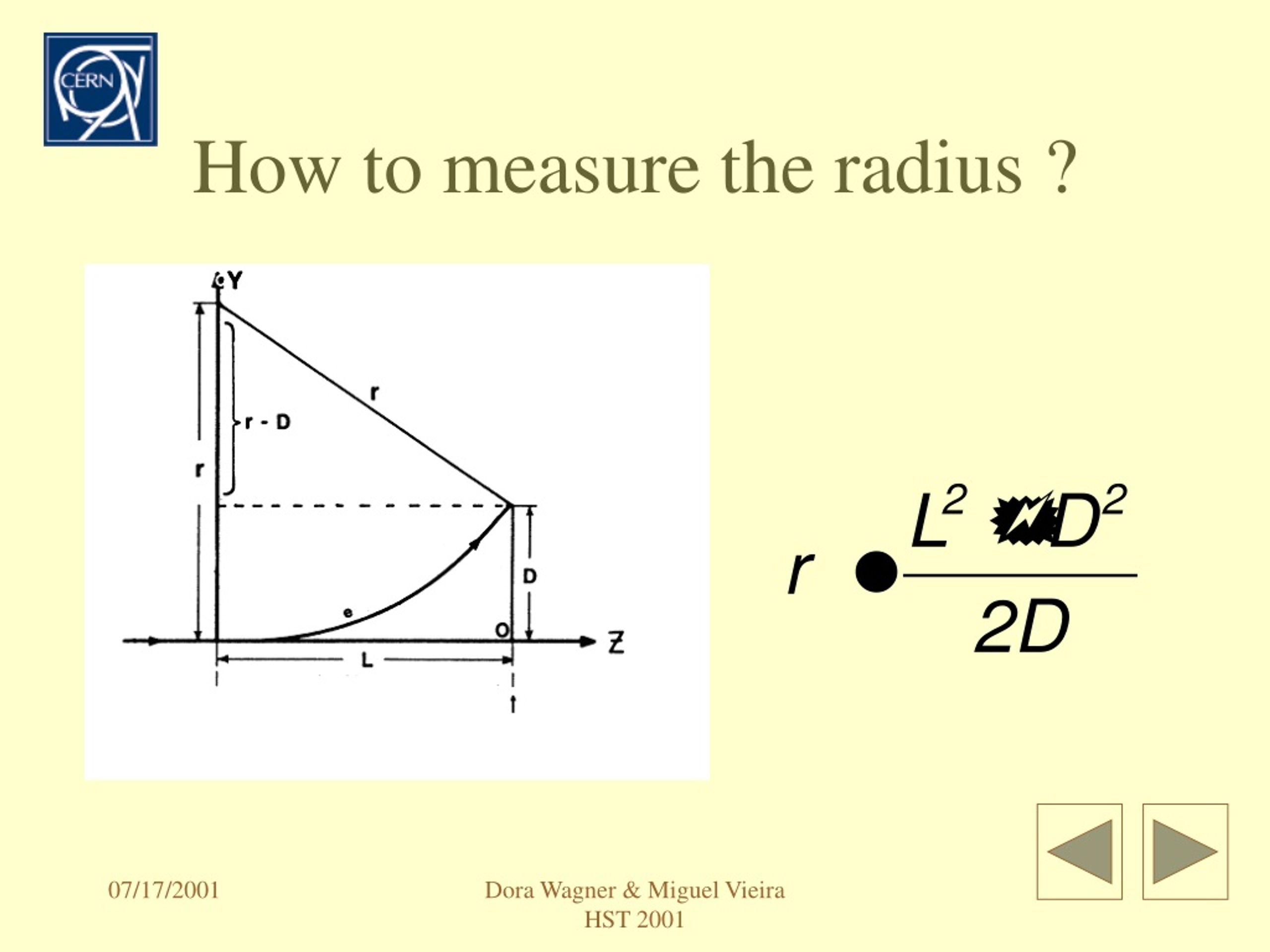

  8. How to measure the radius ? Dora Wagner & Miguel Vieira HST 2001

  9. r = ? If we know the radius r … Dora Wagner & Miguel Vieira HST 2001

  10. B = ? … and if we know the strength of the magnetic field B… Dora Wagner & Miguel Vieira HST 2001

  11. … we are able to calculate the momentum : Dora Wagner & Miguel Vieira HST 2001

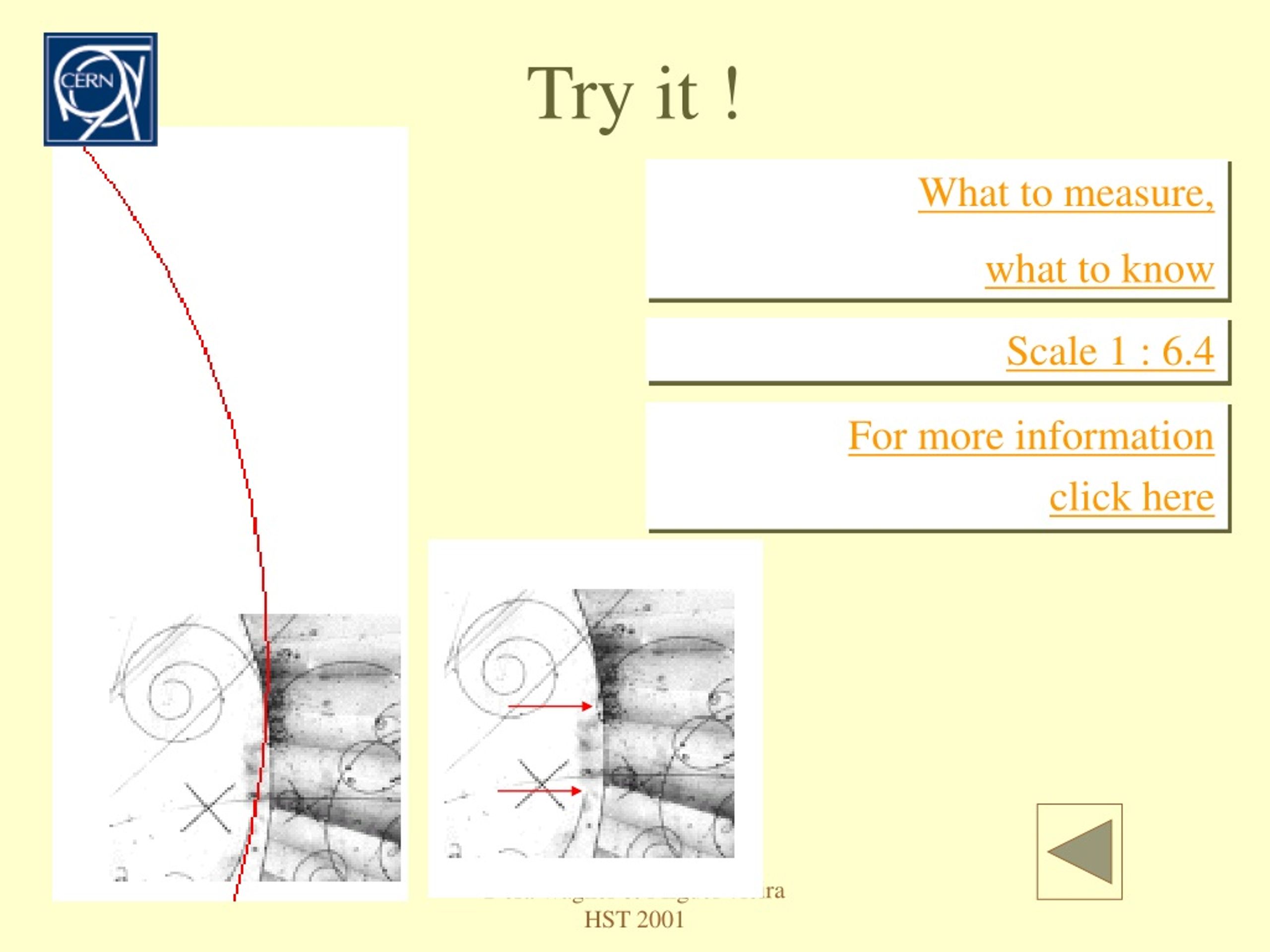

  12. Try it ! What to measure, what to know Scale 1 : 6.4 For more information click here Dora Wagner & Miguel Vieira HST 2001

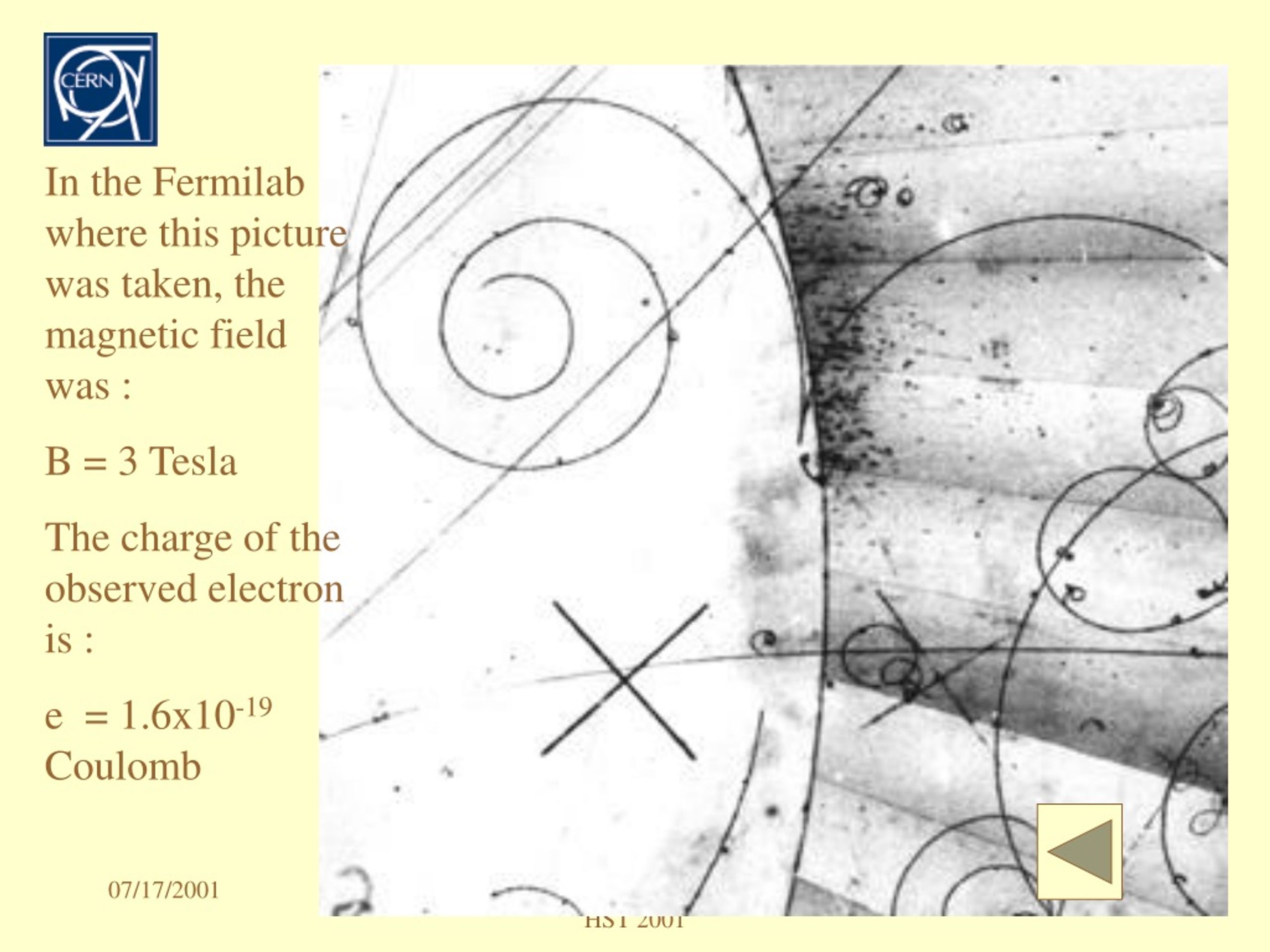

  13. In the Fermilab where this picture was taken, the magnetic field was : B = 3 Tesla The charge of the observed electron is : e = 1.6x10-19 Coulomb Dora Wagner & Miguel Vieira HST 2001

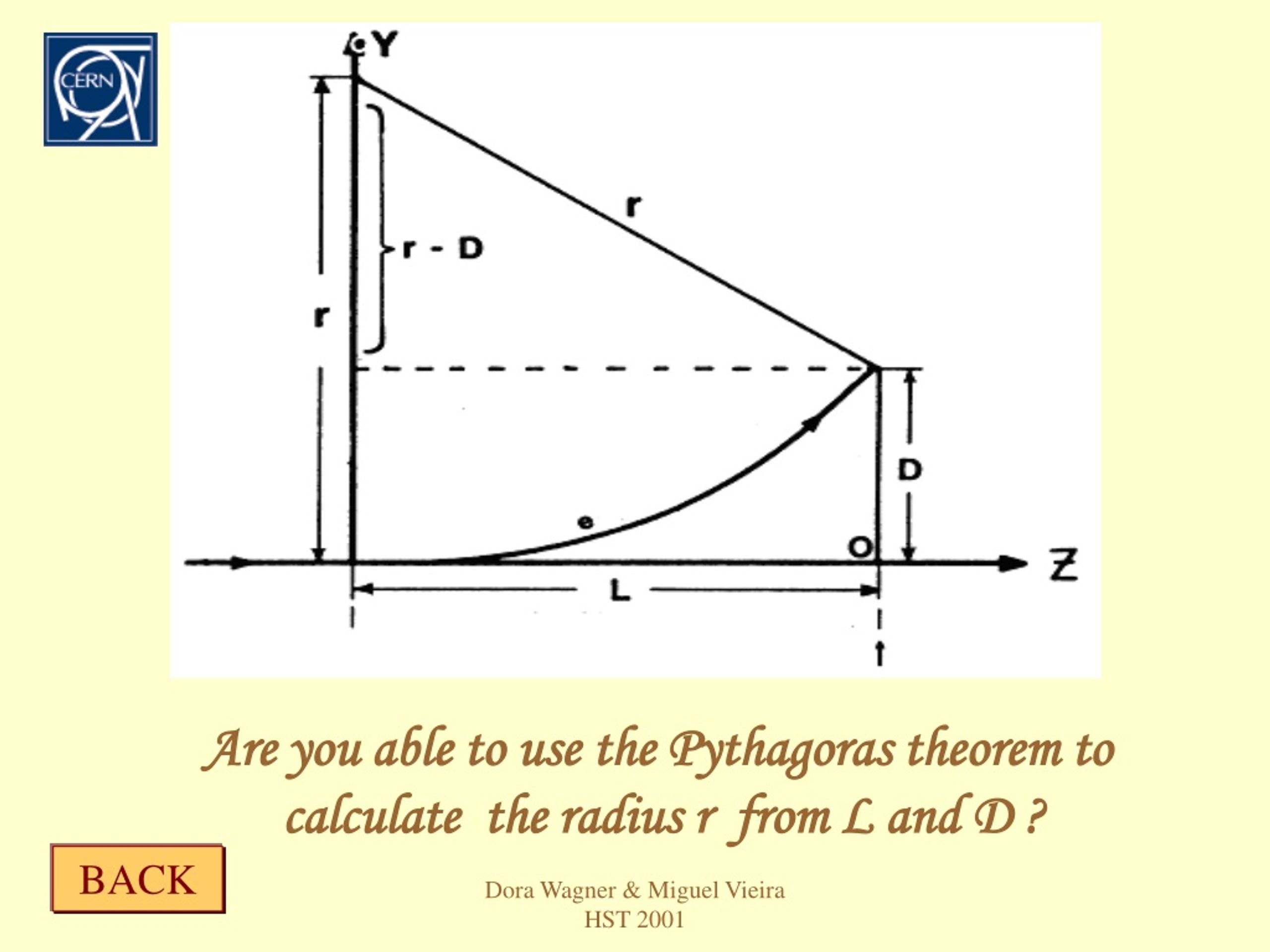

  14. Are you able to use the Pythagoras theorem to calculate the radius r from L and D ? BACK Dora Wagner & Miguel Vieira HST 2001

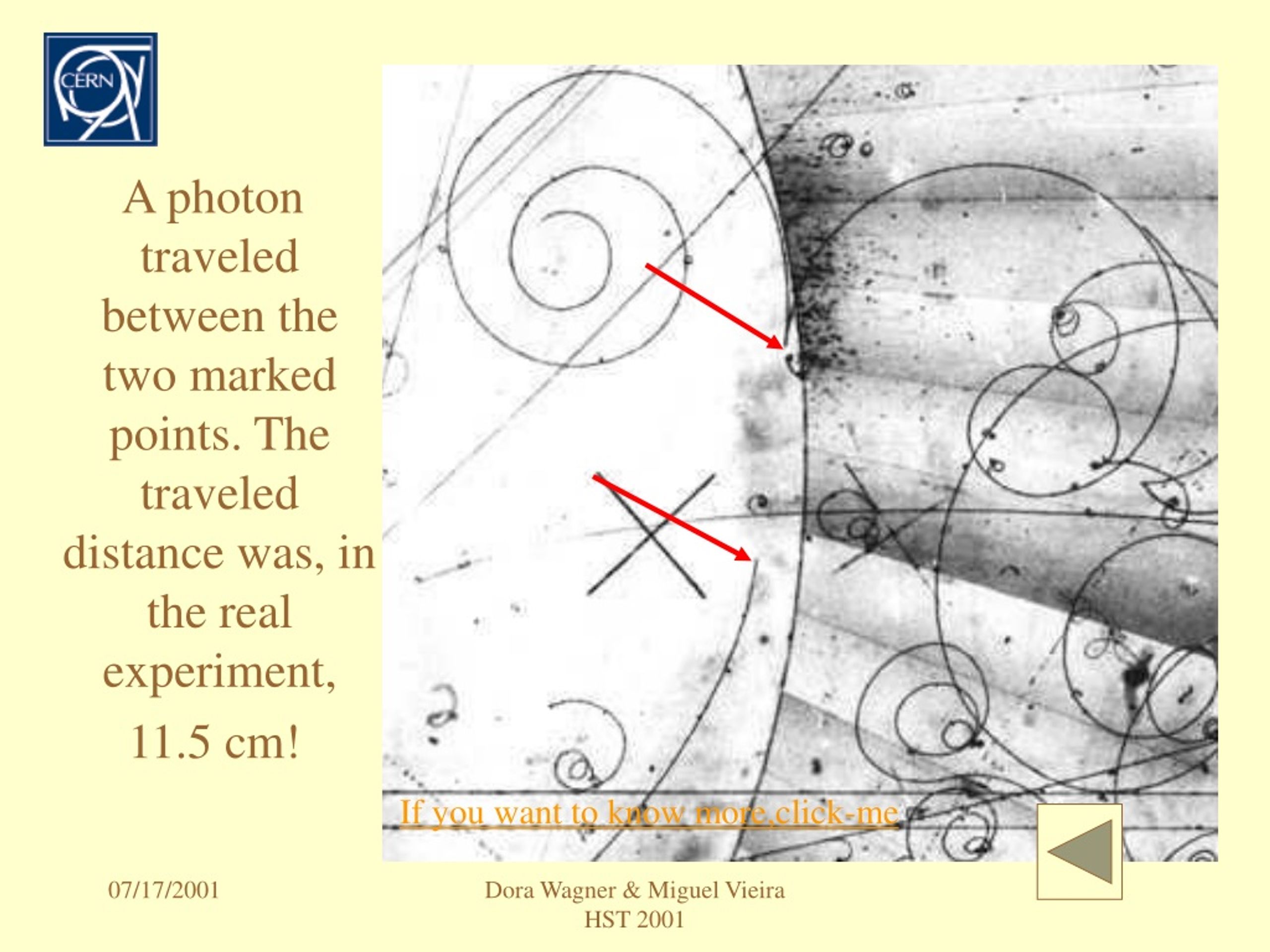

  15. A photon traveled between the two marked points. The traveled distance was, in the real experiment, 11.5 cm! If you want to know more,click-me Dora Wagner & Miguel Vieira HST 2001
