Daily Log: Accelerator Status Update on Wednesday, April 14

Detailed account of physics experiments, beam stability, equipment issues, and adjustments for the Large Hadron Collider (LHC) on April 14. Includes progress, challenges, and plans for the day.

dore
Download Presentation

Daily Log: Accelerator Status Update on Wednesday, April 14

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Wednesday 14.4. • 06:00: Physics fill from the night shift • Some separation scans. • 10:30: End stable beam mode • Problems with settings for squeeze. • Problem with Q5.R8 still been investigated. There seem now to be also other possible solutions – analysis ongoing. • 12:45: Start squeeze in IR 1 & IR5 • Orbit & coupling not too good at 2 m. Corrected again. • Coupling of 0.01 on B1, corrected to 0.002. • 14:30: Start squeeze in IR8 • OK down to 5 m. • Beam lost going to 2 m. V tune drifts to 1/3 order resonance. Beam dump from beam excursion (could be due to loss in intensity!).

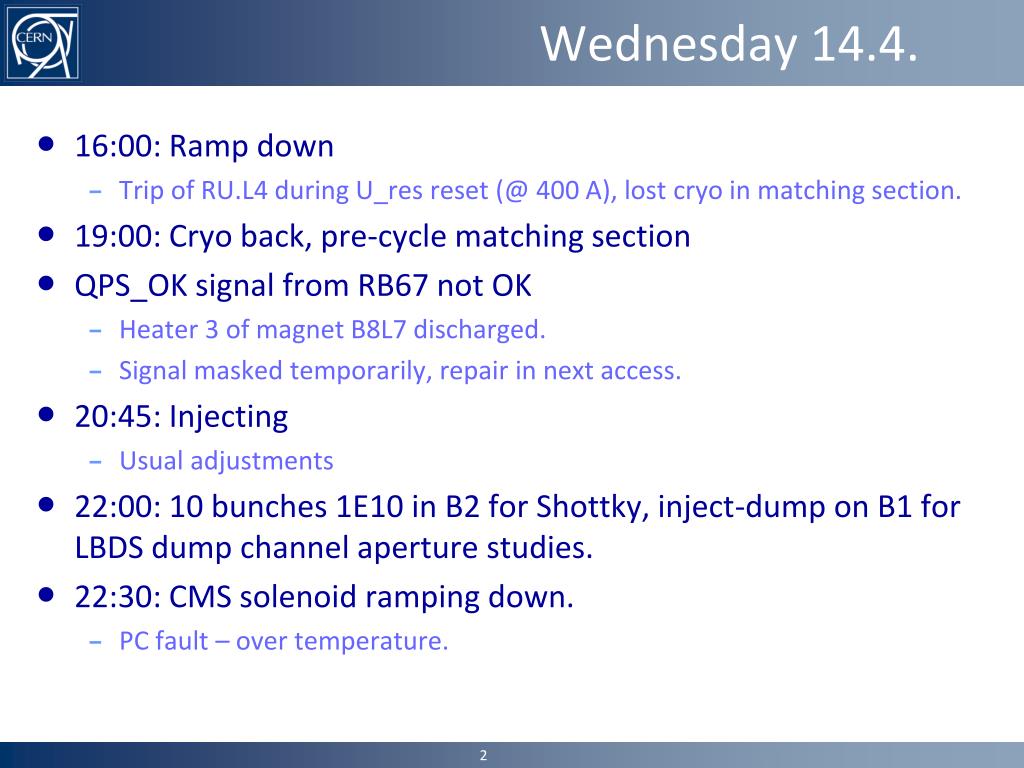

  2. Wednesday 14.4. • 16:00: Ramp down • Trip of RU.L4 during U_res reset (@ 400 A), lost cryo in matching section. • 19:00: Cryo back, pre-cycle matching section • QPS_OK signal from RB67 not OK • Heater 3 of magnet B8L7 discharged. • Signal masked temporarily, repair in next access. • 20:45: Injecting • Usual adjustments • 22:00: 10 bunches 1E10 in B2 for Shottky, inject-dump on B1 for LBDS dump channel aperture studies. • 22:30: CMS solenoid ramping down. • PC fault – over temperature.

  3. Wednesday 14.4. • 00:00: LBDS B1 studies finished • phase scan for horizontal 0, 30, 60 done, 90 interrupted at 10 sigma, tbd. • found strange losses in P3, last absorber, seen for phases 0, 30 and 60, but not 90 degrees. • 00:00-04:00: various troubles.. • SPS compensator, PS, hump • 04:00: Filling for physics • 06:30: STABLE BEAMS • PM1 for B1 disabled – not clear how this is possible…

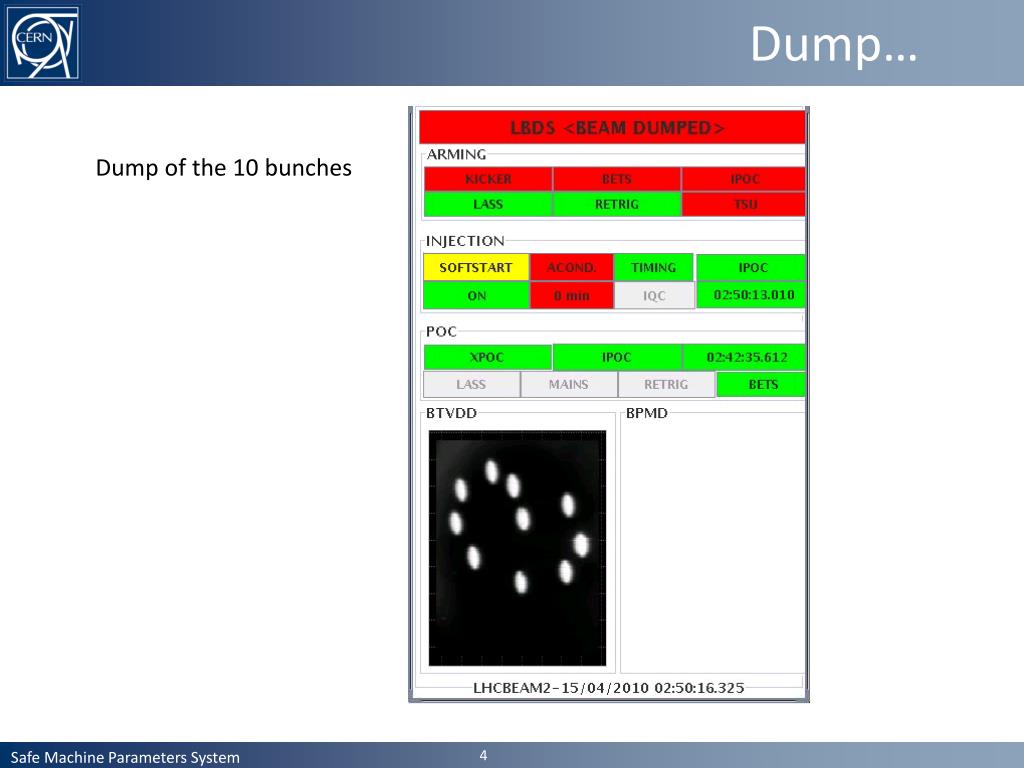

  4. Dump… Dump of the 10 bunches Safe Machine Parameters System

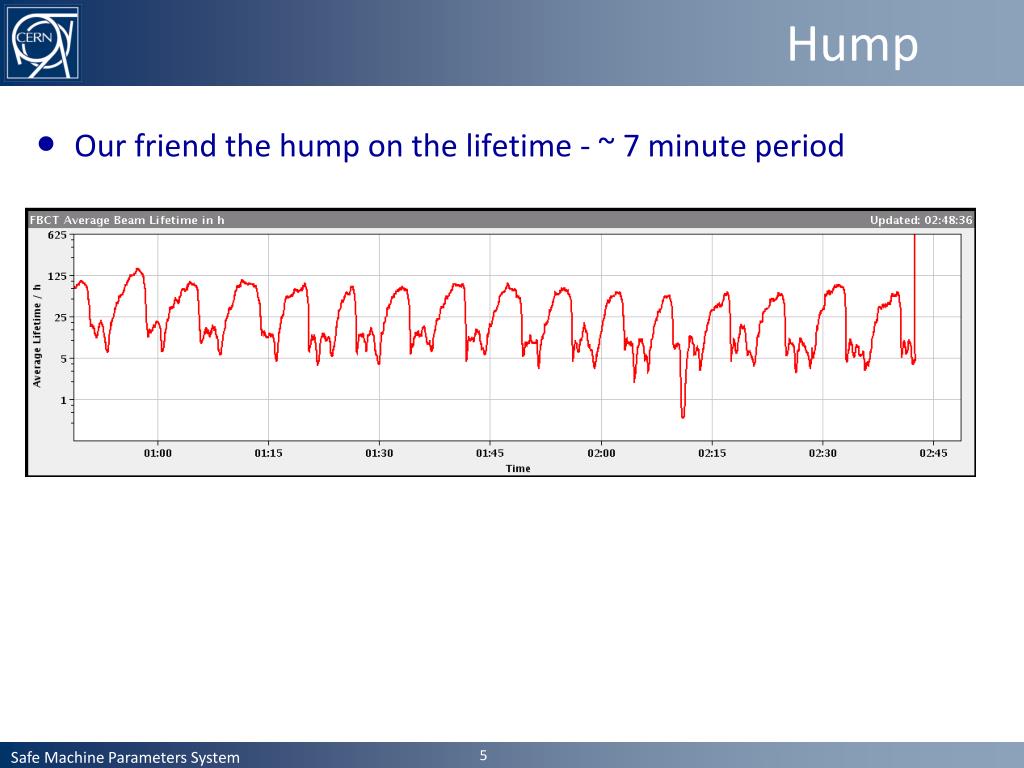

  5. Hump • Our friend the hump on the lifetime - ~ 7 minute period Safe Machine Parameters System

  6. Hump • Our friend the hump on the lifetime, tune amplitude and size Safe Machine Parameters System

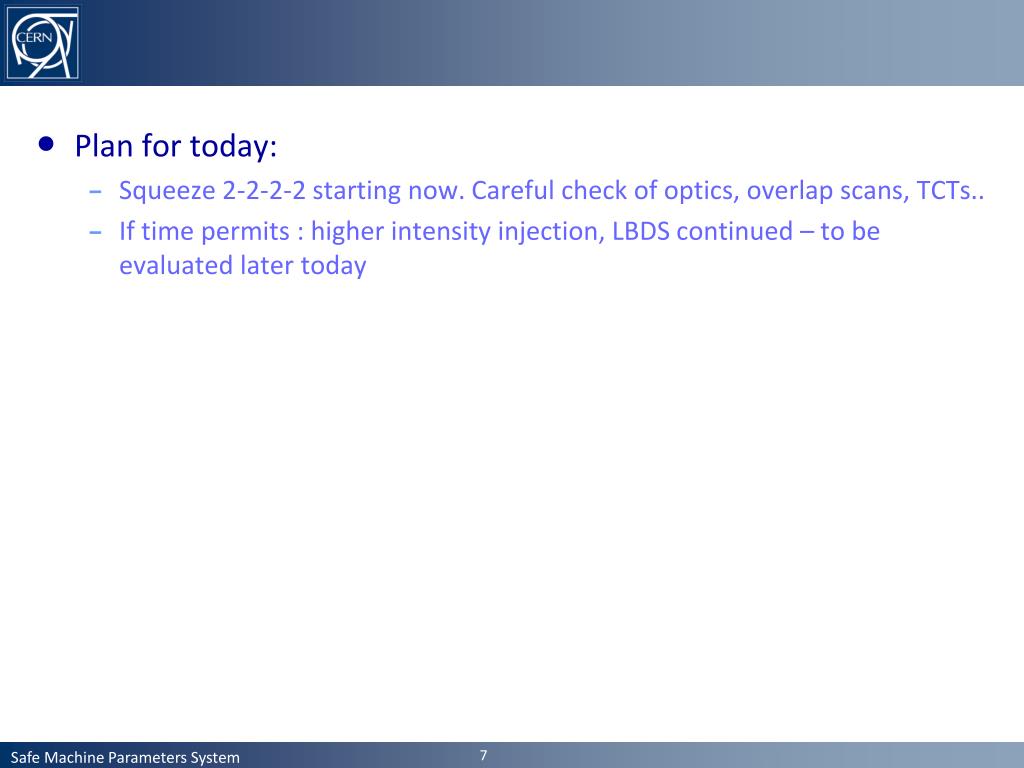

  7. Plan for today: • Squeeze 2-2-2-2 starting now. Careful check of optics, overlap scans, TCTs.. • If time permits : higher intensity injection, LBDS continued – to be evaluated later today Safe Machine Parameters System
