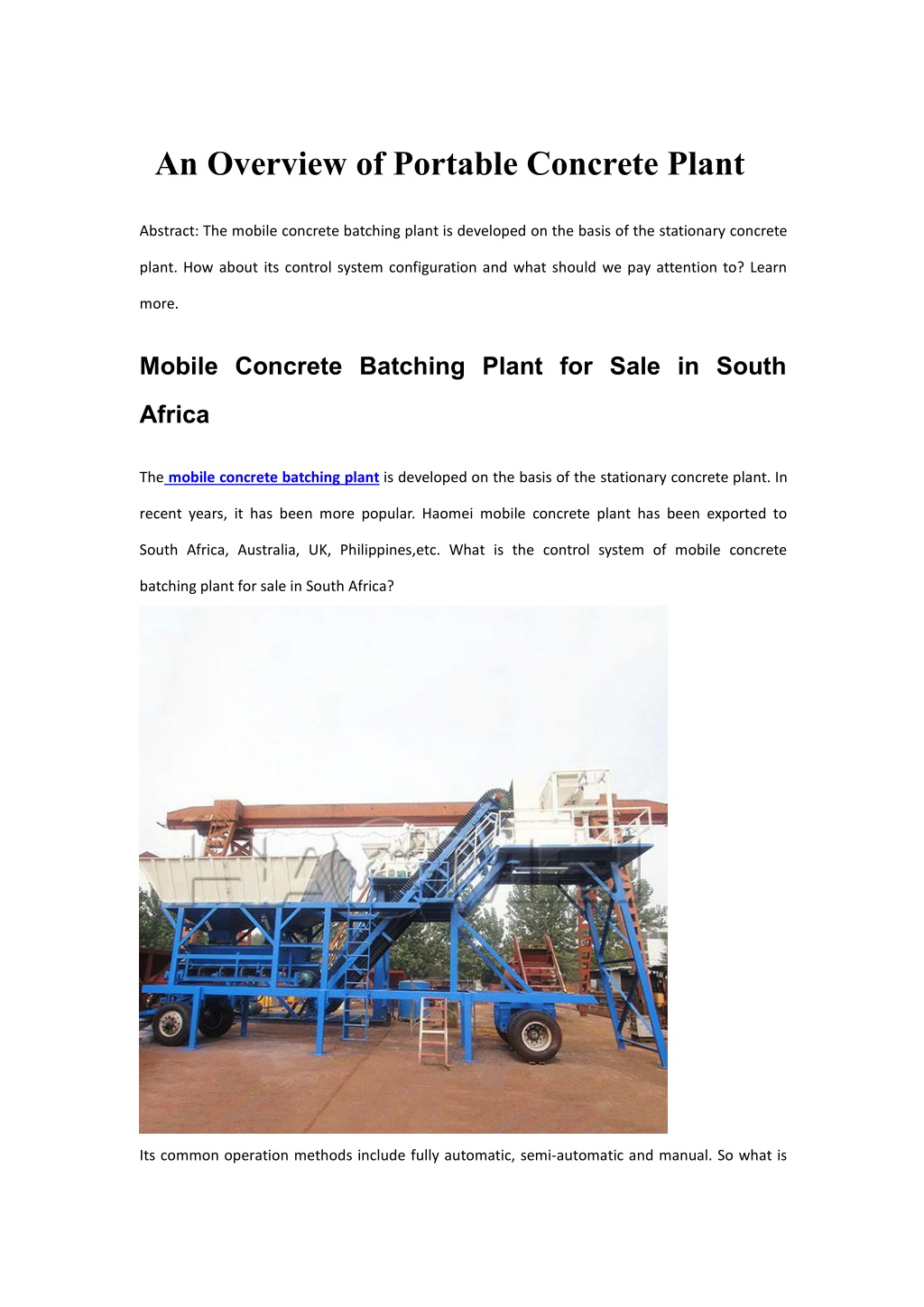

An Overview of Portable Concrete Plant

1. An Overview of Portable Concrete Plant Abstract: The mobile concrete batching plant is developed on the basis of the stationary concrete plant. How about its control system configuration and what should we pay attention to? Learn more. Mobile Concrete Batching Plant for Sale in South Africa The mobile concrete batching plant is developed on the basis of the stationary concrete plant. In recent years, it has been more popular. Haomei mobile concrete plant has been exported to South Africa, Australia, UK, Philippines,etc. What is the control system of mobile concrete batching plant for sale in South Africa? Its common operation methods include fully automatic, semi-automatic and manual. So what is

2. the difference between them? For the fully automatic control system, the the sand and gravel aggregate batching, weighing, conveying, mixing and unloading of the mobile concrete batching plant are all automatically operated without manual intervention. The worker only needs to click the "start button" before the concrete batch plant starts working. The fully automatic control system is simple to operate, highly automated, and can integrate monitoring and remote operation. Although the initial investment cost is relatively high, it saves manpower and is the preferred operating system for large and medium-sized projects. The semi-automatic control system is generally used in engineering concrete mixing plant. During the operation of the control system, manual intervention can be performed, such as the control the proportion of concrete. The investment cost is moderate, the operation is flexible, and it is very popular in engineering projects. The manual operation generally adopts electric control cabinet operation, which has low investment cost. The output of concrete is closely related to the operating proficiency of the operator. The advantage is that the equipment has a small footprint, and the equipment is flexible and easy to dismantle. The disadvantage is that the labor cost is high. Each control system has its own advantages and disadvantages. A choice based on your budget, the project requirements and future development will be a good choice. What Is Configuration of Portable Concrete Plant There are different types of concrete batching plants: portable concrete plant and stationary concrete plant. At present, more customers prefer to buy a portable one. What is its configuration?

3. Concrete mixer The concrete mixer is the heart of the mobile concrete plant. At present, the twin shaft concrete mixer with good comprehensive performance is commonly used. Haomei twin shaft concrete mixer has improved the design that the outer is added to promote the annular flow of the material. At the same time, the inner ring shovel blades carry out the radial shearing of the material flow, realizing three-dimensional mixing and greatly improving mixing efficiency. Metering system The material measurement system is a key system that affects the quality of concrete and production costs. It accurately measures various materials according to the proportioning requirements to ensure that the produced concrete meets the quality requirements. The good choice is to adopt independent weighing, that is, cement, coal ash, and mineral powder are separately measured to ensure no loss of each material.

4. Aggregate storage and conveying system The batching machine is an aggregate batching device that integrates the functions of sand and gravel storage, metering, and output. It is divided into two forms: steel structure type and silo type. The batching machine is divided into three, four, five, and six bins according to the number of bins. Usually, there are several bins for several kinds of aggregates. Aggregate conveying mainly includes belt conveying, hoisting machine, hoisting bucket, etc. It is worth noting that dust is easily generated during the aggregate conveying process, which affects the index of the equipment. By covering the aggregate with canvas, it can reduce the pollution of materials and dust. At the same time, a pulse dust collector is installed at the rear receiving part to reduce dust and have better environmental performance. Top Four Features of Mobile Concrete Batching Plant The foundation construction of the traditional stationary concrete mixing plant must be done before the construction of the station. The engineering volume is relatively large. The mobile concrete batching plant is born for easy transfer. What are its features? Easy to set up The portable concrete plant is well known for construction-free design and foundation-free installation, providing customers with great convenience and greatly saving the construction time and construction cost. Eco-friendly In addition to quick and convenient installation, the mobile concrete batching plant also has

5. excellent environmental performance, which can make the construction work meet the local environmental protection requirements. Convenient transportation Besides some additional steel structural parts like cement silo, all the main parts are installed on the chassis, it can driven by the tractor from one site to another quickly. And the equipment can be quickly assembled and put into production after the equipment arrives. Good performance Although portable concrete plant simplifies the supporting equipment in structure, but there is no shortage of operating parts. It is also made up of control system, mixing system, weighing system, material storage system, and conveying system. There is no impact on the concrete mixing performance and capacity. The mobile concrete batching plant is an ideal choice for the long-line projects and engineering construction with the scatted construction sites. As an experienced concrete batching plant manufacturer, Haomei Machinery has rich models of portable concrete plants. The Purchasing Tips for Concrete Plant for Sale The profit of investing a concrete plant for sale is very considerable. If you really like to buy a concrete plant, what should you pay attention to? As a concrete batching plant manufacturer, Haomei Machinery has some tips for you. There are two kinds of concrete plant for sale: stationary concrete plant and mobile concrete plant. The output of the stationary concrete plant is from 25m3/h to 180 m3/h. The largest model of mobile concrete plant is of 90m3/h. The best selling are YHZS35 and YHZS60 mobile concrete batching plant, of which the capacity respectively is 35

6. m3/h and 60 m3/h. Therefore, you must have a clear idea of your concrete demand such as the year output. If you don’t know which capacity to choose, finding a reliable manufacturer will be a good choice. The profession staff can save you a lot of trouble. Before buying, you should not only pay attention to the equipment itself and the manufacturer, but also the local requirements. At present, most countries stress environmental protection. You need to know in advance whether your location supports the installation of concrete mixing plant. As for the concrete batching plant price, it is affected by many factors such as manufacturing material, model, configuration,etc. Our mobile concrete plant is on sale now.
