  1. Driving Recorder

  2. S2S65A30 • I/P conversion - Interlace/Progressive conversion • Image enhanced - Real-time brightness correction of input image • SD Card I/F - Real-time 2ch recording • JPEG decode • S2S65A00 compatible - pin compatible - software upper compatible - powers are lower than A00 • Package - PFBGA-280pin (0.8mm pitch) - 16mm x 16mm x 1.2mm - Halogen Free I/P Conv. I/P Conv. S2S65A30 Image Enhanced Image Enhanced JPEG Enc /Dec JPEG Enc ARM720T DMA DMA USB2.0 Device Memory Controller Bridge SYS INTC WDT Timer RTC CF I/F I2C UART GPIO I2S SD I/F Event CNT SPI ADC

  3. Module Block Diagram Main Memory NOR + SDRAM Serial DC/DC Convertor GPS Module Super Capacitor Camera I/F S2S65A30 Analog Camera LCD (RGB) Image Sensor SDIO I/F RTC Z Y X Audio Codec MIC G-Sensor SP

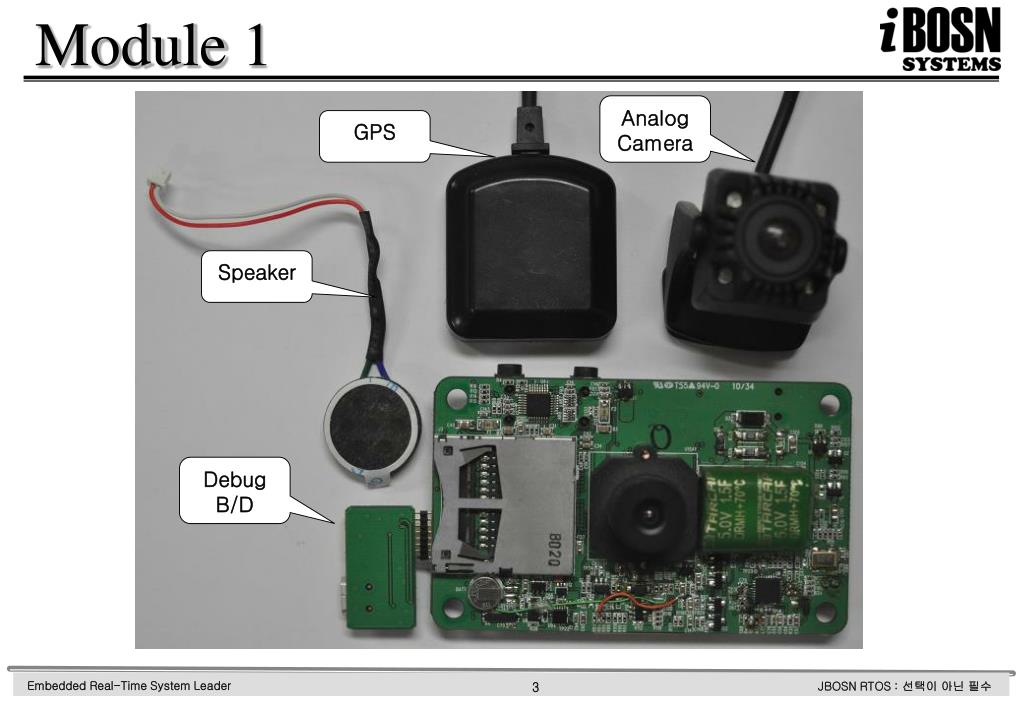

  4. Module 1 Analog Camera GPS Speaker Debug B/D

  5. Module 2 LCD module GPS Module Analog Camera Debug B/D Mic.

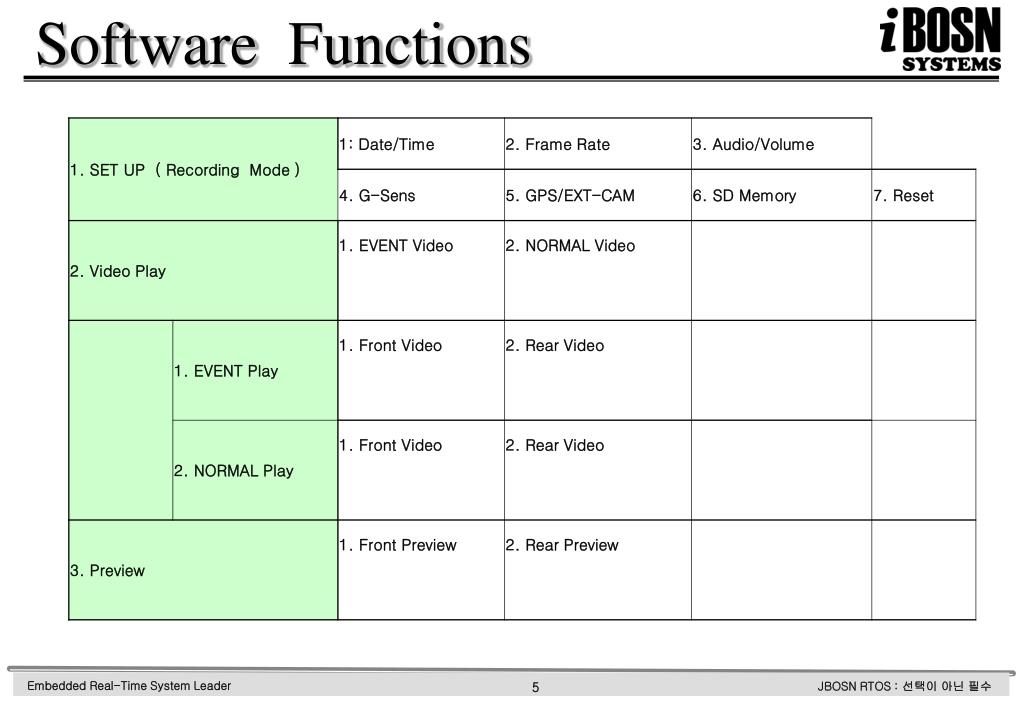

  6. Software Functions

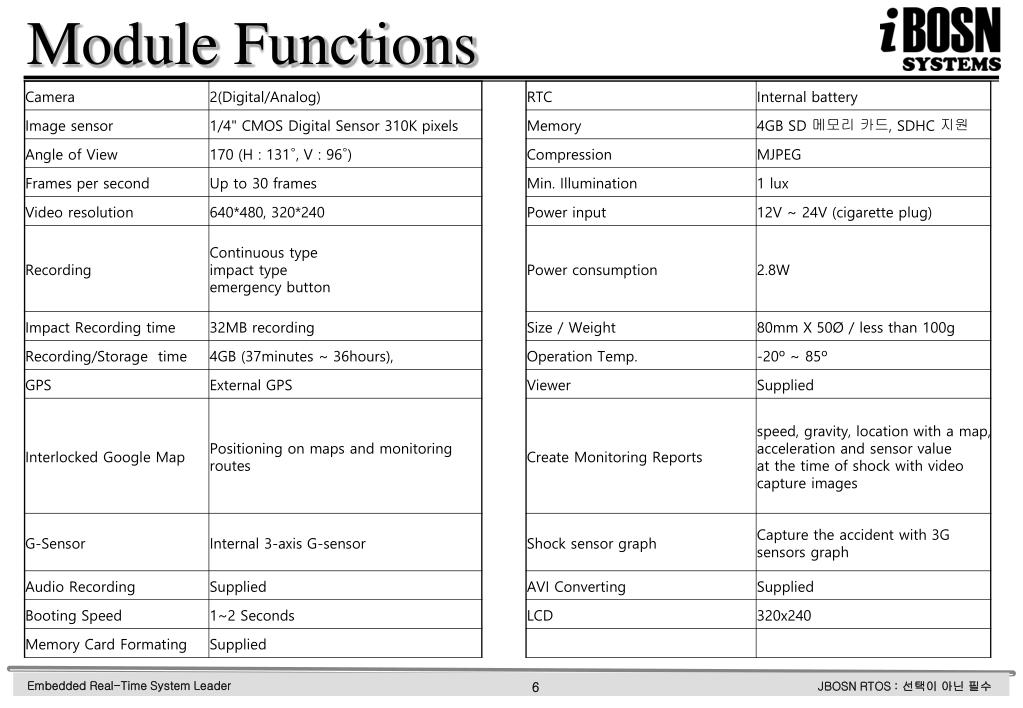

  7. Module Functions

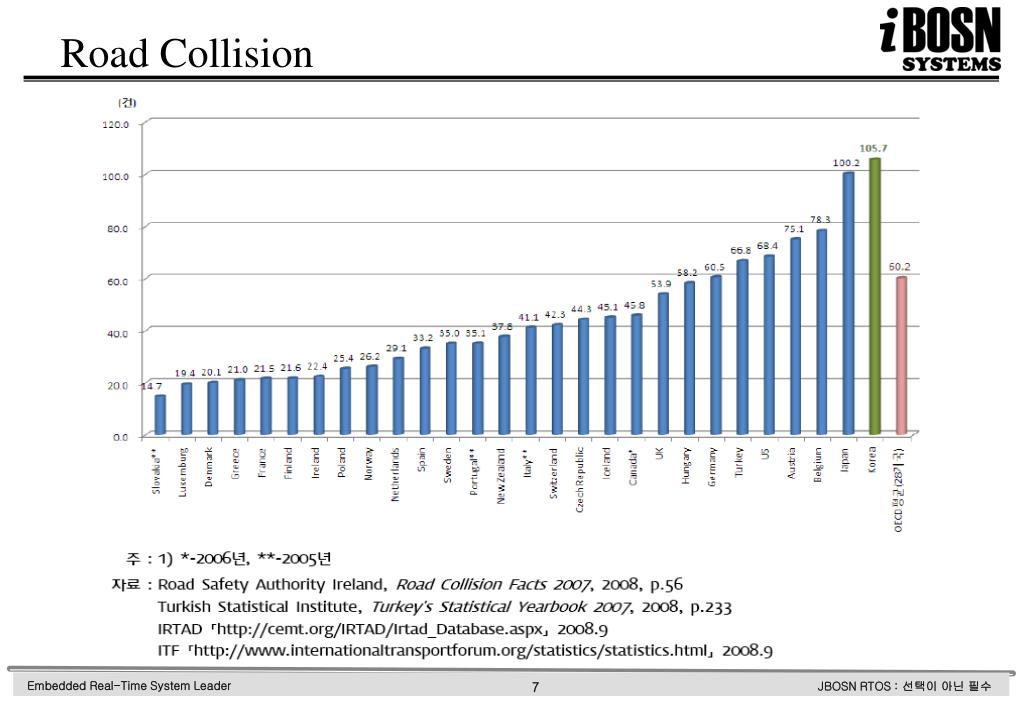

  8. Road Collision

  9. Samples

  10. IC For Driver Recorder S/W IBOSN(software) Epson (MCU) Co-Work
