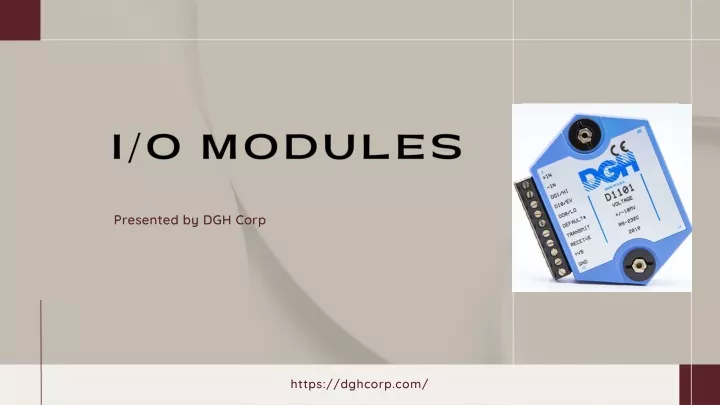

  1. I/O MODULES Presented by DGH Corp https://dghcorp.com/

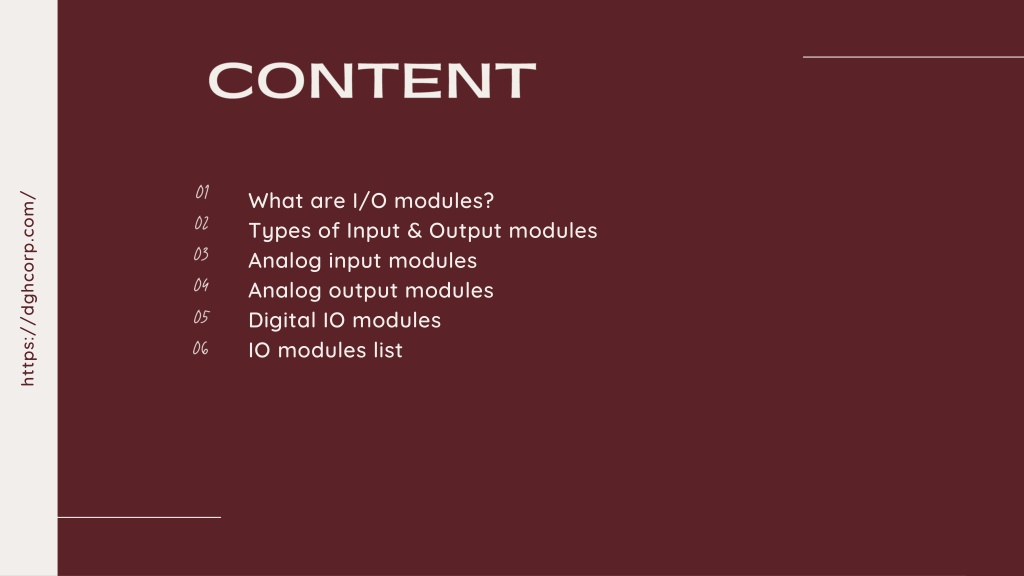

  2. CONTENT 01 02 03 04 05 06 What are I/O modules? Types of Input & Output modules Analog input modules Analog output modules Digital IO modules IO modules list https://dghcorp.com/

  3. WHAT ARE I/O MODULES Analog I/O devices are devices with both an A/D conversion function and a D/A conversion function. It works as mediators between the processor and the input/output devices. The input modules receive signals from other devices and transfer it to the processor and the output modules send processor signals to the control devices like. https://dghcorp.com/

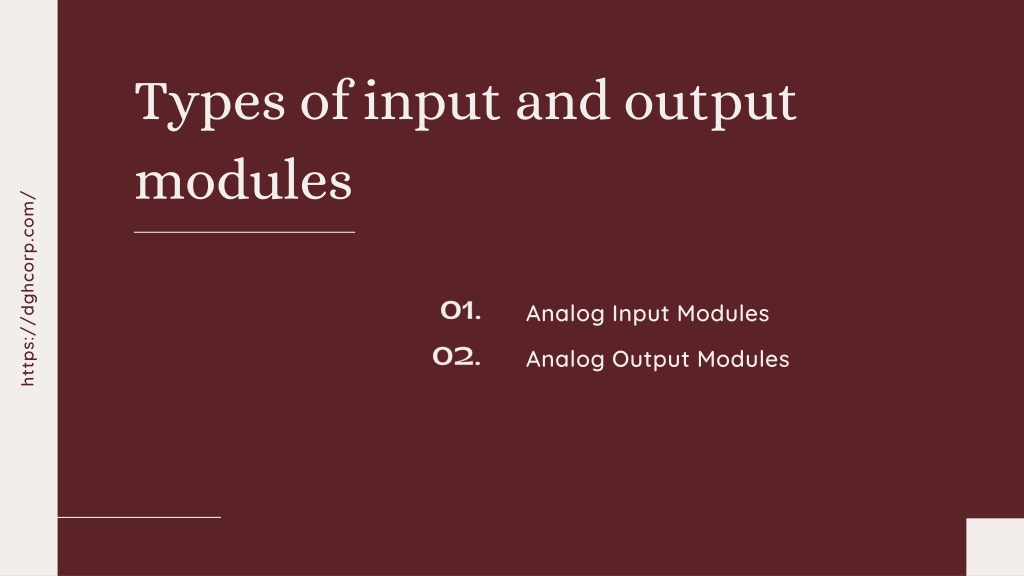

  4. Types of input and output modules 01. 02. Analog Input Modules Analog Output Modules https://dghcorp.com/

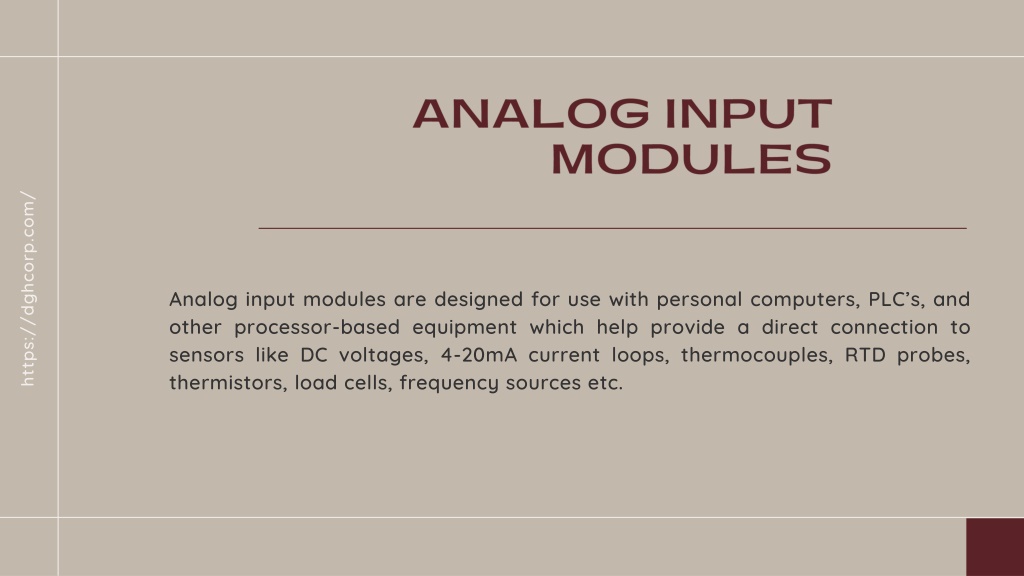

  5. ANALOG INPUT MODULES https://dghcorp.com/ Analog input modules are designed for use with personal computers, PLC’s, and other processor-based equipment which help provide a direct connection to sensors like DC voltages, 4-20mA current loops, thermocouples, RTD probes, thermistors, load cells, frequency sources etc.

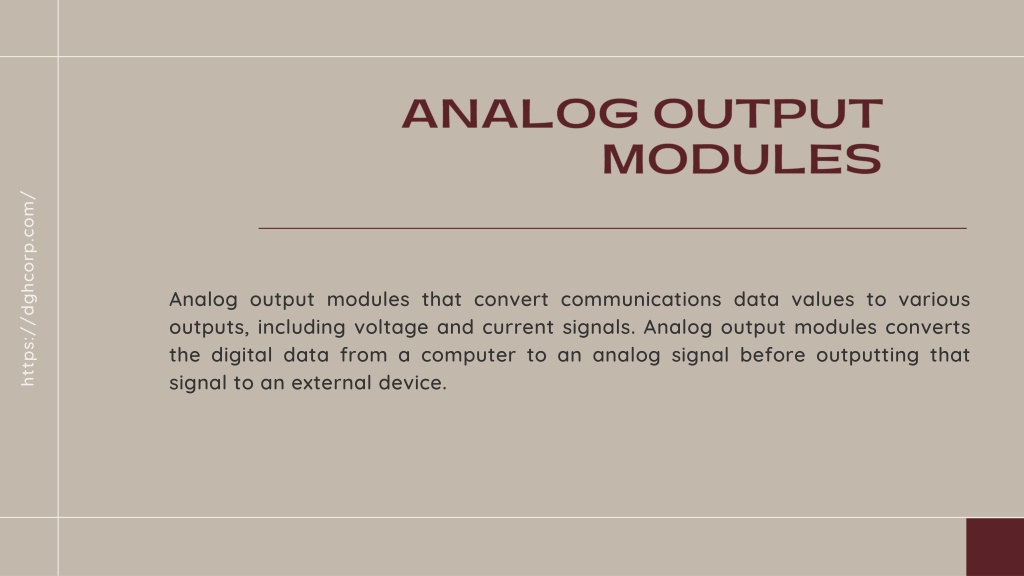

  6. ANALOG OUTPUT MODULES https://dghcorp.com/ Analog output modules that convert communications data values to various outputs, including voltage and current signals. Analog output modules converts the digital data from a computer to an analog signal before outputting that signal to an external device.

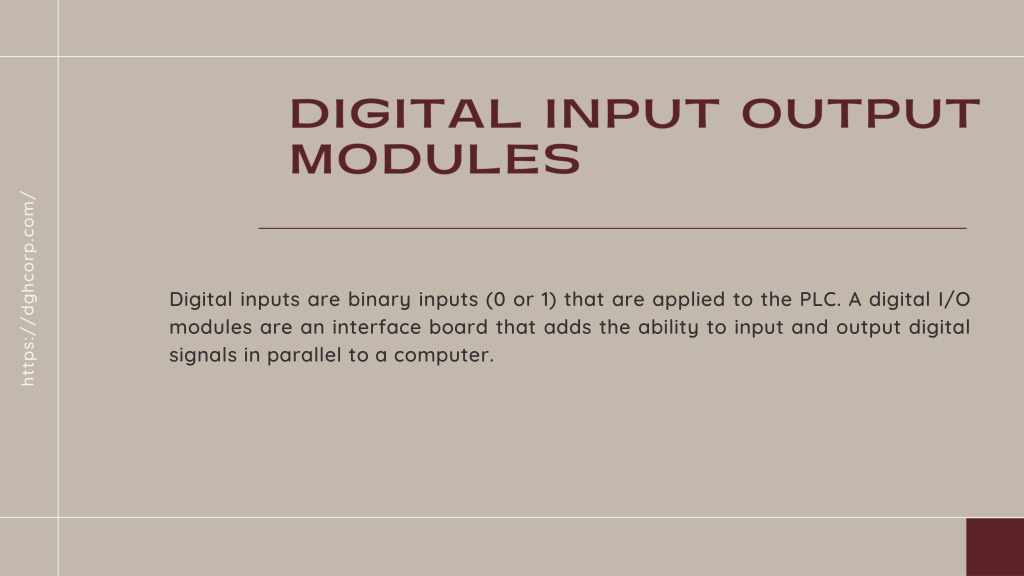

  7. DIGITAL INPUT OUTPUT MODULES https://dghcorp.com/ Digital inputs are binary inputs (0 or 1) that are applied to the PLC. A digital I/O modules are an interface board that adds the ability to input and output digital signals in parallel to a computer.

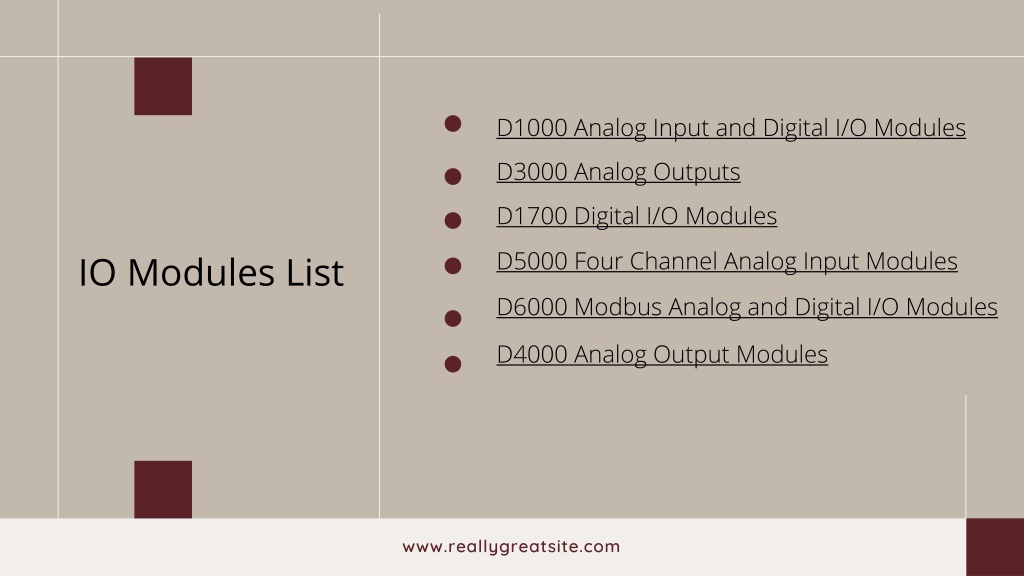

  8. D1000 Analog Input and Digital I/O Modules D3000 Analog Outputs D1700 Digital I/O Modules D5000 Four Channel Analog Input Modules IO Modules List D6000 Modbus Analog and Digital I/O Modules D4000 Analog Output Modules www.reallygreatsite.com

  9. THANK YOU Visit and explore DGH to know more about IO modules www.reallygreatsite.com Social Media: https://twitter.com/DGHCorp Website: https://dghcorp.com/
