  1. APLICOM IP vehicle server Aplicom IP vehicle server Juha Savolainen, Aplicom Oy Director, Technology

  2. APLICOM IP vehicle server • Plug and play IP vehicle server • HW and SW in one box solution • Server has stand alone capabilities and standard IP protocol communication to the outside world • Supports GPRS/GSM communications with IP • The server will be further developed for new features • Third party applications can be added later • As a result we have server with many standard features and a platform for higher level programming

  3. APLICOM IP vehicle server The Communication Server for the Vehicle • support for different key applications • vehicle always on line • shares application load • vehicle alarm & security functions • internet access point in vehicle • IP router and gateway • local processing of high speed data GPRS GSM GPS ALARMS C-series VEHICLE DATA

  4. APLICOM IP vehicle server The Communication Server for the Vehicle • product with many features • uses standard protocols • connects vehicle to IP network • supports positioning functions • local data logging and analysis • communications support • HF phone support • easy to configure • modular concept • flexible for future developments GPRS GSM GPS ALARMS C-series VEHICLE DATA

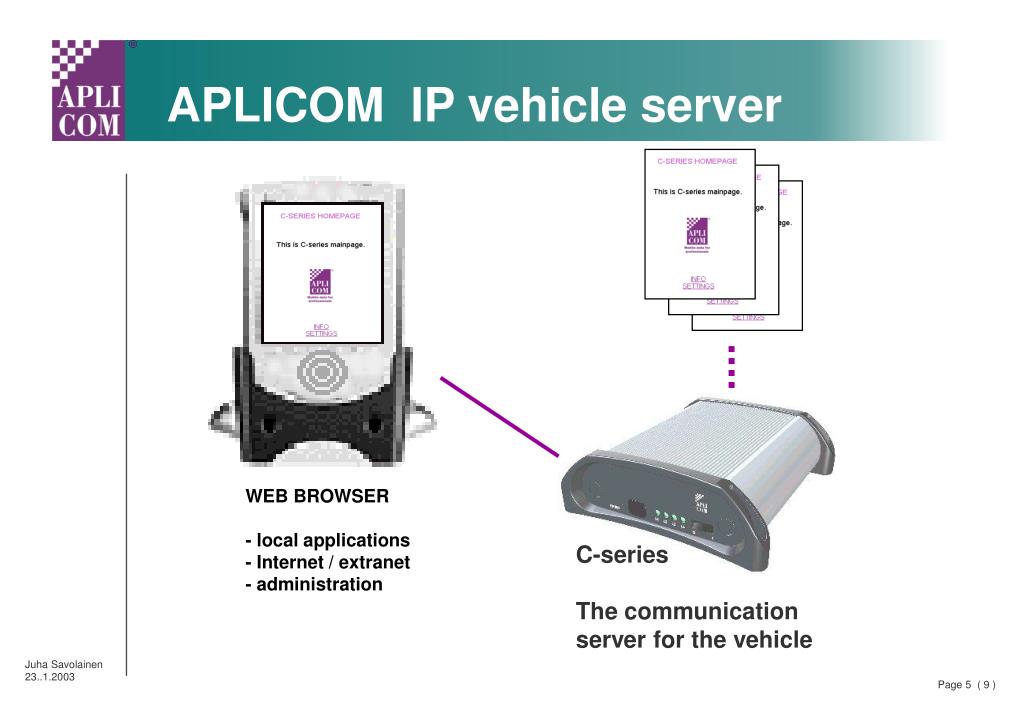

  5. APLICOM IP vehicle server WEB BROWSER - local applications - Internet / extranet - administration C-series The communication server for the vehicle

  6. APLICOM IP vehicle server Applicationservices APPLICATIONS using IP protocol to access: - local application services - Internet / extranet applications C-series The communication server for the vehicle

  7. APLICOM IP vehicle server GPRS WEB BROWSER applications APLICOM IP vehicle server WEB html pages IP Stack TCP UDP FTP ppp pppd “WEB SERVER” Standard Appli- cation services Futureapplications PPP TCP/ IP Internet / Intranet POSITION VEHICLE DATA Status etc. USER Local IP network VEHICLE

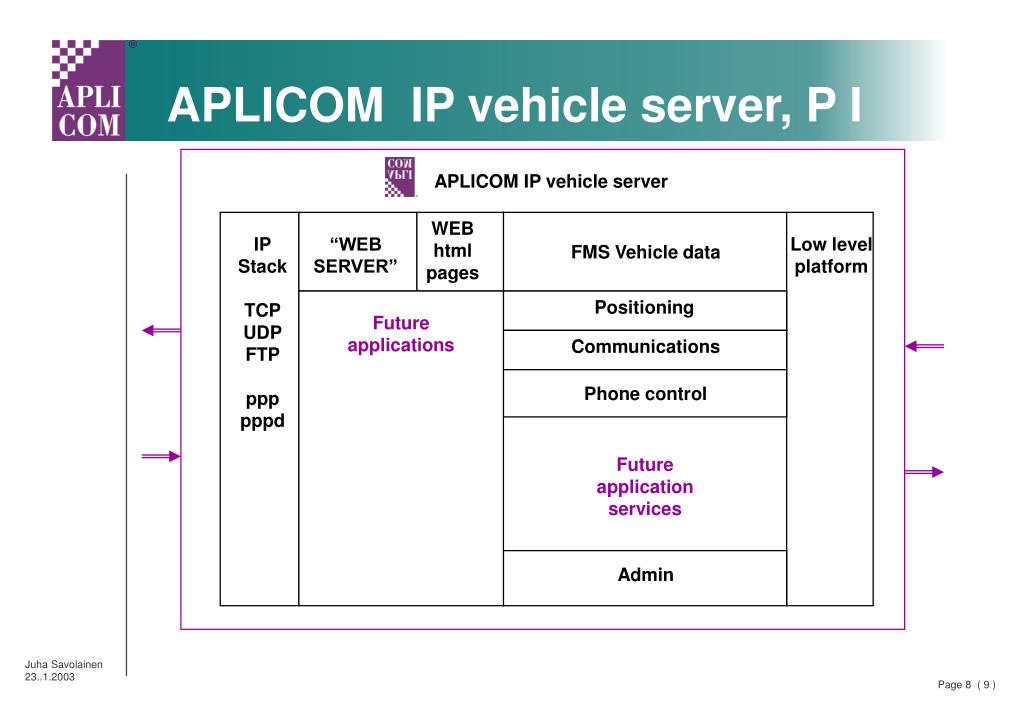

  8. APLICOM IP vehicle server, P I APLICOM IP vehicle server WEB html pages IP Stack TCP UDP FTP ppp pppd “WEB SERVER” Low level platform FMS Vehicle data Positioning Futureapplications Communications Phone control Future applicationservices Admin

  9. APLICOM IP vehicle serve, P II CONCEPT APLICOM IP vehicle server WEB html pages IP Stack TCP UDP FTP ppp pppd WEB SERVER Low level platform FMS Vehicle data OBD2 Positioning Futureapplications Communications .... Phone control Alarm Vehicle data logging and analysis APP1 LISP APP2 Admin ....
