Presentation Transcript
mtest pixel telescope status update

MTest Pixel Telescope – Status Update

David Christian

September 11, 2007

mtest telescope
MTest Telescope
  • Constructed using “BTeV pixels”
  • Pixel size = 50m x 400m (600m)
  • Oriented to provide “precision-x” or “precision-y” measurements.

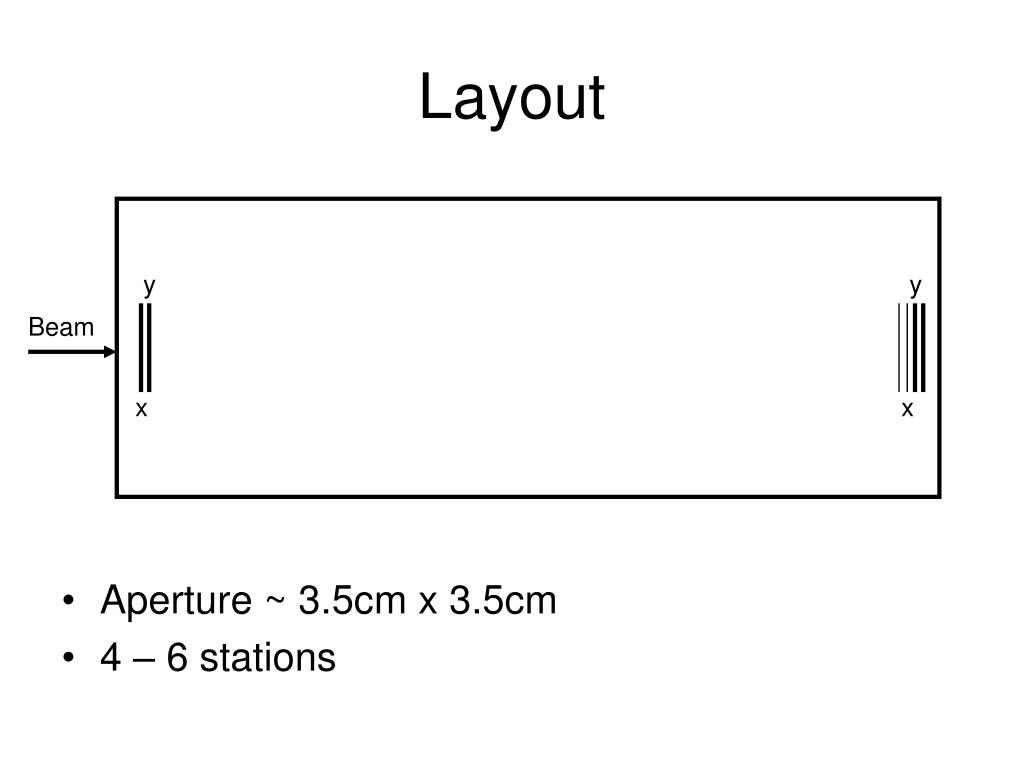

layout
Layout
  • Aperture ~ 3.5cm x 3.5cm
  • 4 – 6 stations

y

y

Beam

x

x

nomenclature
Nomenclature
  • Station = 2 planes & an SLINK
  • Plane = 3 modules mounted on a TPG heat spreader
  • Module = hybrid pixel detector glued & wire-bonded to a High Density Interconnect (Kapton flex circuit)
  • Hybrid = pixel sensor bump bonded to 4 FPIX2.1 ASICs
daq overview
DAQ Overview

ROUTER

SLINK

Trigger/timing signals

Twin-ax

(sATA)

Removable disk

Fiber

PCI Interface

LINUX pc

Trigger/timing signals

slide6
DAQ
  • SLINK communicates with 2x3x4=24 FPIX2.1 chips & with ROUTER.
    • Relays commands & responses
    • Collects data
      • Deserialize (digital phase follower)
      • Time order & construct data blocks w/extended time stamp & chip ID headers
      • Hierarchy of 2-way data merges
daq continued
DAQ - continued
  • ROUTER communicates with PCI interface & SLINKs and (optionally) DUTs
    • 12 sATA ports, 4 RJ45 ports
    • Relays commands & responses
    • Collects data
      • Hierarchy of 2-way data merges (same logic as SLINK)
  • PCI Interface communicates with ROUTER & pc
    • Relays commands & responses
    • Uses 3 CSRs & 3 ring buffers in the pc main memory (64 MB)

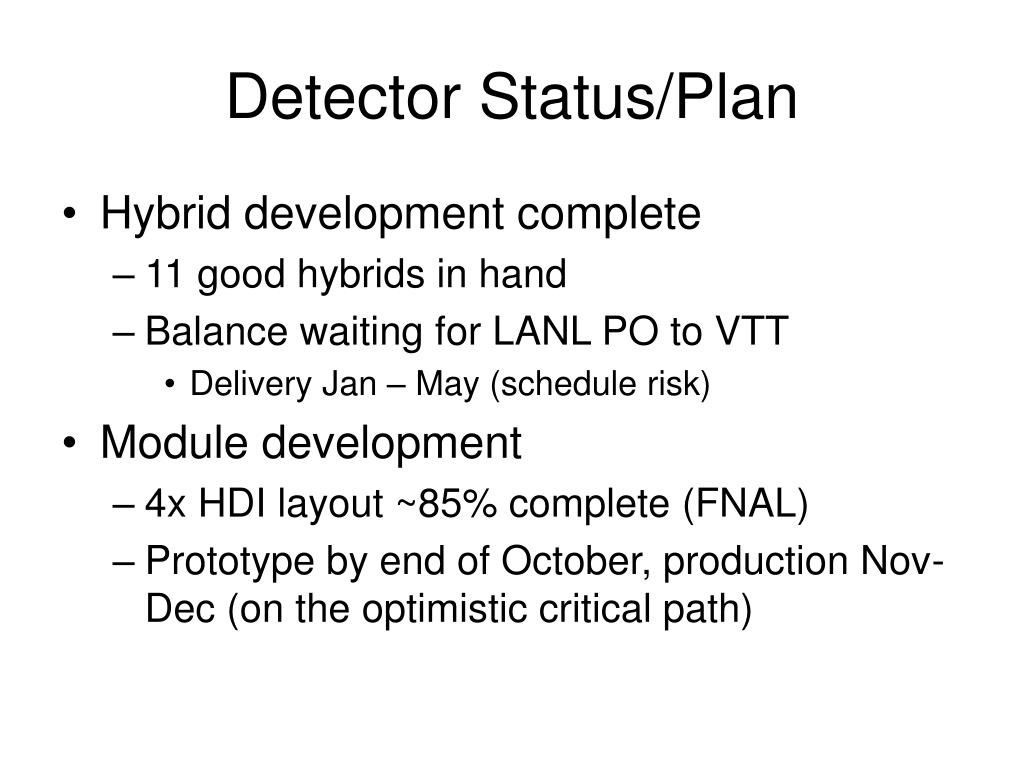

detector status plan
Detector Status/Plan
  • Hybrid development complete
    • 11 good hybrids in hand
    • Balance waiting for LANL PO to VTT
      • Delivery Jan – May (schedule risk)
  • Module development
    • 4x HDI layout ~85% complete (FNAL)
    • Prototype by end of October, production Nov-Dec (on the optimistic critical path)
detector status plan continued
Detector Status/Plan continued
  • Plane/Station development:
    • TPG in hand, reinforcing about to start (FNAL)
    • Mechanical design underway (FNAL)
    • SLINK pcb layout & final design is waiting for completion of 4x HDI (Nevis)
  • Box/Area:
    • Cleanup has started
    • Mechanical design underway (FNAL)
daq status plan
DAQ Status/Plan
  • DAQ Hardware/Firmware (Nevis)
    • PCI interface ~90% complete (trigger/timing hooks not written)
    • Router ~70% complete (trigger/timing, implementation of merges, integration of DUT?)
    • SLINK
      • Prototype tested at ~90% level; linked to 2 modules
      • Design/layout waiting for 4x HDI
      • On the optimistic critical path
software status plan
Software Status/Plan
  • Online software (FNAL, Syracuse?, UNM?)
    • Core low level routines exist & have been tested.
    • Need to specify online, including online/offline boundary, write & test code.
      • On the optimistic critical path
  • Offline software (Syracuse, FNAL?, UNM?)
    • Data unpacking
    • Alignment
    • Tracking, integration of DUT
      • On the optimistic critical path
  • Strategic decisions to be made in the next 4-6 weeks
schedule
Schedule
  • Focus on full telescope in ~Feb
  • If bump bonding is delayed (past ~Jan)…
    • Install 1st station + fragments as available (~Jan?)
