  1. Status of RTH Washington WMO CBS ET-CTS Toulouse, France 26-30 May 2008 Allan Darling, NOAA’s National Weather Service

  2. Link Status WMO CBS - ET-CTS Toulouse, FR

  3. Link Status WMO CBS - ET-CTS Toulouse, FR

  4. Link Status WMO CBS - ET-CTS Toulouse, FR

  5. Link Status WMO CBS - ET-CTS Toulouse, FR

  6. Link Status WMO CBS - ET-CTS Toulouse, FR

  7. Status of Migration to TCP/IP • All GTS links are TCP/IP • Non-IP links supported with some non-GTS customers • All RTH Washington direct links are in the process of migrating to NOAAnet MPLS cloud or X.25 tunneled across MPLS to allow access to our backup site WMO CBS - ET-CTS Toulouse, FR

  8. Status of Usage of WMO Sockets • IP Sockets implemented on 8 GTS interfaces • Only the 5-digit channel sequence number is supported • EXCEPTION – RTH Washington does not utilize the shutdown TCP user primitive as specified in the Manual On the GTS (ref A.II-15/29 #6, #9) WMO CBS - ET-CTS Toulouse, FR

  9. Status of usage of file naming convention • RTH Washington has not yet implemented WMO general file naming conventions • Translation of the existing NWS Telecommunication Gateway directory and file naming standard* to the WMO convention is underway • Dual naming is planned to be in place in late 2009 * http://www.weather.gov/datamgmt/filstnd.html WMO CBS - ET-CTS Toulouse, FR

  10. Status of usage of FTP procedures • RTH Washington has not yet implemented WMO FTP procedures • Output file names do not follow WMO convention • File structure is specific to NWS* • RTH Washington is interested in establishing a pilot FTP interface using the WMO procedure with another GTS Center * http://www.weather.gov/tg/ftpingest.html WMO CBS - ET-CTS Toulouse, FR

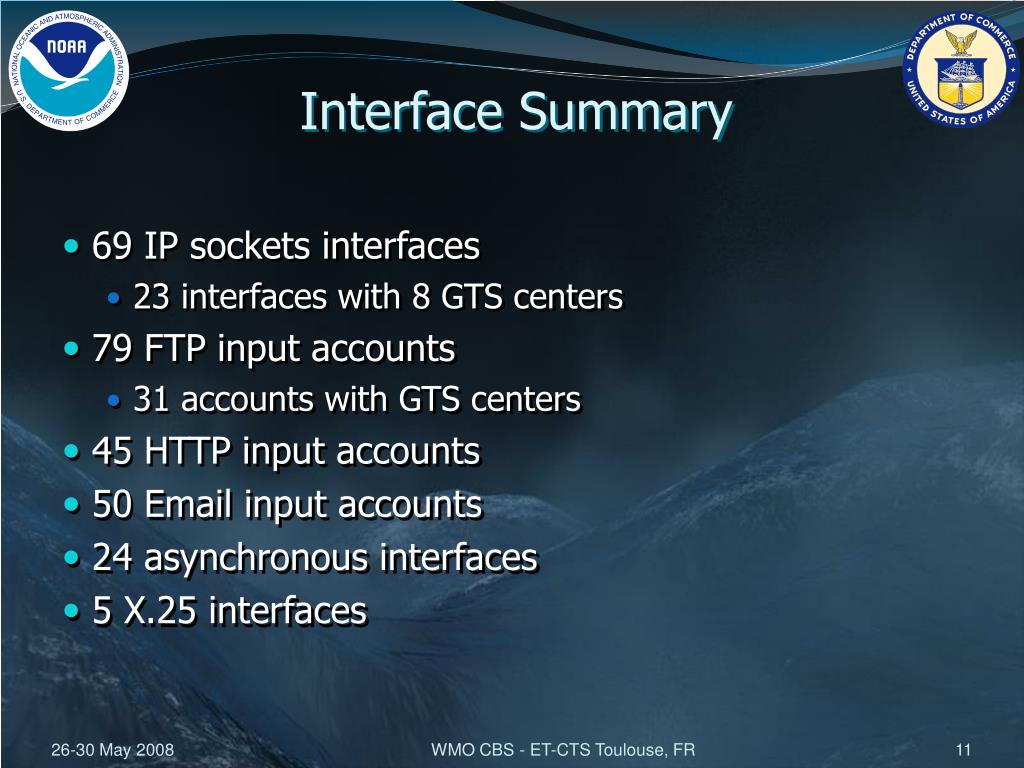

  11. Interface Summary • 69 IP sockets interfaces • 23 interfaces with 8 GTS centers • 79 FTP input accounts • 31 accounts with GTS centers • 45 HTTP input accounts • 50 Email input accounts • 24 asynchronous interfaces • 5 X.25 interfaces WMO CBS - ET-CTS Toulouse, FR

  12. Volume Received by Protocol On average 26.66 GB are received per day at RTH Washington WMO CBS - ET-CTS Toulouse, FR

  13. Messages Received by Protocol On average 1.65 million products are received per day at RTH Washington WMO CBS - ET-CTS Toulouse, FR

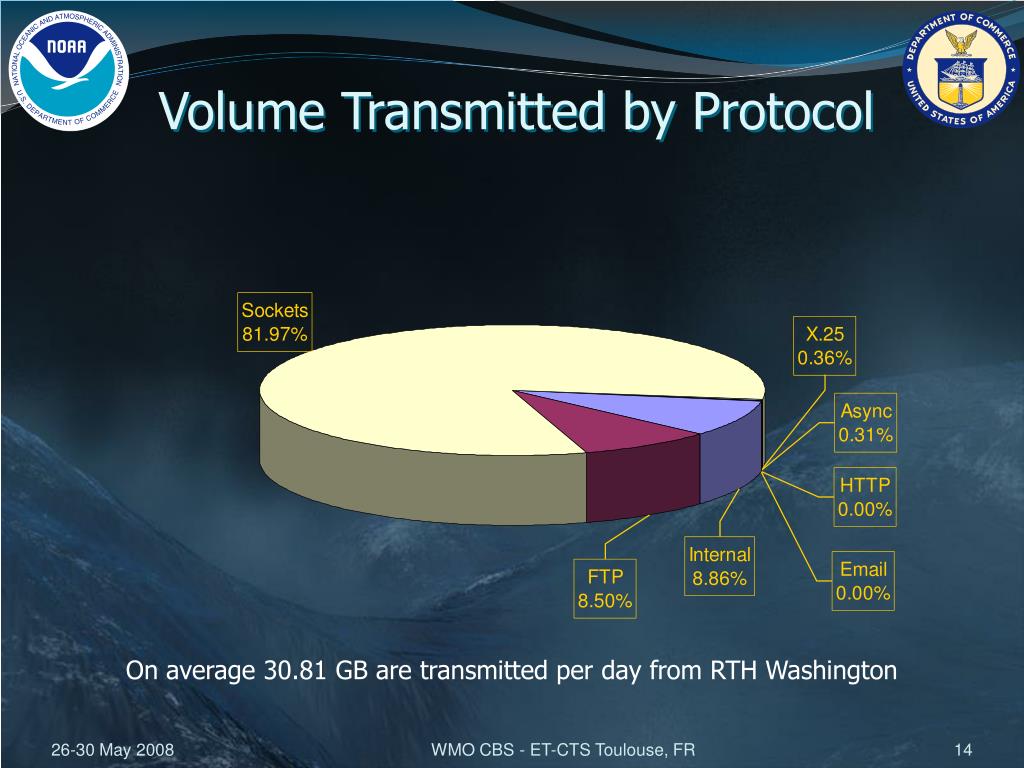

  14. Volume Transmitted by Protocol On average 30.81 GB are transmitted per day from RTH Washington WMO CBS - ET-CTS Toulouse, FR

  15. Messages Transmitted by Protocol On average 5.04 million products are transmitted per day from RTH Washington WMO CBS - ET-CTS Toulouse, FR

  16. Outbound Circuit Profiles – Washington - Melbourne WMO CBS - ET-CTS Toulouse, FR

  17. Outbound Circuit Profiles – Washington - Melbourne WMO CBS - ET-CTS Toulouse, FR

  18. Outbound Circuit Profiles – Washington - Melbourne WMO CBS - ET-CTS Toulouse, FR

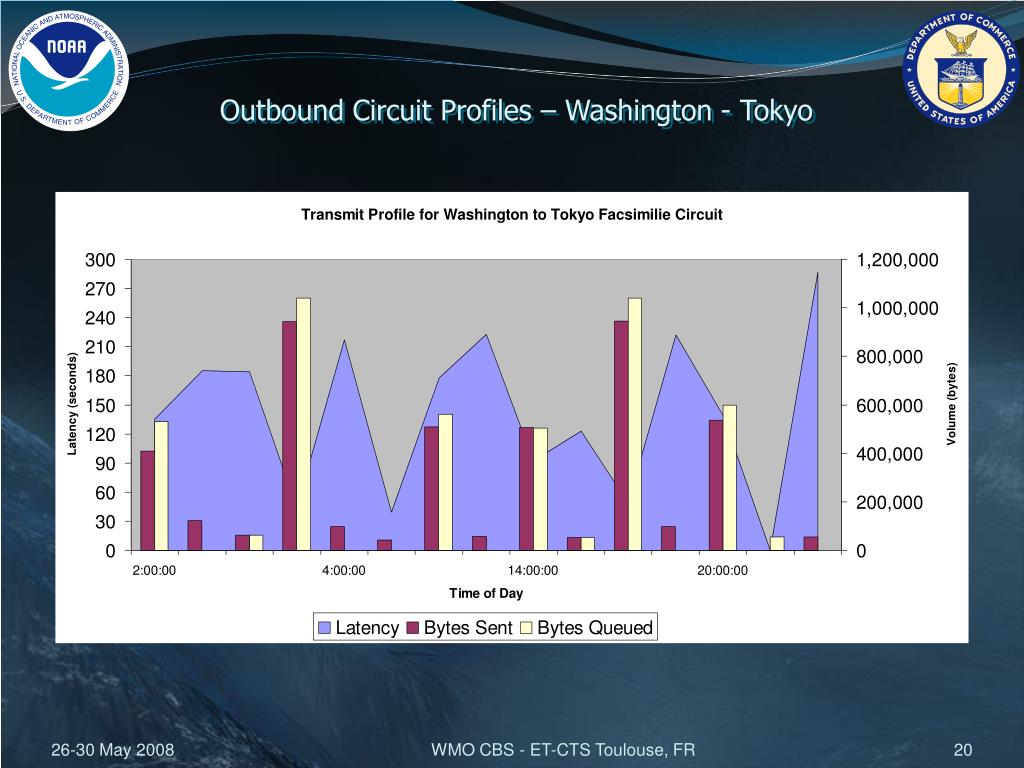

  19. Outbound Circuit Profiles – Washington - Tokyo WMO CBS - ET-CTS Toulouse, FR

  20. Outbound Circuit Profiles – Washington - Tokyo WMO CBS - ET-CTS Toulouse, FR

  21. Outbound Circuit Profiles – Washington - Tokyo WMO CBS - ET-CTS Toulouse, FR

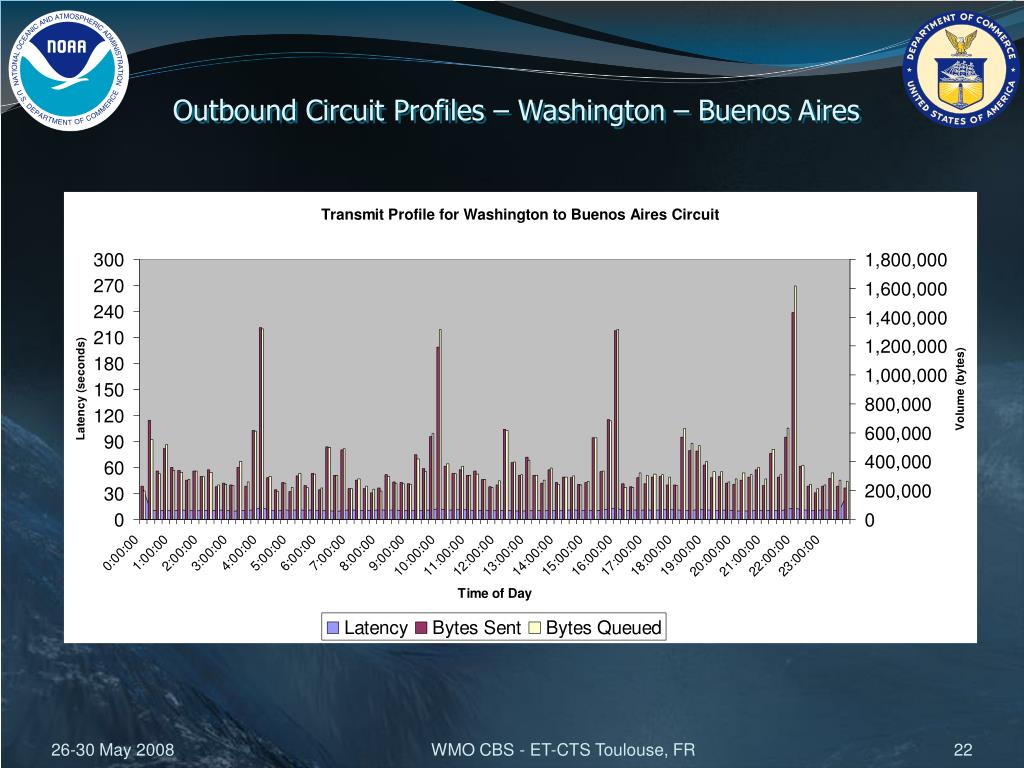

  22. Outbound Circuit Profiles – Washington – Buenos Aires WMO CBS - ET-CTS Toulouse, FR

  23. Outbound Circuit Profiles – Washington – Dorval WMO CBS - ET-CTS Toulouse, FR

  24. Outbound Circuit Profiles – Washington – Dorval WMO CBS - ET-CTS Toulouse, FR

  25. Outbound Circuit Profiles – Washington – Pretoria WMO CBS - ET-CTS Toulouse, FR

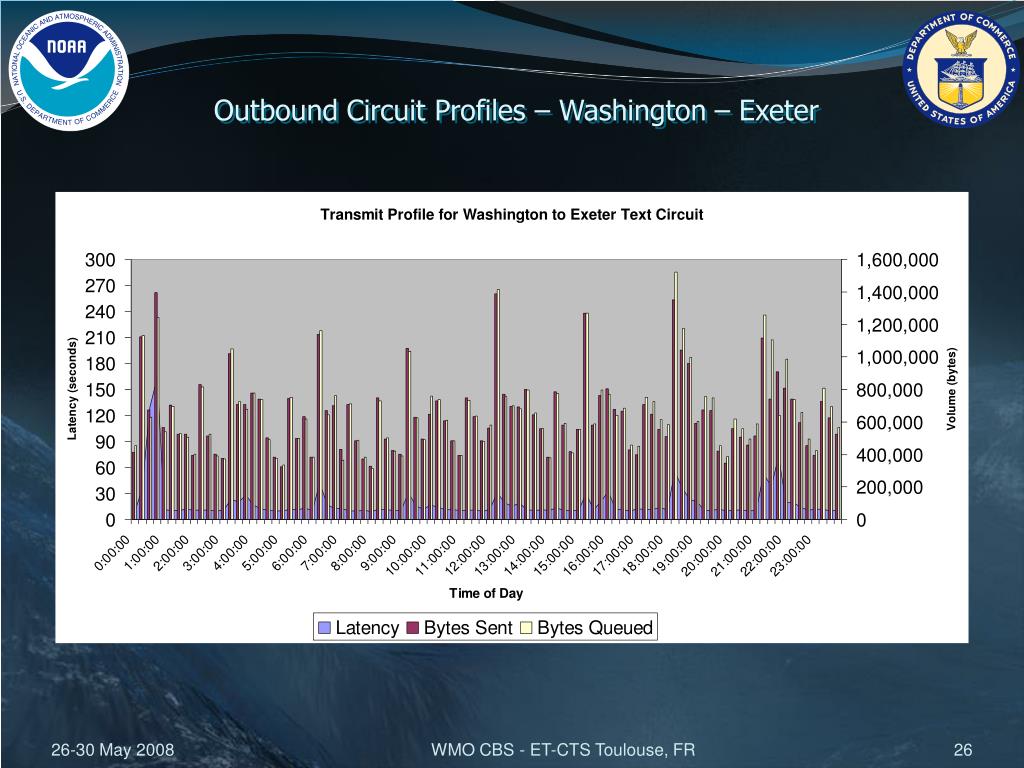

  26. Outbound Circuit Profiles – Washington – Exeter WMO CBS - ET-CTS Toulouse, FR

  27. Outbound Circuit Profiles – Washington – Exeter WMO CBS - ET-CTS Toulouse, FR

  28. Outbound Circuit Profiles – Washington – Exeter WMO CBS - ET-CTS Toulouse, FR

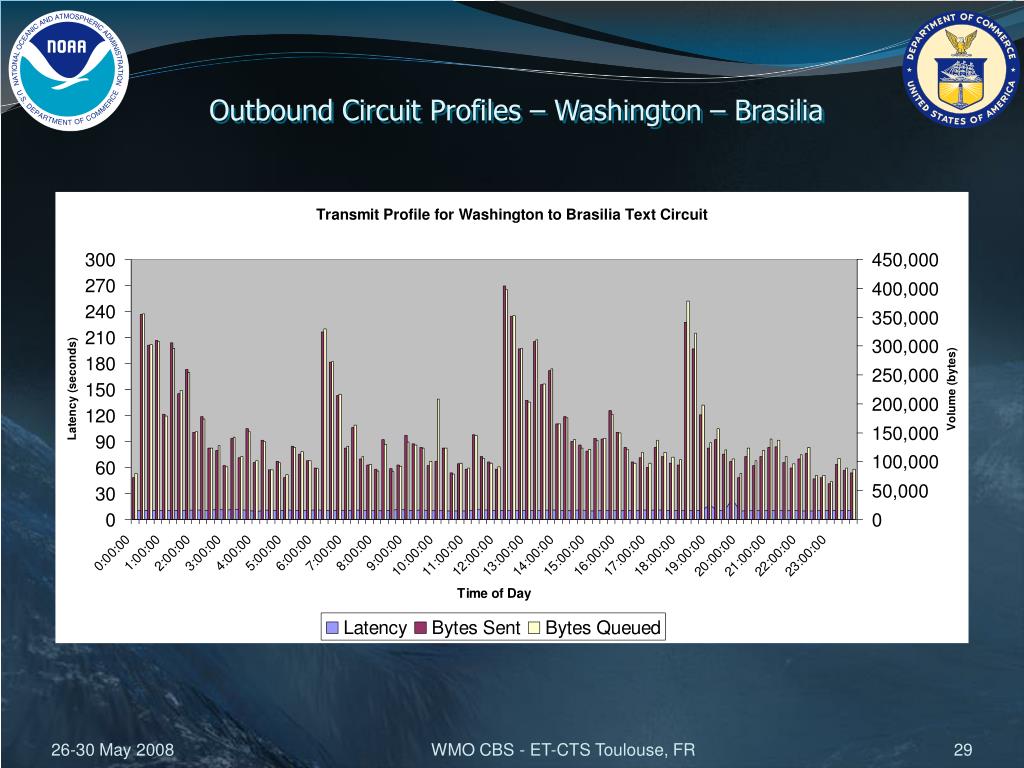

  29. Outbound Circuit Profiles – Washington – Brasilia WMO CBS - ET-CTS Toulouse, FR

  30. Outbound Circuit Profiles – Washington – Brasilia WMO CBS - ET-CTS Toulouse, FR

  31. Information Technology Security • Security Certification and Accreditation in 2007 • Independent security review 2008 • Specific actions • Implementation of two-factor authentication • Implementation of configuration baselines • Implementation of automated change monitoring across all systems • Additional comments during review of the Guide on Information Technology Security at WWW Centers WMO CBS - ET-CTS Toulouse, FR

  32. Message Switching System • Replacement switching system brought online summer 2006 • New system architecture • Switching software rewrite from updated requirements • Migration of collective generation applications • Introduction of relational database system • Introduction of Storage Area Network • Replacement of Internet servers and attached storage • Upgrade to gigabit Ethernet WMO CBS - ET-CTS Toulouse, FR

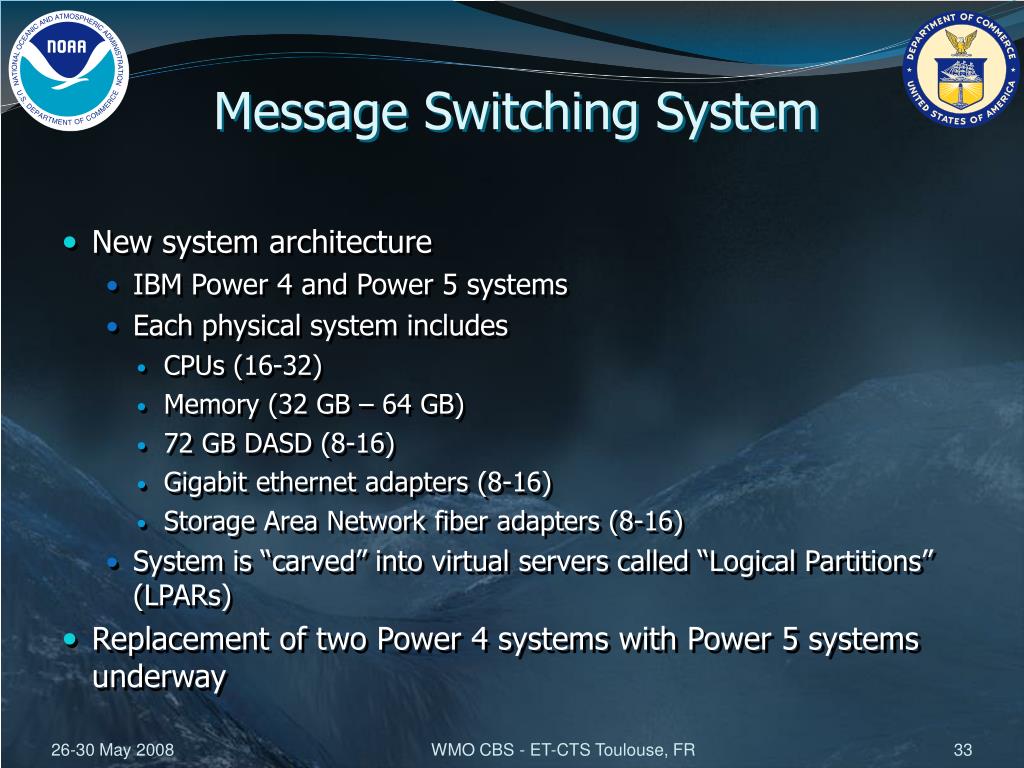

  33. Message Switching System • New system architecture • IBM Power 4 and Power 5 systems • Each physical system includes • CPUs (16-32) • Memory (32 GB – 64 GB) • 72 GB DASD (8-16) • Gigabit ethernet adapters (8-16) • Storage Area Network fiber adapters (8-16) • System is “carved” into virtual servers called “Logical Partitions” (LPARs) • Replacement of two Power 4 systems with Power 5 systems underway WMO CBS - ET-CTS Toulouse, FR

  34. Message Switching System WMO CBS - ET-CTS Toulouse, FR

  35. Message Switching System Switching software rewrite from updated requirements • IBM Message Broker execution environment • Processes implemented as flows • Data flow within and between systems accomplished via middleware WMO CBS - ET-CTS Toulouse, FR

  36. Message Switching System Introduction of relational database system • Active, warm standby, reporting databases all synchronized in real time • 1.4 TB allocated storage • Active and standby databases hold 24 hours of data and metadata • All switched messages • Individual reports (SYNOP, TEMP, PILOT, METAR, TAF, CLIMAT, etc.) • Reporting database holds 10 days of data and metadata • Message switch timing statistics including receipt, switch, queue and transmit WMO CBS - ET-CTS Toulouse, FR

  37. Message Switching System • Introduction of Storage Area Network • 10 TB usable storage • RAID5 DASD configuration • Fully redundant 2 Gbps networking hardware • Dual-path network connection for all systems • Virtualized storage management WMO CBS - ET-CTS Toulouse, FR

  38. Message Switching System WMO CBS - ET-CTS Toulouse, FR

  39. Backup Center • Geographically separate backup facility implemented summer 2007 • All switching functions replicated • No internal redundancy • Primary switch feeds all data to backup switch in real time • Customer access to backup center requires migration to NOAAnet MPLS cloud • Brasilia, Buenos Aires, Pretoria links migrated 20 May • IMTN Cloud I interface to migrate by end of July WMO CBS - ET-CTS Toulouse, FR

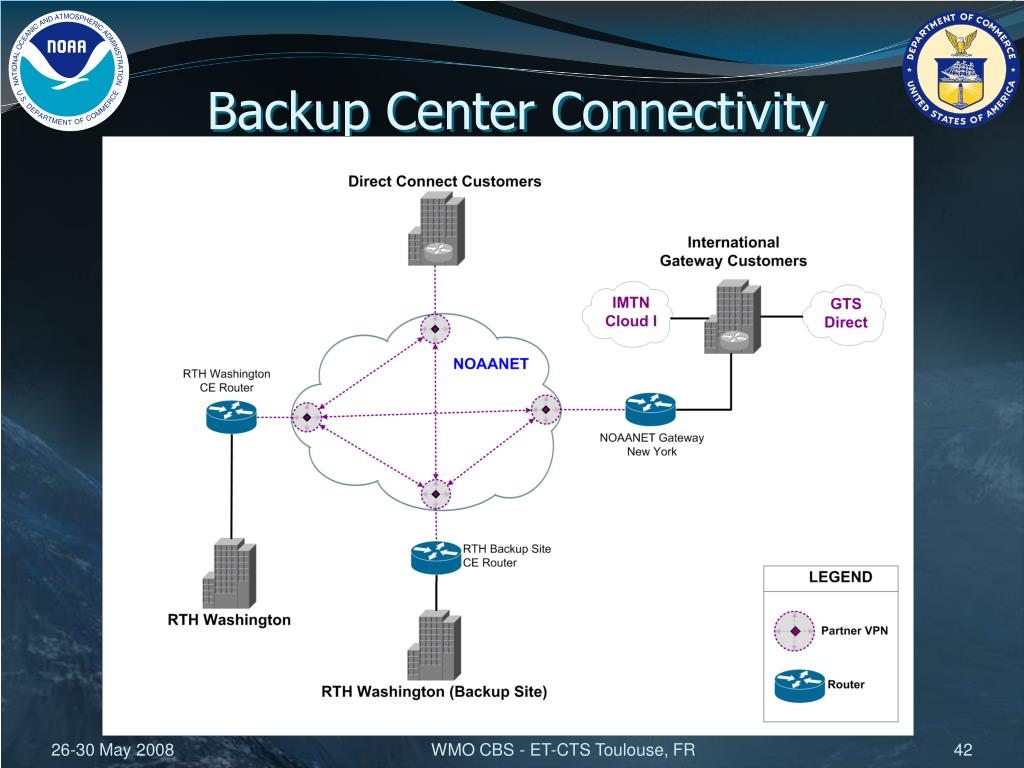

  40. Backup Center Connectivity WMO CBS - ET-CTS Toulouse, FR

  41. Backup Center Connectivity WMO CBS - ET-CTS Toulouse, FR

  42. Backup Center Connectivity WMO CBS - ET-CTS Toulouse, FR

  43. System Statistics • Average message receipt and switching latency: 4.65 seconds • Switching fan-out ratio: 1:4.13 • Unique products identified in switching catalog: 190,000 • Number of defined routes (product + route): 1,064,000 • Unique products identified in process routing catalog: 8,600 • Number of defined process routes (product + process): 12,500 WMO CBS - ET-CTS Toulouse, FR

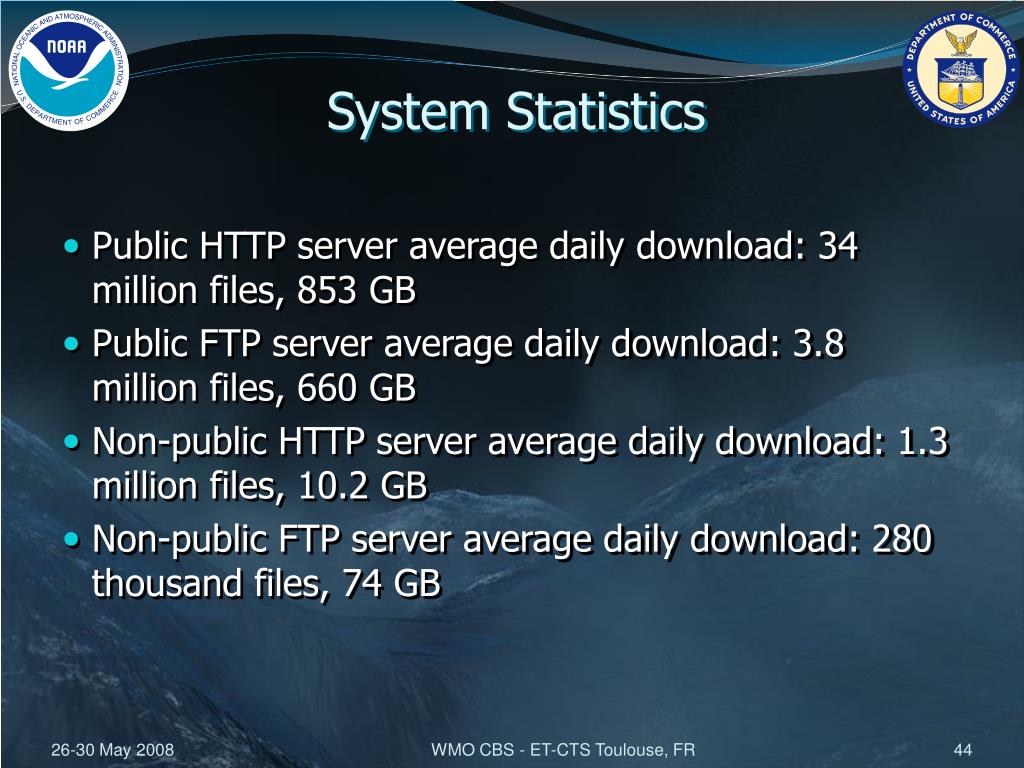

  44. System Statistics • Public HTTP server average daily download: 34 million files, 853 GB • Public FTP server average daily download: 3.8 million files, 660 GB • Non-public HTTP server average daily download: 1.3 million files, 10.2 GB • Non-public FTP server average daily download: 280 thousand files, 74 GB WMO CBS - ET-CTS Toulouse, FR
