Working Drawings Legal Documents that Provide All the Visual, Numerical and Textural Information Required to Manufacture a Component, Mechanism or Structure
Working Drawings There are 2 Types of Working Drawings 1.) Detail Drawings 2.) Assembly Drawings
Detail Drawings • Shape Description • Views • Sections • Size Description • Dimensions • Tolerances • Specifications • Finnish • Manufacturing • Material • Quantities Detail drawings provide all visual, numerical and textural information required to construct or manufacture a component or part.
Assembly Drawings • Design Assemblies • Performance • Shape • Clearances • Installation Assemblies • Permit Assembly of complicated mechanisms by unskilled persons • Bill of Materials Assembly drawings are used to confirm design strategies, provide assembly and installation instruction and verify material and parts used in the manufacture or construction of a mechanism or structure.

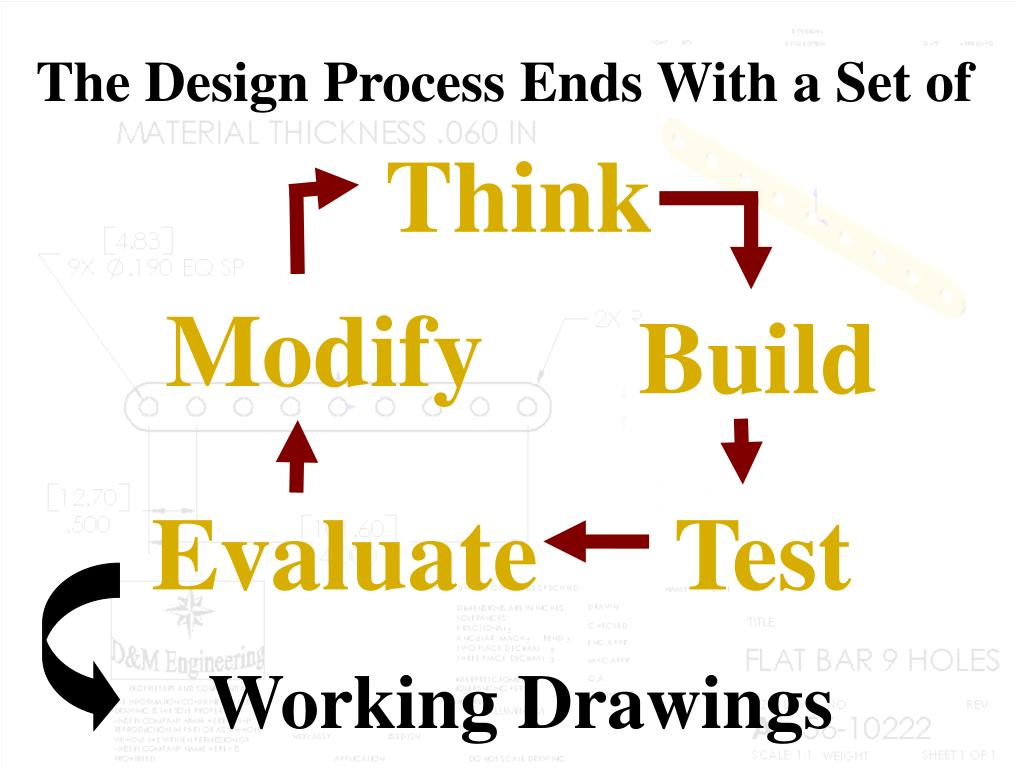

Think Modify Build Evaluate Test The Design Process Ends With a Set of Working Drawings
