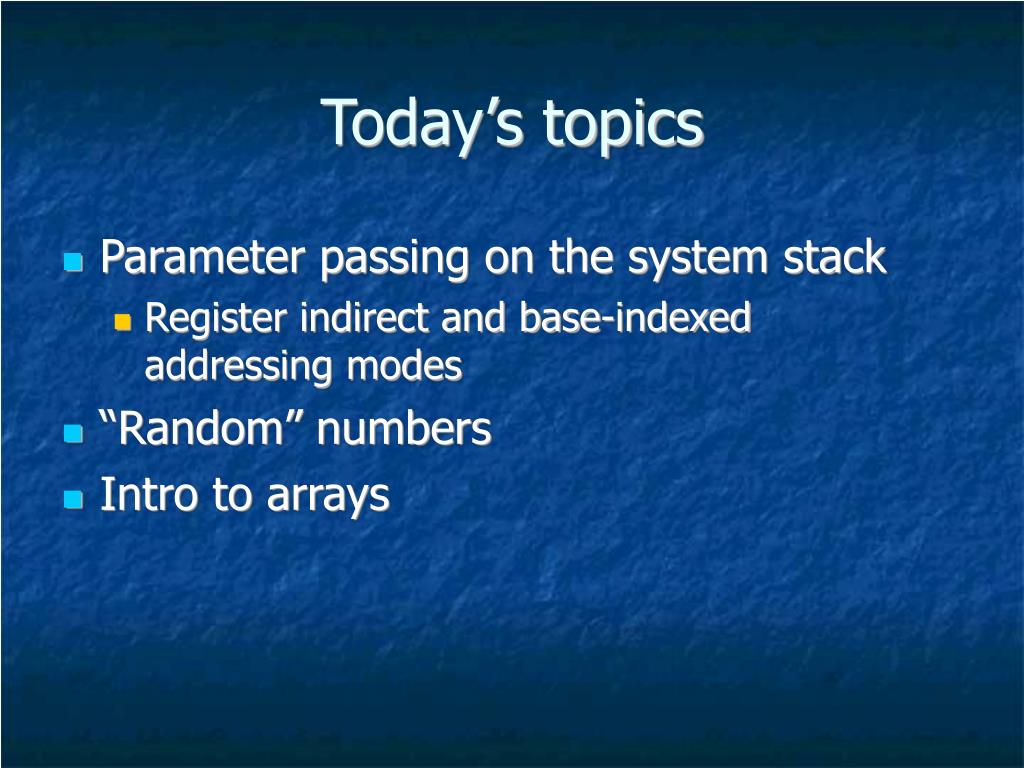

  1. Today’s topics • Parameter passing on the system stack • Register indirect and base-indexed addressing modes • “Random” numbers • Intro to arrays

  2. CALL and RET Instructions • The CALL instruction calls a procedure • Pushes the offset of the next instruction onto the stack • copies the address of the called procedure into EIP • The RET instruction returns from a procedure • pops top of stack into EIP

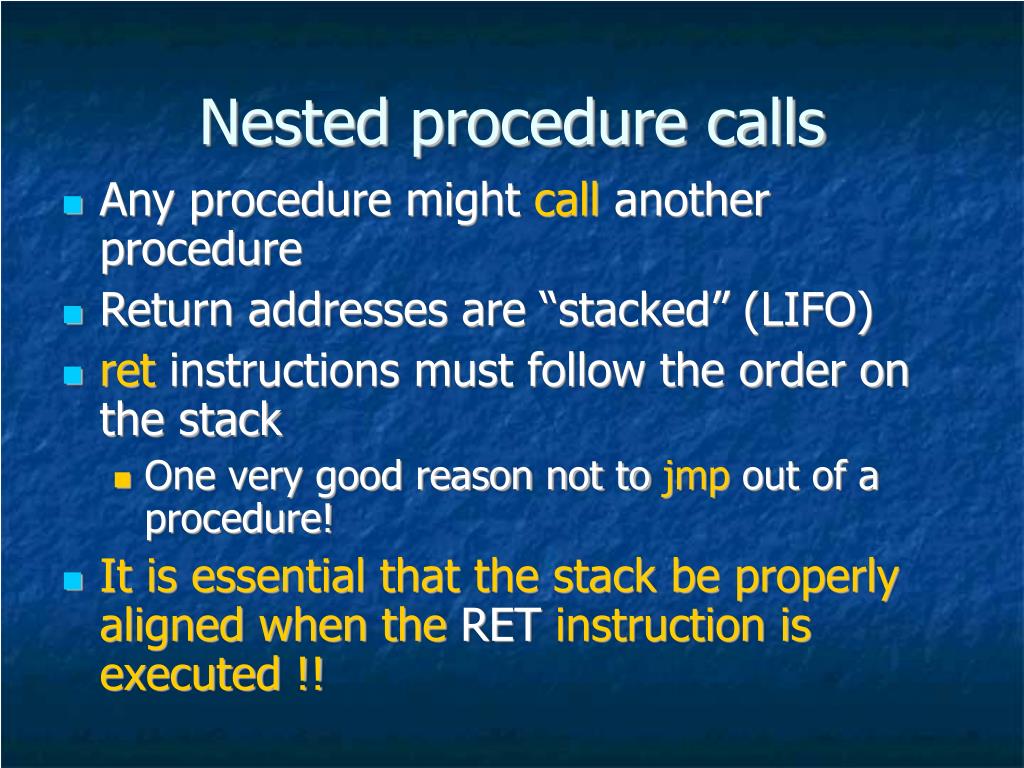

  3. Nested procedure calls • Any procedure might call another procedure • Return addresses are “stacked” (LIFO) • ret instructions must follow the order on the stack • One very good reason not to jmp out of a procedure! • It is essential that the stack be properly aligned when the RET instruction is executed !!

  4. Parameters • Definitions: • Argument (actual parameter) is a value or reference passedto a procedure. • Parameter (formal parameter) is a value or reference received by a procedure

  5. Register vs. Stack Parameters • Register parameters require dedicating a register to each parameter. • Stack parameters make better use of system resources • Example: • two ways of calling Summation procedure. Method 1 (parameters in registers): pushad ;save registers mov ebx,low mov ecx,high call Summation popad ;restore registers Method 2 (parameters on stack): push low push high call Summation

  6. Register vs. Stack Parameters • Of course, methods of calling a procedure and passing parameters depend on the procedure implementation … and vice-versa. • some “setup” is involved (in the calling procedure) • some “bookkeeping” is involved (in the called procedure) • Parameters in registers require register management • Parameters on the system stack require stack management

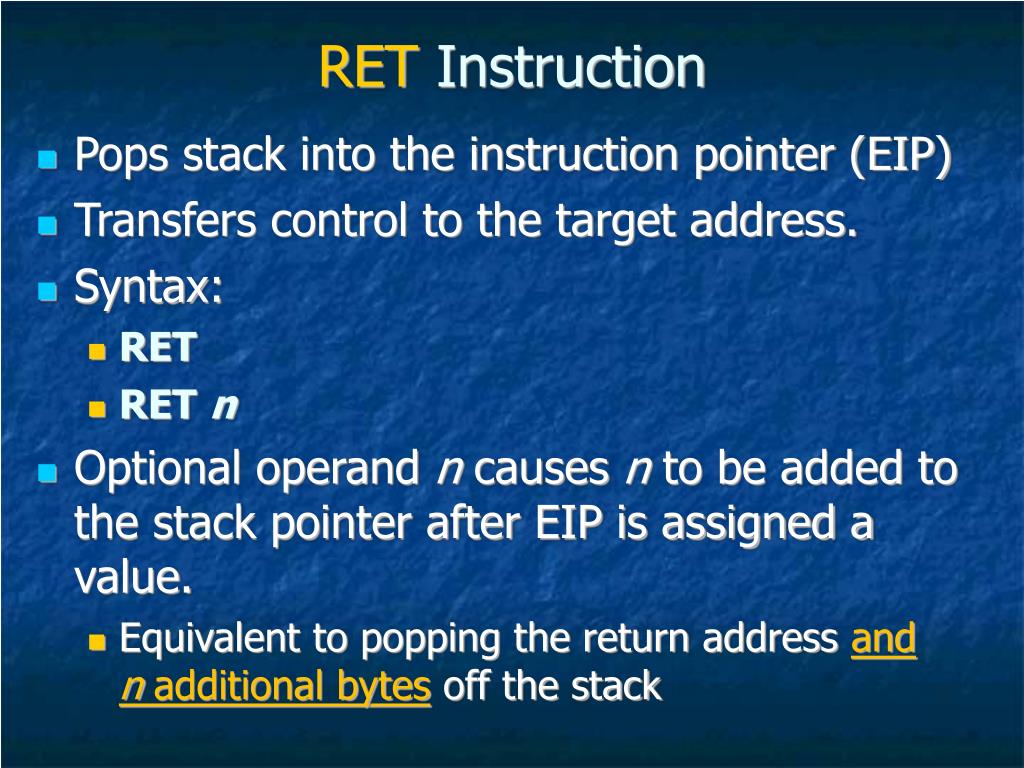

  7. RET Instruction • Pops stack into the instruction pointer (EIP) • Transfers control to the target address. • Syntax: • RET • RETn • Optional operand n causes n to be added to the stack pointer after EIP is assigned a value. • Equivalent to popping the return address and n additional bytes off the stack

  8. Parameter Classifications • An input parameter is data passed by a calling program to a procedure. • The called procedure is not expected to modify the corresponding parameter variable, and even if it does, the modification is confined to the procedure itself. • An output parameter is created by passing the address of a variable when a procedure is called. • The “address of” a variable is the same thing as a “pointer to” or a “reference to” the variable. In MASM, we use OFFSET. • The procedure does not use any existing data from the variable, but it fills in new contents before it returns. • An input-output parameter is the address of a variable which contains input that will be both used and modified by the procedure. • The content is modified at the memory address passed by the calling procedure.

  9. Stack Frame • Also known as an activation record • Area of the stack used for a procedure's return address, passed parameters, saved registers, and local variables • Created by the following steps: • Calling program pushes arguments onto the stack and calls the procedure. • The called procedure pushes EBP onto the stack, and sets EBP to ESP.

  10. Addressing modes • Immediate Set register to a constant • Direct Set register to address of global • Register Use register as operand • Register indirect Access memory through address in a register • Indexed “array” element, using offset in register • Base-indexed Start address in one register; offset in another, add and access memory • Stack Memory area specified and maintained as a stack; stack pointer in register • Offset (branch) “goto” address; may be computed

  11. Register indirect mode • [reg] means “contents of memory at the address in reg ” • It’s OK to add a constant (named or literal) • Example: mov [edx+12], eax • We have used register indirect with esp to reference the value at the top of the system stack • NOTE: register indirect is a memory reference • There are no memory-memory instructions • E.G., mov [edx],[eax] is WRONG!

  12. Explicit Access to Stack Parameters • A procedure can explicitly access stack parameters using constant offsets from EBP. • Example: [ebp + 8] • EBP is often called the base pointer or frame pointer because it is (should be) set to the base address of the stack frame. • EBP does not change value during the procedure. • EBP must be restored to its original value when a procedure returns.

  13. Explicit Access to Stack Parameters • Remember that the return address is pushed onto the stack after the parameters are pushed. • Programmer is responsible for managing the stack.

  14. Stack Frame Example .data x DWORD 175 y DWORD 37 Z DWORD ? .code main PROC push x push y push OFFSET z call SumTwo ... Note: @ means “address of”

  15. Stack Frame Example SumTwo PROC push ebp mov ebp,esp mov eax,[ebp+16] ;175 in eax add eax,[ebp+12] ;175+37 = 212 in eax mov ebx,[ebp+8] ;@z in ebx mov [ebx],eax ;store 212 in z pop ebp ret 12 SumTwo ENDP Note: @ means “address of”

  16. Trouble-Shooting Tips • Save and restore registers when they are modified by a procedure. • Except a register that returns a function result • Do not pass an immediate value to a procedure that expects a reference parameter. • Dereferencing its address will likely cause a general-protection fault.

  17. Random Numbers • Irvine library has random integer generator • "pseudo-random" numbers • Randomize procedure • Initializes sequence based on system clock (random seed) • Call once at the beginning of the program • Without Randomize, program gets the same sequence every time it is executed.

  18. Limiting random values • RandomRange procedure • Accepts N > 0 in eax • Returns random integer in [0 .. N-1] in eax • To generate a random number in [lo .. hi]: • Find number of integers possible in [lo .. hi] : range = hi – lo +1 • Put range in eax, and call RandomRange • Result in eax is in [0 .. range -1] • Add lo to eax.

  19. RandomRange Example • Get a random integer in range [18 .. 31] mov eax,hi ;31 sub eax,lo ;31-18 = 13 inc eax ;14 call RandomRange ;eax in [0..13] add eax,lo ;eax in [18..31] • Questions on random numbers?

  20. Arrays in MASM • Declaration (in data segment) MAX_SIZE = 100 .data list DWORD MAX_SIZE DUP(?) • Defines an array of 100 uninitialized 32-bit integers • Array elements are in contiguous memory

  21. Arrays in MASM • Declaration MAX_SIZE = 100 .data list DWORD MAX_SIZE DUP(?) count DWORD 0 • What happens (in HLL) if we reference list[100] ? • Compile-time error • What happens in MASM if we go beyond the end of the array? • Not predictable

  22. Array address calculations • Array declaration defines a name for the first element only • HLLs reference it as list[0] • All other elements are accessed by calculating the actual address • General formula for array address calculation: • address of list[k] = list + (k * sizeof element) • Example: • address of 4th element (list [3]) is address of list + (3 * sizeof DWORD)

  23. Array references in MASM • Several methods • indexed • base-indexed • others

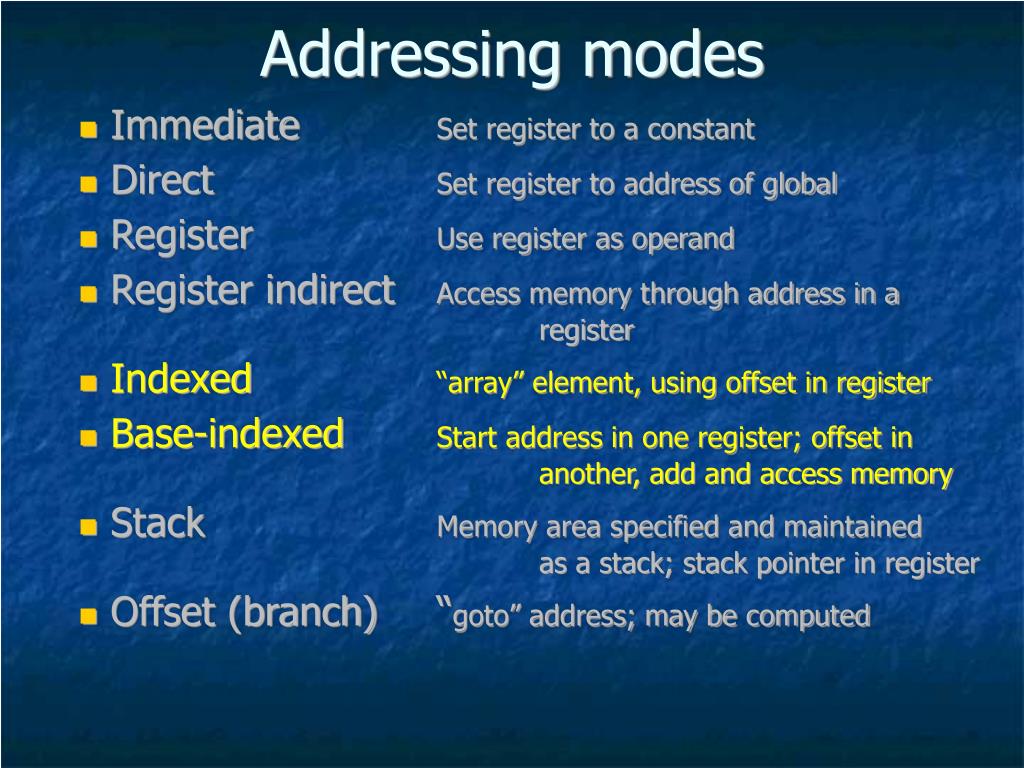

  24. Addressing modes • Immediate Set register to a constant • Direct Set register to address of global • Register Use register as operand • Register indirect Access memory through address in a register • Indexed “array” element, using offset in register • Base-indexed Start address in one register; offset in another, add and access memory • Stack Memory area specified and maintained as a stack; stack pointer in register • Offset (branch) “goto” address; may be computed

  25. Indexed addressing • Array element, using offset in register • Examples: mov edi,0 ;high-level notation mov list[edi],eax ;list[0] add edi,4 ;see note below mov list[edi],ebx ;list[1] • This means "add the value in [ ] to address of list " • Note: Add 4 because these array elements are DWORD • if BYTE, add 1 • if WORD, add 2 • if QWORD, add 8 • etc.

  26. Base-indexed addressing • Start address in one register; offset in another, then add the registers to access memory • Examples: mov edx,OFFSET list mov ecx,12 mov eax,[edx+ecx] mov ebx,4 mov eax,[edx+ebx] mov [edx+ecx],eax

  27. Processing Arrays in MASM • Example: Display an array of integers • Assumptions: • Already initialized • Number of elements is stored in count • Assume global declarations • Assume elements are DWORD (32-bit) • Many possible solutions

  28. Display: version 0.1 (register indirect) display PROC mov esi,OFFSET list ;@list mov ecx,count ;ecx is loop control more: mov eax,[esi] ;get current element call PrintDec call Crlf add esi,4 ;next element loop more endMore: ret display ENDP

  29. Display: version 0.2 (indexed) display PROC mov esi,0 ;esi is “index” mov ecx,count ;ecx is loop control more: mov eax,list[esi] ;get current elt. call PrintDec call Crlf add esi,4 ;next element loop more endMore: ret display ENDP

  30. Display: version 0.3 (base-indexed) display PROC mov ebx,OFFSET list ;@list mov ecx,count ;ecx is loop control mov edx,0 ;edx is element ptr more: mov eax,[ebx+edx] call WriteDec call Crlf add edx,4 loop more endMore: ret display ENDP

  31. Questions?
