Functions/Methods in Assembly

1. Functions/Methods in Assembly Computer Architecture

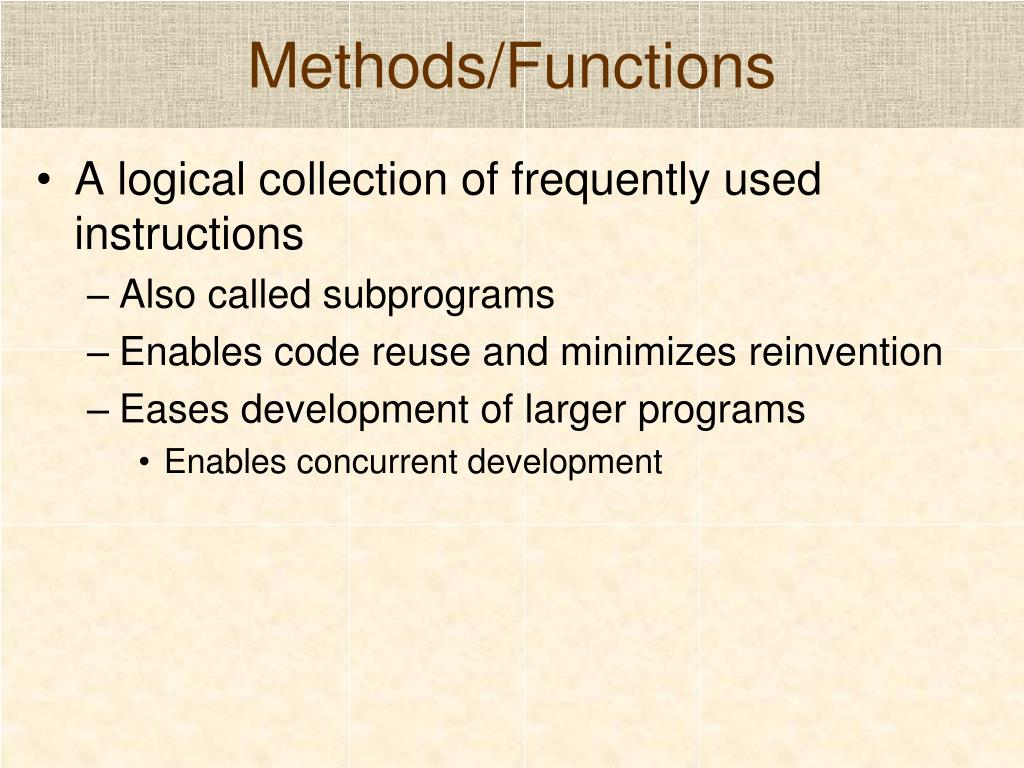

2. Methods/Functions • A logical collection of frequently used instructions • Also called subprograms • Enables code reuse and minimizes reinvention • Eases development of larger programs • Enables concurrent development

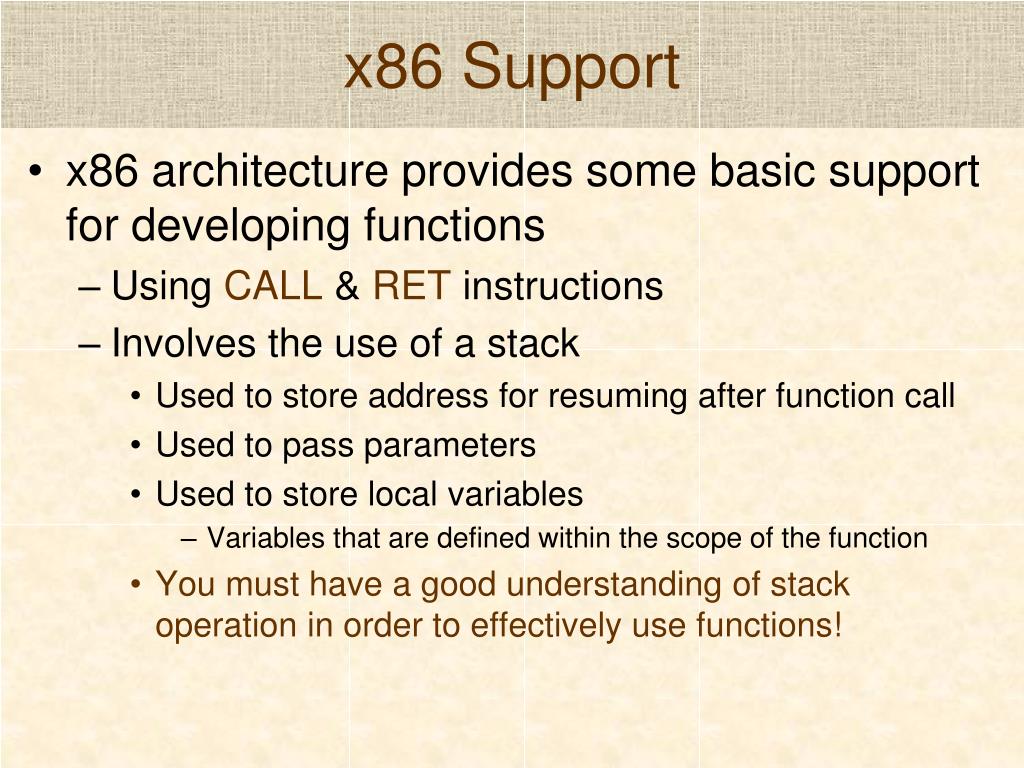

3. x86 Support • x86 architecture provides some basic support for developing functions • Using CALL & RET instructions • Involves the use of a stack • Used to store address for resuming after function call • Used to pass parameters • Used to store local variables • Variables that are defined within the scope of the function • You must have a good understanding of stack operation in order to effectively use functions!

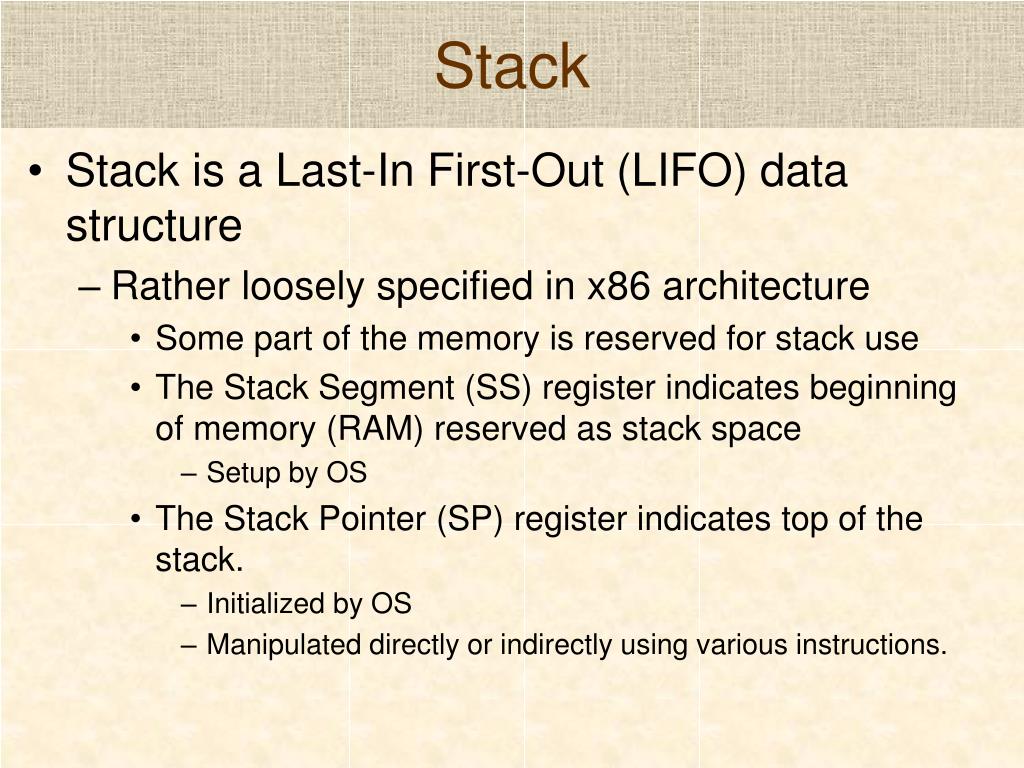

4. Stack • Stack is a Last-In First-Out (LIFO) data structure • Rather loosely specified in x86 architecture • Some part of the memory is reserved for stack use • The Stack Segment (SS) register indicates beginning of memory (RAM) reserved as stack space • Setup by OS • The Stack Pointer (SP) register indicates top of the stack. • Initialized by OS • Manipulated directly or indirectly using various instructions.

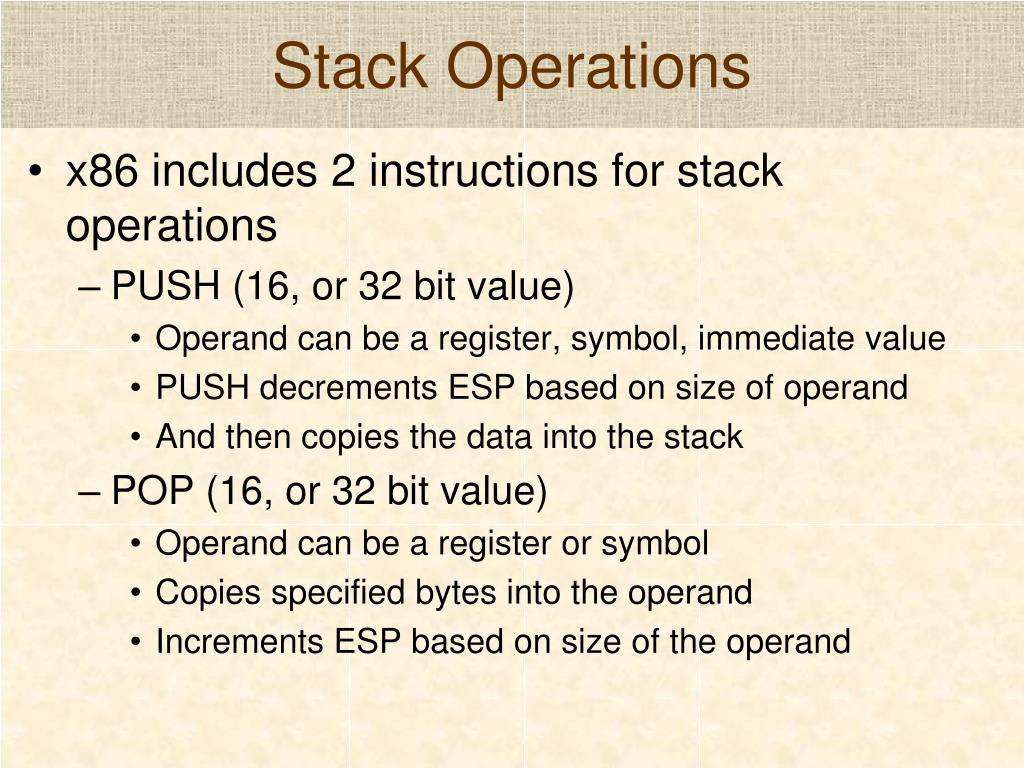

5. Stack Operations • x86 includes 2 instructions for stack operations • PUSH (16, or 32 bit value) • Operand can be a register, symbol, immediate value • PUSH decrements ESP based on size of operand • And then copies the data into the stack • POP (16, or 32 bit value) • Operand can be a register or symbol • Copies specified bytes into the operand • Increments ESP based on size of the operand

6. Stack Operation Example • Example assembly pushl $0x12345678 popw %ax popw %bx Memory Addresses ESP -= 4 Mem(ESP) = $0x12345678 AX = Mem(ESP)=0x5678 ESP += 2 BX = Mem(ESP) =0x1234 ESP += 2 0x101 SP (0x102) 78 0x102 56 0x103 SP (0x104) 34 0x104 12 0x105 SP (0x106) SP (0x106) Stack space that is already used up.

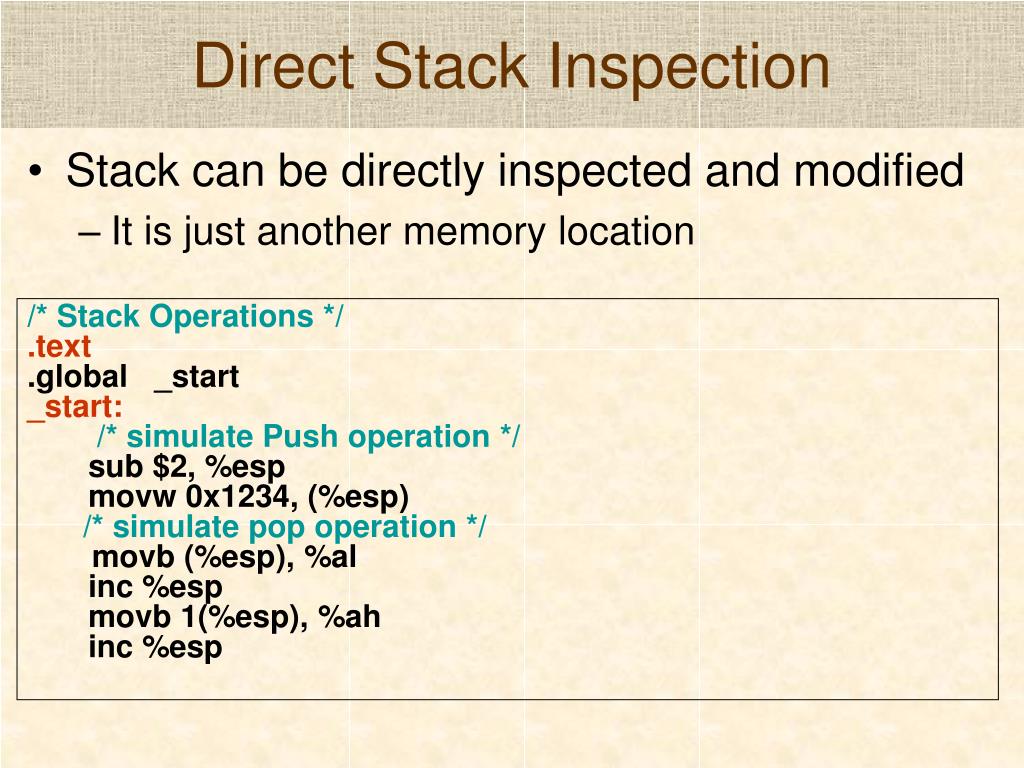

7. Direct Stack Inspection • Stack can be directly inspected and modified • It is just another memory location /* Stack Operations */ .text .global _start _start: /* simulate Push operation */ sub $2, %esp movw 0x1234, (%esp) /* simulate pop operation */ movb (%esp), %al inc %esp movb 1(%esp), %ah inc %esp

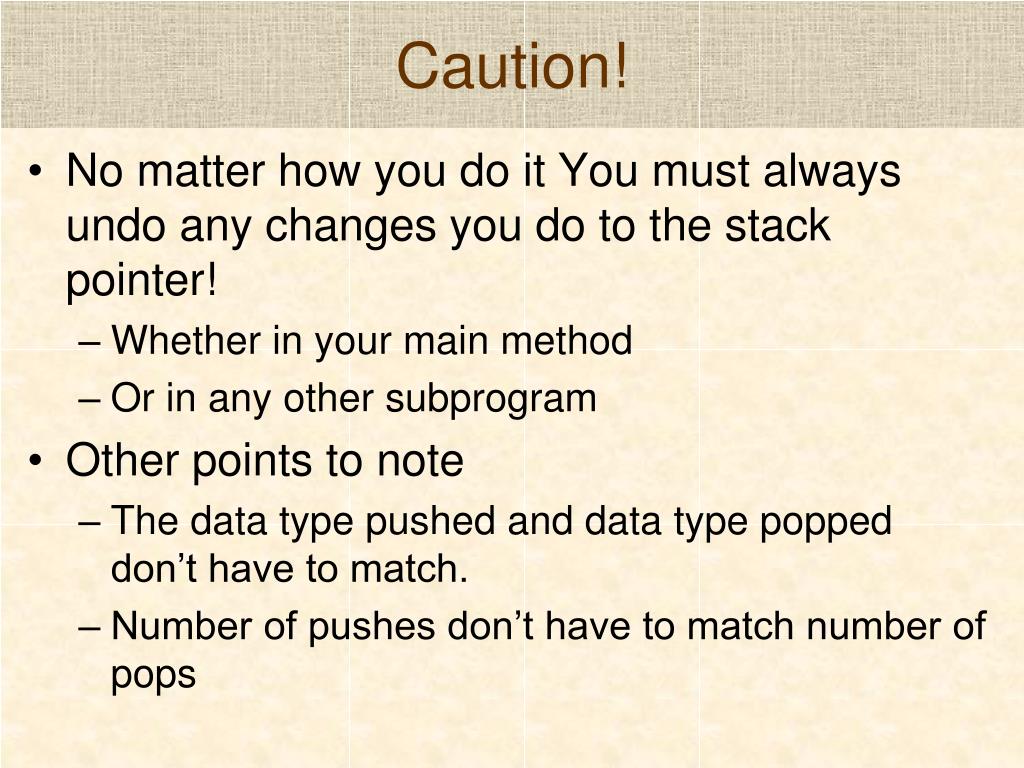

8. Caution! • No matter how you do it You must always undo any changes you do to the stack pointer! • Whether in your main method • Or in any other subprogram • Other points to note • The data type pushed and data type popped don’t have to match. • Number of pushes don’t have to match number of pops

9. Functions • There is no clear delineation of functions in assembly • You just use a label to denote start of a function • It conceptually becomes a function • Invoke the function using CALL instruction • You have to suitably arrange the parameters to the function on the stack or in registers • The method returns using the RET instruction

10. Example text .global _start _start: /* Example does eax -= 3 */ call_decEAX call_decEAX call_decEAX /* Function to decrement EAX */ _decEAX: dec %eax ret

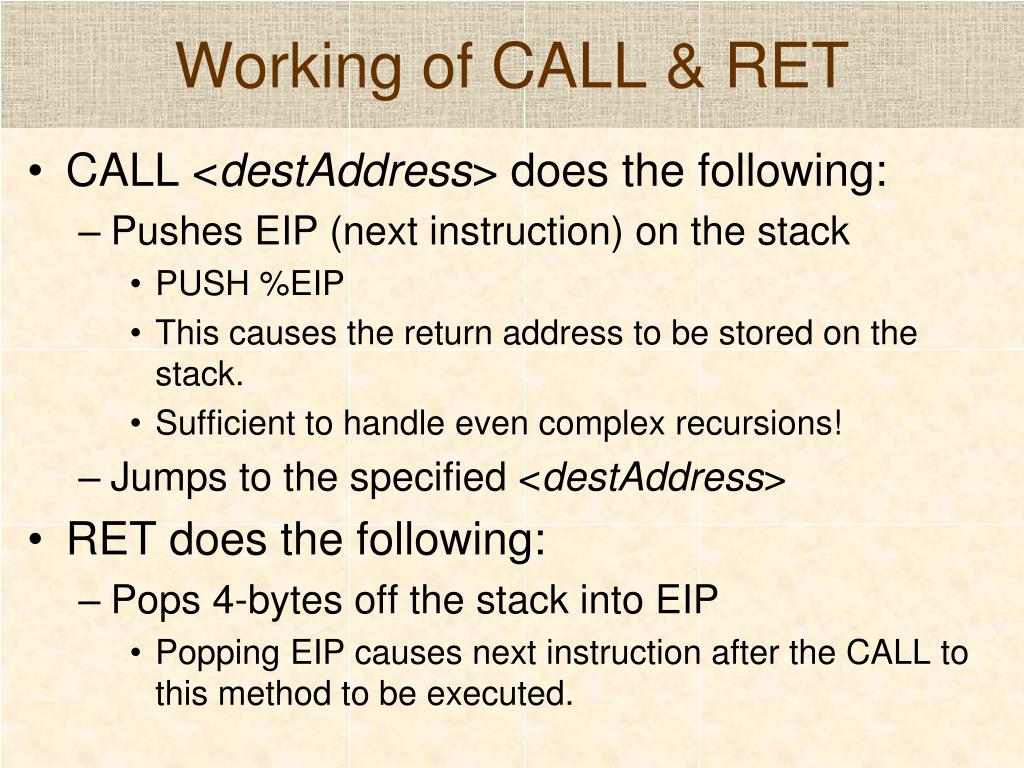

11. Working of CALL & RET • CALL <destAddress> does the following: • Pushes EIP (next instruction) on the stack • PUSH %EIP • This causes the return address to be stored on the stack. • Sufficient to handle even complex recursions! • Jumps to the specified <destAddress> • RET does the following: • Pops 4-bytes off the stack into EIP • Popping EIP causes next instruction after the CALL to this method to be executed.

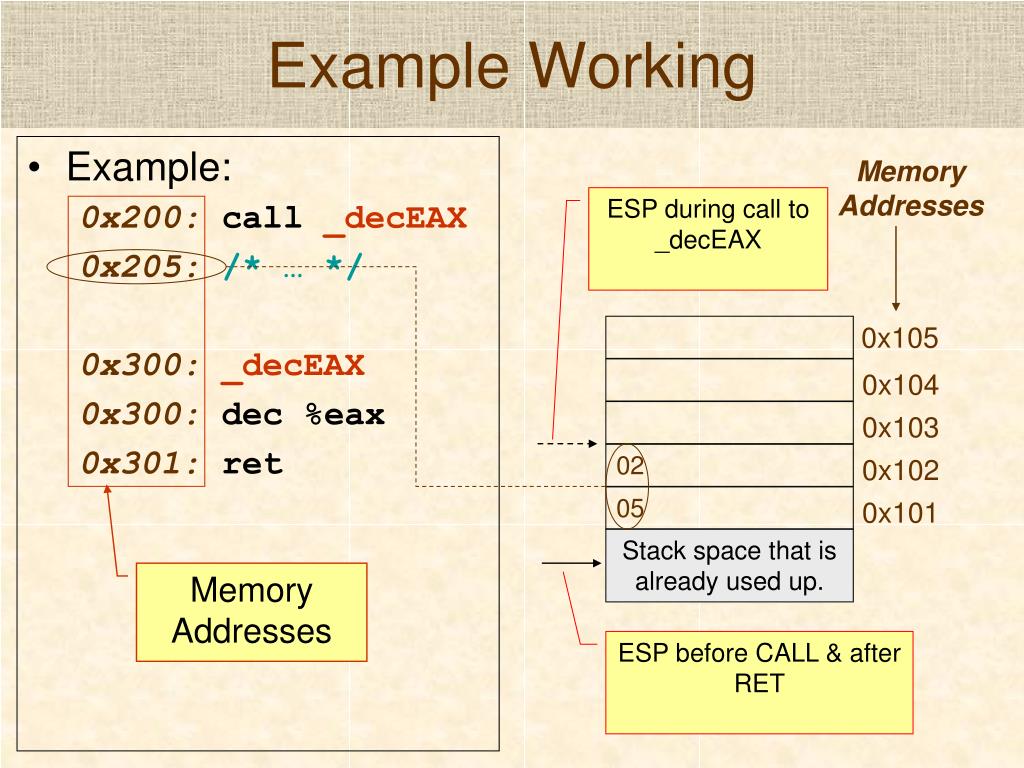

12. Example Working • Example: 0x200: call _decEAX 0x205:/* … */ 0x300: _decEAX 0x300: dec %eax 0x301: ret Memory Addresses ESP during call to _decEAX 0x105 0x104 0x103 02 0x102 05 0x101 Stack space that is already used up. Memory Addresses ESP before CALL & after RET

13. Parameters on the Stack • Parameters are typically passed to methods using the stack • Requires some agreement or conventions between caller and called as to how parameters are handled • In what order are the parameters going to be stored • Are the parameters going to be removed from the stack? • How are values returned by the method? • In this course we are going to follow the C/C++ or GNU calling conventions.

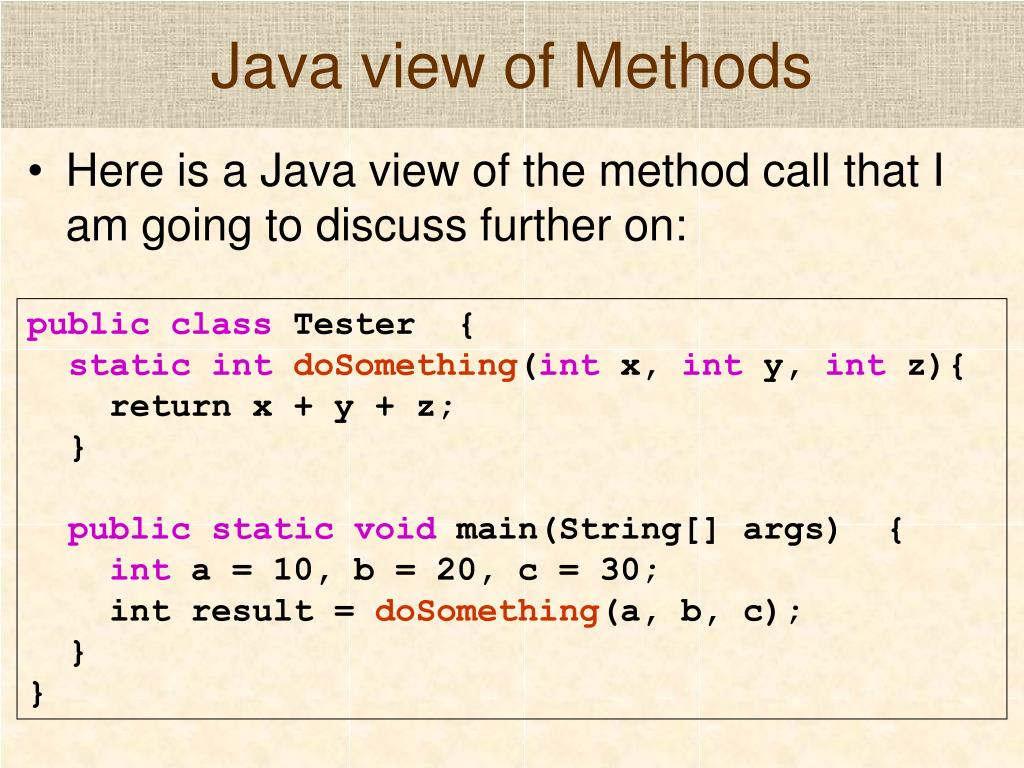

14. Java view of Methods • Here is a Java view of the method call that I am going to discuss further on: public class Tester { static intdoSomething(int x, int y, int z){ return x + y + z; } public static void main(String[] args) { int a = 10, b = 20, c = 30; int result = doSomething(a, b, c); } }

15. Callee Conventions via Example • Consider invoking a function doSomething(int a, int b, int c); • The call is encoded (from right-to-left) as: pushl c pushl b pushl a call doSomething /* Clean up stack */ addl $12, %esp /* Process return value */ /* in eax register */ mov %eax, result ESP return addr. (4-bytes) a (4-bytes) b (4-bytes) C (4-bytes) Stack layout after call to doSomething method!

16. Called Method Conventions • The following tasks must be performed • Must preserve value in %ebp, %ebx, %esi, %edi registers • If you change these registers in a method push them on to the stack and them pop them off! • Use %eax for return values • Use ebp to directly access parameters on the stack if method requires parameters! • First save ebp register on the stack. • Set ebp to point esp • Use ebp to access parameters • Pop ebp off the stack just before returning from method.

17. Called method by Example /* static intdoSomething(int x, int y,int z){ return x + y + z; } */ doSomething: pushl %ebp movl %esp, %ebp movl 8(%ebp), %eax/* eax = x */ addl 12(%ebp), %eax/* eax += y */ addl 14(%ebp), %eax/* eax += z */ popl %ebp ret

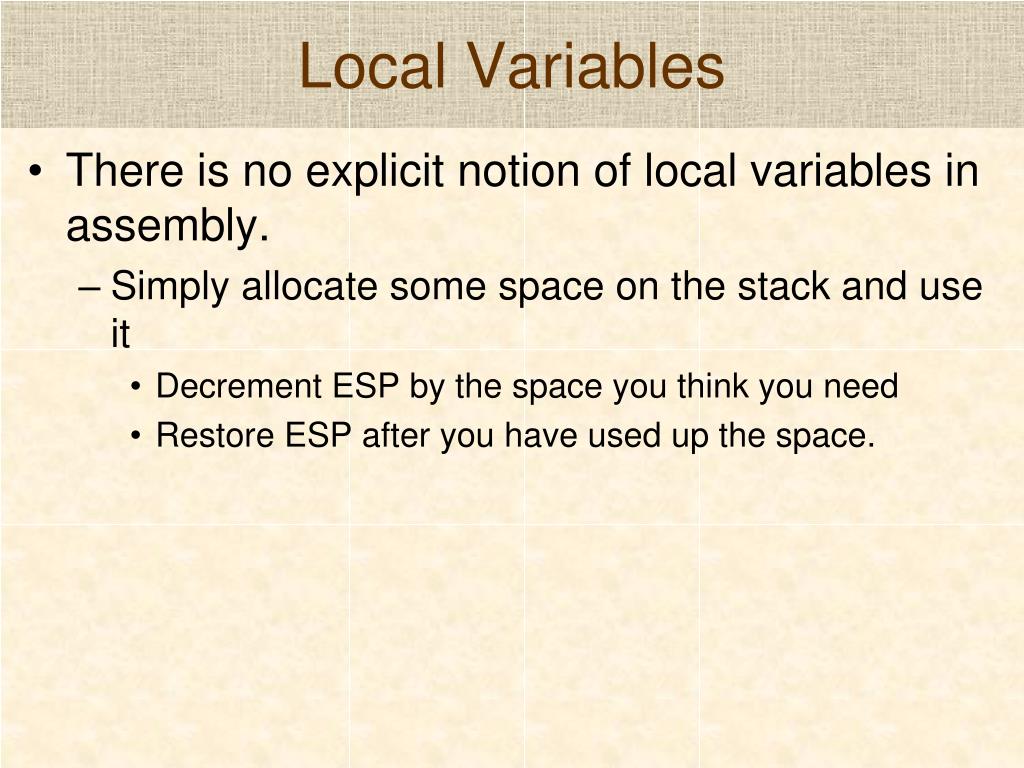

18. Local Variables • There is no explicit notion of local variables in assembly. • Simply allocate some space on the stack and use it • Decrement ESP by the space you think you need • Restore ESP after you have used up the space.

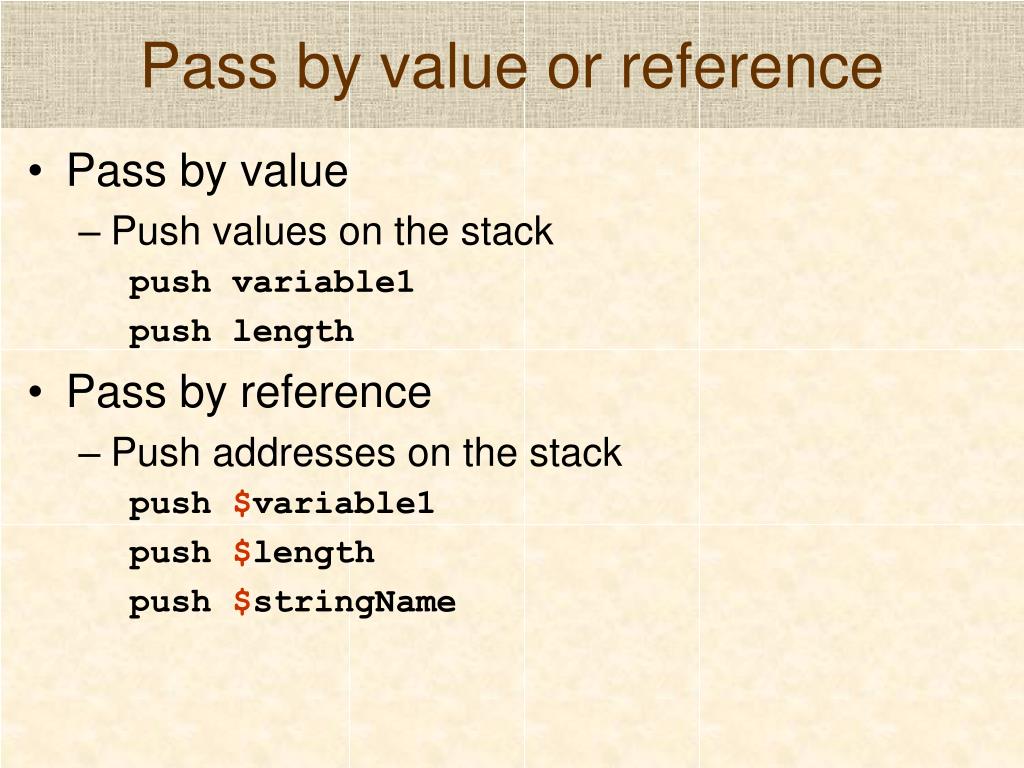

19. Pass by value or reference • Pass by value • Push values on the stack push variable1 push length • Pass by reference • Push addresses on the stack push $variable1 push $length push $stringName

20. What is an Interrupt • Interrupt is a more elaborate function call • That is typically used to transfer control from one program to another • One program is typically yours • The other program is either the operating system or the BIOS • Have a slightly different API • All parameters are passed via registers • Stack is not used • Registers contain return values like normal functions • None of the registers are guaranteed to be preserved

21. How to invoke an interrupt? • Interrupts (or elaborate function calls) are invoked using an interrupt number • Example, invoking interrupt 0x80 is done by: int $0x80 • Interrupt numbers range from 0x00 to 0xFF • Maximum of 255 interrupts • What does the interrupt number signify? • Some function that has been associated with that number. • How are functions associated with interrupt numbers? • Using a table called an Interrupt Vector Table (IVT)

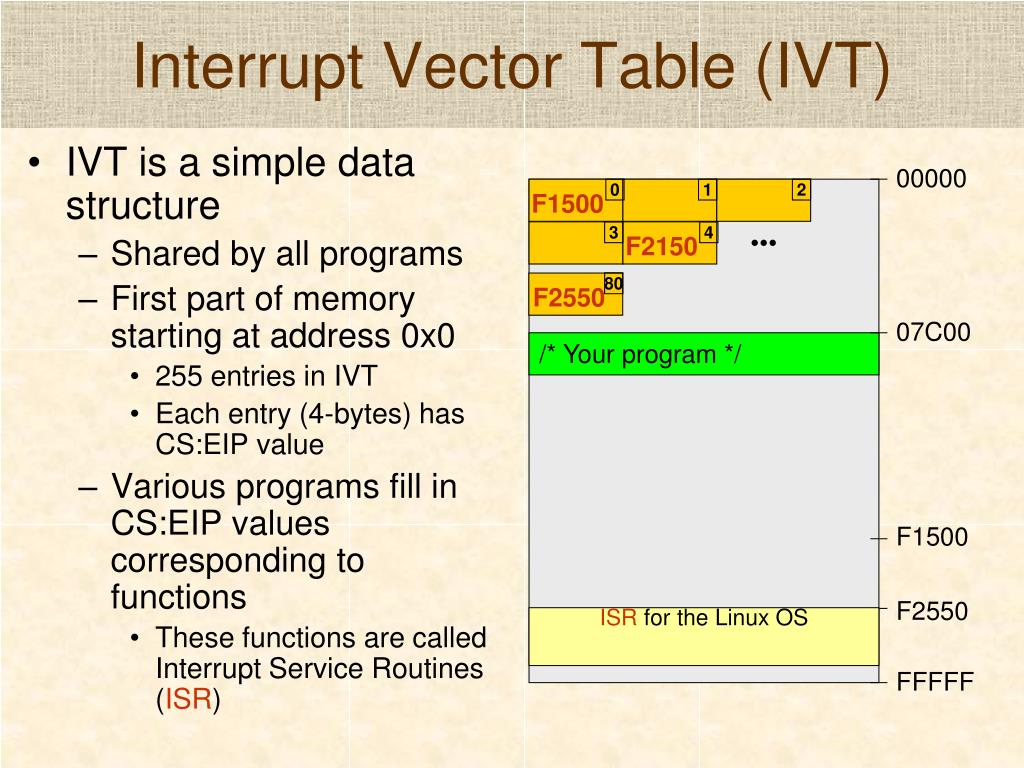

22. Interrupt Vector Table (IVT) • IVT is a simple data structure • Shared by all programs • First part of memory starting at address 0x0 • 255 entries in IVT • Each entry (4-bytes) has CS:EIP value • Various programs fill in CS:EIP values corresponding to functions • These functions are called Interrupt Service Routines (ISR) 00000 0 1 2 F1500 3 4 ••• F2150 80 F2550 07C00 /* Your program */ F1500 F2550 ISR for the Linux OS FFFFF

23. Working of Interrupts • When microprocessor executes INT $0x80 • It pushes EFLAGS, CS and then EIP registers onto the stack in this order • Jumps to the address specified in the IVT for 0x80 • In our case it is F2550 • The ISR starts running • It is a standard assembly program • ISR uses IRET instruction to return • IRET pops EIP, CS, and EFLAGS off the stack! • Execution resumes from the interrupted exception. 00000 0 1 2 F1500 3 4 ••• F2150 80 F2550 07C00 /* Your program */ F1500 F2550 ISR for the Linux OS FFFFF

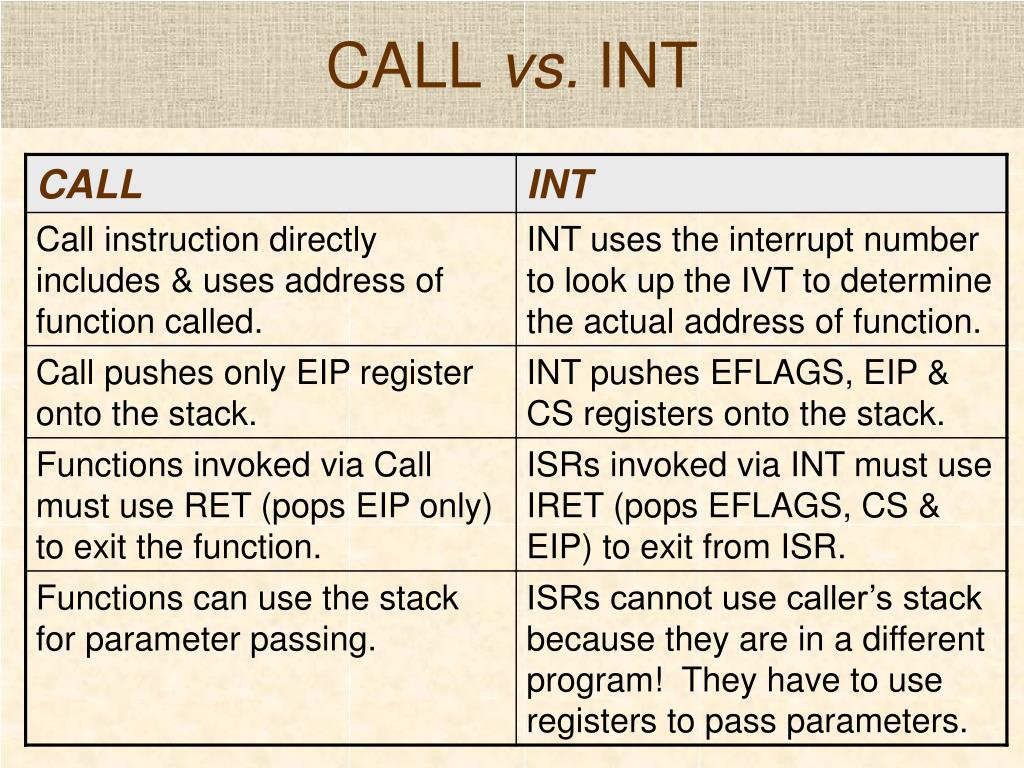

24. CALL vs. INT

25. Why are Interrupts needed? • Interrupts enable relocation of BIOS or OS ISRs in memory but provide consistent API • Different manufacturers may place BIOS at different places in memory • However, you consistently call BIOS ISRs using predefined interrupt numbers. • Different versions of the OS may place ISRs at different locations in memory • May depend on how much physical memory the machine has. • May depend on location of the ROM-BIOS. • However, you consistently use INT $0x80 to invoke the OS’s ISR! • Without this feature it is practically impossible to develop operating systems or any other software that can be installed on a variety of hardware platforms.
