Dead reckoning, piloting. John Huth. Topics. Measuring speed of boat Currents Leeway Errors from dead reckoning Piloting Curvature of the earth Landfall. Forces on boat. Wind Resistance on hull Current Lee-way (wind on sailing vessel) . Forces on a sailboat, and resultant motion.

loader
I am the owner, or an agent authorized to act on behalf of the owner, of the copyrighted work described.
capcha
Download Presentation

PowerPoint Slideshow about 'Dead reckoning, piloting' - dempster


An Image/Link below is provided (as is) to download presentation

Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author.While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server.


- - - - - - - - - - - - - - - - - - - - - - - - - - E N D - - - - - - - - - - - - - - - - - - - - - - - - - -
Presentation Transcript
topics
Topics
  • Measuring speed of boat
  • Currents
  • Leeway
  • Errors from dead reckoning
  • Piloting
    • Curvature of the earth
    • Landfall
forces on boat
Forces on boat
  • Wind
  • Resistance on hull
  • Current
  • Lee-way (wind on sailing vessel)
slide4

Forces on a sailboat, and resultant motion

Direction of motion

Leeway

Steering direction

Drag

Lateral force from keel

Wind

slide5

A big factor in hull resistance

is caused by the bow wave

and stern wave, creating a wake.

The number of wavelengths

between the bow-wave and

stern-wave partly determines

resistance.

A good navigator can estimate

hull speed from the shapes of

the bow wave and stern wave.

slide6

Estimating speed relative to water

Boat length L

Start counting now

Piece of flotsam in water

Stop counting now

Speed is L/time

slide7

Ships log (or chip log)

The log gets thrown over

the stern of the vessel – as

the line gets played out,

sailors count the number

of knots that pass the

stern for a fixed period

of time. (where the

term “knot” for

“nautical mile” comes from).

This can be easily improvised.

slide8

How Polynesians estimated currents

Current direction

Initial bearing

Initial position

Final bearing

Position after drift

slide9

Estimating leeway

“Slick” of calmer water

Wake is tilted

Water piles up higher on bow

slide10

Compensating for leeway and current

Current

Desired heading

Leeway

Actual motion

Direction of travel

slide11

Example: compensating for current in a blind crossing

Current draining bay = 1 knot

Heading we chose

Desired heading

Speed = 4 knots

slide12

Errors (uncertainties) in position in dead reckoning

Uncertainties in speed and heading are typically a fixed

percentage – so, as a journey progresses, the numerical

uncertainty in position gets larger as time goes on

error -12o

Uncertainty in heading

Desired heading

error +12o

Uncertainty in speed

slide13

Expanding the target of landfall

Color of the sea

Birds

Clouds

Mountains

color of the sea
Color of the sea
  • Deep sea is typically a dark blue
    • Reflects the color of the sky, plus absorption
    • Depends, in part on content of algae
  • Color in shallower waters are a combination of factors
    • Color of the water itself
    • Color of the bottom (sand, rock, etc)
  • Examples
    • Tropical waters can be azure
slide16

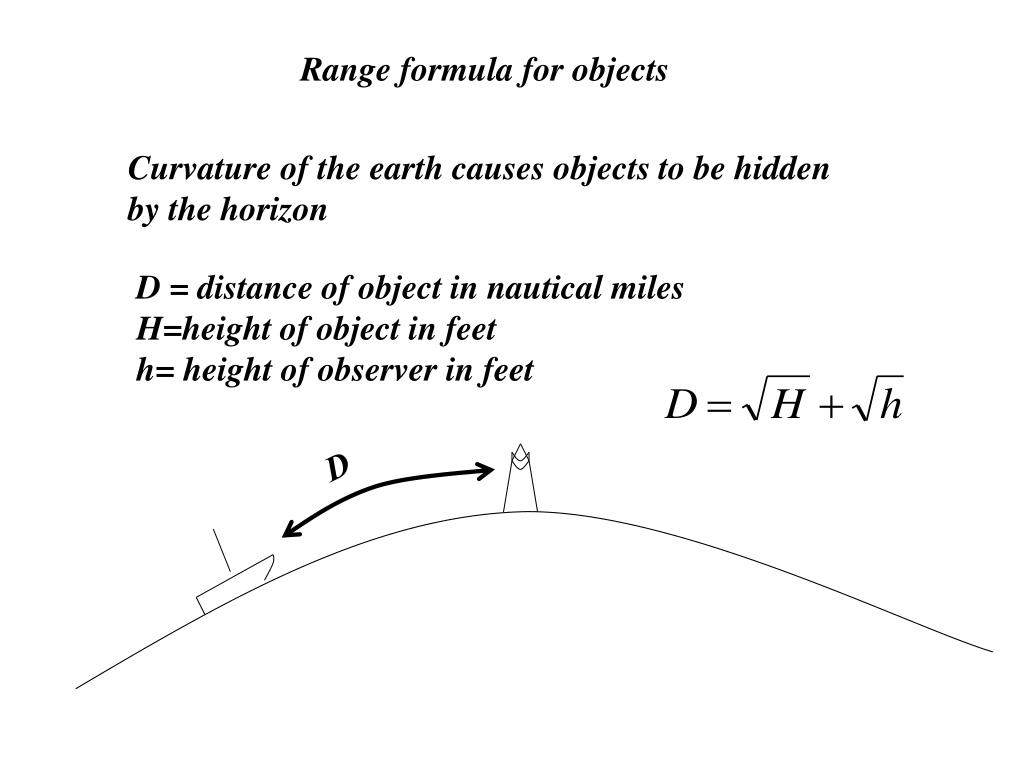

Range formula for objects

Curvature of the earth causes objects to be hidden

by the horizon

D = distance of object in nautical miles

H=height of object in feet

h= height of observer in feet

D

slide18

Sequence: approaching an island

Far distance – deep blue color
