  1. Size Selectivity in Ion channels Roland Roth Dirk Gillespie

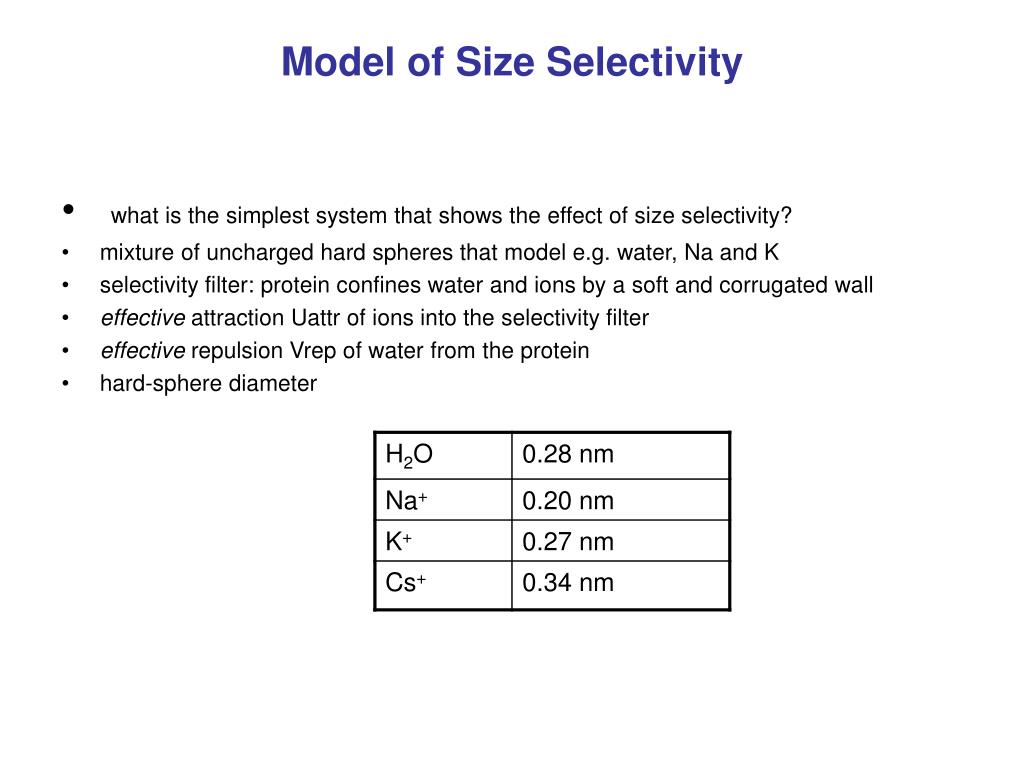

  2. Model of Size Selectivity • what is the simplest system that shows the effect of size selectivity? • mixture of uncharged hard spheres that model e.g. water, Na and K • selectivity filter: protein confines water and ions by a soft and corrugated wall • effective attraction Uattr of ions into the selectivity filter • effective repulsion Vrep of water from the protein • hard-sphere diameter

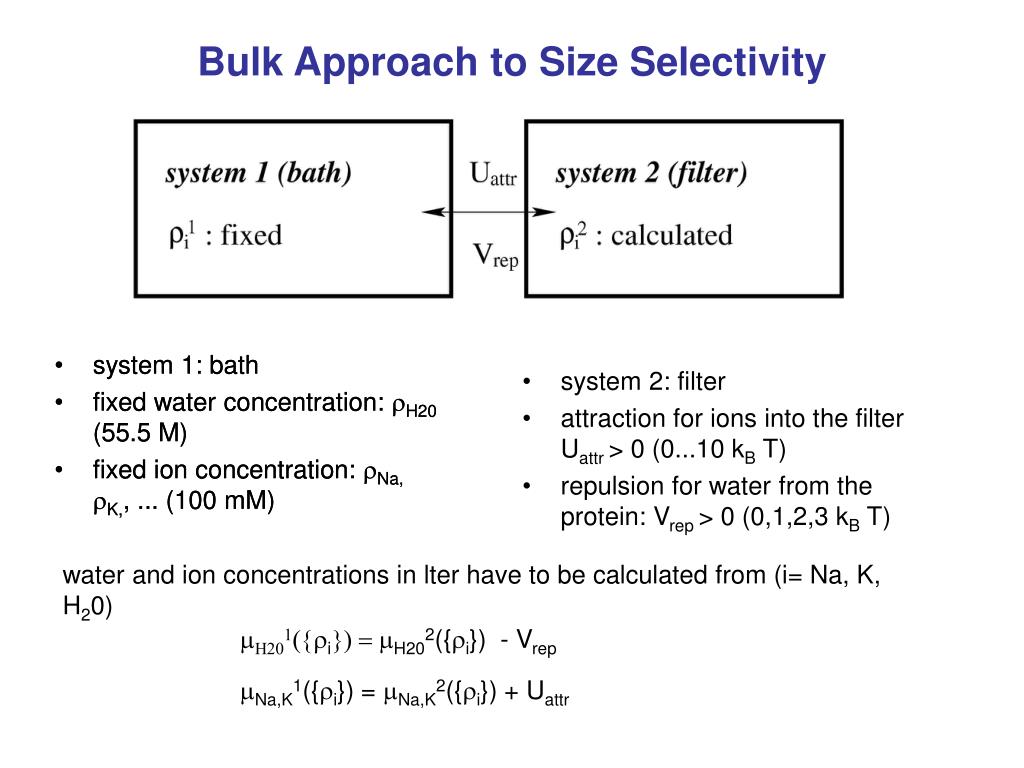

  3. Bulk Approach to Size Selectivity • system 1: bath • fixed water concentration: rH20 (55.5 M) • fixed ion concentration: rNa, rK,, ... (100 mM) • system 2: filter • attraction for ions into the filter Uattr > 0 (0...10 kB T) • repulsion for water from the protein: Vrep > 0 (0,1,2,3 kB T) • system 1: bath • fixed water concentration: rH20 (55.5 M) • fixed ion concentration: rNa, rK,, ... (100 mM) water and ion concentrations in lter have to be calculated from (i= Na, K, H20) mH201({ri}) = mH202({ri}) - Vrep mNa,K1({ri}) = mNa,K2({ri}) + Uattr

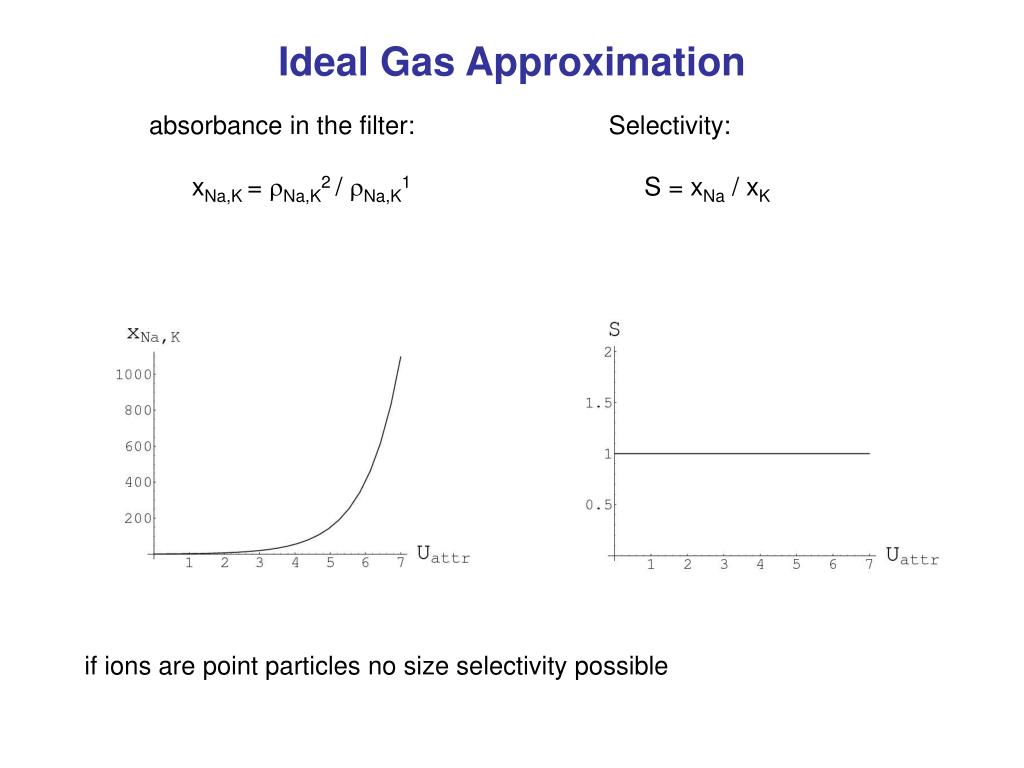

  4. Ideal Gas Approximation absorbance in the filter: xNa,K = rNa,K2 / rNa,K1 Selectivity: S = xNa / xK if ions are point particles no size selectivity possible

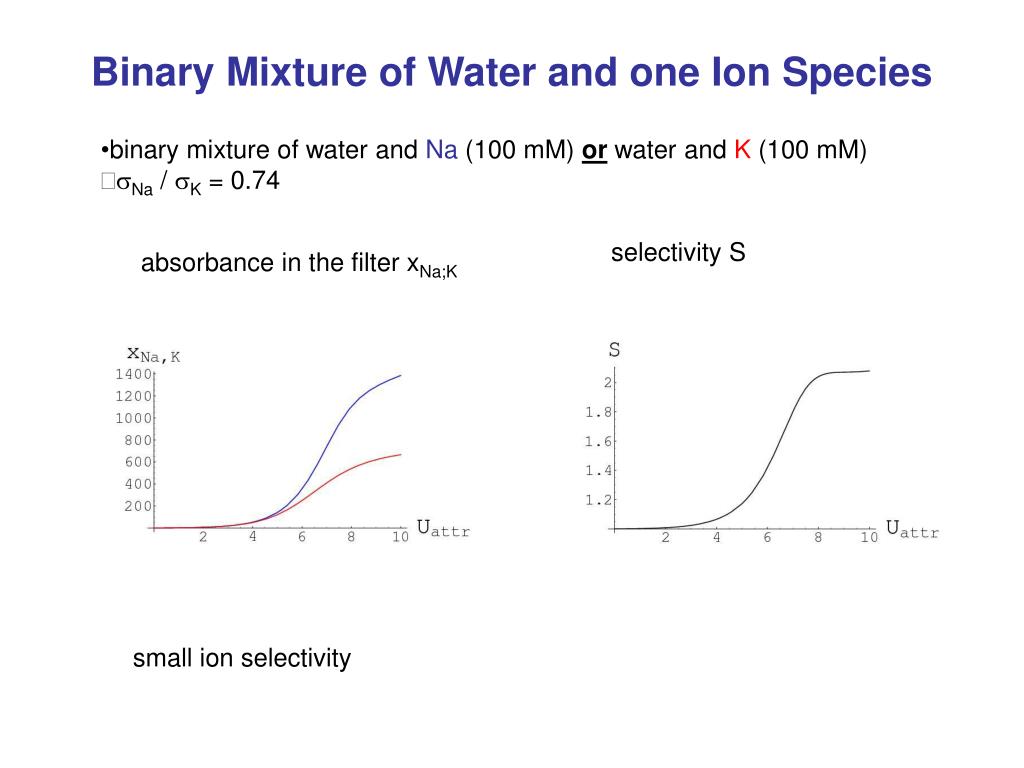

  5. Binary Mixture of Water and one Ion Species • binary mixture of water and Na (100 mM) or water and K (100 mM) • sNa / sK = 0.74 selectivity S absorbance in the filter xNa;K small ion selectivity

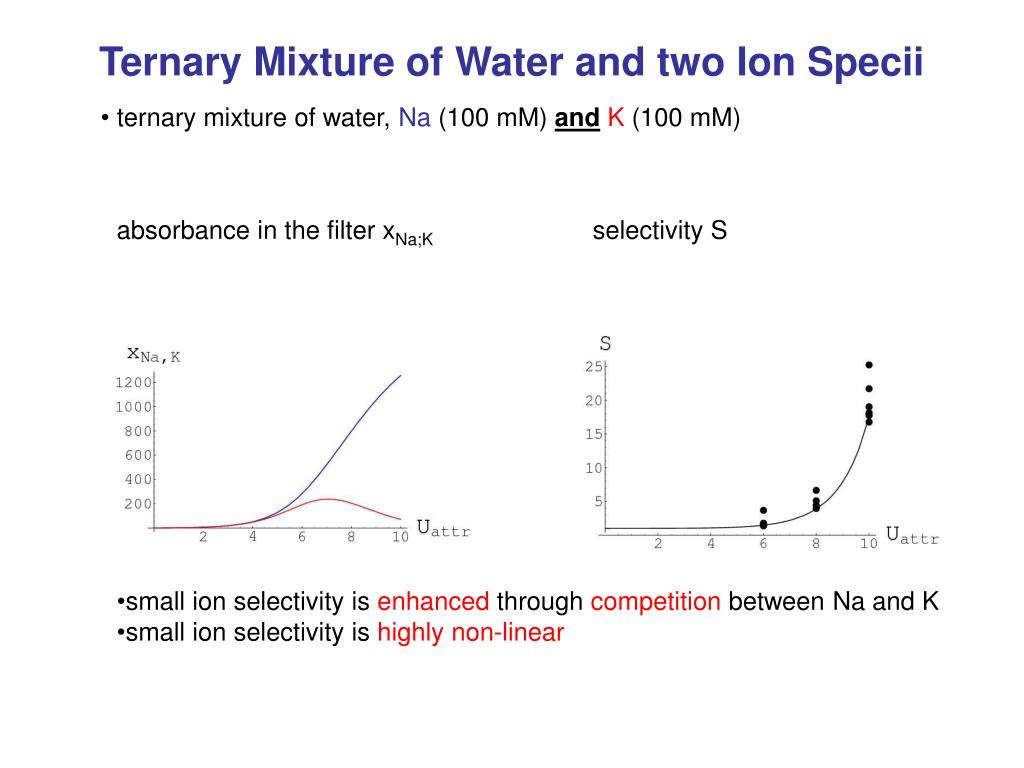

  6. Ternary Mixture of Water and two Ion Specii • ternary mixture of water, Na (100 mM) andK (100 mM) absorbance in the filter xNa;K selectivity S • small ion selectivity is enhanced through competition between Na and K • small ion selectivity is highly non-linear

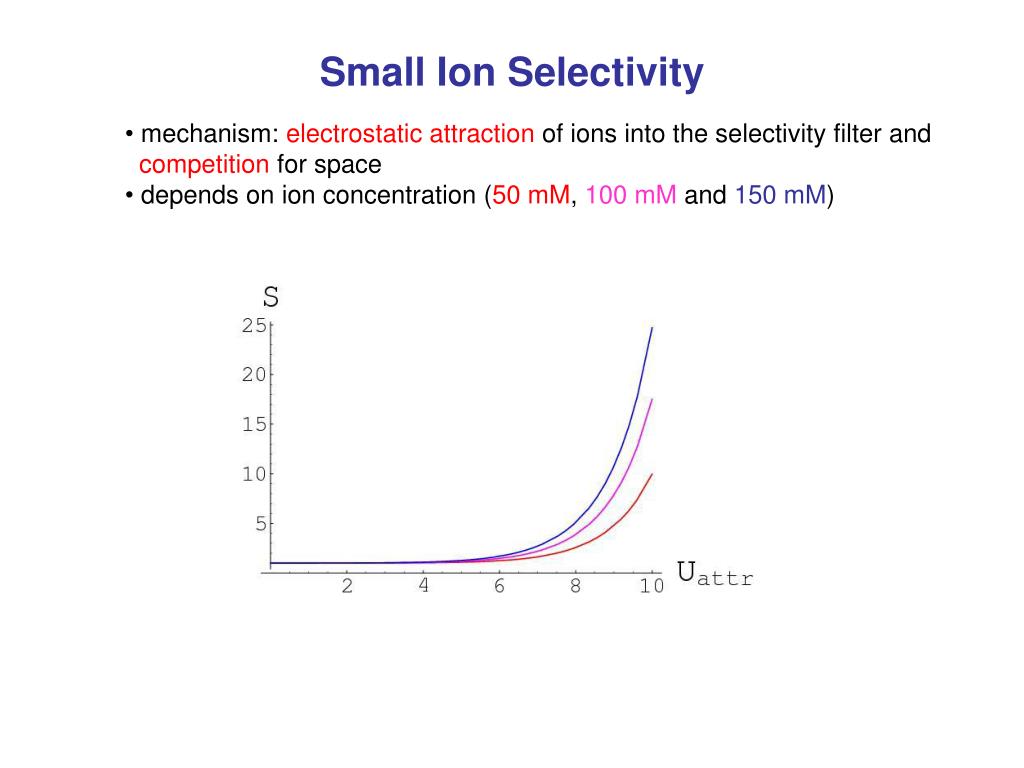

  7. Small Ion Selectivity • mechanism: electrostatic attraction of ions into the selectivity filter and • competition for space • depends on ion concentration (50 mM, 100 mM and 150 mM)

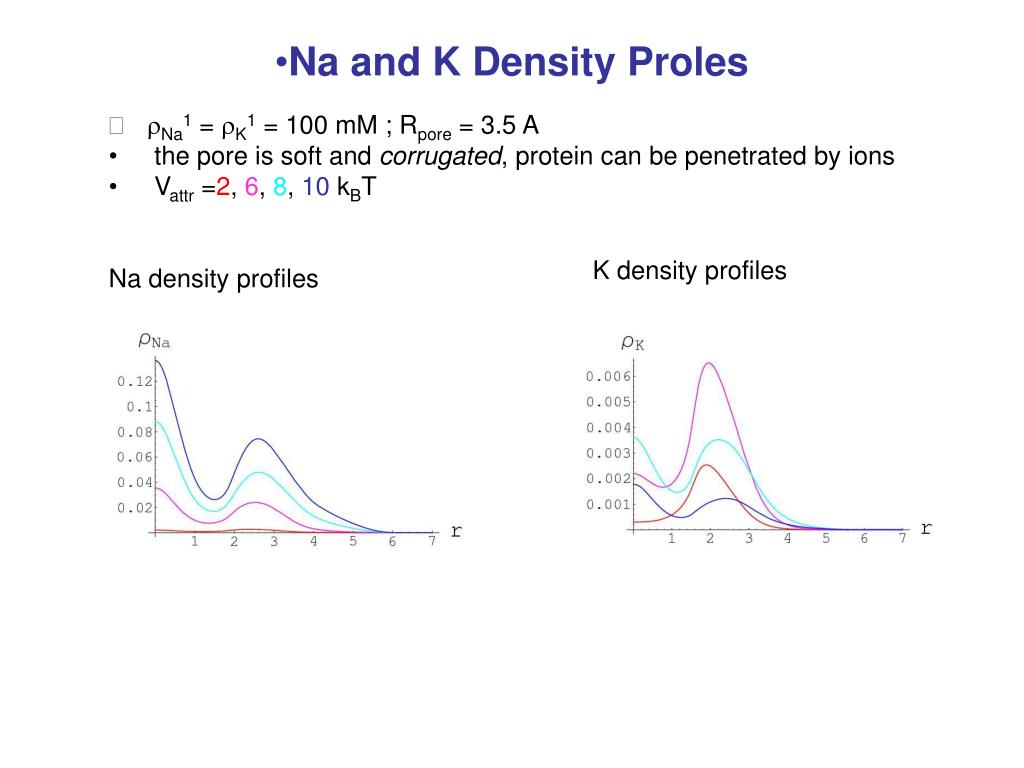

  8. Na and K Density Proles • rNa1 = rK1 = 100 mM ; Rpore = 3.5 A • the pore is soft and corrugated, protein can be penetrated by ions • Vattr =2, 6, 8, 10 kBT K density profiles Na density profiles

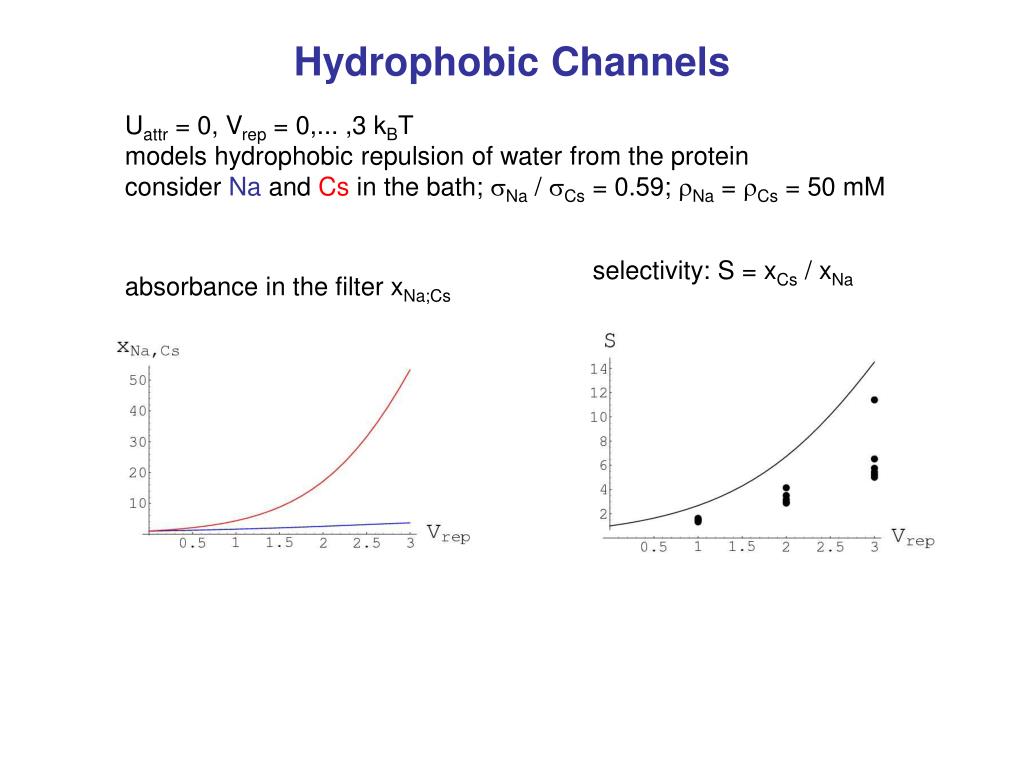

  9. Hydrophobic Channels Uattr = 0, Vrep = 0,... ,3 kBT models hydrophobic repulsion of water from the protein consider Na and Cs in the bath; sNa / sCs = 0.59; rNa = rCs = 50 mM selectivity: S = xCs / xNa absorbance in the filter xNa;Cs

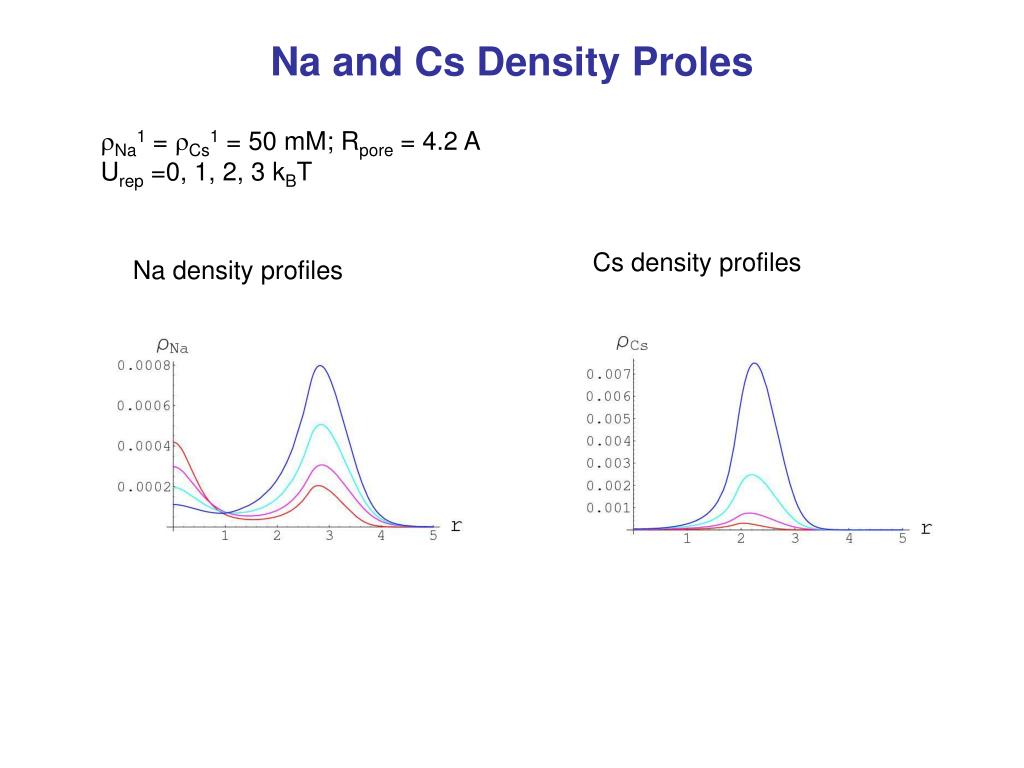

  10. Na and Cs Density Proles rNa1 = rCs1 = 50 mM; Rpore = 4.2 A Urep =0, 1, 2, 3 kBT Cs density profiles Na density profiles

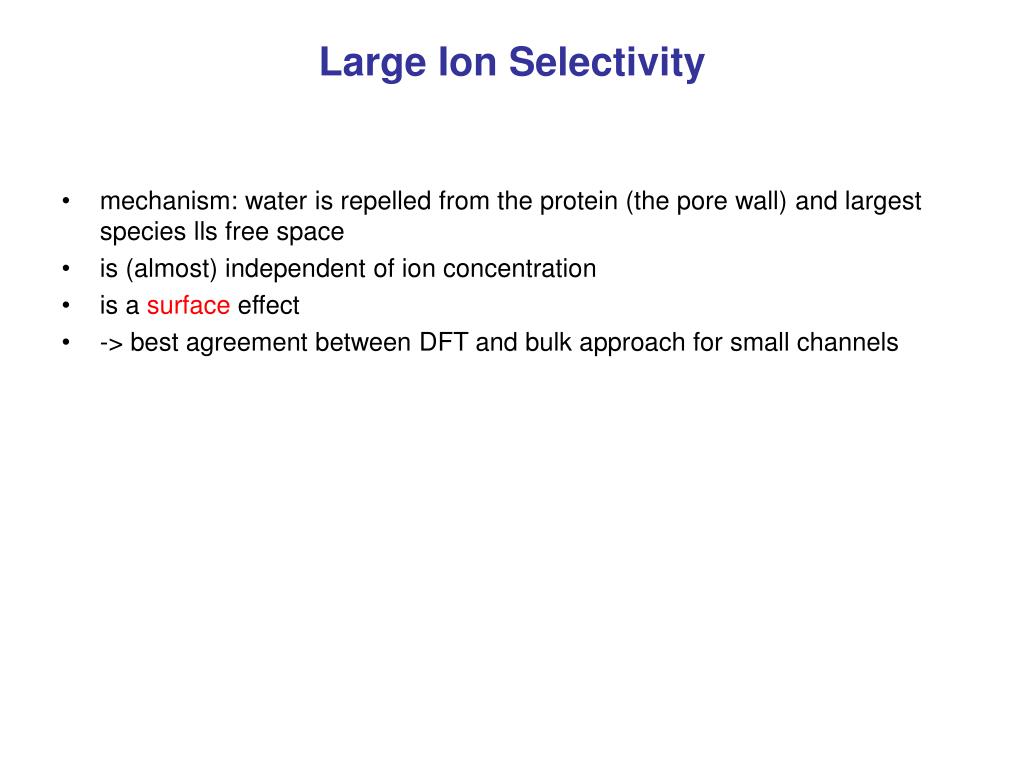

  11. Large Ion Selectivity • mechanism: water is repelled from the protein (the pore wall) and largest species lls free space • is (almost) independent of ion concentration • is a surface effect • -> best agreement between DFT and bulk approach for small channels

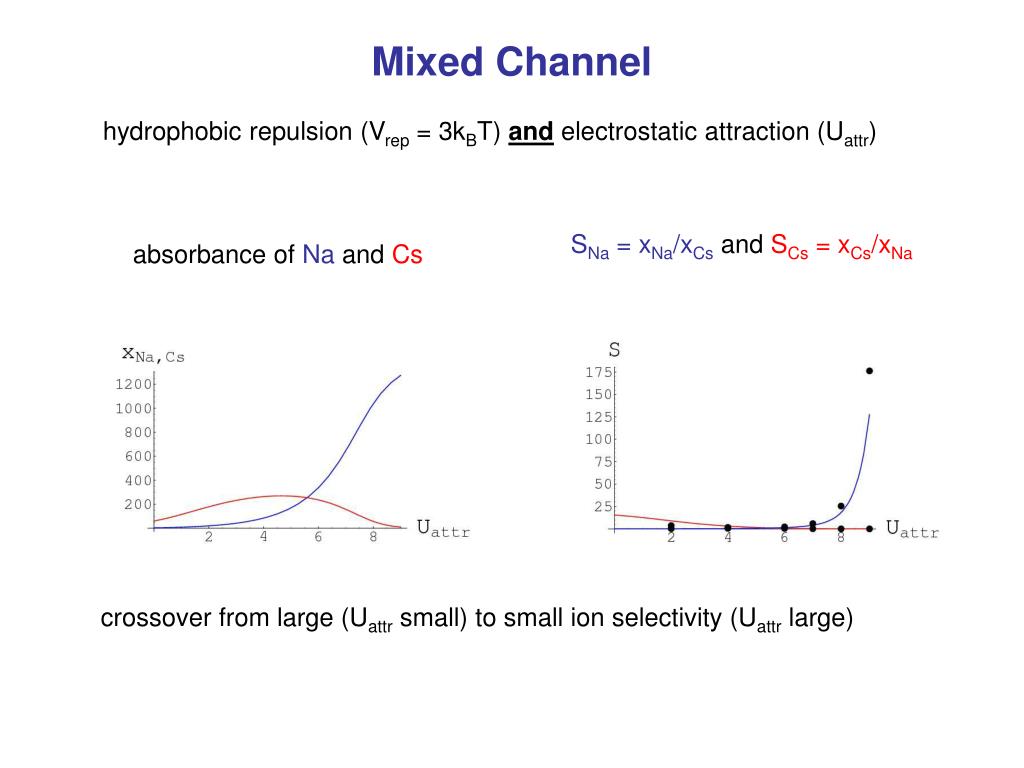

  12. Mixed Channel hydrophobic repulsion (Vrep = 3kBT) and electrostatic attraction (Uattr) SNa = xNa/xCs and SCs = xCs/xNa absorbance of Na and Cs crossover from large (Uattr small) to small ion selectivity (Uattr large)

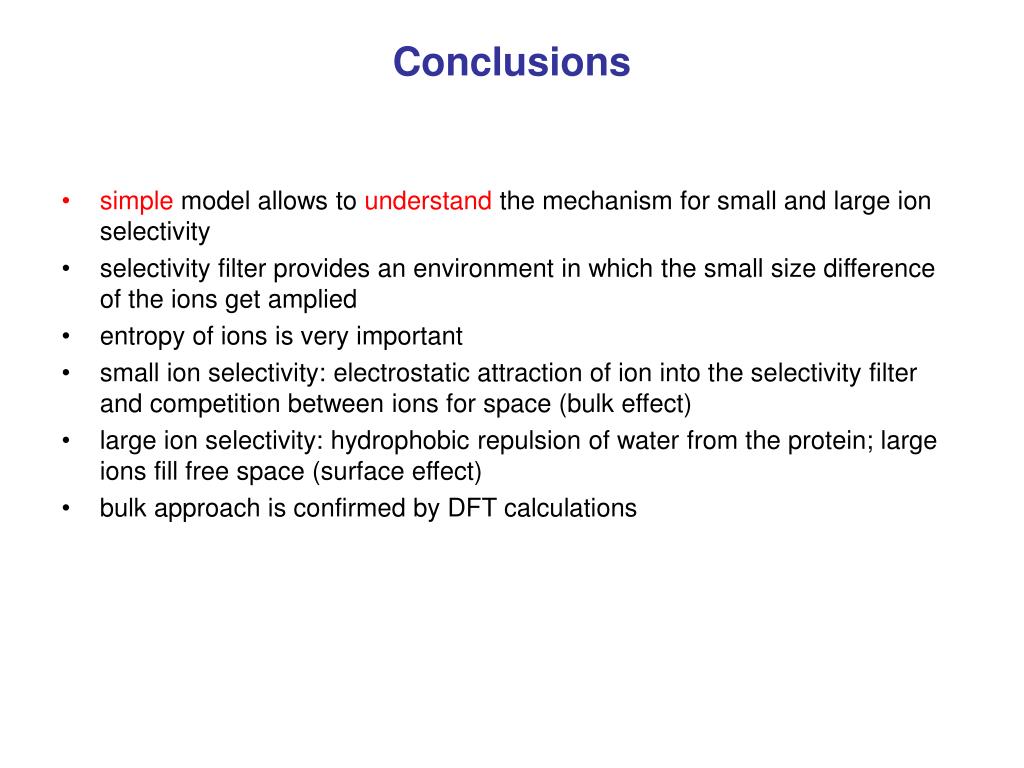

  13. Conclusions • simple model allows to understand the mechanism for small and large ion selectivity • selectivity filter provides an environment in which the small size difference of the ions get amplied • entropy of ions is very important • small ion selectivity: electrostatic attraction of ion into the selectivity filter and competition between ions for space (bulk effect) • large ion selectivity: hydrophobic repulsion of water from the protein; large ions fill free space (surface effect) • bulk approach is confirmed by DFT calculations

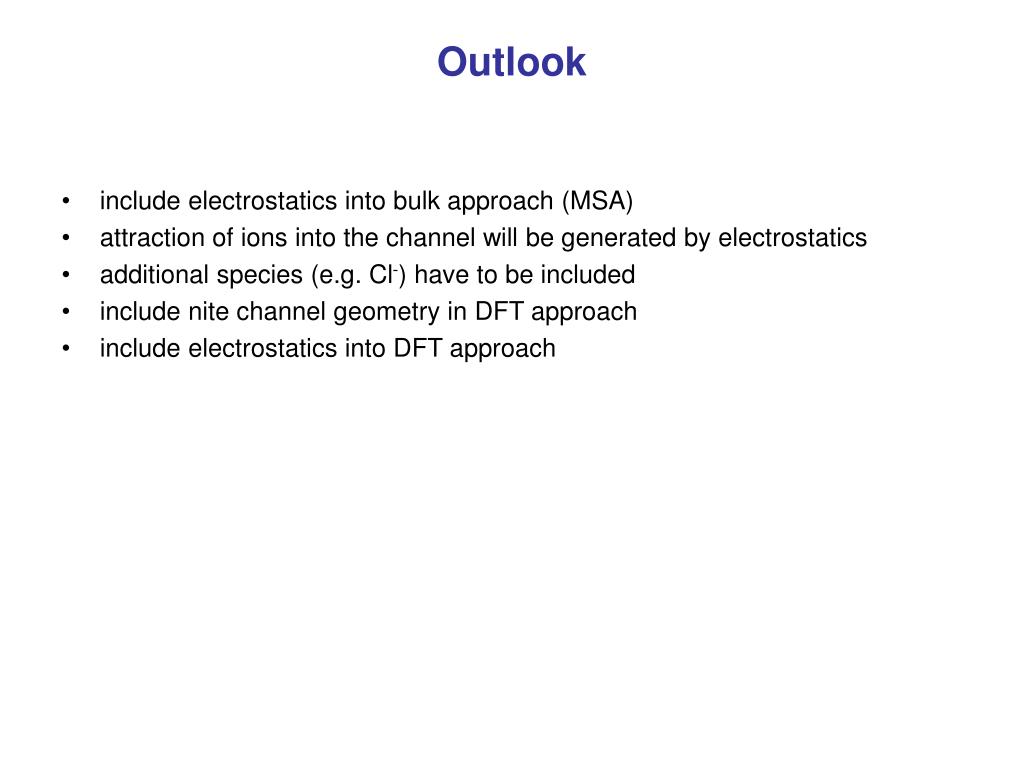

  14. Outlook • include electrostatics into bulk approach (MSA) • attraction of ions into the channel will be generated by electrostatics • additional species (e.g. Cl-) have to be included • include nite channel geometry in DFT approach • include electrostatics into DFT approach
