Voltage-Gated Ion Channels

Lipid bilayer. Transmembrane segment (cylinder). Voltage sensor part of the channel. Pore. Voltage-Gated Ion Channels. Voltage-dependent ion channels play a fundamental role in the generation and propagation of the nerve impulse and in cell homeostasis.

ethan-floyd
Download Presentation

Voltage-Gated Ion Channels

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript


  1. Lipid bilayer Transmembrane segment (cylinder) Voltage sensor part of the channel Pore Voltage-Gated Ion Channels • Voltage-dependent ion channels play a fundamental role in the generation and propagation of the nerve impulse and in cell homeostasis. • The voltage sensor is a region of the protein bearing charged amino acids that relocate upon changes in the membrane electric field. Segments (S5 and S6) and the pore loop were found to be responsible for ion conduction. General architecture of voltage-gated channels (Na+ and Ca2+).The “+” or “-“ signs indicate charges that have been implicated in voltage sensing.

  2. Voltage-Gated Ion Channels The Gate The ion conduction through the pore may be interrupted by closing a gate Lipid bilayer Closed states voltage gated ion channel field-effect transistor Open states voltage gated ion channel field-effect transistor Comparison between a field-effect transistor (FET) and a voltage gated ion channel. The FET transistor is represented as a p-channel device to make a closer analogy to a cation selective voltage-gated channel. In the FET, D is the drain, S is the source, and G is the gate.

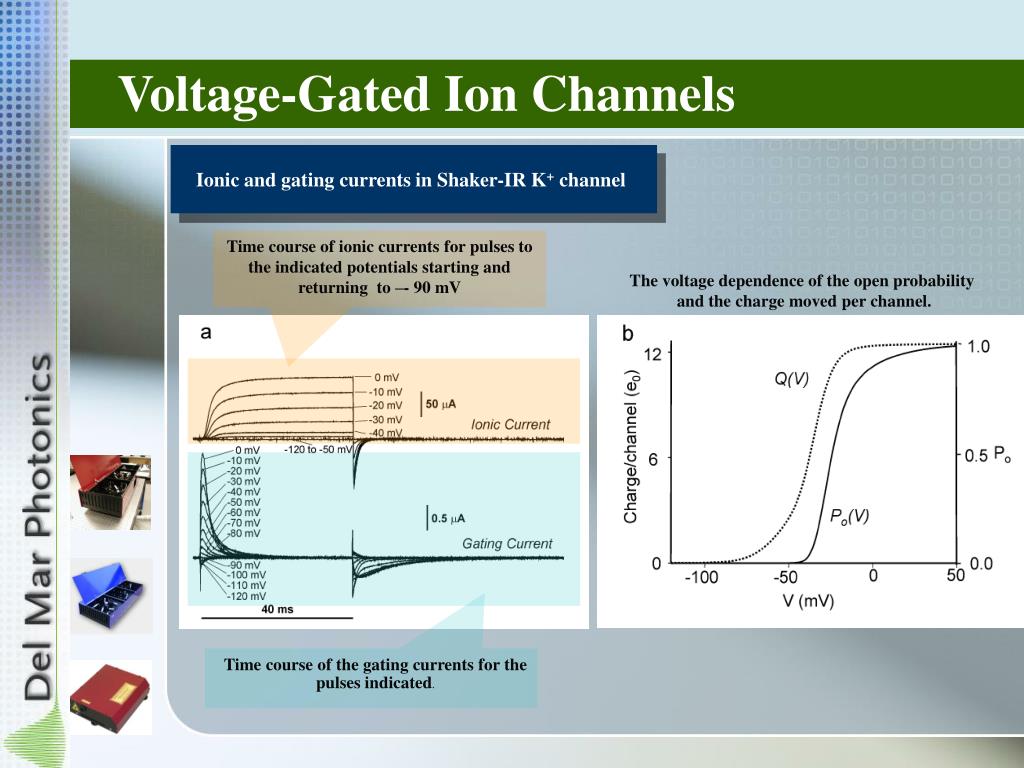

  3. Voltage-Gated Ion Channels Ionic and gating currents in Shaker-IR K+ channel Time course of ionic currents for pulses to the indicated potentials starting and returning to –- 90 mV The voltage dependence of the open probability and the charge moved per channel. Time course of the gating currents for the pulses indicated.

  4. Voltage-Gated Ion Channels Typical gating current trace Gating current recorded at 10-kHz bandwidth. When the bandwidth is increased to 200 kHz, the first surge of current is the predominant amplitude The time course of the charging of the membrane capacitance for the experiment in (b).

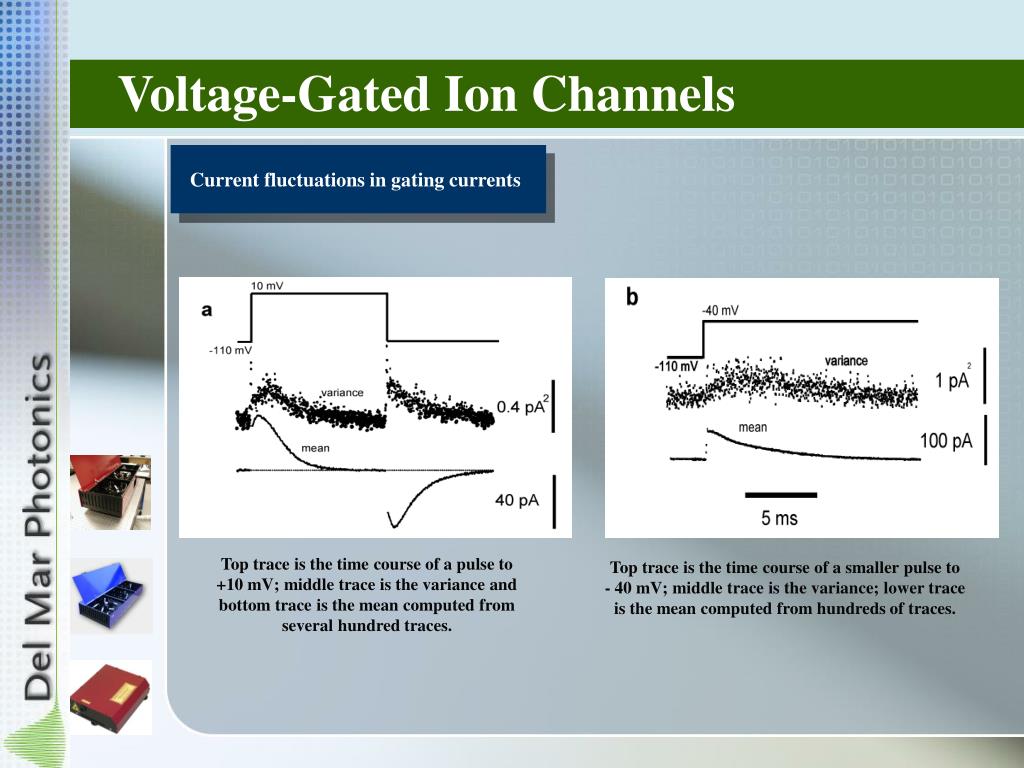

  5. Voltage-Gated Ion Channels Current fluctuations in gating currents Top trace is the time course of a pulse to +10 mV; middle trace is the variance and bottom trace is the mean computed from several hundred traces. Top trace is the time course of a smaller pulse to - 40 mV; middle trace is the variance; lower trace is the mean computed from hundreds of traces.

  6. Voltage-Gated Ion Channels Three models of the voltage sensor Helical screw model Transporter model. Paddle model. Positively charged residues
